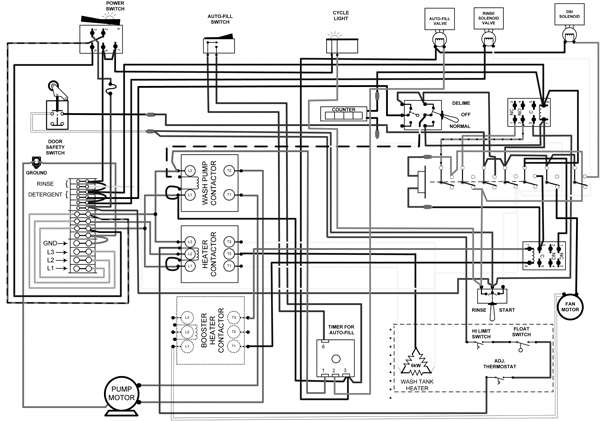

Wiring Diagram - |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
|
|

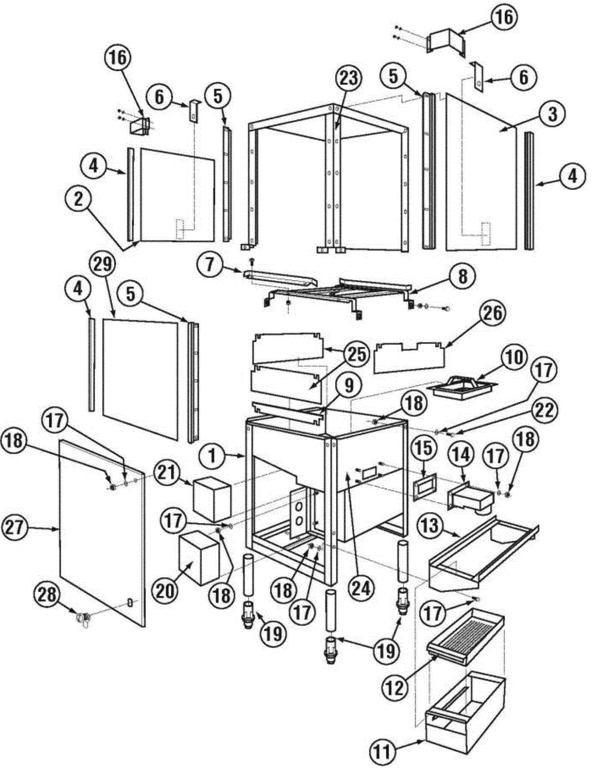

Straight Frame Assembly - 350-4054 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
350-1953 |
CMA-180-VL Frame Stand |
1 |
|
| 2 |
350-1925 |
Cma 180 Ventless Left Door |
1 |
|
| 3 |
350-2212 |
Ventless right door |
1 |
|
| 4 |
350-0450 |
EZ Glide Door Guide 26 1/4 inch |
6 |
|
| 5 |
350-1962 |
SS Door Guide 24 3/8 inch |
6 |
|
| 6 |
350-1960 |
CMA-180 Door Stop |
2 |
|
| 7 |
350-0715 |
Corner Tray Track Bolt-On Rail |
1 |
|
| 8 |
350-0711 |
Tray Track (EST/EC/EVAC/CMA-180) |
1 |
|
| 9 |
350-1932 |
CMA-180 Service Door Splash Guard |
1 |
|
| 10 |
350-1937 |
CMA-180 Strainer Basket |
2 |
|
| 11 |
350-0816 |
Scrap Trap Body (Universal) SS |
1 |
|
| 12 |
350-0818 |
Scrap Trap Drawer (Universal) |
1 |
|
| 13 |
350-1967 |
CMA-180 Scrap Trap Holder |
1 |
|
| 15 |
350-1899 |
CMA-180 Overflow Gasket |
1 |
|
| 16 |
350-0752 |
3-Door Bracket Outside Style |
2 |
|
| 17 |
350-0589 |
1/4 SS Washer |
60 |
|
| 18 |
350-0573 |
1/4-20 Nylon Lock Nut |
30 |
|
| 19 |
350-0665 |
Adjustable Socket Foot |
4 |
|
| 20 |
350-1942 |
CMA-180 Wash Tank Heater Cover |
1 |
|
| 22 |
350-0575 |
1/4-20 x 3/4 Hexhead Bolt |
23 |
|
| 23 |
350-1972 |
CMA-180 Ventless Wrapper |
1 |
|
| 25 |
350-1929 |
CMA-180 Door Splash Guard |
2 |
|
| 26 |
350-1930 |
180 Splash Shield - Drain Lever Side |
1 |
|
| 27 |
350-1956 |
CMA-180-VL Skirt |
1 |
|
| 28 |
350-0308 |
Lock - Keyless |
1 |
|
| 29 |
350-1924 |
CMA 180 Ventless Front Door |
1 |
|
|
|

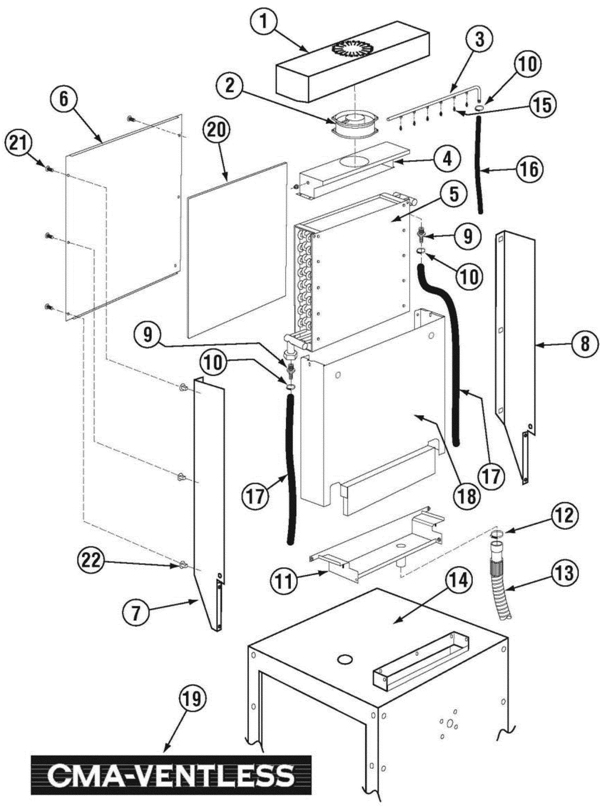

Heat Recovery Assembly - 350-4055 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
350-1974 |
CMA-180 Ventless Top Cover |
1 |
|
| 2 |
350-1107 |
CMA-180-VL Motor Fan 230v 50/60Hz |
1 |
|
| 3 |
350-1109 |
CMA-180-VL Battery Self Clnng Pipe |
1 |
|
| 5 |
350-1108 |
CMA-180-VL Condenser Coil |
1 |
|
| 6 |
350-1975 |
CMA-180 Ventless Rear Cover |
1 |
|
| 9 |
350-2036 |
1/2MPT x 1/2 Hose Barb Straight |
2 |
|
| 10 |
350-1119 |
Hose Clamp #4 Size #002 SS |
3 |
|
| 11 |
350-1973 |
CMA-180 Ventless Drain Pan |
1 |
|
| 12 |
350-1118 |
Hose Clamp Size #16 1 inch |
1 |
|
| 13 |
350-1830 |
Drain Hose with Goose Neck (9-06) |
1 |
|
| 14 |
350-1972 |
CMA-180 Ventless Wrapper |
1 |
|
| 15 |
350-0890 |
UC 50e Stainless Steel Rinse Nozzle |
7 |
|
| 16 |
350-1127 |
Flexible Black Hose 3/8 inch Horizon 250 |
1 |
|
| 17 |
350-1126 |
Flexible Hose 1/2 inch Horizon 250 |
2 |
|
|
|

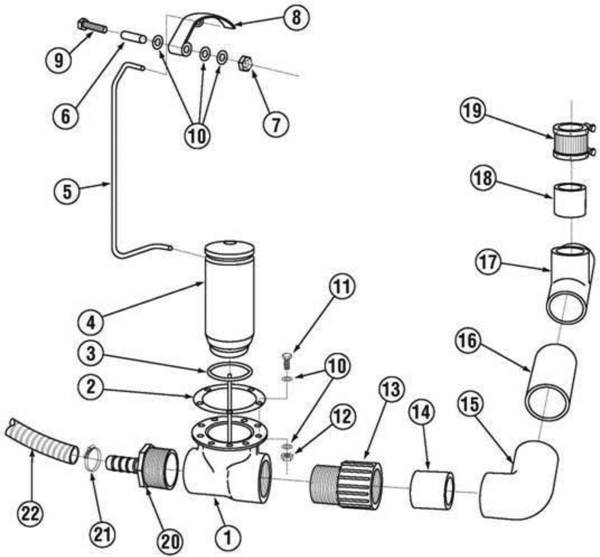

Drain System Assembly - Ventless - 350-4056 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
350-0028 |
CMA-180 Drain Tee Casting |
1 |
|
| 2 |
350-0030 |
Drain Tee Gasket |
1 |
|
| 3 |
350-0039 |
CMA-180 Drain Stopper O-Ring |
1 |
|
| 4 |
350-0038 |
CMA-180 Drain Stopper W/ inchO inch ring |
1 |
(includes item 3) |
| 5 |
350-1971 |
CMA-180 Drain Linkage |
1 |
|
| 6 |
350-1970 |
CMA-180 Drain Linkage Spacer |
1 |
|
| 7 |
350-0573 |
1/4-20 Nylon Lock Nut |
1 |
|
| 8 |
350-1969 |
CMA-180 Drain Lever |
1 |
|
| 9 |
350-0569 |
1/4-20 x 1 1/2 SS Hexhead Bolt |
1 |
|
| 10 |
350-0590 |
5/16 SS Washer |
16 |
|
| 11 |
350-0557 |
5/16-18 x 1 Hexhead Bolt |
6 |
|
| 12 |
350-1655 |
5/16-18 Nylon Insert Lock Nut |
6 |
|
| 13 |
350-0675 |
2 inch ABS SLIP x MIPT Adapter |
1 |
|
| 14 |
350-1314 |
2 inch x 4 inch PVC Tubing |
1 |
|
| 15 |
350-0673 |
2 inch ABS SLIP x SLIP 90 Ell |
1 |
|
| 16 |
350-1319 |
2 inch x 6 inch PVC Tubing |
1 |
|
| 17 |
350-0680 |
2 inch ABS Tee S x S x S |
1 |
|
| 18 |
350-1313 |
2 inch x 3 inch PVC Tubing |
1 |
|
| 19 |
350-0677 |
CMA-180 2 inch No Hub |
1 |
|
| 21 |
350-1118 |
Hose Clamp Size #16 1 inch |
1 |
|
| 22 |
350-1830 |
Drain Hose with Goose Neck (9-06) |
1 |
|
|
|

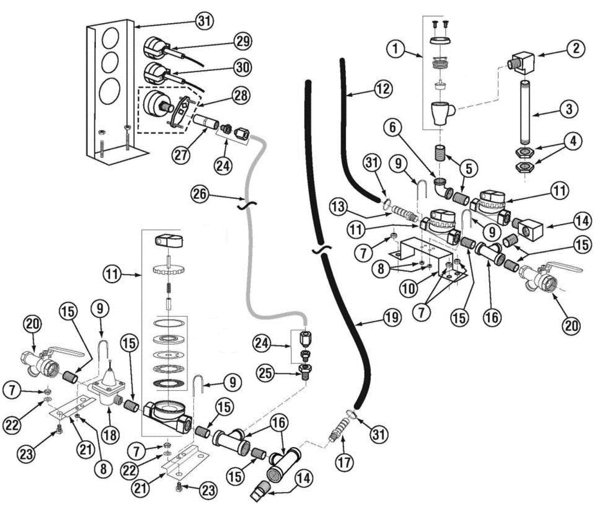

Plumbing Assembly - 350-4057 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1a |
350-0468 |
Vacuum Breaker-Watts 3/4 inch |
1 |
(includes 1b-1e) |
| 1b |
350-0254 |
6-32 x 1/4 SS Panhead Screw |
1 |
|
| 1c |
350-0482 |
3/4 Vac Breaker Brass Bonnet Watts |
1 |
|
| 1d |
350-0481 |
3/4 Vac Breaker Rep Kit Watts |
1 |
|
| 1e |
350-0485 |
3/4 Vac Breaker Cap SS |
1 |
|
| 2 |
350-0459 |
Street Elbow 3/4 inch 90Deg |
1 |
|
| 3 |
350-1613 |
Nipple Brass 3/4 x 5 1/2 |
1 |
|
| 4 |
350-1602 |
3/4 Jamb Lock Nut Thin Pattern |
2 |
|
| 5 |
350-1628 |
Nipple SS 3/4 x Close |
2 |
|
| 6 |
350-1625 |
3/4 90 Ell F x F SS |
2 |
|
| 7 |
350-0573 |
1/4-20 Nylon Lock Nut |
6 |
|
| 8 |
350-0573 |
1/4-20 Nylon Lock Nut |
4 |
|
| 9 |
350-0756 |
Plumbing Bracket inchU inch Clamp |
3 |
|
| 10 |
350-0755 |
Plumbing Support Bracket (Long) |
1 |
|
| 11a |
350-1192 |
1/2 Solenoid Valve JE 240V/50/60Hz |
3 |
(includes 11b-11e) |
| 11b |
350-0484 |
Solenoid Coil JE 220V (3/4 & 1/2) |
1 |
|
| 11c |
350-1193 |
1/2 Water Solenoid Bonnet |
1 |
|
| 11d |
350-0508 |
Water Sol Plunger 'G' JE 3/4 &1/2 |
1 |
|
| 11e |
350-0466 |
1/2 Water Solenoid Repair Kit JE |
1 |
|
| 12 |
350-1127 |
Flexible Black Hose 3/8 inch Horizon 250 |
1 |
|
| 14 |
350-1629 |
1/2 inch MIP Plug Brass Sq. Head |
1 |
|
| 15 |
350-1200 |
Nipple Brass 1/2 x Close |
8 |
|
| 16 |
350-0488 |
1/2 Tee F x F x F Brass |
3 |
|
| 17 |
350-2036 |
1/2MPT x 1/2 Hose Barb Straight |
1 |
|
| 18 |
350-1597 |
Pressure Regulator 1/2 |
1 |
|
| 20 |
350-2062 |
1/2 Strainer Ball Valve NPT |
2 |
|
| 22 |
350-0589 |
1/4 SS Washer |
2 |
|
| 23 |
350-0562 |
1/4-20 x 1/2 Hexhead Bolt |
2 |
|
| 24 |
350-2046 |
1/4 Comp x 1/4 MIP Fitting |
2 |
|
| 25 |
350-1598 |
1/2 x 1/4 Bushing Brass |
1 |
|
| 28 |
350-1601 |
Pressure Gauge CMA-180UC/EST Conv |
1 |
|
| 29 |
350-1143 |
Thermometer (Capillary) |
1 |
|
| 30 |
350-1144 |
Thermometer CMA-180 Rinse |
1 |
|
|
|

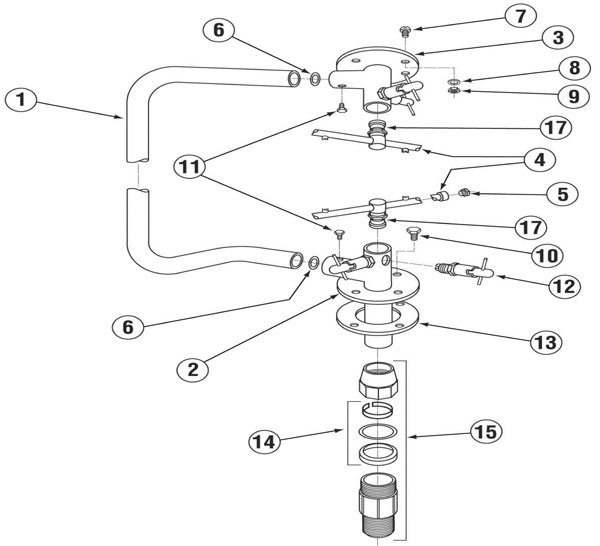

Wash Spray Assembly - 350-4058 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
350-0128 |
Manifold CMA-180 |
1 |
|
| 2 |
350-0173 |
CMA-180 Lower Spray Base (1-04) |
1 |
(includes 6 and 11-12) |
| 3 |
350-0175 |
Upper Spray Base Assy |
1 |
(includes 6 and 11-12) |
| 4 |
350-0138 |
CMA-180 Wash Spray Arm |
2 |
|
| 5 |
350-0155 |
Spray Arm End Plug SS |
4 |
|
| 6 |
350-0126 |
Spray Base O-Ring OD 1.25 ID 1.11 |
2 |
|
| 7 |
350-0561 |
1/4-20 x 1/2 Trusshead Bolt |
4 |
|
| 8 |
350-0589 |
1/4 SS Washer |
12 |
|
| 9 |
350-0573 |
1/4-20 Nylon Lock Nut |
8 |
|
| 10 |
350-0576 |
1/4-20 x 5/8 Hexhead Bolt 304SS |
4 |
|
| 12 |
350-0176 |
Spray Base Pull Lock Pin |
4 |
|
| 13 |
350-0124 |
Spray Base Gasket |
1 |
|
| 14 |
350-0106 |
1 inch Compression Gasket |
1 |
|
| 15 |
350-0105 |
1 inch Comp x 1 inch MIP SS Fitting |
1 |
|
| 17 |
350-0160 |
Spray Arm Bearing |
2 |
|
|
|
Door Handle Assembly - 350-4059 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
350-0425 |
Door Handle (AH/EST) 1 inch |
1 |
|
| 2 |
350-0795 |
Door Handle Support RH Brkt 1 inch |
1 |
|
| 3 |
350-0393 |
Door Spring Extension Rod (AB) |
2 |
|
| 5 |
350-1960 |
CMA-180 Door Stop |
2 |
|
| 6 |
350-0781 |
Door Handle Link 7 inch |
2 |
|
| 7 |
350-0408 |
Hook & Hook Turnbuckle |
2 |
|
| 8 |
350-0590 |
5/16 SS Washer |
2 |
|
| 10 |
350-0562 |
1/4-20 x 1/2 Hexhead Bolt |
4 |
|
| 11 |
350-0589 |
1/4 SS Washer |
8 |
|
| 12 |
350-0573 |
1/4-20 Nylon Lock Nut |
8 |
|
| 13 |
350-0414 |
Door Handle Spacer (Small) SS |
4 |
|
| 14 |
350-0415 |
Door Handle Spacer (Lg) |
4 |
|
| 15 |
350-0410 |
Door Handle Cap 1 inch Black |
2 |
|
| 16 |
350-0793 |
Door Handle Support LH Brkt 1 inch |
1 |
|
| 17 |
350-0569 |
1/4-20 x 1 1/2 SS Hexhead Bolt |
2 |
|
| 18 |
350-0381 |
Door Switch Bracket (8-08) |
1 |
|
| 19 |
350-0382 |
Door Switch Actuator (8-08) |
1 |
|
| 20 |
350-0374 |
Roller Door Switch |
1 |
|
| 21 |
350-0379 |
Connector-#562 Door Roller Switch |
1 |
|
| 22 |
350-0405 |
Door Rod Spacer |
1 |
|
| 23 |
350-0359 |
Switch Cord 18 AWG |
1 |
|
|
|

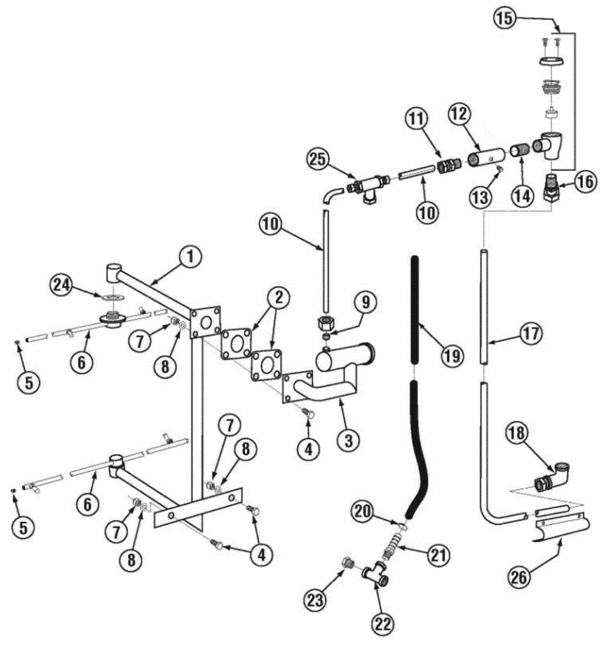

Final Rinse Assembly - 350-4060 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
350-1897 |
CMA-180 Final Rinse Manifold |
1 |
|
| 2 |
350-1254 |
Red Silicone Gasket CMA-180 |
2 |
|
| 3 |
350-1607 |
CMA-180-VL Final Rinse Pipe Ass'y |
1 |
|
| 4 |
350-0575 |
1/4-20 x 3/4 Hexhead Bolt |
6 |
|
| 5 |
350-0152 |
Rinse Arm SS End Plug (CMA-180) |
4 |
|
| 6 |
350-0140 |
Rinse Arm w/Bearings (CMA-180 & 180UC) |
2 |
|
| 7 |
350-0573 |
1/4-20 Nylon Lock Nut |
6 |
|
| 8 |
350-0589 |
1/4 SS Washer |
6 |
|
| 9 |
350-1605 |
3/8 Compression Fitting Sleeve |
1 |
|
| 10 |
350-1305 |
CMA-180 Tubing Final Rinse Plumbing |
1 |
|
| 11a |
350-0296 |
3/8 inch Comp x 1/2 inch MIP Fitting |
1 |
|
| 11b |
350-1604 |
3/8 Compression Fitting Nut |
1 |
|
| 12 |
350-1634 |
Mixing Chamber SS CMA 180UC |
1 |
|
| 13 |
350-1164 |
1/8 Male Plug |
1 |
|
| 14 |
350-1621 |
Nipple SS 1/2 x Close |
1 |
|
| 15a |
350-1202 |
Vacuum Breaker 1/2 inch |
1 |
|
| 15b |
350-1201 |
1/2 Vac Breaker Repair Kit Watts |
1 |
|
| 15c |
350-1203 |
1/2 Vac Breaker Bonnet Brass Watt |
1 |
|
| 15d |
350-0485 |
3/4 Vac Breaker Cap SS |
1 |
|
| 15e |
350-0254 |
6-32 x 1/4 SS Panhead Screw |
1 |
|
| 16 |
350-0499 |
5/8 Comp x 1/2 MIP Adapter |
1 |
|
| 17 |
350-1608 |
CMA-180-VL Rinse Plumbing Line SS |
1 |
|
| 18 |
350-0491 |
1/2 90Deg Street Elbow |
1 |
|
| 20 |
350-1119 |
Hose Clamp #4 Size #002 SS |
1 |
|
| 21 |
350-2036 |
1/2MPT x 1/2 Hose Barb Straight |
1 |
|
| 23 |
350-1629 |
1/2 inch MIP Plug Brass Sq. Head |
1 |
|
| 24 |
350-1254 |
Red Silicone Gasket CMA-180 |
1 |
|
|
|

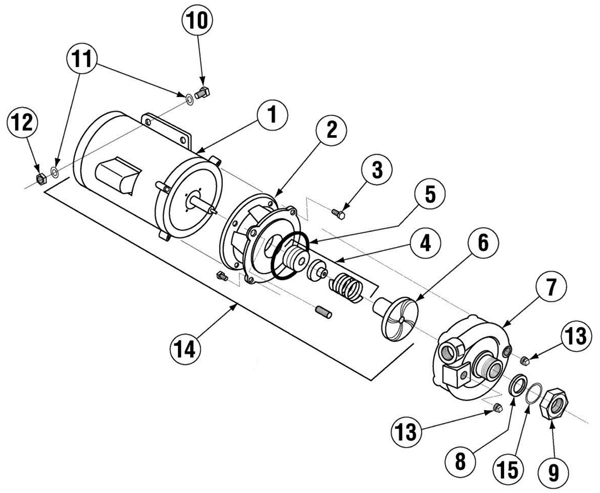

Pump Assembly - 350-4061 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1a |
350-0072 |
Wash Motor 1 Hp 115/208-230V 60Hz |
1 |
|
| 1b |
350-0083 |
Wash Motor 1 Hp 3pH 220/460V 60Hz |
1 |
|
| 2 |
350-1247 |
Pump Base Stainless Steel |
1 |
|
| 3a |
350-0584 |
3/8-16 x 3/4 SS Hexhead Bolt |
6 |
|
| 3b |
350-0616 |
3/8-16 x 1 1/2 SS Stud |
2 |
|
| 4 |
350-0093 |
Pump Seal Kit (11/07) |
1 |
|
| 5 |
350-1162 |
Pump O-Ring Gasket |
1 |
|
| 6 |
350-1154 |
Impeller (Open) SS |
1 |
|
| 7 |
350-1248 |
Pump Cover Stainless Steel |
1 |
|
| 8 |
350-0098 |
Slip Joint Nut O-Ring Gasket Buna |
1 |
|
| 9 |
350-1245 |
Compression Nut 2.5 inch |
1 |
|
| 10 |
350-0562 |
1/4-20 x 1/2 Hexhead Bolt |
2 |
|
| 11 |
350-0589 |
1/4 SS Washer |
2 |
|
| 12 |
350-0573 |
1/4-20 Nylon Lock Nut |
2 |
|
| 13 |
350-0108 |
3/8 Male Plug - Sq Head |
2 |
|
| 14 |
350-0057 |
Pump Assy 115/220V 60Hz (Open) |
1 |
(includes 1-6) |
| 15 |
350-0097 |
Slip Joint Nut Friction Ring Plastic |
1 |
|
|
|
Wash Tank Heater Assembly - Triangular Flange - 350-4062 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1a |
350-1816 |
Immersion Heater 6kW208-240V T-Flange |
1 |
|
| 1b |
350-1487 |
Immersion Heater 6kW 480V T-Flange |
1 |
|
| 1c |
350-1475 |
Heater Thermostat |
1 |
|
| 2 |
350-1506 |
Liquid Level Switch-Long-D Flat |
1 |
|
| 3 |
350-1507 |
Liquid Level Switch Shield (open) |
1 |
|
| 6 |
350-1817 |
Red Silicone Heater Gasket |
1 |
|
|
|

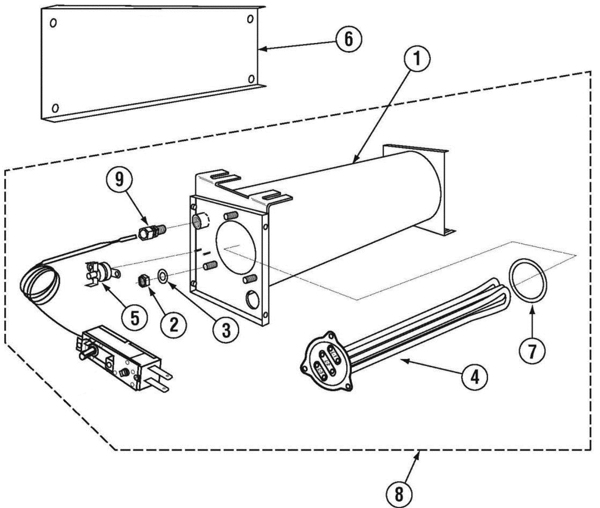

Booster Tank Heater - Triangular Flange - 350-4063 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
350-1959 |
CMA-180 Booster Tank (3 Studs) |
1 |
|
| 2 |
350-1655 |
5/16-18 Nylon Insert Lock Nut |
3 |
|
| 3 |
350-0590 |
5/16 SS Washer |
3 |
|
| 4a |
350-1484 |
Immersion Heater 240V/12kW T-Flange |
1 |
|
| 4b |
350-1486 |
Immersion Heater 12kW 480V T-Flange |
1 |
|
| 4b |
350-1475 |
Heater Thermostat |
1 |
|
| 5 |
350-1943 |
Hi Limit Switch 250 Deg |
1 |
|
| 6 |
350-1940 |
CMA-180 Booster Heater Shield |
1 |
|
| 7 |
350-1817 |
Red Silicone Heater Gasket |
1 |
|
| 8 |
350-1966 |
Booster Tank Assy 220V |
1 |
|
| 9 |
350-2046 |
1/4 Comp x 1/4 MIP Fitting |
1 |
|
|
|

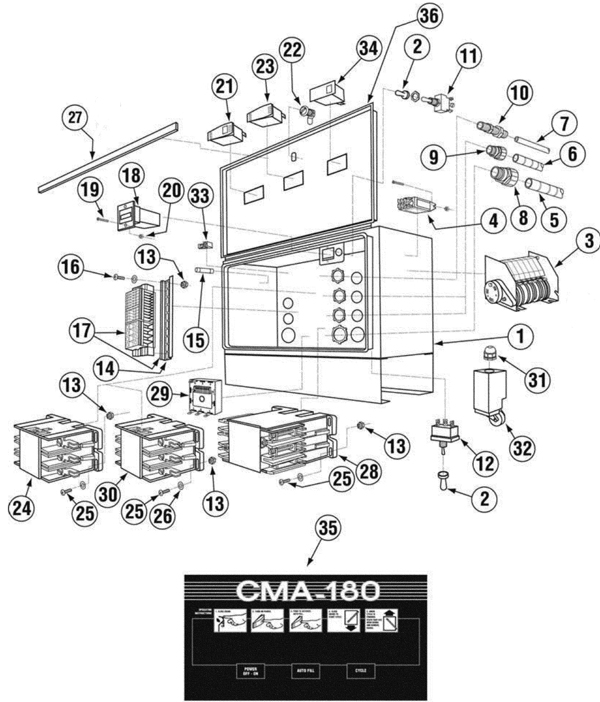

Control Box Assembly - 350-4064 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
350-1911 |
CMA-180 Control Box (Fabricated) |
1 |
|
| 2 |
350-0323 |
Toggle Switch Rubber Boot |
2 |
|
| 3a |
350-0222 |
CMA-180-VL Timer Assy |
1 |
(includes timer motor and microswitch) |
| 3b |
350-0338 |
Timer Motor Assy 90 Sec 220V/60Hz |
1 |
|
| 4 |
350-0445 |
Ice Cube Relay 220V 12 Amp |
1 |
|
| 5 |
350-0186 |
Conduit 3/4 Sealtite |
6ft |
|
| 6 |
350-0185 |
Conduit 1/2 Sealtite |
6ft |
|
| 7 |
350-0184 |
Conduit 3/8 Sealtite |
2ft |
|
| 8 |
350-0188 |
St-3/4 Straight Connector |
1 |
|
| 10 |
350-0187 |
St-3/8 Straight Connector |
1 |
|
| 11 |
350-0330 |
Toggle Switch DPDT 20 Amp/Delimer |
1 |
|
| 12 |
350-1182 |
Toggle Switch (Momentary) Screw Term |
1 |
|
| 13 |
350-1208 |
10-32 Lock Nut |
8 |
|
| 14 |
350-1892 |
CMA-180 Mounting Rail |
1 |
|
| 15 |
350-1444 |
Fuse 3 Amp 250V Slow Blow |
1 |
|
| 16 |
350-0605 |
10-32 x 5/8 Panhead Screw |
2 |
|
| 17a |
350-1896 |
CMA-180 Terminal Block Assy |
1 |
|
| 17b |
350-1891 |
CMA-180 30 Amp Term Block-Red |
2 |
|
| 17c |
350-1890 |
CMA-180 60 Amp Term Block-Black |
3 |
|
| 17d |
350-1889 |
CMA-180 85 Amp Term Block-Natural |
4 |
|
| 17e |
350-1894 |
CMA-180 30 Amp Term Block-Blue |
2 |
|
| 17f |
350-1895 |
CMA-180 30 Amp Term Block-Natural |
2 |
|
| 17g |
350-1893 |
CMA-180 60 Amp Term Block-Green |
1 |
|
| 18 |
350-1171 |
Counter - Face Mount 220V/50Hz |
1 |
|
| 19 |
350-0570 |
8-32 x 1/2 Panhead Screw |
4 |
|
| 20 |
350-0591 |
8-32 Nylon Lock Nut |
4 |
|
| 21 |
350-0259 |
Power Switch Red 250V |
1 |
|
| 22 |
350-0308 |
Lock - Keyless |
1 |
|
| 23 |
350-0258 |
Rocker Switch Auto Fill |
1 |
|
| 24a |
350-0196 |
Contactor 208/240V 20 Amp DP |
1 |
|
| 24b |
350-1393 |
Contactor 30 Amp CMA-180 |
1 |
|
| 25 |
350-1662 |
8-32 x 1 Panhead Screw |
6 |
|
| 26 |
350-1279 |
#10 Brass Washer |
6 |
|
| 27a |
350-1908 |
Control Box Sponge (18 inch) |
2 |
|
| 27b |
350-1909 |
Control Box Sponge (9.5 inch) |
2 |
|
| 28 |
350-1390 |
Contactor 75 Amp 3 Pole |
1 |
(only for machines with booster heater) |
| 29 |
350-1480 |
Dip Switch Timer 230 V |
1 |
|
| 30 |
350-1393 |
Contactor 30 Amp CMA-180 |
1 |
|
| 31 |
350-0379 |
Connector-#562 Door Roller Switch |
1 |
|
| 32 |
350-0374 |
Roller Door Switch |
1 |
|
| 33 |
350-1496 |
Ground Block |
1 |
|
| 34 |
350-0255 |
Illuminated Plug CMA-180/44 P |
1 |
|
| 36 |
350-1910 |
CMA-180 Control Box Lid (Fabricated) |
1 |
|
|
|

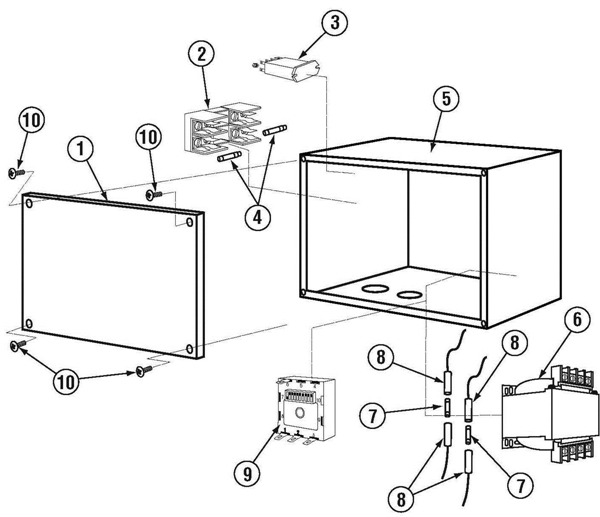

Heat Recovery Control Box Assembly - 480V - 350-4065 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 2 |
350-1483 |
Fuse Clip 2-Poll, Pressure Plate |
1 |
|
| 3 |
350-0445 |
Ice Cube Relay 220V 12 Amp |
1 |
|
| 4 |
350-1446 |
Fuse 1.25 Amp 230V Slow Blow |
2 |
|
| 6 |
350-1495 |
Transformer 480V - 240V |
1 |
|
| 7 |
350-1483 |
Fuse Clip 2-Poll, Pressure Plate |
2 |
|
| 8 |
350-1443 |
Fuse Holder - Inline |
4 |
|
| 9 |
350-1480 |
Dip Switch Timer 230 V |
1 |
|
| 10 |
350-0603 |
10-32 x 3/8 Truss Head Screw |
4 |
|
|
|

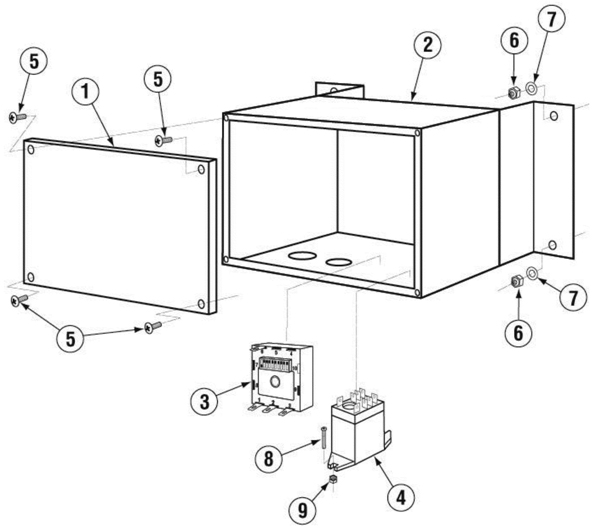

Heat Recovery Control Box Assembly - 240V - 350-4066 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
350-1680 |
Transformer Box Lid |
1 |
|
| 2 |
350-1679 |
Transformer Box |
1 |
|
| 3 |
350-1480 |
Dip Switch Timer 230 V |
1 |
|
| 4 |
350-0445 |
Ice Cube Relay 220V 12 Amp |
1 |
|
| 5 |
350-0603 |
10-32 x 3/8 Truss Head Screw |
4 |
|
| 6 |
350-1655 |
5/16-18 Nylon Insert Lock Nut |
4 |
|
| 7 |
350-0590 |
5/16 SS Washer |
4 |
|
| 8 |
350-0565 |
6-32 x 1/2 SS Panhead Screw |
2 |
|
| 9 |
350-0610 |
6-32 Nylon Insert Lock Nut |
2 |
|
|
|

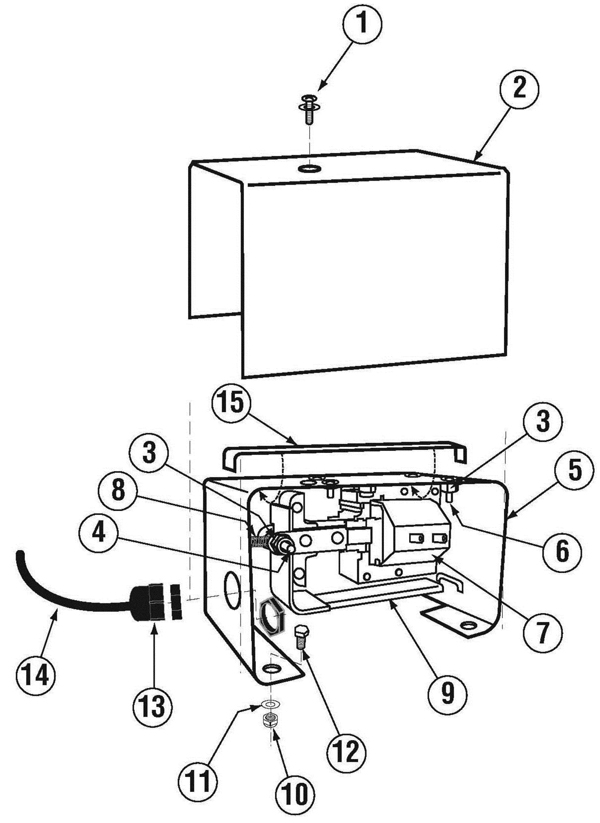

Door Safethy Interlock Assembly - 350-4067 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 3 |
350-0591 |
8-32 Nylon Lock Nut |
5 |
|
| 4 |
350-0558 |
8-32 x 1 1/4 Panhead Bolt |
1 |
|
| 5 |
350-0614 |
8-32 x 1/2 Phillips Flat Screw |
1 |
|
| 6 |
350-0002 |
Drain Ball Solenoid 240V |
4 |
|
| 7 |
350-1979 |
DSI Solenoid Extension Spring |
1 |
|
| 8 |
350-1977 |
CMA-180-VL Interlock Bar (4-14) |
1 |
|
| 9 |
350-0573 |
1/4-20 Nylon Lock Nut |
1 |
|
| 10 |
350-0573 |
1/4-20 Nylon Lock Nut |
4 |
|
| 11 |
350-0589 |
1/4 SS Washer |
4 |
|
| 12 |
350-0562 |
1/4-20 x 1/2 Hexhead Bolt |
4 |
|
| 13 |
350-0379 |
Connector-#562 Door Roller Switch |
1 |
|
| 14 |
350-0360 |
Switch Cord 18 AWG SOOW |
1 |
|
| 15 |
350-0778 |
Solenoid Stop |
1 |
|
|
|

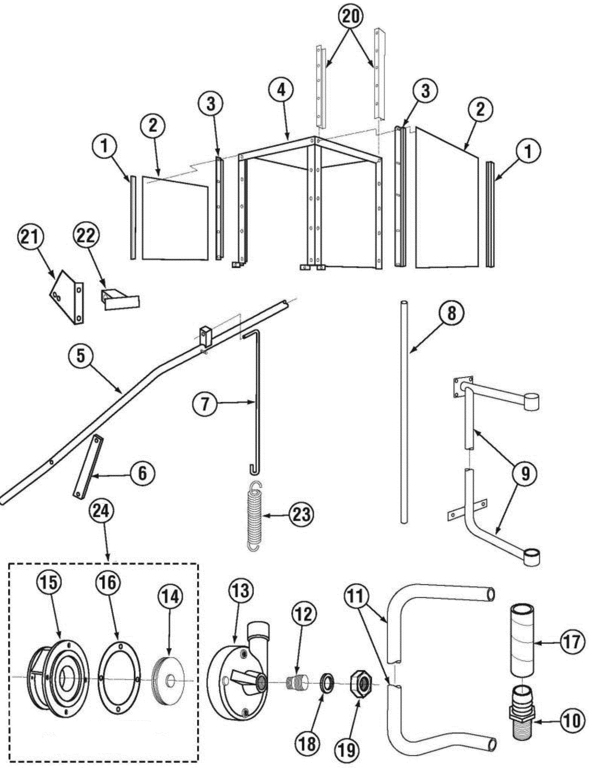

Various Parts - 180 VL - 350-4068 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
350-0452 |
EZ Glide Door Guide 36 1/4 inch (180T) |
6 |
|
| 2 |
350-1919 |
CMA-180 Scullery Door |
3 |
|
| 3 |
350-1963 |
CMA-180 Scullery Door Guide 34 3/4 inch |
6 |
|
| 5 |
350-0422 |
Door Handle CMA-180T Straight Unit |
1 |
|
| 6 |
350-0784 |
Door Handle Link (S) 2010 |
2 |
|
| 7 |
350-0395 |
Door Spring Extension Rod(CMA-180T) Left |
2 |
|
| 8 |
350-1308 |
Booster Heater Water Line CMA-180T |
2 |
|
| 9 |
350-1898 |
CMA-180T Final Rinse Manifold |
1 |
|
| 10 |
350-2113 |
1 inch MPT x 1 inch Barb Brass (180T units) |
1 |
|
| 12 |
350-0099 |
1 1/2 inch x 1 1/4 inch Adapter |
1 |
|
| 13 |
350-0090 |
Pump Cover Large |
1 |
|
| 14 |
350-0088 |
Impeller Closed 4 1/2 inch |
1 |
|
| 16 |
350-0091 |
Pump Gasket 4 Hole Round |
1 |
|
| 17 |
350-1130 |
Transfer Hose 1 inch Reinforced (PER FT) |
1 |
|
| 18 |
350-0098 |
Slip Joint Nut O-Ring Gasket Buna |
1 |
|
| 19 |
350-0096 |
Slip Joint Nut 1 1/2 x 1 1/4 |
1 |
|
| 21 |
350-0381 |
Door Switch Bracket (8-08) |
1 |
|
| 22 |
350-0383 |
Door Switch Actuator CMA-180T (1-10) |
1 |
|
| 23 |
350-0391 |
Door Spring - Heavy Duty |
2 |
|
| 24 |
350-0058 |
Pump Assy Scullery and 180T & CWS |
1 |
(includes 14-16) |
|
|

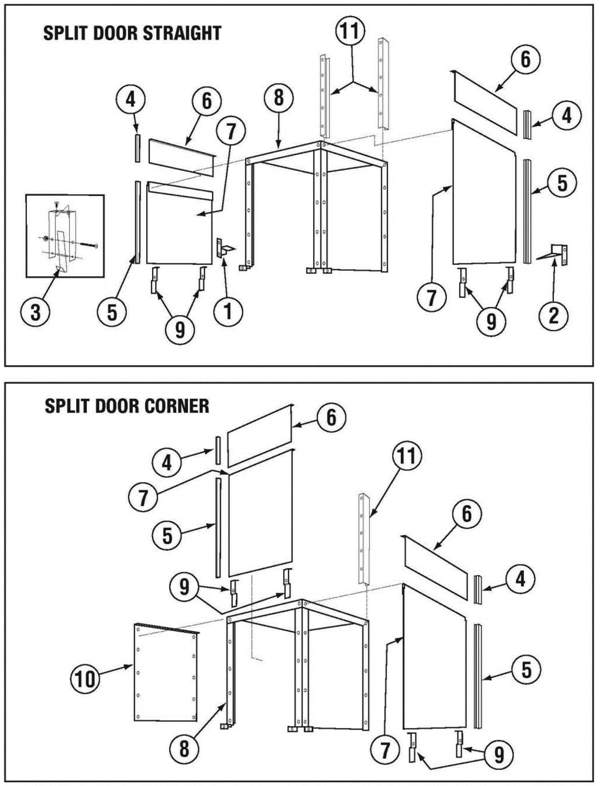

Split Door Assembly - 350-4069 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
350-1921 |
CMA-180T Door Safety Brkt (Left) |
1 |
|
| 2 |
350-1922 |
CMA-180T Door Safety Brkt (Right) |
1 |
|
| 3 |
350-1637 |
Open Door Latch 180 Split Door |
1 |
|
| 4a |
350-0455 |
EZ Glide Door Guide 8 inch |
6 |
(split door straight) |
| 4b |
350-0455 |
EZ Glide Door Guide 8 inch |
4 |
(split door corner) |
| 5a |
350-0454 |
EZ Glide Door Guide 28 1/2 inch |
6 |
(split door straight) |
| 5b |
350-0454 |
EZ Glide Door Guide 28 1/2 inch |
4 |
(split door corner) |
| 6a |
350-1926 |
CMA-180T Small Door (Split Door) |
3 |
(split door straight) |
| 6b |
350-1926 |
CMA-180T Small Door (Split Door) |
2 |
(split door corner) |
| 7a |
350-1923 |
CMA-180T Large Door for Split door |
3 |
(split door straight) |
| 7b |
350-1923 |
CMA-180T Large Door for Split door |
2 |
(split door corner) |
| 8 |
350-1949 |
CMA-180T Wrapper (Split Door) |
1 |
|
| 9a |
350-1961 |
CMA-180T Door Stop Split Door |
4 |
(split door straight) |
| 9b |
350-1961 |
CMA-180T Door Stop Split Door |
6 |
(split door corner) |
| 10 |
350-1950 |
CMA-180T Corner Panel Wrap Split Door |
1 |
|
|
|
