Wiring Diagram - Part 1 - |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
|
|
Wiring Diagram - Part 2 - |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
|
|

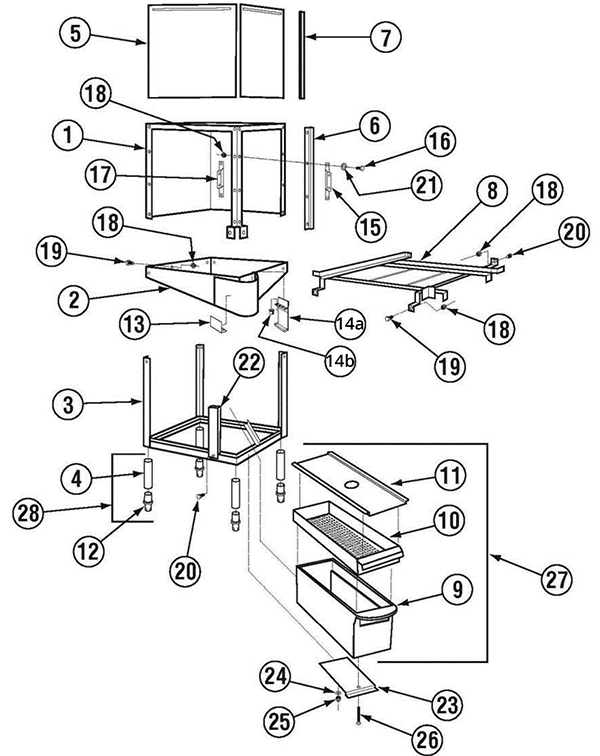

Cabinet Assembly - 350-4004 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
350-0683 |
Wrapper Corner (C) |
1 |
|
| 3 |
350-0769 |
Stand TM-C (w/o Legs) |
1 |
|
| 4 |
350-2149 |
Stainless steel leg (A, AH, C, B) |
4 |
|
| 5 |
350-0726 |
Door - Standard - CMA w/Dimple |
2 |
|
| 6 |
350-0790 |
EZ Glide Door Guide SS 21 1/8 |
4 |
|
| 7 |
350-0448 |
EZ Glide Door Guide Sq 21 7/8 inch |
4 |
|
| 8 |
350-0710 |
Tray Track (C) |
1 |
|
| 9 |
350-0806 |
Scrap Trap Body (Poly Pro) |
1 |
|
| 10 |
350-0807 |
Scrap Trap Drawer SS |
1 |
|
| 11 |
350-0808 |
Molded Scrap Trap Lid - SS |
1 |
|
| 12 |
350-0665 |
Adjustable Socket Foot |
4 |
|
| 13 |
350-0802 |
Drain Baffle |
2 |
|
| 14a |
350-0796 |
Trough Style Chem Support Bracket |
1 |
|
| 14b |
350-0796 |
Trough Style Chem Support Bracket |
4 |
|
| 15 |
350-0280 |
Snap Bushing 375-4 |
1 |
|
| 16 |
350-0561 |
1/4-20 x 1/2 Trusshead Bolt |
16 |
|
| 17 |
350-0004 |
Solenoid Bracket (C) LH |
1 |
|
| 18 |
350-0573 |
1/4-20 Nylon Lock Nut |
34 |
|
| 19 |
350-0576 |
1/4-20 x 5/8 Hexhead Bolt 304SS |
12 |
|
| 20 |
350-0562 |
1/4-20 x 1/2 Hexhead Bolt |
12 |
|
| 21 |
350-0589 |
1/4 SS Washer |
68 |
|
| 22 |
350-0801 |
Pan Support Bracket - C long |
1 |
|
| 23 |
350-0809 |
Molded Scrap Trap-Mount Bracket |
1 |
|
| 24 |
350-0589 |
1/4 SS Washer |
1 |
|
| 25 |
350-0573 |
1/4-20 Nylon Lock Nut |
1 |
|
| 26 |
350-0570 |
8-32 x 1/2 Panhead Screw |
1 |
|
| 27 |
350-0805 |
Scrap Trap Assy (Poly Pro & SS) |
1 |
(incldues 9-11) |
| 28 |
350-0637 |
Leg Assy 10 inch w\Adjustable Socket |
1 |
(includes 4 and 12) |
|
|

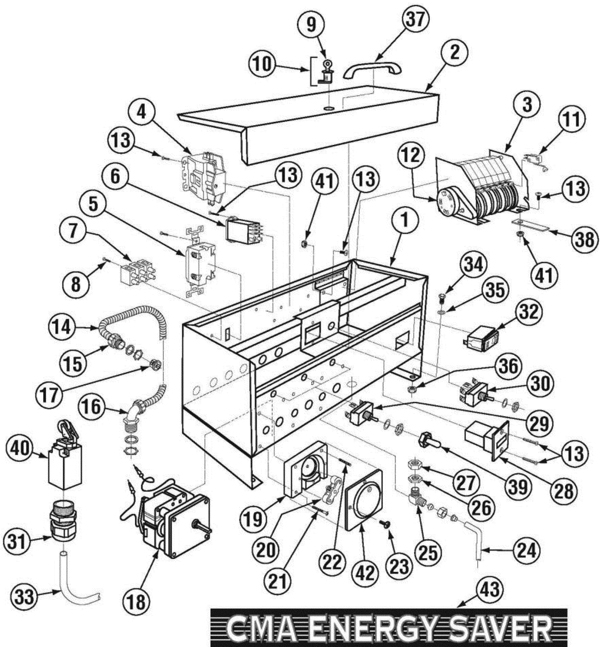

Control Box Assembly - 350-4005 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
350-0698 |
Control Box (A/AH/B/C) |
1 |
|
| 2 |
350-0704 |
Control Box Top (AH/B/C) |
1 |
|
| 3 |
350-0204 |
Timer 90 Sec 8 Cam 115V/60Hz |
1 |
|
| 4 |
350-0195 |
Motor Contactor 115V 20 Amp SP |
1 |
|
| 5a |
350-0285 |
Master Switch 20 Amp |
1 |
|
| 5b |
350-0284 |
Master Switch 30 Amp |
1 |
|
| 6 |
350-0444 |
120V ice cube relay |
1 |
|
| 7 |
350-0311 |
3 Pole Socket Terminal Block |
1 |
|
| 8 |
350-1662 |
8-32 x 1 Panhead Screw |
1 |
|
| 10 |
350-0307 |
Lock and Key |
1 |
|
| 11 |
350-0227 |
Micro Switch |
1 |
|
| 12 |
350-0336 |
Timer Motor 90 Sec 115V/60Hz |
1 |
|
| 13 |
350-0572 |
8-32 x 3/8 Panhead Screw |
1 |
|
| 14 |
350-0184 |
Conduit 3/8 Sealtite |
1 |
|
| 15 |
350-0187 |
St-3/8 Straight Connector |
2 |
|
| 16 |
350-0189 |
St-3/8 90Deg Connector |
4 |
|
| 17 |
350-0297 |
Snap Bushing Universal 875-11 |
4 |
|
| 18 |
350-0237 |
Peri Pump Motor 50RPM 115V/60Hz |
3 |
|
| 19 |
350-0240 |
Peristaltic Pump Block (Black) |
3 |
|
| 20 |
350-0242 |
Peristaltic Pump Rotor Assy |
3 |
|
| 21 |
350-0582 |
10-32 x 1 1/2 Panhead Bolt |
6 |
|
| 23 |
350-0570 |
8-32 x 1/2 Panhead Screw |
12 |
|
| 24 |
350-0318 |
3/8 SS Tubing - AH (Sole Wire) |
1 |
|
| 25 |
350-0295 |
3/8 90Deg Ell Comp x MIP |
1 |
|
| 26 |
350-0469 |
3/8 Jamb Nut Thin |
1 |
|
| 27 |
350-0470 |
3/8 Jamb Nut - Standard |
1 |
|
| 28 |
350-1170 |
Counter - Panel Mount 115V/60Hz |
1 |
|
| 29 |
350-1182 |
Toggle Switch (Momentary) Screw Term |
3 |
|
| 30 |
350-0330 |
Toggle Switch DPDT 20 Amp/Delimer |
1 |
|
| 31 |
350-0379 |
Connector-#562 Door Roller Switch |
1 |
|
| 32 |
350-0249 |
Start/Fill Rocker Switch Amber 115V |
1 |
|
| 33 |
350-0360 |
Switch Cord 18 AWG SOOW |
3ft |
|
| 34 |
350-0575 |
1/4-20 x 3/4 Hexhead Bolt |
4 |
|
| 35 |
350-0587 |
1/4 Lock Star Washer |
4 |
|
| 36 |
350-0573 |
1/4-20 Nylon Lock Nut |
4 |
|
| 37 |
350-0355 |
Control Box Lid Handle |
1 |
|
| 38 |
350-0750 |
Timer Support Tab |
1 |
|
| 39 |
350-0323 |
Toggle Switch Rubber Boot |
4 |
|
| 40 |
350-0374 |
Roller Door Switch |
1 |
|
| 41 |
350-0591 |
8-32 Nylon Lock Nut |
1 |
|
| 42 |
350-0241 |
Peristaltic Pump Cover |
3 |
|
|
|

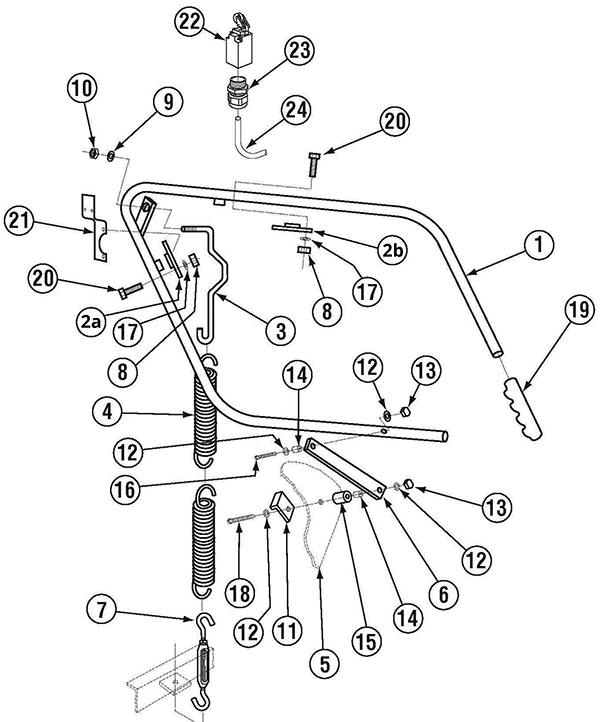

Door Actuator Assembly - 350-4007 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
350-0416 |
Door Handle (C) |
1 |
|
| 2a |
350-0440 |
Door Handle Mtg Plate-Long |
1 |
|
| 2b |
350-0441 |
Door Handle Mtg Plate Short |
1 |
|
| 3 |
350-0392 |
Door Spring Extension Rod (C) |
1 |
|
| 5 |
350-0726 |
Door - Standard - CMA w/Dimple |
2 |
|
| 6 |
350-0781 |
Door Handle Link 7 inch |
2 |
|
| 7 |
350-0408 |
Hook & Hook Turnbuckle |
1 |
|
| 8 |
350-0574 |
5/16-18 SS Nut |
8 |
|
| 9 |
350-0590 |
5/16 SS Washer |
9 |
|
| 10 |
350-0556 |
Cotter Pin 1/8 inch x 1 inch |
1 |
|
| 12 |
350-0589 |
1/4 SS Washer |
6 |
|
| 13 |
350-0573 |
1/4-20 Nylon Lock Nut |
4 |
|
| 14 |
350-0414 |
Door Handle Spacer (Small) SS |
4 |
|
| 15 |
350-0415 |
Door Handle Spacer (Lg) |
4 |
|
| 16 |
350-0559 |
1/4-20 x 1 3/4 SS Hexhead Bolt |
2 |
|
| 17 |
350-0590 |
5/16 SS Washer |
8 |
|
| 18 |
350-0569 |
1/4-20 x 1 1/2 SS Hexhead Bolt |
2 |
|
| 19 |
350-0410 |
Door Handle Cap 1 inch Black |
2 |
|
| 20 |
350-0583 |
5/16-18 x 3/4 SS Hexhead Bolt |
8 |
|
| 21 |
350-0380 |
Roller Switch Brkt (EST-C/C) (4/06) |
1 |
|
| 22 |
350-0374 |
Roller Door Switch |
1 |
|
| 23 |
350-0379 |
Connector-#562 Door Roller Switch |
1 |
|
| 24 |
350-0359 |
Switch Cord 18 AWG |
1 |
|
|
|
Pump Assembly - 350-4008 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
350-0072 |
Wash Motor 1 Hp 115/208-230V 60Hz |
1 |
|
| 2 |
350-0616 |
3/8-16 x 1 1/2 SS Stud |
2 |
|
| 3 |
350-0093 |
Pump Seal Kit (11/07) |
1 |
|
| 4 |
350-0096 |
Slip Joint Nut 1 1/2 x 1 1/4 |
2 |
|
| 5 |
350-0098 |
Slip Joint Nut O-Ring Gasket Buna |
3 |
|
| 6 |
350-0502 |
Pump Inlet Elbow SS - Casting |
1 |
|
| 7 |
350-1247 |
Pump Base Stainless Steel |
1 |
|
| 8 |
350-1162 |
Pump O-Ring Gasket |
1 |
|
| 9 |
350-1154 |
Impeller (Open) SS |
1 |
|
| 10 |
350-1162 |
Pump O-Ring Gasket |
1 |
|
| 11 |
350-1154 |
Impeller (Open) SS |
1 |
|
| 12a |
350-0114 |
Motor Suction Tube SS (A/AH) |
1 |
|
| 12b |
350-0116 |
Motor Suction Tube SS (C) |
1 |
|
| 13 |
350-1697 |
Motor Support Bracket (AH/C/B) |
1 |
|
| 14 |
350-0562 |
1/4-20 x 1/2 Hexhead Bolt |
1 |
|
| 15 |
350-0589 |
1/4 SS Washer |
1 |
|
| 16 |
350-0573 |
1/4-20 Nylon Lock Nut |
1 |
|
| 17 |
350-0057 |
Pump Assy 115/220V 60Hz (Open) |
1 |
(includes 1, 3, 7-9) |
| 18 |
350-0103 |
1/2 Comp x 3/8 MIP Adapter |
1 |
|
| 19 |
350-0584 |
3/8-16 x 3/4 SS Hexhead Bolt |
6 |
|
| 20 |
350-0097 |
Slip Joint Nut Friction Ring Plastic |
3 |
|
| 21 |
350-0108 |
3/8 Male Plug - Sq Head |
1 |
|
| 22 |
350-2157 |
3/8-16 inch thin nut |
2 |
|
| 23 |
350-1213 |
3/8 External Lock Star Washer |
2 |
|
|
|
Plumbing Assembly - 350-4010 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
350-1411 |
3/4 Strainer Ball Valve NPT |
1 |
|
| 2 |
350-2225 |
1/2 x 2 1/2 braided hose |
1 |
|
| 3 |
350-0471 |
1/2 Ball Check Valve |
1 |
|
| 4 |
350-0499 |
5/8 Comp x 1/2 MIP Adapter |
1 |
|
| 5 |
350-0103 |
1/2 Comp x 3/8 MIP Adapter |
1 |
|
| 6 |
350-0510 |
Flush Tube (A/AH) |
1 |
|
| 7 |
350-0504 |
5/8 Compression Fitting Nut |
1 |
|
| 8 |
350-0505 |
5/8 Compression Fitting Ring |
1 |
|
| 9 |
350-0503 |
Water Inlet Elbow Ass'y (01-08) |
1 |
|
| 10 |
350-0475 |
1/2 Jamb Nut Thin Pattern |
2 |
|
| 11 |
350-0496 |
Sprinkler Head Assembly 1/2 inch NPT |
1 |
|
| 12 |
350-2159 |
3/4 X 1 1/2 inch nipple |
2 |
|
| 13 |
350-0459 |
Street Elbow 3/4 inch 90Deg |
2 |
|
| 14 |
350-0481 |
3/4 Vac Breaker Rep Kit Watts |
1 |
|
| 15 |
350-0482 |
3/4 Vac Breaker Brass Bonnet Watts |
1 |
|
| 16 |
350-0485 |
3/4 Vac Breaker Cap SS |
1 |
(includes screws) |
| 17 |
350-0483 |
Solenoid Coil JE 115V (3/4 &1/2) |
1 |
|
| 18 |
350-0464 |
3/4 Water Solenoid Valve Bonnet |
1 |
|
| 19 |
350-0468 |
Vacuum Breaker-Watts 3/4 inch |
1 |
|
| 20 |
350-0508 |
Water Sol Plunger 'G' JE 3/4 &1/2 |
1 |
|
| 22 |
350-2160 |
3/4 inch solenoid plunger spring |
1 |
|
| 23 |
350-0461 |
3/4 Water Sol Valve-JE 115/60Hz |
1 |
|
| 24 |
350-0507 |
Nipple Brass 3/4 x 3 1/2 |
1 |
|
| 25 |
350-1773 |
Plumbing Bracket |
1 |
|
| 26 |
350-0459 |
Street Elbow 3/4 inch 90Deg |
1 |
|
| 28 |
350-1412 |
3/4 Ball Valve Strainers Only |
1 |
|
| 29 |
350-1119 |
Hose Clamp #4 Size #002 SS |
1 |
|
| 30 |
350-0603 |
10-32 x 3/8 Truss Head Screw |
2 |
|
| 31 |
350-1210 |
10-32 KEPS Lock Nut |
2 |
|
| N/S |
350-0573 |
1/4-20 Nylon Lock Nut |
1 |
|
| N/S |
350-0465 |
3/4 Water Solenoid Repair Kit JE |
1 |
|
| N/S |
350-0590 |
5/16 SS Washer |
1 |
|
|
|
Spray Assembly - 350-4012 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
350-0174 |
Upper Spray Base |
1 |
|
| 2 |
350-0171 |
Lower Spray Base |
1 |
|
| 3a |
350-0136 |
Spray Arm AH/C) |
2 |
|
| 3b |
350-0135 |
Spray Arm Short (B/L-1X/L-1X-16) |
2 |
|
| 4 |
350-0131 |
Manifold O-Ring-Style (AH) |
1 |
|
| 5 |
350-0176 |
Spray Base Pull Lock Pin |
4 |
|
| 6 |
350-0155 |
Spray Arm End Plug SS |
4 |
|
| 7 |
350-0124 |
Spray Base Gasket |
1 |
|
| 8 |
350-0573 |
1/4-20 Nylon Lock Nut |
8 |
|
| 9 |
350-0589 |
1/4 SS Washer |
16 |
|
| 10 |
350-0126 |
Spray Base O-Ring OD 1.25 ID 1.11 |
2 |
|
| 11 |
350-0576 |
1/4-20 x 5/8 Hexhead Bolt 304SS |
4 |
|
| 12 |
350-0160 |
Spray Arm Bearing |
2 |
|
| 13 |
350-2161 |
1/4-20 X 3/4 inch trusshead bolt |
4 |
|
| 14 |
350-0177 |
Lock Pin Spring |
1 |
|
| 15 |
350-2162 |
10-32 x 1/4 inch hexhead bolt |
2 |
|
|
|
Drain Assembly - 350-4014 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
350-1214 |
8-32 x 5/8 Panhead Screw |
2 |
|
| 2 |
350-0591 |
8-32 Nylon Lock Nut |
3 |
|
| 3 |
350-0022 |
Drain Ball Chain 12 Link |
1 |
|
| 4a |
350-0558 |
8-32 x 1 1/4 Panhead Bolt |
1 |
|
| 4b |
350-0042 |
Drain Ball Assy (Round) |
1 |
(includes 6a and 6b) |
| 5 |
350-0587 |
1/4 Lock Star Washer |
6 |
|
| 6a |
350-2169 |
Drain ball tube |
1 |
|
| 6b |
350-2170 |
Sillicon drain ball dome |
1 |
|
| 7 |
350-0031 |
Drain Sump Screen (A/C/E) |
1 |
|
| 8 |
350-0027 |
Drain Sump Gasket (A/C) |
1 |
|
| 9 |
350-0025 |
Drain Sump Fabricated (A/C) |
1 |
|
| 10 |
350-0030 |
Drain Tee Gasket |
1 |
|
| 11a |
350-0051 |
Drain Ball Seat SS (9/06) |
1 |
|
| 11b |
350-0053 |
Drain Ball Seat - Flexible |
1 |
|
| 12 |
350-0589 |
1/4 SS Washer |
6 |
|
| 13 |
350-0029 |
Drain Tee Casting SS |
1 |
|
| 14 |
350-0583 |
5/16-18 x 3/4 SS Hexhead Bolt |
6 |
|
| 15 |
350-0055 |
1 1/2 Drain Tee End Plug |
1 |
|
| 16 |
350-0035 |
Bi Metal Thermometer 1.5 inch |
1 |
|
| 17 |
350-0575 |
1/4-20 x 3/4 Hexhead Bolt |
4 |
|
| 18 |
350-0588 |
1/4-20 Kep Nut |
4 |
|
| 19 |
350-0741 |
Solenoid Cover (AH/B/C) |
1 |
|
| 20 |
350-0049 |
Drain Solenoid Spring Assy |
1 |
(includes 1-2, 21-22. 29 and 36) |
| 21 |
350-0779 |
Solenoid Link |
1 |
|
| 22 |
350-0013 |
Solenoid Spring |
1 |
|
| 23 |
350-0001 |
Drain Ball Solenoid 115V 60Hz |
1 |
|
| 24 |
350-0778 |
Solenoid Stop |
1 |
|
| 25 |
350-0321 |
3/8 SS Tubing - C Pizza (Sole Wire) |
1 |
|
| 26 |
350-0005 |
Solenoid Base |
1 |
|
| 27 |
350-0562 |
1/4-20 x 1/2 Hexhead Bolt |
1 |
|
| 28 |
350-0007 |
Solenoid Bar |
2 |
|
| 29 |
350-0016 |
Slot Washer Large SS |
2 |
|
| 30 |
350-0600 |
312-250 Shorty Bushing |
2 |
|
| 31 |
350-0675 |
2 inch ABS SLIP x MIPT Adapter |
1 |
|
| 32 |
350-1313 |
2 inch x 3 inch PVC Tubing |
1 |
|
| 33 |
350-0670 |
2 inch 90Deg ABS Street Elbow |
2 |
|
| 34 |
350-1315 |
2 inch x 8 inch PVC Tubing |
1 |
|
| 35 |
350-2060 |
1/2 ID x 11/16 OD Hose 9 inchL |
1 |
|
| 36 |
350-0014 |
Drain Solenoid Linkage Washer |
1 |
|
| 37 |
350-0679 |
Scrap Trap Donut Gasket |
1 |
|
| 38 |
350-2173 |
Solenoid base back plate for corners |
1 |
|
|
|
Peristaltic Pump Assembly - 350-4016 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
350-0237 |
Peri Pump Motor 50RPM 115V/60Hz |
1 |
|
| 2 |
350-0240 |
Peristaltic Pump Block (Black) |
1 |
|
| 3 |
350-0582 |
10-32 x 1 1/2 Panhead Bolt |
2 |
|
| 4 |
350-0581 |
10-32 x 1 1/2 Phillips Flat Head |
1 |
|
| 5 |
350-0595 |
Twist Tye 7 1/2 inch |
6 |
|
| 6 |
350-0241 |
Peristaltic Pump Cover |
1 |
|
| 7 |
350-0570 |
8-32 x 1/2 Panhead Screw |
4 |
|
| 8 |
350-1098 |
Squeeze Tube Norprene 8 inch |
1 |
|
| 9 |
350-0242 |
Peristaltic Pump Rotor Assy |
1 |
|
| 10 |
350-0305 |
Male Barrel Connector 16-14 Gauge |
2 |
|
| 11a |
350-0264 |
Chem Tubing Blue (50 Ft/ Coils) |
1 |
|
| 11b |
350-0265 |
Chem Tubing Red (50 Ft / Coils) |
1 |
|
| 11c |
350-0266 |
Chem Tubing White (50 Ft / Coils) |
1 |
|
| 11c |
350-0266 |
Chem Tubing White (50 Ft / Coils) |
1 |
|
| 12 |
350-0299 |
Tube Stiffener |
3 |
|
| 13 |
350-0261 |
Rotor Spacer |
1 |
|
|
|
Pizza Assembly - Optional - 350-4020 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
350-1912 |
Door - Ext - CMA-180 - CMA |
2 |
|
| 2 |
350-0450 |
EZ Glide Door Guide 26 1/4 inch |
4 |
|
| 4 |
350-1962 |
SS Door Guide 24 3/8 inch |
4 |
|
| 6a |
350-2186 |
Stainless steel tubing AH pizza |
1 |
|
| 6b |
350-0320 |
3/8 SS Tubing - B Pizza (Sole Wire) |
1 |
|
| 6c |
350-0321 |
3/8 SS Tubing - C Pizza (Sole Wire) |
1 |
|
| 7a |
350-2187 |
Flush tube AH pizza |
1 |
|
| 7b |
350-2188 |
Flush tube B pizza |
1 |
|
| 7c |
350-2189 |
Flush tube c pizza |
1 |
|
|
|
Solid Bowl Assembly - Optional - 350-4021 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
350-0701 |
Solid Bowl Control Box |
1 |
|
| 2 |
350-0706 |
Solid Bowl Control Box Lid |
1 |
|
| 3 |
350-0702 |
Solid Bowl Box Slide-Out Tray |
1 |
|
| 4 |
350-0316 |
Beta Solid Bowl DM #W6000 |
1 |
|
| 5 |
350-0204 |
Timer 90 Sec 8 Cam 115V/60Hz |
1 |
|
| 6 |
350-0195 |
Motor Contactor 115V 20 Amp SP |
1 |
|
| 7 |
350-0443 |
Timer Relay 120V |
1 |
|
| 8 |
350-0444 |
120V ice cube relay |
1 |
|
| 9 |
350-1170 |
Counter - Panel Mount 115V/60Hz |
1 |
|
| 10 |
350-0237 |
Peri Pump Motor 50RPM 115V/60Hz |
1 |
|
| 11 |
350-0240 |
Peristaltic Pump Block (Black) |
1 |
|
| 12 |
350-0242 |
Peristaltic Pump Rotor Assy |
1 |
|
| 13 |
350-0241 |
Peristaltic Pump Cover |
1 |
|
| 14 |
350-0249 |
Start/Fill Rocker Switch Amber 115V |
1 |
|
| 15 |
350-0374 |
Roller Door Switch |
1 |
|
| 16a |
350-2053 |
Solenoid Valve 1/4'' w/Cover 115V |
2 |
|
| 16b |
350-2190 |
1/4 inch water solenoid valve repair kit |
2 |
|
| 16c |
350-2056 |
Water Solenoid Coil Only 115V (Dema) |
2 |
|
| 17 |
350-0379 |
Connector-#562 Door Roller Switch |
1 |
|
| 18 |
350-0285 |
Master Switch 20 Amp |
1 |
|
| 19 |
350-2191 |
Electrical bell box |
1 |
|
| 20a |
350-2042 |
Solid Bowl 1/4 Vac Breaker |
2 |
|
| 20b |
350-2041 |
1/4 Vac Breaker Bonnet |
2 |
|
| 20c |
350-2040 |
1/4 Vac Breaker Repair Kit |
2 |
|
| 21 |
350-0307 |
Lock and Key |
1 |
|
| 22 |
350-0330 |
Toggle Switch DPDT 20 Amp/Delimer |
1 |
|
| 23 |
350-0323 |
Toggle Switch Rubber Boot |
2 |
|
| 24 |
350-1182 |
Toggle Switch (Momentary) Screw Term |
1 |
|
| 25 |
350-0359 |
Switch Cord 18 AWG |
1 |
|
| 26 |
350-1098 |
Squeeze Tube Norprene 8 inch |
1 |
|
| 27 |
350-2044 |
1/4 Comp x 1/4 MIP Ell |
4 |
|
| 28 |
350-2047 |
1/4 TB x TB x TB Comp Tee |
1 |
|
| 29 |
350-2048 |
1/4 Comp x 1/8 MIP 90Deg Ell |
2 |
|
| 30 |
350-2046 |
1/4 Comp x 1/4 MIP Fitting |
4 |
|
| 31 |
350-0295 |
3/8 90Deg Ell Comp x MIP |
1 |
|
| 32 |
350-2045 |
77Deg Elbow Bulkhead |
2 |
|
| 33 |
350-2043 |
7/8 To 1 Snap Hose Clamp |
2 |
|
| 34 |
350-2192 |
3/8 inch nylon straight connector (black) |
4 |
|
| 35 |
350-0189 |
St-3/8 90Deg Connector |
2 |
|
| 36 |
350-2193 |
3/8 inch flex tubing (black) |
1 |
|
| 37 |
350-0582 |
10-32 x 1 1/2 Panhead Bolt |
2 |
|
| 38 |
350-0570 |
8-32 x 1/2 Panhead Screw |
4 |
|
| 39 |
350-2194 |
1/4 inch water line vacuum breaker to bowl |
2 |
|
| 40 |
350-2195 |
Right hand 1/4 inch water solution to vacuum breaker |
1 |
|
| 41 |
350-2196 |
Left hand 1/4 inch water solution to vacuum breaker |
1 |
|
| 42 |
350-2197 |
Right hand 1/4 inch water line tee to water solution |
1 |
|
| 43 |
350-2198 |
Left hand 1/4 inch water line tee to water solution |
1 |
|
| 44 |
350-1271 |
5/8 ID x 7/8 OD CV Tubing |
1 |
|
|
|
Solid Bowl Sunburst Chemical Assembly - Optional - 350-4022 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
350-0701 |
Solid Bowl Control Box |
1 |
|
| 2 |
350-0706 |
Solid Bowl Control Box Lid |
1 |
|
| 3 |
350-0702 |
Solid Bowl Box Slide-Out Tray |
1 |
|
| 4a |
350-2199 |
Detergent bowl kit |
1 |
|
| 4b |
350-2200 |
Rinse bowl kit |
1 |
|
| 5 |
350-0204 |
Timer 90 Sec 8 Cam 115V/60Hz |
1 |
|
| 6 |
350-0195 |
Motor Contactor 115V 20 Amp SP |
1 |
|
| 7 |
350-0443 |
Timer Relay 120V |
1 |
|
| 8 |
350-0444 |
120V ice cube relay |
1 |
|
| 9 |
350-1170 |
Counter - Panel Mount 115V/60Hz |
1 |
|
| 10 |
350-0237 |
Peri Pump Motor 50RPM 115V/60Hz |
1 |
|
| 11 |
350-0240 |
Peristaltic Pump Block (Black) |
1 |
|
| 12 |
350-0242 |
Peristaltic Pump Rotor Assy |
1 |
|
| 13 |
350-0241 |
Peristaltic Pump Cover |
1 |
|
| 14 |
350-0249 |
Start/Fill Rocker Switch Amber 115V |
1 |
|
| 15 |
350-0374 |
Roller Door Switch |
1 |
|
| 16a |
350-2053 |
Solenoid Valve 1/4'' w/Cover 115V |
2 |
|
| 16b |
350-2190 |
1/4 inch water solenoid valve repair kit |
2 |
|
| 16c |
350-2056 |
Water Solenoid Coil Only 115V (Dema) |
2 |
|
| 17 |
350-0379 |
Connector-#562 Door Roller Switch |
1 |
|
| 18 |
350-0285 |
Master Switch 20 Amp |
1 |
|
| 19 |
350-2191 |
Electrical bell box |
1 |
|
| 20 |
350-0307 |
Lock and Key |
1 |
|
| 21 |
350-0330 |
Toggle Switch DPDT 20 Amp/Delimer |
1 |
|
| 22 |
350-0323 |
Toggle Switch Rubber Boot |
2 |
|
| 23 |
350-1182 |
Toggle Switch (Momentary) Screw Term |
1 |
|
| 24 |
350-0359 |
Switch Cord 18 AWG |
1 |
|
| 25 |
350-1098 |
Squeeze Tube Norprene 8 inch |
1 |
|
| 26 |
350-2044 |
1/4 Comp x 1/4 MIP Ell |
4 |
|
| 27 |
350-2047 |
1/4 TB x TB x TB Comp Tee |
1 |
|
| 28 |
350-2048 |
1/4 Comp x 1/8 MIP 90Deg Ell |
2 |
|
| 29 |
350-0295 |
3/8 90Deg Ell Comp x MIP |
1 |
|
| 30 |
350-2045 |
77Deg Elbow Bulkhead |
2 |
|
| 31 |
350-2043 |
7/8 To 1 Snap Hose Clamp |
2 |
|
| 32 |
350-2192 |
3/8 inch nylon straight connector (black) |
4 |
|
| 33 |
350-0189 |
St-3/8 90Deg Connector |
2 |
|
| 34 |
350-2193 |
3/8 inch flex tubing (black) |
1 |
|
| 35 |
350-0582 |
10-32 x 1 1/2 Panhead Bolt |
2 |
|
| 36 |
350-0570 |
8-32 x 1/2 Panhead Screw |
4 |
|
| 37 |
350-2195 |
Right hand 1/4 inch water solution to vacuum breaker |
1 |
|
| 38 |
350-2196 |
Left hand 1/4 inch water solution to vacuum breaker |
1 |
|
| 39 |
350-2197 |
Right hand 1/4 inch water line tee to water solution |
1 |
|
| 40 |
350-2198 |
Left hand 1/4 inch water line tee to water solution |
1 |
|
| 41 |
350-1271 |
5/8 ID x 7/8 OD CV Tubing |
1 |
|
|
|
Sani Alarm Assembly - Optional - 350-4023 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
350-0184 |
Conduit 3/8 Sealtite |
3 |
|
| 2 |
350-0187 |
St-3/8 Straight Connector |
1 |
|
| 3 |
350-0189 |
St-3/8 90Deg Connector |
1 |
|
| 4 |
350-0198 |
Control Box Light .5 inch Dia Red 115V/60 |
1 |
|
| 5 |
350-2209 |
8 inch squeeze tube |
3 |
|
| 6 |
350-2202 |
18 gauge wire (orange) |
1 |
|
| 7 |
350-2203 |
18 gauge wire (white) |
1 |
|
| 8 |
350-0594 |
Twist Tye 4 1/2 inch |
5 |
|
| 9 |
350-1369 |
Sanitizer Alarm Box 4 inch x 4 inch x 2 inch |
1 |
|
| 10 |
350-1370 |
Chemical Low Level Vacuum Switch |
1 |
|
| 11 |
350-1371 |
Sanitizer Alarm Buzzer 115V |
1 |
|
| 12 |
350-2204 |
10 x 3/4 inch sheet metal screw |
4 |
|
| 13 |
350-2205 |
Wall anchors |
4 |
|
| 14 |
350-0279 |
Y Hose Connector 3/16 Single Rib |
1 |
|
|
|
Temp-Sure Heater Assembly - 350-4024 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
350-1626 |
Booster Heater 3/4 In/Out Adapter |
1 |
|
| 2 |
350-0501 |
5/8 Comp x 3/4 MIP Adapter |
2 |
|
| 3 |
350-0499 |
5/8 Comp x 1/2 MIP Adapter |
2 |
|
| 4 |
350-0488 |
1/2 Tee F x F x F Brass |
1 |
|
| 5 |
350-1615 |
Street Elbow 1/2 inch SS |
1 |
|
| 6 |
350-1614 |
Coupling 1/2 316 SS |
1 |
|
| 7a |
350-2206 |
Tempsure discharge line for AH |
1 |
|
| 7b |
350-2207 |
Tempsure discharge line for C |
1 |
|
| 8a |
350-0509 |
Temp Sure Intake Line for AH Models (OBSOLETE) |
1 |
|
| 8b |
350-2208 |
Tempsure intake line for C |
1 |
|
| 9 |
350-0830 |
3 Sided Heater Tank Shield w/Hole |
1 |
|
| 10 |
350-0828 |
Booster Tank Access Cover |
1 |
|
| 11 |
350-1817 |
Red Silicone Heater Gasket |
1 |
|
| 12 |
350-1475 |
Heater Thermostat |
1 |
|
| 13 |
350-2046 |
1/4 Comp x 1/4 MIP Fitting |
1 |
|
| 14 |
350-1943 |
Hi Limit Switch 250 Deg |
1 |
|
| 15 |
350-1389 |
Contactor 60 Amp 3 Pole |
1 |
|
| 16 |
350-0605 |
10-32 x 5/8 Panhead Screw |
2 |
|
| 17 |
350-0573 |
1/4-20 Nylon Lock Nut |
11 |
|
| 18 |
350-0589 |
1/4 SS Washer |
3 |
|
| 19 |
350-1496 |
Ground Block |
1 |
|
| 20 |
350-0832 |
Heater Tank for Tempsure (3 Studs) |
1 |
|
| 21 |
350-1484 |
Immersion Heater 240V/12kW T-Flange |
1 |
|
| 22 |
350-0257 |
Power Rocker Switch Red 250V |
1 |
|
|
|
