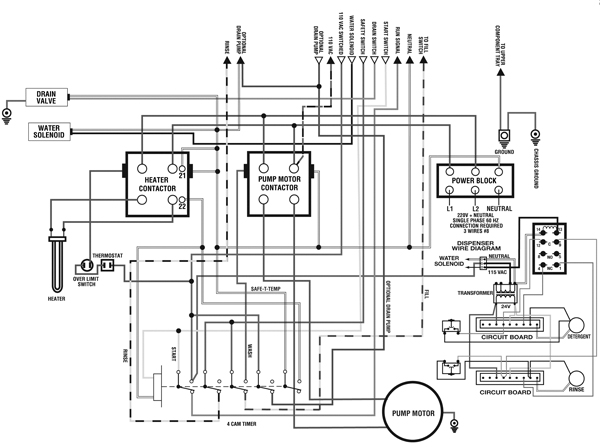

Wiring Diagram - Part 1 - |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
|
|

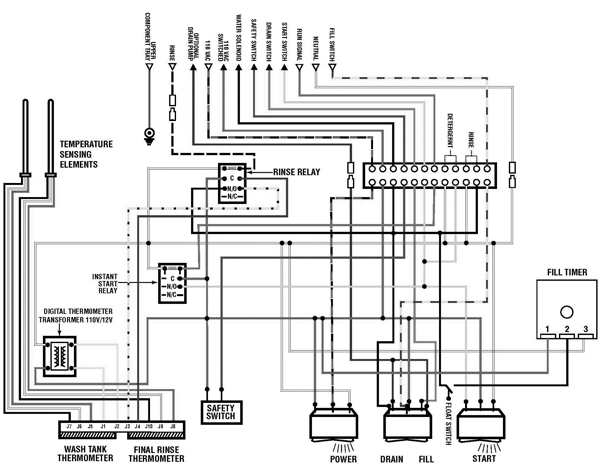

Wiring Diagram - Part 2 - |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
|
|
Cabinet Assembly - 350-3047 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 3 |
350-1764 |
SS Top (CMA 180UC/GL-X) Extended |
1 |
|
| 4 |
350-1774 |
Scrap Basket CMA-180UC/181 GW |
1 |
|
| 5 |
350-1777 |
Tray Track RH CMA-180UC |
1 |
|
| 6 |
350-1778 |
Tray Track LH CMA-180UC |
1 |
|
| 7 |
350-1780 |
Lower Front Panel CMA-181GW |
1 |
|
| 10 |
350-1768 |
Door Gasket (CMA-180UC/L-1X-16) |
1 |
|
| 11 |
350-1768 |
Door Gasket (CMA-180UC/L-1X-16) |
1 |
|
| 12 |
350-0603 |
10-32 x 3/8 Truss Head Screw |
6 |
|
| 13 |
350-0605 |
10-32 x 5/8 Panhead Screw |
8 |
|
| 14 |
350-1208 |
10-32 Lock Nut |
4 |
|
| 16 |
350-0748 |
Hole Stopper 2 inch |
1 |
|
| 17 |
350-0497 |
Hole Stopper Gasket |
1 |
|
| 18 |
350-0573 |
1/4-20 Nylon Lock Nut |
1 |
|
| 19 |
350-1207 |
Neoprene Sponge Strip 3/8 inch Wide |
2 FOOT |
|
| 20 |
350-1783 |
Body Magnet Holder |
1 |
|
| 21 |
350-0371 |
Door Magnet (L-1X/CMA-180UC/GL-X) |
2 |
|
| 22 |
350-0591 |
8-32 Nylon Lock Nut |
2 |
|
| 23 |
350-1279 |
#10 Brass Washer |
2 |
|
| 24 |
350-1152 |
Thermowell Assy CMA-180UC (Wash) |
1 |
|
| 25 |
350-1172 |
Chemical Tube Bulkhead |
1 |
|
| 27 |
350-0643 |
Leg 4 inch 1/2-13 1 inch Diameter - 180/181UC |
4 |
|
|
|

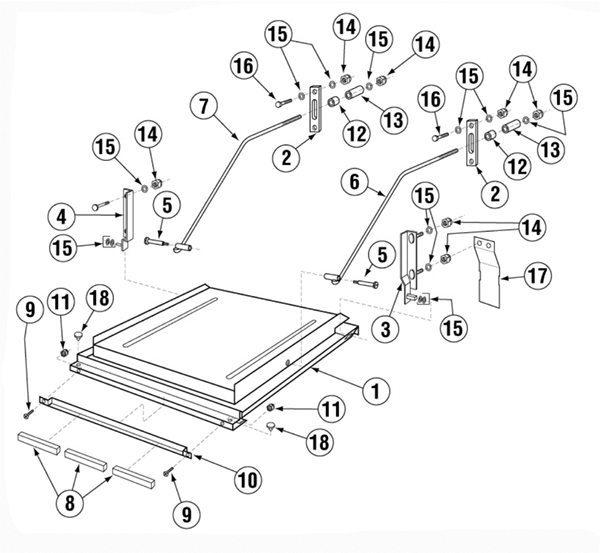

Door Assembly - 350-3048 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
350-1293 |
L-1X/CMA-181 Door (7/02) |
1 |
|
| 2 |
350-1267 |
Door Support Rod Block |
2 |
|
| 3 |
350-1787 |
Door Hinge RH |
1 |
|
| 4 |
350-1788 |
Door Hinge LH |
1 |
|
| 5 |
350-1303 |
Door Rod Screw Pin |
2 |
|
| 6 |
350-1302 |
Door Support Rod Right |
1 |
|
| 7 |
350-1304 |
Door Support Rod Left |
1 |
|
| 8 |
350-0371 |
Door Magnet (L-1X/CMA-180UC/GL-X) |
3 |
|
| 9 |
350-0614 |
8-32 x 1/2 Phillips Flat Screw |
2 |
|
| 10 |
350-1784 |
Door Magnet Bracket |
1 |
|
| 11 |
350-0610 |
6-32 Nylon Insert Lock Nut |
2 |
|
| 13 |
350-1266 |
Door Stop Undercounter (Parallel) |
2 |
|
| 14 |
350-0573 |
1/4-20 Nylon Lock Nut |
10 |
|
| 15 |
350-0589 |
1/4 SS Washer |
14 |
|
| 16 |
350-0576 |
1/4-20 x 5/8 Hexhead Bolt 304SS |
4 |
|
| 17 |
350-1781 |
Door Splash Guard |
2 |
|
|
|
Electrical Tray Assembly - 350-3049 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 2 |
350-1758 |
Timer 2 Min 5 Cam CMA-180UC ST |
1 |
|
| 3 |
350-1811 |
Motor Contactor 20 Amp 2Pole 115V |
1 |
|
| 4 |
350-1812 |
Heater Contactor IEC |
1 |
|
| 5 |
350-1819 |
Power Block 3 Position |
1 |
|
| 6 |
350-0297 |
Snap Bushing Universal 875-11 |
2 |
|
| 7 |
350-0618 |
6-32 x 1 Phillips Panhead Screw |
2 |
|
| 8 |
350-0591 |
8-32 Nylon Lock Nut |
12 |
|
| 10 |
350-0610 |
6-32 Nylon Insert Lock Nut |
2 |
|
| 11 |
350-0188 |
St-3/4 Straight Connector |
1 |
|
| 12 |
350-0186 |
Conduit 3/4 Sealtite |
9 |
|
| 13 |
350-1426 |
HT Plumbing Bracket |
1 |
|
|
|
Control Box Assembly - 350-3050 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 2 |
350-0444 |
120V ice cube relay |
2 |
|
| 3 |
350-1149 |
Dual Temp Display Kit (CMA-180UC) KDW |
3 |
|
| 4 |
350-1146 |
Thermometer Transformer |
1 |
|
| 6 |
350-1820 |
Start Switch-Amber 115V |
1 |
|
| 7 |
350-1821 |
Drain/Fill Rocker Switch-Momentary |
1 |
|
| 8 |
350-1822 |
Power Rocker Switch Red 115V |
1 |
|
| 9 |
350-1496 |
Ground Block |
1 |
|
| 10 |
350-0297 |
Snap Bushing Universal 875-11 |
1 |
|
| 11 |
350-0618 |
6-32 x 1 Phillips Panhead Screw |
2 |
|
| 12 |
350-0610 |
6-32 Nylon Insert Lock Nut |
2 |
|
| 13 |
350-0591 |
8-32 Nylon Lock Nut |
5 |
|
| 14 |
350-0570 |
8-32 x 1/2 Panhead Screw |
6 |
|
| 15 |
350-0361 |
Reed Switch - ISI |
1 |
|
| 16 |
350-0580 |
8-32 PM Nut |
4 |
|
| 17 |
350-1206 |
Sponge Strips -Neoprene |
2 |
|
| 18 |
350-1148 |
Thermocouple |
2 |
|
| 19 |
350-0615 |
4-40 Nylon Lock Nut |
2 |
|
| 20 |
350-1189 |
Switch Guard (Undercounter Units) |
1 |
|
| 22 |
350-0443 |
Timer Relay 120V |
1 |
|
|
|
Chemical Dispenser Assembly - 350-3051 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
350-0529 |
Peri Pump Gear Motor (GW-100/UC180) |
2 |
|
| 2 |
350-0530 |
GL-C/GW-100 Peri Pump Cartridge |
2 |
|
| 3 |
350-0550 |
GL-C/GW-100/180UC Sq Tube w/Conn |
2 |
|
| 3a |
350-0547 |
GL-C/GW-100 Squeeze Tube - Black |
2 |
|
| 4 |
350-0526 |
GL-C Peri Pump Complete |
2 |
|
| 5 |
350-0539 |
CMA-180UC Disp Transformer 115v |
1 |
|
| 6 |
350-0537 |
Circuit Board Connector - GL-C/GW-100 |
2 |
|
| 7 |
350-0532 |
GL-C/GW-100 Peri Pump Circuit Board |
2 |
|
| 8 |
350-1665 |
4-40 x 3/16 Phil Pan Head Screw |
4 |
|
| 9 |
350-0533 |
Circuit Board Standoff |
4 |
|
| 10 |
350-0534 |
Circuit Board Standoff Cap |
4 |
|
| 11 |
350-1663 |
4-40 x 5/8 Pan Head Screw |
2 |
|
| 12 |
350-0538 |
Circuit Board Stand-off Bushing |
2 |
|
| 13 |
350-0615 |
4-40 Nylon Lock Nut |
2 |
|
| 14 |
350-1770 |
CMA-180UC Peri Pump Box |
1 |
|
| 17 |
350-0444 |
120V ice cube relay |
1 |
|
|
|

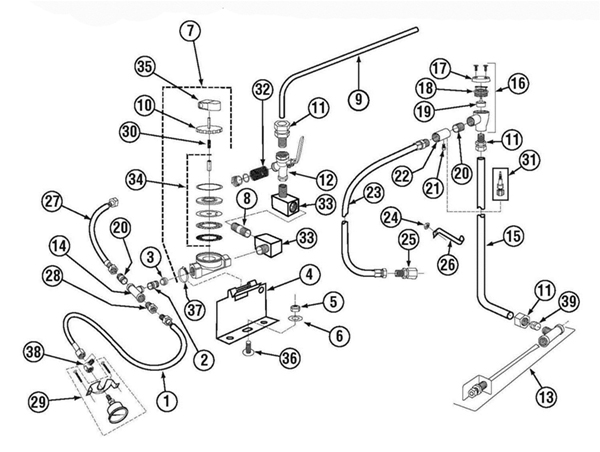

Plumbing Assembly - 7.2012 - 350-3052 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
350-1827 |
SS Braided Hose 20 inch 1/4 Comp x 1/2MIP |
1 |
|
| 2 |
350-1200 |
Nipple Brass 1/2 x Close |
1 |
|
| 3 |
350-1198 |
Fitting with Flow Disk |
1 |
|
| 4 |
350-1773 |
Plumbing Bracket |
1 |
|
| 5 |
350-1208 |
10-32 Lock Nut |
1 |
|
| 6 |
350-0589 |
1/4 SS Washer |
2 |
|
| 7 |
350-1191 |
1/2 Water Sol Valve JE120/60 |
1 |
|
| 8 |
350-0492 |
Nipple Brass 1/2 x 4 |
1 |
|
| 10 |
350-1193 |
1/2 Water Solenoid Bonnet |
1 |
|
| 11 |
350-0504 |
5/8 Compression Fitting Nut |
4 |
|
| 11 |
350-0504 |
5/8 Compression Fitting Nut |
4 |
|
| 12 |
350-2062 |
1/2 Strainer Ball Valve NPT |
1 |
|
| 13 |
350-1153 |
Thermowell Tee |
1 |
|
| 14 |
350-0489 |
1/2 Tee F x F x F SS |
1 |
|
| 15 |
350-1309 |
Vacuum Breaker Line |
1 |
|
| 16 |
350-1202 |
Vacuum Breaker 1/2 inch |
1 |
|
| 17 |
350-0485 |
3/4 Vac Breaker Cap SS |
1 |
|
| 18 |
350-1203 |
1/2 Vac Breaker Bonnet Brass Watt |
1 |
|
| 19 |
350-1201 |
1/2 Vac Breaker Repair Kit Watts |
1 |
|
| 20 |
350-1200 |
Nipple Brass 1/2 x Close |
2 |
|
| 21 |
350-1164 |
1/8 Male Plug |
1 |
|
| 22 |
350-1634 |
Mixing Chamber SS CMA 180UC |
1 |
|
| 23 |
350-2225 |
1/2 x 2 1/2 braided hose |
1 |
|
| 24 |
999-0609 |
Nut 1/4-20 hex stainless steel |
2 |
|
| 25 |
350-0477 |
Adapter 1/2 Comp x 1/2 MIP |
2 |
|
| 26 |
350-1424 |
Long Support Bracket |
1 |
|
| 27 |
350-0520 |
SS Braided Hose 7 inch (OBSOLETE) |
1 |
|
| 28 |
350-1599 |
1/2 x 1/8 Bushing Brass |
1 |
|
| 29 |
350-1601 |
Pressure Gauge CMA-180UC/EST Conv |
1 |
|
| 31 |
350-1632 |
Chemical Inlet Check Valve 1/4 inch X 1/8 |
1 |
|
| 32 |
350-2063 |
1/2 Ball Valve Strainer Only |
1 |
|
| 33 |
350-0491 |
1/2 90Deg Street Elbow |
2 |
|
| 34 |
350-0466 |
1/2 Water Solenoid Repair Kit JE |
1 |
|
| 35 |
350-0484 |
Solenoid Coil JE 220V (3/4 & 1/2) |
1 |
|
| 36 |
350-0603 |
10-32 x 3/8 Truss Head Screw |
1 |
|
| 37 |
350-1119 |
Hose Clamp #4 Size #002 SS |
1 |
|
| 38 |
350-2049 |
1/4 Street Elbow 90Deg |
1 |
|
| 39 |
350-0505 |
5/8 Compression Fitting Ring |
1 |
|
| N/S |
350-2119 |
Plumbing tube |
|
|
|
|
Plumbing Assembly - Before 08.2012 - 350-3053 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
350-1827 |
SS Braided Hose 20 inch 1/4 Comp x 1/2MIP |
1 |
|
| 2 |
350-1200 |
Nipple Brass 1/2 x Close |
1 |
|
| 3 |
350-1198 |
Fitting with Flow Disk |
1 |
|
| 5 |
350-0573 |
1/4-20 Nylon Lock Nut |
2 |
|
| 6 |
350-0589 |
1/4 SS Washer |
5 |
|
| 8 |
350-0492 |
Nipple Brass 1/2 x 4 |
1 |
|
| 10 |
350-1197 |
Dema Valve Rep Kit 1/4,3/8, 1/2, 3/4 |
1 |
|
| 11 |
350-0499 |
5/8 Comp x 1/2 MIP Adapter |
4 |
|
| 12 |
350-2062 |
1/2 Strainer Ball Valve NPT |
1 |
|
| 13 |
350-0104 |
1/4 Comp x 1/2 MIP Fitting |
1 |
|
| 14 |
350-0489 |
1/2 Tee F x F x F SS |
2 |
|
| 15 |
350-1309 |
Vacuum Breaker Line |
1 |
|
| 16 |
350-1202 |
Vacuum Breaker 1/2 inch |
1 |
|
| 17 |
350-0485 |
3/4 Vac Breaker Cap SS |
1 |
|
| 18 |
350-1203 |
1/2 Vac Breaker Bonnet Brass Watt |
1 |
|
| 19 |
350-1201 |
1/2 Vac Breaker Repair Kit Watts |
1 |
|
| 20 |
350-1200 |
Nipple Brass 1/2 x Close |
2 |
|
| 21 |
350-1164 |
1/8 Male Plug |
1 |
|
| 22 |
350-1634 |
Mixing Chamber SS CMA 180UC |
1 |
|
| 23 |
350-2225 |
1/2 x 2 1/2 braided hose |
1 |
|
| 24 |
999-0609 |
Nut 1/4-20 hex stainless steel |
2 |
|
| 24 |
999-0609 |
Nut 1/4-20 hex stainless steel |
2 |
|
| 25 |
350-0477 |
Adapter 1/2 Comp x 1/2 MIP |
2 |
|
| 26 |
350-1424 |
Long Support Bracket |
1 |
|
| 27 |
350-0520 |
SS Braided Hose 7 inch (OBSOLETE) |
1 |
|
| 28 |
350-1599 |
1/2 x 1/8 Bushing Brass |
1 |
|
| 29 |
350-1601 |
Pressure Gauge CMA-180UC/EST Conv |
1 |
|
| 30 |
350-2056 |
Water Solenoid Coil Only 115V (Dema) |
1 |
|
| 31 |
350-1632 |
Chemical Inlet Check Valve 1/4 inch X 1/8 |
1 |
|
| 32 |
350-2063 |
1/2 Ball Valve Strainer Only |
1 |
|
| 33 |
350-0488 |
1/2 Tee F x F x F Brass |
1 |
|
| 34 |
350-0491 |
1/2 90Deg Street Elbow |
2 |
|
|
|

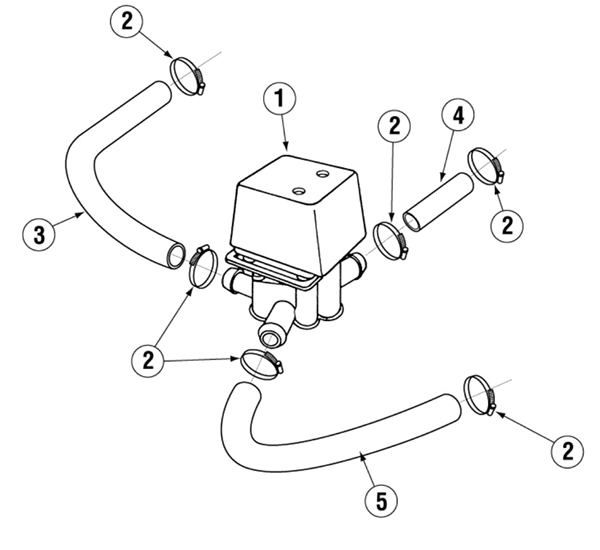

Drain Assembly - 350-3054 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
350-1236 |
Drain Valve 115V New Style |
1 |
|
| 2 |
350-1118 |
Hose Clamp Size #16 1 inch |
6 |
|
| 3 |
350-1142 |
Transfer Hose 90Deg 1 inch |
1 |
|
|
|

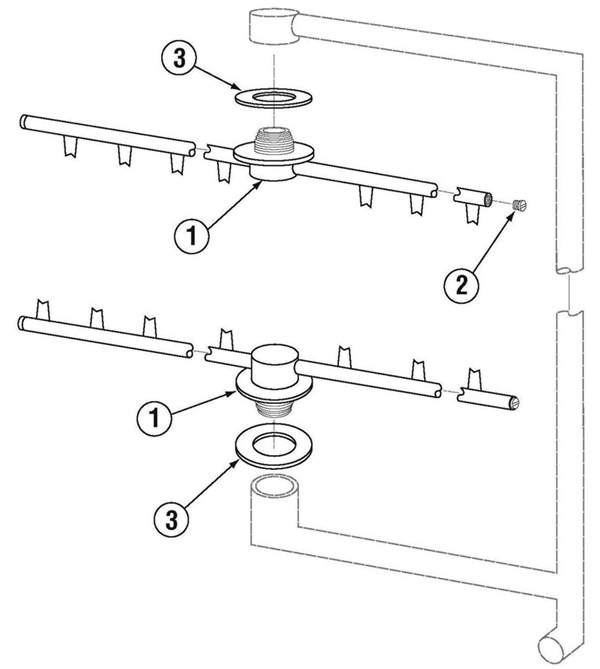

Wash Assembly - 350-3055 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
350-0141 |
Wash Arms (CMA-180UC) Bearing & Plug |
2 |
|
| 2 |
350-0153 |
Spray Arm End Plug (180UC Wash Arm) |
4 |
|
| 3 |
350-1254 |
Red Silicone Gasket CMA-180 |
2 |
|
|
|
Rinse Assembly - 350-3056 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
350-0140 |
Rinse Arm w/Bearings (CMA-180 & 180UC) |
2 |
|
| 2 |
350-1254 |
Red Silicone Gasket CMA-180 |
2 |
|
| 3 |
350-0152 |
Rinse Arm SS End Plug (CMA-180) |
4 |
|
|
|
Pump Assembly - 350-3057 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
350-0568 |
5/16-18 x 5/8 Hexhead Bolt |
4 |
|
| 2 |
350-0590 |
5/16 SS Washer |
4 |
|
| 3 |
350-0574 |
5/16-18 SS Nut |
4 |
|
| 7 |
350-1163 |
Volute O-Ring For SS Pump |
1 |
|
| 8 |
350-0095 |
Pump Seal Kit for SS Pump |
1 |
|
| 10 |
350-1273 |
35Deg Elbow MIP X Barb SS |
1 |
|
| 11 |
350-1246 |
SS Pump Cover |
1 |
|
| 12 |
350-0108 |
3/8 Male Plug - Sq Head |
2 |
|
| 13 |
350-0098 |
Slip Joint Nut O-Ring Gasket Buna |
1 |
|
| 14 |
350-0096 |
Slip Joint Nut 1 1/2 x 1 1/4 |
1 |
|
| 15 |
350-0065 |
SS Pump 220v/60Hz Motor Assy |
1 |
|
| 19 |
350-0577 |
10 mm Socket Head Screw |
6 |
|
| 20 |
350-0097 |
Slip Joint Nut Friction Ring Plastic |
1 |
|
| 21 |
350-1118 |
Hose Clamp Size #16 1 inch |
1 |
|
| 22 |
350-1132 |
Transfer Hose 1 inch Reinforce 25 inch |
1 |
|
|
|
Heater Assembly - 350-3058 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
350-1816 |
Immersion Heater 6kW208-240V T-Flange |
1 |
|
| 2 |
350-1474 |
Heater Thermostat (EGO) |
1 |
|
| 3 |
350-1944 |
Hi Limit Switch 200F (CMA-180UC) |
1 |
|
| 4 |
350-1817 |
Red Silicone Heater Gasket |
1 |
|
| 5 |
350-1655 |
5/16-18 Nylon Insert Lock Nut |
3 |
|
| 6 |
350-0590 |
5/16 SS Washer |
3 |
|
| 7 |
350-2046 |
1/4 Comp x 1/4 MIP Fitting |
1 |
|
| 8 |
350-0610 |
6-32 Nylon Insert Lock Nut |
2 |
|
| 9 |
350-1945 |
Hi Limit Switch Spacer CMA-180UC |
2 |
|
|
|

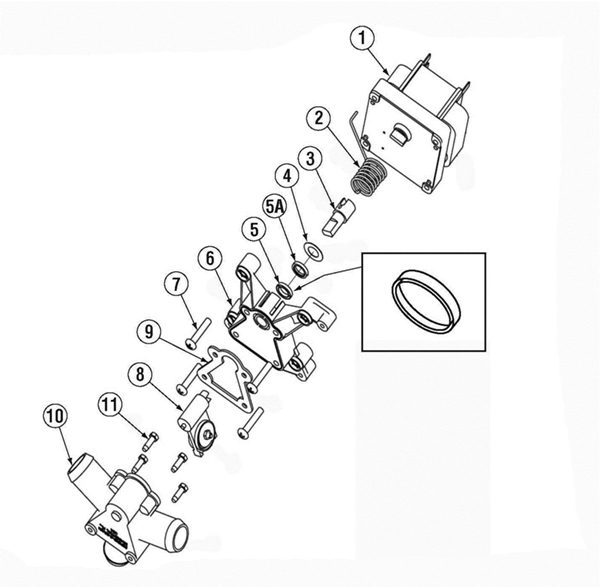

Drain Valve Assembly - 350-3059 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
350-0008 |
Drain Motor 115V (2006) |
1 |
|
| 2 |
350-1219 |
Drain Valve Spring |
1 |
|
| 3 |
350-1225 |
Drain Valve Drive Pin |
1 |
|
| 4 |
350-1224 |
Drain Valve Washer (Thin) SS |
1 |
|
| 5 |
350-1222 |
Drain Valve Seal Washer -Rubber |
1 |
|
| 5a |
350-1226 |
Drain Seal Bearing (White Washer) |
1 |
|
| 6 |
350-1243 |
Drain Valve Cover Plate-3 Port |
1 |
|
| 8 |
350-1240 |
Drain Valve Hinge/Seal Fluorocarbon |
1 |
|
| 9 |
350-1220 |
Drain Valve Housing Gasket |
1 |
|
| 10 |
350-1238 |
Drain Valve Housing w/Brass Inserts |
1 |
|
| 11 |
350-1241 |
Screw #6-32 X 0.625 Flanged Hex |
2 |
|
| 12 |
350-1242 |
Screw - #6-32 X 1.5 inch Flanged Hex |
2 |
|
| 13 |
350-1239 |
Valve Cover Assy - Rectangular |
1 |
|
|
|
