Parts List Complete for CLEANFIX RA 501E


- Commonly Asked For Parts - 195-9692
RefNbr Part Number Description Req Notes
01 295-8502 Relay 1
02 295-8503 125uF capacitor 1
03 295-8504 25uF capacitor 1
04 295-3058 Straight squeegee assembly

- Pads - 255-2000
RefNbr Part Number Description Req Notes
01 255-2040 20 inch aqua plus burnishing pad (pkg of 5)
02 255-2035 20 inch Armadillo concrete scrubbing pad (pkg of 5)
03 255-2064 20 inch Blue ace pad (pkg of 5)
04 255-2042 20 inch Blue Jay burnishing pad (pkg of 5)
05 255-2012 20 inch Cure white pad (pkg of 5)
06 255-2077 20 inch Diamondback extreme stripping pad (pkg of 5)
07 255-2038 20 inch EHD Extra Heavy Duty Concrete Leveling Pad (pkg of 2
08 255-2021 20 inch gorilla lite burnishing pad (pkg of 5)
09 255-2050 20 inch gorilla spray buff/polish/burnish pad (pkg of 5)
10 255-2065 20 inch Heat concrete bonding pad (pkg of 5)
11 255-2030 20 inch jaguar burnishing pad (pkg of 5)
12 255-2067 20 inch Laminated 2001 Gorilla polish pad (pkg of 5)
13 255-2087 20 inch Melamine Mela-Kleen pad (pkg of 2)
14 255-2068 20 inch Microclean daily cleaning pad (pkg of 2)
15 255-2069 20 inch Micropolish polishing and burnishing pad (pkg of 2)
16 255-2090 20 inch premium black stripping pad (pkg of 5)
17 255-2070 20 inch premium blue cleaning pad (pkg of 5)
18 255-2092 20 inch premium brown stripping pad (pkg of 5)
19 255-2080 20 inch premium green scrubbing pad (pkg of 5)
20 255-2060 20 inch premium red scrubbing pad (pkg of 5)
21 255-2052 20 inch premium tan polishing pad (pkg of 5)
22 255-2020 20 inch premium white polishing pad (pkg of 5)
23 255-2011 20 inch superspeed rubberized pad (pkg of 5)
24 255-2095 20 inch razorback stripping pad (pkg of 5)
25 255-2047 20 inch Redwood maroon floor prep pad (pkg of 10)
26 255-2055 20 inch Ruff non-abrasive brush pad (pkg of 2)
27 255-2023 20 inch sand screen driver pad (pkg of 2)
28 255-0157 20 inch Professional sand screen 100 grit (pkg of 10)
29 255-0021 20 inch Professional sand screen 120 grit (pkg of 10)
30 255-0158 20 inch Professional sand screen 150 grit (pkg of 10)
31 255-0159 20 inch Professional sand screen 180 grit (pkg of 10)
32 255-0160 20 inch Professional sand screen 220 grit (pkg of 10)
33 255-0161 20 inch Professional sand screen 400 grit (pkg of 10)
34 255-0030 20 inch Professional sand screen 60 grit (pkg of 10)
35 255-0020 20 inch Professional sand screen 80 grit (pkg of 10)
36 255-0249 20 inch Superscreen sand screen 100 grit (pkg of 10)
37 255-0250 20 inch Superscreen sand screen 120 grit (pkg of 10)
38 255-0251 20 inch Superscreen sand screen 150 grit (pkg of 10)
39 255-0252 20 inch Superscreen sand screen 180 grit (pkg of 10)
40 255-0253 20 inch Superscreen sand screen 220 grit (pkg10) (OBSOLETE)
41 255-0254 20 inch Superscreen sand screen 400 grit (pkg of 10)
42 255-0247 20 inch Superscreen sand screen 60 grit (pkg of 10)
43 255-0248 20 inch Superscreen sand screen 80 grit (pkg of 10)
45 255-9591 20 inch Diamond by Gorilla 11000 Grit (pkg of 2)
46 255-9588 20 inch Diamond by Gorilla 1500 Grit (pkg of 2)
47 255-9585 20 inch Diamond by Gorilla 200 Grit (pkg of 2)
48 255-9589 20 inch Diamond by Gorilla 3000 Grit (pkg of 2)
49 255-9586 20 inch Diamond by Gorilla 400 Grit (pkg of 2)
50 255-9587 20 inch Diamond by Gorilla 800 Grit (pkg of 2)
51 255-9590 20 inch Diamond by Gorilla 8000 Grit (pkg of 2)
52 255-9645 20 inch Diamond starter pack (1 of each grit)
53 255-2082 20 inch Turbostrip segmented rotary pad (pkg of 4)
54 255-2015 20 inch Duala clean and shine pad - low speed (pkg of 5)
55 255-2016 20in 2001 Duala clean& shine pad-high speed(pkg 5) (OBSOLETE

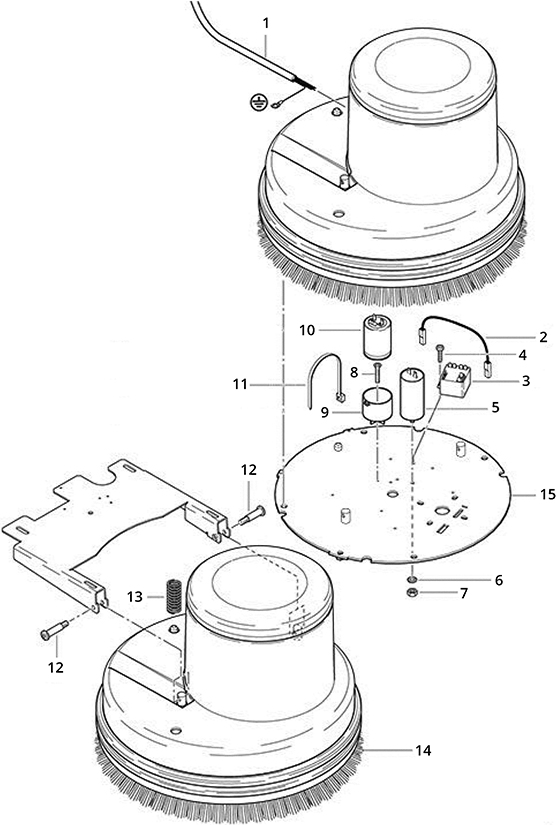

Capacitor Assembly - 261-0001
RefNbr Part Number Description Req Notes
1 195-0030 Motor cable 1
2 195-0031 Cable 1
3 195-0032 Relay 1
4 195-0033 Screw 1
5 195-0034 Capacitor 1
6 195-0035 M8 washer serated lock 1
7 999-1424 Nut M8-1.25 hex stainless steel 1
8 195-0036 Screw M4 x 25mm countersunk 1
9 195-0037 Capacitor holder 1
10 195-0038 320V capacitor 1
11 195-3764 Cable strap 1
12 195-3723 Shoulder screw 2
13 195-0039 Compression spring 1
14 295-4078 20 inch standard brush 1
15 195-3711 Drive disk 1

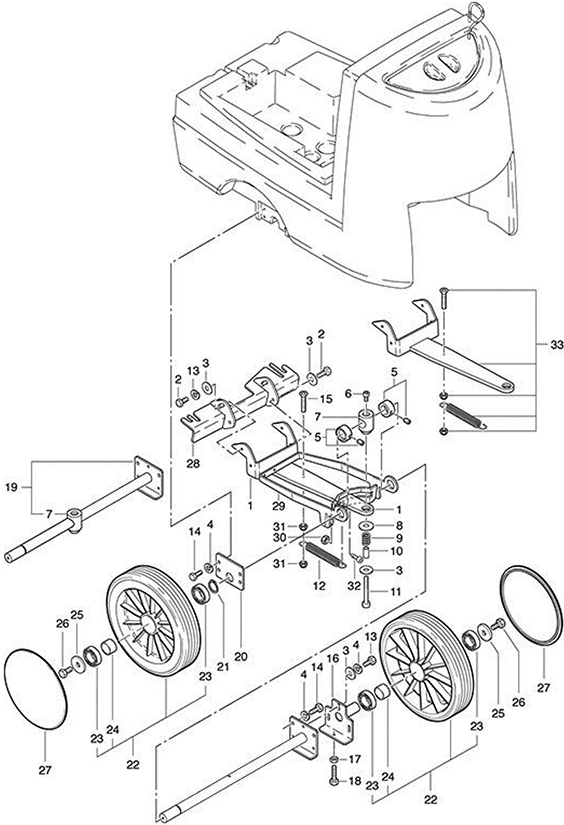

Chassis and Wheel Assembly - 261-0002
RefNbr Part Number Description Req Notes
1 195-0040 Lever 2
2 195-3570 Screw M6 2
3 999-1261 Washer M6 flat stainless steel 4
4 195-3572 Spring washer 3
5 195-3573 Tension ring with thred pin 2
6 195-0041 Screw M6 x 10mm 1
7 195-3574 Ball stud 2
8 195-3575 Washer 1
9 195-3576 Compression spring 1
10 195-3577 Washer 1
11 195-3578 Screw M6 1
12 195-3579 Spring 1
13 195-3580 Screw M6 hex 2
14 195-3560 Screw 2
15 195-0042 Screw M6 x 25mm countersunk 1
16 195-3582 Clamping plate 1
17 195-3583 Nut M6 1
18 195-3584 Screw M6 x 20mm 1
19 195-0043 Axle 1 (includes 7)
20 195-3586 Clamping plate 1
21 195-3587 Security ring 1
22 261-0034 7 inch wheel 2 (includes 23-24)
23 195-3589 Ball bearing 4
24 195-3590 Spacer 2
25 195-3561 Washer 2
26 195-3570 Screw M6 2
27 195-3592 Wheel cover 2
28 195-3593 Nozzle support bracket 1
29 195-3594 Nozzle bracket 1
30 999-1651 Nut M8-1 hex stainless steel 1
31 999-9131 Nut M6 x 1 nylon lock stainless steel 2
32 195-0044 Screw M8 x 16mm hex head 1
33 195-3598 Lever assembly 1 (before SN 8820.002)

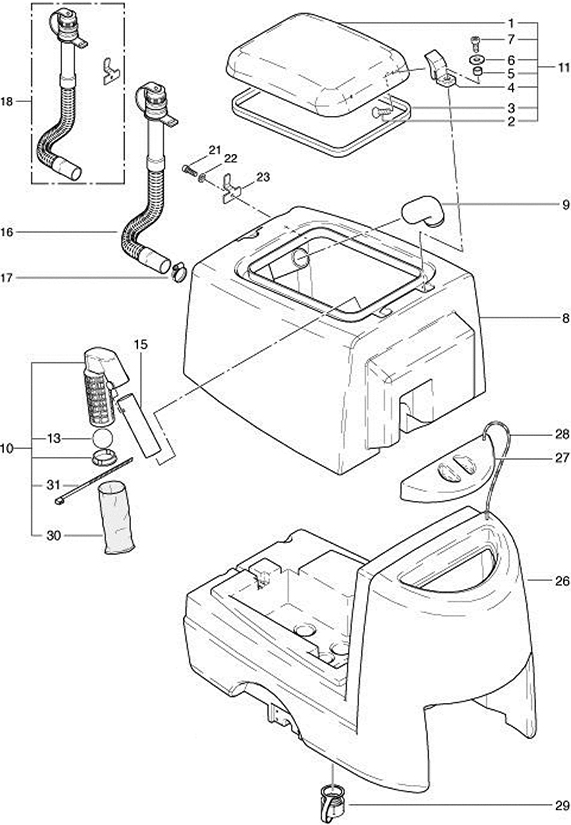

Tank Assembly - 261-0003
RefNbr Part Number Description Req Notes
1 195-8981 Recovery tank lid 1
2 195-3600 Screw M4 x 8mm 1
3 195-8982 Recovery tank lid gasket 1
4 261-0012 Hinge for lid 1
5 261-0011 Spacer 1
6 261-0013 Washer 1
7 261-0014 Screw 1
8 195-0045 Waste water tank 1
9 195-3607 Angled pipe 1
10 195-3608 Float assembly 1 (includes 13, 30-31)
11 195-0046 Tank cover assembly 1 (includes 1-7)
13 195-3611 Float ball 1
15 195-3613 Vacuum hose 1
16 195-8989 Recovery tank drain hose assembly (OBSOLETE) 1
17 195-3615 Hose clamp 1
18 195-8989 Recovery tank drain hose assembly (OBSOLETE) 1 (before SN 9040.002)
21 261-0014 Screw 1
22 195-3706 Washer M5 serrated 1
23 195-0048 Hose support 1
26 195-0049 Clean water tank 1
27 195-3629 Solution tank cover 1
28 195-3630 Cord 1
29 195-3633 Cap 1
30 295-1993 Filter 1
31 195-3639 Cable tie 1

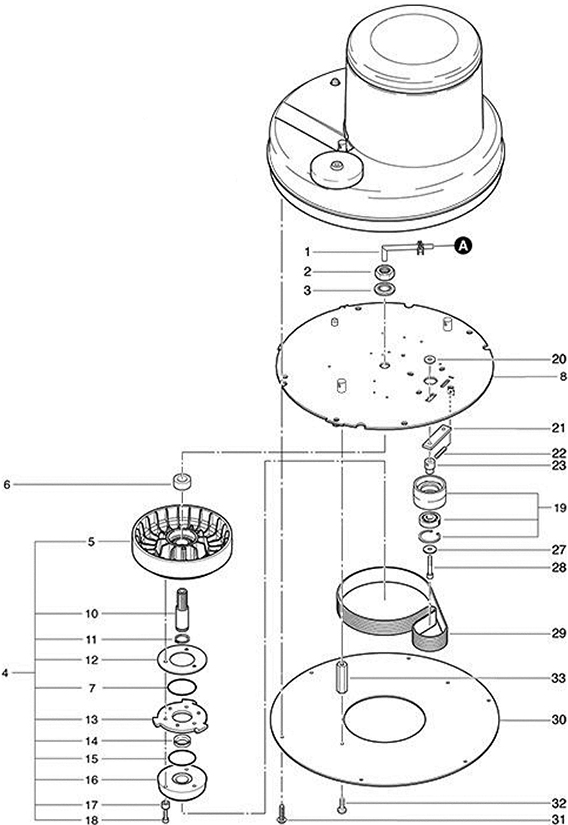

Drive and Distribution Assembly - 261-0004
RefNbr Part Number Description Req Notes
1 195-3640 Distribution tube 1
2 195-3641 Nut M20 1
3 195-3642 Washer M20 1
4 195-0050 Belt wheel 1 (includes 5, 7, 10-18)
5 195-0051 Drive pulley 1
6 195-3645 Can 1
7 195-3646 O-ring 1
8 195-3711 Drive disk 1
10 195-0052 Main shaft 1
11 195-3651 Security ring 1
12 195-3652 Distance ring 1
13 195-3653 Star wheel 1
14 195-3654 V-profile ring 1
15 195-3656 O-ring 1
16 195-3655 Brush support 1
17 195-3562 Washer 1
18 195-3657 Screw M6 x 20 1
19 195-0053 Guide pulley 1
20 195-3659 Groove nut 1
21 195-3660 Support 1
22 195-3661 Threaded pin 1
23 195-0054 Federation tap 1
27 195-3666 Washer M8 1
28 195-3668 Screw M8 x 25 1
29 195-3667 Rib tape 1
30 195-3669 Cover plate 1
31 195-3673 Screw 1
32 195-3671 Screw M5 x 16 1
33 195-3672 Stoppers 1

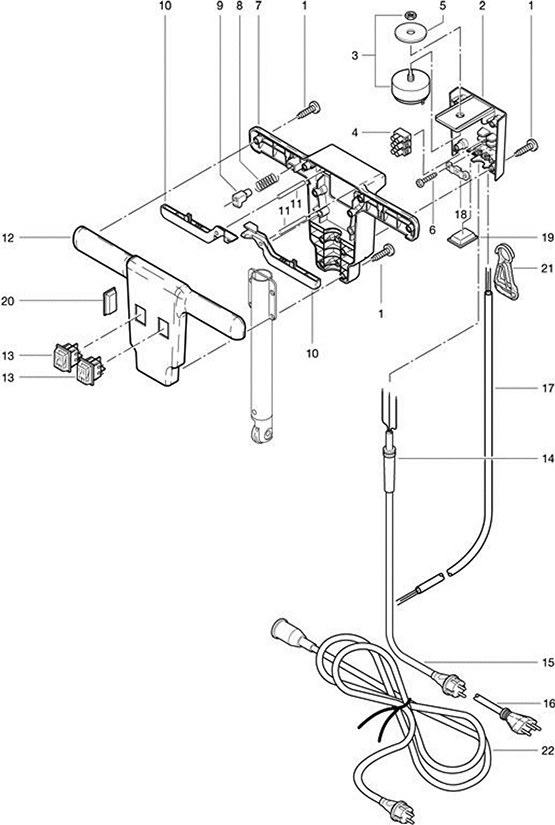

Handle Assembly - 261-0005
RefNbr Part Number Description Req Notes
1 195-3673 Screw 3
2 195-3674 Rear handle cover 1
3 195-3676 Switch 2
4 195-0055 Electrical terminal 3
5 195-3675 Washer 1
6 195-3677 Screw M5 x 20 1
7 195-0056 Rear handle housing 1
8 195-3679 Pressure spring 1
9 195-3680 Button 1
10 195-3681 Switch handle 2
11 195-3682 Pin 2
12 195-0057 Front handle housing 1
13 295-1640 Tumbler switch 2
14 195-0059 Rubber clamp 1
15 195-0060 Connection cable VDE 1
16 195-0061 Connection cable SEV 1
17 195-0062 Pushbar cable tree 1
18 195-3767 Cable clamp 1
19 195-3683 Cover (black) 1
20 195-3685 Cover 1
21 195-0063 Discharge cable assembly 1
22 195-0064 Extension cable 1

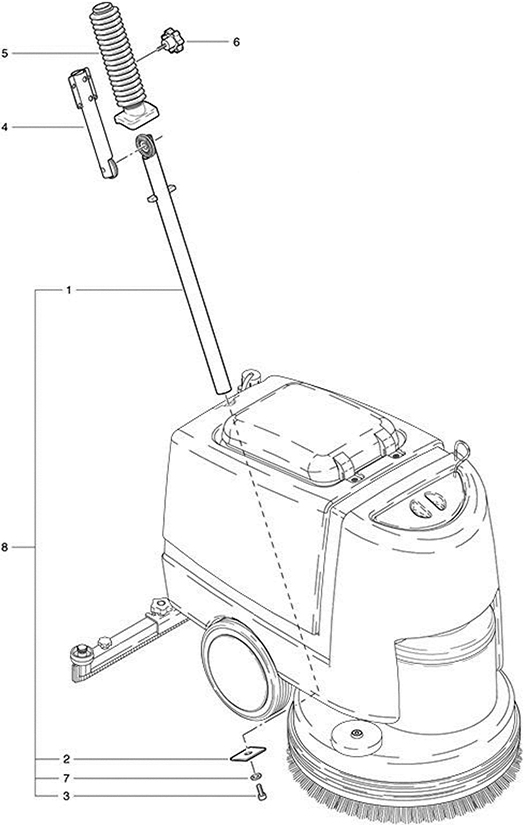

Lower Angled Tube Assembly - 261-0006
RefNbr Part Number Description Req Notes
1 195-0065 Lower angled tube 1
2 195-0066 Disk 1
3 195-3542 Cylindrical screw 1
4 295-8511 Upper handle tube 1
5 195-3544 Protection 1
6 195-3545 Star handle 1
7 195-3546 Lock washer 1
8 N/A Not available 1 (tube bracket assembly) (includes 1-3, 7) (before SN 8812-002)

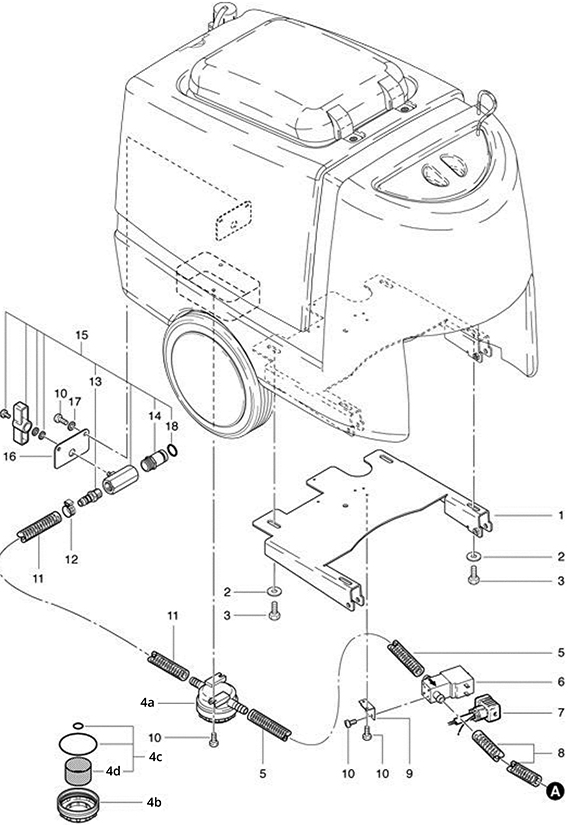

Valve and Filter Assembly - 261-0007
RefNbr Part Number Description Req Notes
1 195-0067 Girder sheet metal 1
2 999-1261 Washer M6 flat stainless steel 2
3 195-3690 Screw M6 x 12 2
4a 295-0522 In-line solution filter 1
4b 195-3692 Filter cover 1
4c 195-7029 Filter kit 1 (includes 4d)
4d 295-4070 Filter cap 1
5 195-3700 Hose 2
6 195-0068 230V magnetic valve 1
7 195-0069 Magnetic valve cable 1
8 195-3698 Hose 1
9 195-3699 Valve support plate 1
10 195-3566 Screw 4
11 195-3698 Hose 2
12 195-3701 Hose clip 1
13 195-3702 Straight nipple 1
14 195-3703 Nipple 1
15 195-3704 Valve complete 1 (includes 10, 13-14, 17-18)
16 195-3705 Disk 1
17 195-3706 Washer M5 serrated 1
18 195-3707 O-ring 1

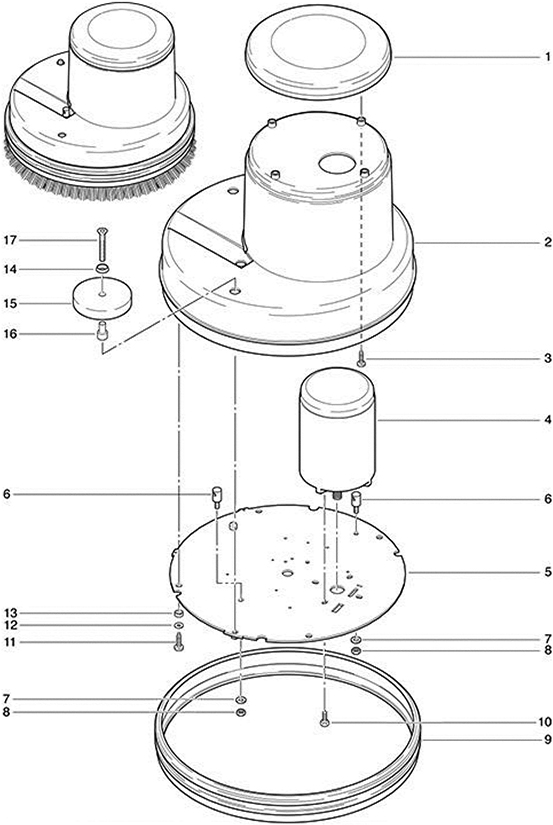

Motor Assembly - 261-0008
RefNbr Part Number Description Req Notes
1 195-3708 Cover 1
2 195-3709 Drive disk cover 1
3 195-3673 Screw 1
4 195-0070 230V motor 1
5 195-3711 Drive disk 1
6 195-3712 Bolt 2
7 195-3623 Washer M5 x 15mm 2
8 195-3713 Nut M8 2
9 195-3714 Shock protection 1
10 195-0071 Screw M8 x 14mm 1
11 195-3670 Tapping screw 1
12 195-3627 Washer M5 x 14MM 1
13 195-3716 Ring 1
14 195-3717 Washer 1
15 195-3718 Fender wheel 1
16 195-3719 Ring 1
17 195-3738 Screw M8 x 45 1

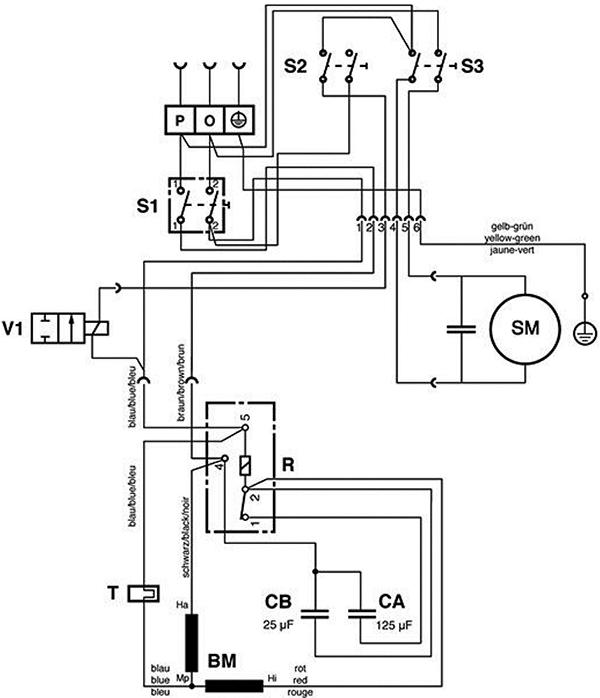

Wiring Diagram - 261-0009
RefNbr Part Number Description Req Notes
BM 195-0072 230V motor 1
CA 195-0038 320V capacitor 1
CB 195-0034 Capacitor 1
S1 195-3676 Switch 1
SM 295-1983 Vacuum motor 1
V1 195-0068 230V magnetic valve 1

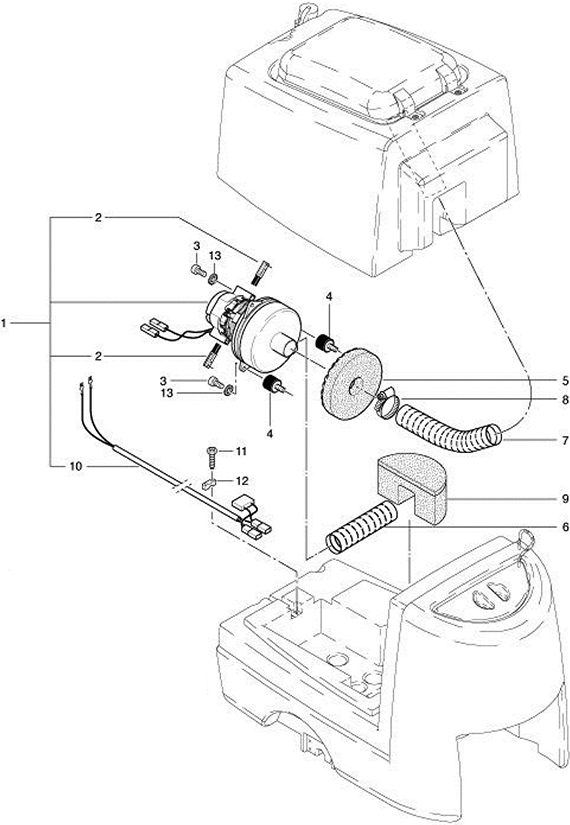

Vacuum Motor Assembly - 261-0010
RefNbr Part Number Description Req Notes
1 195-0073 Vacuum motor assembly 1 (includes 2 and 10)
2 195-3757 Carbon brush (pkg of 2) 2
3 195-3690 Screw M6 x 12 2
4 195-0074 M6 buffer 2
5 195-0075 Noise absorber 1
6 195-0076 Exhaust air hose 1
7 195-0077 Suction hose 1
8 195-3615 Hose clamp 1
9 195-0078 Blower muffler 1
10 195-0079 Suction motor cable tree 1
11 195-3671 Screw M5 x 16 1
12 195-3767 Cable clamp 1
13 195-3765 Washer M6 2

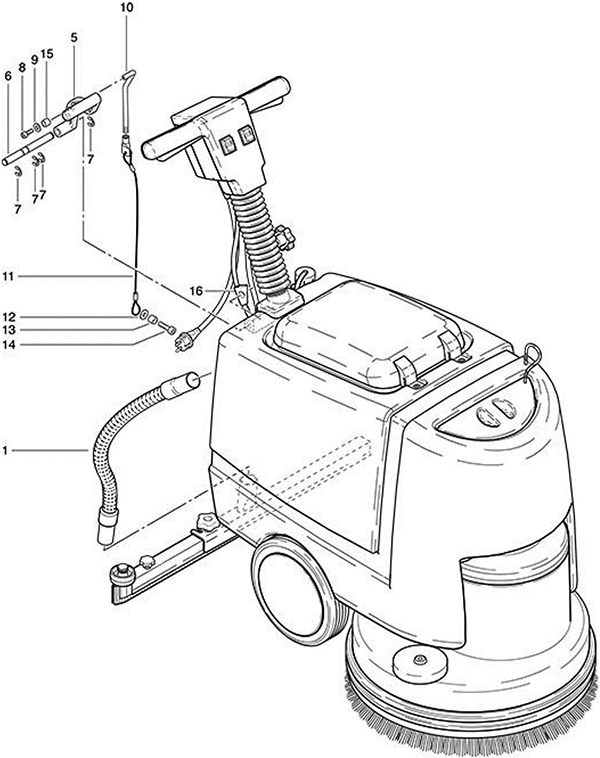

Suction Hose Assembly - 261-0011
RefNbr Part Number Description Req Notes
1 295-1992 Hose 1
5 295-3044 Squeegee lift lever 1
6 195-3748 Axle 1
7 195-3749 Lock washer 4
8 195-3566 Screw 1
9 195-3627 Washer M5 x 14MM 1
10 295-0860 Lifting bar 1
11 195-0080 String 1
12 195-3752 Waher M6 1
13 261-0011 Spacer 1
14 195-3550 Screw 1
15 195-3754 Spacer 1
16 195-3755 Cable bracket 1

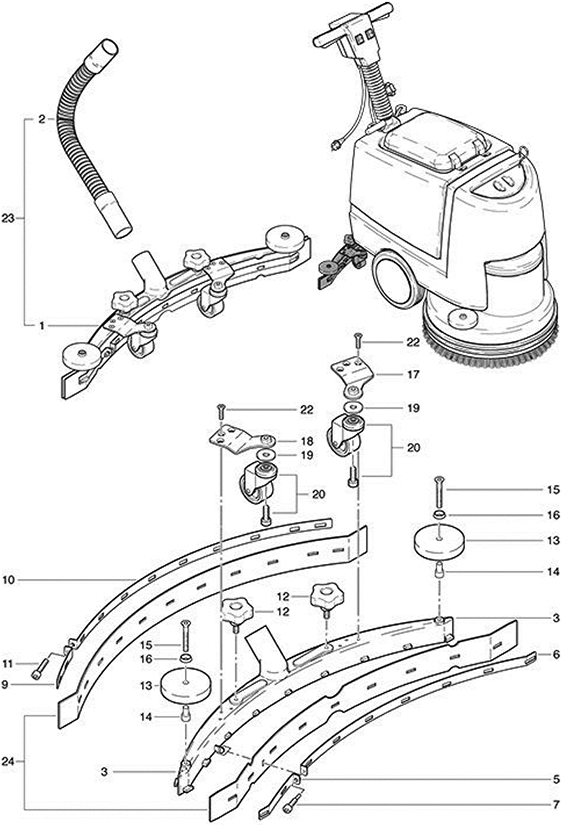

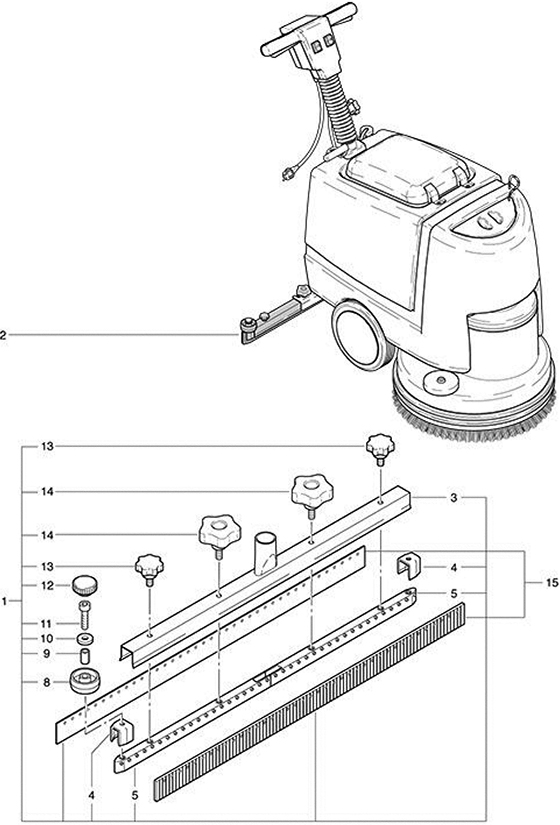

Curved Squeegee Assembly - 261-0012
RefNbr Part Number Description Req Notes
1 295-3066 Curved suction nozzle assembly 1 (includes 3-22)
2 295-0863 Suction hose 1
3 295-4058 Squeegee body 2
5 195-3730 Support plate 1
6 195-3731 Front support plate 1
7 295-3059 Adjustment screw 1
9 195-3734 Small rear support plate 1
10 195-3735 Rear support plate 1
11 195-3736 Screw M6 x 25 1
12 295-0053 Star handle knob 2
13 195-3718 Fender wheel 2
14 195-3719 Ring 2
15 195-3738 Screw M8 x 45 2
16 195-3717 Washer 2
17 195-3739 Right hand wheel bracket 1
18 195-3740 Left hand wheel bracket 1
19 195-3741 Disk 2
20 195-3742 Castor 2
22 195-3743 Screw M6 x 16 2
23 295-0862 Curved suction nozzle 1 (includes 1-2)
24a 295-1976 Curved squeegee blade (pkg of 2) 1 (standard)
24b 295-8514 Squeegee blade kit curved urethane 1 (oil resistant)

Straight Squeegee Assembly - 261-0013
RefNbr Part Number Description Req Notes
1 195-0082 31 inch straight squeegee assembly with oil 1 (includes 3-14)
2 195-0083 31 inch straight squeegee assembly 1 (includes 3-14)
3 195-0084 Clamping guide 1
4 295-0625 Nozzle end clamp lock (OBSOELTE) 2
5 195-0085 Nozzle insert 2
8 295-0052 Fender wheel (OBSOELTE) 1
9 295-0262 Spacer 1
10 195-0086 Washer 1
11 195-0087 Screw M6 x 35mm cylindrical head 1
12 195-3610 Knob 1
13 195-0088 Star handle M8 x 15mm 2
14 295-0053 Star handle knob 2
15a 295-3054 Squeegee blade set 1 (standard)
15b 295-4068 Squeegee blade set 1

- Pad Holders - 275-9029
RefNbr Part Number Description Req Notes
1 991-2214 Center-Lok II pad holder - left hand thread (red)
2a 991-2201 Center-Lok II pad holder - right hand thread (black) (Pad driver side female, Floor side male)
2b 991-8577 Pad retainer (Pad driver side male, Floor side female)
3a 991-2202 Big mouth pad holder set (blue) (includes 3 screws)
3b 991-2205 Deep lock ring and pad grip ring
4 991-2203 Big mouth pad holder male thread portion
5 991-2206 Center-Lok 3 pad holder (includes 3 screws)
6 996-0372 Big mouth pad holder (left hand thread)
7 N/A Not available
8 991-2209 Split retainer - pad holder ring (OBSOLETE)
9 N/A Not available (replaced by #3 991-2202)
10 991-2211 Center lock pad holding cup (male) (yellow) (OBSOLETE)
Webpage Problem Reporting
