Parts List Complete for CLEANFIX FLOORMAC 300


Solution Tank Kit - NON-OEM - 172-2089
RefNbr Part Number Description Req Notes
000a 209-0013 4 gallon solution tank kit for round handle side x sides 1 (includes 001-018)
000b 209-0014 4 gallon solution tank kit for square handle side x sides 1
000c 209-0017 2 1/2 gallon solution tank kit (OBSOLETE) 1
001 209-0033 Cap (black) 1
002 209-0034 Brass handle rod (OBSOLETE) 1
003 209-0035 1/8 inch grommet 1
004 N/A Not available 1 (Tank only)
005 209-0036 Solution valve 1 (includes 006 and 007)
006 N/A Not available 1 (Washer)
007 209-0038 Nut 1/4 brass pipe thread straight 1
008 209-0039 Hose barb 1/4 1
009 209-0040 Hose 3/8 x 24 inch 1
010 209-0041 Coupling 1/8 brass 1
011 209-0042 1/8 inch brass nipple 1
012 209-0043 Washer 1/8 brass 2
013 209-0044 Nut 1/8 brass lock (OBSOLETE) 1
014 209-0045 Hose assembly (OBSOLETE) 1 (includes 009-013)
015 209-0046 5/16 inch u bolt 2 (only used for round handle buffers)
016 209-0047 Washer bar 2
017 999-0069 Nut 5/16-18 hex 2
018 209-0049 U bolt assembly (set of 2) 1 (only used for round handle side x sides) (includes 015-017)
019 209-0051 Advance adapter U-bolts assembly (set of 2) (OBSOLETE) 1

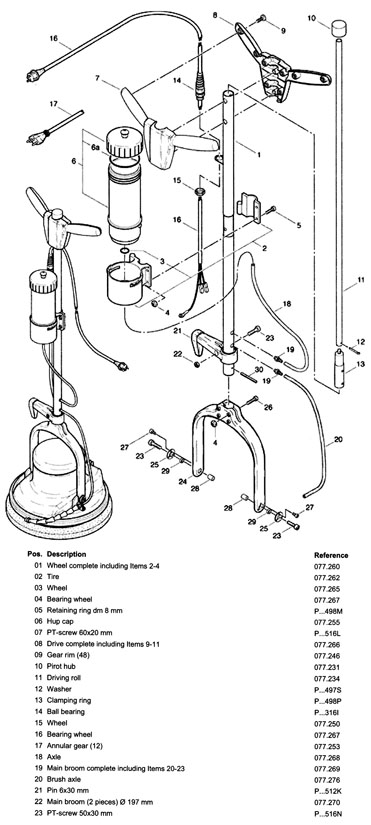

Handle Assembly - 195-6723
RefNbr Part Number Description Req Notes
16 295-4088 Main cable 1

Base Assembly -

RefNbr Part Number Description Req Notes

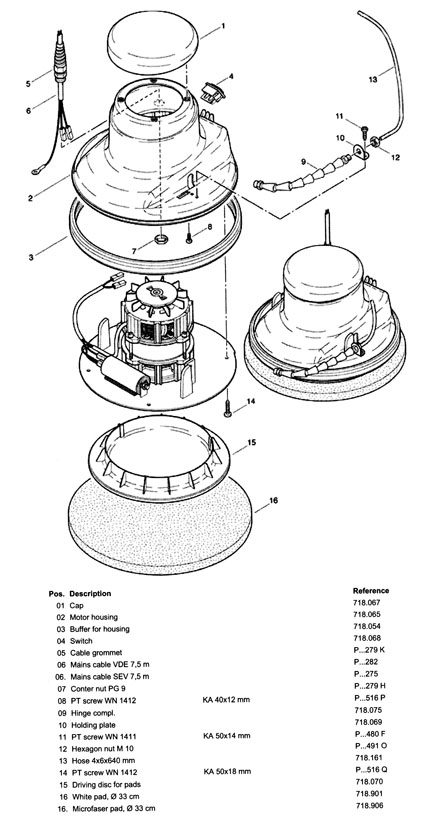

Housing Assembly - 195-6725
RefNbr Part Number Description Req Notes
N/S 295-3065 Scrub brush 1

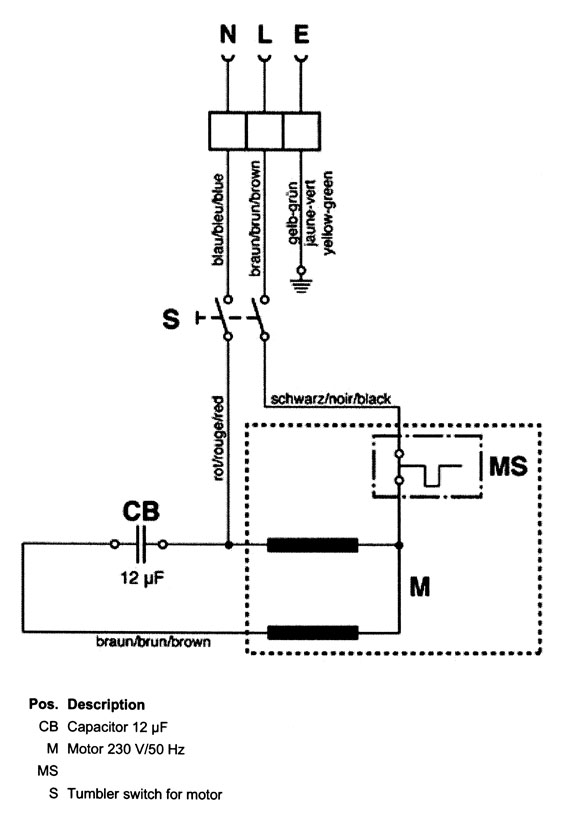

Wiring Diagram -

RefNbr Part Number Description Req Notes

- Pads - 255-1300
RefNbr Part Number Description Req Notes
01 255-1340 13 inch aqua plus burnishing pad (pkg of 5)
02 255-1335 13 inch Armadillo concrete scrubbing pad (pkg of 5)
03 255-1364 13 inch Blue ace pad (pkg of 5)
04 255-1342 13 inch Blue Jay burnishing pad (pkg of 5)
05 255-1312 13 inch Cure white pad (pkg of 5)
06 255-1377 13 inch Diamondback extreme stripping pad (pkg of 5)
07 255-1338 13 inch EHD Extra Heavy Duty Concrete Leveling Pad (pkg of 2
08 255-1321 13 inch gorilla lite burnishing pad (pkg of 5)
09 255-1350 13 inch gorilla spray buff/polish/burnish pad (pkg of 5)
10 255-1365 13 inch Heat concrete bonding pad (pkg of 5)
11 255-1330 13 inch jaguar burnishing pad (pkg of 5)
12 255-1387 13 inch Melamine Mela-Kleen pad (pkg of 2)
13 255-1390 13 inch premium black stripping pad (pkg of 5)
14 255-1370 13 inch premium blue cleaning pad (pkg of 5)
15 255-1392 13 inch premium brown stripping pad (pkg of 5)
16 255-1380 13 inch premium green scrubbing pad (pkg of 5)
17 255-1360 13 inch premium red scrubbing pad (pkg of 5)
18 255-1352 13 inch premium tan polishing pad (pkg of 5)
19 255-1320 13 inch premium white polishing pad (pkg of 5)
20 255-1311 13 inch superspeed rubberized pad (pkg of 5)
21 255-1395 13 inch razorback stripping pad (pkg of 5)
22 255-1347 13 inch Redwood maroon floor prep pad (pkg of 10)
23 255-1355 13 inch Ruff non-abrasive brush pad (pkg of 2)
24 255-1323 13 inch sand screen driver pad (pkg of 2)
25 255-0198 13 inch Superscreen sand screen 100 grit (pkg of 10)
26 255-0199 13 inch Superscreen sand screen 120 grit (pkg of 10)
27 255-0200 13 inch Superscreen sand screen 150 grit (pkg of 10)
28 255-0201 13 inch Superscreen sand screen 180 grit (pkg of 10)
29 255-0202 13 inch Superscreen sand screen 220 grit (pkg of 10)
30 255-0203 13 inch Superscreen sand screen 400 grit (pkg of 10)
31 255-0196 13 inch Superscreen sand screen 60 grit(pkg of 10) (OBSOLETE
32 255-0197 13 inch Superscreen sand screen 80 grit (pkg of 10)
33 255-0113 13 inch Professional sand screen 100 grit (pkg of 10)
34 255-0114 13 inch Professional sand screen 120 grit (pkg of 10)
35 255-0115 13 inch Professional sand screen 150 grit (pkg of 10)
36 255-0116 13 inch Professional sand screen 180 grit (pkg of 10)
37 255-0117 13 inch Pro sand screen 220 grit (pkg of 10) (OBSOLETE)
38 255-0118 13 inch Professional sand screen 400 grit (pkg of 10)
39 255-0111 13 inch Professional sand screen 60 grit (pkg of 10)
40 255-0112 13 inch Professional sand screen 80 grit (pkg of 10)
41 255-1324 13 inch Tiger carpet bonnet (pkg of 2)
42 255-9542 13 inch Diamond by Gorilla 11000 Grit (pkg of 2)
43 255-9539 13 inch Diamond by Gorilla 1500 Grit (pkg of 2)
44 255-9536 13 inch Diamond by Gorilla 200 Grit (pkg of 2)
45 255-9540 13 inch Diamond by Gorilla 3000 Grit (pkg of 2)
46 255-9537 13 inch Diamond by Gorilla 400 Grit (pkg of 2)
47 255-9538 13 inch Diamond by Gorilla 800 Grit (pkg of 2)
48 255-9541 13 inch Diamond by Gorilla 8000 Grit (pkg of 2)
49 255-9638 13 inch Diamond starter pack (1 of each grit)
50 255-1382 13 inch Turbostrip segmented rotary pad (pkg of 4)
51 255-1315 13 inch Duala clean and shine pad - low speed (pkg of 5)
52 255-1316 13 inch 2001 Duala clean and shine pad-high speed (OBSOLETE)

- Pad Holders - 275-9029
RefNbr Part Number Description Req Notes
1 991-2214 Center-Lok II pad holder - left hand thread (red)
2a 991-2201 Center-Lok II pad holder - right hand thread (black) (Pad driver side female, Floor side male)
2b 991-8577 Pad retainer (Pad driver side male, Floor side female)
3a 991-2202 Big mouth pad holder set (blue) (includes 3 screws)
3b 991-2205 Deep lock ring and pad grip ring
4 991-2203 Big mouth pad holder male thread portion
5 991-2206 Center-Lok 3 pad holder (includes 3 screws)
6 996-0372 Big mouth pad holder (left hand thread)
7 N/A Not available
8 991-2209 Split retainer - pad holder ring (OBSOLETE)
9 N/A Not available (replaced by #3 991-2202)
10 991-2211 Center lock pad holding cup (male) (yellow) (OBSOLETE)
