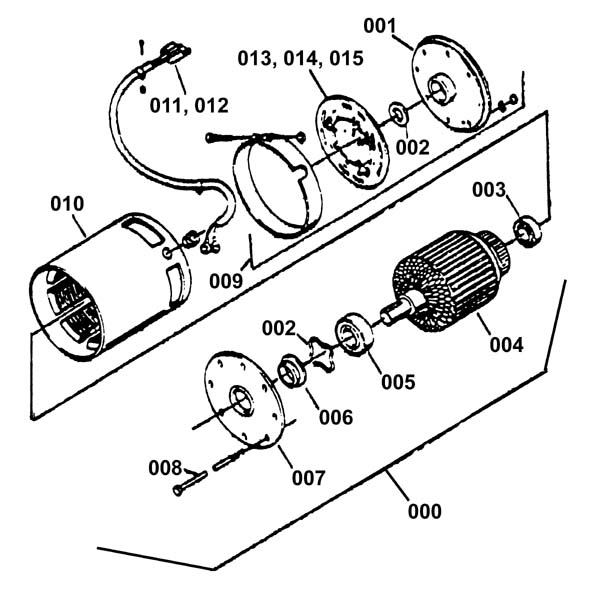

Brush Motor Assembly - NON-OEM - 164-0011 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 000a |
991-2121 |
24V .75HP brush motor assembly with gear box |
1 |
(includes 001-027) |
| 000b |
991-2122 |
36V .75HP brush motor assembly with gear box |
1 |
(includes 001-027) (you will also need to order 000c and 000d) |
| 000c |
999-0038 |
Bolt 3/8-16 x 1 hex head grade 5 zinc plated |
4 |
|
| 000d |
999-0162 |
Bolt 5/16-18 x 1 1/4 hex head grade 5 zinc plated |
1 |
(Needed for mounting the hub on the shaft) |
| 001 |
164-1157 |
Bolt 1/4-20 x 7 3/4 thru |
2 |
|
| 002 |
164-1095 |
Negative lead |
1 |
|
| 003a |
164-0337 |
Top end bell (OBSOLETE) |
1 |
|
| 003b |
N/A |
Not available |
1 |
(Commutator bracket assembly) |
| 004 |
N/A |
Not available |
1 |
(Brush board assembly) |
| 005 |
999-0545 |
Screw 10-24 x 1/2 pan head phillips self-tapping |
2 |
|
| 006 |
164-0329 |
Top rotor bearing |
1 |
(Commutator end) |
| 007a |
164-1084 |
24V armature assembly (OBSOLETE) |
1 |
|
| 007b |
164-0341 |
36V armature assembly |
1 |
|
| 008 |
164-0342 |
Armature vent fan |
1 |
|
| 009 |
164-0343 |
Stator frame assembly with magnets |
1 |
|
| 010 |
164-0355 |
Bottom bearing large |
1 |
|
| 011 |
164-1096 |
Positive lead |
1 |
|
| 012 |
164-0345 |
Strain relief (OBSOLETE) |
2 |
|
| 013 |
164-0324 |
Carbon brush spring |
4 |
|
| 014 |
991-1505 |
Carbon brush (sold individually) |
4 |
|
| 015 |
999-0111 |
Screw 10-32 x 1/2 round head slotted brass |
4 |
|
| 016 |
164-0328 |
Washer 1 7/8 wave |
1 |
|
| 018 |
164-0350 |
Gear box housing |
1 |
|
| 019 |
164-0352 |
Top bearing small |
1 |
|
| 020 |
164-0353 |
Gear shaft |
1 |
|
| 021 |
164-0132 |
Square keyway 1/4 x 1/4 |
1 |
|
| 022 |
164-0355 |
Bottom bearing large |
1 |
|
| 027a |
164-0351 |
Gear box assembly |
1 |
(includes 017-026) (OEM) |
| 027b |
991-5115 |
Gear box assembly |
1 |
(includes 017-026) (also need to order 027c) (NON-OEM) |
| 027c |
999-0562 |
Bolt 3/8-16 x 1 hex head stainless steel |
4 |
(needed with 027b) |
|
|

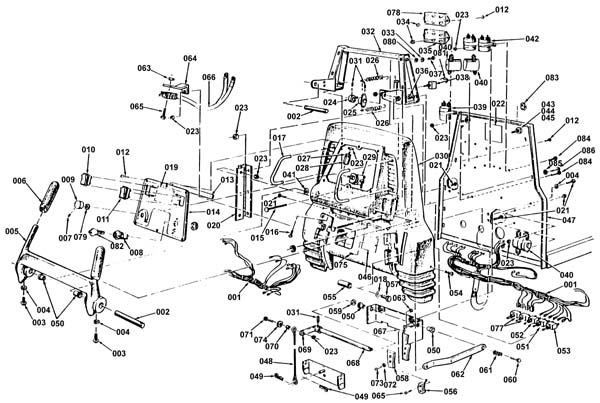

Rear Cover Assembly - 170-0002 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 001 |
170-0099 |
Main harness (OBSOLETE) |
1 |
|
| 002 |
170-0049 |
Control handle pin (OBSOLETE) |
2 |
|
| 003 |
999-0625 |
Screw 1/4-20 x 1 1/4 pan head phillips stainless steel |
2 |
|
| 004 |
999-0060 |
Washer 1/4 split lock plain finish |
2 |
|
| 005 |
170-0050 |
Control handle (OBSOLETE) |
2 |
|
| 006 |
170-0051 |
Control handle grip |
2 |
|
| 007 |
999-0431 |
Screw 8-32 x 1/4 set socket cup point alloy plain finish |
2 |
|
| 008 |
170-0053 |
Key switch with 2 keys |
1 |
|
| 009 |
170-8261 |
Knob solution flow module (OBSOLETE) |
1 |
|
| 010 |
170-0058 |
Rocker switch 2 position 6 prong |
1 |
|
| 011 |
170-0089 |
Rocker switch (OBSOLETE) |
1 |
|
| 012 |
999-0333 |
Screw 10-24 x 1/2 pan head phillips stainless steel |
10 |
|
| 014 |
170-0103 |
Panel assembly (OBSOLETE) |
1 |
|
| 015 |
999-0626 |
Screw 3/8-16 x 3 carriage head stainless steel |
2 |
|
| 016 |
999-0396 |
Screw 1/4-20 x 1/2 pan head slotted stainless steel |
1 |
|
| 017 |
170-0066 |
Stationary handle (OBSOLETE) |
2 |
|
| 018 |
999-0318 |
Washer 3/8 external star lock zinc plated |
1 |
|
| 019 |
N/A |
Not available |
1 |
Wiring label |
| 020 |
170-0061 |
Cover hinge (OBSOLETE) |
1 |
|
| 021 |
999-0081 |
Screw 1/4-20 x 5/8 pan head slotted zinc |
9 |
|
| 022 |
N/A |
Not available |
|
Wiring label |
| 023 |
999-0294 |
Nut 1/4-20 hex nylon lock type NE stainless steel |
21 |
|
| 024 |
170-0071 |
Collar (OBSOLETE) |
1 |
|
| 025 |
170-0067 |
Centering bracket (OBSOLETE) |
2 |
|
| 026 |
170-0068 |
Control handle spring (OBSOLETE) |
2 |
|
| 027 |
170-0064 |
Stud 1/4-20 |
2 |
|
| 028 |
170-0063 |
Insulated stand off |
2 |
|
| 029 |
170-0028 |
Solution control cable assembly |
1 |
|
| 030a |
170-0106 |
Rear cover (OBSOLETE) |
1 |
for 38I and 32I |
| 030b |
170-0107 |
Rear cover (OBSOLETE) |
1 |
for 26I |
| 031 |
999-0121 |
Screw 5/16-18 x 1/2 cup point socket set alloy plain finish |
4 |
|
| 032 |
170-0072 |
Cover support weldment (OBSOLETE) |
1 |
|
| 033 |
999-0105 |
Washer 5/16 external star lock zinc plated |
4 |
|
| 034 |
999-0211 |
Nut 5/16-18 hex nylon insert lock zinc plated |
2 |
|
| 035 |
170-0108 |
Time delay relay |
1 |
|
| 036 |
999-0628 |
Nut 3/8-16 hex jam stainless steel |
2 |
|
| 037 |
999-0031 |
Bolt 5/16-18 x 1 hex head grade 5 zinc plated |
4 |
|
| 038 |
170-0037 |
Switch/sequencer kit |
1 |
|
| 039 |
172-2805 |
36V contactor |
1 |
|
| 040 |
991-1223 |
36V solenoid contactor with 4 post |
3 |
|
| 041 |
999-0630 |
Washer 3/4 SAE flat |
1 |
|
| 042 |
272-1322 |
Motor contactor |
2 |
(forward/reverse traverse) |
| 043 |
170-0078 |
Tank stop bushing (OBSOLETE) |
2 |
|
| 044 |
170-0079 |
Release pin |
2 |
|
| 045 |
999-0575 |
Nut 5/8-18 hex jam plain finish |
2 |
|
| 046 |
170-0093 |
Warning plate (OBSOLETE) |
1 |
|
| 047a |
170-0081 |
Main frame (OBSOLETE) |
1 |
for 32I and 38I |
| 047b |
170-0082 |
Main frame (OBSOLETE) |
1 |
for 26I |
| 048 |
170-0034 |
Squeegee lift cable |
1 |
|
| 049 |
170-0109 |
Cotter hairpin |
2 |
|
| 050 |
170-0088 |
Flanged bearing (OBSOLETE) |
4 |
|
| 051 |
991-1632 |
25amp circuit breaker |
1 |
vacuum |
| 052 |
170-0092 |
30amp circuit breaker (OBSOLETE) |
1 |
|
| 053 |
991-1627 |
5amp circuit breaker |
1 |
brush head |
| 054 |
999-0629 |
Screw 1/4-20 x 3/4 pan head thread cutting slotted zinc |
5 |
|
| 055 |
170-0110 |
Squeegee lift handle |
1 |
|
| 056 |
170-0111 |
Vacuum switch assembly (OBSOELTE) |
1 |
|
| 057 |
999-0631 |
Bolt 3/8-16 x 5/8 hex head grade 5 zinc plated |
1 |
|
| 058 |
170-0121 |
Wear plate (OBSOLETE) |
1 |
|
| 059 |
999-0630 |
Washer 3/4 SAE flat |
1 |
(for Vision 32I & 38I) |
| 060 |
170-0112 |
Shoulder screw (OBSOLETE) |
1 |
|
| 061 |
170-0113 |
Spring (OBSOLETE) |
1 |
|
| 062 |
170-0122 |
Squeegee lift lever (OBSOLETE) |
1 |
|
| 063 |
999-0227 |
Nut 6-32 hex nylon insert lock jam zinc plated |
4 |
|
| 064 |
170-0090 |
Power connector bracket (OBSOLETE) |
1 |
|
| 065 |
999-0511 |
Screw 6-32 x 1 pan head phillips zinc plated |
4 |
|
| 066 |
998-0057 |
Cable assembly with plug |
1 |
|
| 067 |
170-0114 |
Squeegee lift bracket (OBSOLETE) |
1 |
|
| 068 |
170-0115 |
Squeegee lift shaft (OBSOLETE) |
1 |
|
| 069 |
170-0116 |
Cable lever assembly (OBSOLETE) |
1 |
|
| 071 |
999-0297 |
Bolt 1/4-20 x 1 hex head stainless steel |
1 |
|
| 072 |
154-3992 |
Washer 3/16 star |
2 |
|
| 073 |
999-0333 |
Screw 10-24 x 1/2 pan head phillips stainless steel |
2 |
|
| 074 |
999-0549 |
Washer 5/16 x 3/4 SAE flat stainless steel |
1 |
|
| 075 |
375-7487 |
Rivet 1/8 x 5/16 inch (OBSOLETE) |
2 |
|
| 077 |
991-1630 |
35amp circuit breaker |
2 |
(brush) |
| 078 |
170-0118 |
5 second relay (OBSOLETE) |
1 |
|
| 079 |
999-0260 |
Washer 1/2 internal starlock |
1 |
|
| 080 |
999-0160 |
Washer 1/4 x 1 1/4 fender zinc plated |
4 |
|
| 081 |
170-0119 |
Diode assembly |
1 |
|
| 083 |
170-0100 |
Hose clamp |
1 |
|
| 084 |
999-0334 |
Bolt 1/4-20 x 3/4 inch hex head stainless steel |
16 |
|
| 085 |
999-0335 |
Washer 1/4 x 5/8 SAE flat stainless steel |
2 |
|
| 086 |
999-0297 |
Bolt 1/4-20 x 1 hex head stainless steel |
2 |
|
| N/S |
170-2149 |
Vacuum strainer |
1 |
|
| N/S |
170-7054 |
Toggle switch |
1 |
Forward-Reverse |
|
|

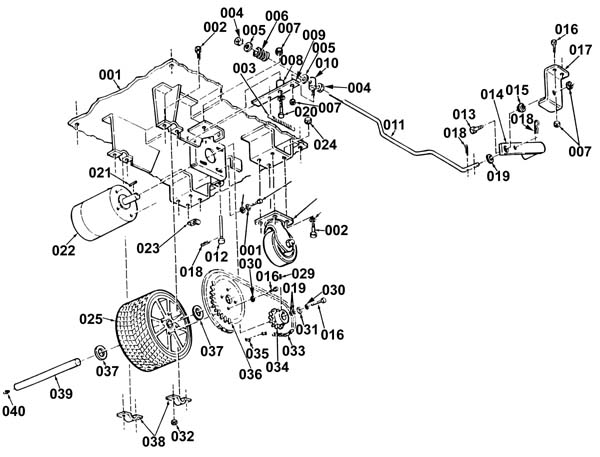

Traverse Assembly - 170-0003 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 001 |
999-0632 |
Washer 1/4 split lock stainless steel |
4 |
|
| 002 |
999-0038 |
Bolt 3/8-16 x 1 hex head grade 5 zinc plated |
12 |
|
| 003 |
170-0127 |
Brake spring |
1 |
|
| 004 |
999-0294 |
Nut 1/4-20 hex nylon lock type NE stainless steel |
4 |
|
| 005 |
999-0335 |
Washer 1/4 x 5/8 SAE flat stainless steel |
5 |
|
| 006 |
170-0113 |
Spring (OBSOLETE) |
1 |
|
| 007 |
999-0211 |
Nut 5/16-18 hex nylon insert lock zinc plated |
3 |
|
| 008 |
170-0128 |
Brake arm spacer (OBSOLETE) |
1 |
|
| 009 |
170-0129 |
Brake arm (OBSOLETE) |
1 |
|
| 010 |
170-0130 |
Brake rod swivel |
1 |
|
| 011 |
170-0131 |
Brake rod (OBSOLETE) |
1 |
|
| 012 |
170-0145 |
Clevis pin |
1 |
|
| 013 |
999-0162 |
Bolt 5/16-18 x 1 1/4 hex head grade 5 zinc plated |
1 |
|
| 014 |
170-0132 |
Brake lever (OBSOLETE) |
1 |
|
| 015 |
170-0133 |
Brake pedal spacer (OBSOLETE) |
1 |
|
| 016 |
999-0132 |
Bolt 5/16-18 x 3/4 hex head grade 5 zinc plated |
5 |
|
| 017 |
170-0134 |
Brake pedal bracket (OBSOLETE) |
1 |
|
| 018 |
170-0135 |
Cotter pin (OBSOLETE) |
3 |
|
| 019 |
999-0549 |
Washer 5/16 x 3/4 SAE flat stainless steel |
3 |
|
| 020 |
999-0109 |
Bolt 5/16-18 x 1 1/2 hex head grade 5 zinc plated |
1 |
|
| 021 |
164-0132 |
Square keyway 1/4 x 1/4 |
1 |
|
| 022 |
170-0137 |
Drive motor |
1 |
|
| 023 |
170-0457 |
Strap (OBSOLETE) |
1 |
|
| 024 |
999-0513 |
Nut 3/8-16 nylon insert lock type NE stainless steel |
12 |
|
| 025 |
N/A |
Not available |
1 |
(Drive wheel assembly) |
| 026 |
999-0334 |
Bolt 1/4-20 x 3/4 inch hex head stainless steel |
4 |
|
| 027a |
991-2011 |
Caster wheel assembly |
2 |
|
| 027b |
170-7201 |
Caster wheel |
|
|
| 028 |
999-0034 |
Washer 3/8 split lock plain finish |
8 |
|
| 029 |
999-0095 |
Screw 1/4-20 x 3/8 cup point socket set alloy plain finish |
2 |
|
| 030 |
999-0028 |
Washer 5/16 split lock plain finish |
5 |
|
| 031 |
999-0160 |
Washer 1/4 x 1 1/4 fender zinc plated |
1 |
|
| 032 |
999-0513 |
Nut 3/8-16 nylon insert lock type NE stainless steel |
1 |
|
| 033 |
991-0101 |
Chain (sold by the link) |
78 |
|
| 034a |
170-0141 |
Drive sprocket (OBSOLETE) |
1 |
|
| 034b |
991-8554 |
SPROCKET-DRIVE MOTOR 898550 |
1 |
|
| 035 |
991-0103 |
Master link |
1 |
|
| 036 |
170-0142 |
Drive sprocket |
1 |
|
| 037 |
170-0143 |
Spacer washer (OBSOLETE) |
4 |
|
| 038 |
170-0144 |
Axle strap (OBSOLETE) |
2 |
|
| 039 |
170-0015 |
Drive wheel axle shaft (OBSOLETE) |
1 |
|
| 040 |
170-0016 |
Grease fitting |
1 |
|
|
|

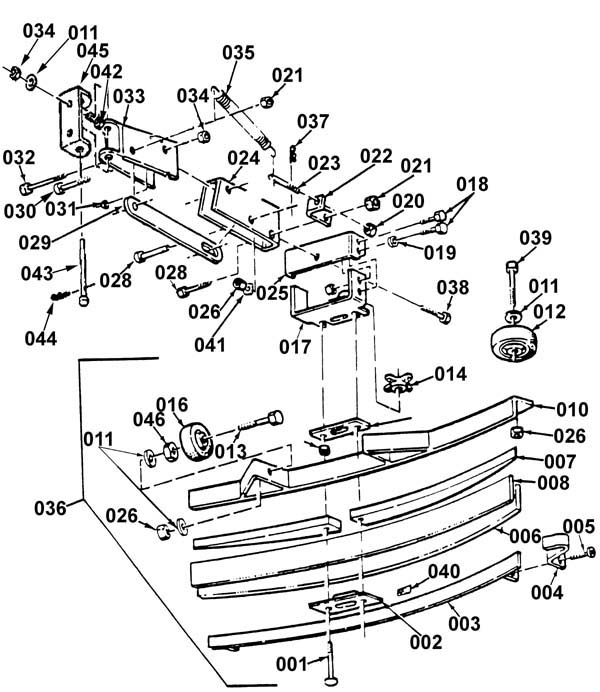

Squeegee and Squeegee Arm Assembly - 170-0004 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 001 |
999-0626 |
Screw 3/8-16 x 3 carriage head stainless steel |
2 |
|
| 002 |
170-7126 |
Air duct (OBSOLETE) |
1 |
|
| 003a |
170-0147 |
Clamp weldment |
1 |
for 32I |
| 003b |
170-0148 |
Clamp weldment |
1 |
for 26I |
| 003c |
170-0182 |
Clamp weldment (OBSOLETE) |
1 |
for 38I |
| 004 |
170-0150 |
End clamp (OBSOLETE) |
2 |
|
| 005 |
999-0634 |
Bolt 1/4-20 x 1 1/2 hex head full thread grade 5 zinc plated |
2 |
|
| 006a |
170-0151 |
Squeegee blade 33 inch gum rubber rear (tan) |
1 |
for 32I (OEM) |
| 006b |
994-0012 |
Squeegee blade 33 inch gum rubber rear (tan) |
1 |
for 32I (NON-OEM) |
| 006c |
170-0152 |
Squeegee blade 38 1/4 inch gum rubber rear (tan) |
1 |
for 26I (OEM) |
| 006d |
994-0013 |
Squeegee blade 38 1/4 inch gum rubber rear (tan) |
1 |
for 26I (NON-OEM) |
| 006e |
170-0183 |
Squeegee blade 47 3/4 inch gum rubber rear (tan) |
1 |
for 38I (OEM) |
| 006f |
994-0016 |
Squeegee blade 48 inch gum rubber rear (tan) |
1 |
for 38I (NON-OEM) |
| 006g |
170-7197 |
Squeegee blade rear tan gum rubber 33 inch |
1 |
Fits Vision V |
| 007a |
170-0154 |
33 inch spacer |
2 |
for 32I |
| 007b |
170-0155 |
28 inch spacer |
2 |
for 26I |
| 007c |
170-0184 |
38 inch spacer |
2 |
for 38I |
| 008a |
170-0157 |
Squeegee blade 40 3/8 inch neoprene front (black) |
1 |
for 32I (OEM) |
| 008b |
994-0014 |
Squeegee blade 40 3/8 inch neoprene front (black) |
1 |
for 32I (NON-OEM) |
| 008c |
170-0158 |
Squeegee blade 35 7/8 inch gum rubber front (black) |
1 |
for 26I (OEM) |
| 008d |
994-0015 |
Squeegee blade 36 inch gum rubber front (black) |
1 |
for 26I (NON-OEM) |
| 008e |
170-0185 |
Squeegee blade 46 1/4 inch neoprene front (black) |
1 |
for 38I (OEM) |
| 008f |
994-0017 |
Squeegee blade 46 inch neoprene front (black) |
1 |
for 38I (NON-OEM) |
| 008g |
170-1840 |
Squeegee blade front black notched 33 inch (OBSOLETE) |
1 |
Fits Vision V (OEM) |
| 009 |
999-0628 |
Nut 3/8-16 hex jam stainless steel |
6 |
|
| 010a |
170-0160 |
Squeegee weldment |
1 |
for 32I |
| 010b |
170-0161 |
Squeegee weldment |
1 |
for 26I |
| 010c |
170-0186 |
Squeegee weldment (OBSOLETE) |
1 |
for 38I |
| 011 |
999-0032 |
Washer 3/8 USS flat plain finish |
11 |
|
| 012 |
170-0163 |
Guide wheel |
2 |
|
| 013 |
999-0107 |
Bolt 3/8-16 x 2 hex head grade 5 zinc plated |
2 |
|
| 016 |
170-0165 |
Wheel (OBSOLETE) |
2 |
|
| 017 |
170-0172 |
Tube bracket (OBSOLETE) |
1 |
|
| 018 |
999-0334 |
Bolt 1/4-20 x 3/4 inch hex head stainless steel |
4 |
|
| 019 |
999-0335 |
Washer 1/4 x 5/8 SAE flat stainless steel |
5 |
|
| 020 |
999-0069 |
Nut 5/16-18 hex |
2 |
|
| 021 |
999-0294 |
Nut 1/4-20 hex nylon lock type NE stainless steel |
2 |
|
| 023 |
170-0177 |
Squeegee adjustment stud |
2 |
|
| 024 |
170-0174 |
Rear arm weldment (OBSOLETE) |
1 |
|
| 025 |
170-0187 |
Pin bracket weldment |
1 |
|
| 026 |
999-0513 |
Nut 3/8-16 nylon insert lock type NE stainless steel |
5 |
|
| 027 |
999-0244 |
Bolt 1/4-20 x 2 1/2 hex head grade 5 zinc plated cap |
1 |
|
| 028 |
170-0140 |
Squeegee actuator pin |
1 |
|
| 029 |
170-0188 |
Squeegee lift bar (OBSOLETE) |
1 |
|
| 030 |
999-0636 |
Screw 5/16-18 x 2 socket head shoulder |
1 |
|
| 031 |
999-0227 |
Nut 6-32 hex nylon insert lock jam zinc plated |
4 |
|
| 032 |
999-0637 |
Screw 1/4-20 x 3 1/2 socket head alloy plain finish |
1 |
|
| 033 |
170-0179 |
Front arm weldment |
1 |
|
| 034 |
999-0211 |
Nut 5/16-18 hex nylon insert lock zinc plated |
3 |
|
| 035 |
170-0175 |
Pressure spring (OBSOLETE) |
2 |
|
| 036a |
170-0167 |
Squeegee assembly (OBSOLETE) |
1 |
for 32I |
| 036b |
170-0168 |
Squeegee assembly (OBSOLETE) |
1 |
for 26I |
| 036c |
170-0189 |
Squeegee assembly (OBSOLETE) |
1 |
for 38I |
| 037 |
170-0135 |
Cotter pin (OBSOLETE) |
3 |
|
| 038 |
999-0562 |
Bolt 3/8-16 x 1 hex head stainless steel |
1 |
|
| 039 |
999-0638 |
Bolt 3/8-16 x 2 1/4 hex head |
2 |
|
| 040 |
170-0166 |
Squeegee gripping pad |
1 |
|
| 042 |
999-0132 |
Bolt 5/16-18 x 3/4 hex head grade 5 zinc plated |
2 |
|
| 043 |
170-0145 |
Clevis pin |
1 |
|
| 044 |
170-0135 |
Cotter pin (OBSOLETE) |
1 |
|
| 045 |
170-0704 |
Pivot arm (OBSOLETE) |
1 |
|
| 046 |
999-0635 |
Nut 3/8-16 hex stainless steel |
2 |
|
| N/S |
170-1818 |
Squeegee hose |
1 |
|
|
|

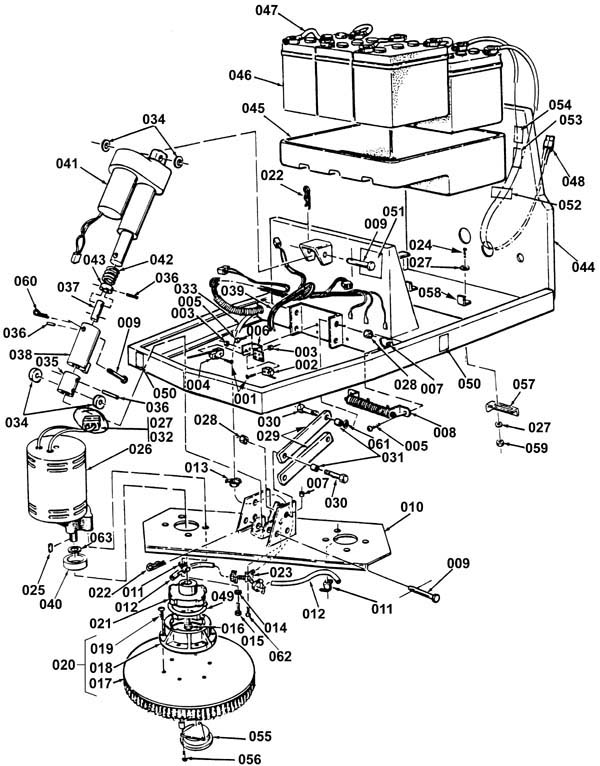

Brush Head Assembly - 170-0005 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 001 |
999-0511 |
Screw 6-32 x 1 pan head phillips zinc plated |
4 |
|
| 002 |
170-0191 |
Snap switch |
1 |
(head up) |
| 003 |
999-0227 |
Nut 6-32 hex nylon insert lock jam zinc plated |
6 |
|
| 004 |
170-0192 |
Brush switch (scrub limit) |
1 |
(scrub limit) |
| 005 |
999-0081 |
Screw 1/4-20 x 5/8 pan head slotted zinc |
4 |
|
| 006a |
170-0235 |
Switch bracket (OBSOLETE) |
1 |
(26I) |
| 006b |
170-0193 |
Switch bracket (OBSOLETE) |
1 |
(32I and 38I) |
| 007 |
999-0294 |
Nut 1/4-20 hex nylon lock type NE stainless steel |
4 |
|
| 008a |
N/A |
Not available |
1 |
(Resistor) (38I and 32I) |
| 008b |
170-0065 |
Resistor (OBSOLETE) |
1 |
(26I) |
| 009 |
170-0196 |
Clevis pin |
3 |
|
| 010a |
170-0197 |
Brush plate (OBSOLETE) |
1 |
(32I) |
| 010b |
170-0237 |
Brush plate (OBSOLETE) |
1 |
(26I) |
| 010c |
170-0238 |
Brush plate (OBSOLETE) |
1 |
(38I) |
| 011 |
170-0198 |
Hose clamp |
2 |
|
| 012a |
170-7018 |
Hose |
2 |
(32I) |
| 012b |
154-0037 |
Tubing 1/2 x 5/8 (clear) (sold by the foot) |
2 |
(26I) |
| 012c |
170-7018 |
Hose |
2 |
(38I) |
| 013 |
997-2002 |
Hose clamp #6 |
1 |
|
| 014 |
999-0034 |
Washer 3/8 split lock plain finish |
8 |
|
| 015 |
999-0119 |
Bolt 3/8-16 x 3/4 hex head grade 5 zinc plated |
8 |
|
| 016 |
999-0130 |
Screw 5/16-18 x 3/4 socket head alloy plain finish |
2 |
|
| 017 |
NOTE |
Please See Batteries, Brushes, Pad Holders and Charger Pages |
|
(32I) |
| 018 |
996-0336 |
Clutch plate with brush holder spring |
2 |
|
| 019 |
999-0510 |
Screw 1/4-20 x 1 pan head phillips zinc plated |
6 |
|
| 020 |
NOTE |
Please See Batteries, Brushes, Pad Holders and Charger Pages |
|
(32I) |
| 021a |
170-0207 |
Male gimbal with collar |
2 |
(use your old gimbal collar (170-0233) on your new gimbal. The gimbal will not last long without the collar.) |
| 021b |
170-0353 |
Motor gimbal |
|
(32IX) |
| 022 |
170-0135 |
Cotter pin (OBSOLETE) |
3 |
|
| 023 |
170-0208 |
Water splitter (OBSOLETE) |
1 |
|
| 024 |
999-0162 |
Bolt 5/16-18 x 1 1/4 hex head grade 5 zinc plated |
2 |
|
| 025 |
164-0132 |
Square keyway 1/4 x 1/4 |
1 |
|
| 026a |
170-0209 |
36V brush motor assembly |
2 |
(OEM) (for 26I, 32I and 38I) |
| 026b |
991-2122 |
36V .75HP brush motor assembly with gear box |
2 |
(NON-OEM) (you will also need to order 999-0130) |
| 026c |
999-0130 |
Screw 5/16-18 x 3/4 socket head alloy plain finish |
|
(for NON-OEM brush motor) |
| 026d |
991-8524 |
36V 1.0HP brush motor assembly with gear box |
|
(NON-OEM) |
| 027 |
999-0160 |
Washer 1/4 x 1 1/4 fender zinc plated |
3 |
|
| 028 |
999-0118 |
Nut 1/2-13 nylon insert lock zinc plated |
8 |
|
| 029 |
170-0211 |
Linkage bar |
4 |
|
| 030 |
999-0200 |
Bolt 1/2-13 x 1 1/4 hex head |
8 |
|
| 031 |
170-0212 |
Flanged bearing |
8 |
|
| 032 |
NOTE |
Please See Batteries, Brushes, Pad Holders and Charger Pages |
|
|
| 033 |
170-0260 |
Solution hose |
1 |
|
| 033 |
170-0222 |
plunger plate(obsolete) |
1 |
|
| 034 |
170-0213 |
Nylon washer |
4 |
|
| 035 |
170-0214 |
Head pressure sleeve (OBSOLETE) |
1 |
|
| 036 |
170-0215 |
Spiral pin 3/16 |
3 |
|
| 037 |
170-0216 |
Head pressure pin (OBSOLETE) |
1 |
|
| 038 |
170-0217 |
Head pressure tube (OBSOLETE) |
1 |
|
| 039 |
170-0254 |
Main harness (OBSOLETE) |
1 |
|
| 040 |
170-0233 |
Brush driver collar - See pop-up (OBSOLETE) |
2 |
(38I and 32I) |
| 042a |
170-0255 |
Head pressure spring (OBSOLETE) |
1 |
(38I and 32I) |
| 042b |
170-0220 |
Head pressure spring (OBSOLETE) |
1 |
(26I) |
| 043 |
170-0221 |
Spring seat (OBSOLETE) |
1 |
|
| 044a |
170-0081 |
Main frame (OBSOLETE) |
1 |
(32I and 38I) |
| 044b |
170-0082 |
Main frame (OBSOLETE) |
1 |
(26I) |
| 045 |
170-0223 |
Battery tray (OBSOLETE) |
1 |
|
| 046 |
NOTE |
Please See Batteries, Brushes, Pad Holders and Charger Pages |
|
|
| 047a |
170-0224 |
Battery cable |
3 |
|
| 047b |
998-0010 |
Battery jumper cable - ring type (red) |
2 |
(For use with top, bolt type post batteries) |
| 047c |
991-6025 |
Wire 4 x14.5, 3/8 ring x 3/8 ring |
2 |
(NON-OEM) |
| 048 |
NOTE |
Please See Batteries, Brushes, Pad Holders and Charger Pages |
|
|
| 049 |
170-0031 |
Brush holder spring |
2 |
|
| 050 |
170-0226 |
Moving warning decal |
3 |
|
| 051 |
N/A |
Not available |
1 |
(Brush wiring decal) |
| 052 |
170-0228 |
Battery label (OBSOLETE) |
1 |
|
| 053 |
170-0229 |
Battery warning decal |
2 |
|
| 054 |
170-0230 |
Falling parts warning decal |
2 |
|
| 055a |
N/A |
Not available |
2 |
(Pad holder) (can replace with 991-2206) |
| 055b |
991-2212 |
Plastic plate only (for 991-2207) (OBSOLETE) |
|
|
| 056 |
999-0456 |
Screw 1/4-20 x 3/4 pan head phillips stainless steel |
6 |
|
| 057 |
170-0231 |
Swing arm stop (OBSOLETE) |
1 |
|
| 059 |
999-0211 |
Nut 5/16-18 hex nylon insert lock zinc plated |
2 |
|
| 060 |
997-2505 |
Cotter pin |
1 |
|
| 061 |
170-0705 |
Washer 1/2 x 3/64 |
8 |
|
| 062 |
999-0625 |
Screw 1/4-20 x 1 1/4 pan head phillips stainless steel |
2 |
|
| 063 |
170-0706 |
Washer 3/4 rubber |
2 |
|
|
|

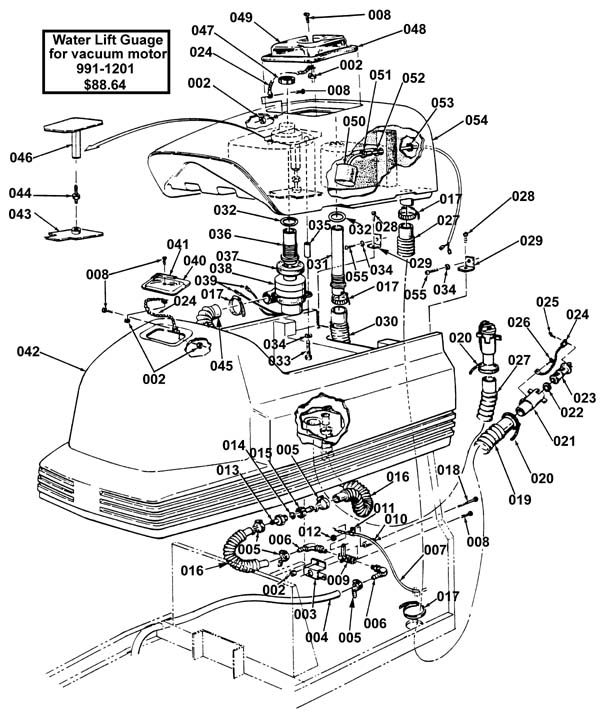

Solution/Vacuum Assembly - 170-0006 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 001 |
170-0258 |
Hose elbow (OBSOLETE) |
1 |
|
| 002 |
999-0211 |
Nut 5/16-18 hex nylon insert lock zinc plated |
6 |
|
| 003 |
170-0259 |
Bracket (OBSOLETE) |
1 |
|
| 004 |
170-0260 |
Solution hose |
1 |
|
| 005 |
997-2002 |
Hose clamp #6 |
6 |
|
| 007 |
170-0028 |
Solution control cable assembly |
1 |
|
| 008 |
999-0333 |
Screw 10-24 x 1/2 pan head phillips stainless steel |
6 |
|
| 009 |
170-0006 |
Manual solution valve |
1 |
|
| 011 |
170-0263 |
Cable clip |
1 |
|
| 012 |
999-0294 |
Nut 1/4-20 hex nylon lock type NE stainless steel |
1 |
|
| 014 |
164-0065 |
Filter screen |
1 |
|
| 015 |
164-0182 |
Hose barb and collar |
1 |
|
| 016 |
170-0033 |
Solution hose |
2 |
|
| 017 |
997-2007 |
Hose clamp |
5 |
|
| 018 |
999-0394 |
Bolt 1/4-20 x 1 3/4 hex head grade 5 zinc plated |
1 |
|
| 019 |
170-0041 |
39 inch drain hose |
1 |
|
| 020 |
164-0218 |
Nylon hose clamp |
2 |
|
| 021 |
170-0043 |
Drain valve |
2 |
|
| 022 |
170-0032 |
Drain valve gasket |
2 |
|
| 023 |
170-0042 |
Drain valve handle |
2 |
|
| 024 |
170-0268 |
Drain chain assembly |
4 |
|
| 025 |
999-0477 |
Screw 10-24 x 5/16 truss head phillips zinc |
2 |
|
| 026 |
999-0576 |
Screw 8-18 x 1/2 pan head phillips self-drilling ss |
2 |
|
| 027 |
170-0269 |
19 inch solution drain hose |
1 |
|
| 028 |
999-0081 |
Screw 1/4-20 x 5/8 pan head slotted zinc |
4 |
|
| 030a |
164-0089 |
Squeegee vacuum hose with cuffs |
1 |
|
| 030b |
991-8568 |
Squeegee vacuum hose |
1 |
|
| 030c |
991-1904 |
Squeegee vacuum hose with straight cuffs |
1 |
(NON-OEM) |
| 031a |
170-0271 |
Hose adaptor assembly (OBSOLETE) |
1 |
|
| 031b |
170-0272 |
Squeegee adaptor assembly (OBSOLETE) |
1 |
|
| 033 |
999-0165 |
Bolt 1/4-20 x 4 hex head grade 5 zinc plated |
3 |
|
| 034 |
999-0335 |
Washer 1/4 x 5/8 SAE flat stainless steel |
5 |
|
| 035 |
170-0274 |
Vacuum motor spacer |
3 |
|
| 036 |
170-0275 |
Vacuum assembly adapter for 38I & 32I (OBSOLETE) |
1 |
|
| 037 |
170-0276 |
Vacuum assembly adapter for 26I (OBSOLETE) |
1 |
|
| 038a |
270-0102 |
36V 3 stage vacuum motor |
1 |
(OEM) |
| 038b |
991-1202 |
36V 3 stage vacuum motor tangential |
1 |
(NON-OEM) |
| 038c |
991-1222 |
Plastic covered carbon brush (sold individually) |
|
|
| 038d |
991-1234 |
Vacuum motor rotating fan |
1 |
|
| 039b |
170-0280 |
Connector housing (black) |
2 |
|
| 039c |
170-0281 |
Connector housing (blue) |
2 |
|
| 040 |
170-0282 |
Solution tank lid |
1 |
|
| 041 |
170-0283 |
Solution tank lid gasket (OBSOLETE) |
1 |
|
| 042a |
170-0284 |
Solution tank for 32I (OBSOLETE) |
1 |
|
| 042b |
170-0285 |
Solution tank for 26I (OBSOLETE) |
1 |
|
| 042c |
170-0286 |
Solution tank for 38I (OBSOLETE) |
1 |
|
| 043 |
170-0287 |
Tank support base (OBSOLETE) |
1 |
|
| 044 |
170-0288 |
Rod support assembly |
1 |
|
| 045 |
N/A |
Not available |
1 |
Vacuum motor hose |
| 046 |
170-0289 |
Top support weldment (OBSOLETE) |
1 |
|
| 047 |
170-0290 |
Strainer (OBSOLETE) |
1 |
|
| 048 |
170-0023 |
Recovery tank lid gasket |
1 |
|
| 049 |
170-0022 |
Recovery tank lid |
1 |
|
| 050 |
170-0291 |
Float switch kit |
1 |
|
| 051 |
170-0292 |
Strain relief |
1 |
|
| 053 |
170-0294 |
Nut 1/2 conduit lock |
1 |
|
| 054a |
170-0295 |
Recovery tank 38I & 32I (OBSOLETE) |
1 |
|
| 054b |
170-0296 |
Recovery tank for 26I (OBSOLETE) |
1 |
|
| 055 |
999-0334 |
Bolt 1/4-20 x 3/4 inch hex head stainless steel |
2 |
(for 38I & 32I) |
| N/S |
991-2105 |
SB50 50amp charger plug with pins (gray) |
|
|
| N/S |
170-6038 |
Tank lid gasket |
1 |
|
|
|

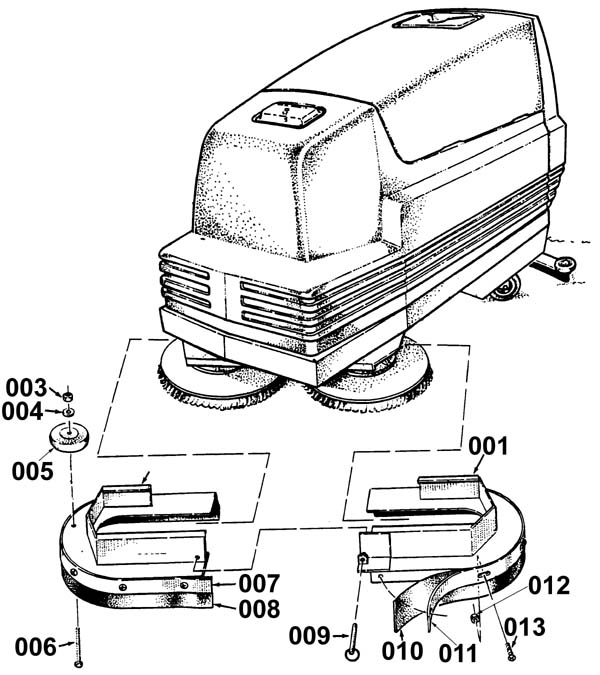

Brush Housing Assembly - 170-0007 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 001a |
170-0298 |
Left hand brush housing for 32I (OBSOLETE) |
1 |
(32I) |
| 001b |
170-0299 |
Left hand brush housing for 26I |
1 |
(26I) |
| 001c |
170-0300 |
Left hand brush housing for 38I (OBSOLETE) |
1 |
(38I) |
| 002a |
170-0301 |
Right hand brush housing for 32I (OBSOLETE) |
1 |
(32I) |
| 002b |
170-0302 |
Right hand brush housing for 26I |
1 |
(26I) |
| 002c |
170-0303 |
Right hand brush housing for 38I (OBSOLETE) |
1 |
(38I) |
| 003 |
999-0513 |
Nut 3/8-16 nylon insert lock type NE stainless steel |
1 |
|
| 004 |
170-0304 |
Washer 15/32 x 1/32 |
1 |
|
| 005 |
170-0163 |
Guide wheel |
1 |
|
| 006 |
999-0638 |
Bolt 3/8-16 x 2 1/4 hex head |
1 |
|
| 007a |
170-0305 |
Right hand strap for 32I (OBSOLETE) |
1 |
(32I) |
| 007b |
170-0306 |
Right hand strap for 26I (OBSOLETE) |
1 |
(26I) |
| 007c |
170-0307 |
Right hand strap for 38I (OBSOLETE) |
1 |
(38I) |
| 008a |
N/A |
Not available |
1 |
(32I) (Right side skirt) |
| 008b |
170-0309 |
Right hand skirt for 26I |
1 |
(26I) |
| 008c |
170-0020 |
Right hand skirt for 38I |
1 |
(38I) |
| 009 |
170-0019 |
Brush housing pin |
1 |
|
| 010a |
170-0310 |
Left hand skirt for 32I |
1 |
(32I) |
| 010b |
170-0311 |
Left hand skirt for 26I |
1 |
(26I) |
| 010c |
170-0312 |
Left hand skirt for 38I |
1 |
(38I) |
| 011a |
170-0313 |
Left hand strap for 32I (OBSOLETE) |
1 |
(32I) |
| 011b |
170-0314 |
Left hand strap for 26I (OBSOLETE) |
1 |
(26I) |
| 011c |
170-0315 |
Left hand strap for 38I (OBSOLETE) |
1 |
(38I) |
| 012a |
999-0294 |
Nut 1/4-20 hex nylon lock type NE stainless steel |
13 |
(32I) |
| 012b |
999-0294 |
Nut 1/4-20 hex nylon lock type NE stainless steel |
11 |
(26I) |
| 012c |
999-0294 |
Nut 1/4-20 hex nylon lock type NE stainless steel |
14 |
(38I) |
| 013a |
999-0633 |
Bolt 1/4-20 x 5/8 hex head stainless steel |
13 |
(32I) |
| 013b |
999-0633 |
Bolt 1/4-20 x 5/8 hex head stainless steel |
11 |
(26I) |
| 013c |
999-0633 |
Bolt 1/4-20 x 5/8 hex head stainless steel |
14 |
(38I) |
|
|
Traverse Motor Assembly - 170-0008 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 000 |
170-0137 |
Drive motor |
1 |
|
| 002 |
170-0379 |
Wave washer |
1 |
|
| 003 |
372-1890 |
Bearing (rear) |
1 |
|
| 004 |
170-0381 |
Armature assembly (OBSOLETE) |
1 |
|
| 005 |
170-0321 |
Front end bearing |
1 |
|
| 007 |
170-0703 |
Bottom end bracket (OBSOLETE) |
1 |
|
| 008 |
170-0707 |
Bolt 1/4-20 x 5-3/4 hex head (OBSOLETE) |
2 |
|
| 010 |
170-0384 |
Field assembly (OBSOLETE) |
1 |
|
| 011 |
170-0385 |
Male terminal housing connector |
1 |
|
| 012 |
170-0386 |
Male terminal (OBSOLETE) |
1 |
|
| 013 |
170-0387 |
Brush holder assembly (OBSOLETE) |
4 |
|
| 015 |
164-0325 |
Carbon brush with lead and terminal (sold individually) |
1 |
|
|
|

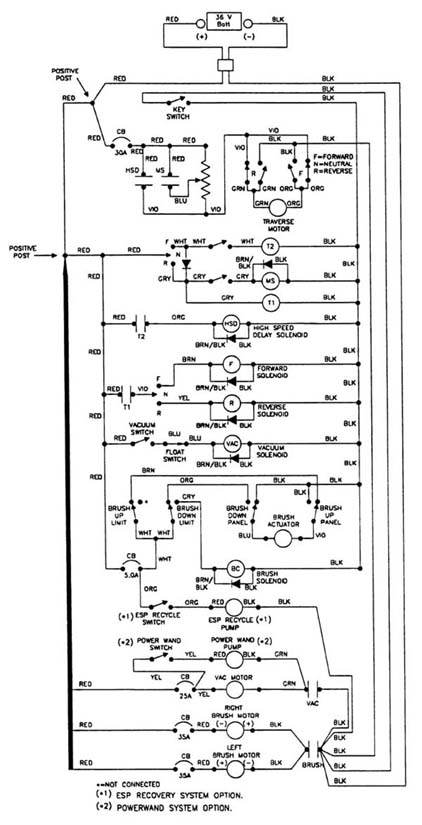

Wiring Diagram - |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
|
|
- Batteries, Brushes and Chargers - 170-9941 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
162-0003 |
6V 225Ah wet battery (SNSR) |
6 |
|
| 2 |
162-0005 |
6V 305Ah wet battery (SNSR) |
6 |
|
| 3 |
162-0043 |
6V 224Ah AGM battery (Group GC2) |
6 |
|
| 4 |
162-0046 |
6V 335Ah AGM battery (Group J305) |
6 |
|
| 5 |
162-5062 |
36V 20amp battery charger with small SB50 gray plug |
1 |
(configured for wet batteries; can be changed to support AGM batteries) |
|
162-9024 |
36V 12amp battery charger with small SB50 gray plug |
|
|
| 6 |
991-2105 |
SB50 50amp charger plug with pins (gray) |
1 |
|
| 7 |
996-0046 |
18 inch heavy grit stripping brush - 80 grit |
2 |
|
| 8 |
996-0019 |
18 inch medium grit scrubbing brush - 180 grit |
2 |
|
| 9 |
996-0006 |
18 inch lite grit scrubbing brush - 500 grit |
2 |
|
| 10 |
996-0274 |
18 inch polypropelene scrubbing brush |
2 |
|
| 11 |
996-0059 |
18 inch Pad driver |
2 |
|
| 12 |
996-0336 |
Clutch plate with brush holder spring |
2 |
|
|
|
- Pads - 255-1900 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 01 |
255-1940 |
19 inch aqua plus burnishing pad (pkg of 5) |
|
|
| 02 |
255-1935 |
19 inch Armadillo concrete scrubbing pad (pkg of 5) |
|
|
| 03 |
255-1964 |
19 inch Blue ace pad (pkg of 5) |
|
|
| 04 |
255-1942 |
19 inch Blue Jay burnishing pad (pkg of 5) |
|
|
| 05 |
255-1912 |
19 inch Cure white pad (pkg of 5) |
|
|
| 06 |
255-1977 |
19 inch Diamondback extreme stripping pad (pkg of 5) |
|
|
| 07 |
255-1938 |
19 inch EHD Extra Heavy Duty Concrete Leveling Pad (pkg of 2 |
|
|
| 08 |
255-1921 |
19 inch gorilla lite burnishing pad (pkg of 5) |
|
|
| 09 |
255-1950 |
19 inch gorilla spray buff/polish/burnish pad (pkg of 5) |
|
|
| 10 |
255-1965 |
19 inch Heat concrete bonding pad (pkg of 5) |
|
|
| 11 |
255-1930 |
19 inch jaguar burnishing pad (pkg of 5) |
|
|
| 12 |
255-1967 |
19 inch Laminated 2001 Gorilla polish pad (pkg of 5) |
|
|
| 13 |
255-1990 |
19 inch premium black stripping pad (pkg of 5) |
|
|
| 14 |
255-1970 |
19 inch premium blue cleaning pad (pkg of 5) |
|
|
| 15 |
255-1992 |
19 inch premium brown stripping pad (pkg of 5) |
|
|
| 16 |
255-1980 |
19 inch premium green scrubbing pad (pkg of 5) |
|
|
| 17 |
255-1960 |
19 inch premium red scrubbing pad (pkg of 5) |
|
|
| 18 |
255-1952 |
19 inch premium tan polishing pad (pkg of 5) |
|
|
| 19 |
255-1920 |
19 inch premium white polishing pad (pkg of 5) |
|
|
| 20 |
255-1911 |
19 inch superspeed rubberized pad (pkg of 5) |
|
|
| 21 |
255-1995 |
19 inch razorback stripping pad (pkg of 5) |
|
|
| 22 |
255-1947 |
19 inch Redwood maroon floor prep pad (pkg of 10) |
|
|
| 23 |
255-1955 |
19 inch Ruff non-abrasive brush pad (pkg of 2) |
|
|
| 24 |
255-1923 |
19 inch sand screen driver pad (pkg of 2) |
|
|
| 25 |
255-0151 |
19 inch Professional sand screen 100 grit (pkg of 10) |
|
|
| 26 |
255-0152 |
19 inch Professional sand screen 120 grit (pkg of 10) |
|
|
| 27 |
255-0153 |
19 inch Professional sand screen 150 grit (pkg of 10) |
|
|
| 28 |
255-0154 |
19 inch Professional sand screen 180 grit (pkg of 10) |
|
|
| 29 |
255-0155 |
19 inch Professional sand screen 220 grit (pkg of 10) |
|
|
| 30 |
255-0156 |
19 inch Professional sand screen 400 grit (pkg of 10) |
|
|
| 31 |
255-0150 |
19 inch Professional sand screen 60 grit (pkg of 10) |
|
|
| 32 |
255-0062 |
19 inch Professional sand screen 80 grit (pkg of 10) |
|
|
| 33 |
255-0241 |
19 inch Superscreen sand screen 100 grit (pkg of 10) |
|
|
| 34 |
255-0242 |
19 inch Superscreen sand screen 120 grit (pkg of 10) |
|
|
| 35 |
255-0243 |
19 inch Superscreen sand screen 150 grit (pkg of 10) |
|
|
| 36 |
255-0244 |
19 inch Superscreen sand screen 180 grit (pkg of 10) |
|
|
| 37 |
255-0245 |
19 inch Superscreen sand screen 220 grit (pkg of 10) |
|
|
| 38 |
255-0246 |
19 inch Superscreen sand screen 400 grit (pkg of 10) |
|
|
| 39 |
255-0239 |
19 inch Superscreen sand screen 60 grit (pkg of 10) |
|
|
| 40 |
255-0240 |
19 inch Superscreen sand screen 80 grit (pkg of 10) |
|
|
| 41 |
255-1924 |
19 inch Tiger carpet bonnet (pkg of 2) |
|
|
| 42 |
255-9584 |
19 inch Diamond by Gorilla 11000 Grit (pkg of 2) |
|
|
| 43 |
255-9581 |
19 inch Diamond by Gorilla 1500 Grit (pkg of 2) |
|
|
| 44 |
255-9578 |
19 inch Diamond by Gorilla 200 Grit (pkg of 2) |
|
|
| 45 |
255-9582 |
19 inch Diamond by Gorilla 3000 Grit (pkg of 2) |
|
|
| 46 |
255-9579 |
19 inch Diamond by Gorilla 400 Grit (pkg of 2) |
|
|
| 47 |
255-9580 |
19 inch Diamond by Gorilla 800 Grit (pkg of 2) |
|
|
| 48 |
255-9583 |
19 inch Diamond by Gorilla 8000 Grit (pkg of 2) |
|
|
| 49 |
255-9644 |
19 inch Diamond starter pack (1 of each grit) |
|
|
| 50 |
255-1982 |
19 inch Turbostrip segmented rotary pad (pkg of 4) |
|
|
| 51 |
255-1915 |
19 inch Duala clean and shine pad - low speed (pkg of 5) |
|
|
| 52 |
255-1916 |
19 inch 2001 Duala clean and shine pad - high speed (pkg 5) |
|
|
|
|
- Pad Holders - 275-9029 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
991-2214 |
Center-Lok II pad holder - left hand thread (red) |
|
|
| 2a |
991-2201 |
Center-Lok II pad holder - right hand thread (black) |
|
(Pad driver side female, Floor side male) |
| 2b |
991-8577 |
Pad retainer |
|
(Pad driver side male, Floor side female) |
| 3a |
991-2202 |
Big mouth pad holder set (blue) |
|
(includes 3 screws) |
| 3b |
991-2205 |
Deep lock ring and pad grip ring |
|
|
| 4 |
991-2203 |
Big mouth pad holder male thread portion |
|
|
| 5 |
991-2206 |
Center-Lok 3 pad holder |
|
(includes 3 screws) |
| 6 |
996-0372 |
Big mouth pad holder (left hand thread) |
|
|
| 8 |
991-2209 |
Split retainer - pad holder ring (OBSOLETE) |
|
|
| 9 |
N/A |
Not available |
|
(replaced by #3 991-2202) |
| 10 |
991-2211 |
Center lock pad holding cup (male) (yellow) (OBSOLETE) |
|
|
|
|
- Frequently Replaced Parts - 999-9617 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
162-0003 |
6V 225Ah wet battery (SNSR) |
|
(6) |
| 2 |
162-0005 |
6V 305Ah wet battery (SNSR) |
|
(6) |
| 3 |
162-0043 |
6V 224Ah AGM battery (Group GC2) |
|
(6) |
| 4 |
162-0046 |
6V 335Ah AGM battery (Group J305) |
|
(6) |
| 5 |
162-5062 |
36V 20amp battery charger with small SB50 gray plug |
|
|
|
162-9024 |
36V 12amp battery charger with small SB50 gray plug |
|
|
| 7 |
991-2105 |
SB50 50amp charger plug with pins (gray) |
|
|
| 8 |
998-0010 |
Battery jumper cable - ring type (red) |
|
|
| 9 |
170-0053 |
Key switch with 2 keys |
|
(power) |
| 11 |
170-0111 |
Vacuum switch assembly (OBSOELTE) |
|
(vacuum) |
| 12 |
170-0058 |
Rocker switch 2 position 6 prong |
|
(brush) |
| 13 |
991-0101 |
Chain (sold by the link) |
|
(78 links) |
| 15 |
170-0006 |
Manual solution valve |
|
|
| 16 |
164-0065 |
Filter screen |
|
|
| 17 |
170-0183 |
Squeegee blade 47 3/4 inch gum rubber rear (tan) |
|
(OEM) |
| 17.1 |
994-0016 |
Squeegee blade 48 inch gum rubber rear (tan) |
1 |
(NON-OEM) |
| 18 |
170-0185 |
Squeegee blade 46 1/4 inch neoprene front (black) |
|
|
| 19a |
164-0089 |
Squeegee vacuum hose with cuffs |
|
|
| 19b |
991-8568 |
Squeegee vacuum hose |
|
(NON-OEM) |
| 20 |
170-0022 |
Recovery tank lid |
|
|
| 21 |
170-0023 |
Recovery tank lid gasket |
|
|
| 23 |
170-0032 |
Drain valve gasket |
|
|
| 24 |
170-0041 |
39 inch drain hose |
|
|
| 25 |
991-1202 |
36V 3 stage vacuum motor tangential |
|
(NON-OEM) |
| 26 |
270-0102 |
36V 3 stage vacuum motor |
|
(OEM) |
| 27 |
991-2206 |
Center-Lok 3 pad holder |
|
|
| 28 |
996-0046 |
18 inch heavy grit stripping brush - 80 grit |
|
|
| 29 |
996-0019 |
18 inch medium grit scrubbing brush - 180 grit |
|
|
| 30 |
996-0006 |
18 inch lite grit scrubbing brush - 500 grit |
|
|
| 31 |
996-0059 |
18 inch Pad driver |
|
|
| 32 |
996-0336 |
Clutch plate with brush holder spring |
|
|
|
|
