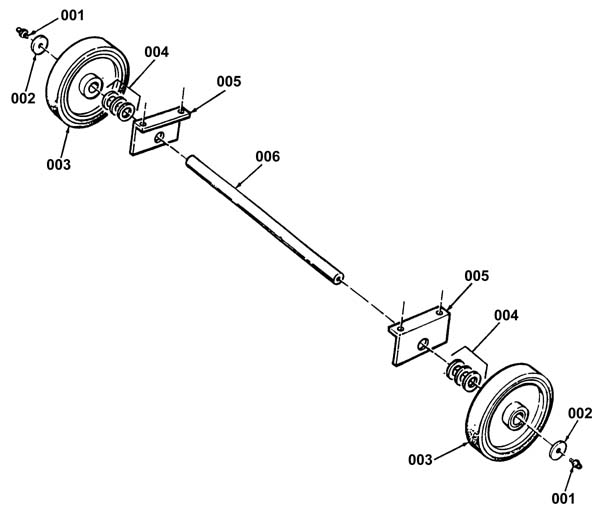

Axle Assembly - Non-Traverse Model - 170-0278 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 001 |
170-1394 |
Grease fitting |
2 |
|
| 002 |
170-1395 |
Fender washer |
2 |
|
| 003 |
170-1396 |
Wheel w/bearings (OBSOLETE) |
2 |
|
| 004 |
170-1397 |
Washer nylon |
4 |
|
| 005 |
170-1398 |
Support axle (OBSOLETE) |
2 |
|
| 006 |
170-1399 |
Non-tranverse axle (OBSOLETE) |
1 |
|
|
|

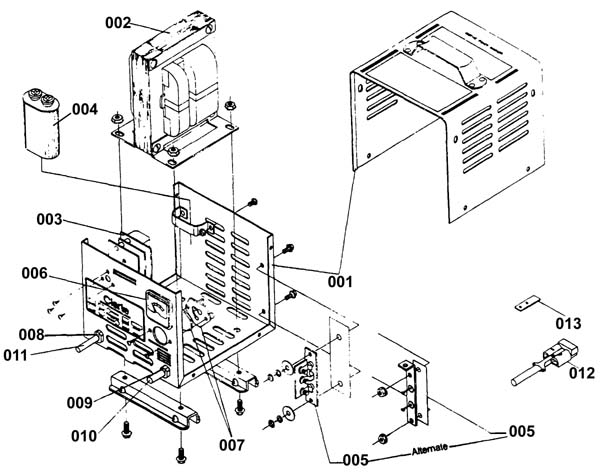

Battery Charger Assembly - 170-0279 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 000 |
162-5060 |
24V 20amp battery charger with small SB50 red plug |
|
|
| 001 |
170-1400 |
Charger case (OBSOLETE) |
|
|
| 003 |
170-0628 |
Electronic Controller Kit |
|
|
| 005 |
272-5296 |
Heat sink assembly with diode |
|
|
| 007a |
372-1254 |
Fuse assembly |
|
|
| 007b |
162-5024 |
24V & 36V fuse holder assembly (cap not sold separately) |
|
|
| 008 |
170-1284 |
Strain relief |
|
|
| 009 |
170-1284 |
Strain relief |
|
|
| 010 |
170-1403 |
D.C. cord assembly |
|
|
| 011 |
170-1286 |
A.C. cord assembly (OBSOLETE) |
|
|
| 012 |
991-2103 |
50amp charger plug SB50 with pins (red) |
|
|
| 013 |
170-7194 |
DC charger plug lock key |
|
|
|
|

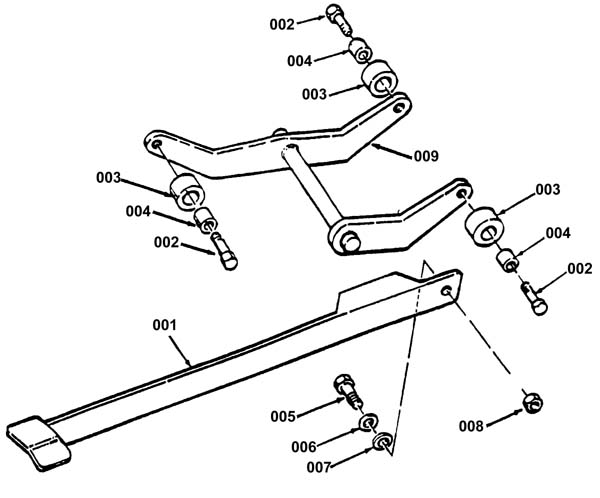

Brush Lift Assembly - 170-0280 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 001 |
170-1408 |
Lift arm (OBSOLETE) |
1 |
|
| 002 |
999-0081 |
Screw 1/4-20 x 5/8 pan head slotted zinc |
3 |
|
| 005 |
170-1411 |
Shoulder screw |
1 |
|
| 006 |
170-1685 |
Washer (OBSOLETE) |
1 |
|
| 007 |
170-5527 |
Washer 13/32 x 11/16 spring (OBSOLETE) |
1 |
|
| 008 |
999-0211 |
Nut 5/16-18 hex nylon insert lock zinc plated |
1 |
|
| 009 |
170-1413 |
Brush lift weldment (OBSOLETE) |
1 |
|
|
|

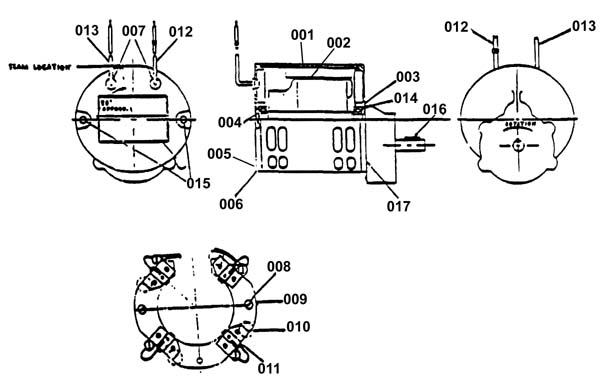

Brush Motor Wiring Assembly - 170-0281 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 001 |
170-0316 |
Stator frame assembly (OBSOLETE) |
1 |
With magnets and clips |
| 002 |
170-1414 |
Armature assembly (OBSOLETE) |
1 |
with back end & front end bearing |
| 003 |
170-0320 |
Bottom bearing |
1 |
|
| 004 |
170-0321 |
Front end bearing |
1 |
|
| 005 |
N/A |
Not available |
1 |
Commutator bracket assembly with board brush assembly leads |
| 006 |
170-0323 |
Commutator bracket (OBSOLETE) |
1 |
|
| 007 |
170-0324 |
Strain relief (OBSOLETE) |
2 |
|
| 008 |
999-0267 |
Screw 10-24 x 1/2 pan head phillips zinc |
2 |
|
| 009 |
170-0325 |
Brush board assembly (OBSOLETE) |
1 |
With springs and brushes |
| 011 |
372-1648 |
Carbon brush assembly |
4 |
|
| 012 |
170-0328 |
Positive lead assembly (OBSOLETE) |
1 |
|
| 013 |
170-0216 |
Head pressure pin (OBSOLETE) |
1 |
|
| 014 |
170-0330 |
Washer helical (OBSOLETE) |
1 |
|
| 015 |
164-1157 |
Bolt 1/4-20 x 7 3/4 thru |
2 |
|
| 016 |
164-0132 |
Square keyway 1/4 x 1/4 |
1 |
|
| 017a |
164-0351 |
Gear box assembly |
1 |
(OEM) |
| 017b |
991-5115 |
Gear box assembly |
1 |
(NON-OEM) (also need to order 017c) |
| 017c |
999-0562 |
Bolt 3/8-16 x 1 hex head stainless steel |
4 |
(needed with 017b) |
|
|

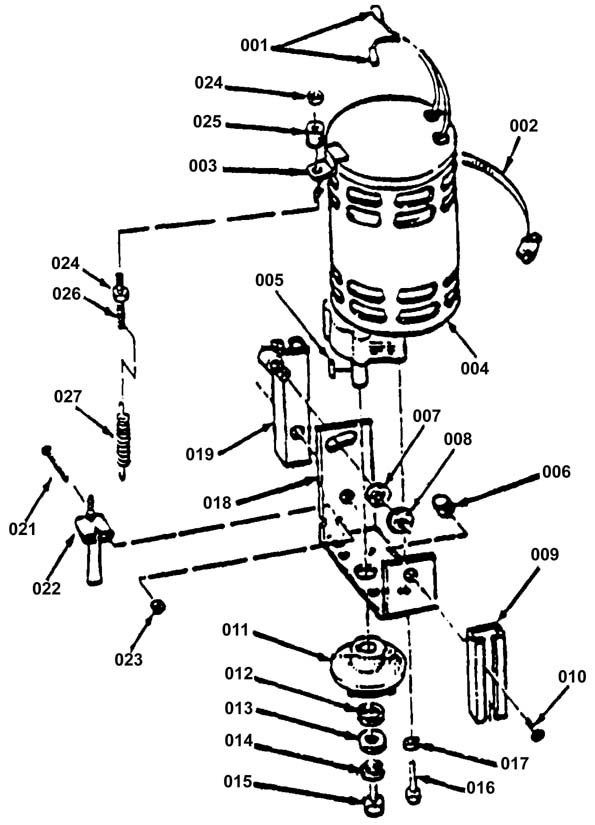

Brush Motor Assembly - 170-0282 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 001 |
170-1417 |
Brush motor terminal |
2 |
|
| 002 |
170-1418 |
Clamp (OBSOLETE) |
1 |
|
| 003 |
170-1419 |
Bracket (OBSOLETE) |
1 |
|
| 004 |
991-2121 |
24V .75HP brush motor assembly with gear box |
1 |
Includes no.5 |
| 005 |
170-1421 |
Shaft key |
1 |
Includes no.4 |
| 006 |
999-0294 |
Nut 1/4-20 hex nylon lock type NE stainless steel |
2 |
|
| 008 |
170-1423 |
Spacer tilt handle (OBSOLETE) |
1 |
|
| 009 |
170-1424 |
Guide RH (OBSOLETE) |
1 |
|
| 010 |
170-1425 |
Screw 1/4-20 x 5/8 (OBSOLETE) |
2 |
|
| 011 |
170-1740 |
Motor adapter (OBSOLETE) |
1 |
|
| 012 |
999-0630 |
Washer 3/4 SAE flat |
1 |
|
| 013 |
170-3161 |
Washer flat impellar |
1 |
|
| 014 |
999-0028 |
Washer 5/16 split lock plain finish |
1 |
|
| 015 |
999-0132 |
Bolt 5/16-18 x 3/4 hex head grade 5 zinc plated |
1 |
|
| 016 |
999-0587 |
Screw 3/8-16 x 5/8 round head slotted zinc |
4 |
|
| 017 |
999-0659 |
Washer 3/8 medium split lock stainless steel |
4 |
|
| 018 |
170-1687 |
Bracket Motor Lift (OBSOLETE) |
1 |
|
| 019 |
170-1688 |
Guide LH (OBSOLETE) |
1 |
|
| 022 |
170-0400 |
Solution adapter |
1 |
|
| 023 |
999-0442 |
Nut 10-24 nylon insert lock stainless steel |
2 |
|
| 024 |
170-1838 |
Nut 3/8-16 hex elastic lock |
2 |
|
| 025 |
170-1690 |
Knob (OBSOLETE) |
1 |
|
| 026 |
170-1691 |
Stud (OBSOLETE) |
1 |
|
| N/S |
170-1689 |
Screw 10 24 1 3/4 |
2 |
|
|
|

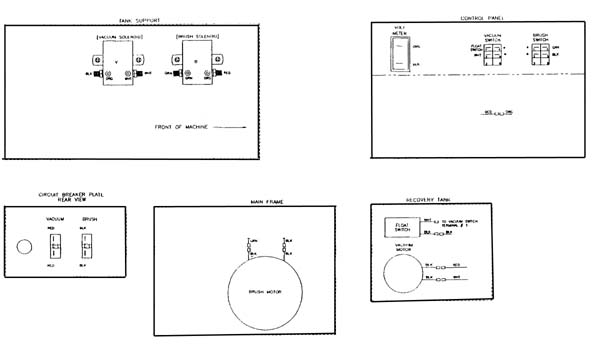

Connection Diagram - |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
|
|

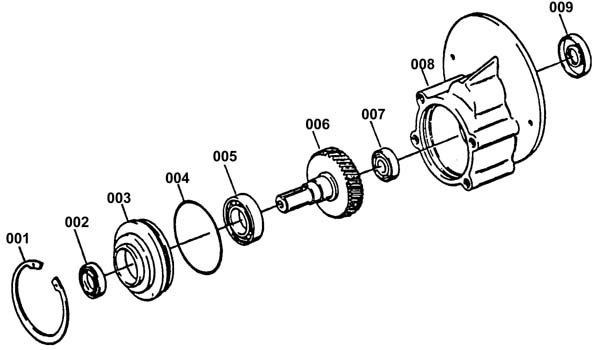

Gearbox Assembly - 170-0284 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 002 |
170-0011 |
Small oil seal |
1 |
|
| 005 |
170-0013 |
Large bearing |
1 |
|
| 006 |
170-0375 |
Shaft and gearbox |
1 |
|
| 007 |
170-0014 |
Small bearing |
1 |
|
| 008 |
170-0376 |
Gearbox housing |
1 |
|
| 009 |
170-0377 |
Large oil seal |
1 |
|
|
|

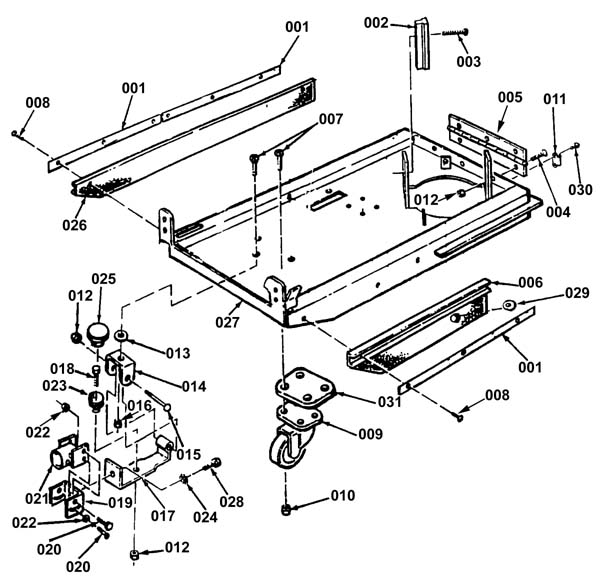

Main Frame Assembly - 170-0285 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 001 |
170-1694 |
L H Retainer (OBSOLETE) |
3 |
|
| 002 |
170-1695 |
Plastic Guide (OBSOLETE) |
2 |
|
| 003 |
373-3017 |
Screw 1/4-20 x 3/4 |
7 |
|
| 004 |
999-0522 |
Screw 1/4-20 x 1/2 pan head phillips stainless steel |
3 |
|
| 005 |
170-1698 |
Hinge (OBSOLETE) |
1 |
|
| 006 |
170-1699 |
R H Skirt (OBSOLETE) |
1 |
|
| 007 |
170-2121 |
Screw 5/16-18 x 3/4 |
9 |
|
| 008 |
170-4461 |
Screw 10-24 x 3/8 stainless steel |
10 |
|
| 009 |
170-2123 |
Swival Caster |
2 |
|
| 010 |
999-0211 |
Nut 5/16-18 hex nylon insert lock zinc plated |
8 |
|
| 011 |
170-2124 |
Housing Clamp Strike (OBSOLETE) |
1 |
|
| 012 |
999-0294 |
Nut 1/4-20 hex nylon lock type NE stainless steel |
5 |
|
| 013 |
170-2125 |
Washer (OBSOLETE) |
1 |
|
| 014 |
170-1759 |
Squeegee bracket |
1 |
|
| 015 |
170-2126 |
1/4 20 x 2 SS |
1 |
|
| 017 |
170-2127 |
Squeegee arm weldment (OBSOLETE) |
1 |
|
| 018 |
170-2128 |
Screw 1/4 20 x 3/4 |
1 |
|
| 019 |
170-2129 |
Squeegee swivel weldment (OBSOLETE) |
1 |
|
| 020 |
999-0334 |
Bolt 1/4-20 x 3/4 inch hex head stainless steel |
4 |
|
| 021 |
170-2130 |
Squeegee bracket weldment (OBSOLETE) |
1 |
|
| 022 |
999-0335 |
Washer 1/4 x 5/8 SAE flat stainless steel |
2 |
|
| 024 |
170-2131 |
Washer lock |
1 |
|
| 025 |
170-1379 |
Bushing (OBSOLETE) |
1 |
|
| 026 |
170-2132 |
L H Skirt (OBSOLETE) |
1 |
|
| 027 |
170-2133 |
Weldment Main Frame (OBSOLETE) |
1 |
|
| 028 |
170-0812 |
Tank assembly stainless steel (OBSOLETE) |
1 |
|
| 029 |
170-2134 |
R H Retainer (OBSOLETE) |
1 |
|
| 030 |
170-2135 |
Screw 3-32 x 1/4 (OBSOLETE) |
2 |
|
| 031 |
170-2136 |
Spacer Caster (OBSOLETE) |
2 |
|
|
|

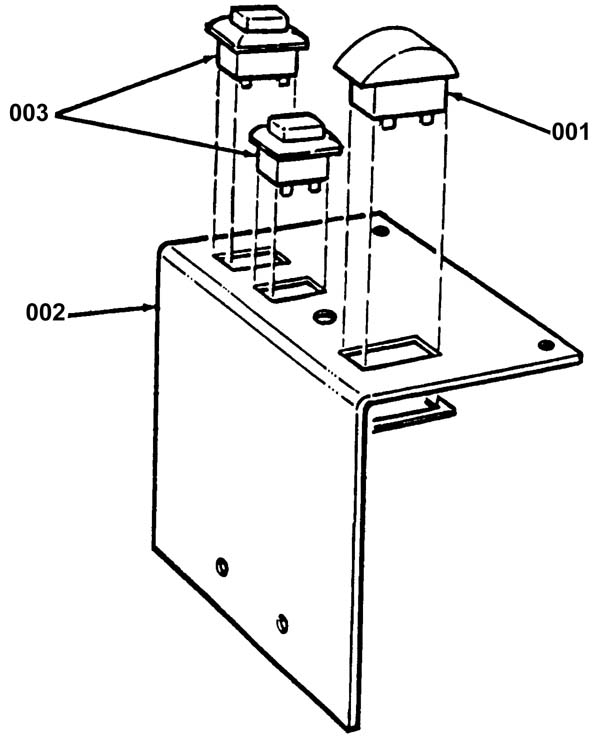

Panel Assembly - Non-Traverse Model - 170-0286 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 001 |
170-2144 |
Battery Meter (OBSOLETE) |
1 |
|
| 002 |
170-4752 |
Control panel (OBSOLETE) |
1 |
|
| 003 |
170-6163 |
On/off switch |
2 |
|
|
|

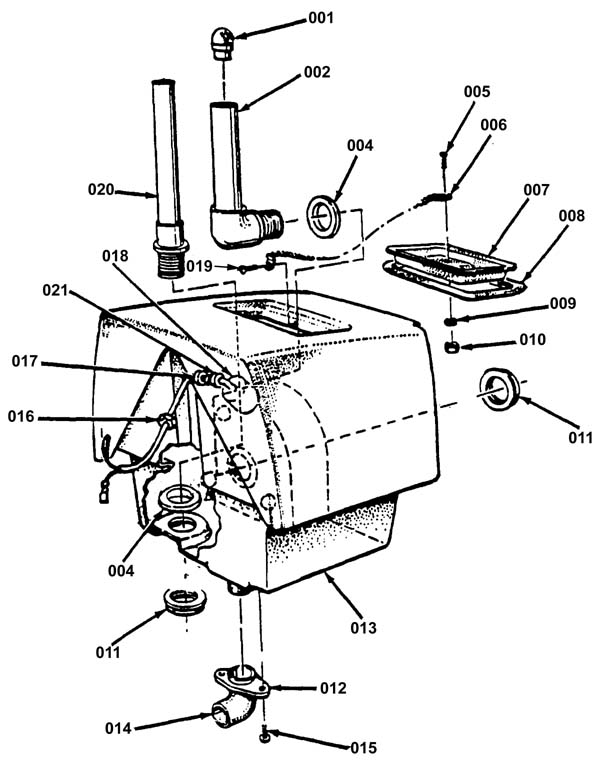

Recovery Tank Assembly - 170-0287 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 001 |
170-2149 |
Vacuum strainer |
1 |
|
| 002 |
170-2150 |
Recovery Tube Stand (OBSOLETE) |
1 |
|
| 005 |
999-0267 |
Screw 10-24 x 1/2 pan head phillips zinc |
1 |
|
| 006 |
172-2474 |
8 inch chain |
1 |
|
| 008 |
170-6038 |
Tank lid gasket |
1 |
|
| 009 |
170-6125 |
Washer 1/8 lock |
1 |
|
| 010 |
999-0062 |
Nut 10-24 hex |
1 |
|
| 012 |
170-2151 |
Retainer Elbow (OBSOLETE) |
1 |
|
| 013 |
170-2152 |
Recovery Tank (OBSOLETE) |
1 |
|
| 014 |
170-2153 |
Recovery Drain Elbow (OBSOLETE) |
1 |
|
| 015 |
999-0522 |
Screw 1/4-20 x 1/2 pan head phillips stainless steel |
2 |
|
| 016 |
170-0294 |
Nut 1/2 conduit lock |
1 |
|
| 018 |
170-0291 |
Float switch kit |
1 |
|
| 019 |
999-0175 |
Screw 1/4-20 x 3/8 pan head slotted zinc plated |
1 |
|
| 020 |
170-1275 |
Recovery tube |
1 |
|
| 021 |
170-0292 |
Strain relief |
1 |
|
| N/S |
170-0457 |
Strap (OBSOLETE) |
2 |
Not illustrated |
|
|
Solution Tank Assembly - 170-0288 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 001 |
172-2474 |
8 inch chain |
1 |
|
| 002 |
999-0175 |
Screw 1/4-20 x 3/8 pan head slotted zinc plated |
1 |
|
| 004a |
170-2155 |
Sol Tank Strainer |
1 |
(OEM) |
| 004b |
991-5137 |
Mesh filter screen (OBSOLETE) |
1 |
(NON-OEM) |
| 005 |
170-3510 |
Motor/Circuit lead assembly (OBSOLETE) |
1 |
|
| 006 |
170-2156 |
Solution Elbow |
1 |
|
| 007 |
170-0006 |
Manual solution valve |
1 |
|
| 008 |
170-1834 |
Hose barb 3/8 x 1/4 |
1 |
|
| 009 |
170-1791 |
Hose (OBSOLETE) |
1 |
|
| 010 |
999-0267 |
Screw 10-24 x 1/2 pan head phillips zinc |
1 |
|
| 011 |
170-6125 |
Washer 1/8 lock |
1 |
|
| 012 |
170-2157 |
Drain Hose (OBSOLETE) |
1 |
|
| 013 |
997-2000 |
Hose clamp |
1 |
|
| 014 |
164-0218 |
Nylon hose clamp |
1 |
|
| 015 |
170-0043 |
Drain valve |
1 |
|
| 016 |
170-2158 |
Solution Tank (OBSOLETE) |
1 |
|
| 017 |
999-0576 |
Screw 8-18 x 1/2 pan head phillips self-drilling ss |
1 |
|
| 018 |
997-2001 |
Hose clamp |
1 |
|
| 019 |
170-6194 |
Drain Gasket |
1 |
|
| 021 |
170-3823 |
Nut 3/4 x 16 |
1 |
|
| 022 |
170-0268 |
Drain chain assembly |
1 |
|
| 023 |
170-0032 |
Drain valve gasket |
1 |
|
| 024 |
999-0062 |
Nut 10-24 hex |
1 |
|
| 025 |
999-0663 |
Screw 10-24 x 3/8 pan head phillips thread cutting |
1 |
|
| 026 |
170-0042 |
Drain valve handle |
1 |
|
| 027 |
999-0723 |
Screw 10-32 x 1/2 pan head slotted stainless steel |
2 |
|
| 028 |
999-0294 |
Nut 1/4-20 hex nylon lock type NE stainless steel |
1 |
|
| 029 |
170-2161 |
Squeegee lift plate (OBSOLETE) |
1 |
|
| 030 |
170-2162 |
Wear Plate (OBSOLETE) |
1 |
|
| 031 |
999-0442 |
Nut 10-24 nylon insert lock stainless steel |
2 |
|
| 032 |
170-2163 |
Squeegee lift handle (OBSOLETE) |
1 |
|
| 033 |
170-2164 |
Spring Taper |
1 |
|
| 034 |
999-0016 |
Washer 1/4 flat plain finish |
1 |
|
| 035 |
170-0268 |
Drain chain assembly |
1 |
|
| 036 |
170-2165 |
Handle Cover (OBSOLETE) |
1 |
|
| 037 |
170-3509 |
Circuit breaker 120volt |
1 |
|
|
|

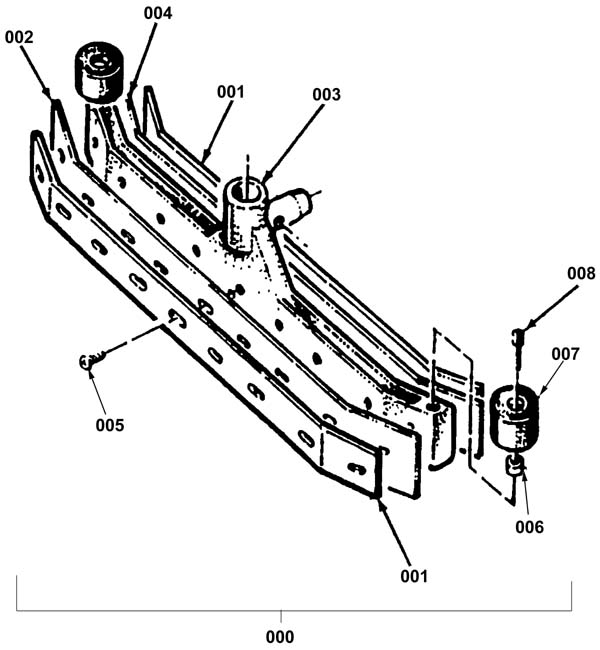

Squeegee Assembly - 170-0289 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 000 |
170-2166 |
Squeegee assembly (OBSOLETE) |
|
|
| 001 |
170-2167 |
Squeegee retainer |
2 |
|
| 002 |
170-2168 |
Squeegee blade rear nitro (OBSOLETE) |
1 |
|
| 003 |
170-2169 |
Squeegee casting (OBSOLETE) |
1 |
|
| 004 |
170-2170 |
Squeegee blade front nitro (OBSOLETE) |
1 |
|
| 005 |
999-0343 |
Screw 1/4-20 x 1/4 pan head phillips stainless steel |
18 |
|
| 006 |
170-0404 |
Wheel spacer (OBSOLETE) |
2 |
|
| 007 |
170-0403 |
Brush guide wheel (OBSOLETE) |
2 |
|
| 008 |
999-1667 |
Screw 5/16-18 x 1 1/4 socket head stainless steel |
2 |
|
| N/S |
170-0021 |
Squeegee blade 29 inch gum rubber front (tan) |
1 |
|
| N/S |
170-0018 |
Squeegee blade 29 inch gum rubber rear (tan) |
1 |
|
|
|

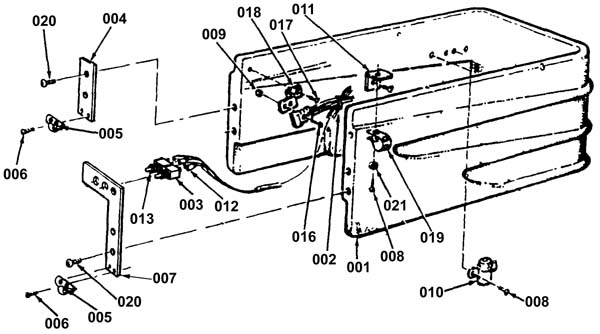

Support Assembly - 170-0290 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 001 |
170-2212 |
Support Tank (OBSOLETE) |
1 |
|
| 002 |
170-4753 |
Machine harness (OBSOLETE) |
1 |
|
| 003 |
170-2213 |
35 Amp Brush Breaker |
1 |
|
| 004 |
170-2214 |
Plate Clamp (OBSOLETE) |
1 |
|
| 005 |
170-2124 |
Housing Clamp Strike (OBSOLETE) |
2 |
|
| 006 |
170-2135 |
Screw 3-32 x 1/4 (OBSOLETE) |
4 |
|
| 007 |
170-2215 |
Circuit Breaker Plate (OBSOLETE) |
1 |
|
| 008 |
170-2216 |
Screw (OBSOLETE) |
8 |
|
| 009 |
999-0227 |
Nut 6-32 hex nylon insert lock jam zinc plated |
2 |
|
| 010 |
170-1797 |
Vacuum solenoid (OBSOLETE) |
2 |
|
| 011 |
170-2217 |
Tank Pntd. Bracket (OBSOLETE) |
5 |
|
| 012 |
N/A |
Not available |
|
Plug |
| 013 |
170-8164 |
30amp circuit breaker |
1 |
|
| 016 |
999-0656 |
Screw #6-32 x 7/8 pan head phillips zinc plated |
2 |
|
| 017 |
170-2128 |
Screw 1/4 20 x 3/4 |
1 |
|
| 018 |
170-2219 |
Battery Bracket (OBSOLETE) |
1 |
|
| 019 |
170-0457 |
Strap (OBSOLETE) |
3 |
|
| 020 |
999-0522 |
Screw 1/4-20 x 1/2 pan head phillips stainless steel |
9 |
|
| 021 |
999-0335 |
Washer 1/4 x 5/8 SAE flat stainless steel |
3 |
|
| N/S |
170-4448 |
Brush lift label (OBSOLETE) |
1 |
|
|
|

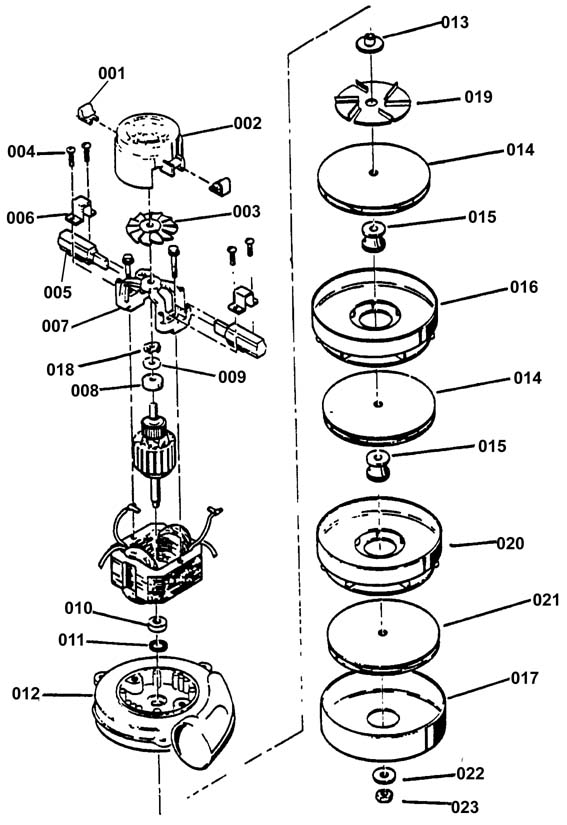

Vacuum Motor Assembly - 170-0291 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 002 |
170-0355 |
Housing vent |
1 |
|
| 003 |
N/A |
Not available |
1 |
Fan. Not available at this time. |
| 004 |
999-0452 |
Screw 8-32 x 3/8 pan head phillips zinc plated |
4 |
|
| 005 |
170-2172 |
Brush mechanism |
2 |
|
| 007 |
170-0359 |
Communicator end bracket |
1 |
|
| 008 |
N/A |
Not available |
1 |
Bearing. Not available at this time. |
| 009 |
170-2173 |
Disc (OBSOLETE) |
1 |
|
| 010 |
N/A |
Not available |
1 |
Bearing. Not available at this time. |
| 011 |
170-0363 |
Washer neoprene |
1 |
|
| 012 |
N/A |
Not available |
1 |
Bracket, fan end. Not available at this time. |
| 013 |
170-2174 |
Spacer (OBSOLETE) |
1 |
|
| 014 |
170-0366 |
Rotating fan |
2 |
|
| 015 |
170-0367 |
Spacer (OBSOLETE) |
2 |
|
| 016 |
N/A |
Not available |
1 |
Stationary fan. Not available at this time. |
| 017 |
N/A |
Not available |
1 |
Fan shell. Not available at this time. |
| 018 |
170-2175 |
Load spring (OBSOLETE) |
1 |
|
| 019 |
N/A |
Not available |
1 |
Air seal fan. Not available at this time. |
| 020 |
N/A |
Not available |
1 |
Stationary fan. Not available at this time. |
| 021 |
N/A |
Not available |
1 |
Rotating fan. Not available at this time. |
| 022 |
N/A |
Not available |
1 |
Washer. Not available at this time. |
| 023 |
N/A |
Not available |
1 |
Nut. Not available at this time. |
|
|

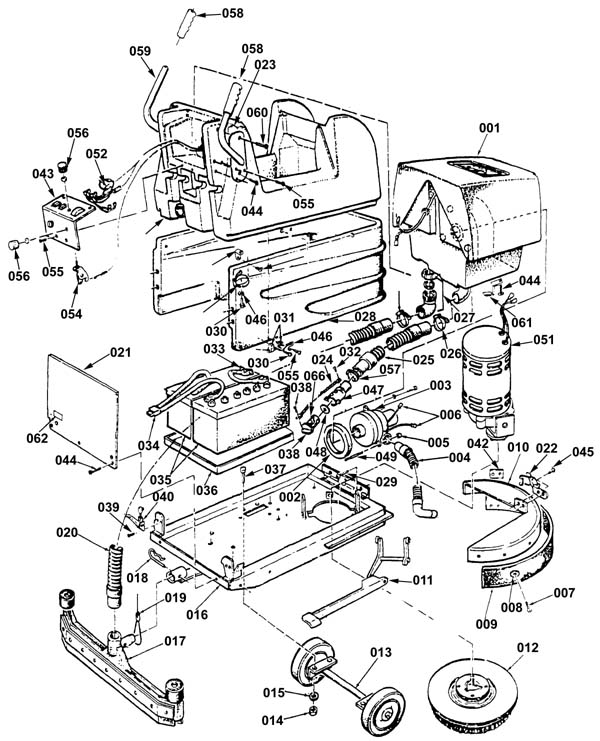

Main Assembly - 170-0292 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 001 |
N/A |
Not available |
|
Recovery tank assembly. Ref see "Recovery tank assembly form #19164A" illustration and parts list. |
| 002a |
164-0881 |
Vacuum motor gasket |
1 |
|
| 002b |
991-3029 |
Vacuum motor gasket |
1 |
(NON-OEM) |
| 003 |
991-1210 |
24V 3 stage vacuum motor tangential |
1 |
|
| 004 |
170-1369 |
Vacuum exhaust hose (OBSOLETE) |
1 |
|
| 005 |
999-0294 |
Nut 1/4-20 hex nylon lock type NE stainless steel |
3 |
|
| 006 |
170-6081 |
1/4 terminal |
2 |
|
| 007 |
170-2177 |
Screw 10 24 x 1/2 |
7 |
|
| 008 |
170-2134 |
R H Retainer (OBSOLETE) |
5 |
|
| 010 |
170-2178 |
Shroud (OBSOLETE) |
1 |
|
| 011 |
N/A |
Not available |
1 |
Brush lift assembly. See "Brush lift form #16609A" illustration and parts list. |
| 012 |
N/A |
Not available |
|
Brush / pad driver. Ref, See "Brush motor" illustration and parts list. |
| 013 |
N/A |
Not available |
1 |
Non-traverse axle assembly. See "Axle assembly non-traverse form #10509A" illustration and parts list. |
| 014 |
999-0211 |
Nut 5/16-18 hex nylon insert lock zinc plated |
4 |
|
| 015 |
170-2125 |
Washer (OBSOLETE) |
4 |
|
| 016 |
N/A |
Not available |
1 |
Main weldment frame. See 'Main frame assembly form #14525B" illustration and parts list. |
| 017 |
N/A |
Not available |
|
Squee gee assembly. Ref, See "Squeegee assembly illustration and parts list. |
| 018 |
170-2180 |
Squeegee locking pin |
1 |
|
| 020 |
170-2182 |
Squeegee hose |
1 |
|
| 021 |
170-2183 |
Rear Panel (OBSOLETE) |
1 |
|
| 022 |
170-2184 |
Clamp (OBSOLETE) |
3 |
|
| 023 |
170-4754 |
Right hand handle (OBSOLETE) |
1 |
|
| 024 |
170-0268 |
Drain chain assembly |
1 |
|
| 025 |
170-2157 |
Drain Hose (OBSOLETE) |
1 |
|
| 026 |
997-2000 |
Hose clamp |
2 |
|
| 027 |
170-1272 |
Recovery adapter elbow (OBSOLETE) |
1 |
|
| 028 |
N/A |
Not available |
1 |
Tank support assembly. See"Support assembly form #18913B" illustration and parts list. |
| 029 |
999-0081 |
Screw 1/4-20 x 5/8 pan head slotted zinc |
3 |
|
| 031 |
170-0263 |
Cable clip |
2 |
|
| 032 |
999-0576 |
Screw 8-18 x 1/2 pan head phillips self-drilling ss |
1 |
|
| 033 |
170-0224 |
Battery cable |
1 |
|
| 034 |
170-2187 |
Battery cable (connects to the charger) (OBSOLETE) |
1 |
|
| 035 |
N/A |
Not available |
2 |
Battery. See "How to correct problems in the machine" illustration. |
| 036 |
170-2188 |
Battery Tray (OBSOLETE) |
1 |
|
| 037 |
999-0536 |
Screw 5/16-18 x 1 flat head socket plain finish |
4 |
|
| 038 |
999-0663 |
Screw 10-24 x 3/8 pan head phillips thread cutting |
1 |
|
| 039 |
170-2135 |
Screw 3-32 x 1/4 (OBSOLETE) |
4 |
|
| 040 |
170-2190 |
Latch (OBSOLETE) |
2 |
|
| 041 |
170-2217 |
Tank Pntd. Bracket (OBSOLETE) |
2 |
|
| 042 |
170-2191 |
Tank Bracket (OBSOLETE) |
1 |
|
| 043 |
N/A |
Not available |
|
Control panel assembly. Ref, see "Panel assembly non traverse form 317636A" illustration and parts list. |
| 044 |
999-0522 |
Screw 1/4-20 x 1/2 pan head phillips stainless steel |
13 |
|
| 045 |
999-0068 |
Screw 10-32 x 1/4 round head slotted zinc plated |
2 |
|
| 046 |
999-0335 |
Washer 1/4 x 5/8 SAE flat stainless steel |
2 |
|
| 047 |
170-0043 |
Drain valve |
1 |
|
| 048 |
170-0032 |
Drain valve gasket |
1 |
|
| 049 |
170-0274 |
Vacuum motor spacer |
3 |
|
| 050 |
N/A |
Not available |
1 |
Solution tank assembly. See "Solution tank assembly form #19163A" illustration and parts list. |
| 051 |
N/A |
Not available |
1 |
Motor brush assembly. See "Brush motor" illustration and parts list. |
| 052 |
170-4753 |
Machine harness (OBSOLETE) |
1 |
|
| 053 |
170-0457 |
Strap (OBSOLETE) |
1 |
|
| 054 |
170-3509 |
Circuit breaker 120volt |
|
|
| 055 |
999-0723 |
Screw 10-32 x 1/2 pan head slotted stainless steel |
6 |
|
| 056 |
170-8261 |
Knob solution flow module (OBSOLETE) |
1 |
|
| 057 |
164-0218 |
Nylon hose clamp |
1 |
|
| 058 |
170-4755 |
Hand grip (OBSOLETE) |
2 |
|
| 059 |
170-4756 |
Left hand handle (OBSOLETE) |
1 |
|
| 060 |
170-2121 |
Screw 5/16-18 x 3/4 |
2 |
|
| 061 |
170-4447 |
Recovery bracket (OBSOLETE) |
2 |
|
| 062 |
170-1813 |
CE label (OBSOLETE) |
1 |
|
| 066 |
N/A |
Not available |
|
Drain plug |
| N/S |
170-2209 |
Falling Parts Label (OBSOLETE) |
1 |
Not illustrated |
|
|

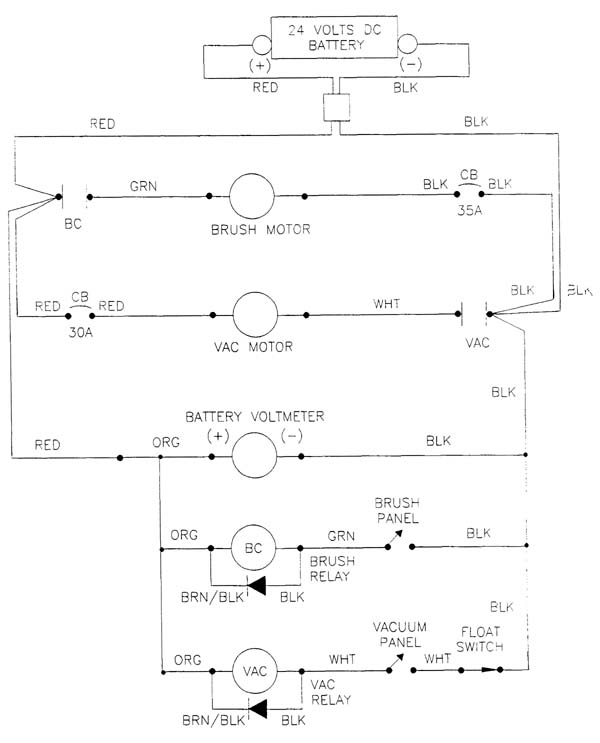

Wiring Diagram - |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
|
|
- Batteries, Brushes, and Chargers - 170-9916 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
162-0002 |
12V 185Ah wet battery (SNSR) |
2 |
|
| 2 |
162-0047 |
12V 215Ah AGM battery (Group J185) |
2 |
|
| 3 |
162-5060 |
24V 20amp battery charger with small SB50 red plug |
1 |
|
| 4 |
991-2103 |
50amp charger plug SB50 with pins (red) |
1 |
|
| 5 |
996-1646 |
19 inch heavy grit stripping brush - 80 grit |
1 |
|
| 6 |
996-1647 |
19 inch medium grit scrubbing brush - 180 grit (OBSOLETE) |
1 |
|
| 7 |
996-1648 |
19 inch lite grit scrubbing brush - 500 grit (OBSOLETE) |
1 |
|
| 8 |
996-1573 |
19 inch polypropelene scrubbing brush |
1 |
|
| 10 |
170-3426 |
Dual direction clutch plate |
1 |
|
|
|
- Commonly Asked For Parts - 170-9980 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 01 |
170-1408 |
Lift arm (OBSOLETE) |
|
|
| 02 |
996-0336 |
Clutch plate with brush holder spring |
1 |
|
| 03 |
170-6163 |
On/off switch |
|
|
| 04 |
170-0006 |
Manual solution valve |
|
|
| 06 |
991-1210 |
24V 3 stage vacuum motor tangential |
|
|
| 07 |
170-3318 |
Brush plate drive metal |
|
|
| 08 |
170-0268 |
Drain chain assembly |
|
|
| 09 |
170-2182 |
Squeegee hose |
|
|
| 10 |
170-0042 |
Drain valve handle |
|
|
| 0a |
162-0002 |
12V 185Ah wet battery (SNSR) |
2 |
|
| 0b |
162-0047 |
12V 215Ah AGM battery (Group J185) |
2 |
|
|
|
- Pads - 255-2000 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 01 |
255-2040 |
20 inch aqua plus burnishing pad (pkg of 5) |
|
|
| 02 |
255-2035 |
20 inch Armadillo concrete scrubbing pad (pkg of 5) |
|
|
| 03 |
255-2064 |
20 inch Blue ace pad (pkg of 5) |
|
|
| 04 |
255-2042 |
20 inch Blue Jay burnishing pad (pkg of 5) |
|
|
| 05 |
255-2012 |
20 inch Cure white pad (pkg of 5) |
|
|
| 06 |
255-2077 |
20 inch Diamondback extreme stripping pad (pkg of 5) |
|
|
| 07 |
255-2038 |
20 inch EHD Extra Heavy Duty Concrete Leveling Pad (pkg of 2 |
|
|
| 08 |
255-2021 |
20 inch gorilla lite burnishing pad (pkg of 5) |
|
|
| 09 |
255-2050 |
20 inch gorilla spray buff/polish/burnish pad (pkg of 5) |
|
|
| 10 |
255-2065 |
20 inch Heat concrete bonding pad (pkg of 5) |
|
|
| 11 |
255-2030 |
20 inch jaguar burnishing pad (pkg of 5) |
|
|
| 12 |
255-2067 |
20 inch Laminated 2001 Gorilla polish pad (pkg of 5) |
|
|
| 13 |
255-2087 |
20 inch Melamine Mela-Kleen pad (pkg of 2) |
|
|
| 14 |
255-2068 |
20 inch Microclean daily cleaning pad (pkg of 2) |
|
|
| 15 |
255-2069 |
20 inch Micropolish polishing and burnishing pad (pkg of 2) |
|
|
| 16 |
255-2090 |
20 inch premium black stripping pad (pkg of 5) |
|
|
| 17 |
255-2070 |
20 inch premium blue cleaning pad (pkg of 5) |
|
|
| 18 |
255-2092 |
20 inch premium brown stripping pad (pkg of 5) |
|
|
| 19 |
255-2080 |
20 inch premium green scrubbing pad (pkg of 5) |
|
|
| 20 |
255-2060 |
20 inch premium red scrubbing pad (pkg of 5) |
|
|
| 21 |
255-2052 |
20 inch premium tan polishing pad (pkg of 5) |
|
|
| 22 |
255-2020 |
20 inch premium white polishing pad (pkg of 5) |
|
|
| 23 |
255-2011 |
20 inch superspeed rubberized pad (pkg of 5) |
|
|
| 24 |
255-2095 |
20 inch razorback stripping pad (pkg of 5) |
|
|
| 25 |
255-2047 |
20 inch Redwood maroon floor prep pad (pkg of 10) |
|
|
| 26 |
255-2055 |
20 inch Ruff non-abrasive brush pad (pkg of 2) |
|
|
| 27 |
255-2023 |
20 inch sand screen driver pad (pkg of 2) |
|
|
| 28 |
255-0157 |
20 inch Professional sand screen 100 grit (pkg of 10) |
|
|
| 29 |
255-0021 |
20 inch Professional sand screen 120 grit (pkg of 10) |
|
|
| 30 |
255-0158 |
20 inch Professional sand screen 150 grit (pkg of 10) |
|
|
| 31 |
255-0159 |
20 inch Professional sand screen 180 grit (pkg of 10) |
|
|
| 32 |
255-0160 |
20 inch Professional sand screen 220 grit (pkg of 10) |
|
|
| 33 |
255-0161 |
20 inch Professional sand screen 400 grit (pkg of 10) |
|
|
| 34 |
255-0030 |
20 inch Professional sand screen 60 grit (pkg of 10) |
|
|
| 35 |
255-0020 |
20 inch Professional sand screen 80 grit (pkg of 10) |
|
|
| 36 |
255-0249 |
20 inch Superscreen sand screen 100 grit (pkg of 10) |
|
|
| 37 |
255-0250 |
20 inch Superscreen sand screen 120 grit (pkg of 10) |
|
|
| 38 |
255-0251 |
20 inch Superscreen sand screen 150 grit (pkg of 10) |
|
|
| 39 |
255-0252 |
20 inch Superscreen sand screen 180 grit (pkg of 10) |
|
|
| 40 |
255-0253 |
20 inch Superscreen sand screen 220 grit (pkg10) (OBSOLETE) |
|
|
| 41 |
255-0254 |
20 inch Superscreen sand screen 400 grit (pkg of 10) |
|
|
| 42 |
255-0247 |
20 inch Superscreen sand screen 60 grit (pkg of 10) |
|
|
| 43 |
255-0248 |
20 inch Superscreen sand screen 80 grit (pkg of 10) |
|
|
| 45 |
255-9591 |
20 inch Diamond by Gorilla 11000 Grit (pkg of 2) |
|
|
| 46 |
255-9588 |
20 inch Diamond by Gorilla 1500 Grit (pkg of 2) |
|
|
| 47 |
255-9585 |
20 inch Diamond by Gorilla 200 Grit (pkg of 2) |
|
|
| 48 |
255-9589 |
20 inch Diamond by Gorilla 3000 Grit (pkg of 2) |
|
|
| 49 |
255-9586 |
20 inch Diamond by Gorilla 400 Grit (pkg of 2) |
|
|
| 50 |
255-9587 |
20 inch Diamond by Gorilla 800 Grit (pkg of 2) |
|
|
| 51 |
255-9590 |
20 inch Diamond by Gorilla 8000 Grit (pkg of 2) |
|
|
| 52 |
255-9645 |
20 inch Diamond starter pack (1 of each grit) |
|
|
| 53 |
255-2082 |
20 inch Turbostrip segmented rotary pad (pkg of 4) |
|
|
| 54 |
255-2015 |
20 inch Duala clean and shine pad - low speed (pkg of 5) |
|
|
| 55 |
255-2016 |
20in 2001 Duala clean& shine pad-high speed(pkg 5) (OBSOLETE |
|
|
|
|
- Pad Holders - 275-9029 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
991-2214 |
Center-Lok II pad holder - left hand thread (red) |
|
|
| 2a |
991-2201 |
Center-Lok II pad holder - right hand thread (black) |
|
(Pad driver side female, Floor side male) |
| 2b |
991-8577 |
Pad retainer |
|
(Pad driver side male, Floor side female) |
| 3a |
991-2202 |
Big mouth pad holder set (blue) |
|
(includes 3 screws) |
| 3b |
991-2205 |
Deep lock ring and pad grip ring |
|
|
| 4 |
991-2203 |
Big mouth pad holder male thread portion |
|
|
| 5 |
991-2206 |
Center-Lok 3 pad holder |
|
(includes 3 screws) |
| 6 |
996-0372 |
Big mouth pad holder (left hand thread) |
|
|
| 8 |
991-2209 |
Split retainer - pad holder ring (OBSOLETE) |
|
|
| 9 |
N/A |
Not available |
|
(replaced by #3 991-2202) |
| 10 |
991-2211 |
Center lock pad holding cup (male) (yellow) (OBSOLETE) |
|
|
|
|
