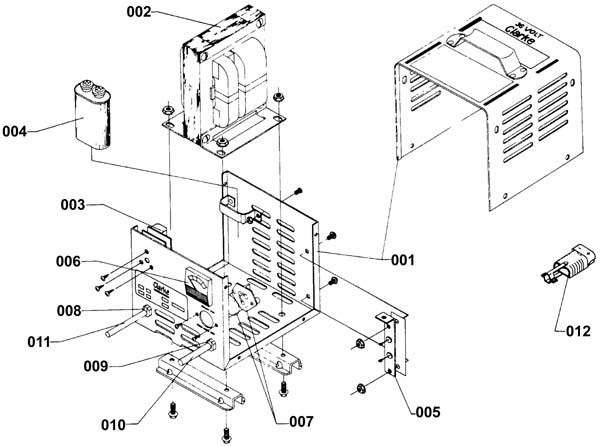

36V Battery Charger - 170-1099 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 001 |
170-4954 |
Charger case (OBSOLETE) |
|
|
| 002 |
170-1278 |
Transformer (OBSOLETE) |
|
|
| 003a |
162-5036 |
36V 3-wire electronic timer (old style) (OBSOLETE) |
|
|
| 003b |
170-3883 |
Electronic timer kit |
|
|
| 005 |
272-5296 |
Heat sink assembly with diode |
|
|
| 007a |
372-1254 |
Fuse assembly |
|
|
| 007b |
162-5024 |
24V & 36V fuse holder assembly (cap not sold separately) |
|
|
| 008 |
170-1284 |
Strain relief |
|
|
| 009a |
170-1284 |
Strain relief |
|
|
| 009b |
170-1284 |
Strain relief |
|
|
| 010 |
170-1285 |
D.C. cord assembly (OBSOLETE) |
|
|
| 011 |
170-1410 |
A.C. cord assembly (OBSOLETE) |
|
|
| 012 |
170-4955 |
Charger plug (OBSOLETE) |
|
|
|
|

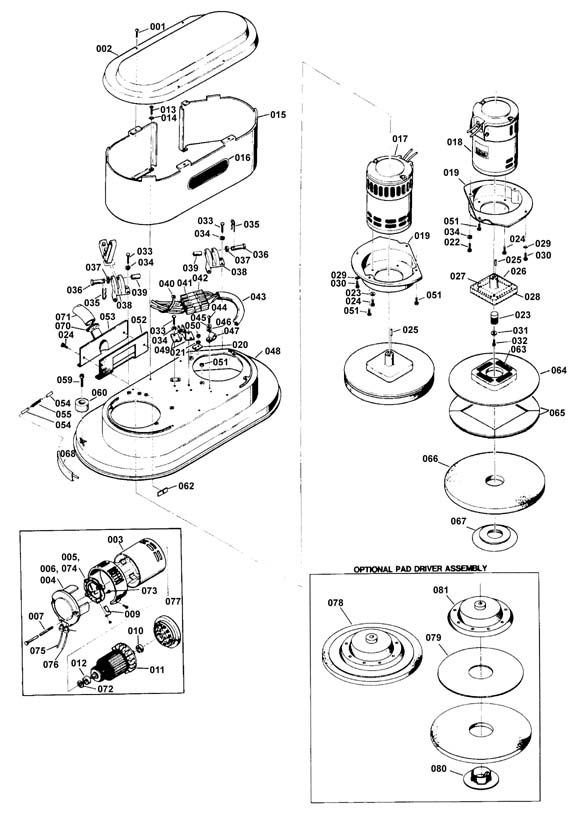

Brush Housing Assembly - 170-1100 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 001 |
999-0267 |
Screw 10-24 x 1/2 pan head phillips zinc |
4 |
|
| 002 |
170-5750 |
Cover- Brush Housing (OBSOLETE) |
1 |
|
| 003 |
170-4849 |
Field assembly (OBSOLETE) |
1 |
|
| 004 |
N/A |
Not available |
1 |
Commutator bracket |
| 005a |
170-4850 |
Brush board assembly (OBSOLETE) |
1 |
|
| 005b |
170-4851 |
Brush board assembly (OBSOLETE) |
1 |
|
| 006a |
170-4853 |
Bracket assembly (OBSOLETE) |
1 |
|
| 006b |
170-4854 |
Bracket assembly (OBSOLETE) |
1 |
|
| 007 |
170-1249 |
Bolt (OBSOLETE) |
2 |
|
| 009 |
170-3268 |
Carbon brush assembly |
4 |
|
| 010 |
372-1890 |
Bearing (rear) |
1 |
|
| 011 |
170-4859 |
Armature (OBSOLETE) |
1 |
|
| 012 |
170-0321 |
Front end bearing |
1 |
|
| 013 |
999-0267 |
Screw 10-24 x 1/2 pan head phillips zinc |
6 |
|
| 014 |
999-0311 |
Washer #10 external star lock zinc plated |
6 |
|
| 015 |
170-5751 |
Shield- Brush Housing (OBSOLETE) |
1 |
|
| 016 |
170-0419 |
Label - Series II (OBSOLETE) |
1 |
|
| 017 |
170-4918 |
Motor (OBSOLETE) |
1 |
|
| 018 |
170-4919 |
Motor (OBSOLETE) |
1 |
|
| 019 |
170-5745 |
Adaptor-Motor (OBSOLETE) |
2 |
|
| 020 |
170-4956 |
Spring plate (OBSOLETE) |
1 |
|
| 021 |
999-0028 |
Washer 5/16 split lock plain finish |
1 |
|
| 022 |
999-0162 |
Bolt 5/16-18 x 1 1/4 hex head grade 5 zinc plated |
1 |
|
| 023 |
170-4957 |
Motor adapter (OBSOLETE) |
2 |
|
| 024 |
170-5996 |
Screw 1/4-20 x 3/4 hex head |
10 |
|
| 025 |
164-0132 |
Square keyway 1/4 x 1/4 |
2 |
|
| 026 |
170-4921 |
Driver (OBSOLETE) |
2 |
|
| 027 |
170-4922 |
Pad (OBSOLETE) |
8 |
|
| 028 |
170-4923 |
Tape (OBSOLETE) |
8 |
|
| 029 |
999-0017 |
Washer 1/4 external star lock |
4 |
|
| 030 |
999-0197 |
Screw 1/4-20 x 1 socket head alloy plain finish |
4 |
|
| 031 |
999-0549 |
Washer 5/16 x 3/4 SAE flat stainless steel |
2 |
|
| 032 |
170-1599 |
Screw 5/16-18 x 3/4 socket head nylock |
2 |
|
| 033 |
999-0132 |
Bolt 5/16-18 x 3/4 hex head grade 5 zinc plated |
10 |
|
| 034 |
999-0406 |
Washer 5/16 internal star lock zinc plated |
11 |
|
| 035 |
170-0135 |
Cotter pin (OBSOLETE) |
2 |
|
| 036 |
170-0423 |
Release pin (FSO) (OBSOLETE) |
2 |
|
| 037 |
999-0549 |
Washer 5/16 x 3/4 SAE flat stainless steel |
2 |
|
| 038 |
170-0008 |
Brush housing bracket (OBSOLETE) |
2 |
|
| 039 |
170-4895 |
Pin tube (OBSOLETE) |
2 |
|
| 041 |
170-0218 |
Contact pins for charger plug (sold individually) |
4 |
|
| 042 |
170-0009 |
Connector housing |
8 |
|
| 043 |
170-4901 |
Machine harness (OBSOLETE) |
1 |
|
| 046 |
999-0092 |
Washer #8 internal star lock zinc plated |
1 |
|
| 047 |
170-4898 |
Clamp (OBSOLETE) |
1 |
|
| 048 |
170-5755 |
Housing Brush (OBSOLETE) |
1 |
|
| 049 |
170-0405 |
Housing lift bracket (OBSOLETE) |
2 |
|
| 050 |
999-0069 |
Nut 5/16-18 hex |
1 |
|
| 051 |
999-0132 |
Bolt 5/16-18 x 3/4 hex head grade 5 zinc plated |
3 |
|
| 052 |
170-4924 |
Gasket (OBSOLETE) |
1 |
|
| 053 |
170-4958 |
Hose adaptor (OBSOLETE) |
1 |
|
| 054 |
170-5753 |
Strip Skirt Retaining (OBSOLETE) |
2 |
|
| 055 |
170-0068 |
Control handle spring (OBSOLETE) |
1 |
|
| 056 |
170-4959 |
Skirt strip (OBSOLETE) |
1 |
|
| 059 |
170-4586 |
Bolt 3/8 x 1 shoulder |
1 |
|
| 060 |
170-2546 |
Wheel 3 inch OD ( (OBSOLETE) |
1 |
|
| 061 |
170-4960 |
Brush housing bumper (OBSOLETE) |
1 |
|
| 062 |
170-7236 |
Connector (OBSOLETE) |
2 |
|
| 063 |
170-3686 |
Lower pad (OBSOLETE) |
8 |
|
| 064 |
170-4928 |
Pad holder (OBSOLETE) |
2 |
|
| 066 |
170-4931 |
17 Inch hose box of 5 (OBSOLETE) |
2 |
|
| 067a |
991-2201 |
Center-Lok II pad holder - right hand thread (black) |
2 |
|
| 067b |
991-2202 |
Big mouth pad holder set (blue) |
2 |
(NON-OEM) |
| 067c |
991-8577 |
Pad retainer |
2 |
(NON-OEM) |
| 068 |
170-5754 |
Skirt-Brush Housing (OBSOLETE) |
1 |
|
| 070 |
997-2007 |
Hose clamp |
1 |
|
| 071 |
170-4961 |
Vacuum tank hose (OBSOLETE) |
|
|
| 072 |
170-0379 |
Wave washer |
1 |
|
| 074 |
170-4852 |
Spring brush (OBSOLETE) |
4 |
|
| 075 |
170-4855 |
Lead assembly (OBSOLETE) |
1 |
|
| 076 |
170-4856 |
Lead assembly (OBSOLETE) |
1 |
|
| 077 |
170-4858 |
Bracket (OBSOLETE) |
1 |
|
| 078 |
170-4962 |
16 Inch flex pad driver assembly (OBSOLETE) |
|
|
| 079 |
170-4963 |
Flex disk pad |
3 |
|
| 080 |
170-4964 |
Device centering pad driver (OBSOLETE) |
4 |
|
| 081 |
170-4965 |
Adapter riser (OBSOLETE) |
5 |
|
|
|

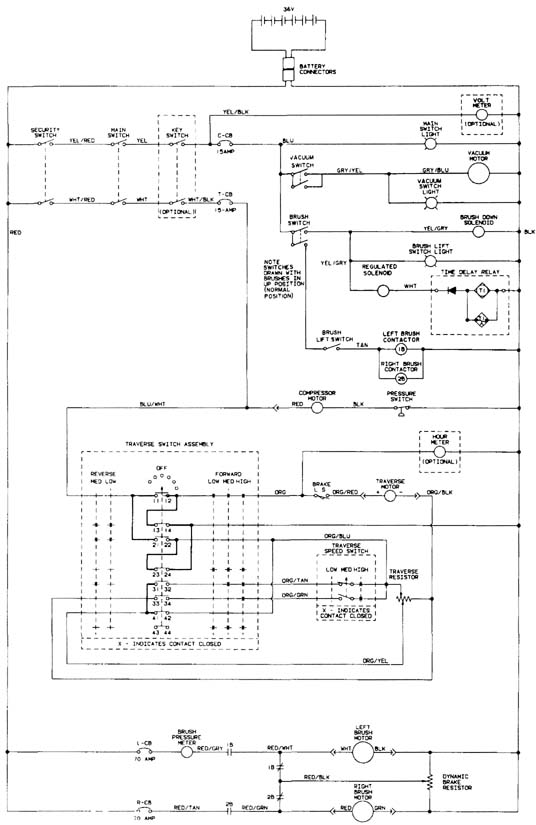

Electrical Schematic - |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
|
|

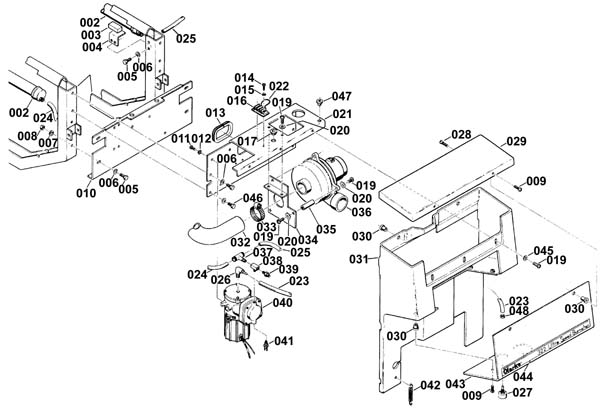

Front Panel Assembly - 170-1121 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 001 |
170-0420 |
Main frame assembly (OBSOLETE) |
2 |
|
| 002 |
170-4990 |
Reservoir assembly (OBSOLETE) |
|
|
| 003 |
170-4991 |
Air reservoir gasket |
2 |
|
| 004 |
170-4992 |
Air resevoir support (OBSOLETE) |
2 |
|
| 005 |
999-0020 |
Bolt 1/4-20 x 3/4 hex head grade 5 zinc plated |
6 |
|
| 006 |
999-0060 |
Washer 1/4 split lock plain finish |
10 |
|
| 007 |
999-0016 |
Washer 1/4 flat plain finish |
4 |
|
| 008 |
999-0190 |
Nut 1/4-20 hex plain finish |
4 |
|
| 009 |
170-5784 |
Screw 1/4-20 x 1-1/4 pan head |
4 |
|
| 010 |
170-4993 |
Spring bracket (OBSOLETE) |
1 |
|
| 011 |
999-0267 |
Screw 10-24 x 1/2 pan head phillips zinc |
3 |
|
| 012 |
999-0311 |
Washer #10 external star lock zinc plated |
3 |
|
| 013 |
170-4994 |
Trim (OBSOLETE) |
1 |
|
| 014 |
999-0511 |
Screw 6-32 x 1 pan head phillips zinc plated |
2 |
|
| 015 |
999-0148 |
Washer #6 external star lock zinc plated |
2 |
|
| 016 |
170-4996 |
Terminal block assembly (OBSOLETE) |
1 |
|
| 019 |
999-0081 |
Screw 1/4-20 x 5/8 pan head slotted zinc |
11 |
|
| 020 |
999-0017 |
Washer 1/4 external star lock |
8 |
|
| 021 |
170-4848 |
Bracket (OBSOLETE) |
1 |
|
| 022 |
170-4997 |
Wire (OBSOLETE) |
1 |
|
| 023 |
170-4998 |
Compressor hose (OBSOLETE) |
1 |
|
| 024 |
170-4999 |
Air hose (OBSOLETE) |
|
|
| 025 |
170-4968 |
Hose (OBSOLETE) |
|
|
| 026 |
170-5140 |
Elbow (OBSOLETE) |
1 |
|
| 027 |
170-5141 |
Compressor filter (OBSOLETE) |
1 |
|
| 028 |
170-3428 |
Clutch plate screws |
2 |
|
| 029 |
170-4907 |
Front top cover (OBSOLETE) |
1 |
|
| 031 |
170-5143 |
Front cover (OBSOLETE) |
1 |
|
| 032 |
170-5144 |
Vacuum to tank hose (OBSOLETE) |
1 |
|
| 033 |
997-2007 |
Hose clamp |
1 |
|
| 034 |
170-5145 |
Vacuum mounting bracket (OBSOLETE) |
1 |
|
| 035 |
170-0584 |
Vacuum motor bracket spacer (OBSOLETE) |
3 |
|
| 036 |
991-1217 |
36V 2 stage vacuum motor tangential with snout |
1 |
|
| 037 |
170-5146 |
Male branch tee (OBSOLETE) |
|
|
| 038 |
170-4843 |
Tee (OBSOLETE) |
|
|
| 039 |
170-4844 |
Relief valve (OBSOLETE) |
|
|
| 040 |
170-4847 |
Compressor (OBSOLETE) |
|
|
| 041 |
170-5147 |
Pressure switch (OBSOLETE) |
|
|
| 042 |
N/A |
Not available |
1 |
Idler tension spring |
| 043 |
170-5148 |
Front cover panel (OBSOLETE) |
1 |
|
| 044 |
170-8097 |
Baffle foam (OBSOLETE) |
1 |
|
| 045 |
999-0549 |
Washer 5/16 x 3/4 SAE flat stainless steel |
3 |
|
| 046 |
170-4911 |
Screw 1/4-20 x 3/4 pan type F (OBSOLETE) |
4 |
|
| 047 |
170-5150 |
Snap bushing (OBSOLETE) |
1 |
|
| 048 |
999-0247 |
Nut 3/8-16 hex jam plain finish |
1 |
|
| N/S |
170-4840 |
Air compressor kit (OBSOLETE) |
1 |
|
| N/S |
170-4841 |
Connecting rod, valve plate and eccentric assembly (OBSOLETE |
1 |
|
| N/S |
170-4839 |
Bearing and set screw assembly (OBSOLETE) |
1 |
|
|
|

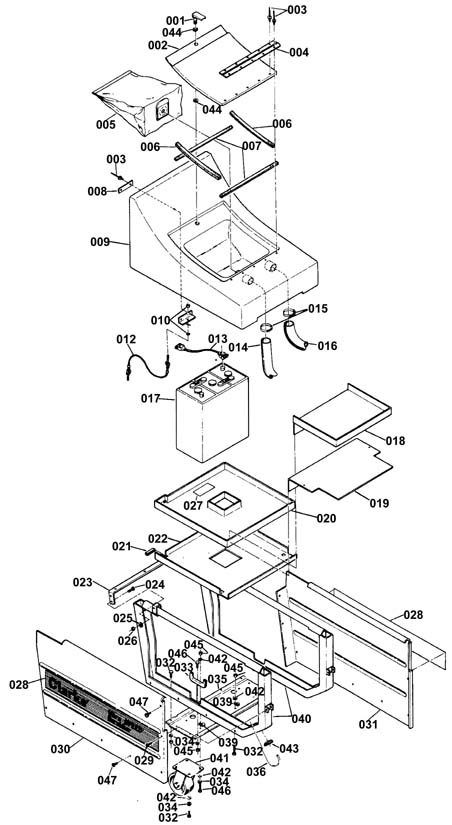

Mainframe Assembly - 170-1122 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 001 |
170-2755 |
Latch-hopper (OBSOLETE) |
1 |
|
| 002 |
170-5151 |
Dust bag cover (OBSOLETE) |
1 |
|
| 003 |
170-8037 |
Closed end rivet |
12 |
|
| 004 |
170-5153 |
Dust cover hinge (OBSOLETE) |
1 |
|
| 005 |
170-3278 |
Paper bag (pkg of 6) (OBSOLETE) |
1 |
|
| 006 |
170-5154 |
Front cover gasket (OBSOLETE) |
2 |
|
| 007 |
170-5155 |
Front cover gasket (OBSOLETE) |
2 |
|
| 008 |
170-5156 |
Retaining plate (OBSOLETE) |
1 |
|
| 009 |
170-5157 |
Battery cover (OBSOLETE) |
1 |
|
| 010 |
999-0460 |
Nut 10-32 hex |
2 |
|
| 011 |
170-5158 |
Cord mounting bracket (OBSOLETE) |
1 |
|
| 012 |
170-4975 |
Stop cord assembly (OBSOLETE) |
1 |
|
| 013 |
170-0224 |
Battery cable |
5 |
|
| 014 |
170-4961 |
Vacuum tank hose (OBSOLETE) |
1 |
|
| 015 |
997-2007 |
Hose clamp |
2 |
|
| 016 |
170-0545 |
Warning label (FSO) (OBSOLETE) |
|
|
| 017 |
162-0005 |
6V 305Ah wet battery (SNSR) |
6 |
|
| 018 |
170-5790 |
Battery support liner (OBSOLETE) |
1 |
|
| 019 |
170-5791 |
Center battery support (OBSOLETE) |
1 |
|
| 020 |
170-0620 |
Battery tray liner (OBSOLETE) |
1 |
|
| 021 |
170-0627 |
Tray trim (OBSOLETE) |
1 |
|
| 022 |
170-0621 |
Battery tray (OBSOLETE) |
1 |
|
| 023 |
170-0626 |
Switch assembly mounting bracket (FSO) (OBSOLETE) |
1 |
|
| 024 |
999-0020 |
Bolt 1/4-20 x 3/4 hex head grade 5 zinc plated |
4 |
|
| 025 |
999-0060 |
Washer 1/4 split lock plain finish |
4 |
|
| 026 |
999-0190 |
Nut 1/4-20 hex plain finish |
4 |
|
| 027 |
N/A |
Not available |
1 |
Caution label |
| 028 |
170-4904 |
Ultra speed label (OBSOLETE) |
2 |
|
| 029 |
170-4911 |
Screw 1/4-20 x 3/4 pan type F (OBSOLETE) |
4 |
|
| 030 |
170-0623 |
Right hand side panel (OBSOLETE) |
1 |
|
| 031 |
170-0635 |
Left hand side panel (OBSOLETE) |
1 |
|
| 032 |
999-0132 |
Bolt 5/16-18 x 3/4 hex head grade 5 zinc plated |
10 |
|
| 033 |
170-0625 |
Frame trim (OBSOLETE) |
1 |
|
| 034 |
999-0028 |
Washer 5/16 split lock plain finish |
12 |
|
| 035 |
170-0455 |
Caster bracket (OBSOLETE) |
1 |
|
| 039 |
170-0457 |
Strap (OBSOLETE) |
2 |
|
| 040 |
170-0420 |
Main frame assembly (OBSOLETE) |
|
|
| 041 |
991-2011 |
Caster wheel assembly |
|
|
| 042 |
999-0549 |
Washer 5/16 x 3/4 SAE flat stainless steel |
10 |
|
| 043 |
N/A |
Not available |
1 |
Snap bushing |
| 044 |
999-0024 |
Washer 5/16 flat stainless steel |
2 |
|
| 045 |
999-0069 |
Nut 5/16-18 hex |
6 |
|
| 046 |
170-3357 |
Screw 5/16-18x1 1/4 hex head |
3 |
|
| 047 |
999-0175 |
Screw 1/4-20 x 3/8 pan head slotted zinc plated |
10 |
|
|
|

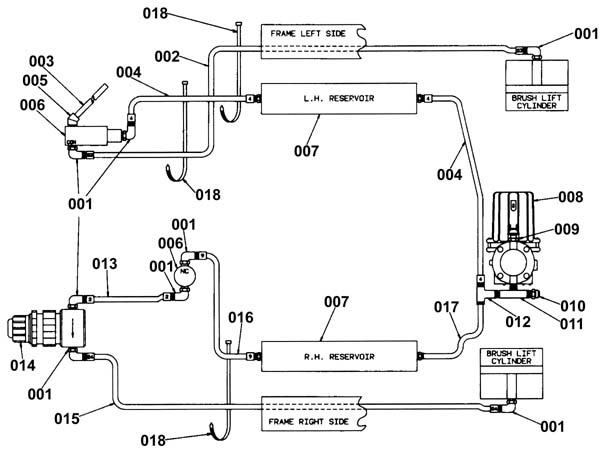

Pneumatic Schematic - 170-1123 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 002 |
170-4908 |
Hose 23 (OBSOLETE) |
1 |
|
| 003 |
170-4970 |
Exhaust hose (OBSOLETE) |
1 |
|
| 004 |
170-4968 |
Hose (OBSOLETE) |
2 |
|
| 005 |
170-4969 |
Elbow (OBSOLETE) |
1 |
|
| 006 |
170-3323 |
Valve assy with fittings and lever (OBSOLETE) |
2 |
|
| 007 |
170-4990 |
Reservoir assembly (OBSOLETE) |
2 |
|
| 008 |
170-4847 |
Compressor (OBSOLETE) |
1 |
|
| 009 |
170-5147 |
Pressure switch (OBSOLETE) |
1 |
|
| 010 |
170-4844 |
Relief valve (OBSOLETE) |
1 |
|
| 011 |
170-4843 |
Tee (OBSOLETE) |
1 |
|
| 012 |
170-5146 |
Male branch tee (OBSOLETE) |
1 |
|
| 013 |
170-4883 |
Hose 2 (OBSOLETE) |
1 |
|
| 014 |
170-4976 |
Air regulator (OBSOLETE) |
1 |
|
| 015 |
170-0709 |
Exhaust hose (OBSOLETE) |
1 |
|
| 016 |
170-4971 |
Air hose (OBSOLETE) |
1 |
|
| 017 |
170-4999 |
Air hose (OBSOLETE) |
1 |
|
|
|

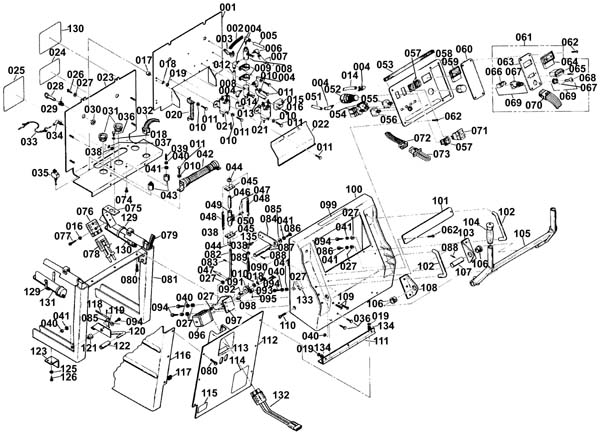

Control Housing, Electrical Panel, and Rear Cover Assembly - 170-1124 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 001 |
170-4966 |
Electric panel (OBSOLETE) |
1 |
|
| 002 |
170-4967 |
Panel wiring harness (OBSOLETE) |
1 |
|
| 003 |
170-4882 |
Clip (OBSOLETE) |
3 |
|
| 005 |
170-4968 |
Hose (OBSOLETE) |
|
|
| 006 |
170-4969 |
Elbow (OBSOLETE) |
|
|
| 007 |
170-4970 |
Exhaust hose (OBSOLETE) |
|
|
| 008 |
170-3323 |
Valve assy with fittings and lever (OBSOLETE) |
|
|
| 009 |
170-4880 |
Clamp (OBSOLETE) |
2 |
|
| 010 |
999-0016 |
Washer 1/4 flat plain finish |
11 |
|
| 011 |
N/A |
Not available |
12 |
(Screw) |
| 012 |
170-4908 |
Hose 23 (OBSOLETE) |
|
|
| 013 |
170-4971 |
Air hose (OBSOLETE) |
|
|
| 014 |
170-4883 |
Hose 2 (OBSOLETE) |
|
|
| 015 |
170-4972 |
Time delay relay (OBSOLETE) |
1 |
|
| 016 |
170-4973 |
Screw 8-18 x1 pan (OBSOLETE) |
2 |
|
| 017 |
170-2269 |
Spacer (OBSOLETE) |
4 |
|
| 018 |
999-0017 |
Washer 1/4 external star lock |
9 |
|
| 019 |
999-0190 |
Nut 1/4-20 hex plain finish |
10 |
|
| 020 |
170-4974 |
Resistor (OBSOLETE) |
1 |
|
| 021 |
272-1322 |
Motor contactor |
2 |
|
| 022 |
170-4879 |
Shield (OBSOLETE) |
1 |
|
| 023 |
170-4885 |
Panel assembly (OBSOLETE) |
1 |
|
| 024 |
170-0542 |
Battery care label (OBSOLETE) |
1 |
|
| 025 |
170-0545 |
Warning label (FSO) (OBSOLETE) |
1 |
|
| 026 |
170-0463 |
Screw 9/32-16 x 3/4 hex washer head hi-lo |
2 |
|
| 027 |
999-0549 |
Washer 5/16 x 3/4 SAE flat stainless steel |
9 |
|
| 028 |
170-0079 |
Release pin |
2 |
|
| 029 |
170-0078 |
Tank stop bushing (OBSOLETE) |
2 |
|
| 030 |
999-0003 |
Nut 5/8-18 hex jam stainless steel |
2 |
|
| 031 |
N/A |
Not available |
2 |
Snapbushing |
| 032 |
170-4901 |
Machine harness (OBSOLETE) |
1 |
|
| 033 |
170-4975 |
Stop cord assembly (OBSOLETE) |
|
|
| 034 |
170-0511 |
Ball joint assembly (OBSOLETE) |
1 |
|
| 035 |
170-0567 |
On/off switch (OBSOLETE) |
1 |
|
| 036 |
999-1032 |
Screw 1/4-20 x 5/8 hex head stainless steel |
7 |
|
| 037 |
999-0311 |
Washer #10 external star lock zinc plated |
1 |
|
| 038 |
999-0460 |
Nut 10-32 hex |
2 |
|
| 039 |
170-4888 |
Stud (OBSOLETE) |
2 |
|
| 040 |
999-0069 |
Nut 5/16-18 hex |
7 |
|
| 041 |
999-0028 |
Washer 5/16 split lock plain finish |
7 |
|
| 042 |
170-4881 |
Resistor (OBSOLETE) |
1 |
|
| 043 |
170-0063 |
Insulated stand off |
2 |
|
| 044 |
170-0540 |
Bushing slide (OBSOLETE) |
2 |
|
| 045 |
170-0504 |
Spring plate (OBSOLETE) |
2 |
|
| 046 |
170-0539 |
Centering tube (OBSOLETE) |
1 |
|
| 047 |
997-2500 |
Cotter pin |
4 |
|
| 048 |
170-0127 |
Brake spring |
2 |
|
| 049 |
170-0505 |
Tube Assy Centering (OBSOLETE) |
1 |
|
| 050 |
170-0506 |
1/4 inch diameter pin (OBSOLETE) |
1 |
|
| 051 |
170-0709 |
Exhaust hose (OBSOLETE) |
|
|
| 052 |
170-4976 |
Air regulator (OBSOLETE) |
|
|
| 053 |
170-0514 |
Gasket console panel (OBSOLETE) |
1 |
|
| 054 |
170-4874 |
70 Amp pad drive motors breaker (OBSOLETE) |
2 |
|
| 055a |
170-0045 |
20 amp breaker |
1 |
|
| 055b |
991-1617 |
20amp circuit breaker |
1 |
|
| 056a |
170-0531 |
15amp circuit breaker |
1 |
|
| 056b |
991-8539 |
15amp circuit breaker |
1 |
(NON-OEM) |
| 058 |
170-4977 |
Console panel (OBSOLETE) |
1 |
|
| 059 |
170-4869 |
Ammeter (OBSOLETE) |
1 |
|
| 060 |
170-4860 |
Panel (OBSOLETE) |
1 |
|
| 061 |
170-4978 |
Complete control panel (OBSOLETE) |
1 |
|
| 062 |
999-0110 |
Screw 10-16 x 1/2 pan head phillips self-drilling |
8 |
|
| 063 |
170-4979 |
Control panel accessory (OBSOLETE) |
1 |
Optional |
| 064 |
170-4980 |
Battery meter (OBSOLETE) |
1 |
Optional |
| 065a |
170-0052 |
Hour meter |
1 |
(optional) (OEM) |
| 065b |
991-7137 |
Hour meter |
1 |
(NON-OEM) |
| 066 |
170-4981 |
Switch only (OBSOLETE) |
1 |
Optional |
| 067 |
170-4982 |
Lock assembly (OBSOLETE) |
1 |
Optional |
| 068 |
170-4983 |
Key (OBSOLETE) |
1 |
Optional |
| 069 |
170-0111 |
Vacuum switch assembly (OBSOELTE) |
1 |
Optional |
| 070 |
170-4985 |
Wiring harness (OBSOLETE) |
1 |
Optional |
| 071 |
170-0089 |
Rocker switch (OBSOLETE) |
1 |
|
| 072 |
170-4986 |
Console wiring harness (OBSOLETE) |
1 |
|
| 073 |
170-4871 |
Plug (OBSOLETE) |
1 |
|
| 074 |
999-0175 |
Screw 1/4-20 x 3/8 pan head slotted zinc plated |
2 |
|
| 075 |
170-4884 |
Bracket (OBSOLETE) |
1 |
|
| 076 |
170-4886 |
Cable assembly (OBSOLETE) |
1 |
|
| 077 |
999-0432 |
Screw 1/4-20 x 1 1/4 pan head phillips zinc plated |
2 |
|
| 078 |
170-4899 |
Battery cable assembly |
1 |
|
| 079 |
170-4901 |
Machine harness (OBSOLETE) |
|
|
| 080 |
999-0081 |
Screw 1/4-20 x 5/8 pan head slotted zinc |
9 |
|
| 081 |
170-0420 |
Main frame assembly (OBSOLETE) |
|
|
| 082 |
170-0508 |
Centering rod (FSO) (OBSOLETE) |
1 |
|
| 084 |
170-0512 |
Switch actuator arm (FSO) (OBSOLETE) |
1 |
|
| 085 |
999-0160 |
Washer 1/4 x 1 1/4 fender zinc plated |
2 |
|
| 086 |
999-0132 |
Bolt 5/16-18 x 3/4 hex head grade 5 zinc plated |
2 |
|
| 087 |
N/A |
Not available |
1 |
Handle pin |
| 088 |
170-0516 |
(Not Available) Pin 3/16 Diameter (OBSOLETE) |
2 |
|
| 089 |
170-0509 |
Switch rack (OBSOLETE) |
1 |
|
| 090 |
999-0405 |
Screw 1/4-20 x 5/8 round head slotted zinc plated |
1 |
|
| 091 |
N/A |
Not available |
1 |
Rack retainer |
| 092 |
170-0519 |
Housing mount spacer (OBSOLETE) |
1 |
|
| 093 |
N/A |
Not available |
1 |
Switch gear |
| 094 |
170-3357 |
Screw 5/16-18x1 1/4 hex head |
5 |
|
| 095 |
170-4988 |
Screw 8 - 32 x 3/16 allen |
6 |
|
| 096 |
170-0522 |
Switch (OBSOLETE) |
1 |
|
| 097 |
170-0523 |
Bracket switch (OBSOLETE) |
1 |
|
| 098 |
170-0524 |
Gear spacer (OBSOLETE) |
1 |
|
| 099 |
170-4865 |
Caution label (OBSOLETE) |
1 |
|
| 100 |
170-0513 |
Control housing (OBSOLETE) |
1 |
|
| 101 |
170-0520 |
Warning label (FSO) (OBSOLETE) |
1 |
|
| 102 |
170-0534 |
Stationary handle (FSO) (OBSOLETE) |
2 |
|
| 103 |
170-0541 |
Adjusting right hand bracket (OBSOLETE) |
1 |
|
| 104 |
170-0532 |
Handle grip (OBSOLETE) |
2 |
|
| 105 |
170-0533 |
Control handle (OBSOLETE) |
1 |
|
| 106 |
170-0088 |
Flanged bearing (OBSOLETE) |
2 |
|
| 107 |
170-0535 |
Handle pivot pin (OBSOLETE) |
1 |
|
| 108 |
170-0527 |
Adjusting left hand bracket (OBSOLETE) |
1 |
|
| 109 |
999-0810 |
Screw 5/16-18 x 3/4 flat head slotted stainless steel |
2 |
|
| 110 |
999-0185 |
Screw 3/8-16 x 3/4 flat head slotted zinc plated |
2 |
|
| 111 |
170-0526 |
Hinge (OBSOLETE) |
1 |
|
| 112 |
170-4913 |
Rear cover (OBSOLETE) |
1 |
|
| 113 |
170-4914 |
Charge plug label (OBSOLETE) |
1 |
|
| 114 |
170-0570 |
Lubrication label (FSO) (OBSOLETE) |
1 |
|
| 115 |
170-0555 |
Parking brake label (FSO) (OBSOLETE) |
1 |
|
| 116 |
170-0635 |
Left hand side panel (OBSOLETE) |
|
|
| 117 |
170-0462 |
Nut 1/4-20 speed (OBSOLETE) |
6 |
|
| 118 |
170-0550 |
Brake rod (OBSOLETE) |
|
|
| 119 |
997-2504 |
Cotter pin 1/16 x 1/2 |
2 |
|
| 120 |
170-0552 |
Brake pedal assembly (OBSOLETE) |
1 |
|
| 121 |
170-0553 |
Brake pedal spacer (FSO) (OBSOLETE) |
1 |
|
| 122 |
170-0434 |
Brake pedal cover (OBSOLETE) |
1 |
|
| 123 |
170-0564 |
Brake pedal stop (OBSOLETE) |
1 |
|
| 125 |
999-0659 |
Washer 3/8 medium split lock stainless steel |
2 |
|
| 126 |
170-3353 |
Screw 3/8-16x1/2 hex head (OBSOLETE) |
2 |
|
| 130 |
170-4889 |
Battery installation label (OBSOLETE) |
1 |
|
| 131 |
170-4990 |
Reservoir assembly (OBSOLETE) |
|
|
| 132 |
170-4900 |
Charger cable assembly (OBSOLETE) |
1 |
|
| 133 |
170-0457 |
Strap (OBSOLETE) |
1 |
|
| 134 |
999-0060 |
Washer 1/4 split lock plain finish |
6 |
|
| 135 |
170-5772 |
Ball joint assembly (OBSOLETE) |
1 |
|
|
|

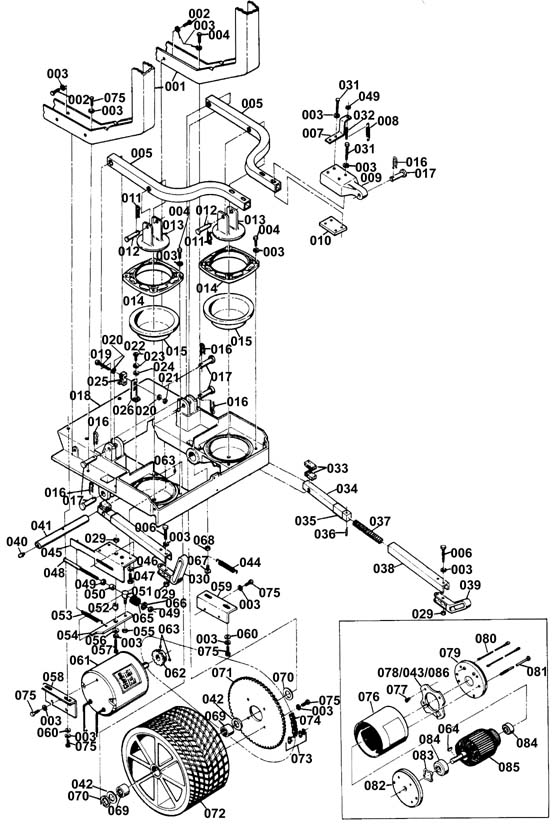

Support Assembly - 170-1125 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 001 |
170-0420 |
Main frame assembly (OBSOLETE) |
|
|
| 002 |
999-0810 |
Screw 5/16-18 x 3/4 flat head slotted stainless steel |
2 |
|
| 003 |
999-0028 |
Washer 5/16 split lock plain finish |
33 |
|
| 004 |
170-3357 |
Screw 5/16-18x1 1/4 hex head |
9 |
|
| 005 |
170-0655 |
Brush lift arm assembly (OBSOLETE) |
2 |
|
| 006 |
999-0551 |
Bolt 5/16-18 x 1 3/4 hex head stainless steel |
4 |
|
| 008 |
170-5160 |
Centering spring (OBSOLETE) |
1 |
|
| 009 |
170-5799 |
Brush lift link (OBSOLETE) |
1 |
|
| 010 |
170-0657 |
Plate Nut (OBSOLETE) |
1 |
|
| 011 |
170-0135 |
Cotter pin (OBSOLETE) |
2 |
|
| 012 |
170-0423 |
Release pin (FSO) (OBSOLETE) |
2 |
|
| 013 |
170-5161 |
Brush lift bracket assembly (OBSOLETE) |
2 |
|
| 014 |
170-2095 |
Diaphragm clamp (OBSOLETE) |
2 |
|
| 015 |
170-2096 |
Brush lift diaphragm |
2 |
|
| 016 |
997-2516 |
Cotter pin |
5 |
|
| 017 |
170-0398 |
Connecting pin |
5 |
|
| 018 |
170-0659 |
Machine support (OBSOLETE) |
1 |
|
| 019 |
999-0511 |
Screw 6-32 x 1 pan head phillips zinc plated |
2 |
|
| 020 |
999-0148 |
Washer #6 external star lock zinc plated |
4 |
|
| 021 |
999-0195 |
Nut 6-32 hex plain |
2 |
|
| 022 |
170-5162 |
Screw 1/4 - 20 x 3/4 type T |
1 |
|
| 023 |
999-0311 |
Washer #10 external star lock zinc plated |
1 |
|
| 024 |
999-0006 |
Washer 3/16 flat zinc plated |
1 |
|
| 025 |
170-3308 |
On/off switch (OBSOLETE) |
1 |
|
| 026 |
170-5163 |
Switch bracket (OBSOLETE) |
1 |
|
| 029 |
999-0069 |
Nut 5/16-18 hex |
5 |
|
| 030 |
170-0682 |
Right hand parallel arm end (OBSOLETE) |
1 |
|
| 031 |
999-0354 |
Screw 5/16-18 x 2 round head slotted zinc plated |
4 |
|
| 032 |
170-2301 |
Spring adj spring (OBSOLETE) |
1 |
|
| 033 |
170-4991 |
Air reservoir gasket |
4 |
|
| 034 |
170-0661 |
Parallel arm (OBSOLETE) |
2 |
|
| 035 |
170-5164 |
7 Inch head shrink tubing (OBSOLETE) |
1 |
|
| 036 |
170-0662 |
Roll Pin (OBSOLETE) |
2 |
|
| 037 |
170-0663 |
Press control spring (OBSOLETE) |
2 |
|
| 038 |
170-0664 |
Parallel arm tube (OBSOLETE) |
2 |
|
| 039 |
170-0665 |
Left hand parallel arm end (OBSOLETE) |
1 |
|
| 040 |
170-0016 |
Grease fitting |
1 |
|
| 041 |
170-0683 |
Front end wheel shaft (OBSOLETE) |
1 |
|
| 042 |
170-5166 |
Seal (OBSOLETE) |
2 |
|
| 044 |
N/A |
Not available |
1 |
Idler tension spring |
| 045 |
170-0666 |
Brake arm guide (FSO) (OBSOLETE) |
1 |
|
| 046 |
999-0060 |
Washer 1/4 split lock plain finish |
4 |
|
| 047 |
999-0020 |
Bolt 1/4-20 x 3/4 hex head grade 5 zinc plated |
4 |
|
| 048 |
170-0550 |
Brake rod (OBSOLETE) |
1 |
|
| 049 |
170-0465 |
Nut 1/4-20 ESNA heavy jam |
3 |
|
| 050 |
170-0667 |
Brake rod spacer (FSO) (OBSOLETE) |
1 |
|
| 051 |
170-2071 |
Swivel brake rod (OBSOLETE) |
1 |
|
| 052 |
170-0128 |
Brake arm spacer (OBSOLETE) |
1 |
|
| 053 |
170-0127 |
Brake spring |
1 |
|
| 055 |
999-0211 |
Nut 5/16-18 hex nylon insert lock zinc plated |
1 |
|
| 056 |
999-0160 |
Washer 1/4 x 1 1/4 fender zinc plated |
1 |
|
| 057 |
999-0162 |
Bolt 5/16-18 x 1 1/4 hex head grade 5 zinc plated |
1 |
|
| 058 |
170-0679 |
Motor mounting bracket (FSO) (OBSOLETE) |
1 |
|
| 059 |
170-0681 |
Motor mounting bracket (FSO) (OBSOLETE) |
1 |
|
| 060 |
999-0549 |
Washer 5/16 x 3/4 SAE flat stainless steel |
4 |
|
| 061 |
170-0680 |
Traverse motor (OBSOLETE) |
1 |
|
| 062 |
170-0687 |
Drive sprocket |
1 |
|
| 063 |
999-0095 |
Screw 1/4-20 x 3/8 cup point socket set alloy plain finish |
3 |
|
| 064 |
170-0672 |
Square keyway |
1 |
|
| 065 |
170-0113 |
Spring (OBSOLETE) |
1 |
|
| 066 |
999-0016 |
Washer 1/4 flat plain finish |
5 |
|
| 067 |
999-0197 |
Screw 1/4-20 x 1 socket head alloy plain finish |
1 |
|
| 068 |
999-0190 |
Nut 1/4-20 hex plain finish |
1 |
|
| 069 |
170-5167 |
Drive wheel bearing |
2 |
|
| 070 |
170-0143 |
Spacer washer (OBSOLETE) |
2 |
|
| 071 |
170-0674 |
Driven sprocket (OBSOLETE) |
1 |
|
| 072 |
N/A |
Not available |
1 |
(Drive wheel assembly) |
| 073 |
170-0676 |
Connecting link |
1 |
|
| 074 |
170-0675 |
Drive chain (OBSOLETE) |
1 |
|
| 075 |
999-0132 |
Bolt 5/16-18 x 3/4 hex head grade 5 zinc plated |
13 |
|
| 076 |
170-0669 |
Stator frame assembly (OBSOLETE) |
1 |
|
| 078 |
170-0689 |
Brush board assembly (OBSOLETE) |
1 |
|
| 079 |
N/A |
Not available |
1 |
Commutator end-end bell |
| 080 |
170-0673 |
Lead assembly (OBSOLETE) |
2 |
|
| 081 |
N/A |
Not available |
2 |
Bolt thru |
| 082 |
170-0685 |
Bracket (FSO) (OBSOLETE) |
1 |
|
| 083 |
170-0379 |
Wave washer |
1 |
|
| 084 |
170-0321 |
Front end bearing |
2 |
|
| 085 |
N/A |
Not available |
1 |
Armature assembly |
| 086 |
170-0686 |
Brush assembly (OBSOLETE) |
4 |
|
|
|

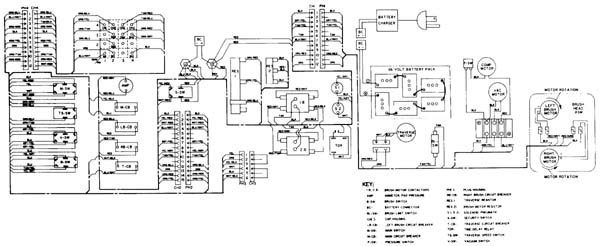

Wiring Connection Diagram - |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
|
|
- Commonly Asked For Parts - 170-9947 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 11 |
N/A |
Not available |
|
(Drive wheel assembly) |
| 12 |
991-2011 |
Caster wheel assembly |
|
|
| 13 |
170-3278 |
Paper bag (pkg of 6) (OBSOLETE) |
|
|
| 14a |
991-5005 |
14/3 replacement power cord 50 foot (yellow) |
|
(NON-OEM) (does not include strain relief) |
| 14b |
991-5001 |
14/3 extension cord 50 foot (yellow) |
|
(NON-OEM) |
| 0 |
162-0005 |
6V 305Ah wet battery (SNSR) |
|
|
|
|
- Pads - 255-2000 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 01 |
255-2040 |
20 inch aqua plus burnishing pad (pkg of 5) |
|
|
| 02 |
255-2035 |
20 inch Armadillo concrete scrubbing pad (pkg of 5) |
|
|
| 03 |
255-2064 |
20 inch Blue ace pad (pkg of 5) |
|
|
| 04 |
255-2042 |
20 inch Blue Jay burnishing pad (pkg of 5) |
|
|
| 05 |
255-2012 |
20 inch Cure white pad (pkg of 5) |
|
|
| 06 |
255-2077 |
20 inch Diamondback extreme stripping pad (pkg of 5) |
|
|
| 07 |
255-2038 |
20 inch EHD Extra Heavy Duty Concrete Leveling Pad (pkg of 2 |
|
|
| 08 |
255-2021 |
20 inch gorilla lite burnishing pad (pkg of 5) |
|
|
| 09 |
255-2050 |
20 inch gorilla spray buff/polish/burnish pad (pkg of 5) |
|
|
| 10 |
255-2065 |
20 inch Heat concrete bonding pad (pkg of 5) |
|
|
| 11 |
255-2030 |
20 inch jaguar burnishing pad (pkg of 5) |
|
|
| 12 |
255-2067 |
20 inch Laminated 2001 Gorilla polish pad (pkg of 5) |
|
|
| 13 |
255-2087 |
20 inch Melamine Mela-Kleen pad (pkg of 2) |
|
|
| 14 |
255-2068 |
20 inch Microclean daily cleaning pad (pkg of 2) |
|
|
| 15 |
255-2069 |
20 inch Micropolish polishing and burnishing pad (pkg of 2) |
|
|
| 16 |
255-2090 |
20 inch premium black stripping pad (pkg of 5) |
|
|
| 17 |
255-2070 |
20 inch premium blue cleaning pad (pkg of 5) |
|
|
| 18 |
255-2092 |
20 inch premium brown stripping pad (pkg of 5) |
|
|
| 19 |
255-2080 |
20 inch premium green scrubbing pad (pkg of 5) |
|
|
| 20 |
255-2060 |
20 inch premium red scrubbing pad (pkg of 5) |
|
|
| 21 |
255-2052 |
20 inch premium tan polishing pad (pkg of 5) |
|
|
| 22 |
255-2020 |
20 inch premium white polishing pad (pkg of 5) |
|
|
| 23 |
255-2011 |
20 inch superspeed rubberized pad (pkg of 5) |
|
|
| 24 |
255-2095 |
20 inch razorback stripping pad (pkg of 5) |
|
|
| 25 |
255-2047 |
20 inch Redwood maroon floor prep pad (pkg of 10) |
|
|
| 26 |
255-2055 |
20 inch Ruff non-abrasive brush pad (pkg of 2) |
|
|
| 27 |
255-2023 |
20 inch sand screen driver pad (pkg of 2) |
|
|
| 28 |
255-0157 |
20 inch Professional sand screen 100 grit (pkg of 10) |
|
|
| 29 |
255-0021 |
20 inch Professional sand screen 120 grit (pkg of 10) |
|
|
| 30 |
255-0158 |
20 inch Professional sand screen 150 grit (pkg of 10) |
|
|
| 31 |
255-0159 |
20 inch Professional sand screen 180 grit (pkg of 10) |
|
|
| 32 |
255-0160 |
20 inch Professional sand screen 220 grit (pkg of 10) |
|
|
| 33 |
255-0161 |
20 inch Professional sand screen 400 grit (pkg of 10) |
|
|
| 34 |
255-0030 |
20 inch Professional sand screen 60 grit (pkg of 10) |
|
|
| 35 |
255-0020 |
20 inch Professional sand screen 80 grit (pkg of 10) |
|
|
| 36 |
255-0249 |
20 inch Superscreen sand screen 100 grit (pkg of 10) |
|
|
| 37 |
255-0250 |
20 inch Superscreen sand screen 120 grit (pkg of 10) |
|
|
| 38 |
255-0251 |
20 inch Superscreen sand screen 150 grit (pkg of 10) |
|
|
| 39 |
255-0252 |
20 inch Superscreen sand screen 180 grit (pkg of 10) |
|
|
| 40 |
255-0253 |
20 inch Superscreen sand screen 220 grit (pkg10) (OBSOLETE) |
|
|
| 41 |
255-0254 |
20 inch Superscreen sand screen 400 grit (pkg of 10) |
|
|
| 42 |
255-0247 |
20 inch Superscreen sand screen 60 grit (pkg of 10) |
|
|
| 43 |
255-0248 |
20 inch Superscreen sand screen 80 grit (pkg of 10) |
|
|
| 45 |
255-9591 |
20 inch Diamond by Gorilla 11000 Grit (pkg of 2) |
|
|
| 46 |
255-9588 |
20 inch Diamond by Gorilla 1500 Grit (pkg of 2) |
|
|
| 47 |
255-9585 |
20 inch Diamond by Gorilla 200 Grit (pkg of 2) |
|
|
| 48 |
255-9589 |
20 inch Diamond by Gorilla 3000 Grit (pkg of 2) |
|
|
| 49 |
255-9586 |
20 inch Diamond by Gorilla 400 Grit (pkg of 2) |
|
|
| 50 |
255-9587 |
20 inch Diamond by Gorilla 800 Grit (pkg of 2) |
|
|
| 51 |
255-9590 |
20 inch Diamond by Gorilla 8000 Grit (pkg of 2) |
|
|
| 52 |
255-9645 |
20 inch Diamond starter pack (1 of each grit) |
|
|
| 53 |
255-2082 |
20 inch Turbostrip segmented rotary pad(OBSOLETE) |
|
|
| 54 |
255-2015 |
20 inch Duala clean and shine pad - low speed (pkg of 5) |
|
|
| 55 |
255-2016 |
20in 2001 Duala clean& shine pad-high speed(pkg 5) (OBSOLETE |
|
|
|
|
- Pad Holders - 275-9029 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
991-2214 |
Center-Lok II pad holder - left hand thread (red) |
|
|
| 2a |
991-2201 |
Center-Lok II pad holder - right hand thread (black) |
|
(Pad driver side female, Floor side male) |
| 2b |
991-8577 |
Pad retainer |
|
(Pad driver side male, Floor side female) |
| 3a |
991-2202 |
Big mouth pad holder set (blue) |
|
(includes 3 screws) |
| 3b |
991-2205 |
Deep lock ring and pad grip ring |
|
|
| 4 |
991-2203 |
Big mouth pad holder male thread portion |
|
|
| 5 |
991-2206 |
Center-Lok 3 pad holder |
|
(includes 3 screws) |
| 6 |
996-0372 |
Big mouth pad holder (left hand thread) |
|
|
| 8 |
991-2209 |
Split retainer - pad holder ring (OBSOLETE) |
|
|
| 9 |
N/A |
Not available |
|
(replaced by #3 991-2202) |
| 10 |
991-2211 |
Center lock pad holding cup (male) (yellow) (OBSOLETE) |
|
|
|
|
