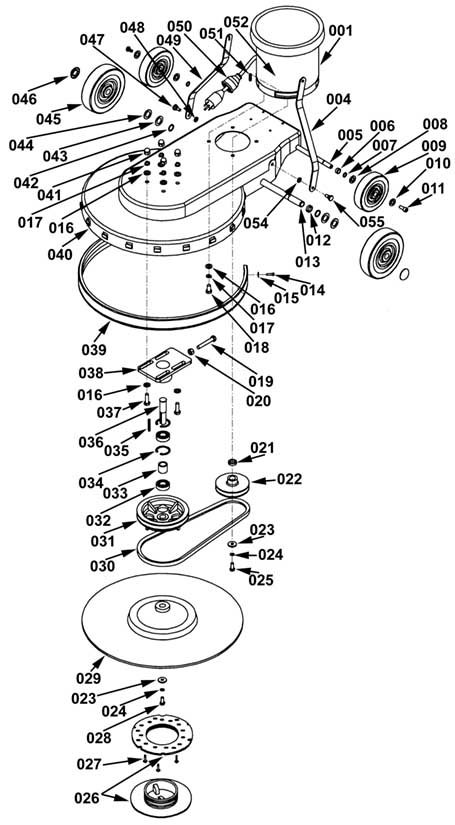

Base Assembly - 240-0003 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 001b |
240-6523 |
120V motor Clarke Pro 1500 |
1 |
|
| 001c |
240-0191 |
Carbon brush (pkg of 4) |
1 |
(Ultra Speed Pro 1500) |
| 001d |
240-0690 |
Rectifier |
1 |
(Ultra Speed Pro 1500) |
| 004a |
240-0193 |
Left hand bracket |
1 |
(VN1500 After SN 301) |
| 004b |
240-0258 |
Heavy duty handle release update kit |
1 |
(VN1500 Before SN 301) |
| 004c |
240-0193 |
Left hand bracket |
1 |
(Ultra Speed Pro 1500) |
| 005a |
240-0195 |
Transport axle |
1 |
(VN1500) |
| 005b |
240-5613 |
Transport axle |
1 |
(Ultra Speed Pro 1500) |
| 006 |
240-0196 |
Transport wheel spacer |
1 |
|
| 007 |
240-0197 |
External retaining ring |
2 |
|
| 008 |
999-0806 |
Washer M12 wave zinc plated |
2 |
|
| 009 |
240-0198 |
5 inch wheel |
2 |
|
| 010 |
240-0199 |
Washer M6 flat |
2 |
|
| 011 |
240-0200 |
Screw M6-1 x 12mm |
2 |
|
| 012 |
240-0201 |
Drive pulley spacer |
1 |
|
| 013a |
240-0202 |
Front axle |
1 |
(VN1500) |
| 013b |
240-5611 |
Front axle |
1 |
(Ultra Speed Pro 1500) |
| 014 |
240-0067 |
Screw M5 x 16mm |
2 |
|
| 015a |
240-0068 |
Plain washer |
2 |
(VN1500) |
| 015b |
240-0068 |
Plain washer |
2 |
(Ultra Speed Pro 1500) |
| 016 |
240-0205 |
Washer M10 plain |
12 |
|
| 017 |
240-0414 |
Washer M10 split lock stainless steel |
8 |
|
| 018 |
240-0207 |
Screw 16G x 3/8 hex head |
4 |
|
| 019 |
240-5383 |
Screw M10 x 65 hex head |
1 |
|
| 020 |
240-0209 |
Nut M10 hex head |
1 |
|
| 021 |
240-0201 |
Drive pulley spacer |
1 |
|
| 022a |
240-0211 |
Driving pulley |
1 |
(VN1500) |
| 022b |
240-5610 |
Pulley |
1 |
(Ultra Speed Pro 1500) |
| 023 |
240-0212 |
Washer M8 x M30 x 5 plain |
2 |
|
| 025 |
240-0366 |
Screw M10 x 65mm |
1 |
|
| 026 |
991-2202 |
Big mouth pad holder set (blue) |
1 |
|
| 027 |
240-0150 |
Screw M4 x 12 |
3 |
|
| 028 |
240-0216 |
Screw M8 x 30 |
1 |
|
| 029 |
240-0013 |
Pad driver |
1 |
|
| 030a |
240-0217 |
38 inch belt (OBSOLETE) |
1 |
(VN1500) |
| 030b |
240-5393 |
Belt |
1 |
(Ultra Speed Pro 1500) |
| 031 |
240-0218 |
Drive pulley |
1 |
|
| 033 |
240-0220 |
Bearing spacer |
1 |
|
| 034 |
240-0221 |
Retaining ring |
2 |
|
| 035 |
240-0222 |
Drive shaft key |
1 |
|
| 036 |
240-0223 |
Drive shaft |
1 |
|
| 037 |
240-0224 |
Screw M10 x 32 hex head |
4 |
|
| 038 |
240-0225 |
Drive shaft mounting plate |
1 |
|
| 040a |
240-0226 |
Frame |
1 |
(VN1500) |
| 040b |
240-5013 |
Frame |
1 |
(Ultra Speed Pro 1500) |
| 041 |
240-0227 |
Nut M10 cap |
4 |
|
| 042 |
240-0060 |
Retaining ring M19 external |
2 |
|
| 043 |
240-0061 |
Washer M19 |
2 |
|
| 044 |
240-0062 |
Washer M19 wave |
2 |
|
| 045a |
240-0063 |
Wheel 6.4 inch |
2 |
(VN1500) |
| 045b |
240-1109 |
160mm wheel |
2 |
(Ultra Speed Pro 1500) |
| 047 |
240-0228 |
Screw hex head for bracket |
2 |
|
| 048 |
240-0229 |
Washer M8 x M16 plain |
2 |
|
| 049a |
240-0230 |
Right bracket |
1 |
(VN1500 after SN 301) |
| 049b |
240-0258 |
Heavy duty handle release update kit |
1 |
(VN1500 before SN 300) |
| 049c |
372-1268 |
Right hand bracket |
2 |
(Ultra Speed Pro 1500) |
| 050 |
240-0232 |
Small male plug protector |
1 |
|
| 051 |
240-0233 |
Motor key (OBSOLETE) |
1 |
|
| 052a |
240-0234 |
Viper logo |
1 |
(VN1500) |
| 052b |
240-0235 |
Silver label |
1 |
(VN1500 and Ultra Speed Pro 1500) |
| 052c |
240-5656 |
Dry burnish decal |
1 |
(Ultra Speed Pro 1500) |
| 052d |
240-5470 |
Clarke decal |
1 |
(Ultra Speed Pro 1500) |
| 054 |
240-0229 |
Washer M8 x M16 plain |
2 |
(Ultra Speed Pro 1500) |
| 055 |
240-0228 |
Screw hex head for bracket |
2 |
(Ultra Speed Pro 1500) |
| N/S |
240-0065 |
Axle clamp block |
|
(Ultra Speed Pro 1500) |
| N/S |
240-6520 |
Motor shaft key |
1 |
(Ultra Speed Pro 1500) |
| N/S |
240-0310 |
Clamp lock |
2 |
(Ultra Speed Pro 1500) |
| N/S |
240-0066 |
Screw M5 x 20 self tapping |
8 |
(Ultra Speed Pro 1500) |
|
|
- Pads - 255-2000 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 01 |
255-2040 |
20 inch aqua plus burnishing pad (pkg of 5) |
|
|
| 02 |
255-2035 |
20 inch Armadillo concrete scrubbing pad (pkg of 5) |
|
|
| 03 |
255-2064 |
20 inch Blue ace pad (pkg of 5) |
|
|
| 04 |
255-2042 |
20 inch Blue Jay burnishing pad (pkg of 5) |
|
|
| 05 |
255-2012 |
20 inch Cure white pad (pkg of 5) |
|
|
| 06 |
255-2077 |
20 inch Diamondback extreme stripping pad (pkg of 5) |
|
|
| 07 |
255-2038 |
20 inch EHD Extra Heavy Duty Concrete Leveling Pad (pkg of 2 |
|
|
| 08 |
255-2021 |
20 inch gorilla lite burnishing pad (pkg of 5) |
|
|
| 09 |
255-2050 |
20 inch gorilla spray buff/polish/burnish pad (pkg of 5) |
|
|
| 10 |
255-2065 |
20 inch Heat concrete bonding pad (pkg of 5) |
|
|
| 11 |
255-2030 |
20 inch jaguar burnishing pad (pkg of 5) |
|
|
| 12 |
255-2067 |
20 inch Laminated 2001 Gorilla polish pad (pkg of 5) |
|
|
| 13 |
255-2087 |
20 inch Melamine Mela-Kleen pad (pkg of 2) |
|
|
| 14 |
255-2068 |
20 inch Microclean daily cleaning pad (pkg of 2) |
|
|
| 15 |
255-2069 |
20 inch Micropolish polishing and burnishing pad (pkg of 2) |
|
|
| 16 |
255-2090 |
20 inch premium black stripping pad (pkg of 5) |
|
|
| 17 |
255-2070 |
20 inch premium blue cleaning pad (pkg of 5) |
|
|
| 18 |
255-2092 |
20 inch premium brown stripping pad (pkg of 5) |
|
|
| 19 |
255-2080 |
20 inch premium green scrubbing pad (pkg of 5) |
|
|
| 20 |
255-2060 |
20 inch premium red scrubbing pad (pkg of 5) |
|
|
| 21 |
255-2052 |
20 inch premium tan polishing pad (pkg of 5) |
|
|
| 22 |
255-2020 |
20 inch premium white polishing pad (pkg of 5) |
|
|
| 23 |
255-2011 |
20 inch superspeed rubberized pad (pkg of 5) |
|
|
| 24 |
255-2095 |
20 inch razorback stripping pad (pkg of 5) |
|
|
| 25 |
255-2047 |
20 inch Redwood maroon floor prep pad (pkg of 10) |
|
|
| 26 |
255-2055 |
20 inch Ruff non-abrasive brush pad (pkg of 2) |
|
|
| 27 |
255-2023 |
20 inch sand screen driver pad (pkg of 2) |
|
|
| 28 |
255-0157 |
20 inch Professional sand screen 100 grit (pkg of 10) |
|
|
| 29 |
255-0021 |
20 inch Professional sand screen 120 grit (pkg of 10) |
|
|
| 30 |
255-0158 |
20 inch Professional sand screen 150 grit (pkg of 10) |
|
|
| 31 |
255-0159 |
20 inch Professional sand screen 180 grit (pkg of 10) |
|
|
| 32 |
255-0160 |
20 inch Professional sand screen 220 grit (pkg of 10) |
|
|
| 33 |
255-0161 |
20 inch Professional sand screen 400 grit (pkg of 10) |
|
|
| 34 |
255-0030 |
20 inch Professional sand screen 60 grit (pkg of 10) |
|
|
| 35 |
255-0020 |
20 inch Professional sand screen 80 grit (pkg of 10) |
|
|
| 36 |
255-0249 |
20 inch Superscreen sand screen 100 grit (pkg of 10) |
|
|
| 37 |
255-0250 |
20 inch Superscreen sand screen 120 grit (pkg of 10) |
|
|
| 38 |
255-0251 |
20 inch Superscreen sand screen 150 grit (pkg of 10) |
|
|
| 39 |
255-0252 |
20 inch Superscreen sand screen 180 grit (pkg of 10) |
|
|
| 40 |
255-0253 |
20 inch Superscreen sand screen 220 grit (pkg10) (OBSOLETE) |
|
|
| 41 |
255-0254 |
20 inch Superscreen sand screen 400 grit (pkg of 10) |
|
|
| 42 |
255-0247 |
20 inch Superscreen sand screen 60 grit (pkg of 10) |
|
|
| 43 |
255-0248 |
20 inch Superscreen sand screen 80 grit (pkg of 10) |
|
|
| 45 |
255-9591 |
20 inch Diamond by Gorilla 11000 Grit (pkg of 2) |
|
|
| 46 |
255-9588 |
20 inch Diamond by Gorilla 1500 Grit (pkg of 2) |
|
|
| 47 |
255-9585 |
20 inch Diamond by Gorilla 200 Grit (pkg of 2) |
|
|
| 48 |
255-9589 |
20 inch Diamond by Gorilla 3000 Grit (pkg of 2) |
|
|
| 49 |
255-9586 |
20 inch Diamond by Gorilla 400 Grit (pkg of 2) |
|
|
| 50 |
255-9587 |
20 inch Diamond by Gorilla 800 Grit (pkg of 2) |
|
|
| 51 |
255-9590 |
20 inch Diamond by Gorilla 8000 Grit (pkg of 2) |
|
|
| 52 |
255-9645 |
20 inch Diamond starter pack (1 of each grit) |
|
|
| 53 |
255-2082 |
20 inch Turbostrip segmented rotary pad (pkg of 4) |
|
|
| 54 |
255-2015 |
20 inch Duala clean and shine pad - low speed (pkg of 5) |
|
|
| 55 |
255-2016 |
20in 2001 Duala clean& shine pad-high speed(pkg 5) (OBSOLETE |
|
|
|
|

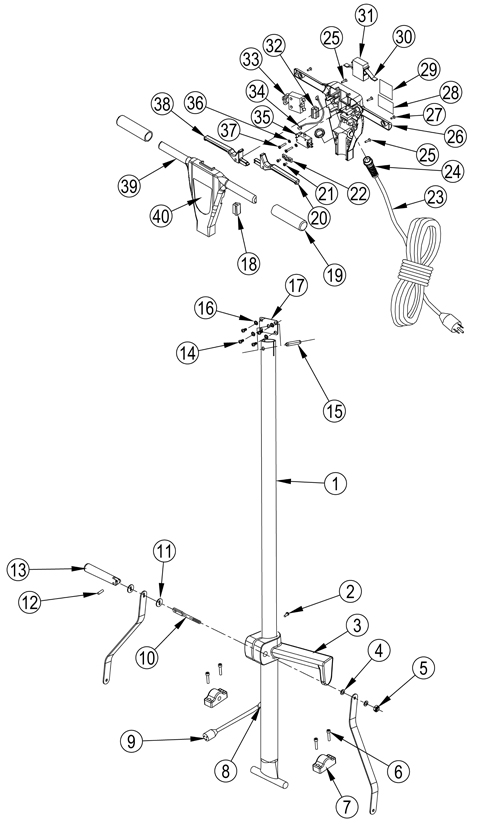

Handle Assembly - 270-5400 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1a |
240-5015 |
Handle tube |
1 |
(Ultra Speed Pro 1500) |
| 1b |
240-0236 |
Handle tube |
1 |
(Venon VN1500) |
| 2 |
240-0237 |
Screw M6 x 10 hex socket |
1 |
|
| 3a |
240-0259 |
HANDLE RELEASE HEAVY DUTY -VN |
1 |
(Ultra Speed Pro 1500) |
| 3b |
240-0259 |
HANDLE RELEASE HEAVY DUTY -VN |
1 |
(Venom 1500 after SN 301) |
| 3c |
240-2130 |
Hook (high speed) |
1 |
(Venom 1500 after SN 301) |
| 3d |
240-0238 |
Cable hook (OBSOLETE) |
1 |
(Venom 1500 before SN 301) |
| 4a |
240-0205 |
Washer M10 plain |
2 |
(Ultra Speed Pro 1500) |
| 4b |
999-1944 |
Screw M8-1.25 x 55mm hex head plain finish |
1 |
(Venom 1500 after SN 301) |
| 4c |
240-0239 |
Handle release spacer |
1 |
(Venom 1500 after SN 301) |
| 5a |
999-1120 |
Nut M10-1.5 nylon insert lock stainless steel |
1 |
(Ultra Speed Pro 1500 and Venom VN 1500 after SN 301) |
| 5b |
999-0496 |
Nut M8-1.25 nylon insert lock stainless steel |
1 |
(Venom VN1500 before SN 301) |
| 6 |
240-0241 |
Screw M6 x 25 hex socket |
4 |
|
| 7a |
240-5441 |
Handle clamp block |
2 |
(Ultra Speed Pro 1500) |
| 7b |
240-0261 |
Handle clamp block |
1 |
(Venom VN1500 after SN 301) |
| 7c |
240-0240 |
Handle clamp block |
1 |
(Venom VN1500 before SN 301) |
| 7d |
240-5440 |
CLAMP BLOCK HANDLE |
1 |
(Ren08006) |
| 8a |
240-5605 |
Grommet |
1 |
(Ultra Speed Pro 1500) |
| 8b |
240-0019 |
Grommet |
1 |
(Venom VN 1500) |
| 9a |
240-1110 |
47 inch handle cord |
1 |
(Ultra Speed Pro 1500) |
| 9b |
240-0039 |
Handle cable |
1 |
(Venom VN 1500 after SN 301) |
| 9c |
240-0039 |
Handle cable |
1 |
(Venom VN1500 before SN 301) |
| 10a |
240-0264 |
Handle release bolt (short) |
1 |
(Ultra Speed Pro 1500 and Venom VN 1500 after SN 301) |
| 10b |
240-0258 |
Heavy duty handle release update kit |
1 |
(Venom VN1500 before SN 301) (Handle release bolt) |
| 11a |
240-0265 |
Handle release plain washer |
2 |
(Ultra Speed Pro 1500 and Venom VN 1500 after SN 301) |
| 11b |
240-0258 |
Heavy duty handle release update kit |
1 |
(Venom VN1500 before SN 301) (Handle release washer pin) |
| 12a |
240-0266 |
Handle release screw pin |
1 |
(Ultra Speed Pro 1500 and Venom VN 1500 after SN 301) |
| 12b |
240-0246 |
Handle release screw pin |
1 |
(Venom VN1500 before SN 301) |
| 13a |
240-0267 |
Handle release |
1 |
(Ultra Speed Pro 1500 and Venom VN 1500 after SN 301) |
| 13b |
240-0258 |
Heavy duty handle release update kit |
1 |
(Venom VN1500 before SN 301) (Handle release) |
| 16 |
240-0186 |
Washer M5 star lock |
4 |
|
| 17 |
240-1149 |
Connection plate |
1 |
|
| 18a |
240-5004 |
Cover (OBSOLETE) |
1 |
(Ultra Speed Pro 1500) |
| 18b |
240-0273 |
Solution lever cover |
1 |
(Venom VN 1500 after SN 301) |
| 18c |
240-0273 |
Solution lever cover |
1 |
(Venom VN1500 before SN 301) |
| 19a |
240-0269 |
Handle grip |
2 |
(Ultra Speed Pro 1500 and Venom VN 1500 after SN 301) |
| 19b |
240-0269 |
Handle grip |
1 |
(Venom VN1500 before SN 301) |
| 20a |
240-1134 |
Right hand switch lever |
1 |
(Ultra Speed Pro 1500) |
| 20b |
240-0272 |
Trigger switch left |
1 |
(Venom VN 1500 after SN 301) |
| 20c |
240-0256 |
Lever switch left |
1 |
(Venom VN1500 before SN 301) |
| 20d |
240-0118 |
Lever pin |
1 |
(Venom VN1500) |
| 21a |
240-5382 |
Screw M4 X 10mm |
2 |
(Ultra Speed Pro 1500) |
| 22 |
240-0103 |
Handle cable block |
1 |
|
| 23a |
240-5488 |
14/3 Power cord (black) |
1 |
(OEM) (Ultra Speed Pro 1500) |
| 23b |
240-0105 |
14/3 power cord |
1 |
(OEM) (VENOM VN 1500) |
| 23c |
991-5005 |
14/3 replacement power cord 50 foot (yellow) |
1 |
(NON-OEM) (does not include strain relief) (Ultra Speed Pro 1500 and Venom VN1500) |
| 24 |
240-0106 |
Strain relief |
1 |
|
| 25 |
240-1131 |
Screw M5 x 30mm |
5 |
|
| 26a |
240-1128 |
Handle cover |
1 |
(Ultra Speed Pro 1500) |
| 26b |
240-0271 |
Rear switch housing cover |
1 |
(Venom VN 1500 after SN 301) |
| 26c |
240-0255 |
Switch housing rear cover |
1 |
(Venom VN1500 before SN 301) |
| 27a |
240-0139 |
Screw M5 x 20mm |
2 |
(Ultra Speed Pro 1500) |
| 27b |
272-8065 |
Screw M6 x 25 phillips stainless steel |
1 |
(Venom VN1500) |
| 28 |
N/A |
Not available |
1 |
(Serial number plate) |
| 29 |
240-5619 |
Read manual label |
1 |
|
| 30a |
240-0183 |
Safety block spring |
1 |
(Ultra Speed Pro 1500 and Venom VN 1500 after SN 301) |
| 30b |
240-0251 |
Safety block spring |
1 |
(Venom VN1500 before SN 301) |
| 31a |
240-1133 |
Safety block |
1 |
(Ultra Speed Pro 1500) |
| 31b |
240-0112 |
Safety block |
1 |
(Venom VN 1500 after SN 301) |
| 31c |
240-0252 |
Safety block |
1 |
(Venom VN1500 before SN 301) |
| 32a |
240-1135 |
Cover |
1 |
(Ultra Speed Pro 1500) |
| 32b |
240-0182 |
Leveling cover |
1 |
(Venom VN 1500 after SN 301) |
| 32c |
240-0253 |
Level handle cover |
1 |
(Venom VN1500 before SN 301) |
| 33 |
240-0115 |
Circuit breaker |
1 |
|
| 34a |
240-5490 |
Jump wire |
1 |
(Ultra Speed Pro 1500) |
| 34b |
240-0101 |
Jump wire |
1 |
(Venom VN1500) |
| 35a |
240-0008 |
On/Off switch |
1 |
(Venom VN1500) |
| 35b |
272-8640 |
Switch |
1 |
(Ultra Speed Pro 1500) |
| 36a |
240-0100 |
Internal tooth lock washer |
2 |
(Ultra Speed Pro 1500) |
| 36b |
240-0028 |
Nut M4 |
1 |
(Venom VN1500) |
| 37b |
240-0117 |
Screw M4 x 30mm hex socket |
1 |
(Venom VN1500) |
| 38a |
240-1130 |
Left hand switch lever |
1 |
(Ultra Speed Pro 1500) |
| 38b |
240-0270 |
Right switch trigger |
1 |
(Venom VN 1500 after SN 301) |
| 38c |
240-0254 |
Lever switch right |
1 |
(Venom VN1500 before SN 301) |
| 39a |
240-1108 |
Front handle cover |
1 |
(Ultra Speed Pro 1500) |
| 39b |
240-0268 |
Switch housing front cover |
1 |
(Venom VN 1500 after SN 301) |
| 39c |
240-0248 |
Switch housing front cover |
1 |
(Venom VN1500 before SN 301) |
| 40a |
240-5107 |
Label ultra speed pro |
1 |
(Ultra Speed Pro 1500) |
| 40b |
240-0123 |
Viper logo decal |
1 |
(Venom VN1500) |
| N/S |
240-0262 |
Large female plug protector |
1 |
(Venom VN 1500 before SN 301) |
| N/S |
240-0232 |
Small male plug protector |
1 |
(Venom VN 1500 before SN 301) |
| N/S |
240-0259 |
HANDLE RELEASE HEAVY DUTY -VN |
1 |
(Venom VN 1500 before SN 301) |
| N/S |
999-0496 |
Nut M8-1.25 nylon insert lock stainless steel |
1 |
(Venom VN 1500 after SN 301) |
| N/S |
240-0243 |
Screw M6 x 32 x 20 hex head shoulder (OBSOLETE) |
1 |
(Venom VN1500 before SN 301) |
| N/S |
240-0249 |
Safety button |
1 |
(Venom VN1500 before SN 301) |
| N/S |
240-0185 |
Washer M6 star lock |
2 |
(Venom VN1500) |
| N/S |
240-0116 |
Washer M4 external tooth |
1 |
(Venom VN1500) |
| N/S |
240-0111 |
Screw M6 x 40mm |
2 |
(Venom VN1500) |
| N/S |
240-0258 |
Heavy duty handle release update kit |
1 |
(Venom VN 1500 before SN 301) (includes 10b, 11b and 13b) |
|
|

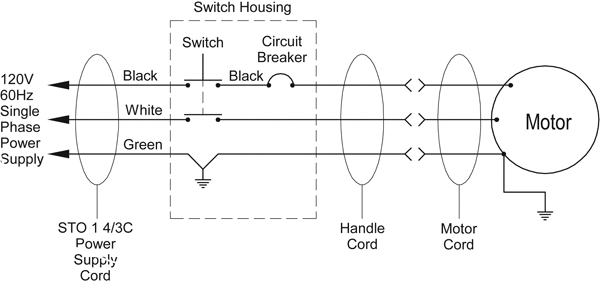

Wiring Diagram - |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
|
|
- Pad Holders - 275-9029 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
991-2214 |
Center-Lok II pad holder - left hand thread (red) |
|
|
| 2a |
991-2201 |
Center-Lok II pad holder - right hand thread (black) |
|
(Pad driver side female, Floor side male) |
| 2b |
991-8577 |
Pad retainer |
|
(Pad driver side male, Floor side female) |
| 3a |
991-2202 |
Big mouth pad holder set (blue) |
|
(includes 3 screws) |
| 3b |
991-2205 |
Deep lock ring and pad grip ring |
|
|
| 4 |
991-2203 |
Big mouth pad holder male thread portion |
|
|
| 5 |
991-2206 |
Center-Lok 3 pad holder |
|
(includes 3 screws) |
| 6 |
996-0372 |
Big mouth pad holder (left hand thread) |
|
|
| 8 |
991-2209 |
Split retainer - pad holder ring (OBSOLETE) |
|
|
| 9 |
N/A |
Not available |
|
(replaced by #3 991-2202) |
| 10 |
991-2211 |
Center lock pad holding cup (male) (yellow) (OBSOLETE) |
|
|
|
|
