Parts List Complete for CLARKE-ALT ULTRA SPEED 20T


- Pads - 255-2000
RefNbr Part Number Description Req Notes
01 255-2040 20 inch aqua plus burnishing pad (pkg of 5)
02 255-2035 20 inch Armadillo concrete scrubbing pad (pkg of 5)
03 255-2064 20 inch Blue ace pad (pkg of 5)
04 255-2042 20 inch Blue Jay burnishing pad (pkg of 5)
05 255-2012 20 inch Cure white pad (pkg of 5)
06 255-2077 20 inch Diamondback extreme stripping pad (pkg of 5)
07 255-2038 20 inch EHD Extra Heavy Duty Concrete Leveling Pad (pkg of 2
08 255-2021 20 inch gorilla lite burnishing pad (pkg of 5)
09 255-2050 20 inch gorilla spray buff/polish/burnish pad (pkg of 5)
10 255-2065 20 inch Heat concrete bonding pad (pkg of 5)
11 255-2030 20 inch jaguar burnishing pad (pkg of 5)
12 255-2067 20 inch Laminated 2001 Gorilla polish pad (pkg of 5)
13 255-2087 20 inch Melamine Mela-Kleen pad (pkg of 2)
14 255-2068 20 inch Microclean daily cleaning pad (pkg of 2)
15 255-2069 20 inch Micropolish polishing and burnishing pad (pkg of 2)
16 255-2090 20 inch premium black stripping pad (pkg of 5)
17 255-2070 20 inch premium blue cleaning pad (pkg of 5)
18 255-2092 20 inch premium brown stripping pad (pkg of 5)
19 255-2080 20 inch premium green scrubbing pad (pkg of 5)
20 255-2060 20 inch premium red scrubbing pad (pkg of 5)
21 255-2052 20 inch premium tan polishing pad (pkg of 5)
22 255-2020 20 inch premium white polishing pad (pkg of 5)
23 255-2011 20 inch superspeed rubberized pad (pkg of 5)
24 255-2095 20 inch razorback stripping pad (pkg of 5)
25 255-2047 20 inch Redwood maroon floor prep pad (pkg of 10)
26 255-2055 20 inch Ruff non-abrasive brush pad (pkg of 2)
27 255-2023 20 inch sand screen driver pad (pkg of 2)
28 255-0157 20 inch Professional sand screen 100 grit (pkg of 10)
29 255-0021 20 inch Professional sand screen 120 grit (pkg of 10)
30 255-0158 20 inch Professional sand screen 150 grit (pkg of 10)
31 255-0159 20 inch Professional sand screen 180 grit (pkg of 10)
32 255-0160 20 inch Professional sand screen 220 grit (pkg of 10)
33 255-0161 20 inch Professional sand screen 400 grit (pkg of 10)
34 255-0030 20 inch Professional sand screen 60 grit (pkg of 10)
35 255-0020 20 inch Professional sand screen 80 grit (pkg of 10)
36 255-0249 20 inch Superscreen sand screen 100 grit (pkg of 10)
37 255-0250 20 inch Superscreen sand screen 120 grit (pkg of 10)
38 255-0251 20 inch Superscreen sand screen 150 grit (pkg of 10)
39 255-0252 20 inch Superscreen sand screen 180 grit (pkg of 10)
40 255-0253 20 inch Superscreen sand screen 220 grit (pkg10) (OBSOLETE)
41 255-0254 20 inch Superscreen sand screen 400 grit (pkg of 10)
42 255-0247 20 inch Superscreen sand screen 60 grit (pkg of 10)
43 255-0248 20 inch Superscreen sand screen 80 grit (pkg of 10)
45 255-9591 20 inch Diamond by Gorilla 11000 Grit (pkg of 2)
46 255-9588 20 inch Diamond by Gorilla 1500 Grit (pkg of 2)
47 255-9585 20 inch Diamond by Gorilla 200 Grit (pkg of 2)
48 255-9589 20 inch Diamond by Gorilla 3000 Grit (pkg of 2)
49 255-9586 20 inch Diamond by Gorilla 400 Grit (pkg of 2)
50 255-9587 20 inch Diamond by Gorilla 800 Grit (pkg of 2)
51 255-9590 20 inch Diamond by Gorilla 8000 Grit (pkg of 2)
52 255-9645 20 inch Diamond starter pack (1 of each grit)
53 255-2082 20 inch Turbostrip segmented rotary pad (pkg of 4)
54 255-2015 20 inch Duala clean and shine pad - low speed (pkg of 5)
55 255-2016 20in 2001 Duala clean& shine pad-high speed(pkg 5) (OBSOLETE

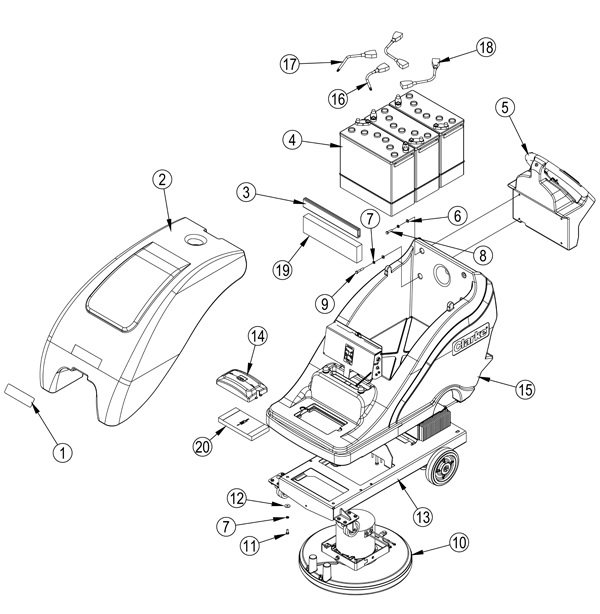

Entire Assembly - 270-4500
RefNbr Part Number Description Req Notes
1 372-1262 Ultra speed decal 1
2 270-0619 Top cover 1
3 272-7441 Battery spacer 1
4a 162-0002 12V 185Ah wet battery (SNSR) 3
4b 162-0045 12V 140Ah AGM battery 3
5 N/A Not available 1 (Handle)
6 999-0549 Washer 5/16 x 3/4 SAE flat stainless steel 4
7 999-0028 Washer 5/16 split lock plain finish 8
8 170-3357 Screw 5/16-18x1 1/4 hex head 2
9 999-0551 Bolt 5/16-18 x 1 3/4 hex head stainless steel 2
10 N/A Not available 1 (Head assembly)
11 999-0132 Bolt 5/16-18 x 3/4 hex head grade 5 zinc plated 4
12 999-0160 Washer 1/4 x 1 1/4 fender zinc plated 4
13 N/A Not available 1 (Frame assembly)
14 272-8219 Dust bag cover 1
15 N/A Not available 1 (Body assembly)
16 272-8514 Positive battery cable 1
17 272-8515 Negative battery cable 1
18 272-8585 Battery jumper cable 2
19 272-7420 Battery spacer 1
20 172-3066 Vacuum bag (pkg of 10) 1
N/S 370-2294 KIT 36V BTY MAINT. SYSTEM (OBSOLETE) 1
N/S 272-8517 Burnishing pad (tan) (pkg of 5) 1
N/S 272-8518 Burnishing pad (aqua) (pkg of 5) 1
N/S 272-8519 Burnishing pad (natural blend) (pkg of 5) 1

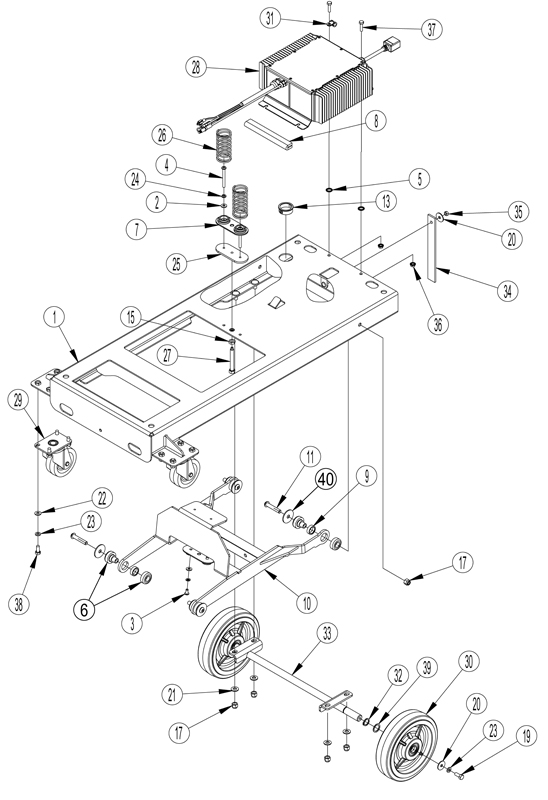

Frame Assembly - 270-4501
RefNbr Part Number Description Req Notes
1 N/A Not available 1 (Chassis weldment)
2 999-0123 Washer 1/4 SAE flat zinc plated 4
3 999-0395 Screw 1/4-20 x 5/8 button head socket plain finish 2
4 170-3815 Screw 2
5 172-0814 Washer 10M serrated external stainless steel 2
6 272-7341 Vibration damping mount 4
7 272-7421 Seat soft spring 2
8 272-7422 Charger gasket 1
9 272-7342 Steel spacer 4
10 272-7418 Head lift weldment 1
11 999-1462 Screw 3/8-16 x 2 button socket head stainless steel 4
13 272-8466 Insulating bushing 1
15 999-0247 Nut 3/8-16 hex jam plain finish 1
17 999-0170 Nut 3/8-16 hex plain finish 6
19 999-1186 Screw 5/16-24 x 3/4 hex head 2
20 999-0160 Washer 1/4 x 1 1/4 fender zinc plated 3
21 999-0032 Washer 3/8 USS flat plain finish 4
22 999-0549 Washer 5/16 x 3/4 SAE flat stainless steel 8
23 999-0028 Washer 5/16 split lock plain finish 10
24 999-0060 Washer 1/4 split lock plain finish 4
25 172-0816 Spring base plate 1
26 272-9953 Compression spring 2
27 172-0818 Pressure adjustment screw 1
28 272-2224 36V onboard battery charger 1
29 272-8474 3 1/2 inch swivel caster 2
30 272-8472 8 inch wheel 2
31 272-8471 P clamp 1
32 170-1324 Snap ring 2
33 272-8473 Non-traverse axle weldment 1
34 170-7146 Static strap 1
35 999-0294 Nut 1/4-20 hex nylon lock type NE stainless steel 1
36 999-0152 Nut 1/4-20 nylon insert lock zinc plated 2
37 999-0197 Screw 1/4-20 x 1 socket head alloy plain finish 2
38 999-0132 Bolt 5/16-18 x 3/4 hex head grade 5 zinc plated 8
39 170-1754 Washer M1 flat nylon 2
40 272-7343 Snubbing washer 4

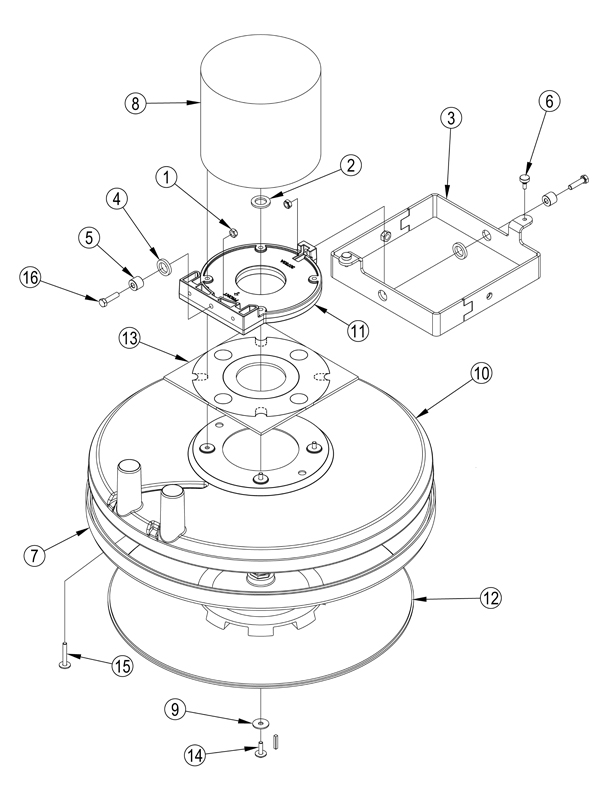

Head Assembly - 270-4504
RefNbr Part Number Description Req Notes
1 999-0211 Nut 5/16-18 hex nylon insert lock zinc plated 2
2 272-7427 Washer 3/4 x 1 1/4 x 1/8 flat 1
3 272-7338 Motor mount weldment 1
4 272-7339 Rubber washer 2
5 272-7340 Spacer 2
6 272-7428 Bumper button 2
7 172-3072 20 inch skirt assembly 1
8 272-8458 36V 2.5HP brush motor 1
9 999-0160 Washer 1/4 x 1 1/4 fender zinc plated 1
10 272-8225 20 inch dust shroud 1
11 272-8496 Motor mount 1
12 272-8211 20 inch pad driver 1
13 272-8224 Gasket 1
14 272-8200 Button head screw 1
15 999-0235 Screw 1/4-20 x 3/4 button head socket plain finish 4
16 170-3357 Screw 5/16-18x1 1/4 hex head 2
N/S 172-2818 Carbon brush (pkg of 4) 1
N/S 991-2203 Big mouth pad holder male thread portion 1

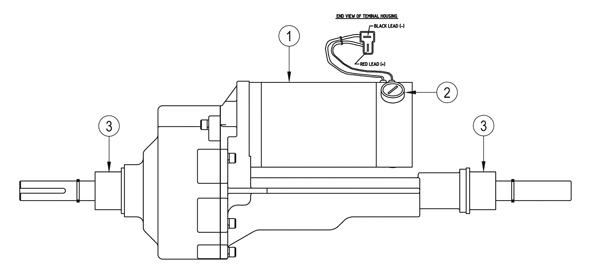

Transaxle Assembly - 270-4505
RefNbr Part Number Description Req Notes
1 272-8520 Transaxle motor 1
2 272-8520 Transaxle motor 2
3 272-2338 Neoprene mounting sleeve 2
N/S 272-8523 Transaxle coupler 1

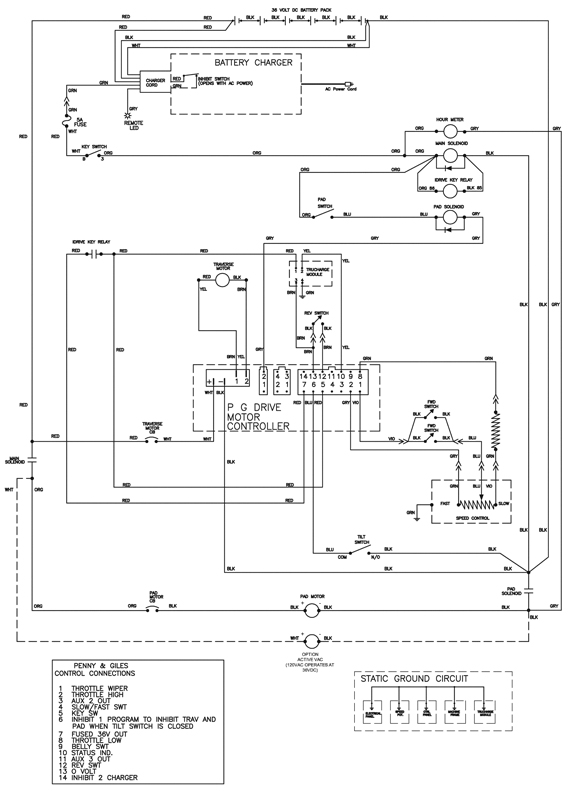

Wiring Diagram -

RefNbr Part Number Description Req Notes

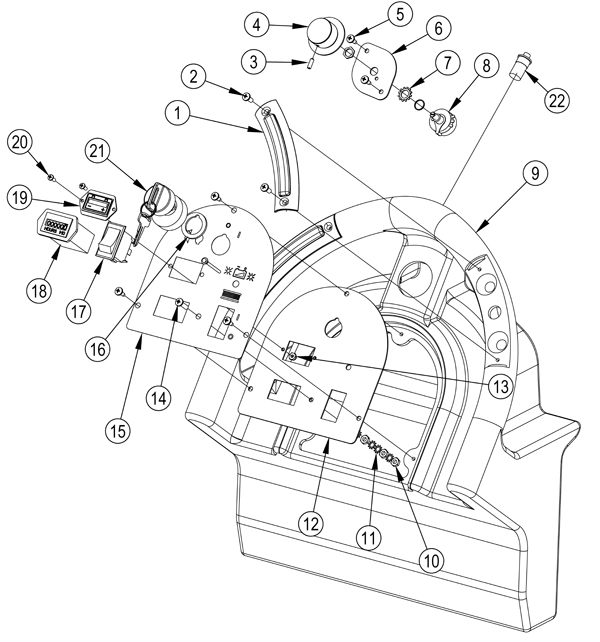

Handle Assembly - 270-4508
RefNbr Part Number Description Req Notes
1 170-1885 Switch lever housing 1
2 999-0851 Screw 10-32 x 1/2 round head slotted nylon 4
3 999-0431 Screw 8-32 x 1/4 set socket cup point alloy plain finish 1
4 170-1876 Traverse control knob 1
5 999-0110 Screw 10-16 x 1/2 pan head phillips self-drilling 5
6 N/A Not available 1 (Potentiometer)
7 999-1144 Washer 3/8 external star lock stainless steel 1
8 272-3511 Potentiometer harness assembly 1
9 270-0634 Control handle 1
10 999-0460 Nut 10-32 hex 3
11 999-0311 Washer #10 external star lock zinc plated 4
12 270-0635 Control panel 1
13 999-0227 Nut 6-32 hex nylon insert lock jam zinc plated 2
14 999-0414 Screw 10-32 x 3/4 pan head slotted zinc plated 1
15 270-8514 Control panel label 1
16 272-8524 Key switch spacer 1
17 170-0058 Rocker switch 2 position 6 prong 1
18a 170-0052 Hour meter 1 (OEM)
18b 991-7137 Hour meter 1 (NON-OEM)
19 270-0637 Tru-charge meter 1
20 999-0463 Screw 6-32 x 3/8 pan head slotted zinc plated 3
21 170-9026 Key switch 1
22 170-7409 Push button reverse switch 1

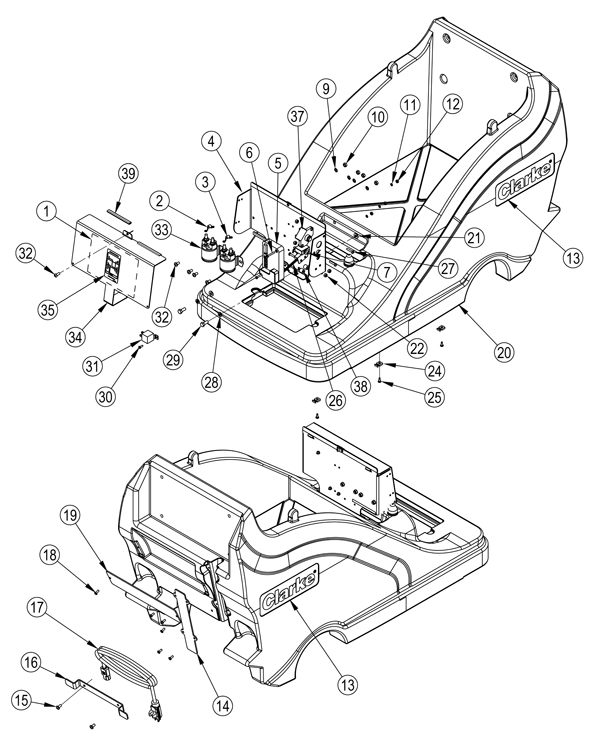

Body Assembly - 270-4509
RefNbr Part Number Description Req Notes
1 270-0621 Connection diagram decal 1
2 170-0062 Diode 1
3 270-0622 Avalanche diode assembly 1
4 272-7425 Electrical plate weldment 1
5 270-0623 36V traverse I-Drive controller 1
6 272-8590 Screw 8-32 x 1 1/4 pan head 2
7 170-9060 30amp circuit breaker 1
9 999-0017 Washer 1/4 external star lock 4
10 999-0190 Nut 1/4-20 hex plain finish 4
11 999-1083 Washer #8 internal star lock stainless steel 4
12 999-1036 Nut 8-32 hex NTM nylon insert jam lock stainless steel 4
13 270-0196 Clarke decal 2
14 272-8491 Harness cover 1
15 999-0522 Screw 1/4-20 x 1/2 pan head phillips stainless steel 2
16 170-7386 Cord wrapping bracket 1
17 170-7385 Onboard charger cord 1
18 999-0723 Screw 10-32 x 1/2 pan head slotted stainless steel 6
19 272-8490 Retention strap (for dust bags) 1
20 270-0620 Body assembly 1
21 999-0549 Washer 5/16 x 3/4 SAE flat stainless steel 2
22 999-0460 Nut 10-32 hex 4
24 170-7388 1/4 tab 3
25 999-0110 Screw 10-16 x 1/2 pan head phillips self-drilling 3
26 272-7443 Tilt switch 1
27 170-1463 Screw 10-32 x 1 4
28 999-0028 Washer 5/16 split lock plain finish 2
29 999-0132 Bolt 5/16-18 x 3/4 hex head grade 5 zinc plated 2
30 999-0462 Screw 8-32 x 1/2 pan head slotted zinc plated 2
31 270-0624 Traverse power relay 1
32 999-0323 Screw 1/4-20 x 1/2 pan head slotted zinc plated 5
33 172-2805 36V contactor 2
34 272-8482 Front electric plate cover 1
35 272-8484 Battery connection decal 1
37 181-1355 70amp circuit breaker 1
38 272-8936 Nylon spacer (OBSOLETE) 2
39 272-7426 4 inch trim lock 3
N/S 270-0625 20 inch traverse power harness 1
N/S 270-0626 20 inch traverse logic harness 1

- Pad Holders - 275-9029
RefNbr Part Number Description Req Notes
1 991-2214 Center-Lok II pad holder - left hand thread (red)
2a 991-2201 Center-Lok II pad holder - right hand thread (black) (Pad driver side female, Floor side male)
2b 991-8577 Pad retainer (Pad driver side male, Floor side female)
3a 991-2202 Big mouth pad holder set (blue) (includes 3 screws)
3b 991-2205 Deep lock ring and pad grip ring
4 991-2203 Big mouth pad holder male thread portion
5 991-2206 Center-Lok 3 pad holder (includes 3 screws)
6 996-0372 Big mouth pad holder (left hand thread)
7 N/A Not available
8 991-2209 Split retainer - pad holder ring (OBSOLETE)
9 N/A Not available (replaced by #3 991-2202)
10 991-2211 Center lock pad holding cup (male) (yellow) (OBSOLETE)
