Front Panel Assembly - |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
|
|

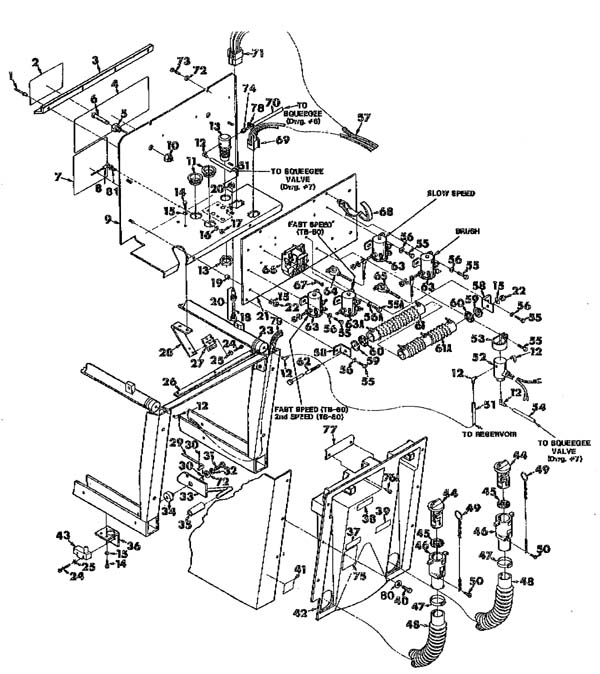

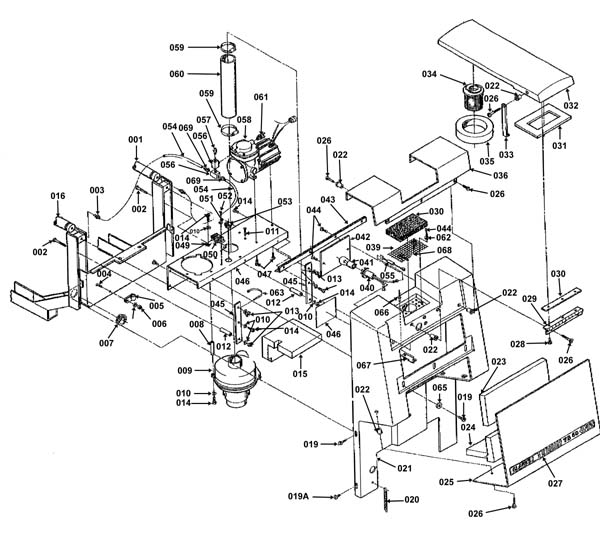

Electrical Panel and Rear Cover Assembly - |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
|
|

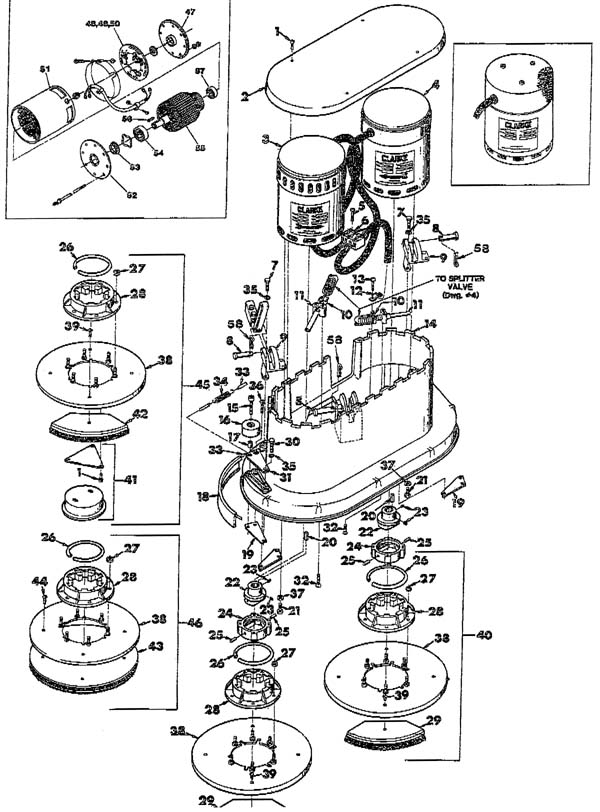

Brush Housing Assembly - |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
|
|

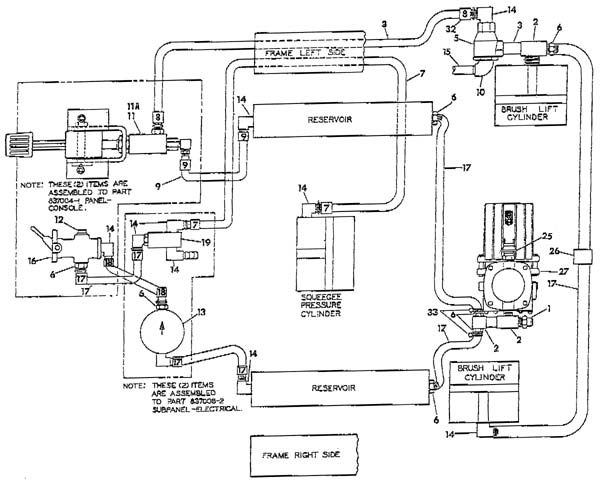

Pneumatic Schematic - |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
|
|

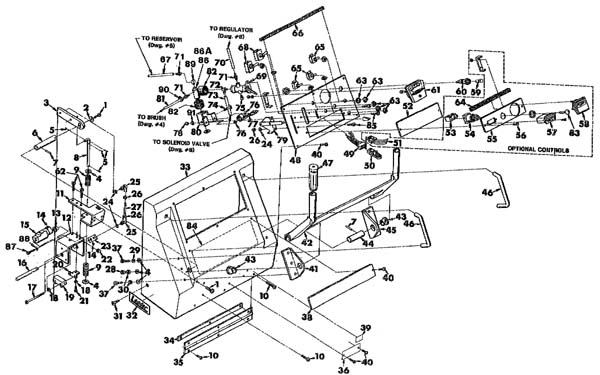

Control Housing Assembly - 170-0223 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 001 |
999-1088 |
Screw M8-1.25 x 12mm pan head phillips zinc plated |
3 |
|
| 002 |
999-0160 |
Washer 1/4 x 1 1/4 fender zinc plated |
1 |
|
| 003 |
N/A |
Not available |
1 |
Switch actuator arm |
| 004 |
999-0546 |
Screw 5/16-18 x 1 socket head alloy plain finish |
8 |
|
| 005 |
997-2500 |
Cotter pin |
4 |
|
| 006 |
N/A |
Not available |
1 |
Left hand handle pivot pin |
| 007 |
170-2906 |
Roll pin (OBSOLETE) |
2 |
|
| 008 |
N/A |
Not available |
1 |
Centering rod |
| 009 |
N/A |
Not available |
2 |
Centering spring |
| 010 |
999-0807 |
Screw M6-1 x 10mm flat head phillips |
6 |
|
| 011 |
N/A |
Not available |
1 |
Spring handle tension anchor |
| 012 |
N/A |
Not available |
1 |
Switch frame |
| 013 |
N/A |
Not available |
1 |
Switch bushing |
| 014 |
170-2897 |
Screw M6 x 1 x 8mm set (OBSOLETE) |
2 |
|
| 015 |
N/A |
Not available |
1 |
Switch cam |
| 016 |
N/A |
Not available |
1 |
Switch shaft |
| 017 |
N/A |
Not available |
2 |
Screw |
| 018 |
999-0148 |
Washer #6 external star lock zinc plated |
3 |
|
| 019 |
170-3308 |
On/off switch (OBSOLETE) |
4 |
|
| 020 |
N/A |
Not available |
1 |
Switch bracket |
| 021 |
N/A |
Not available |
1 |
Screw |
| 022 |
170-0462 |
Nut 1/4-20 speed (OBSOLETE) |
2 |
|
| 023 |
N/A |
Not available |
1 |
Switch actuator arm |
| 024 |
N/A |
Not available |
4 |
Washer #10 SEMS |
| 025 |
170-5772 |
Ball joint assembly (OBSOLETE) |
2 |
|
| 026 |
170-8076 |
Nut M5 x .8 hex jam |
4 |
|
| 027 |
N/A |
Not available |
1 |
Adjusting rod |
| 028 |
999-0787 |
Bolt M8-1.25 x 40mm hex head full thread stainless steel |
3 |
|
| 029 |
999-0028 |
Washer 5/16 split lock plain finish |
2 |
|
| 030 |
170-5787 |
Nut M8 x 1.25 |
2 |
|
| 031 |
N/A |
Not available |
2 |
Screw |
| 032 |
N/A |
Not available |
2 |
"Leader" label |
| 033 |
N/A |
Not available |
1 |
Control housing |
| 034 |
N/A |
Not available |
1 |
Hinge retainer |
| 035 |
N/A |
Not available |
1 |
Control housing hinge |
| 036a |
N/A |
Not available |
1 |
Model and serial number plates |
| 036b |
N/A |
Not available |
1 |
Model and serial number plates |
| 037 |
N/A |
Not available |
2 |
Screw |
| 038 |
N/A |
Not available |
1 |
Warning label |
| 039 |
170-2915 |
Patent pending label (OBSOLETE) |
1 |
|
| 040 |
999-0541 |
Screw 10-24 x 3/4 round head slotted stainless steel |
14 |
|
| 041 |
N/A |
Not available |
1 |
Left hand adjusting bracket |
| 042 |
170-0533 |
Control handle (OBSOLETE) |
1 |
|
| 043 |
170-0088 |
Flanged bearing (OBSOLETE) |
2 |
|
| 044 |
N/A |
Not available |
1 |
Right hand handle pivot pin |
| 045 |
N/A |
Not available |
1 |
Right hand adjusting bracket |
| 046 |
N/A |
Not available |
2 |
Stationary handle |
| 047 |
N/A |
Not available |
2 |
Handle grip |
| 048 |
N/A |
Not available |
1 |
Console panel |
| 049 |
N/A |
Not available |
1 |
Console harness assembly |
| 050 |
N/A |
Not available |
1 |
Shorting plug assembly |
| 051 |
N/A |
Not available |
1 |
Optional accesory harness assembly |
| 052 |
N/A |
Not available |
1 |
Console cover panel |
| 053 |
N/A |
Not available |
2 |
Optional contact block |
| 054 |
N/A |
Not available |
1 |
Optional key lock switch |
| 055 |
N/A |
Not available |
1 |
Optinal contorl accessory panel |
| 056 |
999-9113 |
Screw M4-.7 x 16mm pan head phillips stainless steel |
2 |
|
| 057 |
N/A |
Not available |
1 |
Optional Hour meter |
| 058 |
N/A |
Not available |
1 |
Optional volt meter |
| 059 |
170-2916 |
Lamp (OBSOLETE) |
1 |
|
| 060 |
170-2917 |
Light assembly (OBSOLETE) |
1 |
|
| 061a |
170-2918 |
Ammeter 30 amp (OBSOLETE) |
1 |
|
| 061b |
170-2919 |
Ammeter 60 amp (OBSOLETE) |
1 |
|
| 062 |
999-1089 |
Screw 14 x 3/4 flat head phillips stainless steel |
2 |
|
| 064 |
N/A |
Not available |
1 |
Optional accessory panel gasket |
| 065 |
170-1725 |
Toggle switch |
3 |
|
| 066 |
N/A |
Not available |
1 |
Control panel gasket |
| 067 |
N/A |
Not available |
1 |
Reservoir to brush valve hose |
| 068 |
170-6263 |
On/Off switch |
2 |
|
| 069 |
170-2920 |
Squeegee valve |
1 |
|
| 070 |
N/A |
Not available |
1 |
Air hose |
| 071 |
160-0052 |
Fitting 1/4 barb x 1/4mp |
2 |
|
| 072 |
170-2901 |
Elbow (OBSOLETE) |
1 |
|
| 073 |
N/A |
Not available |
2 |
Squeegee solenoid to valve hose |
| 074 |
N/A |
Not available |
1 |
Vavle shaft |
| 075 |
N/A |
Not available |
1 |
Pipe plug |
| 076 |
170-2921 |
Washer wave |
2 |
|
| 077 |
N/A |
Not available |
1 |
(Cam valve) |
| 078 |
999-0439 |
Nut M6-1 hex coarse thread |
1 |
|
| 079 |
170-0528 |
Solution control with cable (OBSOLETE) |
1 |
|
| 080 |
N/A |
Not available |
1 |
Regulator mounting bracket |
| 081 |
N/A |
Not available |
1 |
Vavle to brush hose |
| 082 |
170-2923 |
Pressure control vavle (OBSOLETE) |
1 |
|
| 083 |
N/A |
Not available |
1 |
Key |
| 084a |
N/A |
Not available |
2 |
Wiring diagram without options |
| 084b |
N/A |
Not available |
1 |
Wiring diagram with options |
| 085 |
999-1090 |
Screw M5-.8 x 10mm pan head phillips zinc plated |
1 |
|
| 086a |
170-2923 |
Pressure control vavle (OBSOLETE) |
4 |
|
| 086b |
170-2924 |
Bruse vavle assembly |
1 |
|
| 087 |
N/A |
Not available |
1 |
Screw m6 x 1 x 26 pan |
| 088 |
999-0017 |
Washer 1/4 external star lock |
1 |
|
| 090 |
N/A |
Not available |
1 |
Clamp |
| 091 |
999-0017 |
Washer 1/4 external star lock |
1 |
|
|
|

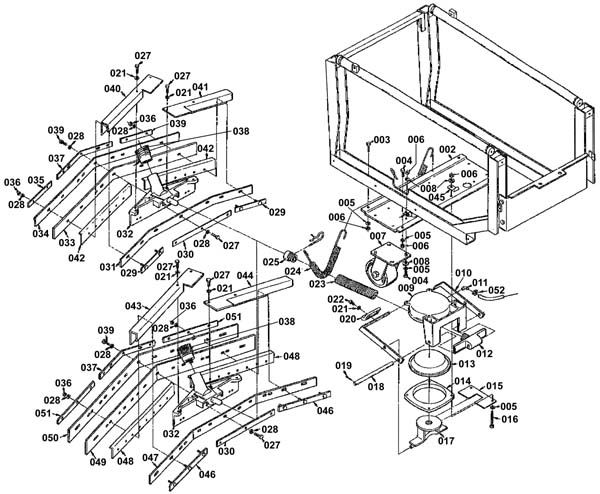

Frame, Caster and Squeegee Assembly - 170-0224 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 001 |
N/A |
Not available |
1 |
Left hand frame assembly |
| 002 |
N/A |
Not available |
1 |
Caster bracket |
| 003 |
N/A |
Not available |
3 |
Screw |
| 004 |
170-8034 |
Screw 8mm x 1.25 x 20 hex head (OBSOLETE) |
9 |
|
| 005 |
999-0028 |
Washer 5/16 split lock plain finish |
16 |
|
| 006 |
170-5787 |
Nut M8 x 1.25 |
6 |
|
| 007a |
991-2011 |
Caster wheel assembly |
2 |
|
| 007b |
170-7201 |
Caster wheel |
|
|
| 008 |
N/A |
Not available |
10 |
Washer 5/8 plain |
| 009 |
N/A |
Not available |
1 |
Squeegee pivot bracket |
| 010 |
N/A |
Not available |
1 |
Squeegee bracket |
| 011 |
170-2907 |
Elbow 1/8 x 11/64 |
1 |
|
| 012 |
170-0454 |
Squeegee bracket guide |
1 |
|
| 013 |
170-2908 |
Brush lift diaphragm |
1 |
|
| 014 |
170-2095 |
Diaphragm clamp (OBSOLETE) |
1 |
|
| 015 |
170-2909 |
Squeegee retainer guide (OBSOLETE) |
1 |
|
| 016 |
N/A |
Not available |
4 |
Screw |
| 017 |
N/A |
Not available |
1 |
Squeegee pivot bracket assembly |
| 018 |
170-0452 |
Squeegee pivot shaft (OBSOLETE) |
1 |
|
| 019 |
997-2500 |
Cotter pin |
2 |
|
| 020 |
170-0005 |
Squeegee pad |
1 |
|
| 021 |
999-0060 |
Washer 1/4 split lock plain finish |
6 |
|
| 023 |
170-0449 |
Squeegee spring (OBSOLETE) |
1 |
|
| 024 |
N/A |
Not available |
1 |
Spring |
| 025 |
170-0446 |
Spring coupling |
1 |
|
| 026 |
170-0447 |
Squeegee locking pin |
1 |
|
| 027 |
N/A |
Not available |
7 |
Screw |
| 028 |
999-0016 |
Washer 1/4 flat plain finish |
12 |
|
| 029 |
170-2911 |
Squeegee assembly retainer (OBSOLETE) |
2 |
|
| 030 |
170-0445 |
Center front retainer (OBSOLETE) |
1 |
|
| 031 |
170-0443 |
Squeegee blade front (OBSOLETE) |
1 |
|
| 032 |
170-0442 |
Squeegee housing (OBSOLETE) |
1 |
|
| 033 |
170-0440 |
Squeegee blade tan 30 3/4 inch (OBSOLETE) |
1 |
|
| 034 |
170-0439 |
Squeegee blade 31 inch rear (black) (OBSOLETE) |
1 |
|
| 035 |
170-0437 |
Squeegee blade rear retainer |
2 |
|
| 036 |
170-2913 |
Nut M6 x 1 hex stop (OBSOLETE) |
4 |
|
| 037 |
170-0438 |
Center rear retainer (OBSOLETE) |
1 |
|
| 038 |
170-0007 |
Squeegee hose with cuffs |
1 |
|
| 039 |
999-1087 |
Bolt M6-1 x 25mm hex head stainless steel |
6 |
|
| 040 |
170-0436 |
Squeegee frame right hand (OBSOLETE) |
1 |
|
| 041 |
170-0435 |
Squeegee frame left hand (OBSOLETE) |
1 |
|
| 042 |
170-0441 |
Squeege blade rear support |
2 |
|
| 043 |
170-5765 |
Squeegee frame right hand (OBSOLETE) |
1 |
|
| 044 |
170-5764 |
Squeegee frame left hand (OBSOLETE) |
1 |
|
| 045 |
170-0457 |
Strap (OBSOLETE) |
2 |
|
| 046 |
170-2914 |
Squeegee assembly retainer (OBSOLETE) |
2 |
|
| 047 |
170-0712 |
Squeegee blade |
1 |
|
| 048 |
170-5769 |
Squeegee blade rear support |
2 |
|
| 049 |
170-0711 |
Squeegee blade front (OBSOLETE) |
1 |
|
| 050 |
170-5767 |
Squeegee blade back up |
1 |
|
| 051 |
170-0566 |
Squeegee label (OBSOLETE) |
2 |
|
| 052 |
N/A |
Not available |
1 |
Clamp |
|
|

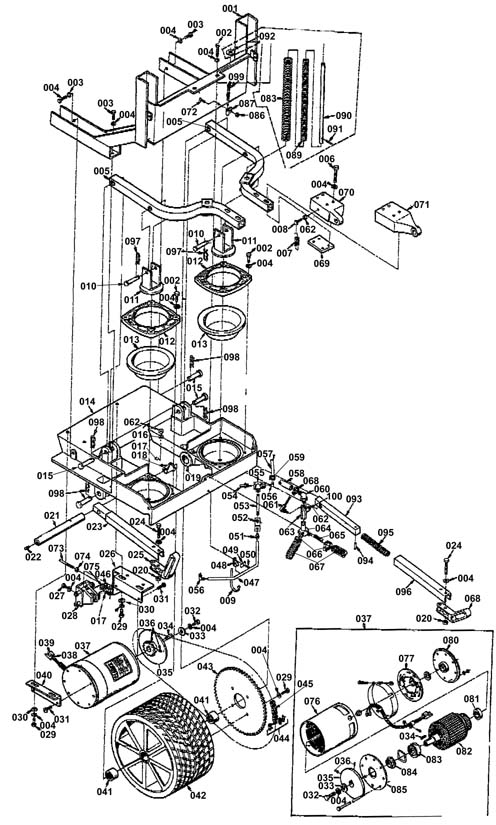

Support Assembly - 170-0225 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 001 |
N/A |
Not available |
1 |
Main Frame Assembly |
| 002 |
N/A |
Not available |
9 |
Screw M8 x 1-1/4 x 30mm hex |
| 003 |
170-8034 |
Screw 8mm x 1.25 x 20 hex head (OBSOLETE) |
3 |
|
| 004 |
999-0028 |
Washer 5/16 split lock plain finish |
31 |
|
| 005a |
170-0655 |
Brush lift arm assembly (OBSOLETE) |
2 |
|
| 005b |
170-2093 |
Brush lift arm assembly (OBSOLETE) |
2 |
|
| 006 |
N/A |
Not available |
4 |
Screw M8 x 1-1/4 x45 hex |
| 008 |
999-0807 |
Screw M6-1 x 10mm flat head phillips |
1 |
|
| 010 |
170-0423 |
Release pin (FSO) (OBSOLETE) |
2 |
|
| 011 |
170-5161 |
Brush lift bracket assembly (OBSOLETE) |
2 |
|
| 012 |
170-2095 |
Diaphragm clamp (OBSOLETE) |
2 |
|
| 013 |
170-2096 |
Brush lift diaphragm |
2 |
|
| 014 |
N/A |
Not available |
1 |
Machine support |
| 015 |
170-0398 |
Connecting pin |
4 |
|
| 016 |
170-8055 |
Screw 5mm - 0.8 x 16 pan head phillips |
1 |
|
| 017 |
N/A |
Not available |
1 |
Idler tension spring |
| 018 |
170-2097 |
Nyliner bearing (OBSOLETE) |
2 |
|
| 019 |
N/A |
Not available |
2 |
Screw |
| 020 |
170-5787 |
Nut M8 x 1.25 |
4 |
|
| 021 |
N/A |
Not available |
1 |
Front wheel shaft |
| 022 |
170-0016 |
Grease fitting |
1 |
|
| 023 |
170-2099 |
Parallel arm assembly (OBSOLETE) |
2 |
|
| 024 |
999-0787 |
Bolt M8-1.25 x 40mm hex head full thread stainless steel |
4 |
|
| 025 |
170-0682 |
Right hand parallel arm end (OBSOLETE) |
1 |
|
| 026 |
N/A |
Not available |
1 |
Brake mounting bracket |
| 027 |
N/A |
Not available |
2 |
Screw |
| 028 |
N/A |
Not available |
1 |
Parking brake |
| 029 |
999-0499 |
Bolt M8-1.25 x 20mm hex head full thread stainless steel |
1 |
|
| 030 |
170-0546 |
Tank stop cord assembly (OBSOLETE) |
8 |
|
| 031 |
N/A |
Not available |
4 |
Screw |
| 032 |
170-2098 |
Bolt 5/16-18 x 5/8 hex |
4 |
|
| 034 |
N/A |
Not available |
1 |
Brush drive coupling key |
| 035 |
N/A |
Not available |
1 |
Disc and sprocket assembly |
| 036 |
170-2897 |
Screw M6 x 1 x 8mm set (OBSOLETE) |
1 |
|
| 037 |
170-0137 |
Drive motor |
2 |
|
| 038 |
170-0386 |
Male terminal (OBSOLETE) |
1 |
|
| 039 |
170-0385 |
Male terminal housing connector |
1 |
|
| 040 |
170-2031 |
Drive motor bracket (OBSOLETE) |
1 |
|
| 041 |
170-2898 |
Drive wheel bearing (OBSOLETE) |
1 |
|
| 042 |
170-2039 |
Wheel and shaft assembly (OBSOLETE) |
2 |
|
| 043 |
170-0142 |
Drive sprocket |
1 |
|
| 045 |
991-0101 |
Chain (sold by the link) |
1 |
|
| 046 |
N/A |
Not available |
1 |
Brake rod swivel |
| 047 |
N/A |
Not available |
1 |
Air hose |
| 048 |
N/A |
Not available |
1 |
Clip |
| 049 |
N/A |
Not available |
1 |
Clamp |
| 050 |
N/A |
Not available |
1 |
Screw |
| 051 |
160-0052 |
Fitting 1/4 barb x 1/4mp |
1 |
|
| 052 |
170-0404 |
Wheel spacer (OBSOLETE) |
1 |
|
| 053 |
170-2900 |
Nipple 1/8 x 30 (OBSOLETE) |
1 |
|
| 054 |
N/A |
Not available |
1 |
Exhaust muffler |
| 055 |
170-0710 |
Exhaust quick valve (OBSOLETE) |
1 |
|
| 056 |
170-2901 |
Elbow (OBSOLETE) |
2 |
|
| 057 |
N/A |
Not available |
1 |
Air valve to brush hose |
| 058 |
N/A |
Not available |
1 |
Elbow to valve hose |
| 059 |
997-2001 |
Hose clamp |
1 |
|
| 060 |
170-0660 |
Solution elbow |
1 |
|
| 061 |
170-5772 |
Ball joint assembly (OBSOLETE) |
1 |
|
| 062 |
999-0743 |
Nut M5-.8 hex coarse thread |
2 |
|
| 063 |
170-0006 |
Manual solution valve |
1 |
|
| 064 |
170-0208 |
Water splitter (OBSOLETE) |
1 |
|
| 065 |
170-8020 |
Screw 6mm - 1 x 35 pan phillips (OBSOLETE) |
2 |
|
| 066 |
997-2002 |
Hose clamp #6 |
2 |
|
| 067 |
170-0408 |
Valve/brush hose |
2 |
|
| 068 |
170-0665 |
Left hand parallel arm end (OBSOLETE) |
1 |
|
| 069 |
N/A |
Not available |
1 |
Nut plate |
| 070 |
170-2903 |
Brush lift link (OBSOLETE) |
1 |
TB 60 |
| 071 |
170-5799 |
Brush lift link (OBSOLETE) |
1 |
TB 80 |
| 072 |
N/A |
Not available |
1 |
Nut |
| 073 |
N/A |
Not available |
1 |
Brake rod |
| 074 |
999-0469 |
Nut M6-1 nylon insert lock zinc plated |
3 |
|
| 075 |
170-5787 |
Nut M8 x 1.25 |
1 |
|
| 076 |
N/A |
Not available |
1 |
Stator |
| 077a |
N/A |
Not available |
1 |
Brush holder assembly |
| 077b |
N/A |
Not available |
4 |
Carbon Brush |
| 077c |
170-2905 |
Brush spring (OBSOLETE) |
4 |
|
| 080 |
N/A |
Not available |
1 |
Commutator end bell |
| 081 |
170-0321 |
Front end bearing |
1 |
|
| 082 |
N/A |
Not available |
1 |
Armature assembly |
| 083 |
372-1890 |
Bearing (rear) |
1 |
|
| 085 |
N/A |
Not available |
1 |
Pulley end bell |
| 086 |
170-8012 |
Nut M4 x .7 hex (OBSOLETE) |
1 |
|
| 087 |
170-0263 |
Cable clip |
1 |
|
| 088 |
N/A |
Not available |
1 |
Outer brush pressure spring |
| 089 |
N/A |
Not available |
2 |
Inner brush pressure spring |
| 090 |
N/A |
Not available |
2 |
Brush pressure rod |
| 091 |
170-2906 |
Roll pin (OBSOLETE) |
2 |
|
| 092 |
N/A |
Not available |
2 |
Washer 5/8 plain |
| 093 |
170-0661 |
Parallel arm (OBSOLETE) |
2 |
|
| 094 |
N/A |
Not available |
2 |
Pin |
| 095 |
170-0663 |
Press control spring (OBSOLETE) |
2 |
|
| 096 |
170-0664 |
Parallel arm tube (OBSOLETE) |
2 |
|
| 097 |
170-0135 |
Cotter pin (OBSOLETE) |
2 |
|
| 098 |
997-2516 |
Cotter pin |
4 |
|
| 099 |
N/A |
Not available |
1 |
Solution control |
| 100 |
N/A |
Not available |
1 |
Valve assembly brace |
|
|
- Commonly Asked For Parts - 170-9932 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 01 |
170-0042 |
Drain valve handle |
|
|
| 02 |
991-1217 |
36V 2 stage vacuum motor tangential with snout |
|
|
| 03 |
996-0336 |
Clutch plate with brush holder spring |
1 |
|
| 04 |
170-6237 |
Housing connector 36volt |
|
|
| 05 |
N/A |
Not available |
|
Pad holder - Can replace with 991-2206 |
| 06 |
170-6238 |
Key set of 2 (OBSOLETE) |
|
|
| 07 |
170-6239 |
Key lock switch (OBSOLETE) |
|
|
| 08 |
170-1725 |
Toggle switch |
|
|
| 11 |
170-6240 |
Solenoid valve assy (OBSOLETE) |
|
|
| 12 |
170-0007 |
Squeegee hose with cuffs |
|
|
| 13 |
170-6241 |
Solution tank cover (OBSOLETE) |
|
|
|
|
- Pad Holders - 275-9029 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
991-2214 |
Center-Lok II pad holder - left hand thread (red) |
|
|
| 2a |
991-2201 |
Center-Lok II pad holder - right hand thread (black) |
|
(Pad driver side female, Floor side male) |
| 2b |
991-8577 |
Pad retainer |
|
(Pad driver side male, Floor side female) |
| 3a |
991-2202 |
Big mouth pad holder set (blue) |
|
(includes 3 screws) |
| 3b |
991-2205 |
Deep lock ring and pad grip ring |
|
|
| 4 |
991-2203 |
Big mouth pad holder male thread portion |
|
|
| 5 |
991-2206 |
Center-Lok 3 pad holder |
|
(includes 3 screws) |
| 6 |
996-0372 |
Big mouth pad holder (left hand thread) |
|
|
| 8 |
991-2209 |
Split retainer - pad holder ring (OBSOLETE) |
|
|
| 9 |
N/A |
Not available |
|
(replaced by #3 991-2202) |
| 10 |
991-2211 |
Center lock pad holding cup (male) (yellow) (OBSOLETE) |
|
|
|
|
