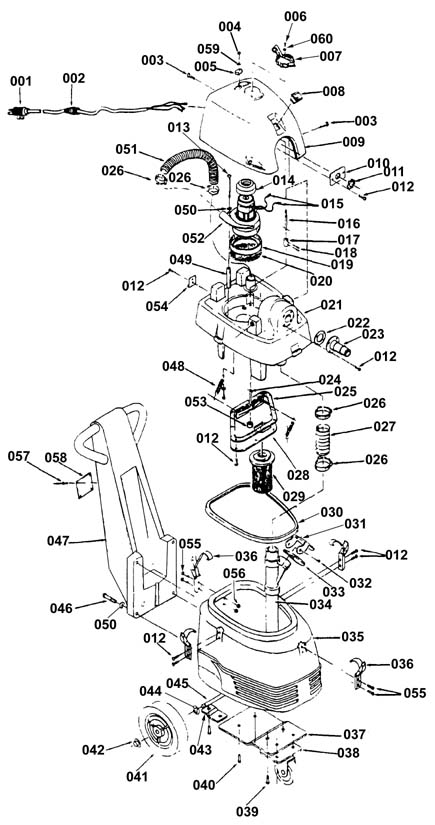

Vacuum Assembly - 170-2156 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 002 |
164-4502 |
Strain relief |
1 |
|
| 003 |
170-4548 |
Screw 1/4-20 x 3/4 |
4 |
|
| 004 |
999-0314 |
Screw 10-24 x 3/4 round head phillips zinc plated |
1 |
|
| 005 |
170-4565 |
Latch stop (OBSOLETE) |
1 |
|
| 006 |
999-0382 |
Screw 6-32 x 1/2 pan head slotted zinc plated |
1 |
|
| 007 |
170-4566 |
Knob assembly (OBSOLETE) |
1 |
|
| 008 |
170-6163 |
On/off switch |
1 |
|
| 009 |
170-4567 |
Motor cover (OBSOLETE) |
1 |
|
| 010 |
170-4543 |
Strain relief retainer (OBSOLETE) |
1 |
|
| 012 |
170-4461 |
Screw 10-24 x 3/8 stainless steel |
22 |
|
| 014 |
170-8047 |
Gasket (OBSOLETE) |
1 |
|
| 015 |
170-6013 |
1/4 terminal |
4 |
|
| 016 |
170-4568 |
Upper diverter shaft (OBSOLETE) |
1 |
|
| 017 |
170-4569 |
Coupling (OBSOLETE) |
1 |
|
| 018 |
170-3559 |
Pin 3/32x3/4 roll ss |
2 |
|
| 019 |
170-2841 |
Vac motor gasket (OBSOLETE_ |
1 |
|
| 020 |
170-2847 |
Screen (OBSOLETE) |
1 |
|
| 021 |
170-4570 |
Motor support housing (OBSOLETE) |
1 |
|
| 022 |
170-6196 |
Swivel Coupling Gasket (OBSOLETE) |
1 |
|
| 023 |
170-4571 |
Inlet adaptor (OBSOLETE) |
1 |
|
| 024 |
170-4572 |
Diverter assembly (OBSOLETE) |
1 |
|
| 025 |
170-4573 |
Chamber gasket (OBSOLETE) |
1 |
|
| 026 |
997-2007 |
Hose clamp |
4 |
|
| 028 |
170-4574 |
Chamber cover (OBSOLETE) |
1 |
|
| 029 |
170-0602 |
Recovery float assembly (OBSOLETE) |
1 |
|
| 030 |
170-8067 |
Housing gasket |
1 |
|
| 031 |
170-4575 |
Stand tube door (OBSOLETE) |
1 |
|
| 032 |
170-4576 |
Screw 6 x 1/4 |
2 |
|
| 033 |
170-4577 |
Door gasket |
1 |
|
| 034 |
170-4578 |
Tube assembly (OBSOLETE) |
1 |
|
| 035 |
170-4579 |
16 Gallon pumper tank (OBSOLETE) |
1 |
|
| 036 |
170-4549 |
Draw latch |
4 |
|
| 037 |
170-4552 |
Base plate (OBSOLETE) |
1 |
|
| 038 |
170-6141 |
Swivel caster (OBSOLETE) |
1 |
|
| 039 |
999-0019 |
Bolt 1/4-20 x 5/8 hex head grade 5 zinc plated |
6 |
|
| 040 |
170-4554 |
Screw 5/16 - 18 x 5/8 stainless steel (OBSOLETE) |
6 |
|
| 041 |
170-6075 |
Wheel (OBSOLETE) |
2 |
|
| 043 |
170-4553 |
Axle bracket (OBSOLETE) |
2 |
|
| 044 |
170-5614 |
Retaining Ring |
2 |
|
| 045 |
170-4555 |
Shaft axle (OBSOLETE) |
1 |
|
| 046 |
999-1064 |
Bolt 1/4-20 x 1 3/4 hex head cap grade 5 zinc plated |
4 |
|
| 047 |
170-4557 |
Transport handle (OBSOLETE) |
1 |
|
| 048 |
170-4580 |
Spring (OBSOLETE) |
2 |
|
| 050 |
999-0016 |
Washer 1/4 flat plain finish |
7 |
|
| 051 |
170-6083 |
Exhaust hose |
1 |
|
| 052 |
170-8008 |
115V motor assembly |
1 |
|
| 053 |
170-4581 |
Bushing cover (OBSOLETE) |
1 |
|
| 054 |
170-4582 |
Latch keeper (OBSOLETE) |
1 |
|
| 055 |
999-1191 |
Screw 10-24 x 5/8 round head slotted stainless steel |
4 |
|
| 056 |
999-0211 |
Nut 5/16-18 hex nylon insert lock zinc plated |
4 |
|
| 057 |
375-7487 |
Rivet 1/8 x 5/16 inch (OBSOLETE) |
4 |
|
| 058 |
170-4563 |
Warning plate (OBSOLETE) |
1 |
|
| 059 |
999-0311 |
Washer #10 external star lock zinc plated |
2 |
|
| 060 |
999-0148 |
Washer #6 external star lock zinc plated |
1 |
|
|
|

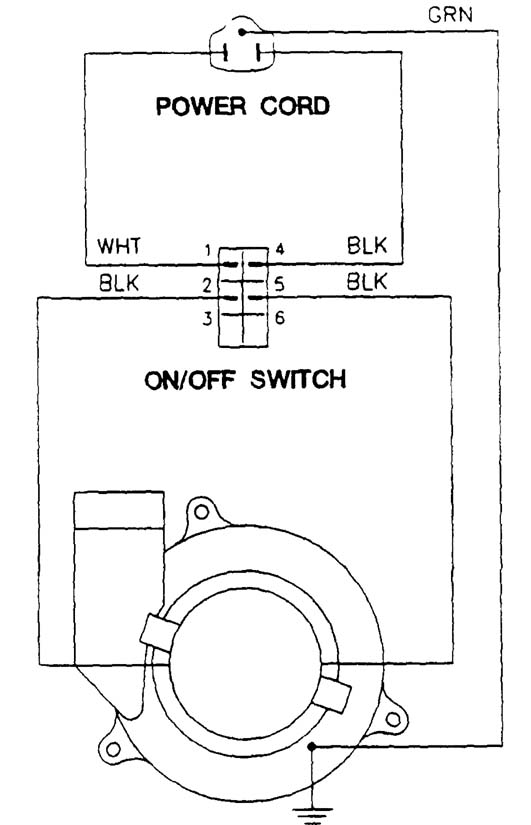

Connection Diagram - |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
|
|

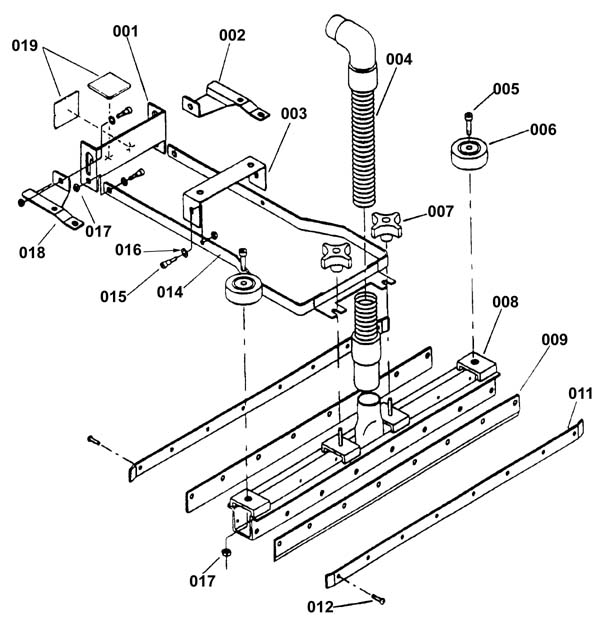

Squeegee Assembly - 170-2158 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 000 |
170-4594 |
Squeegee assembly pumper vacuum (OBSOLETE) |
|
|
| 001 |
170-4583 |
Squeegee lift pedal (OBSOLETE) |
1 |
|
| 002 |
170-4584 |
Pedal left support (OBSOLETE) |
1 |
|
| 003 |
170-4595 |
Lift support (OBSOLETE) |
1 |
|
| 005 |
170-4586 |
Bolt 3/8 x 1 shoulder |
1 |
|
| 006 |
170-0165 |
Wheel (OBSOLETE) |
2 |
|
| 007 |
170-4587 |
Knob (OBSOLETE) |
2 |
|
| 008 |
170-4588 |
Squeegee frame weldment (OBSOLETE) |
1 |
|
| 009 |
170-4589 |
Squeegee blade |
2 |
|
| 011 |
170-4590 |
Squeegee blade retainer (OBSOLETE) |
2 |
|
| 012 |
999-0414 |
Screw 10-32 x 3/4 pan head slotted zinc plated |
16 |
|
| 014 |
170-4591 |
Squeegee lift weldment (OBSOLETE) |
1 |
|
| 015 |
170-1411 |
Shoulder screw |
6 |
|
| 016 |
999-0032 |
Washer 3/8 USS flat plain finish |
6 |
|
| 017 |
999-0211 |
Nut 5/16-18 hex nylon insert lock zinc plated |
8 |
|
| 018 |
170-4592 |
Right pedal support (OBSOLETE) |
1 |
|
| 019 |
170-4593 |
Pedal pad (OBSOLETE) |
2 |
|
|
|
