Parts List Complete for CLARKE-ALT SUMMIT PRO 18SQ

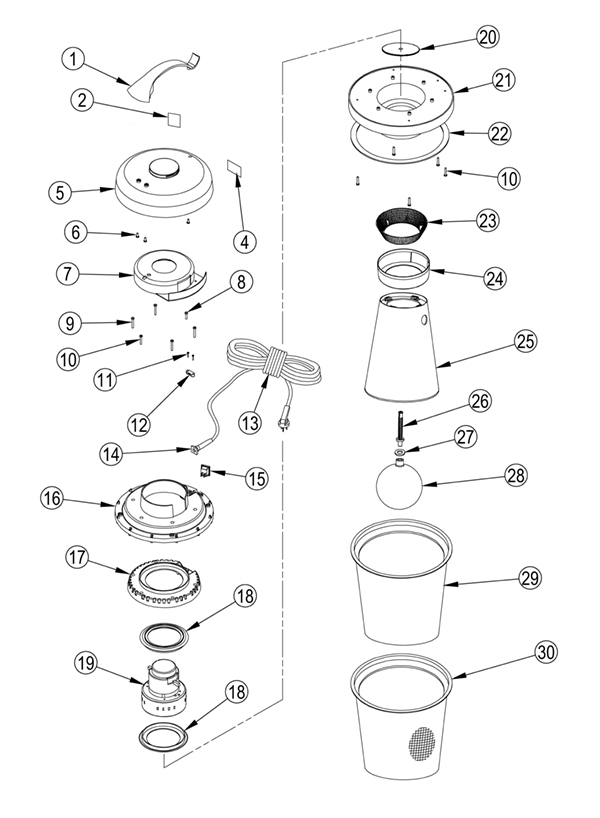

Vacuum Head Assembly - 170-3072
RefNbr Part Number Description Req Notes
1 240-0574 Handle 1
2 240-0110 Read manual decal 1
4 N/A Not available 1 (warning decal)
5 240-0576 Vacuum head cover 1
6 240-0057 Screw M5 x 12mm self-tapping 3
7 240-0283 Upper motor cover 1
8 999-1555 Screw M5-.8 x 20mm pan head phillips zinc plated 1
9 999-1563 Screw M5-.8 x 50mm pan head phillips zinc plated 4
10 240-0577 Screw M5-.8 x 44mm pan head 5
11 999-1180 Screw M3-.5 x 16mm pan head stainless steel 2
12 240-0052 Block 1
13a 240-0296 14/3 power cord 50 foot 1 (OEM)
13b 991-5005 14/3 replacement power cord 50 foot (yellow) 1 (NON-OEM) (does not include strain relief)
13c 991-5001 14/3 extension cord 50 foot (yellow) 1 (NON-OEM)
14 240-0578 Grommet 1
15 240-0297 Switch 1
16 240-0579 Motor mounting cover 1
17 240-0580 Motor mounting plate 1
18 240-0582 Motor gasket 2
19a 240-0298 120V vacuum motor 1 (OEM)
19b 991-1244 120V 2 stage vacuum motor peripheral 1 (NON-OEM)
20 240-0589 Seal plate 1
21 240-0306 Motor mounting base 1
22 240-0307 Gasket 1
23 240-0552 Filter screen 1
24 240-0308 Water guard 1
25 240-0299 Cage 1
26 240-0590 Ball pole 1
27 240-0591 O-ring 1
28 240-0300 Float ball 1
29 240-0534 Vacuum filter 1
30 240-0592 Bubble buster 1

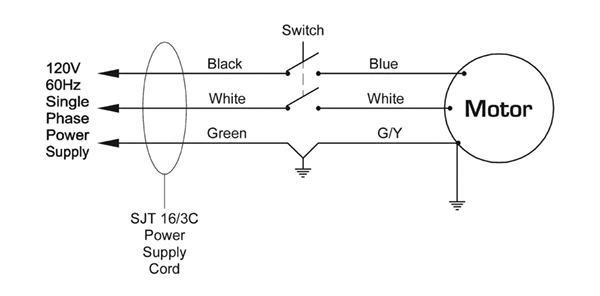

Wiring Diagram -

RefNbr Part Number Description Req Notes

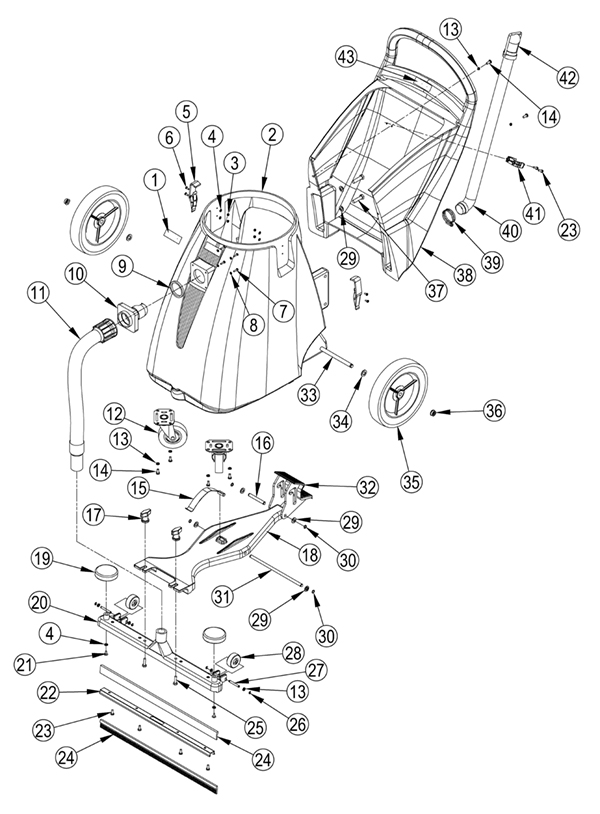

Tank Assembly - 170-3074
RefNbr Part Number Description Req Notes
1 240-5350 LABEL SUMMIT PRO 1
2 240-5327 TANK 1
3 240-0522 Nut M5 lock 4
4 240-0068 Plain washer 6
5 240-0282 Metal latch 2
6 240-0545 Screw M5 x 20mm 4
7 240-0594 Screw M4 x 20mm self-tapping 4
8 999-9089 Washer M4 flat stainless steel 4
9 240-0596 Gasket 1
10 240-0597 Intake 1
11 240-0011 Hose 1
12 240-0301 3 inch caster wheel 2
13 240-0037 Washer 10
14 999-1383 Screw M6-1 x 16mm hex head stainless steel 6
15 240-0598 Leaf spring 1
16 240-0599 Axle 1
17 240-0536 Knob 2
18 240-0281 Pick-up tool mounting plate 1
19 240-0537 Bumper wheel 2
20a 240-0600 24 inch pick-up tool 1
20b 240-0601 30 inch pick-up tool 1
21 240-0602 Screw M5 x 10mm self-tapping 2
22a 240-0603 24 inch blade clamp 1
22b 240-0604 30 inch blade clamp 1
23 999-1986 Screw M5-.8 x 14mm pan head phillips 6
24a 240-0540 Squeegee blade 24 inch 2
24b 240-0012 Squeegee blade 30 inch (blue) 2
25 240-0330 Screw M8 x 25mm 2
26 240-0605 Lock snap ring 2
27 240-0606 Wheel axle 4
28 240-0607 2 inch guide wheel 2
29 240-0608 Washer 2
30 240-0609 Lock snap ring 8
31 240-0610 Mounting plate axle 4
32 240-0611 Pedal 1
33 240-0612 Pedal axle 1
34 240-0613 Washer 2
35 240-0302 10 inch wheel 2
36 240-0614 Axle cap 2
37 240-0739 Screw M10 x 30mm 6
38 240-0547 Handle 1
39 240-0189 Hose clamp 1
40 240-0188 Drain hose 1
41 240-0616 Drain hose clamp 1
42 240-0551 Drain hose plug 1
43 240-5352 CLARKE LABEL 1

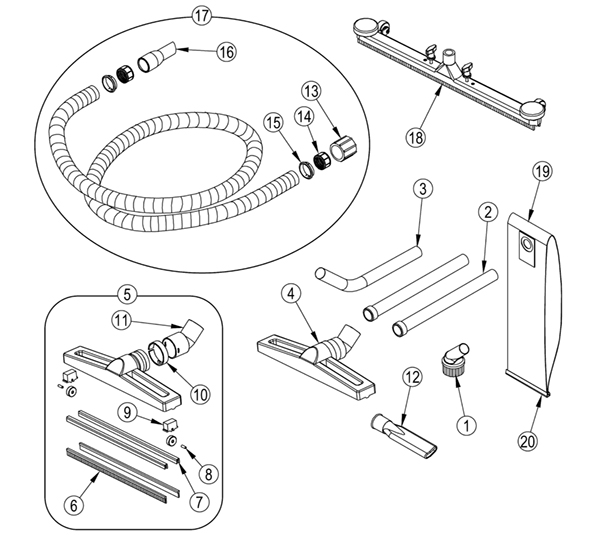

Wand and Hose Assembly - 170-3075
RefNbr Part Number Description Req Notes
1 240-0553 Dusting tool 1
2 240-0319 Tube 2
3 240-0320 Wand 1
4 240-0554 Dry pick-up tool 1
5 240-0555 Wet pick-up tool 1
6 240-0556 16 inch squeegee blade 2
7 240-0557 16 inch blade seat 2
8 240-0558 Wheel pin 2
9 240-0559 Wheel seat 2
10 240-0560 Floor tool adapter clip 1
11 240-0561 Floor tool adapter 1
12 240-0562 Crevice tool (OBSOLETE) 1
13 240-0563 Swivel hose end 1
14 240-0564 Hose cuff insert 2
15 240-0565 Ring clip 2
16 240-0566 Angled hose end 1
17 240-0567 Hose assembly 1
18a 240-0568 24 inch front mount squeegee assembly 1
18b 240-0569 30 inch front mount squeegee assembly 1 (optional)
18c 240-0571 24 inch dry pick-up tool assembly (OBSOLETE) 1 (optional)
19 240-0572 Cloth bag 1 (optional)
20 240-0573 Cloth bag retaining clip 1 (optional)

- Frequently Replaced Parts - 998-9897
RefNbr Part Number Description Req Notes
240-0296 14/3 power cord 50 foot
991-5005 14/3 replacement power cord 50 foot (yellow) (NON-OEM) (does not include strain relief)
240-0578 Grommet
240-0297 Switch
240-0298 120V vacuum motor
991-1244 120V 2 stage vacuum motor peripheral
240-0534 Vacuum filter
240-0300 Float ball
240-0301 3 inch caster wheel
240-0302 10 inch wheel
