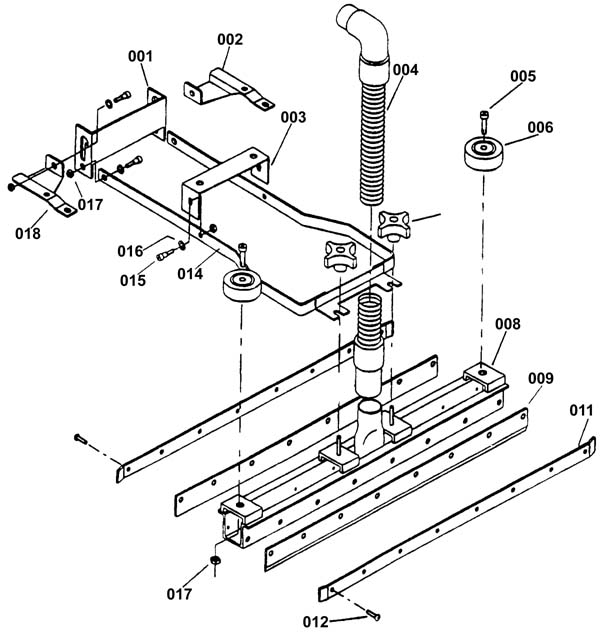

Squeegee Assembly - 170-2068 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 000 |
170-4594 |
Squeegee assembly pumper vacuum (OBSOLETE) |
1 |
|
| 007 |
170-4587 |
Knob (OBSOLETE) |
2 |
|
| 008 |
170-4588 |
Squeegee frame weldment (OBSOLETE) |
1 |
|
| 009 |
170-4589 |
Squeegee blade |
2 |
|
| 011 |
170-4590 |
Squeegee blade retainer (OBSOLETE) |
2 |
|
| 012 |
999-0414 |
Screw 10-32 x 3/4 pan head slotted zinc plated |
16 |
|
| 017 |
999-0211 |
Nut 5/16-18 hex nylon insert lock zinc plated |
8 |
|
|
|

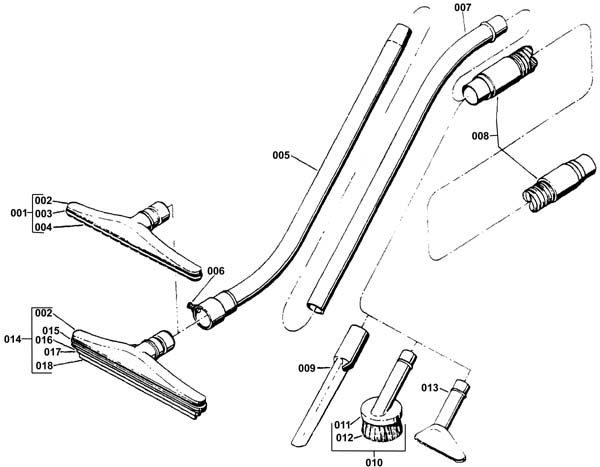

Wand and Tool Assembly - |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
|
|

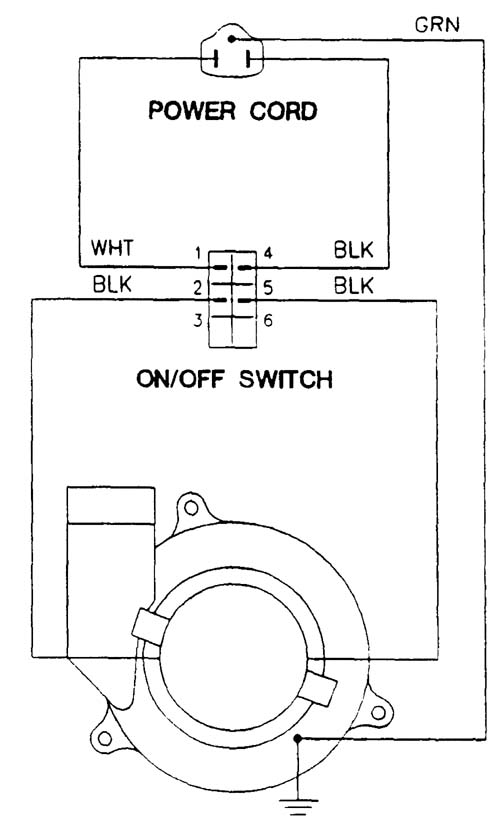

Connection Diagram - |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
|
|

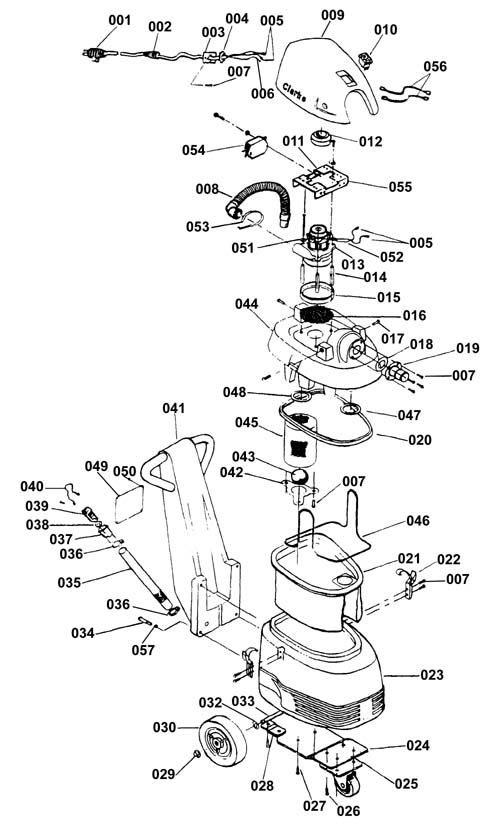

Entire Assembly - 170-2151 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 002 |
164-4502 |
Strain relief |
1 |
|
| 003 |
170-4543 |
Strain relief retainer (OBSOLETE) |
1 |
|
| 005 |
170-6013 |
1/4 terminal |
4 |
|
| 006 |
170-6014 |
Terminal clip |
1 |
|
| 007 |
170-4461 |
Screw 10-24 x 3/8 stainless steel |
13 |
|
| 008 |
170-6083 |
Exhaust hose |
1 |
|
| 009a |
170-4544 |
Motor cover (OBSOLETE) |
1 |
Summit 12 |
| 009b |
170-4545 |
Motor cover (OBSOLETE) |
1 |
Summit 16 |
| 010 |
170-6163 |
On/off switch |
1 |
|
| 011 |
170-4546 |
Screw 1/4-20 x 3 3/4 |
3 |
|
| 013a |
991-1213 |
120V 3 stage vacuum motor tangential |
1 |
|
| 013b |
170-3418 |
Mechanism brush |
2 |
|
| 013c |
170-8008 |
115V motor assembly |
2 |
|
| 014 |
170-0274 |
Vacuum motor spacer |
3 |
|
| 015 |
170-2841 |
Vac motor gasket (OBSOLETE_ |
1 |
|
| 016 |
170-2847 |
Screen (OBSOLETE) |
1 |
|
| 017 |
170-4548 |
Screw 1/4-20 x 3/4 |
3 |
|
| 018 |
170-6196 |
Swivel Coupling Gasket (OBSOLETE) |
1 |
|
| 019 |
170-6197 |
Vacuum Hose Adapter (OBSOLETE) |
1 |
|
| 020 |
170-8067 |
Housing gasket |
1 |
|
| 021 |
170-6283 |
Filter bag (Sumit) (OBSOLETE) |
1 |
|
| 022 |
170-4549 |
Draw latch |
2 |
|
| 023a |
170-4550 |
12 Gallon tank (OBSOLETE) |
1 |
|
| 023b |
170-4551 |
16 Gallon tank (OBSOLETE) |
1 |
|
| 024 |
170-4552 |
Base plate (OBSOLETE) |
1 |
|
| 025 |
170-6141 |
Swivel caster (OBSOLETE) |
1 |
|
| 026 |
999-0019 |
Bolt 1/4-20 x 5/8 hex head grade 5 zinc plated |
4 |
|
| 027 |
170-4554 |
Screw 5/16 - 18 x 5/8 stainless steel (OBSOLETE) |
6 |
|
| 028 |
170-4553 |
Axle bracket (OBSOLETE) |
2 |
|
| 030 |
170-6075 |
Wheel (OBSOLETE) |
2 |
|
| 032 |
170-5614 |
Retaining Ring |
2 |
|
| 033 |
170-4555 |
Shaft axle (OBSOLETE) |
1 |
|
| 034 |
999-1064 |
Bolt 1/4-20 x 1 3/4 hex head cap grade 5 zinc plated |
4 |
|
| 035 |
170-4556 |
Drain hose (OBSOLETE) |
1 |
|
| 036 |
164-0218 |
Nylon hose clamp |
2 |
|
| 037 |
170-0043 |
Drain valve |
1 |
|
| 038 |
170-0032 |
Drain valve gasket |
1 |
|
| 039 |
170-0042 |
Drain valve handle |
1 |
|
| 040 |
172-2474 |
8 inch chain |
1 |
|
| 041 |
170-4557 |
Transport handle (OBSOLETE) |
1 |
|
| 042 |
170-4558 |
Float retainer (OBSOLETE) |
1 |
|
| 044 |
170-4559 |
Motor support housing (OBSOLETE) |
1 |
|
| 045 |
170-4560 |
Filter screen |
1 |
|
| 046 |
170-4561 |
Filter bag support (OBSOLETE) |
1 |
|
| 048 |
170-6198 |
Drain Valve Gasket |
1 |
|
| 049 |
170-4563 |
Warning plate (OBSOLETE) |
1 |
|
| 050 |
375-7487 |
Rivet 1/8 x 5/16 inch (OBSOLETE) |
4 |
|
| 051 |
999-0016 |
Washer 1/4 flat plain finish |
3 |
|
| 056 |
170-3814 |
Lead assembly (OBSOLETE) |
2 |
|
| 057 |
999-0294 |
Nut 1/4-20 hex nylon lock type NE stainless steel |
4 |
|
|
|
- Commonly Asked For Parts - 170-9991 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 01 |
170-3661 |
Squeegee tool assembly (OBSOLETE) |
|
|
| 03 |
170-6141 |
Swivel caster (OBSOLETE) |
|
|
| 04 |
170-6140 |
Rear Caster (OBSOLETE) |
|
|
| 05 |
170-0165 |
Wheel (OBSOLETE) |
|
|
| 06 |
991-1213 |
120V 3 stage vacuum motor tangential |
|
|
| 08 |
991-2208 |
3 hole clutch plate (formerly 6 hole) |
|
|
| 09a |
991-5005 |
14/3 replacement power cord 50 foot (yellow) |
|
(NON-OEM) (does not include strain relief) |
| 09b |
991-5001 |
14/3 extension cord 50 foot (yellow) |
|
(NON-OEM) |
| 10 |
170-6163 |
On/off switch |
|
|
|
|
