- Pads - 255-1200 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 01 |
255-1240 |
12 inch aqua plus burnishing pad (pkg of 20) |
|
|
| 02 |
255-1235 |
12 inch Armadillo concrete scrubbing pad (pkg of 5) |
|
|
| 03 |
255-1264 |
12 inch Blue ace pad (pkg of 20) |
|
|
| 04 |
255-1242 |
12 inch Blue Jay burnishing pad (pkg of 20) |
|
|
| 05 |
255-1212 |
12 inch Cure white pad (pkg of 5) |
|
|
| 06 |
255-1277 |
12 inch Diamondback extreme stripping pad (pkg of 20) |
|
|
| 07 |
255-1238 |
12 inch EHD Extra Heavy Duty Concrete Leveling Pad (pkg of 2 |
|
|
| 08 |
255-1221 |
12 inch gorilla lite burnishing pad (pkg of 20) |
|
|
| 09 |
255-1250 |
12 inch gorilla spray buff/polish/burnish pad (pkg of 20) |
|
|
| 10 |
255-1265 |
12 inch Heat concrete bonding pad (pkg of 5) |
|
|
| 11 |
255-1230 |
12 inch jaguar burnishing pad (pkg of 20) |
|
|
| 12 |
255-1290 |
12 inch premium black stripping pad (pkg of 20) |
|
|
| 13 |
255-1270 |
12 inch premium blue cleaning pad (pkg of 20) |
|
|
| 14 |
255-1292 |
12 inch premium brown stripping pad (pkg of 20) |
|
|
| 15 |
255-1280 |
12 inch premium green scrubbing pad (pkg of 20) |
|
|
| 16 |
255-1260 |
12 inch premium red scrubbing pad (pkg of 20) |
|
|
| 17 |
255-1252 |
12 inch premium tan polishing pad (pkg of 20) |
|
|
| 18 |
255-1220 |
12 inch premium white polishing pad (pkg of 20) |
|
|
| 19 |
255-1295 |
12 inch razorback stripping pad (pkg of 20) |
|
|
| 20 |
255-1247 |
12 inch Redwood maroon floor prep pad (pkg of 10) |
|
|
| 21 |
255-1255 |
12 inch Ruff non-abrasive brush pad (pkg of 2) |
|
|
| 22 |
255-1211 |
12 inch superspeed rubberized pad (pkg of 20) |
|
|
| 23 |
255-0193 |
12 inch Superscreen sand screen 100grit(pkg of 10) (OBSOLETE |
|
|
| 24 |
255-0194 |
12 inch Superscreen sand screen 120 grit (pkg of 10) |
|
|
| 25 |
255-0195 |
12 inch Superscreen sand screen 180 grit (pkg of 10) |
|
|
| 26 |
255-0191 |
12 inch Superscreen sand screen 60 grit (pkg of 10) |
|
|
| 27 |
255-0192 |
12 inch Superscreen sand screen 80 grit (pkg of 10) |
|
|
| 28 |
255-0108 |
12 inch Professional sand screen 100 grit (pkg of 10) |
|
|
| 29 |
255-0109 |
12 inch Professional sand screen 120 grit (pkg of 10) |
|
|
| 30 |
255-0110 |
12 inch Professional sand screen 180 grit (pkg of 10) |
|
|
| 31 |
255-0106 |
12 inch Professional sand screen 60 grit (pkg of 10) |
|
|
| 32 |
255-0107 |
12 inch Professional sand screen 80 grit (pkg of 10) |
|
|
| 34 |
255-1224 |
12 inch Tiger carpet bonnet (pkg of 2) |
|
|
| 35 |
255-9535 |
12 inch Diamond by Gorilla 11000 Grit (pkg of 2) |
|
|
| 36 |
255-9532 |
12 inch Diamond by Gorilla 1500 Grit (pkg of 2) |
|
|
| 37 |
255-9529 |
12 inch Diamond by Gorilla 200 Grit (pkg of 2) |
|
|
| 38 |
255-9533 |
12 inch Diamond by Gorilla 3000 Grit (pkg of 2) |
|
|
| 39 |
255-9530 |
12 inch Diamond by Gorilla 400 Grit (pkg of 2) |
|
|
| 40 |
255-9531 |
12 inch Diamond by Gorilla 800 Grit (pkg of 2) |
|
|
| 41 |
255-9534 |
12 inch Diamond by Gorilla 8000 Grit (pkg of 2) |
|
|
| 42 |
255-9637 |
12 inch Diamond starter pack (1 of each grit) |
|
|
| 43 |
255-1215 |
12 inch Duala clean and shine pad - low speed (pkg of 5) |
|
|
| 44 |
255-1216 |
12 inch 2001 Duala clean and shine pad-high speed (pkg of 5) |
|
|
|
|
Chassis Assembly - 270-5582 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
472-0291 |
Brush key lock (jet black) |
1 |
|
| 2 |
472-0270 |
AXLE HIGHT ADJUSTMENT ROLLER |
1 |
|
| 3 |
472-0286 |
BRUSH MOUNTING |
1 |
|
| 4 |
472-0285 |
DOSING BRIDGE |
2 |
|
| 5a |
472-0250 |
SQUEEGEE 12.5IN 13 KIT |
1 |
|
| 5b |
472-0251 |
SQUEEGEE CARPET 12.5IN 13 KIT |
1 |
|
| 6 |
472-0296 |
NOZZLE HEAD |
1 |
(chassis) |
| 7 |
472-0308 |
SQUEEGEE PEDAL JET BLACK |
1 |
|
| 8 |
472-0282 |
CLUTCH OVERLOAD CPL |
1 |
|
| 9 |
472-0301 |
REAR WHEEL -90 WITH AXLE CPL. |
1 |
|
| 10 |
472-0311 |
TOP COVER CHASSIS ALTO BLUE (OBSOLETE) |
1 |
(top cover) |
| 11 |
472-0306 |
SQUEEGEE LIFTER |
1 |
|
| 12a |
472-0244 |
12.5 inch brush (white) |
1 |
|
| 12b |
472-0245 |
BRUSH 12.5IN HARD BLACK |
1 |
|
| 12c |
472-0246 |
BRUSH 12.5IN MICROFIBER |
1 |
|
| 12d |
472-0247 |
BRUSH 12.5IN CARPET |
1 |
|
| 13 |
472-0311 |
TOP COVER CHASSIS ALTO BLUE (OBSOLETE) |
1 |
(y-connector) |
| 14 |
472-0323 |
BEARING COVER LEFT |
1 |
|
| 15 |
472-0272 |
BRUSH BEARING COVER |
1 |
|
| 16 |
472-0296 |
NOZZLE HEAD |
2 |
(axle) |
| 17 |
472-0273 |
BANDO BELT-BRUSH |
1 |
|
| 18 |
472-0296 |
NOZZLE HEAD |
1 |
(frame) |
| 19 |
472-0274 |
HOSE AIRCHANNEL |
1 |
|
| 20 |
472-0298 |
PARKING PEDAL ORANGE |
1 |
|
| 21 |
472-0307 |
SQUEEGEE LIFTER-BODY |
4 |
|
| 22 |
472-0296 |
NOZZLE HEAD |
2 |
(support roller) |
| 23 |
472-0311 |
TOP COVER CHASSIS ALTO BLUE (OBSOLETE) |
1 |
(silicone hose) |
| 24 |
472-0311 |
TOP COVER CHASSIS ALTO BLUE (OBSOLETE) |
1 |
(silicone hose) |
| 25 |
472-0296 |
NOZZLE HEAD |
1 |
(right hand bumper) |
| 26 |
472-0296 |
NOZZLE HEAD |
1 |
(left hand bumper) |
| 27 |
472-0283 |
COVER FOR SQUEEGEE CHANNEL BLK |
1 |
|
| K1 |
472-0296 |
NOZZLE HEAD |
1 |
(includes 6,16,18,22,25 and 26) |
| K2 |
472-0311 |
TOP COVER CHASSIS ALTO BLUE (OBSOLETE) |
1 |
(includes 10,23 and 24) |
|
|
Body Assembly - 270-5583 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
472-0317 |
COG WHEEL M3 14 T |
1 |
|
| 2 |
472-0325 |
SEALING LEFT + RIGHT |
2 |
|
| 3 |
472-0320 |
WIRE W. FASTONS |
1 |
|
| 4 |
472-0322 |
PROFIL ALUMINIUM WITH TUBES |
2 |
|
| 5 |
472-0309 |
SILICONE HOSE 10X6 |
1 |
|
| 6 |
472-0293 |
LID FOR FILTER JET BLACK |
1 |
|
| 7 |
472-0331 |
BODY RIGHT RAL 7016 |
1 |
(p-clip) |
| 8 |
472-0340 |
MOTOR HOUSING US |
1 |
|
| 9 |
472-0289 |
GASKET IN/OUT |
1 |
|
| 10 |
472-0343 |
TOP COVER CLARKE |
1 |
(flow base) |
| 11 |
472-0335 |
DOSING PUMP, CLARKE |
1 |
|
| 12 |
472-0332 |
BODY LEFT RAL 7016 |
1 |
(lid for outlet,motor) |
| 13 |
472-0331 |
BODY RIGHT RAL 7016 |
1 |
(lid for outlet,turbine) |
| 14 |
472-0343 |
TOP COVER CLARKE |
1 |
(adapter top cover) |
| 16 |
472-0326 |
TOP COVER BASE SCRUBTEC130 (OBSOLETE) |
1 |
|
| 17 |
472-0288 |
SOLUTION FILTER |
1 |
|
| 18 |
472-0332 |
BODY LEFT RAL 7016 |
1 |
(left body) |
| 20 |
472-0343 |
TOP COVER CLARKE |
1 |
(topcover) |
| 21 |
472-0281 |
CAP FOR SPOT CLEANING BLACK |
1 |
|
| 22 |
472-0343 |
TOP COVER CLARKE |
1 |
(adapter tube) |
| 23 |
472-0332 |
BODY LEFT RAL 7016 |
1 |
(left pom bearing) |
| 24 |
472-0331 |
BODY RIGHT RAL 7016 |
1 |
(right pom bearing) |
| 25 |
472-0331 |
BODY RIGHT RAL 7016 |
1 |
(right body) |
| 27 |
472-0332 |
BODY LEFT RAL 7016 |
1 |
(suction hose bend) |
| K1 |
472-0331 |
BODY RIGHT RAL 7016 |
1 |
|
| K2 |
472-0332 |
BODY LEFT RAL 7016 |
1 |
|
| K3 |
472-0343 |
TOP COVER CLARKE |
1 |
|
|
|

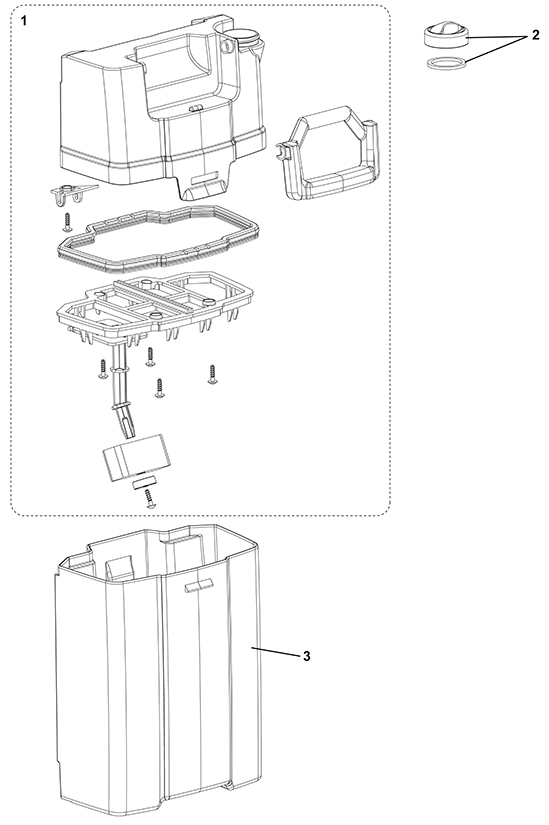

Recovery Tank Assembly - 270-5584 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
472-0313 |
TOP RECOVERY TANK ALTO BLUE |
1 |
|
| 2 |
472-0279 |
CAP FOR RECOVERY TANK |
1 |
|
| 3 |
472-0300 |
RECOVERY TANK BLUE |
1 |
|
|
|
Soultion Tank Assembly - 270-5585 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
472-0304 |
SOLUTION TANK, NO LEVEL INDICA |
1 |
|
| 2 |
472-0280 |
CAP SOLUTION TANK JET BLACK |
1 |
|
| 3 |
472-0315 |
VALVE FOR SOLUTION TANK CPL. |
1 |
|
|
|

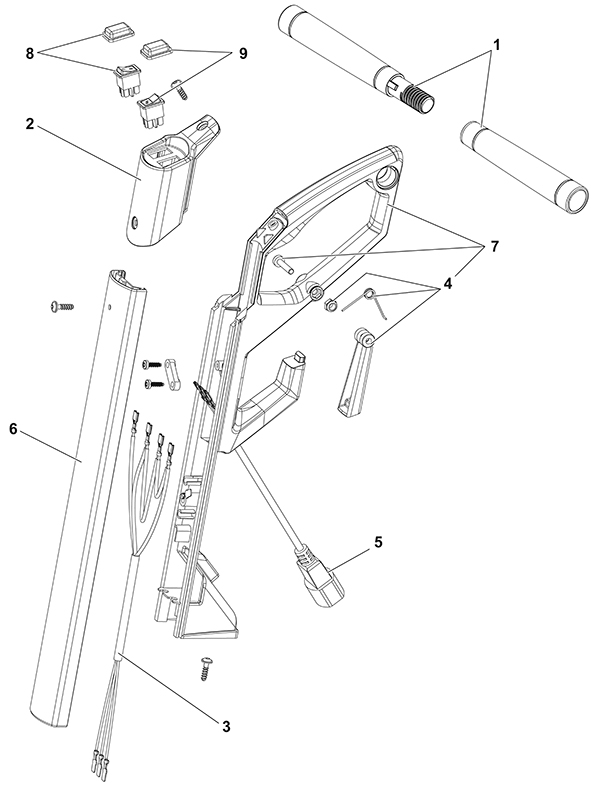

Handle Assembly - 270-5586 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
472-0269 |
2-HAND HANDLE |
1 |
|
| 2 |
472-0342 |
USER INTERFACE COVER-CLARKE |
1 |
|
| 3 |
472-0278 |
CABLE F. 2 SWITCH UI |
1 |
|
| 4 |
472-0276 |
CARABINA AND SPRING FOR HANDLE |
1 |
|
| 5 |
472-0284 |
DETACHABLE CORD MALE PLUG |
1 |
|
| 6 |
472-0271 |
ALUMINUM TUBE-HANDRAIL |
1 |
|
| 7 |
472-0338 |
HANDLE SCRUBBER CLARKE |
1 |
|
| 8 |
472-0302 |
SWITCH, MAIN |
1 |
|
| 9 |
472-0303 |
SWITCH F. PUMP |
1 |
|
|
|
- Commonly Asked For Parts - 270-9980 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 01 |
472-0246 |
BRUSH 12.5IN MICROFIBER |
1 |
|
| 02 |
472-0282 |
CLUTCH OVERLOAD CPL |
1 |
|
| 03 |
472-0291 |
Brush key lock (jet black) |
1 |
|
|
|
- Pad Holders - 275-9029 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
991-2214 |
Center-Lok II pad holder - left hand thread (red) |
|
|
| 2a |
991-2201 |
Center-Lok II pad holder - right hand thread (black) |
|
(Pad driver side female, Floor side male) |
| 2b |
991-8577 |
Pad retainer |
|
(Pad driver side male, Floor side female) |
| 3a |
991-2202 |
Big mouth pad holder set (blue) |
|
(includes 3 screws) |
| 3b |
991-2205 |
Deep lock ring and pad grip ring |
|
|
| 4 |
991-2203 |
Big mouth pad holder male thread portion |
|
|
| 5 |
991-2206 |
Center-Lok 3 pad holder |
|
(includes 3 screws) |
| 6 |
996-0372 |
Big mouth pad holder (left hand thread) |
|
|
| 8 |
991-2209 |
Split retainer - pad holder ring (OBSOLETE) |
|
|
| 9 |
N/A |
Not available |
|
(replaced by #3 991-2202) |
| 10 |
991-2211 |
Center lock pad holding cup (male) (yellow) (OBSOLETE) |
|
|
|
|
