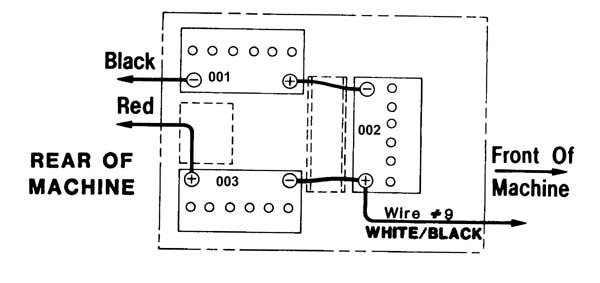

Battery Installation - |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
|
|

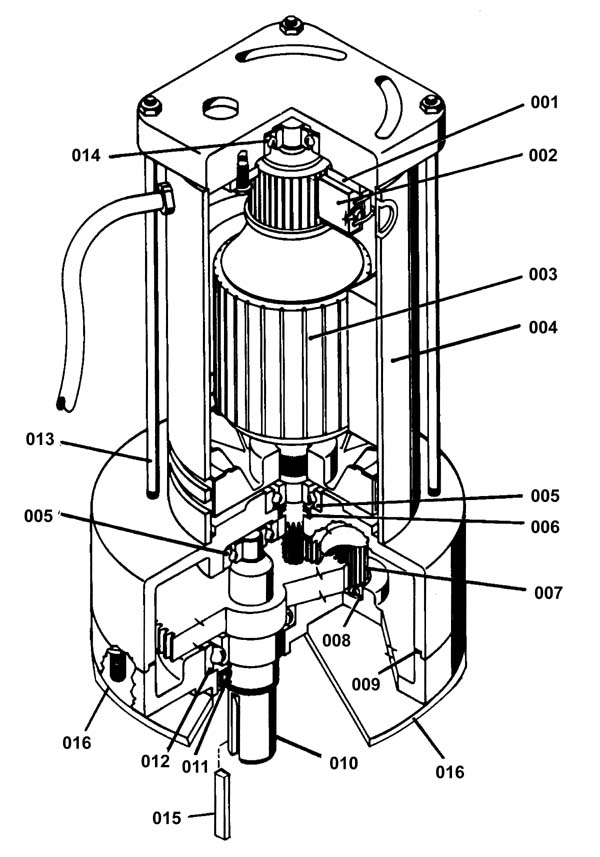

Brush Drive Motor - 170-0032 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 001 |
170-5728 |
Brush Card Assembly (OBSOLETE) |
1 |
|
| 002 |
170-5729 |
Brush Assembly (OBSOLETE) |
2 |
|
| 003 |
170-5730 |
Armature Assembly (OBSOLETE) |
1 |
|
| 004 |
170-5731 |
Field Assembly (OBSOLETE) |
1 |
|
| 005 |
170-5732 |
Bearing Ball (OBSOLETE) |
2 |
|
| 006 |
170-5733 |
Seal-Input (OBSOLETE) |
1 |
|
| 007 |
170-5734 |
Gear- Cluster (OBSOLETE) |
1 |
|
| 008 |
170-5735 |
Bearing Ball (OBSOLETE) |
2 |
|
| 009 |
170-5736 |
Gasket (OBSOLETE) |
1 |
|
| 010 |
170-5737 |
Gear-Output (OBSOLETE) |
1 |
|
| 011 |
170-5738 |
Seal-Output (OBSOLETE) |
1 |
|
| 012 |
372-1890 |
Bearing (rear) |
1 |
|
| 013 |
170-5740 |
Stud-10-32 x 8-1/2 (OBSOLETE) |
4 |
|
| 014 |
170-5741 |
Bearing Ball (OBSOLETE) |
1 |
|
| 015 |
164-0132 |
Square keyway 1/4 x 1/4 |
1 |
|
| 016 |
170-5742 |
Plate Adapter (OBSOLETE) |
1 |
|
| N/S |
170-5743 |
Grease - Syn-Tech 0.5 (OBSOLETE) |
|
|
|
|

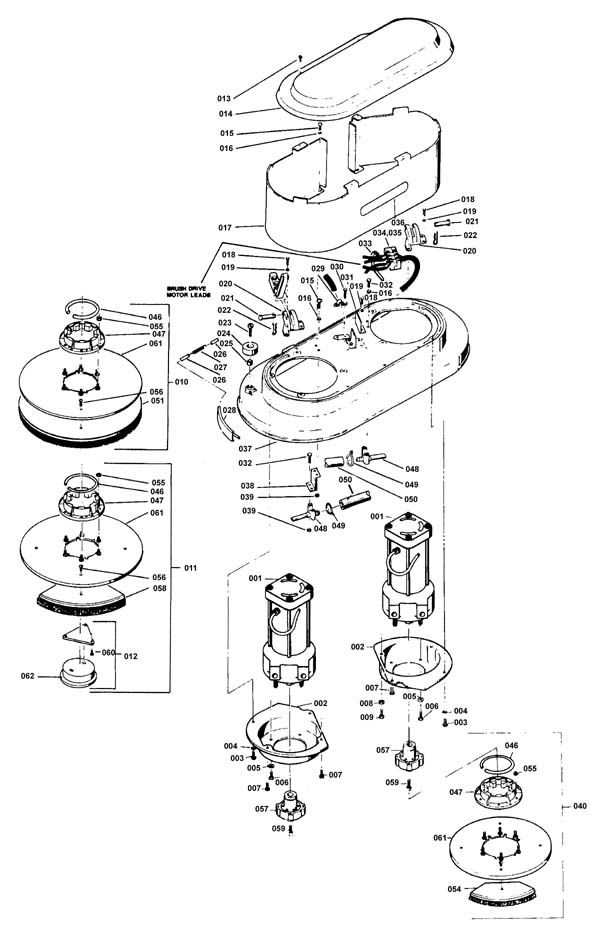

Brush Housing Assembly - 170-0033 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 001 |
170-5744 |
Motor- Gear (OBSOLETE) |
2 |
|
| 002 |
170-5745 |
Adaptor-Motor (OBSOLETE) |
2 |
|
| 003 |
999-0297 |
Bolt 1/4-20 x 1 hex head stainless steel |
4 |
|
| 004 |
999-0017 |
Washer 1/4 external star lock |
4 |
|
| 005 |
999-0016 |
Washer 1/4 flat plain finish |
8 |
|
| 006 |
999-0020 |
Bolt 1/4-20 x 3/4 hex head grade 5 zinc plated |
10 |
|
| 007 |
999-0031 |
Bolt 5/16-18 x 1 hex head grade 5 zinc plated |
3 |
|
| 008 |
999-0105 |
Washer 5/16 external star lock zinc plated |
11 |
|
| 009 |
999-0162 |
Bolt 5/16-18 x 1 1/4 hex head grade 5 zinc plated |
1 |
|
| 010 |
NOTE |
Please See Batteries, Brushes, Pad Holders and Charger Pages |
|
|
| 011 |
NOTE |
Please See Batteries, Brushes, Pad Holders and Charger Pages |
|
|
| 012a |
N/A |
Not available |
2 |
Pad holder - Can replace with 991-2206 |
| 012b |
991-2212 |
Plastic plate only (for 991-2207) (OBSOLETE) |
|
|
| 013 |
999-0267 |
Screw 10-24 x 1/2 pan head phillips zinc |
4 |
|
| 014 |
170-5750 |
Cover- Brush Housing (OBSOLETE) |
1 |
|
| 015 |
999-0267 |
Screw 10-24 x 1/2 pan head phillips zinc |
8 |
|
| 016 |
999-0311 |
Washer #10 external star lock zinc plated |
10 |
|
| 017 |
170-5751 |
Shield- Brush Housing (OBSOLETE) |
1 |
|
| 018 |
999-0132 |
Bolt 5/16-18 x 3/4 hex head grade 5 zinc plated |
10 |
|
| 019 |
999-0105 |
Washer 5/16 external star lock zinc plated |
14 |
|
| 020 |
170-0008 |
Brush housing bracket (OBSOLETE) |
2 |
|
| 021 |
170-0398 |
Connecting pin |
2 |
|
| 022 |
997-2516 |
Cotter pin |
2 |
|
| 023 |
999-1667 |
Screw 5/16-18 x 1 1/4 socket head stainless steel |
1 |
|
| 024 |
170-0404 |
Wheel spacer (OBSOLETE) |
1 |
|
| 025 |
170-0403 |
Brush guide wheel (OBSOLETE) |
1 |
|
| 026 |
170-5753 |
Strip Skirt Retaining (OBSOLETE) |
2 |
|
| 027 |
170-0068 |
Control handle spring (OBSOLETE) |
1 |
|
| 028 |
170-5754 |
Skirt-Brush Housing (OBSOLETE) |
1 |
|
| 029 |
170-0401 |
Wire clamp (OBSOLETE) |
1 |
|
| 030 |
999-0462 |
Screw 8-32 x 1/2 pan head slotted zinc plated |
2 |
|
| 031 |
170-0405 |
Housing lift bracket (OBSOLETE) |
2 |
|
| 032 |
999-0574 |
Screw 10-24 x 1 3/4 pan head slotted zinc plated |
4 |
|
| 034 |
170-0218 |
Contact pins for charger plug (sold individually) |
4 |
|
| 035 |
170-0009 |
Connector housing |
8 |
|
| 036 |
170-0419 |
Label - Series II (OBSOLETE) |
1 |
|
| 037 |
170-5755 |
Housing Brush (OBSOLETE) |
1 |
|
| 038 |
170-5756 |
Bracket- solution adapter (OBSOLETE) |
1 |
|
| 039 |
999-0062 |
Nut 10-24 hex |
4 |
|
| 040 |
170-5757 |
Brush Assembly (OBSOLETE) |
2 |
|
| 046 |
170-0031 |
Brush holder spring |
2 |
|
| 047 |
996-0336 |
Clutch plate with brush holder spring |
2 |
|
| 048 |
170-0400 |
Solution adapter |
2 |
|
| 049 |
997-2004 |
Hose clamp |
2 |
|
| 050 |
170-0408 |
Valve/brush hose |
2 |
|
| 051 |
170-5758 |
Pad-Positive Grip Driver (OBSOLETE) |
2 |
|
| 054 |
170-5759 |
Brush- poly-sectional |
2 |
|
| 055 |
999-0190 |
Nut 1/4-20 hex plain finish |
12 |
|
| 056 |
999-0413 |
Screw 10-32 x 1/2 pan head slotted zinc plated |
8 |
|
| 057a |
170-0207 |
Male gimbal with collar |
2 |
|
| 057b |
170-0207 |
Male gimbal with collar |
|
|
| 058 |
170-5760 |
Block Assembly-sectional (OBSOLETE) |
8 |
|
| 059 |
170-0461 |
Screw 5/16-18 x 3/4 truss head thread cutting ss (OBSOLETE) |
2 |
|
| 060 |
999-0451 |
Screw 10-16 x 5/8 pan head phillips self-drilling |
8 |
|
| 061 |
170-5762 |
Plate Assembly-brush holder (OBSOLETE) |
2 |
|
|
|

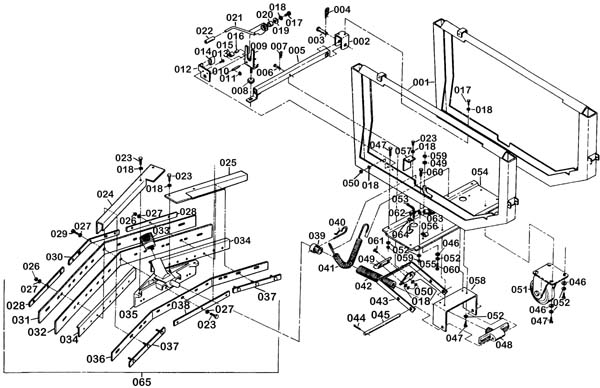

Frame, Caster, and Squeegee Assembly - 170-0034 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 001 |
170-0420 |
Main frame assembly (OBSOLETE) |
2 |
|
| 002 |
N/A |
Not available |
2 |
(Not Available) Bracket Pivot Squeegee |
| 003 |
170-0398 |
Connecting pin |
1 |
|
| 004 |
997-2516 |
Cotter pin |
1 |
|
| 005 |
170-0422 |
Squeegee arm assembly (OBSOLETE) |
1 |
|
| 006 |
170-0423 |
Release pin (FSO) (OBSOLETE) |
1 |
|
| 007 |
170-0135 |
Cotter pin (OBSOLETE) |
3 |
|
| 008 |
170-0424 |
Knob adjustment (OBSOLETE) |
1 |
|
| 009 |
170-0425 |
Bracket and screw assembly (OBSOLETE) |
1 |
|
| 010 |
170-0426 |
Pin follower (OBSOLETE) |
1 |
|
| 011 |
170-0427 |
Retaining ring (OBSOLETE) |
2 |
|
| 012 |
170-0428 |
Squeegee pedal plate assembly (OBSOLETE) |
1 |
|
| 013 |
999-0326 |
Screw 1/4-20 x 3/4 flat head phillips zinc plated |
2 |
|
| 014 |
170-0429 |
Pedal stop sleeve (OBSOLETE) |
1 |
|
| 015 |
170-0430 |
Follower (OBSOLETE) |
1 |
|
| 016 |
170-0431 |
Sleeve bearing (OBSOLETE) |
1 |
|
| 017 |
999-0020 |
Bolt 1/4-20 x 3/4 hex head grade 5 zinc plated |
3 |
|
| 018 |
999-0060 |
Washer 1/4 split lock plain finish |
11 |
|
| 019 |
999-0160 |
Washer 1/4 x 1 1/4 fender zinc plated |
1 |
|
| 020 |
170-0432 |
Pedal assembly bushing (OBSOLETE) |
1 |
|
| 021 |
170-0433 |
Squeegee pedal assembly (OBSOLETE) |
1 |
|
| 022 |
170-0434 |
Brake pedal cover (OBSOLETE) |
1 |
|
| 023 |
999-0644 |
Bolt 1/4-20 x 1/2 hex head stainless steel |
9 |
|
| 024 |
170-5764 |
Squeegee frame left hand (OBSOLETE) |
1 |
|
| 025 |
170-5765 |
Squeegee frame right hand (OBSOLETE) |
1 |
|
| 026 |
999-0465 |
Screw 6-32 x 3/8 oval head phillips zinc |
4 |
|
| 027 |
999-0016 |
Washer 1/4 flat plain finish |
12 |
|
| 028 |
170-5766 |
Squeegee blade retainer rear (OBSOLETE) |
2 |
|
| 029 |
999-0076 |
Bolt 1/2-20 x 1 hex head grade 5 plain finish |
5 |
|
| 030 |
170-0438 |
Center rear retainer (OBSOLETE) |
1 |
|
| 031 |
170-5767 |
Squeegee blade back up |
1 |
|
| 032 |
170-0712 |
Squeegee blade |
1 |
|
| 033 |
170-0007 |
Squeegee hose with cuffs |
1 |
|
| 034 |
170-5769 |
Squeegee blade rear support |
2 |
|
| 035 |
170-0442 |
Squeegee housing (OBSOLETE) |
1 |
|
| 036 |
170-0711 |
Squeegee blade front (OBSOLETE) |
1 |
|
| 037 |
170-5770 |
Squeegee retainer assembly (OBSOLETE) |
2 |
|
| 038 |
170-0445 |
Center front retainer (OBSOLETE) |
1 |
|
| 039 |
170-0446 |
Spring coupling |
1 |
|
| 040 |
170-0447 |
Squeegee locking pin |
1 |
|
| 041 |
N/A |
Not available |
1 |
Spring |
| 042 |
170-0449 |
Squeegee spring (OBSOLETE) |
1 |
|
| 043 |
170-0450 |
Squeegee bracket |
1 |
|
| 044 |
997-2500 |
Cotter pin |
2 |
|
| 045 |
170-0452 |
Squeegee pivot shaft (OBSOLETE) |
1 |
|
| 046 |
999-0549 |
Washer 5/16 x 3/4 SAE flat stainless steel |
10 |
|
| 047 |
999-0132 |
Bolt 5/16-18 x 3/4 hex head grade 5 zinc plated |
14 |
|
| 048 |
170-0454 |
Squeegee bracket guide |
1 |
|
| 049 |
170-0005 |
Squeegee pad |
1 |
|
| 050 |
999-0190 |
Nut 1/4-20 hex plain finish |
4 |
|
| 051a |
991-2011 |
Caster wheel assembly |
2 |
|
| 051b |
991-2004 |
Caster and swivel assembly |
2 |
|
| 051c |
170-7201 |
Caster wheel |
2 |
|
| 052 |
999-0028 |
Washer 5/16 split lock plain finish |
18 |
|
| 054 |
170-0455 |
Caster bracket (OBSOLETE) |
1 |
|
| 055 |
170-0456 |
Squeegee pick up bracket (OBSOLETE) |
1 |
|
| 056 |
170-0457 |
Strap (OBSOLETE) |
1 |
|
| 057 |
170-0458 |
Squeegee bracket guide (OBSOLETE) |
1 |
|
| 058 |
170-0459 |
Squeegee pivot bracket (OBSOLETE) |
1 |
|
| 059 |
999-0069 |
Nut 5/16-18 hex |
5 |
|
| 060 |
999-0162 |
Bolt 5/16-18 x 1 1/4 hex head grade 5 zinc plated |
3 |
|
| 061 |
999-0432 |
Screw 1/4-20 x 1 1/4 pan head phillips zinc plated |
2 |
|
| 062 |
572-3946 |
5/8 inch elbow |
1 |
|
| 063 |
997-2004 |
Hose clamp |
2 |
|
| 064 |
997-2004 |
Hose clamp |
1 |
|
| 065 |
170-5771 |
Squeegee assembly (OBSOLETE) |
1 |
|
|
|

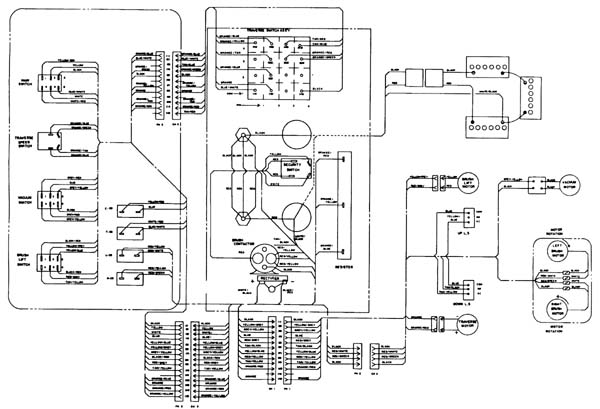

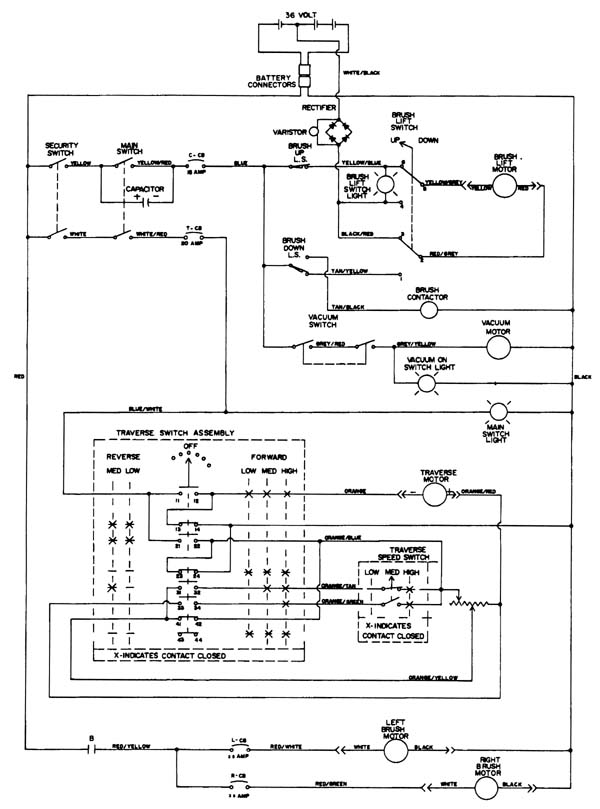

Connection Diagram - |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
|
|

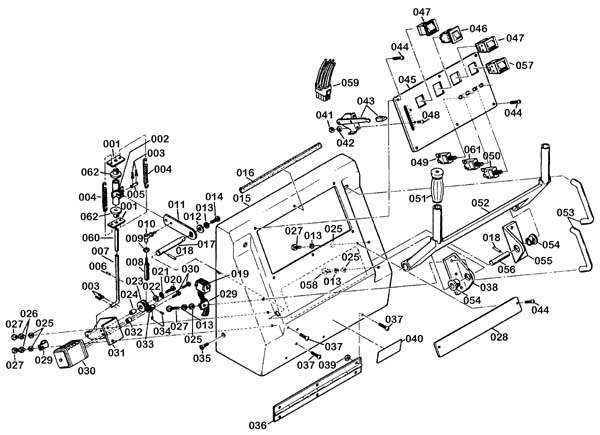

Control Housing Assembly - 170-0036 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 001 |
170-0504 |
Spring plate (OBSOLETE) |
2 |
|
| 002 |
N/A |
Not available |
1 |
(not available) Centering tube assembly |
| 003 |
997-2500 |
Cotter pin |
4 |
|
| 004 |
170-0127 |
Brake spring |
2 |
|
| 005 |
170-0506 |
1/4 inch diameter pin (OBSOLETE) |
1 |
|
| 007 |
170-0508 |
Centering rod (FSO) (OBSOLETE) |
1 |
|
| 008 |
170-0509 |
Switch rack (OBSOLETE) |
1 |
|
| 009 |
999-0460 |
Nut 10-32 hex |
1 |
|
| 010 |
170-5772 |
Ball joint assembly (OBSOLETE) |
1 |
|
| 011 |
170-0512 |
Switch actuator arm (FSO) (OBSOLETE) |
1 |
|
| 012 |
999-0160 |
Washer 1/4 x 1 1/4 fender zinc plated |
1 |
|
| 013 |
999-0028 |
Washer 5/16 split lock plain finish |
4 |
|
| 014 |
999-0132 |
Bolt 5/16-18 x 3/4 hex head grade 5 zinc plated |
1 |
|
| 015 |
170-0513 |
Control housing (OBSOLETE) |
1 |
|
| 016 |
N/A |
Not available |
1 |
(not available) Console panel gasket |
| 017 |
N/A |
Not available |
1 |
Handle pin |
| 018 |
N/A |
Not available |
2 |
(not available) Pin 3/16 inch diameter |
| 019 |
170-0517 |
Traverse switch harness assembly (OBSOLETE) |
1 |
|
| 020 |
999-0300 |
Bolt 1/4-20 x 7/8 hex head grade 5 zinc plated |
1 |
|
| 021 |
999-0017 |
Washer 1/4 external star lock |
1 |
|
| 022 |
999-0016 |
Washer 1/4 flat plain finish |
1 |
|
| 023 |
N/A |
Not available |
1 |
Rack retainer |
| 024 |
170-0519 |
Housing mount spacer (OBSOLETE) |
1 |
|
| 025 |
999-0549 |
Washer 5/16 x 3/4 SAE flat stainless steel |
5 |
|
| 026 |
999-0069 |
Nut 5/16-18 hex |
2 |
|
| 027 |
999-0162 |
Bolt 5/16-18 x 1 1/4 hex head grade 5 zinc plated |
4 |
|
| 028 |
170-0520 |
Warning label (FSO) (OBSOLETE) |
1 |
|
| 029 |
170-0457 |
Strap (OBSOLETE) |
2 |
|
| 030 |
170-0522 |
Switch (OBSOLETE) |
1 |
|
| 031 |
170-0523 |
Bracket switch (OBSOLETE) |
1 |
|
| 032 |
170-0524 |
Gear spacer (OBSOLETE) |
1 |
|
| 033 |
N/A |
Not available |
1 |
(Not Available) Gear switch |
| 034 |
999-0149 |
Screw 8-32 x 3/16 cup point socket set alloy plain finish |
2 |
|
| 035 |
999-0185 |
Screw 3/8-16 x 3/4 flat head slotted zinc plated |
2 |
|
| 036 |
170-0526 |
Hinge (OBSOLETE) |
1 |
|
| 037 |
999-0081 |
Screw 1/4-20 x 5/8 pan head slotted zinc |
7 |
|
| 038 |
170-0527 |
Adjusting left hand bracket (OBSOLETE) |
1 |
|
| 039 |
999-0190 |
Nut 1/4-20 hex plain finish |
5 |
|
| 040 |
N/A |
Not available |
1 |
(not available) |
| 041 |
999-0062 |
Nut 10-24 hex |
2 |
|
| 042 |
170-6125 |
Washer 1/8 lock |
2 |
|
| 043 |
N/A |
Not available |
1 |
(not available) Solution contol with cable |
| 044 |
999-0110 |
Screw 10-16 x 1/2 pan head phillips self-drilling |
8 |
|
| 045 |
170-0529 |
Panel console (OBSOLETE) |
1 |
|
| 046 |
170-0089 |
Rocker switch (OBSOLETE) |
1 |
|
| 048 |
999-0267 |
Screw 10-24 x 1/2 pan head phillips zinc |
2 |
|
| 049a |
170-0531 |
15amp circuit breaker |
1 |
|
| 049b |
991-8539 |
15amp circuit breaker |
1 |
(NON-OEM) |
| 050 |
991-1630 |
35amp circuit breaker |
2 |
|
| 051 |
170-0532 |
Handle grip (OBSOLETE) |
2 |
|
| 052 |
170-0533 |
Control handle (OBSOLETE) |
1 |
|
| 053 |
170-0534 |
Stationary handle (FSO) (OBSOLETE) |
2 |
|
| 054 |
170-0088 |
Flanged bearing (OBSOLETE) |
2 |
|
| 055 |
170-0541 |
Adjusting right hand bracket (OBSOLETE) |
1 |
|
| 056 |
170-0535 |
Handle pivot pin (OBSOLETE) |
1 |
|
| 058 |
999-0631 |
Bolt 3/8-16 x 5/8 hex head grade 5 zinc plated |
1 |
|
| 059 |
170-0538 |
Console harness assembly (OBSOLETE) |
1 |
|
| 060 |
170-0539 |
Centering tube (OBSOLETE) |
1 |
|
| 061 |
170-0545 |
Warning label (FSO) (OBSOLETE) |
1 |
|
| 062 |
170-0540 |
Bushing slide (OBSOLETE) |
2 |
|
| 063 |
999-0060 |
Washer 1/4 split lock plain finish |
3 |
|
|
|

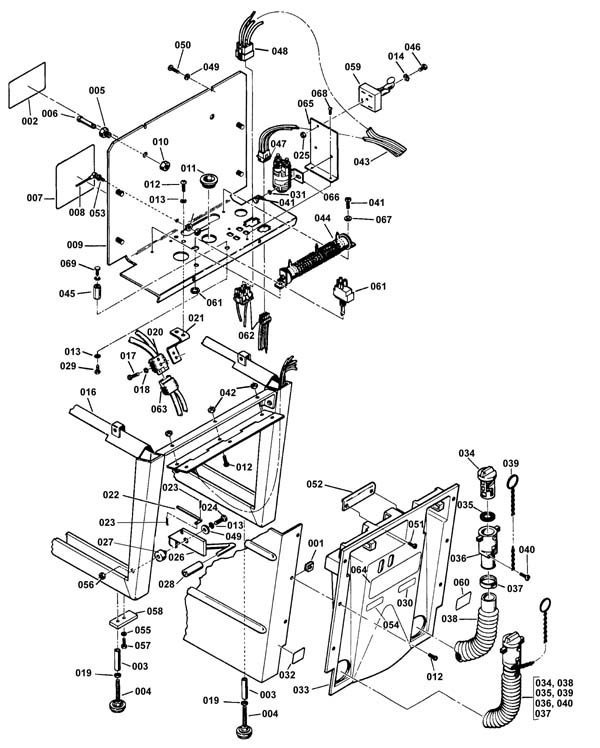

Electrical Panel and Rear Cover Assembly - 170-0037 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 001 |
170-0462 |
Nut 1/4-20 speed (OBSOLETE) |
6 |
|
| 002 |
170-0542 |
Battery care label (OBSOLETE) |
1 |
|
| 003 |
170-0543 |
Spacer (FSO) (OBSOLETE) |
2 |
|
| 005 |
170-0078 |
Tank stop bushing (OBSOLETE) |
2 |
|
| 006 |
170-0079 |
Release pin |
2 |
|
| 007 |
170-0545 |
Warning label (FSO) (OBSOLETE) |
1 |
|
| 008 |
170-0546 |
Tank stop cord assembly (OBSOLETE) |
1 |
|
| 009 |
170-5777 |
Electrical panel assembly (DISCONTINUED) |
1 |
|
| 010 |
999-0003 |
Nut 5/8-18 hex jam stainless steel |
2 |
|
| 011 |
N/A |
Not available |
2 |
(not available) Snap bushing |
| 012 |
999-0081 |
Screw 1/4-20 x 5/8 pan head slotted zinc |
11 |
|
| 013 |
999-0017 |
Washer 1/4 external star lock |
4 |
|
| 014 |
999-0311 |
Washer #10 external star lock zinc plated |
2 |
|
| 015 |
999-0460 |
Nut 10-32 hex |
1 |
|
| 016 |
170-0420 |
Main frame assembly (OBSOLETE) |
2 |
|
| 017 |
999-0511 |
Screw 6-32 x 1 pan head phillips zinc plated |
2 |
|
| 018 |
999-0148 |
Washer #6 external star lock zinc plated |
2 |
|
| 019 |
999-0247 |
Nut 3/8-16 hex jam plain finish |
2 |
|
| 020 |
170-0548 |
Console cable assembly |
1 |
|
| 021 |
170-0549 |
Power connect bracket (OBSOLETE) |
1 |
|
| 022 |
170-0550 |
Brake rod (OBSOLETE) |
1 |
|
| 023 |
997-2504 |
Cotter pin 1/16 x 1/2 |
2 |
|
| 024 |
999-0162 |
Bolt 5/16-18 x 1 1/4 hex head grade 5 zinc plated |
1 |
|
| 025 |
999-0062 |
Nut 10-24 hex |
1 |
|
| 026 |
170-0552 |
Brake pedal assembly (OBSOLETE) |
1 |
|
| 027 |
170-0553 |
Brake pedal spacer (FSO) (OBSOLETE) |
1 |
|
| 028 |
170-0434 |
Brake pedal cover (OBSOLETE) |
1 |
|
| 029 |
999-0175 |
Screw 1/4-20 x 3/8 pan head slotted zinc plated |
2 |
|
| 030 |
N/A |
Not available |
1 |
(not available) Solution drain label |
| 031 |
999-0016 |
Washer 1/4 flat plain finish |
1 |
|
| 032 |
170-0555 |
Parking brake label (FSO) (OBSOLETE) |
1 |
|
| 033 |
170-0556 |
Rear cover (OBSOLETE) |
1 |
|
| 034 |
170-0042 |
Drain valve handle |
2 |
|
| 035 |
170-0032 |
Drain valve gasket |
2 |
|
| 036 |
170-0043 |
Drain valve |
2 |
|
| 037 |
164-0218 |
Nylon hose clamp |
2 |
|
| 038 |
170-0557 |
Drain hose (OBSOLETE) |
2 |
|
| 039 |
170-0558 |
Drain chain assembly |
2 |
|
| 040 |
999-0576 |
Screw 8-18 x 1/2 pan head phillips self-drilling ss |
2 |
|
| 041 |
N/A |
Not available |
4 |
(Screw) |
| 042 |
999-0190 |
Nut 1/4-20 hex plain finish |
3 |
|
| 043 |
170-0559 |
Panel harness assembly (OBSOLETE) |
1 |
|
| 044 |
170-0065 |
Resistor (OBSOLETE) |
1 |
|
| 045 |
170-0063 |
Insulated stand off |
2 |
|
| 046 |
999-0705 |
Screw 10-24 x 3/4 pan head phillips stainless steel |
1 |
|
| 047 |
170-0560 |
Circuit plug housing (FSO) (OBSOLETE) |
1 |
|
| 048 |
N/A |
Not available |
1 |
Housing cap |
| 049 |
999-0549 |
Washer 5/16 x 3/4 SAE flat stainless steel |
3 |
|
| 050 |
170-0463 |
Screw 9/32-16 x 3/4 hex washer head hi-lo |
2 |
|
| 051 |
999-0110 |
Screw 10-16 x 1/2 pan head phillips self-drilling |
2 |
|
| 052 |
170-0562 |
Squeegee hose guide (OBSOLETE) |
1 |
|
| 053 |
170-0511 |
Ball joint assembly (OBSOLETE) |
1 |
|
| 054 |
N/A |
Not available |
1 |
(not available) Recovery drain label |
| 055 |
170-5781 |
Washer lock (OBSOLETE) |
1 |
|
| 056 |
999-0069 |
Nut 5/16-18 hex |
1 |
|
| 057 |
999-0578 |
Bolt 3/8-16 x 1/2 hex head grade 5 plain finish |
1 |
|
| 058 |
170-0564 |
Brake pedal stop (OBSOLETE) |
1 |
|
| 059 |
170-0565 |
Rectifer assembly (OBSOLETE) |
1 |
|
| 060 |
170-0566 |
Squeegee label (OBSOLETE) |
1 |
|
| 061 |
170-0567 |
On/off switch (OBSOLETE) |
1 |
|
| 062 |
170-0568 |
Machine harness assembly (OBSOLETE) |
1 |
|
| 063 |
170-0569 |
Battery cable assembly (OBSOLETE) |
1 |
|
| 064 |
170-0570 |
Lubrication label (FSO) (OBSOLETE) |
1 |
|
| 065 |
N/A |
Not available |
1 |
(not available) Bracket |
| 066 |
172-2805 |
36V contactor |
1 |
|
| 067 |
999-0016 |
Washer 1/4 flat plain finish |
4 |
|
| 068 |
999-0016 |
Washer 1/4 flat plain finish |
2 |
|
| 069 |
999-0267 |
Screw 10-24 x 1/2 pan head phillips zinc |
2 |
|
|
|

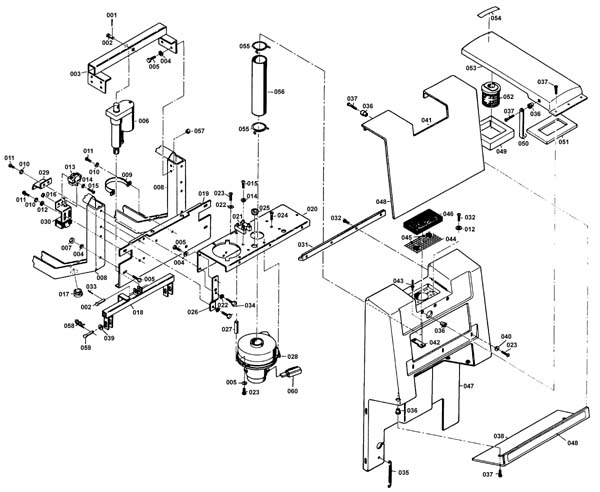

Front Panel Section - 170-0038 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 001 |
997-2516 |
Cotter pin |
1 |
|
| 002 |
170-0572 |
Clevis pin (FSO) (OBSOLETE) |
2 |
|
| 003 |
170-0573 |
Actuator support assembly (OBSOLETE) |
1 |
|
| 004 |
999-0060 |
Washer 1/4 split lock plain finish |
12 |
|
| 005 |
999-0020 |
Bolt 1/4-20 x 3/4 hex head grade 5 zinc plated |
10 |
|
| 006 |
170-0574 |
Linear actuator (OBSOLETE) |
1 |
|
| 007 |
999-0190 |
Nut 1/4-20 hex plain finish |
4 |
|
| 008 |
170-0420 |
Main frame assembly (OBSOLETE) |
2 |
|
| 009 |
170-0575 |
Actuator brace (OBSOLETE) |
1 |
|
| 010 |
170-6125 |
Washer 1/8 lock |
6 |
|
| 011 |
999-0267 |
Screw 10-24 x 1/2 pan head phillips zinc |
6 |
|
| 012 |
999-1416 |
Washer 7/16 flat stainless steel |
4 |
|
| 013 |
170-0576 |
Limit switch |
2 |
|
| 014 |
999-0148 |
Washer #6 external star lock zinc plated |
5 |
|
| 015 |
999-0511 |
Screw 6-32 x 1 pan head phillips zinc plated |
5 |
|
| 016 |
999-0195 |
Nut 6-32 hex plain |
4 |
|
| 017 |
N/A |
Not available |
1 |
(not available) Snap bushing |
| 018 |
170-0578 |
Bracket assembly (OBSOLETE) |
1 |
|
| 020 |
170-0580 |
Vacuum motor bracket (OBSOLETE) |
1 |
|
| 021 |
170-0581 |
Block terminal (OBSOLETE) |
1 |
|
| 022 |
999-0017 |
Washer 1/4 external star lock |
8 |
|
| 023 |
999-0081 |
Screw 1/4-20 x 5/8 pan head slotted zinc |
8 |
|
| 024 |
999-0326 |
Screw 1/4-20 x 3/4 flat head phillips zinc plated |
1 |
|
| 025 |
170-0582 |
Snap bushing (OBSOLETE) |
1 |
|
| 026 |
N/A |
Not available |
2 |
(Not Available) Vacuum motor bracket support |
| 027 |
170-0584 |
Vacuum motor bracket spacer (OBSOLETE) |
3 |
|
| 028 |
991-1217 |
36V 2 stage vacuum motor tangential with snout |
1 |
|
| 029 |
N/A |
Not available |
1 |
(Not Available) Shield Switch |
| 030 |
170-5783 |
Switch mounting bracket (OBSOLETE) |
1 |
|
| 031 |
170-0588 |
Tank seal (FSO) (OBSOLETE) |
1 |
|
| 032 |
999-0110 |
Screw 10-16 x 1/2 pan head phillips self-drilling |
6 |
|
| 033 |
997-2505 |
Cotter pin |
1 |
|
| 034 |
999-0415 |
Screw 1/4-20 x 3/4 pan head slotted zinc plated |
4 |
|
| 035 |
N/A |
Not available |
1 |
Idler tension spring |
| 037 |
170-5784 |
Screw 1/4-20 x 1-1/4 pan head |
8 |
|
| 038 |
170-0590 |
Front panel (FSO) (OBSOLETE) |
1 |
|
| 039 |
999-0549 |
Washer 5/16 x 3/4 SAE flat stainless steel |
2 |
|
| 040 |
999-0016 |
Washer 1/4 flat plain finish |
3 |
|
| 041 |
170-0591 |
Front cover panel (OBSOLETE) |
1 |
|
| 042 |
170-0592 |
Stop chamber brace (OBSOLETE) |
1 |
|
| 043 |
170-0775 |
1/8 inch rivet pop aluminum |
2 |
|
| 044 |
170-0594 |
Vacuum motor intake screen (OBSOLETE) |
1 |
|
| 045 |
170-0595 |
Pad lock button (OBSOLETE) |
2 |
|
| 046 |
170-0596 |
Vacuum motor filter |
1 |
|
| 047 |
170-0597 |
Front cover (OBSOLETE) |
1 |
|
| 048 |
N/A |
Not available |
1 |
(Not Available) Label clarke |
| 049 |
170-0599 |
Vacuum chamber gasket (OBSOLETE) |
1 |
|
| 050 |
170-0500 |
Vacuum chamber brace (OBSOLETE) |
1 |
|
| 051 |
170-0601 |
Filter gasket |
1 |
|
| 052 |
170-0602 |
Recovery float assembly (OBSOLETE) |
1 |
|
| 053 |
170-0603 |
Vacuum chamber (FSO) (OBSOLETE) |
1 |
|
| 054 |
170-0604 |
Charge Plug Label (FSO) (OBSOLETE) |
1 |
|
| 055 |
997-2007 |
Hose clamp |
2 |
|
| 056 |
170-0606 |
Vacuum tank hose |
1 |
|
| 057 |
170-0465 |
Nut 1/4-20 ESNA heavy jam |
4 |
|
| 058 |
170-0135 |
Cotter pin (OBSOLETE) |
2 |
|
| 059 |
170-0423 |
Release pin (FSO) (OBSOLETE) |
2 |
|
| 060 |
170-5786 |
Motor brush (OBSOLETE) |
2 |
|
|
|

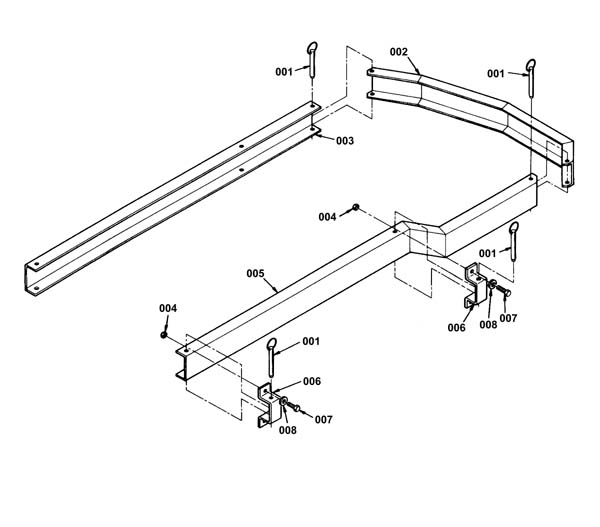

Heavy Duty Bumper Assembly - 170-0039 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 001 |
170-0607 |
Pin release (OBSOLETE) |
6 |
|
| 002 |
N/A |
Not available |
1 |
(Not Available) Rail assembly front |
| 003 |
N/A |
Not available |
1 |
(Not Available) Rail assembly left |
| 004 |
170-5787 |
Nut M8 x 1.25 |
8 |
|
| 005 |
N/A |
Not available |
1 |
(Not Available) Rail assembly right |
| 006 |
170-0611 |
Mounting bracket side (OBSOLETE) |
4 |
|
| 007 |
170-8034 |
Screw 8mm x 1.25 x 20 hex head (OBSOLETE) |
8 |
|
| 008 |
999-0032 |
Washer 3/8 USS flat plain finish |
8 |
|
|
|

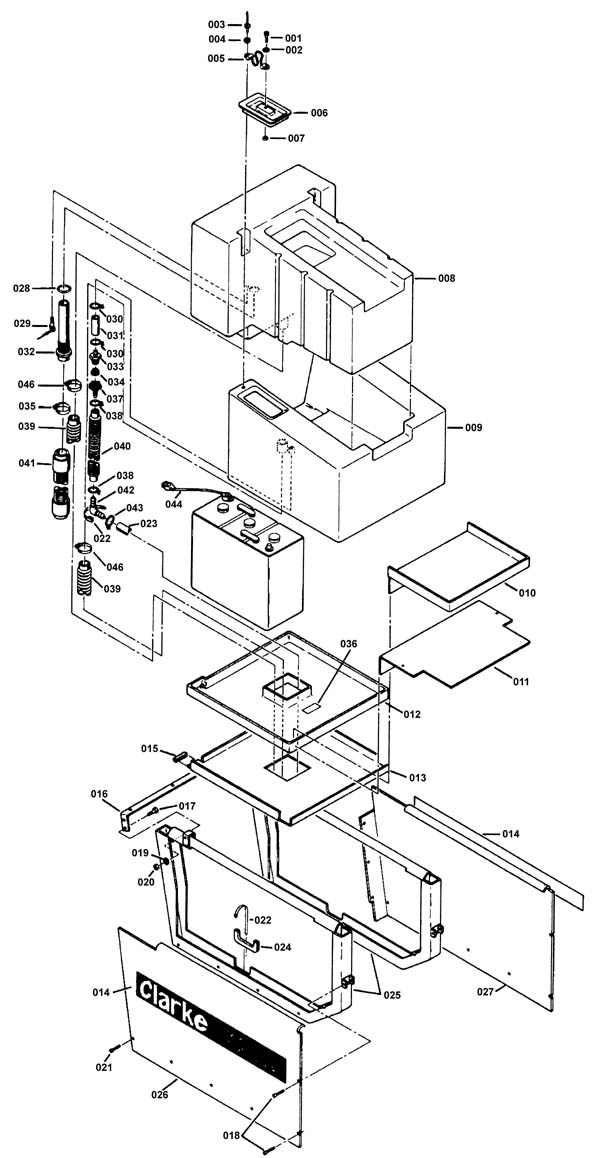

Main Frame and Tank Assembly - 170-0040 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 001 |
999-0267 |
Screw 10-24 x 1/2 pan head phillips zinc |
1 |
|
| 002 |
170-6125 |
Washer 1/8 lock |
1 |
|
| 003 |
170-0614 |
Rivet (OBSOLETE) |
1 |
|
| 004 |
999-1416 |
Washer 7/16 flat stainless steel |
1 |
|
| 005 |
172-2474 |
8 inch chain |
1 |
|
| 007 |
999-0062 |
Nut 10-24 hex |
1 |
|
| 008 |
170-5788 |
Recovery tank (OBSOLETE) |
1 |
|
| 009 |
170-5789 |
Solution tank (OBSOLETE) |
1 |
|
| 010 |
170-5790 |
Battery support liner (OBSOLETE) |
1 |
|
| 011 |
170-5791 |
Center battery support (OBSOLETE) |
1 |
|
| 012 |
170-0620 |
Battery tray liner (OBSOLETE) |
1 |
|
| 013 |
170-0621 |
Battery tray (OBSOLETE) |
1 |
|
| 014 |
170-0622 |
Clarke leader label (OBSOLETE) |
2 |
|
| 015 |
170-0627 |
Tray trim (OBSOLETE) |
1 |
|
| 017 |
999-0020 |
Bolt 1/4-20 x 3/4 hex head grade 5 zinc plated |
4 |
|
| 018 |
999-0415 |
Screw 1/4-20 x 3/4 pan head slotted zinc plated |
4 |
|
| 019 |
999-0060 |
Washer 1/4 split lock plain finish |
4 |
|
| 020 |
999-0190 |
Nut 1/4-20 hex plain finish |
4 |
|
| 021 |
999-0175 |
Screw 1/4-20 x 3/8 pan head slotted zinc plated |
8 |
|
| 023 |
170-0624 |
Elbow hose (OBSOLETE) |
|
|
| 024 |
170-0625 |
Frame trim (OBSOLETE) |
1 |
|
| 025 |
170-0420 |
Main frame assembly (OBSOLETE) |
|
|
| 026 |
170-0623 |
Right hand side panel (OBSOLETE) |
1 |
|
| 027 |
170-0635 |
Left hand side panel (OBSOLETE) |
1 |
|
| 029 |
170-0546 |
Tank stop cord assembly (OBSOLETE) |
1 |
|
| 030 |
170-0631 |
Clamp hose (OBSOLETE) |
2 |
|
| 031 |
170-0634 |
Tank to filter hose (OBSOLETE) |
1 |
|
| 032 |
170-0271 |
Hose adaptor assembly (OBSOLETE) |
1 |
|
| 035 |
997-2007 |
Hose clamp |
3 |
|
| 036 |
N/A |
Not available |
1 |
(not available) Caution label |
| 037 |
170-0633 |
Female swivel connector (FSO) (OBSOLETE) |
1 |
|
| 038 |
997-2004 |
Hose clamp |
2 |
|
| 039 |
170-0041 |
39 inch drain hose |
2 |
|
| 040 |
170-0632 |
Solution tank to elbow hose |
1 |
|
| 041 |
170-0007 |
Squeegee hose with cuffs |
|
|
| 042 |
572-3946 |
5/8 inch elbow |
1 |
|
| 043 |
997-2004 |
Hose clamp |
1 |
|
| 044 |
170-0224 |
Battery cable |
5 |
|
| 046 |
170-5794 |
Hose clamp (OBSOLETE) |
2 |
|
|
|

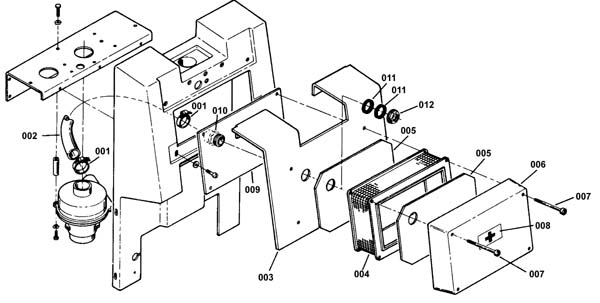

Micro Staphicidal Filter Kit - 170-0041 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 001 |
997-2007 |
Hose clamp |
2 |
|
| 002 |
N/A |
Not available |
1 |
(Not Available) Hose - vacuum to filter |
| 003 |
170-0639 |
Front cover panel (FSO) (OBSOLETE) |
1 |
|
| 004 |
N/A |
Not available |
1 |
(Not Available) Filter micro staphicidal |
| 005 |
170-5795 |
Filter gasket (OBSOLETE) |
2 |
|
| 006 |
N/A |
Not available |
1 |
(Not Available) Cover filter |
| 007 |
170-5796 |
Screw 1/4-20 x 5 inch rod (OBSOLETE) |
4 |
|
| 008 |
N/A |
Not available |
1 |
(Not Available) Label filter |
| 009 |
N/A |
Not available |
1 |
(Not Available) Support assembly filter |
| 010 |
N/A |
Not available |
1 |
(Not Available) Adapter Fitting |
| 011 |
170-0646 |
Gasket adapter waste (OBSOLETE) |
2 |
|
|
|
Roller Bumper Assembly - 170-0042 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 002 |
170-5797 |
Bolt 5/16-18 x 1/2 hex straight cap (OBSOLETE) |
4 |
|
| 003 |
N/A |
Not available |
2 |
(Not Available) Shaft roller |
| 004a |
170-0650 |
Rt Roller Frame Assy (OBSOLETE) |
1 |
|
| 004b |
170-0651 |
Lt Roller Frame Assy (OBSOLETE) |
1 |
|
| 006 |
170-8034 |
Screw 8mm x 1.25 x 20 hex head (OBSOLETE) |
2 |
|
| 007 |
999-0787 |
Bolt M8-1.25 x 40mm hex head full thread stainless steel |
4 |
|
| 008 |
N/A |
Not available |
8 |
(Not Available) Roller |
| 009 |
170-0653 |
Roller Spacer Assy (OBSOLETE) |
4 |
|
| 010 |
170-5787 |
Nut M8 x 1.25 |
4 |
|
| 011 |
N/A |
Not available |
1 |
(Not Available) Link Connecting |
|
|

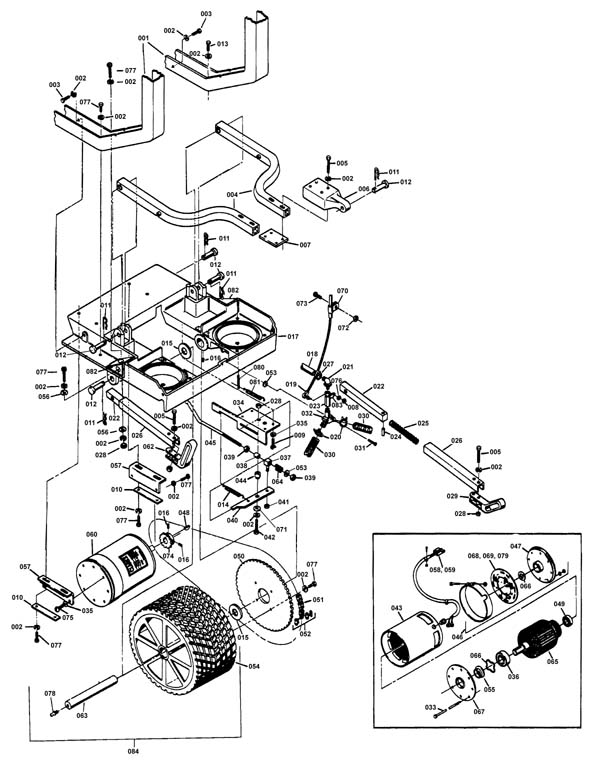

Support Assembly - 170-0043 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 001 |
170-0420 |
Main frame assembly (OBSOLETE) |
2 |
|
| 002 |
999-0028 |
Washer 5/16 split lock plain finish |
27 |
|
| 003 |
999-0399 |
Screw 5/16-18 x 3/4 pan head phillips zinc plated |
2 |
|
| 004 |
N/A |
Not available |
2 |
(not available) Brush lift arm assembly |
| 005 |
999-0108 |
Bolt 5/16-18 x 1 3/4 hex head grade 5 zinc plated |
8 |
|
| 006 |
170-5799 |
Brush lift link (OBSOLETE) |
1 |
|
| 007 |
N/A |
Not available |
1 |
(not available) Nut plate |
| 008 |
999-0460 |
Nut 10-32 hex |
1 |
|
| 009 |
999-0020 |
Bolt 1/4-20 x 3/4 hex head grade 5 zinc plated |
4 |
|
| 010 |
170-2026 |
Motor bracket retainer (OBSOLETE) |
2 |
|
| 011 |
997-2516 |
Cotter pin |
4 |
|
| 012 |
170-0398 |
Connecting pin |
4 |
|
| 013 |
999-0162 |
Bolt 5/16-18 x 1 1/4 hex head grade 5 zinc plated |
1 |
|
| 014 |
170-0127 |
Brake spring |
1 |
|
| 015 |
170-0143 |
Spacer washer (OBSOLETE) |
2 |
|
| 016 |
999-0095 |
Screw 1/4-20 x 3/8 cup point socket set alloy plain finish |
4 |
|
| 017 |
170-0659 |
Machine support (OBSOLETE) |
1 |
|
| 018 |
170-0624 |
Elbow hose (OBSOLETE) |
1 |
|
| 019 |
170-0511 |
Ball joint assembly (OBSOLETE) |
1 |
|
| 020 |
997-2004 |
Hose clamp |
2 |
|
| 021 |
170-0660 |
Solution elbow |
1 |
|
| 022 |
170-0661 |
Parallel arm (OBSOLETE) |
2 |
|
| 023 |
170-0006 |
Manual solution valve |
1 |
|
| 024 |
170-0662 |
Roll Pin (OBSOLETE) |
2 |
|
| 025 |
170-0663 |
Press control spring (OBSOLETE) |
2 |
|
| 026 |
170-0664 |
Parallel arm tube (OBSOLETE) |
2 |
|
| 027 |
997-2004 |
Hose clamp |
1 |
|
| 028 |
999-0069 |
Nut 5/16-18 hex |
7 |
|
| 029 |
170-0665 |
Left hand parallel arm end (OBSOLETE) |
1 |
|
| 030 |
170-0408 |
Valve/brush hose |
2 |
|
| 031 |
170-5784 |
Screw 1/4-20 x 1-1/4 pan head |
2 |
|
| 032 |
170-0208 |
Water splitter (OBSOLETE) |
1 |
|
| 033 |
170-0707 |
Bolt 1/4-20 x 5-3/4 hex head (OBSOLETE) |
1 |
|
| 034 |
170-0666 |
Brake arm guide (FSO) (OBSOLETE) |
1 |
|
| 035 |
999-0060 |
Washer 1/4 split lock plain finish |
5 |
|
| 036 |
170-0321 |
Front end bearing |
1 |
|
| 037 |
170-0130 |
Brake rod swivel |
1 |
|
| 038 |
170-0667 |
Brake rod spacer (FSO) (OBSOLETE) |
1 |
|
| 039 |
170-0465 |
Nut 1/4-20 ESNA heavy jam |
2 |
|
| 041 |
999-0211 |
Nut 5/16-18 hex nylon insert lock zinc plated |
1 |
|
| 042 |
999-0162 |
Bolt 5/16-18 x 1 1/4 hex head grade 5 zinc plated |
1 |
|
| 043 |
170-0384 |
Field assembly (OBSOLETE) |
1 |
|
| 044 |
170-0128 |
Brake arm spacer (OBSOLETE) |
1 |
|
| 045 |
170-0550 |
Brake rod (OBSOLETE) |
1 |
|
| 046 |
N/A |
Not available |
1 |
(Not Available) Bracket - commutator |
| 047 |
170-0378 |
Commutator bracket (OBSOLETE) |
1 |
|
| 048 |
164-0132 |
Square keyway 1/4 x 1/4 |
1 |
|
| 049 |
372-1890 |
Bearing (rear) |
1 |
|
| 050 |
170-0142 |
Drive sprocket |
1 |
|
| 051 |
170-2029 |
Drive chain |
1 |
|
| 052 |
991-0103 |
Master link |
1 |
|
| 053 |
999-0016 |
Washer 1/4 flat plain finish |
5 |
|
| 054 |
N/A |
Not available |
1 |
(Drive wheel assembly) |
| 056 |
999-0549 |
Washer 5/16 x 3/4 SAE flat stainless steel |
8 |
|
| 057 |
170-2031 |
Drive motor bracket (OBSOLETE) |
1 |
|
| 058 |
170-0385 |
Male terminal housing connector |
1 |
|
| 059 |
170-0386 |
Male terminal (OBSOLETE) |
1 |
|
| 060 |
170-0137 |
Drive motor |
1 |
|
| 062 |
170-0682 |
Right hand parallel arm end (OBSOLETE) |
1 |
|
| 063 |
170-0653 |
Roller Spacer Assy (OBSOLETE) |
1 |
|
| 064 |
170-0113 |
Spring (OBSOLETE) |
1 |
|
| 065 |
170-0381 |
Armature assembly (OBSOLETE) |
1 |
|
| 066 |
170-0379 |
Wave washer |
1 |
|
| 067 |
170-0703 |
Bottom end bracket (OBSOLETE) |
1 |
|
| 068 |
170-0387 |
Brush holder assembly (OBSOLETE) |
4 |
|
| 070 |
170-0263 |
Cable clip |
1 |
|
| 071 |
170-2033 |
Washer (OBSOLETE) |
1 |
|
| 073 |
999-0462 |
Screw 8-32 x 1/2 pan head slotted zinc plated |
1 |
|
| 074a |
170-0141 |
Drive sprocket (OBSOLETE) |
1 |
|
| 074b |
991-8554 |
SPROCKET-DRIVE MOTOR 898550 |
1 |
|
| 075 |
999-0644 |
Bolt 1/4-20 x 1/2 hex head stainless steel |
1 |
|
| 076 |
999-0311 |
Washer #10 external star lock zinc plated |
1 |
|
| 077 |
999-0132 |
Bolt 5/16-18 x 3/4 hex head grade 5 zinc plated |
16 |
|
| 078 |
170-0016 |
Grease fitting |
1 |
|
| 079 |
164-0325 |
Carbon brush with lead and terminal (sold individually) |
1 |
|
| 080 |
170-2035 |
Spring adjustment stud (OBSOLETE) |
1 |
|
| 081 |
170-2036 |
Spring (OBSOLETE) |
1 |
|
| 082 |
170-2037 |
Support weldment bracket (OBSOLETE) |
2 |
|
| 083 |
170-2038 |
Lever handle (OBSOLETE) |
1 |
|
| 084 |
170-2039 |
Wheel and shaft assembly (OBSOLETE) |
1 |
|
|
|
Wiring Diagram - |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
|
|
- Batteries, Brushes, and Chargers - 170-9912 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
162-0002 |
12V 185Ah wet battery (SNSR) |
3 |
|
| 2 |
162-0047 |
12V 215Ah AGM battery (Group J185) |
3 |
|
| 3 |
162-5062 |
36V 20amp battery charger with small SB50 gray plug |
1 |
|
|
162-9024 |
36V 12amp battery charger with small SB50 gray plug |
|
|
| 4 |
991-2105 |
SB50 50amp charger plug with pins (gray) |
1 |
|
| 5 |
996-0073 |
15 inch heavy grit stripping brush - 80 grit |
1 |
|
| 6 |
996-0015 |
15 inch medium grit scrubbing brush - 180 grit |
1 |
|
| 7 |
996-0532 |
15 inch lite grit scrubbing brush - 500 grit |
1 |
|
| 8 |
996-0273 |
15 inch polypropelene scrubbing brush |
1 |
|
| 9 |
996-0058 |
15 inch Pad driver |
1 |
|
| 10 |
996-0336 |
Clutch plate with brush holder spring |
1 |
|
|
|
- Pads - 255-1700 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 01 |
255-1740 |
17 inch aqua plus burnishing pad (pkg of 5) |
|
|
| 02 |
255-1735 |
17 inch Armadillo concrete scrubbing pad (pkg of 5) |
|
|
| 03 |
255-1764 |
17 inch Blue ace pad (pkg of 5) |
|
|
| 04 |
255-1742 |
17 inch Blue Jay burnishing pad (pkg of 5) |
|
|
| 05 |
255-1712 |
17 inch Cure white pad (pkg of 5) (OBSOLETE) |
|
|
| 06 |
255-1777 |
17 inch Diamondback extreme stripping pad (pkg of 5) |
|
|
| 07 |
255-1738 |
17 inch EHD Extra Heavy Duty Concrete Leveling Pad (pkg of 2 |
|
|
| 08 |
255-1721 |
17 inch gorilla lite burnishing pad (pkg of 5) |
|
|
| 09 |
255-1750 |
17 inch gorilla spray buff/polish/burnish pad (pkg of 5) |
|
|
| 10 |
255-1765 |
17 inch Heat concrete bonding pad (pkg of 5) |
|
|
| 11 |
255-1730 |
17 inch jaguar burnishing pad (pkg of 5) |
|
|
| 12 |
255-1767 |
17 inch Laminated 2001 Gorilla polish pad (pkg of 5) |
|
|
| 13 |
255-1768 |
17 inch Microclean daily cleaning pad (pkg of 2) |
|
|
| 14 |
255-1769 |
17 inch Micropolish polishing and burnishing pad (pkg of 2) |
|
|
| 15 |
255-1790 |
17 inch premium black stripping pad (pkg of 5) |
|
|
| 16 |
255-1770 |
17 inch premium blue cleaning pad (pkg of 5) |
|
|
| 17 |
255-1792 |
17 inch premium brown stripping pad (pkg of 5) |
|
|
| 18 |
255-1780 |
17 inch premium green scrubbing pad (pkg of 5) |
|
|
| 19 |
255-1760 |
17 inch premium red scrubbing pad (pkg of 5) |
|
|
| 20 |
255-1752 |
17 inch premium tan polishing pad (pkg of 5) |
|
|
| 21 |
255-1720 |
17 inch premium white polishing pad (pkg of 5) |
|
|
| 22 |
255-1711 |
17 inch superspeed rubberized pad (pkg of 5) |
|
|
| 23 |
255-1795 |
17 inch razorback stripping pad (pkg of 5) |
|
|
| 24 |
255-1747 |
17 inch Redwood maroon floor prep pad (pkg of 10) |
|
|
| 25 |
255-1755 |
17 inch Ruff non-abrasive brush pad (pkg of 2) |
|
|
| 26 |
255-1723 |
17 inch sand screen driver pad (pkg of 2) |
|
|
| 27 |
255-0139 |
17 inch Professional sand screen 100 grit (pkg of 10) |
|
|
| 28 |
255-0019 |
17 inch Professional sand screen 120 grit (pkg of 10) |
|
|
| 29 |
255-0140 |
17 inch Professional sand screen 150 grit (pkg of 10) |
|
|
| 30 |
255-0141 |
17 inch Professional sand screen 180 grit (pkg of 10) |
|
|
| 31 |
255-0142 |
17 inch Professional sand screen 220 grit (pkg of 10) |
|
|
| 32 |
255-0143 |
17 inch Professional sand screen 400 grit (pkg of 10) |
|
|
| 33 |
255-0138 |
17 inch Professional sand screen 60 grit (pkg of 10) |
|
|
| 34 |
255-0018 |
17 inch Professional sand screen 80 grit (pkg of 10) |
|
|
| 35 |
255-0225 |
17 inch Superscreen sand screen 100 grit (pkg of 10) |
|
|
| 36 |
255-0226 |
17 inch Superscreen sand screen 120 grit (pkg of 10) |
|
|
| 37 |
255-0227 |
17 inch Superscreen sand screen 150 grit (pkg of 10) |
|
|
| 38 |
255-0228 |
17 inch Superscreen sand screen 180 grit (pkg of 10) |
|
|
| 39 |
255-0229 |
17 inch Superscreen sand screen 220 grit (pkg of 10) |
|
|
| 40 |
255-0230 |
17 inch Superscreen sand screen 400 grit (pkg of 10) |
|
|
| 41 |
255-0223 |
17 inch Superscreen sand screen 60 grit (pkg of 10) |
|
|
| 42 |
255-0224 |
17 inch Superscreen sand screen 80 grit (pkg of 10) |
|
|
| 43 |
255-1724 |
17 inch Tiger carpet bonnet (pkg of 2) |
|
|
| 44 |
255-9570 |
17 inch Diamond by Gorilla 11000 Grit (pkg of 2) |
|
|
| 45 |
255-9567 |
17 inch Diamond by Gorilla 1500 Grit (pkg of 2) |
|
|
| 46 |
255-9564 |
17 inch Diamond by Gorilla 200 Grit (pkg of 2) |
|
|
| 47 |
255-9568 |
17 inch Diamond by Gorilla 3000 Grit (pkg of 2) |
|
|
| 48 |
255-9565 |
17 inch Diamond by Gorilla 400 Grit (pkg of 2) |
|
|
| 49 |
255-9566 |
17 inch Diamond by Gorilla 800 Grit (pkg of 2) |
|
|
| 50 |
255-9569 |
17 inch Diamond by Gorilla 8000 Grit (pkg of 2) |
|
|
| 51 |
255-9642 |
17 inch Diamond starter pack (1 of each grit) |
|
|
| 52 |
255-1782 |
17 inch Turbostrip segmented rotary pad (pkg of 4) |
|
|
| 53 |
255-1715 |
17 inch Duala clean and shine pad - low speed (pkg of 5) |
|
|
| 54 |
255-1716 |
17 inch 2001 Duala clean and shine pad - high speed (pkg 5) |
|
|
|
|
- Pad Holders - 275-9029 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
991-2214 |
Center-Lok II pad holder - left hand thread (red) |
|
|
| 2a |
991-2201 |
Center-Lok II pad holder - right hand thread (black) |
|
(Pad driver side female, Floor side male) |
| 2b |
991-8577 |
Pad retainer |
|
(Pad driver side male, Floor side female) |
| 3a |
991-2202 |
Big mouth pad holder set (blue) |
|
(includes 3 screws) |
| 3b |
991-2205 |
Deep lock ring and pad grip ring |
|
|
| 4 |
991-2203 |
Big mouth pad holder male thread portion |
|
|
| 5 |
991-2206 |
Center-Lok 3 pad holder |
|
(includes 3 screws) |
| 6 |
996-0372 |
Big mouth pad holder (left hand thread) |
|
|
| 8 |
991-2209 |
Split retainer - pad holder ring (OBSOLETE) |
|
|
| 9 |
N/A |
Not available |
|
(replaced by #3 991-2202) |
| 10 |
991-2211 |
Center lock pad holding cup (male) (yellow) (OBSOLETE) |
|
|
|
|
