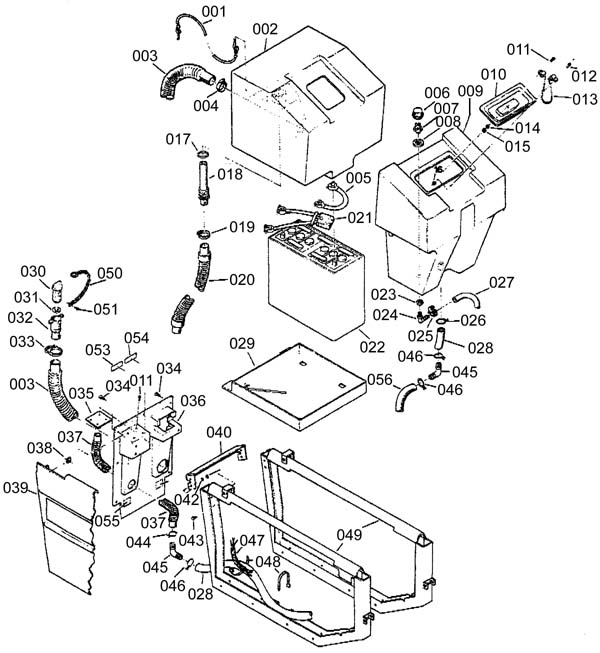

Main Frame and Tank Assembly - 170-0090 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 001 |
170-0546 |
Tank stop cord assembly (OBSOLETE) |
1 |
|
| 002 |
170-2246 |
Recovery tank (OBSOLETE) |
1 |
|
| 003 |
170-2247 |
Drain hose (OBSOLETE) |
1 |
|
| 004 |
170-5794 |
Hose clamp (OBSOLETE) |
1 |
|
| 005 |
170-0224 |
Battery cable |
1 |
|
| 006 |
170-6192 |
Solution Tank Strainer (OBSOLETE) |
1 |
|
| 007 |
170-6193 |
Filter Adapter (OBSOLETE) |
1 |
|
| 008 |
170-6194 |
Drain Gasket |
1 |
|
| 009 |
170-2248 |
Solution tank (OBSOLETE) |
1 |
|
| 011 |
999-0231 |
Screw 10-24 x 1/2 round head slotted zinc plated |
5 |
|
| 012 |
170-0614 |
Rivet (OBSOLETE) |
1 |
|
| 013 |
172-2474 |
8 inch chain |
1 |
|
| 014 |
170-6125 |
Washer 1/8 lock |
1 |
|
| 015 |
999-0062 |
Nut 10-24 hex |
1 |
|
| 016 |
999-1416 |
Washer 7/16 flat stainless steel |
1 |
|
| 018 |
170-0271 |
Hose adaptor assembly (OBSOLETE) |
1 |
|
| 020 |
170-0007 |
Squeegee hose with cuffs |
1 |
|
| 021 |
170-6257 |
Battery cable assy (OBSOLETE) |
1 |
|
| 023 |
999-0752 |
Nut 3/4-16 hex jam zinc plated |
1 |
|
| 024 |
170-6093 |
1/4 elbow (OBSOLETE) |
1 |
|
| 025 |
170-2249 |
Hose clamp (OBSOLETE) |
1 |
|
| 026 |
170-0631 |
Clamp hose (OBSOLETE) |
1 |
|
| 027 |
170-2250 |
Hose (OBSOLETE) |
1 |
|
| 028 |
170-0624 |
Elbow hose (OBSOLETE) |
1 |
|
| 029 |
170-2251 |
Battery tray (OBSOLETE) |
1 |
|
| 030 |
170-0042 |
Drain valve handle |
1 |
|
| 031 |
170-0032 |
Drain valve gasket |
1 |
|
| 032 |
170-0043 |
Drain valve |
1 |
|
| 033 |
164-0218 |
Nylon hose clamp |
1 |
|
| 034 |
999-0081 |
Screw 1/4-20 x 5/8 pan head slotted zinc |
3 |
|
| 035 |
170-6261 |
Solution drain plug (OBSOLETE) |
1 |
|
| 036 |
170-2252 |
Rear cover (OBSOLETE) |
1 |
|
| 037 |
170-0632 |
Solution tank to elbow hose |
1 |
|
| 038 |
170-0462 |
Nut 1/4-20 speed (OBSOLETE) |
5 |
|
| 040 |
170-2254 |
Hinge mtg. bracket (OBSOLETE) |
1 |
|
| 041 |
999-0190 |
Nut 1/4-20 hex plain finish |
4 |
|
| 042 |
999-0060 |
Washer 1/4 split lock plain finish |
4 |
|
| 043 |
999-0020 |
Bolt 1/4-20 x 3/4 hex head grade 5 zinc plated |
4 |
|
| 044 |
997-2004 |
Hose clamp |
1 |
|
| 045 |
572-3946 |
5/8 inch elbow |
2 |
|
| 046 |
997-2004 |
Hose clamp |
3 |
|
| 047 |
170-2255 |
Machine wiring harness (OBSOLETE) |
1 |
|
| 049 |
170-0420 |
Main frame assembly (OBSOLETE) |
2 |
|
| 050 |
170-0558 |
Drain chain assembly |
1 |
|
| 051 |
999-0576 |
Screw 8-18 x 1/2 pan head phillips self-drilling ss |
1 |
|
| 052 |
170-0555 |
Parking brake label (FSO) (OBSOLETE) |
1 |
|
| 053 |
N/A |
Not available |
1 |
Solution drain label |
| 054 |
170-0563 |
Recovery drain label (OBSOLETE) |
1 |
|
| 055 |
170-0566 |
Squeegee label (OBSOLETE) |
1 |
|
| 056 |
170-2256 |
Hose (OBSOLETE) |
1 |
|
| 022 |
162-0002 |
12V 185Ah wet battery (SNSR) |
2 |
|
| 022 |
162-0047 |
12V 215Ah AGM battery (Group J185) |
2 |
|
|
|

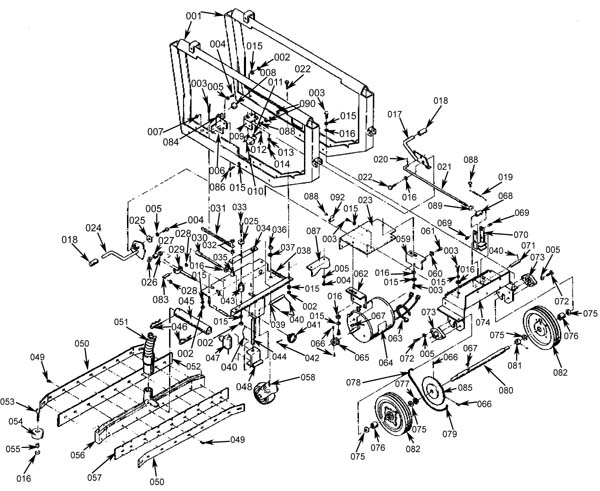

Squeegee and Drive Assembly - 170-0091 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 001 |
170-0420 |
Main frame assembly (OBSOLETE) |
2 |
|
| 002 |
999-0069 |
Nut 5/16-18 hex |
6 |
|
| 003 |
999-0132 |
Bolt 5/16-18 x 3/4 hex head grade 5 zinc plated |
12 |
|
| 004 |
999-0020 |
Bolt 1/4-20 x 3/4 hex head grade 5 zinc plated |
5 |
|
| 005 |
999-0060 |
Washer 1/4 split lock plain finish |
9 |
|
| 006 |
170-3350 |
Pedal plate assembly (OBSOLETE) |
1 |
|
| 007 |
999-0190 |
Nut 1/4-20 hex plain finish |
2 |
|
| 008 |
170-0553 |
Brake pedal spacer (FSO) (OBSOLETE) |
1 |
|
| 009 |
170-3351 |
Brake switch bracket (OBSOLETE) |
1 |
|
| 010 |
170-3352 |
Brake switch (micro switch125v 15amp SPST) (OBSOLETE) |
1 |
|
| 011 |
999-0148 |
Washer #6 external star lock zinc plated |
2 |
|
| 012 |
999-0511 |
Screw 6-32 x 1 pan head phillips zinc plated |
2 |
|
| 013 |
999-0034 |
Washer 3/8 split lock plain finish |
2 |
|
| 014 |
170-3353 |
Screw 3/8-16x1/2 hex head (OBSOLETE) |
2 |
|
| 015 |
999-0028 |
Washer 5/16 split lock plain finish |
18 |
|
| 016 |
999-0549 |
Washer 5/16 x 3/4 SAE flat stainless steel |
10 |
|
| 017 |
170-3354 |
Brake pedal assembly (OBSOLETE) |
1 |
|
| 018 |
170-0434 |
Brake pedal cover (OBSOLETE) |
2 |
|
| 019 |
N/A |
Not available |
1 |
Idler tension spring |
| 020 |
170-3355 |
Cotter pin 1/16x5/8 |
2 |
|
| 021 |
170-3356 |
Brake rod (OBSOLETE) |
1 |
|
| 022 |
170-3357 |
Screw 5/16-18x1 1/4 hex head |
3 |
|
| 023 |
170-3358 |
Motor bracket (OBSOLETE) |
1 |
|
| 024 |
170-3359 |
Squeegee pedal lock (OBSOLETE) |
1 |
|
| 025 |
999-0160 |
Washer 1/4 x 1 1/4 fender zinc plated |
2 |
|
| 026 |
170-3360 |
Spacer (OBSOLETE) |
2 |
|
| 027 |
170-3361 |
Sleeve bearing (OBSOLETE) |
1 |
|
| 028 |
170-0427 |
Retaining ring (OBSOLETE) |
2 |
|
| 029 |
170-3362 |
Squeegee yoke assembly (OBSOLETE) |
1 |
|
| 030 |
170-3363 |
Squeegee adjustment rod (OBSOLETE) |
1 |
|
| 032 |
999-0211 |
Nut 5/16-18 hex nylon insert lock zinc plated |
2 |
|
| 033 |
999-0354 |
Screw 5/16-18 x 2 round head slotted zinc plated |
1 |
|
| 034 |
170-3364 |
Squeegee arm (OBSOLETE) |
1 |
|
| 035 |
170-3365 |
Squeegee swivel rod (OBSOLETE) |
1 |
|
| 036 |
999-0202 |
Nut 1/2-13 hex plain finish |
2 |
|
| 037 |
999-0126 |
Washer 1/2 split lock |
2 |
|
| 038 |
170-3366 |
Caster bracket (OBSOLETE) |
1 |
|
| 039 |
170-3367 |
Pin (OBSOLETE) |
1 |
|
| 041 |
170-3368 |
Knob (OBSOLETE) |
1 |
|
| 042 |
170-3369 |
Screw 10-32 x 5/16 slotted knurl |
1 |
|
| 043 |
170-3370 |
Arm spacer (OBSOLETE) |
1 |
|
| 044 |
170-3371 |
Squeegee pivot pin (OBSOLETE) |
1 |
|
| 045 |
170-3372 |
Squeegee tube (OBSOLETE) |
1 |
|
| 046 |
170-2180 |
Squeegee locking pin |
2 |
|
| 047 |
170-3373 |
Squeegee guide (OBSOLETE) |
1 |
|
| 048 |
170-3374 |
Squeegee pivot bracket (OBSOLETE) |
1 |
|
| 049 |
999-0323 |
Screw 1/4-20 x 1/2 pan head slotted zinc plated |
18 |
|
| 050 |
170-2167 |
Squeegee retainer |
2 |
|
| 051 |
170-0007 |
Squeegee hose with cuffs |
1 |
|
| 052 |
170-0018 |
Squeegee blade 29 inch gum rubber rear (tan) |
1 |
|
| 053 |
999-1667 |
Screw 5/16-18 x 1 1/4 socket head stainless steel |
2 |
|
| 054 |
170-0403 |
Brush guide wheel (OBSOLETE) |
2 |
|
| 055 |
170-0404 |
Wheel spacer (OBSOLETE) |
2 |
|
| 056 |
170-2169 |
Squeegee casting (OBSOLETE) |
1 |
|
| 057 |
170-0021 |
Squeegee blade 29 inch gum rubber front (tan) |
1 |
|
| 058 |
170-3267 |
4 inch caster wheel |
2 |
|
| 059 |
170-3377 |
Motor bracket - right |
1 |
|
| 060 |
170-3378 |
Washer #1518 shakeproof (OBSOLETE) |
1 |
|
| 061 |
170-3379 |
Screw 5/16-18x5/8 flat (OBSOLETE) |
1 |
|
| 062 |
170-3380 |
Motor bracket - left (OBSOLETE) |
1 |
|
| 064 |
170-3381 |
Traverse motor (OBSOLETE) |
1 |
|
| 065 |
170-0687 |
Drive sprocket |
1 |
|
| 066 |
999-0095 |
Screw 1/4-20 x 3/8 cup point socket set alloy plain finish |
4 |
|
| 067 |
170-0672 |
Square keyway |
2 |
|
| 068 |
170-3382 |
Parking brake shaft (OBSOLETE) |
1 |
|
| 069 |
999-0627 |
Screw 5/16-18 x 1/2 socket cup point set ss |
2 |
|
| 070 |
170-3383 |
Parking brake (OBSOLETE) |
1 |
|
| 071 |
170-3384 |
Brake pivot shaft (OBSOLETE) |
1 |
|
| 072 |
999-0197 |
Screw 1/4-20 x 1 socket head alloy plain finish |
4 |
|
| 073 |
170-1304 |
Bearing assembly |
2 |
|
| 074 |
170-3385 |
Axle bracket (OBSOLETE) |
1 |
|
| 075 |
170-1436 |
Oil seal (OBSOLETE) |
1 |
|
| 076 |
170-1438 |
Roller clutch bearing |
2 |
|
| 078 |
170-6260 |
Drive chain (OBSOLETE) |
1 |
|
| 079 |
170-0676 |
Connecting link |
1 |
|
| 080 |
170-3387 |
Axle shaft (OBSOLETE) |
1 |
|
| 081 |
170-3388 |
Set collar (OBSOLETE) |
1 |
|
| 082 |
170-1437 |
Drive wheel |
2 |
|
| 083 |
170-3389 |
Follower pin (OBSOLETE) |
1 |
|
| 084 |
170-0429 |
Pedal stop sleeve (OBSOLETE) |
1 |
|
| 085 |
170-3390 |
Driven sprocket (OBSOLETE) |
1 |
|
| 086 |
999-0810 |
Screw 5/16-18 x 3/4 flat head slotted stainless steel |
2 |
|
| 087 |
170-3391 |
Squeegee stop (OBSOLETE) |
1 |
|
| 088 |
999-0231 |
Screw 10-24 x 1/2 round head slotted zinc plated |
3 |
|
| 089 |
170-3393 |
Stop collar (OBSOLETE) |
1 |
|
| 090 |
999-0062 |
Nut 10-24 hex |
2 |
|
| 092 |
170-1744 |
Nylon clip |
1 |
|
|
|

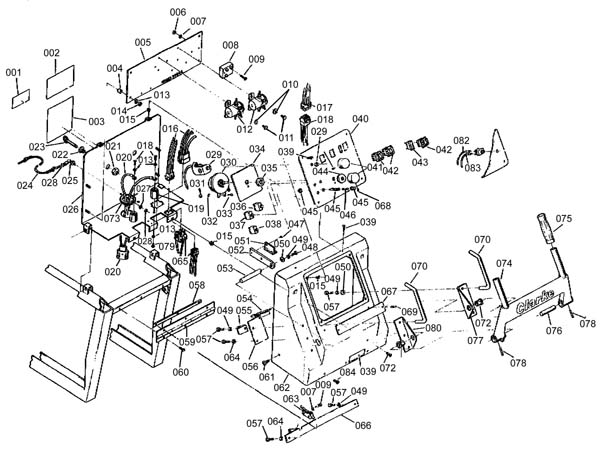

Control Panel Assembly - 170-0092 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 001 |
170-2268 |
Wiring diagram label (OBSOLETE) |
1 |
|
| 002 |
170-0542 |
Battery care label (OBSOLETE) |
1 |
|
| 003 |
170-0545 |
Warning label (FSO) (OBSOLETE) |
1 |
|
| 004 |
170-2269 |
Spacer (OBSOLETE) |
4 |
|
| 005 |
170-2270 |
Electrical panel (OBSOLETE) |
1 |
|
| 006 |
999-0195 |
Nut 6-32 hex plain |
2 |
|
| 007 |
999-0148 |
Washer #6 external star lock zinc plated |
4 |
|
| 008 |
170-2271 |
Time delay relay (OBSOLETE) |
1 |
|
| 009 |
999-0511 |
Screw 6-32 x 1 pan head phillips zinc plated |
4 |
|
| 010 |
999-0016 |
Washer 1/4 flat plain finish |
4 |
|
| 011 |
N/A |
Not available |
4 |
(Screw) |
| 012 |
170-1797 |
Vacuum solenoid (OBSOLETE) |
2 |
|
| 013 |
999-0060 |
Washer 1/4 split lock plain finish |
8 |
|
| 014 |
999-0190 |
Nut 1/4-20 hex plain finish |
4 |
|
| 015 |
170-2272 |
Screw grommet (OBSOLETE) |
8 |
|
| 016 |
170-2273 |
Panel wire harness (OBSOLETE) |
1 |
|
| 017 |
170-2274 |
Console wire harness (OBSOLETE) |
1 |
|
| 018 |
999-0523 |
Screw 1/4-20 x 1 1/2 pan head phillips stainless steel |
2 |
|
| 019 |
170-0063 |
Insulated stand off |
2 |
|
| 020 |
170-2275 |
Console cable assembly (OBSOLETE) |
1 |
|
| 021 |
999-0003 |
Nut 5/8-18 hex jam stainless steel |
2 |
|
| 022 |
170-0078 |
Tank stop bushing (OBSOLETE) |
2 |
|
| 023 |
170-0079 |
Release pin |
2 |
|
| 024 |
170-0546 |
Tank stop cord assembly (OBSOLETE) |
1 |
|
| 025 |
170-0511 |
Ball joint assembly (OBSOLETE) |
1 |
|
| 026 |
170-2276 |
Elec. rear panel (OBSOLETE) |
1 |
|
| 027 |
999-0311 |
Washer #10 external star lock zinc plated |
1 |
|
| 028 |
999-0460 |
Nut 10-32 hex |
1 |
|
| 029 |
170-2277 |
Solution control (OBSOLETE) |
1 |
|
| 030 |
170-2278 |
Rheostat 100 watts (OBSOLETE) |
1 |
|
| 031 |
999-0308 |
Nut 8-32 plain |
2 |
|
| 032 |
999-0092 |
Washer #8 internal star lock zinc plated |
2 |
|
| 033 |
999-0452 |
Screw 8-32 x 3/8 pan head phillips zinc plated |
2 |
|
| 034 |
170-2279 |
Rheostat heat sink (OBSOLETE) |
1 |
|
| 035 |
170-2280 |
Rheostat spacer (OBSOLETE) |
1 |
|
| 036 |
170-2233 |
10 Amp circuit breaker (OBSOLETE) |
1 |
|
| 037 |
170-2213 |
35 Amp Brush Breaker |
1 |
|
| 038 |
170-2225 |
20 amp circuit breaker |
1 |
|
| 039 |
999-0110 |
Screw 10-16 x 1/2 pan head phillips self-drilling |
8 |
|
| 040 |
170-2281 |
Console panel (OBSOLETE) |
1 |
|
| 041 |
170-8261 |
Knob solution flow module (OBSOLETE) |
2 |
|
| 043 |
170-5700 |
Clamp (OBSOLETE) |
1 |
|
| 044 |
170-2282 |
Rheostat nut (OBSOLETE) |
1 |
|
| 045 |
170-6074 |
115V fuse holder (OBSOLETE) |
1 |
|
| 046 |
170-2283 |
Fuse (OBSOLETE) |
1 |
|
| 047 |
999-0413 |
Screw 10-32 x 1/2 pan head slotted zinc plated |
1 |
|
| 048 |
999-0132 |
Bolt 5/16-18 x 3/4 hex head grade 5 zinc plated |
1 |
|
| 049 |
999-0028 |
Washer 5/16 split lock plain finish |
4 |
|
| 050 |
999-0549 |
Washer 5/16 x 3/4 SAE flat stainless steel |
2 |
|
| 051 |
170-2284 |
Switch actuator bracket (OBSOLETE) |
1 |
|
| 052 |
170-2285 |
Switch actuator arm |
1 |
|
| 053 |
N/A |
Not available |
1 |
Handle pin |
| 054 |
N/A |
Not available |
1 |
Idler tension spring |
| 055 |
170-0457 |
Strap (OBSOLETE) |
1 |
|
| 056 |
170-2286 |
Spring mounting plate (OBSOLETE) |
1 |
|
| 057 |
170-3357 |
Screw 5/16-18x1 1/4 hex head |
4 |
|
| 058 |
170-2287 |
Hinge retainer (OBSOLETE) |
1 |
|
| 059 |
170-2288 |
Hinge (OBSOLETE) |
1 |
|
| 060 |
999-0081 |
Screw 1/4-20 x 5/8 pan head slotted zinc |
3 |
|
| 061 |
999-0587 |
Screw 3/8-16 x 5/8 round head slotted zinc |
2 |
|
| 062 |
170-3249 |
Housing control (OBSOLETE) |
1 |
|
| 063 |
170-2289 |
15 amp switch (OBSOLETE) |
1 |
|
| 064 |
999-0069 |
Nut 5/16-18 hex |
2 |
|
| 065 |
170-2255 |
Machine wiring harness (OBSOLETE) |
1 |
|
| 066 |
170-2237 |
Motor 120V 2500 (OBSOLETE) |
1 |
|
| 067 |
170-2291 |
Warning plate (OBSOLETE) |
1 |
|
| 068 |
999-0431 |
Screw 8-32 x 1/4 set socket cup point alloy plain finish |
2 |
|
| 069 |
170-2292 |
Plastic blind rivet (OBSOLETE) |
2 |
|
| 070 |
170-0534 |
Stationary handle (FSO) (OBSOLETE) |
2 |
|
| 072 |
170-0088 |
Flanged bearing (OBSOLETE) |
2 |
|
| 073 |
170-2293 |
Snap bushing (OBSOLETE) |
1 |
|
| 074 |
170-2294 |
Control handle (OBSOLETE) |
1 |
|
| 075 |
170-0532 |
Handle grip (OBSOLETE) |
2 |
|
| 076 |
170-0535 |
Handle pivot pin (OBSOLETE) |
1 |
|
| 077 |
170-0541 |
Adjusting right hand bracket (OBSOLETE) |
1 |
|
| 078 |
N/A |
Not available |
2 |
Not available (pin 3/16 dia spiral) |
| 079 |
999-0175 |
Screw 1/4-20 x 3/8 pan head slotted zinc plated |
2 |
|
| 080 |
170-0527 |
Adjusting left hand bracket (OBSOLETE) |
1 |
|
| 082 |
170-2295 |
Processed orange/yellow wire (OBSOLETE) |
1 |
|
| 083 |
170-2296 |
Processed tan/yellow wire (OBSOLETE) |
1 |
|
| 084 |
N/A |
Not available |
1 |
Not available (serial no. label) |
| N/S |
999-0081 |
Screw 1/4-20 x 5/8 pan head slotted zinc |
3 |
|
|
|

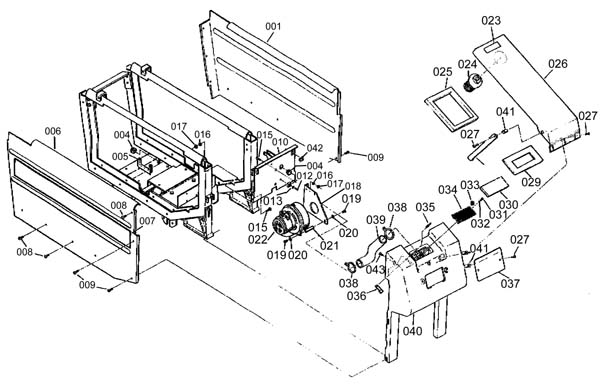

Vacuum Assembly - 170-0093 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 001 |
170-2257 |
Left hand side panel (OBSOLETE) |
1 |
|
| 004 |
170-2258 |
Grommet (OBSOLETE) |
1 |
|
| 005 |
170-0625 |
Frame trim (OBSOLETE) |
1 |
|
| 006 |
170-2259 |
Right hand side panel (OBSOLETE) |
1 |
|
| 007 |
170-0622 |
Clarke leader label (OBSOLETE) |
2 |
|
| 008 |
999-0175 |
Screw 1/4-20 x 3/8 pan head slotted zinc plated |
10 |
|
| 009 |
170-2128 |
Screw 1/4 20 x 3/4 |
4 |
|
| 010 |
170-2260 |
Actuator bracket (OBSOLETE) |
1 |
|
| 012 |
170-0581 |
Block terminal (OBSOLETE) |
1 |
|
| 013 |
999-0148 |
Washer #6 external star lock zinc plated |
1 |
|
| 014 |
999-0511 |
Screw 6-32 x 1 pan head phillips zinc plated |
1 |
|
| 015 |
999-0275 |
Screw 1/4-20 x 3/4 hex washer hd unslotted thread rolling |
6 |
|
| 016 |
999-0060 |
Washer 1/4 split lock plain finish |
6 |
|
| 017 |
999-0182 |
Nut 1/2-20 hex plain finish |
6 |
|
| 018 |
170-2262 |
Vacuum motor bracket (OBSOLETE) |
6 |
|
| 019 |
999-0081 |
Screw 1/4-20 x 5/8 pan head slotted zinc |
6 |
|
| 020 |
999-0017 |
Washer 1/4 external star lock |
6 |
|
| 021 |
170-0584 |
Vacuum motor bracket spacer (OBSOLETE) |
3 |
|
| 022 |
170-6262 |
Vacuum motor |
1 |
|
| 023 |
170-2263 |
Lift and clean label (OBSOLETE) |
1 |
|
| 024 |
170-0602 |
Recovery float assembly (OBSOLETE) |
1 |
|
| 025 |
170-0599 |
Vacuum chamber gasket (OBSOLETE) |
1 |
|
| 026 |
170-0603 |
Vacuum chamber (FSO) (OBSOLETE) |
1 |
|
| 027 |
170-5784 |
Screw 1/4-20 x 1-1/4 pan head |
6 |
|
| 028 |
170-0500 |
Vacuum chamber brace (OBSOLETE) |
1 |
|
| 029 |
170-0601 |
Filter gasket |
1 |
|
| 030 |
170-0596 |
Vacuum motor filter |
1 |
|
| 031 |
999-0110 |
Screw 10-16 x 1/2 pan head phillips self-drilling |
1 |
|
| 032 |
999-1416 |
Washer 7/16 flat stainless steel |
1 |
|
| 033 |
170-2264 |
Pad lock button |
2 |
|
| 034 |
170-0594 |
Vacuum motor intake screen (OBSOLETE) |
1 |
|
| 035 |
170-0775 |
1/8 inch rivet pop aluminum |
2 |
|
| 036 |
170-0592 |
Stop chamber brace (OBSOLETE) |
1 |
|
| 037 |
170-2265 |
Plate cover (OBSOLETE) |
1 |
|
| 039 |
170-0606 |
Vacuum tank hose |
1 |
|
| 040 |
170-2266 |
Front cover (OBSOLETE) |
1 |
|
| 042 |
170-2267 |
Nut 1/4 panel (OBSOLETE) |
2 |
|
| 043 |
999-0326 |
Screw 1/4-20 x 3/4 flat head phillips zinc plated |
2 |
|
|
|

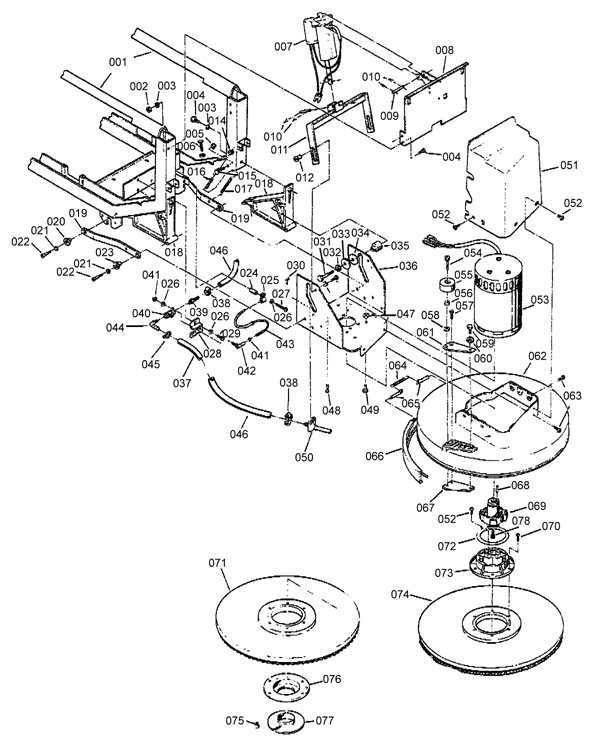

Brush and Lift Assembly - 170-0094 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 001 |
170-0420 |
Main frame assembly (OBSOLETE) |
2 |
|
| 002 |
999-0190 |
Nut 1/4-20 hex plain finish |
4 |
|
| 003 |
999-0060 |
Washer 1/4 split lock plain finish |
8 |
|
| 004 |
999-0020 |
Bolt 1/4-20 x 3/4 hex head grade 5 zinc plated |
8 |
|
| 005 |
999-0162 |
Bolt 5/16-18 x 1 1/4 hex head grade 5 zinc plated |
2 |
|
| 006 |
999-0028 |
Washer 5/16 split lock plain finish |
2 |
|
| 007 |
170-2297 |
Brush lift actuator (OBSOLETE) |
1 |
|
| 008 |
170-2260 |
Actuator bracket (OBSOLETE) |
1 |
|
| 009 |
170-2299 |
Actuator pin (OBSOLETE) |
2 |
|
| 010 |
170-3355 |
Cotter pin 1/16x5/8 |
4 |
|
| 011 |
170-2300 |
Brush lift bracket (OBSOLETE) |
1 |
|
| 012 |
170-3255 |
Spacer (OBSOLETE) |
2 |
|
| 013 |
999-0211 |
Nut 5/16-18 hex nylon insert lock zinc plated |
1 |
|
| 014 |
170-0465 |
Nut 1/4-20 ESNA heavy jam |
1 |
|
| 015 |
170-0130 |
Brake rod swivel |
1 |
|
| 016 |
170-2301 |
Spring adj spring (OBSOLETE) |
1 |
|
| 017 |
N/A |
Not available |
1 |
Idler tension spring |
| 018 |
170-2302 |
Brush lift bracket (OBSOLETE) |
2 |
|
| 019 |
170-2303 |
Brush lift arm (OBSOLETE) |
2 |
|
| 020 |
170-2304 |
Pivot bushing (OBSOLETE) |
2 |
|
| 022 |
999-0536 |
Screw 5/16-18 x 1 flat head socket plain finish |
4 |
|
| 024 |
170-2305 |
Eccentric pivot bushing (OBSOLETE) |
1 |
|
| 025 |
170-2306 |
Solution control spacer (OBSOLETE) |
1 |
|
| 026 |
999-0311 |
Washer #10 external star lock zinc plated |
4 |
|
| 027 |
170-2307 |
Screw 10-24 x 1-5/8 pan head |
1 |
|
| 028 |
170-0259 |
Bracket (OBSOLETE) |
1 |
|
| 029 |
999-0231 |
Screw 10-24 x 1/2 round head slotted zinc plated |
2 |
|
| 030 |
999-0463 |
Screw 6-32 x 3/8 pan head slotted zinc plated |
2 |
|
| 031 |
170-3251 |
Screw sheave (OBSOLETE) |
2 |
|
| 032 |
999-0126 |
Washer 1/2 split lock |
2 |
|
| 033 |
170-3252 |
Motor washer |
2 |
|
| 034 |
170-3253 |
Bushing brush lift guide (OBSOLETE) |
2 |
|
| 035 |
170-3254 |
Spacer brush lift guide (OBSOLETE) |
2 |
|
| 036 |
170-2308 |
Motor frame (OBSOLETE) |
1 |
|
| 037 |
170-0408 |
Valve/brush hose |
1 |
|
| 038 |
170-2249 |
Hose clamp (OBSOLETE) |
2 |
|
| 039 |
170-2310 |
3/8 Hose x 3/8 MPT adapter (OBSOLETE) |
1 |
|
| 040 |
170-0006 |
Manual solution valve |
1 |
|
| 041 |
999-0460 |
Nut 10-32 hex |
2 |
|
| 042 |
170-0511 |
Ball joint assembly (OBSOLETE) |
1 |
|
| 043 |
170-2277 |
Solution control (OBSOLETE) |
1 |
|
| 045 |
997-2004 |
Hose clamp |
1 |
|
| 046 |
170-2250 |
Hose (OBSOLETE) |
1 |
|
| 047 |
170-2313 |
Brush motor spacer |
2 |
|
| 048 |
999-0326 |
Screw 1/4-20 x 3/4 flat head phillips zinc plated |
1 |
|
| 049 |
999-0275 |
Screw 1/4-20 x 3/4 hex washer hd unslotted thread rolling |
3 |
|
| 050 |
170-0400 |
Solution adapter |
1 |
|
| 051 |
170-2314 |
Brush motor cover (OBSOLETE) |
1 |
|
| 052 |
999-0110 |
Screw 10-16 x 1/2 pan head phillips self-drilling |
1 |
|
| 053 |
170-2315 |
Brush motor drive (OBSOLETE) |
1 |
|
| 054 |
999-1667 |
Screw 5/16-18 x 1 1/4 socket head stainless steel |
1 |
|
| 055 |
170-0403 |
Brush guide wheel (OBSOLETE) |
1 |
|
| 056 |
170-0404 |
Wheel spacer (OBSOLETE) |
1 |
|
| 057 |
170-3379 |
Screw 5/16-18x5/8 flat (OBSOLETE) |
1 |
|
| 058 |
999-0549 |
Washer 5/16 x 3/4 SAE flat stainless steel |
1 |
|
| 059 |
999-0132 |
Bolt 5/16-18 x 3/4 hex head grade 5 zinc plated |
1 |
|
| 061 |
170-2316 |
Reinforcing plate (OBSOLETE) |
1 |
|
| 062 |
170-2317 |
Brush housing (OBSOLETE) |
1 |
|
| 063 |
999-0081 |
Screw 1/4-20 x 5/8 pan head slotted zinc |
6 |
|
| 064 |
170-0068 |
Control handle spring (OBSOLETE) |
1 |
|
| 065 |
170-2318 |
Skirt retaining strip (OBSOLETE) |
1 |
|
| 067 |
170-2320 |
Nut plate (OBSOLETE) |
1 |
|
| 068 |
164-0132 |
Square keyway 1/4 x 1/4 |
1 |
|
| 069a |
170-0207 |
Male gimbal with collar |
1 |
|
| 069b |
170-0207 |
Male gimbal with collar |
|
|
| 070 |
170-2321 |
Screw 12 x 1 wood (OBSOLETE) |
6 |
|
| 071 |
NOTE |
Please See Batteries, Brushes, Pad Holders and Charger Pages |
|
|
| 072 |
170-0031 |
Brush holder spring |
1 |
|
| 074 |
NOTE |
Please See Batteries, Brushes, Pad Holders and Charger Pages |
|
|
| 075 |
999-0138 |
Screw 10-24 x 5/8 flat head slotted zinc plated |
6 |
|
| 076 |
170-6258 |
Pad grab-base (OBSOLETE) |
1 |
|
| 077 |
991-2209 |
Split retainer - pad holder ring (OBSOLETE) |
1 |
|
| 078 |
170-1599 |
Screw 5/16-18 x 3/4 socket head nylock |
1 |
|
|
|

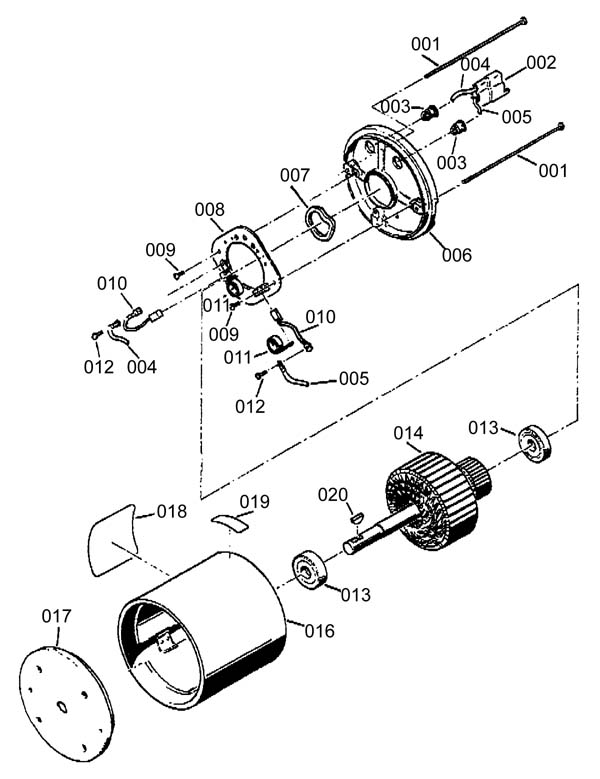

Traverse Motor Drawing Assembly - 170-0095 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 001 |
N/A |
Not available |
2 |
Not available (thru bolt) |
| 002 |
170-0385 |
Male terminal housing connector |
1 |
|
| 003 |
N/A |
Not available |
2 |
Not available (strain relief) |
| 004 |
170-2325 |
Lead assembly (OBSOLETE) |
2 |
|
| 005 |
170-2326 |
Lead assembly (OBSOLETE) |
1 |
|
| 006 |
N/A |
Not available |
1 |
Not available (commutator bracket) |
| 007 |
170-0379 |
Wave washer |
1 |
|
| 008 |
170-0689 |
Brush board assembly (OBSOLETE) |
1 |
|
| 010 |
170-0686 |
Brush assembly (OBSOLETE) |
2 |
|
| 012 |
N/A |
Not available |
2 |
Not available (screw) |
| 013 |
170-0321 |
Front end bearing |
2 |
|
| 014 |
170-2328 |
Armature assembly (OBSOLETE) |
1 |
|
| 016 |
170-0669 |
Stator frame assembly (OBSOLETE) |
1 |
|
| 017 |
170-0685 |
Bracket (FSO) (OBSOLETE) |
1 |
|
| 020 |
170-0672 |
Square keyway |
1 |
|
|
|

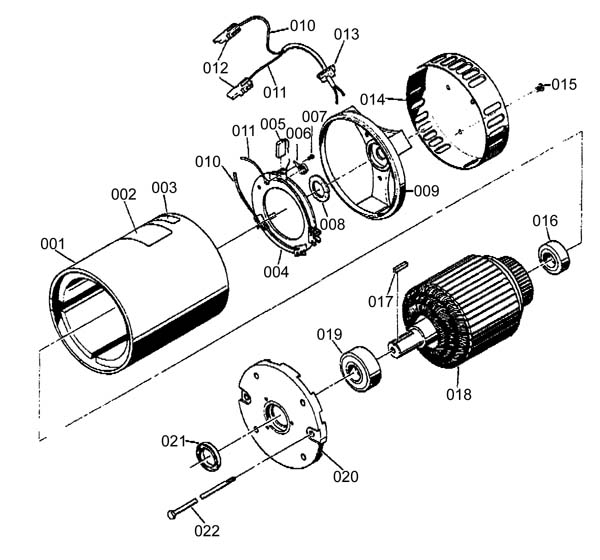

Brush Drive Motor Drawing Assembly - 170-0096 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 001 |
170-2329 |
handle bracket (obsolete) |
1 |
|
| 002 |
N/A |
Not available |
1 |
Not available (nameplate) |
| 003 |
N/A |
Not available |
1 |
Not available (index mark label) |
| 004 |
170-2330 |
Brush board assembly (OBSOLETE) |
1 |
|
| 005 |
372-1648 |
Carbon brush assembly |
4 |
|
| 008 |
170-0379 |
Wave washer |
1 |
|
| 009 |
170-0378 |
Commutator bracket (OBSOLETE) |
1 |
|
| 010 |
170-2333 |
Lead assembly (OBSOLETE) |
1 |
|
| 011 |
170-2334 |
Lead assembly (OBSOLETE) |
1 |
|
| 012 |
170-0009 |
Connector housing |
2 |
|
| 013 |
170-2335 |
Strain relief (OBSOLETE) |
1 |
|
| 014 |
170-0417 |
Communicator cover bracket (OBSOLETE) |
1 |
|
| 015 |
999-0056 |
Screw 10-32 x 3/8 round head slotted zinc plated |
3 |
|
| 016 |
170-0321 |
Front end bearing |
1 |
|
| 017 |
164-0132 |
Square keyway 1/4 x 1/4 |
1 |
|
| 018 |
170-2338 |
Armature assembly (OBSOLETE) |
1 |
|
| 019 |
372-1890 |
Bearing (rear) |
1 |
|
| 020 |
170-0418 |
Pulley end bell bracket |
1 |
|
| 022 |
N/A |
Not available |
2 |
Not available (thru bolt) |
|
|

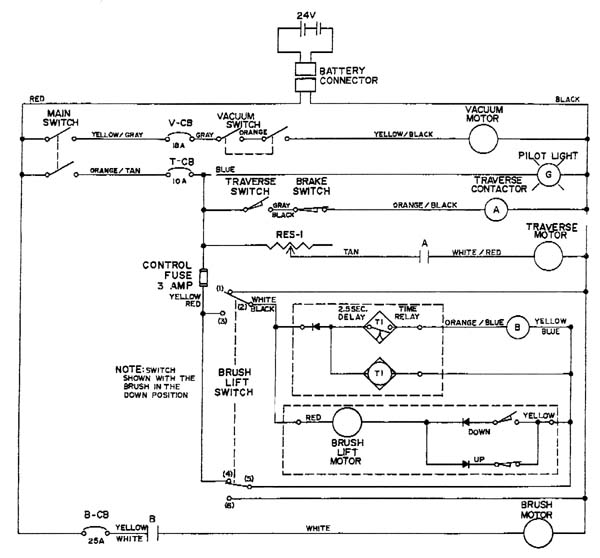

Wiring Diagram - |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
|
|
- Batteries, Brushes, and Chargers - 170-9917 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
162-0002 |
12V 185Ah wet battery (SNSR) |
2 |
|
| 2 |
162-0047 |
12V 215Ah AGM battery (Group J185) |
2 |
|
| 3 |
162-5060 |
24V 20amp battery charger with small SB50 red plug |
1 |
|
| 4 |
991-2103 |
50amp charger plug SB50 with pins (red) |
1 |
|
| 5 |
996-1646 |
19 inch heavy grit stripping brush - 80 grit |
1 |
|
| 6 |
996-1647 |
19 inch medium grit scrubbing brush - 180 grit (OBSOLETE) |
1 |
|
| 7 |
996-1648 |
19 inch lite grit scrubbing brush - 500 grit (OBSOLETE) |
1 |
|
| 8 |
996-1573 |
19 inch polypropelene scrubbing brush |
1 |
|
| 10 |
170-3426 |
Dual direction clutch plate |
1 |
|
|
|
- Pads - 255-2000 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 01 |
255-2040 |
20 inch aqua plus burnishing pad (pkg of 5) |
|
|
| 02 |
255-2035 |
20 inch Armadillo concrete scrubbing pad (pkg of 5) |
|
|
| 03 |
255-2064 |
20 inch Blue ace pad (pkg of 5) |
|
|
| 04 |
255-2042 |
20 inch Blue Jay burnishing pad (pkg of 5) |
|
|
| 05 |
255-2012 |
20 inch Cure white pad (pkg of 5) |
|
|
| 06 |
255-2077 |
20 inch Diamondback extreme stripping pad (pkg of 5) |
|
|
| 07 |
255-2038 |
20 inch EHD Extra Heavy Duty Concrete Leveling Pad (pkg of 2 |
|
|
| 08 |
255-2021 |
20 inch gorilla lite burnishing pad (pkg of 5) |
|
|
| 09 |
255-2050 |
20 inch gorilla spray buff/polish/burnish pad (pkg of 5) |
|
|
| 10 |
255-2065 |
20 inch Heat concrete bonding pad (pkg of 5) |
|
|
| 11 |
255-2030 |
20 inch jaguar burnishing pad (pkg of 5) |
|
|
| 12 |
255-2067 |
20 inch Laminated 2001 Gorilla polish pad (pkg of 5) |
|
|
| 13 |
255-2087 |
20 inch Melamine Mela-Kleen pad (pkg of 2) |
|
|
| 14 |
255-2068 |
20 inch Microclean daily cleaning pad (pkg of 2) |
|
|
| 15 |
255-2069 |
20 inch Micropolish polishing and burnishing pad (pkg of 2) |
|
|
| 16 |
255-2090 |
20 inch premium black stripping pad (pkg of 5) |
|
|
| 17 |
255-2070 |
20 inch premium blue cleaning pad (pkg of 5) |
|
|
| 18 |
255-2092 |
20 inch premium brown stripping pad (pkg of 5) |
|
|
| 19 |
255-2080 |
20 inch premium green scrubbing pad (pkg of 5) |
|
|
| 20 |
255-2060 |
20 inch premium red scrubbing pad (pkg of 5) |
|
|
| 21 |
255-2052 |
20 inch premium tan polishing pad (pkg of 5) |
|
|
| 22 |
255-2020 |
20 inch premium white polishing pad (pkg of 5) |
|
|
| 23 |
255-2011 |
20 inch superspeed rubberized pad (pkg of 5) |
|
|
| 24 |
255-2095 |
20 inch razorback stripping pad (pkg of 5) |
|
|
| 25 |
255-2047 |
20 inch Redwood maroon floor prep pad (pkg of 10) |
|
|
| 26 |
255-2055 |
20 inch Ruff non-abrasive brush pad (pkg of 2) |
|
|
| 27 |
255-2023 |
20 inch sand screen driver pad (pkg of 2) |
|
|
| 28 |
255-0157 |
20 inch Professional sand screen 100 grit (pkg of 10) |
|
|
| 29 |
255-0021 |
20 inch Professional sand screen 120 grit (pkg of 10) |
|
|
| 30 |
255-0158 |
20 inch Professional sand screen 150 grit (pkg of 10) |
|
|
| 31 |
255-0159 |
20 inch Professional sand screen 180 grit (pkg of 10) |
|
|
| 32 |
255-0160 |
20 inch Professional sand screen 220 grit (pkg of 10) |
|
|
| 33 |
255-0161 |
20 inch Professional sand screen 400 grit (pkg of 10) |
|
|
| 34 |
255-0030 |
20 inch Professional sand screen 60 grit (pkg of 10) |
|
|
| 35 |
255-0020 |
20 inch Professional sand screen 80 grit (pkg of 10) |
|
|
| 36 |
255-0249 |
20 inch Superscreen sand screen 100 grit (pkg of 10) |
|
|
| 37 |
255-0250 |
20 inch Superscreen sand screen 120 grit (pkg of 10) |
|
|
| 38 |
255-0251 |
20 inch Superscreen sand screen 150 grit (pkg of 10) |
|
|
| 39 |
255-0252 |
20 inch Superscreen sand screen 180 grit (pkg of 10) |
|
|
| 40 |
255-0253 |
20 inch Superscreen sand screen 220 grit (pkg10) (OBSOLETE) |
|
|
| 41 |
255-0254 |
20 inch Superscreen sand screen 400 grit (pkg of 10) |
|
|
| 42 |
255-0247 |
20 inch Superscreen sand screen 60 grit (pkg of 10) |
|
|
| 43 |
255-0248 |
20 inch Superscreen sand screen 80 grit (pkg of 10) |
|
|
| 45 |
255-9591 |
20 inch Diamond by Gorilla 11000 Grit (pkg of 2) |
|
|
| 46 |
255-9588 |
20 inch Diamond by Gorilla 1500 Grit (pkg of 2) |
|
|
| 47 |
255-9585 |
20 inch Diamond by Gorilla 200 Grit (pkg of 2) |
|
|
| 48 |
255-9589 |
20 inch Diamond by Gorilla 3000 Grit (pkg of 2) |
|
|
| 49 |
255-9586 |
20 inch Diamond by Gorilla 400 Grit (pkg of 2) |
|
|
| 50 |
255-9587 |
20 inch Diamond by Gorilla 800 Grit (pkg of 2) |
|
|
| 51 |
255-9590 |
20 inch Diamond by Gorilla 8000 Grit (pkg of 2) |
|
|
| 52 |
255-9645 |
20 inch Diamond starter pack (1 of each grit) |
|
|
| 53 |
255-2082 |
20 inch Turbostrip segmented rotary pad (pkg of 4) |
|
|
| 54 |
255-2015 |
20 inch Duala clean and shine pad - low speed (pkg of 5) |
|
|
| 55 |
255-2016 |
20in 2001 Duala clean& shine pad-high speed(pkg 5) (OBSOLETE |
|
|
|
|
- Pad Holders - 275-9029 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
991-2214 |
Center-Lok II pad holder - left hand thread (red) |
|
|
| 2a |
991-2201 |
Center-Lok II pad holder - right hand thread (black) |
|
(Pad driver side female, Floor side male) |
| 2b |
991-8577 |
Pad retainer |
|
(Pad driver side male, Floor side female) |
| 3a |
991-2202 |
Big mouth pad holder set (blue) |
|
(includes 3 screws) |
| 3b |
991-2205 |
Deep lock ring and pad grip ring |
|
|
| 4 |
991-2203 |
Big mouth pad holder male thread portion |
|
|
| 5 |
991-2206 |
Center-Lok 3 pad holder |
|
(includes 3 screws) |
| 6 |
996-0372 |
Big mouth pad holder (left hand thread) |
|
|
| 8 |
991-2209 |
Split retainer - pad holder ring (OBSOLETE) |
|
|
| 9 |
N/A |
Not available |
|
(replaced by #3 991-2202) |
| 10 |
991-2211 |
Center lock pad holding cup (male) (yellow) (OBSOLETE) |
|
|
|
|
- Batteries - 999-5050 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
162-0002 |
12V 185Ah wet battery (SNSR) |
2 |
|
| 2 |
162-0047 |
12V 215Ah AGM battery (Group J185) |
2 |
|
|
|
- Chargers - 999-5065 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
162-5060 |
24V 20amp battery charger with small SB50 red plug |
1 |
|
| 2 |
162-5070 |
24V 20amp AGM battery charger with small SB50 red plug |
1 |
|
| 3 |
991-2103 |
50amp charger plug SB50 with pins (red) |
1 |
|
| 4a |
162-5079 |
SCR assembly kit |
1 |
|
| 4b |
372-1254 |
Fuse assembly |
1 |
|
| 5 |
162-5087 |
AC cord set kit |
1 |
|
| 6 |
162-5081 |
Control board assembly |
1 |
|
|
|
- Frequently Replaced Parts - 999-9618 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
162-0002 |
12V 185Ah wet battery (SNSR) |
|
(2) |
| 2 |
162-0047 |
12V 215Ah AGM battery (Group J185) |
|
(2) |
| 3 |
162-5060 |
24V 20amp battery charger with small SB50 red plug |
|
|
| 4 |
991-2103 |
50amp charger plug SB50 with pins (red) |
|
|
| 5 |
998-0010 |
Battery jumper cable - ring type (red) |
|
|
| 6 |
170-5566 |
Switch |
|
(power, vacuum, and brush) |
| 7 |
170-6260 |
Drive chain (OBSOLETE) |
|
|
| 8 |
170-0676 |
Connecting link |
|
|
| 9 |
170-0006 |
Manual solution valve |
|
|
| 10 |
170-6192 |
Solution Tank Strainer (OBSOLETE) |
|
|
| 11 |
170-0018 |
Squeegee blade 29 inch gum rubber rear (tan) |
|
|
| 12 |
170-0021 |
Squeegee blade 29 inch gum rubber front (tan) |
|
|
| 13 |
170-0007 |
Squeegee hose with cuffs |
|
|
| 15 |
170-0032 |
Drain valve gasket |
|
|
| 17 |
170-0557 |
Drain hose (OBSOLETE) |
|
|
| 18 |
170-6262 |
Vacuum motor |
|
(OEM) |
| 19 |
991-1209 |
24V 2 stage vacuum motor peripheral |
|
(NON-OEM) |
| 20 |
996-1646 |
19 inch heavy grit stripping brush - 80 grit |
|
|
| 21 |
996-1647 |
19 inch medium grit scrubbing brush - 180 grit (OBSOLETE) |
|
|
| 22 |
996-1648 |
19 inch lite grit scrubbing brush - 500 grit (OBSOLETE) |
|
|
| 25 |
996-1574 |
Clutch plate (OBSOLETE) |
|
|
| 26 |
991-2206 |
Center-Lok 3 pad holder |
|
|
|
|
