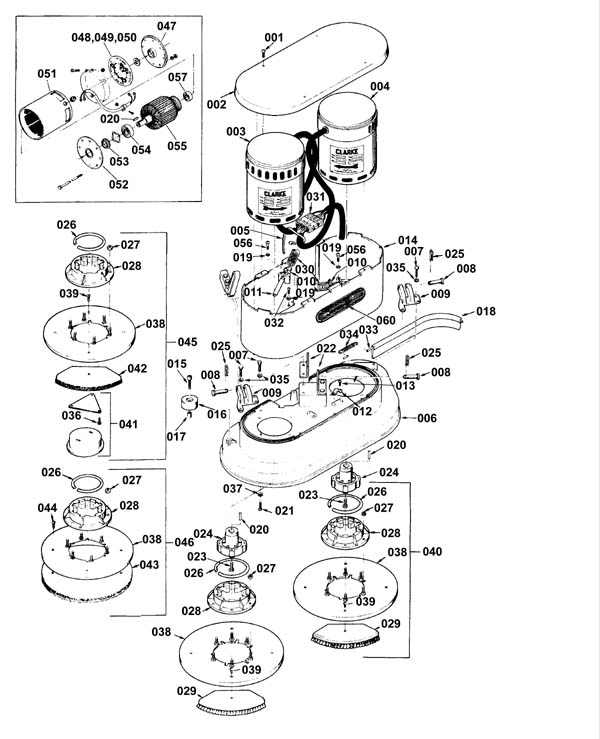

Brush Housing - 170-0018 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 001 |
999-0572 |
Screw 10-24 x 1/2 pan head self-tapping zinc |
4 |
|
| 002 |
170-0392 |
Brush motor cover (OBSOLETE) |
1 |
|
| 003 |
170-0393 |
Right brush drive motor (OBSOLETE) |
1 |
|
| 004 |
170-0396 |
Left brush drive motor (OBSOLETE) |
1 |
|
| 006 |
170-0397 |
Brush housing (OBSOLETE) |
1 |
|
| 007 |
999-0512 |
Bolt 3/8-24 x 3/4 hex head grade 5 zinc plated |
10 |
|
| 008 |
170-0398 |
Connecting pin |
3 |
|
| 009 |
170-0008 |
Brush housing bracket (OBSOLETE) |
2 |
|
| 010 |
997-2004 |
Hose clamp |
2 |
|
| 011 |
170-0400 |
Solution adapter |
2 |
|
| 012 |
170-0401 |
Wire clamp (OBSOLETE) |
1 |
|
| 013 |
999-0462 |
Screw 8-32 x 1/2 pan head slotted zinc plated |
2 |
|
| 014 |
170-0402 |
Brush housing shield (OBSOLETE) |
1 |
|
| 015 |
999-0573 |
Screw 5/16-18 x 1 1/4 socket head alloy plain finish |
1 |
|
| 016 |
170-0403 |
Brush guide wheel (OBSOLETE) |
1 |
|
| 017 |
170-0404 |
Wheel spacer (OBSOLETE) |
1 |
|
| 018 |
170-0690 |
Brush housing skirt (OBSOLETE) |
1 |
|
| 019 |
999-0311 |
Washer #10 external star lock zinc plated |
10 |
|
| 020 |
164-0132 |
Square keyway 1/4 x 1/4 |
2 |
|
| 021 |
999-0020 |
Bolt 1/4-20 x 3/4 hex head grade 5 zinc plated |
8 |
|
| 022 |
170-0405 |
Housing lift bracket (OBSOLETE) |
2 |
|
| 023 |
170-0461 |
Screw 5/16-18 x 3/4 truss head thread cutting ss (OBSOLETE) |
2 |
|
| 024a |
170-0207 |
Male gimbal with collar |
2 |
|
| 024b |
170-0207 |
Male gimbal with collar |
|
|
| 025 |
997-2516 |
Cotter pin |
3 |
|
| 026 |
170-0031 |
Brush holder spring |
2 |
|
| 027 |
999-0190 |
Nut 1/4-20 hex plain finish |
12 |
|
| 028 |
996-0336 |
Clutch plate with brush holder spring |
2 |
|
| 029 |
NOTE |
Please See Batteries, Brushes, Pad Holders and Charger Pages |
|
|
| 030 |
170-0408 |
Valve/brush hose |
2 |
|
| 031 |
170-0009 |
Connector housing |
4 |
|
| 032 |
999-0267 |
Screw 10-24 x 1/2 pan head phillips zinc |
6 |
|
| 033 |
170-0409 |
Skirt retaining strip (OBSOLETE) |
1 |
|
| 034 |
170-0068 |
Control handle spring (OBSOLETE) |
1 |
|
| 035 |
999-0105 |
Washer 5/16 external star lock zinc plated |
10 |
|
| 036 |
999-0451 |
Screw 10-16 x 5/8 pan head phillips self-drilling |
6 |
|
| 037 |
999-0123 |
Washer 1/4 SAE flat zinc plated |
8 |
|
| 038 |
170-0411 |
Brush plate assembly (OBSOLETE) |
2 |
|
| 039 |
999-0013 |
Screw 10 x 5/8 pan head phillips sheet metal |
8 |
|
| 040 |
170-0412 |
Nylon brush assembly |
2 |
(does not include pad driver) |
| 041a |
N/A |
Not available |
2 |
Pad holder - Can replace with 991-2206 |
| 041b |
991-2212 |
Plastic plate only (for 991-2207) (OBSOLETE) |
|
|
| 042 |
170-0413 |
Sectional block assembly (OBSOLETE) |
8 |
|
| 044 |
999-0413 |
Screw 10-32 x 1/2 pan head slotted zinc plated |
8 |
|
| 045 |
170-0415 |
Sectional pad driver (OBSOLETE) |
2 |
(Optional) |
| 046 |
NOTE |
Please See Batteries, Brushes, Pad Holders and Charger Pages |
|
|
| 047 |
170-0417 |
Communicator cover bracket (OBSOLETE) |
1 |
|
| 048 |
170-0387 |
Brush holder assembly (OBSOLETE) |
1 |
|
| 049 |
164-0325 |
Carbon brush with lead and terminal (sold individually) |
4 |
|
| 051 |
170-0384 |
Field assembly (OBSOLETE) |
1 |
|
| 052 |
170-0418 |
Pulley end bell bracket |
1 |
|
| 054 |
372-1890 |
Bearing (rear) |
1 |
|
| 055 |
170-0381 |
Armature assembly (OBSOLETE) |
1 |
|
| 056 |
999-0574 |
Screw 10-24 x 1 3/4 pan head slotted zinc plated |
4 |
|
| 057 |
170-0321 |
Front end bearing |
1 |
|
| 058 |
N/A |
Not available |
1 |
Label series 11 |
|
|

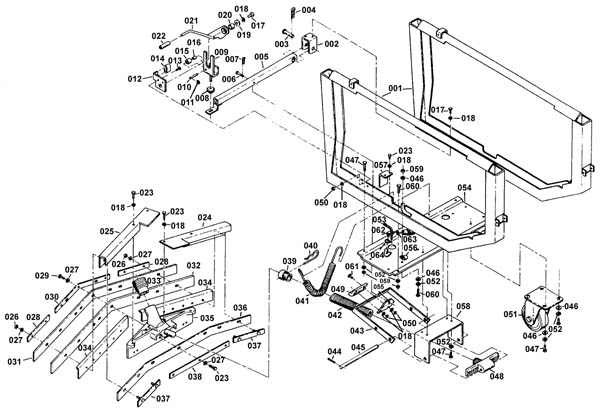

Frame, Caster, and Squeegee - 170-0019 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 001 |
170-0420 |
Main frame assembly (OBSOLETE) |
2 |
|
| 002 |
N/A |
Not available |
1 |
Pivot squeegee bracket |
| 003 |
170-0398 |
Connecting pin |
1 |
|
| 004 |
997-2516 |
Cotter pin |
1 |
|
| 005 |
170-0422 |
Squeegee arm assembly (OBSOLETE) |
1 |
|
| 006 |
170-0423 |
Release pin (FSO) (OBSOLETE) |
1 |
|
| 007 |
170-0135 |
Cotter pin (OBSOLETE) |
3 |
|
| 008 |
170-0424 |
Knob adjustment (OBSOLETE) |
1 |
|
| 009 |
170-0425 |
Bracket and screw assembly (OBSOLETE) |
1 |
|
| 010 |
170-0426 |
Pin follower (OBSOLETE) |
1 |
|
| 011 |
170-0427 |
Retaining ring (OBSOLETE) |
2 |
|
| 012 |
170-0428 |
Squeegee pedal plate assembly (OBSOLETE) |
1 |
|
| 013 |
999-0326 |
Screw 1/4-20 x 3/4 flat head phillips zinc plated |
2 |
|
| 014 |
170-0429 |
Pedal stop sleeve (OBSOLETE) |
1 |
|
| 015 |
170-0430 |
Follower (OBSOLETE) |
1 |
|
| 016 |
170-0431 |
Sleeve bearing (OBSOLETE) |
1 |
|
| 017 |
999-0020 |
Bolt 1/4-20 x 3/4 hex head grade 5 zinc plated |
3 |
|
| 018 |
999-0060 |
Washer 1/4 split lock plain finish |
11 |
|
| 019 |
999-0160 |
Washer 1/4 x 1 1/4 fender zinc plated |
1 |
|
| 020 |
170-0432 |
Pedal assembly bushing (OBSOLETE) |
1 |
|
| 021 |
170-0433 |
Squeegee pedal assembly (OBSOLETE) |
1 |
|
| 022 |
170-0434 |
Brake pedal cover (OBSOLETE) |
1 |
|
| 023 |
999-0583 |
Bolt 1/4-20 x 1/2 hex head grade 8 yellow zinc |
9 |
|
| 024 |
170-0435 |
Squeegee frame left hand (OBSOLETE) |
1 |
|
| 025 |
170-0436 |
Squeegee frame right hand (OBSOLETE) |
1 |
|
| 026 |
170-0465 |
Nut 1/4-20 ESNA heavy jam |
4 |
|
| 027 |
999-0123 |
Washer 1/4 SAE flat zinc plated |
12 |
|
| 028 |
170-0437 |
Squeegee blade rear retainer |
2 |
|
| 029 |
999-0297 |
Bolt 1/4-20 x 1 hex head stainless steel |
5 |
|
| 030 |
170-0438 |
Center rear retainer (OBSOLETE) |
1 |
|
| 031 |
170-0439 |
Squeegee blade 31 inch rear (black) (OBSOLETE) |
1 |
|
| 032 |
170-0440 |
Squeegee blade tan 30 3/4 inch (OBSOLETE) |
1 |
|
| 033 |
170-0007 |
Squeegee hose with cuffs |
1 |
|
| 034 |
170-0441 |
Squeege blade rear support |
2 |
|
| 035 |
170-0442 |
Squeegee housing (OBSOLETE) |
1 |
|
| 036 |
170-0443 |
Squeegee blade front (OBSOLETE) |
1 |
|
| 037 |
170-0444 |
Squeegee retainer assembly (OBSOLETE) |
2 |
|
| 038 |
170-0445 |
Center front retainer (OBSOLETE) |
1 |
|
| 039 |
170-0446 |
Spring coupling |
1 |
|
| 040 |
170-0447 |
Squeegee locking pin |
1 |
|
| 041 |
N/A |
Not available |
1 |
Spring |
| 042 |
170-0449 |
Squeegee spring (OBSOLETE) |
1 |
|
| 043 |
170-0450 |
Squeegee bracket |
1 |
|
| 044 |
997-2500 |
Cotter pin |
2 |
|
| 045 |
170-0452 |
Squeegee pivot shaft (OBSOLETE) |
1 |
|
| 046 |
999-0549 |
Washer 5/16 x 3/4 SAE flat stainless steel |
10 |
|
| 047 |
999-0132 |
Bolt 5/16-18 x 3/4 hex head grade 5 zinc plated |
14 |
|
| 048 |
170-0454 |
Squeegee bracket guide |
1 |
|
| 049 |
170-0005 |
Squeegee pad |
1 |
|
| 050 |
999-0190 |
Nut 1/4-20 hex plain finish |
4 |
|
| 051a |
991-2011 |
Caster wheel assembly |
2 |
|
| 051b |
170-7201 |
Caster wheel |
|
|
| 052 |
999-0028 |
Washer 5/16 split lock plain finish |
18 |
|
| 054 |
170-0455 |
Caster bracket (OBSOLETE) |
1 |
|
| 055 |
N/A |
Not available |
1 |
(not available) Pick up squeegee bracket |
| 056 |
170-0457 |
Strap (OBSOLETE) |
1 |
|
| 057 |
170-0458 |
Squeegee bracket guide (OBSOLETE) |
1 |
|
| 058 |
N/A |
Not available |
1 |
Squeegee pivot bracket |
| 059 |
999-0069 |
Nut 5/16-18 hex |
5 |
|
| 060 |
999-0162 |
Bolt 5/16-18 x 1 1/4 hex head grade 5 zinc plated |
3 |
|
| 061 |
999-0432 |
Screw 1/4-20 x 1 1/4 pan head phillips zinc plated |
2 |
|
| 062 |
572-3946 |
5/8 inch elbow |
1 |
|
| 063 |
997-2004 |
Hose clamp |
2 |
|
| N/S |
170-1584 |
Squeegee assembly (OBSOLETE) |
1 |
|
|
|

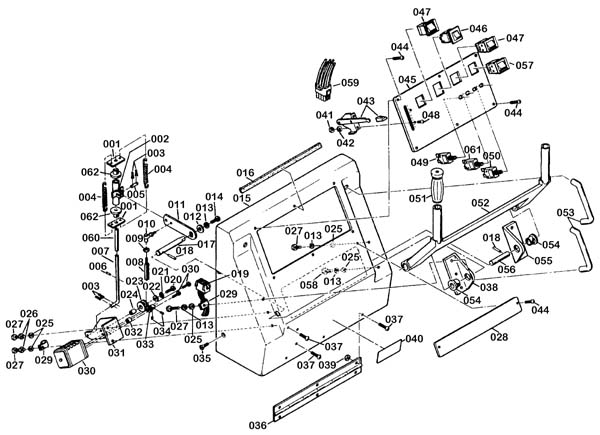

Control Housing - 170-0020 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 001 |
170-0504 |
Spring plate (OBSOLETE) |
2 |
Spring plate |
| 002 |
170-0505 |
Tube Assy Centering (OBSOLETE) |
1 |
Centering tube assembly |
| 003 |
997-2500 |
Cotter pin |
4 |
|
| 004 |
170-0127 |
Brake spring |
2 |
|
| 005 |
170-0506 |
1/4 inch diameter pin (OBSOLETE) |
1 |
|
| 007 |
170-0508 |
Centering rod (FSO) (OBSOLETE) |
1 |
|
| 008 |
170-0509 |
Switch rack (OBSOLETE) |
1 |
|
| 009 |
999-0460 |
Nut 10-32 hex |
1 |
|
| 010 |
170-0511 |
Ball joint assembly (OBSOLETE) |
1 |
|
| 011 |
170-0512 |
Switch actuator arm (FSO) (OBSOLETE) |
1 |
|
| 012 |
999-0160 |
Washer 1/4 x 1 1/4 fender zinc plated |
1 |
|
| 013 |
999-0028 |
Washer 5/16 split lock plain finish |
4 |
|
| 014 |
999-0132 |
Bolt 5/16-18 x 3/4 hex head grade 5 zinc plated |
1 |
|
| 015 |
170-0513 |
Control housing (OBSOLETE) |
1 |
|
| 016 |
170-0514 |
Gasket console panel (OBSOLETE) |
1 |
|
| 017 |
N/A |
Not available |
1 |
Handle pin |
| 018 |
N/A |
Not available |
2 |
(not available) Pin 3/16 inch diameter |
| 019 |
170-0517 |
Traverse switch harness assembly (OBSOLETE) |
1 |
|
| 020 |
999-0300 |
Bolt 1/4-20 x 7/8 hex head grade 5 zinc plated |
1 |
|
| 021 |
999-0017 |
Washer 1/4 external star lock |
1 |
|
| 022 |
999-0123 |
Washer 1/4 SAE flat zinc plated |
1 |
|
| 023 |
N/A |
Not available |
1 |
Rack retainer |
| 024 |
170-0519 |
Housing mount spacer (OBSOLETE) |
1 |
|
| 025 |
999-0549 |
Washer 5/16 x 3/4 SAE flat stainless steel |
5 |
|
| 026 |
999-0069 |
Nut 5/16-18 hex |
2 |
|
| 027 |
999-0162 |
Bolt 5/16-18 x 1 1/4 hex head grade 5 zinc plated |
4 |
|
| 028 |
170-0520 |
Warning label (FSO) (OBSOLETE) |
1 |
|
| 029 |
170-0457 |
Strap (OBSOLETE) |
2 |
|
| 030 |
170-0522 |
Switch (OBSOLETE) |
1 |
|
| 031 |
170-0523 |
Bracket switch (OBSOLETE) |
1 |
Switch bracket |
| 032 |
170-0524 |
Gear spacer (OBSOLETE) |
1 |
|
| 033 |
N/A |
Not available |
1 |
(Not Available) Gear switch |
| 034 |
999-0149 |
Screw 8-32 x 3/16 cup point socket set alloy plain finish |
2 |
|
| 035 |
999-0185 |
Screw 3/8-16 x 3/4 flat head slotted zinc plated |
2 |
|
| 036 |
170-0526 |
Hinge (OBSOLETE) |
1 |
|
| 037 |
999-0081 |
Screw 1/4-20 x 5/8 pan head slotted zinc |
7 |
|
| 038 |
170-0527 |
Adjusting left hand bracket (OBSOLETE) |
1 |
|
| 039 |
999-0190 |
Nut 1/4-20 hex plain finish |
5 |
|
| 040 |
N/A |
Not available |
1 |
(Not available) Model/serial number label |
| 041 |
999-0062 |
Nut 10-24 hex |
2 |
|
| 042 |
999-0060 |
Washer 1/4 split lock plain finish |
2 |
|
| 043 |
N/A |
Not available |
1 |
(Not available) Solution controle with cable |
| 044 |
999-0110 |
Screw 10-16 x 1/2 pan head phillips self-drilling |
8 |
|
| 045 |
170-0529 |
Panel console (OBSOLETE) |
1 |
Console panel |
| 046 |
170-0089 |
Rocker switch (OBSOLETE) |
1 |
(traverse speed) |
| 047 |
170-0001 |
Switch |
2 |
(main and vacuum) |
| 048 |
999-0267 |
Screw 10-24 x 1/2 pan head phillips zinc |
2 |
|
| 049a |
170-0531 |
15amp circuit breaker |
1 |
|
| 049b |
991-8539 |
15amp circuit breaker |
1 |
(NON-OEM) |
| 050 |
991-1632 |
25amp circuit breaker |
2 |
|
| 051 |
170-0532 |
Handle grip (OBSOLETE) |
2 |
|
| 052 |
170-0533 |
Control handle (OBSOLETE) |
1 |
|
| 053 |
170-0534 |
Stationary handle (FSO) (OBSOLETE) |
2 |
|
| 054 |
170-0088 |
Flanged bearing (OBSOLETE) |
2 |
|
| 055 |
170-0541 |
Adjusting right hand bracket (OBSOLETE) |
1 |
|
| 056 |
170-0535 |
Handle pivot pin (OBSOLETE) |
1 |
|
| 057 |
170-5566 |
Switch |
1 |
(Brush lift) |
| 058 |
999-0030 |
Bolt 5/16-18 x 5/8 hex head grade 5 zinc plated |
1 |
|
| 059 |
170-0538 |
Console harness assembly (OBSOLETE) |
1 |
|
| 060 |
170-0539 |
Centering tube (OBSOLETE) |
1 |
|
| 061a |
170-0045 |
20 amp breaker |
1 |
|
| 061b |
991-1617 |
20amp circuit breaker |
1 |
|
| 062 |
N/A |
Not available |
2 |
(not available) Slide bushing |
|
|

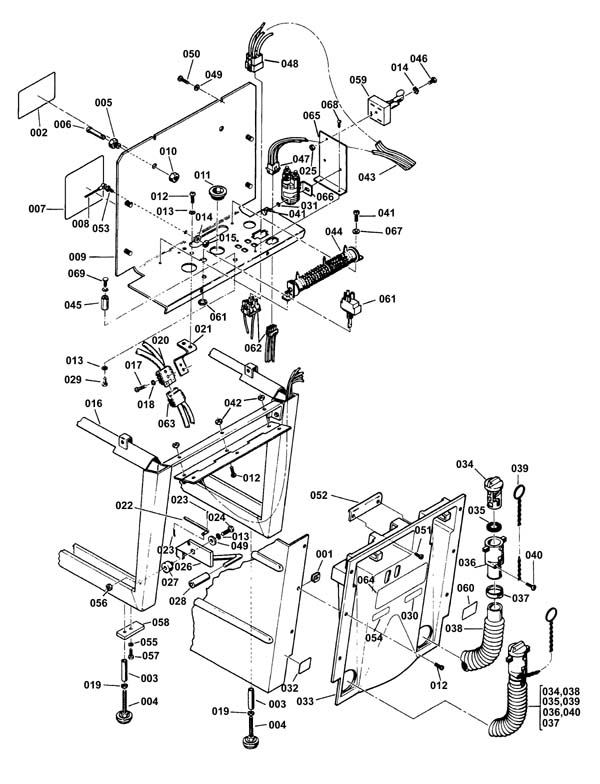

Electrical Panel and Rear Cover - 170-0021 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 001 |
170-0462 |
Nut 1/4-20 speed (OBSOLETE) |
6 |
|
| 002 |
170-0542 |
Battery care label (OBSOLETE) |
1 |
|
| 003 |
170-0543 |
Spacer (FSO) (OBSOLETE) |
2 |
|
| 005 |
170-0078 |
Tank stop bushing (OBSOLETE) |
2 |
|
| 006 |
170-0079 |
Release pin |
2 |
|
| 007 |
170-0545 |
Warning label (FSO) (OBSOLETE) |
1 |
|
| 008 |
170-0546 |
Tank stop cord assembly (OBSOLETE) |
1 |
|
| 009 |
N/A |
Not available |
1 |
(not available) Electrical panel assembly |
| 010 |
999-0575 |
Nut 5/8-18 hex jam plain finish |
2 |
|
| 011 |
N/A |
Not available |
2 |
(not available) Snap bushing |
| 012 |
999-0081 |
Screw 1/4-20 x 5/8 pan head slotted zinc |
11 |
|
| 013 |
999-0017 |
Washer 1/4 external star lock |
4 |
|
| 014 |
999-0311 |
Washer #10 external star lock zinc plated |
2 |
|
| 015 |
999-0460 |
Nut 10-32 hex |
1 |
|
| 016 |
170-0420 |
Main frame assembly (OBSOLETE) |
2 |
|
| 017 |
999-0511 |
Screw 6-32 x 1 pan head phillips zinc plated |
2 |
|
| 018 |
999-0148 |
Washer #6 external star lock zinc plated |
2 |
|
| 019 |
999-0247 |
Nut 3/8-16 hex jam plain finish |
2 |
|
| 020a |
170-0548 |
Console cable assembly |
1 |
|
| 020b |
991-2105 |
SB50 50amp charger plug with pins (gray) |
1 |
|
| 021 |
170-0549 |
Power connect bracket (OBSOLETE) |
1 |
|
| 022 |
170-0550 |
Brake rod (OBSOLETE) |
1 |
|
| 023 |
997-2504 |
Cotter pin 1/16 x 1/2 |
2 |
|
| 024 |
999-0162 |
Bolt 5/16-18 x 1 1/4 hex head grade 5 zinc plated |
1 |
|
| 025 |
999-0062 |
Nut 10-24 hex |
1 |
|
| 026 |
170-0552 |
Brake pedal assembly (OBSOLETE) |
1 |
|
| 027 |
170-0553 |
Brake pedal spacer (FSO) (OBSOLETE) |
1 |
|
| 028 |
170-0434 |
Brake pedal cover (OBSOLETE) |
1 |
|
| 029 |
999-0175 |
Screw 1/4-20 x 3/8 pan head slotted zinc plated |
2 |
|
| 030 |
N/A |
Not available |
1 |
(not available) Solution drain label |
| 031 |
999-0123 |
Washer 1/4 SAE flat zinc plated |
4 |
|
| 032 |
170-0555 |
Parking brake label (FSO) (OBSOLETE) |
1 |
|
| 033 |
170-0556 |
Rear cover (OBSOLETE) |
1 |
|
| 034 |
170-0042 |
Drain valve handle |
2 |
|
| 035 |
170-0032 |
Drain valve gasket |
2 |
|
| 036 |
170-0043 |
Drain valve |
2 |
|
| 037 |
997-2000 |
Hose clamp |
2 |
|
| 038 |
170-0557 |
Drain hose (OBSOLETE) |
2 |
|
| 039 |
170-0558 |
Drain chain assembly |
2 |
|
| 040 |
999-0576 |
Screw 8-18 x 1/2 pan head phillips self-drilling ss |
2 |
|
| 041 |
999-0577 |
Screw 14 x 1/2 hex washer head sheet metal zinc |
4 |
|
| 042 |
999-0190 |
Nut 1/4-20 hex plain finish |
3 |
|
| 043 |
170-0559 |
Panel harness assembly (OBSOLETE) |
1 |
|
| 044 |
170-0065 |
Resistor (OBSOLETE) |
1 |
|
| 045 |
170-0063 |
Insulated stand off |
2 |
|
| 046 |
999-0059 |
Screw 1/4-20 x 3/4 round head slotted zinc plated |
1 |
|
| 047 |
170-0560 |
Circuit plug housing (FSO) (OBSOLETE) |
1 |
|
| 048 |
N/A |
Not available |
1 |
(not available) Cap housing |
| 049 |
999-0028 |
Washer 5/16 split lock plain finish |
3 |
|
| 050 |
170-0463 |
Screw 9/32-16 x 3/4 hex washer head hi-lo |
2 |
|
| 051 |
999-0569 |
Screw 10 x 1/2 pan head phillips sheet metal |
2 |
|
| 052 |
170-0562 |
Squeegee hose guide (OBSOLETE) |
1 |
|
| 053 |
170-0511 |
Ball joint assembly (OBSOLETE) |
1 |
|
| 054 |
170-0563 |
Recovery drain label (OBSOLETE) |
1 |
|
| 055 |
999-0034 |
Washer 3/8 split lock plain finish |
1 |
|
| 056 |
999-0069 |
Nut 5/16-18 hex |
1 |
|
| 057 |
999-0578 |
Bolt 3/8-16 x 1/2 hex head grade 5 plain finish |
1 |
|
| 058 |
N/A |
Not available |
1 |
(not available) |
| 059 |
170-0565 |
Rectifer assembly (OBSOLETE) |
1 |
|
| 060 |
170-0566 |
Squeegee label (OBSOLETE) |
1 |
|
| 061 |
170-0567 |
On/off switch (OBSOLETE) |
1 |
|
| 062 |
170-0568 |
Machine harness assembly (OBSOLETE) |
1 |
|
| 063a |
170-0569 |
Battery cable assembly (OBSOLETE) |
1 |
|
| 063b |
991-2105 |
SB50 50amp charger plug with pins (gray) |
1 |
|
| 064 |
170-0570 |
Lubrication label (FSO) (OBSOLETE) |
1 |
|
| 065 |
N/A |
Not available |
1 |
(not available) Bracket |
| 066 |
172-2805 |
36V contactor |
1 |
|
| 067 |
999-0123 |
Washer 1/4 SAE flat zinc plated |
4 |
|
| 068 |
999-0564 |
Screw 10 x 3/8 pan head phillips sheet metal |
2 |
|
| 069 |
999-0267 |
Screw 10-24 x 1/2 pan head phillips zinc |
2 |
|
|
|

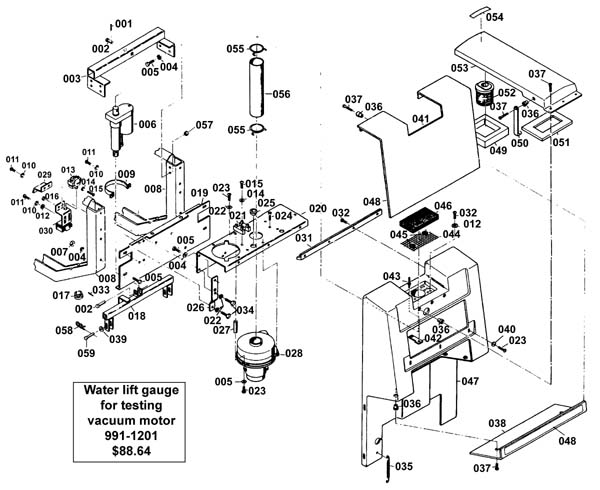

Front Panel Section - 170-0022 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 001 |
997-2516 |
Cotter pin |
1 |
|
| 002 |
170-0572 |
Clevis pin (FSO) (OBSOLETE) |
2 |
|
| 003 |
170-0573 |
Actuator support assembly (OBSOLETE) |
1 |
|
| 004 |
999-0060 |
Washer 1/4 split lock plain finish |
12 |
|
| 005 |
999-0020 |
Bolt 1/4-20 x 3/4 hex head grade 5 zinc plated |
10 |
|
| 006 |
170-0574 |
Linear actuator (OBSOLETE) |
1 |
|
| 007 |
999-0190 |
Nut 1/4-20 hex plain finish |
4 |
|
| 008 |
170-0420 |
Main frame assembly (OBSOLETE) |
2 |
|
| 009 |
170-0575 |
Actuator brace (OBSOLETE) |
1 |
|
| 010 |
999-0053 |
Washer #10 split lock plain finish |
6 |
|
| 011 |
999-0267 |
Screw 10-24 x 1/2 pan head phillips zinc |
6 |
|
| 012 |
999-1416 |
Washer 7/16 flat stainless steel |
4 |
|
| 013 |
170-0576 |
Limit switch |
2 |
|
| 014 |
999-0148 |
Washer #6 external star lock zinc plated |
5 |
|
| 015 |
999-0511 |
Screw 6-32 x 1 pan head phillips zinc plated |
5 |
|
| 016 |
999-0195 |
Nut 6-32 hex plain |
4 |
|
| 017 |
N/A |
Not available |
1 |
(not available) Snap bushing |
| 018 |
170-0578 |
Bracket assembly (OBSOLETE) |
1 |
|
| 019 |
N/A |
Not available |
1 |
Spring bracket |
| 020 |
170-0580 |
Vacuum motor bracket (OBSOLETE) |
1 |
|
| 021 |
N/A |
Not available |
1 |
(not available) Terminal block |
| 022 |
999-0017 |
Washer 1/4 external star lock |
8 |
|
| 023 |
999-0081 |
Screw 1/4-20 x 5/8 pan head slotted zinc |
8 |
|
| 024 |
999-0326 |
Screw 1/4-20 x 3/4 flat head phillips zinc plated |
1 |
|
| 025 |
170-0582 |
Snap bushing (OBSOLETE) |
1 |
|
| 026 |
N/A |
Not available |
2 |
(not available) Vacuum motor bracket support |
| 027 |
170-0584 |
Vacuum motor bracket spacer (OBSOLETE) |
3 |
|
| 028 |
991-1217 |
36V 2 stage vacuum motor tangential with snout |
1 |
|
| 029 |
170-0586 |
Shield Switch (OBSOLETE) |
1 |
|
| 030 |
N/A |
Not available |
1 |
(not available) Switch mounting bracket |
| 031 |
170-0588 |
Tank seal (FSO) (OBSOLETE) |
1 |
|
| 032 |
999-0110 |
Screw 10-16 x 1/2 pan head phillips self-drilling |
6 |
|
| 033 |
997-2505 |
Cotter pin |
1 |
|
| 034 |
999-0415 |
Screw 1/4-20 x 3/4 pan head slotted zinc plated |
4 |
|
| 035 |
N/A |
Not available |
1 |
Idler tension spring |
| 037 |
999-0432 |
Screw 1/4-20 x 1 1/4 pan head phillips zinc plated |
8 |
|
| 038 |
170-0590 |
Front panel (FSO) (OBSOLETE) |
1 |
|
| 039 |
999-0549 |
Washer 5/16 x 3/4 SAE flat stainless steel |
2 |
|
| 040 |
999-0123 |
Washer 1/4 SAE flat zinc plated |
3 |
|
| 041 |
170-0591 |
Front cover panel (OBSOLETE) |
1 |
|
| 042 |
170-0592 |
Stop chamber brace (OBSOLETE) |
1 |
|
| 043 |
170-0775 |
1/8 inch rivet pop aluminum |
2 |
|
| 044 |
170-0594 |
Vacuum motor intake screen (OBSOLETE) |
1 |
|
| 045 |
170-0595 |
Pad lock button (OBSOLETE) |
2 |
|
| 046 |
170-0596 |
Vacuum motor filter |
1 |
|
| 047 |
170-0597 |
Front cover (OBSOLETE) |
1 |
|
| 048 |
N/A |
Not available |
1 |
(not available) Clarke label |
| 049 |
170-0599 |
Vacuum chamber gasket (OBSOLETE) |
1 |
|
| 050 |
170-0500 |
Vacuum chamber brace (OBSOLETE) |
1 |
|
| 051 |
170-0601 |
Filter gasket |
1 |
|
| 052 |
170-0602 |
Recovery float assembly (OBSOLETE) |
1 |
|
| 053 |
170-0603 |
Vacuum chamber (FSO) (OBSOLETE) |
1 |
|
| 054 |
170-0604 |
Charge Plug Label (FSO) (OBSOLETE) |
1 |
|
| 055 |
997-2007 |
Hose clamp |
2 |
|
| 056 |
170-0606 |
Vacuum tank hose |
1 |
|
| 057 |
170-0465 |
Nut 1/4-20 ESNA heavy jam |
4 |
|
| 058 |
170-0135 |
Cotter pin (OBSOLETE) |
2 |
|
| 059 |
170-0423 |
Release pin (FSO) (OBSOLETE) |
2 |
|
|
|

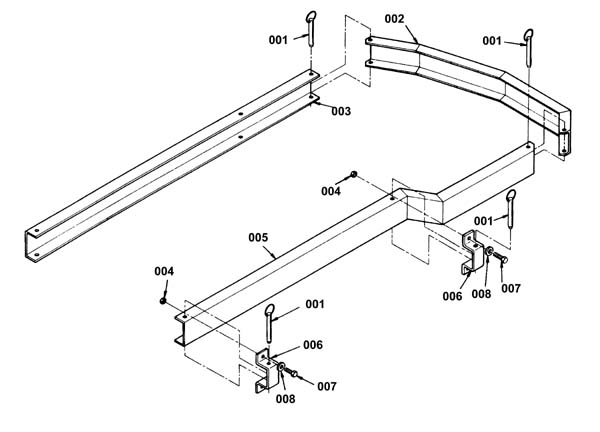

Heavy Duty Bumper - 170-0023 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 001 |
N/A |
Not available |
6 |
(not available) Release pin |
| 001 |
N/A |
Not available |
6 |
(not available) Release pin |
| 002 |
N/A |
Not available |
1 |
(not available) Front rail assembly |
| 002 |
N/A |
Not available |
1 |
(not available) Front rail assembly |
| 003 |
N/A |
Not available |
1 |
(not available) Left rail assembly |
| 003 |
N/A |
Not available |
1 |
(not available) Left rail assembly |
| 004 |
999-0579 |
Nut M8-1.25 hex coarse thread zinc |
8 |
|
| 004 |
999-0579 |
Nut M8-1.25 hex coarse thread zinc |
8 |
|
| 005 |
N/A |
Not available |
1 |
(not available) Right rail assembly |
| 005 |
N/A |
Not available |
1 |
(not available) Right rail assembly |
| 006 |
N/A |
Not available |
4 |
(not available) Side rail mounting bracket |
| 006 |
N/A |
Not available |
4 |
(not available) Side rail mounting bracket |
| 007 |
999-1133 |
Bolt M8-1.25 x 20mm hex head full thread plain |
8 |
|
| 007 |
999-1133 |
Bolt M8-1.25 x 20mm hex head full thread plain |
8 |
|
| 008 |
999-0120 |
Washer 3/8 SAE flat |
8 |
|
| 008 |
999-0120 |
Washer 3/8 SAE flat |
8 |
|
|
|
Roller Bumper - 170-0023 |
|
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 001 |
N/A |
Not available |
6 |
(not available) Release pin |
| 001 |
N/A |
Not available |
6 |
(not available) Release pin |
| 002 |
N/A |
Not available |
1 |
(not available) Front rail assembly |
| 002 |
N/A |
Not available |
1 |
(not available) Front rail assembly |
| 003 |
N/A |
Not available |
1 |
(not available) Left rail assembly |
| 003 |
N/A |
Not available |
1 |
(not available) Left rail assembly |
| 004 |
999-0579 |
Nut M8-1.25 hex coarse thread zinc |
8 |
|
| 004 |
999-0579 |
Nut M8-1.25 hex coarse thread zinc |
8 |
|
| 005 |
N/A |
Not available |
1 |
(not available) Right rail assembly |
| 005 |
N/A |
Not available |
1 |
(not available) Right rail assembly |
| 006 |
N/A |
Not available |
4 |
(not available) Side rail mounting bracket |
| 006 |
N/A |
Not available |
4 |
(not available) Side rail mounting bracket |
| 007 |
999-1133 |
Bolt M8-1.25 x 20mm hex head full thread plain |
8 |
|
| 007 |
999-1133 |
Bolt M8-1.25 x 20mm hex head full thread plain |
8 |
|
| 008 |
999-0120 |
Washer 3/8 SAE flat |
8 |
|
| 008 |
999-0120 |
Washer 3/8 SAE flat |
8 |
|
|
|

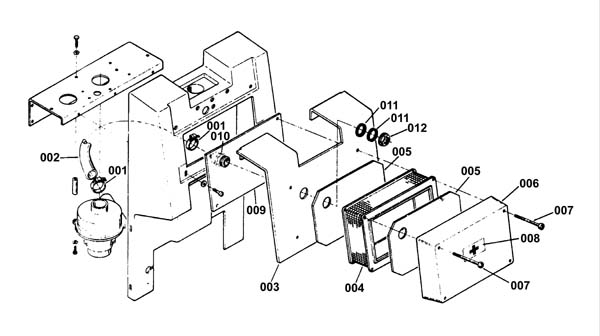

Micro-Staphicidal Filter - 170-0025 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 001 |
997-2007 |
Hose clamp |
1 |
|
| 002 |
170-0638 |
Hose-Vacuum to filter (OBSOLETE) |
2 |
|
| 003 |
170-0639 |
Front cover panel (FSO) (OBSOLETE) |
1 |
|
| 004 |
N/A |
Not available |
1 |
(not available) Micro-Staphicidal filter |
| 005 |
N/A |
Not available |
2 |
(not available) Filter gasket |
| 006 |
N/A |
Not available |
4 |
(not available) Filter cover |
| 007 |
999-0582 |
Screw 1/4-20 x 5 round head slotted zinc plated |
4 |
|
| 008 |
N/A |
Not available |
1 |
(not available) Filter label |
| 009 |
N/A |
Not available |
1 |
(not available) Filter support assembly |
| 010 |
N/A |
Not available |
1 |
(not available) Fitting adapter |
| 011 |
N/A |
Not available |
2 |
(not available) Gasket adapter |
|
|

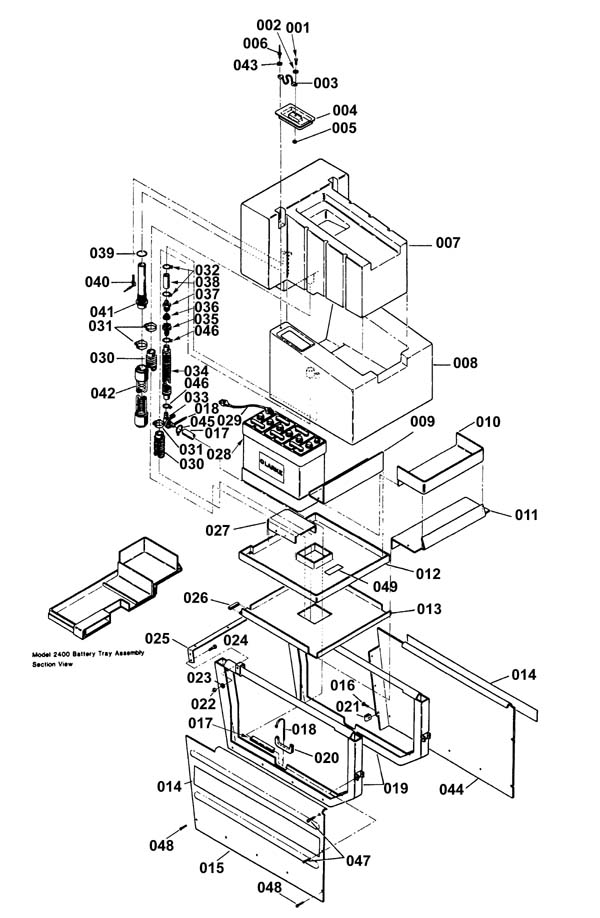

Main Frame and Tank - 170-0026 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 001 |
999-0267 |
Screw 10-24 x 1/2 pan head phillips zinc |
1 |
|
| 002 |
999-0053 |
Washer #10 split lock plain finish |
1 |
|
| 003 |
172-2474 |
8 inch chain |
1 |
|
| 005 |
999-0062 |
Nut 10-24 hex |
1 |
|
| 006 |
170-0614 |
Rivet (OBSOLETE) |
1 |
|
| 007 |
170-0615 |
Recovery tank (OBSOLETE) |
1 |
|
| 008 |
170-0616 |
Solution tank (OBSOLETE) |
1 |
|
| 009 |
170-0617 |
Battery front spacer (FSO) (OBSOLETE) |
1 |
|
| 010 |
170-0618 |
Liner battery support (OBSOLETE) |
1 |
|
| 011 |
N/A |
Not available |
1 |
(not available) Battery support |
| 012 |
170-0620 |
Battery tray liner (OBSOLETE) |
1 |
|
| 013 |
170-0621 |
Battery tray (OBSOLETE) |
1 |
|
| 014 |
170-0622 |
Clarke leader label (OBSOLETE) |
2 |
|
| 015 |
170-0623 |
Right hand side panel (OBSOLETE) |
1 |
|
| 016 |
999-0081 |
Screw 1/4-20 x 5/8 pan head slotted zinc |
6 |
|
| 017 |
170-0624 |
Elbow hose (OBSOLETE) |
1 |
|
| 019 |
170-0420 |
Main frame assembly (OBSOLETE) |
2 |
|
| 020 |
170-0625 |
Frame trim (OBSOLETE) |
1 |
|
| 021 |
170-0462 |
Nut 1/4-20 speed (OBSOLETE) |
6 |
|
| 022 |
999-0190 |
Nut 1/4-20 hex plain finish |
4 |
|
| 023 |
999-0060 |
Washer 1/4 split lock plain finish |
4 |
|
| 024 |
999-0020 |
Bolt 1/4-20 x 3/4 hex head grade 5 zinc plated |
4 |
|
| 025 |
170-0626 |
Switch assembly mounting bracket (FSO) (OBSOLETE) |
1 |
|
| 026 |
170-0627 |
Tray trim (OBSOLETE) |
1 |
|
| 027 |
N/A |
Not available |
1 |
(not available) Battery rear spacer |
| 029 |
170-0224 |
Battery cable |
2 |
|
| 030 |
170-0557 |
Drain hose (OBSOLETE) |
2 |
|
| 031 |
997-2007 |
Hose clamp |
3 |
|
| 032 |
997-2004 |
Hose clamp |
2 |
|
| 033 |
572-3946 |
5/8 inch elbow |
1 |
|
| 034 |
170-0632 |
Solution tank to elbow hose |
1 |
|
| 035 |
170-0633 |
Female swivel connector (FSO) (OBSOLETE) |
1 |
|
| 036 |
164-0065 |
Filter screen |
1 |
|
| 038 |
170-0634 |
Tank to filter hose (OBSOLETE) |
1 |
|
| 040 |
170-0546 |
Tank stop cord assembly (OBSOLETE) |
1 |
|
| 041 |
170-0271 |
Hose adaptor assembly (OBSOLETE) |
1 |
|
| 042 |
170-0007 |
Squeegee hose with cuffs |
1 |
|
| 043 |
999-1416 |
Washer 7/16 flat stainless steel |
1 |
|
| 044 |
170-0635 |
Left hand side panel (OBSOLETE) |
1 |
|
| 045 |
997-2004 |
Hose clamp |
1 |
|
| 046 |
997-2004 |
Hose clamp |
2 |
|
| 047 |
999-0415 |
Screw 1/4-20 x 3/4 pan head slotted zinc plated |
4 |
|
| 048 |
999-0509 |
Screw 1/4-20 x 3/8 pan head phillips zinc plated |
10 |
|
| 049 |
N/A |
Not available |
1 |
(not available) Caution label |
| 028 |
162-0002 |
12V 185Ah wet battery (SNSR) |
3 |
|
| 028 |
162-0047 |
12V 215Ah AGM battery (Group J185) |
3 |
|
|
|

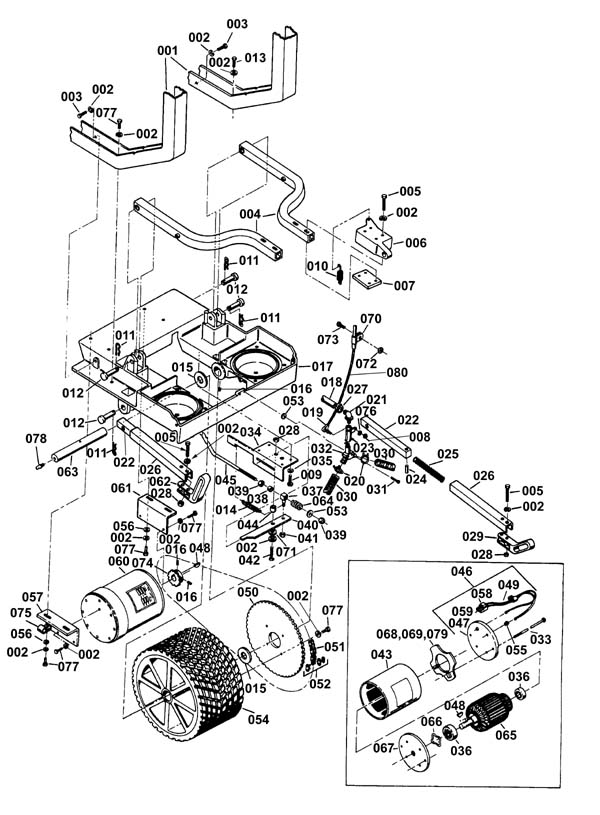

Support - 170-0027 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 001 |
170-0420 |
Main frame assembly (OBSOLETE) |
2 |
|
| 002 |
999-0028 |
Washer 5/16 split lock plain finish |
23 |
|
| 003 |
999-0399 |
Screw 5/16-18 x 3/4 pan head phillips zinc plated |
2 |
|
| 004 |
170-0655 |
Brush lift arm assembly (OBSOLETE) |
2 |
|
| 005 |
999-0108 |
Bolt 5/16-18 x 1 3/4 hex head grade 5 zinc plated |
8 |
|
| 006 |
170-0656 |
Brush lift link |
1 |
|
| 007 |
170-0657 |
Plate Nut (OBSOLETE) |
1 |
|
| 008 |
999-0460 |
Nut 10-32 hex |
1 |
|
| 009 |
999-0020 |
Bolt 1/4-20 x 3/4 hex head grade 5 zinc plated |
4 |
|
| 010 |
170-0658 |
Idler tension spring (OBSOLETE) |
1 |
|
| 011 |
997-2516 |
Cotter pin |
4 |
|
| 012 |
170-0398 |
Connecting pin |
4 |
|
| 013 |
999-0162 |
Bolt 5/16-18 x 1 1/4 hex head grade 5 zinc plated |
1 |
|
| 014 |
170-0127 |
Brake spring |
1 |
|
| 015 |
170-0143 |
Spacer washer (OBSOLETE) |
2 |
|
| 016 |
999-0095 |
Screw 1/4-20 x 3/8 cup point socket set alloy plain finish |
4 |
|
| 017 |
170-0659 |
Machine support (OBSOLETE) |
1 |
|
| 018 |
170-0624 |
Elbow hose (OBSOLETE) |
1 |
|
| 019 |
170-0511 |
Ball joint assembly (OBSOLETE) |
1 |
|
| 020 |
997-2004 |
Hose clamp |
2 |
|
| 021 |
170-0660 |
Solution elbow |
1 |
|
| 022 |
170-0661 |
Parallel arm (OBSOLETE) |
2 |
|
| 023 |
170-0006 |
Manual solution valve |
1 |
|
| 024 |
170-0662 |
Roll Pin (OBSOLETE) |
2 |
|
| 025 |
170-0663 |
Press control spring (OBSOLETE) |
2 |
|
| 026 |
170-0664 |
Parallel arm tube (OBSOLETE) |
2 |
|
| 027 |
997-2004 |
Hose clamp |
1 |
|
| 028 |
999-0069 |
Nut 5/16-18 hex |
5 |
|
| 029 |
170-0665 |
Left hand parallel arm end (OBSOLETE) |
1 |
|
| 030 |
170-0408 |
Valve/brush hose |
2 |
|
| 031 |
999-0432 |
Screw 1/4-20 x 1 1/4 pan head phillips zinc plated |
2 |
|
| 032 |
170-0208 |
Water splitter (OBSOLETE) |
1 |
|
| 033 |
N/A |
Not available |
2 |
(not available) Thru bolt |
| 034 |
170-0666 |
Brake arm guide (FSO) (OBSOLETE) |
1 |
|
| 035 |
999-0060 |
Washer 1/4 split lock plain finish |
4 |
|
| 036 |
170-0321 |
Front end bearing |
2 |
|
| 037 |
170-0130 |
Brake rod swivel |
1 |
|
| 038 |
170-0667 |
Brake rod spacer (FSO) (OBSOLETE) |
1 |
|
| 039 |
170-0465 |
Nut 1/4-20 ESNA heavy jam |
2 |
|
| 041 |
999-0211 |
Nut 5/16-18 hex nylon insert lock zinc plated |
1 |
|
| 042 |
999-0109 |
Bolt 5/16-18 x 1 1/2 hex head grade 5 zinc plated |
1 |
|
| 043 |
170-0669 |
Stator frame assembly (OBSOLETE) |
1 |
|
| 044 |
170-0128 |
Brake arm spacer (OBSOLETE) |
1 |
|
| 045 |
170-0550 |
Brake rod (OBSOLETE) |
1 |
|
| 046 |
170-0670 |
Commutator bracket (OBSOLETE) |
1 |
|
| 047 |
N/A |
Not available |
1 |
(not available) Bracket |
| 048 |
170-0672 |
Square keyway |
1 |
|
| 049 |
170-0673 |
Lead assembly (OBSOLETE) |
1 |
|
| 050 |
170-0674 |
Driven sprocket (OBSOLETE) |
1 |
|
| 051 |
170-0675 |
Drive chain (OBSOLETE) |
1 |
|
| 052 |
170-0676 |
Connecting link |
1 |
|
| 053 |
999-0123 |
Washer 1/4 SAE flat zinc plated |
5 |
|
| 054 |
N/A |
Not available |
1 |
(Drive wheel assembly) |
| 055 |
N/A |
Not available |
2 |
(not available) Strain relief |
| 056 |
999-0549 |
Washer 5/16 x 3/4 SAE flat stainless steel |
4 |
|
| 057 |
170-0679 |
Motor mounting bracket (FSO) (OBSOLETE) |
1 |
|
| 058 |
170-0385 |
Male terminal housing connector |
1 |
|
| 059 |
170-0386 |
Male terminal (OBSOLETE) |
1 |
|
| 060 |
170-0680 |
Traverse motor (OBSOLETE) |
1 |
|
| 061 |
170-0681 |
Motor mounting bracket (FSO) (OBSOLETE) |
1 |
|
| 062 |
170-0682 |
Right hand parallel arm end (OBSOLETE) |
1 |
|
| 063 |
170-0683 |
Front end wheel shaft (OBSOLETE) |
1 |
|
| 064 |
170-0113 |
Spring (OBSOLETE) |
1 |
|
| 065 |
N/A |
Not available |
1 |
(not available) Armature assembly |
| 066 |
170-0379 |
Wave washer |
1 |
|
| 067 |
170-0685 |
Bracket (FSO) (OBSOLETE) |
1 |
|
| 068 |
170-0686 |
Brush assembly (OBSOLETE) |
4 |
|
| 070 |
170-0263 |
Cable clip |
1 |
|
| 071 |
999-0160 |
Washer 1/4 x 1 1/4 fender zinc plated |
1 |
|
| 072 |
999-0151 |
Nut 8-32 nylon insert lock zinc plated |
1 |
|
| 073 |
999-0385 |
Screw 8-32 x 1/2 round head slotted zinc plated |
1 |
|
| 074 |
170-0687 |
Drive sprocket |
1 |
|
| 075 |
170-0457 |
Strap (OBSOLETE) |
1 |
|
| 076 |
999-0311 |
Washer #10 external star lock zinc plated |
1 |
|
| 077 |
999-0119 |
Bolt 3/8-16 x 3/4 hex head grade 5 zinc plated |
11 |
|
| 078 |
170-0016 |
Grease fitting |
1 |
|
| 079 |
170-0689 |
Brush board assembly (OBSOLETE) |
1 |
|
| 080 |
N/A |
Not available |
1 |
(not available) Solution contol with cable |
|
|

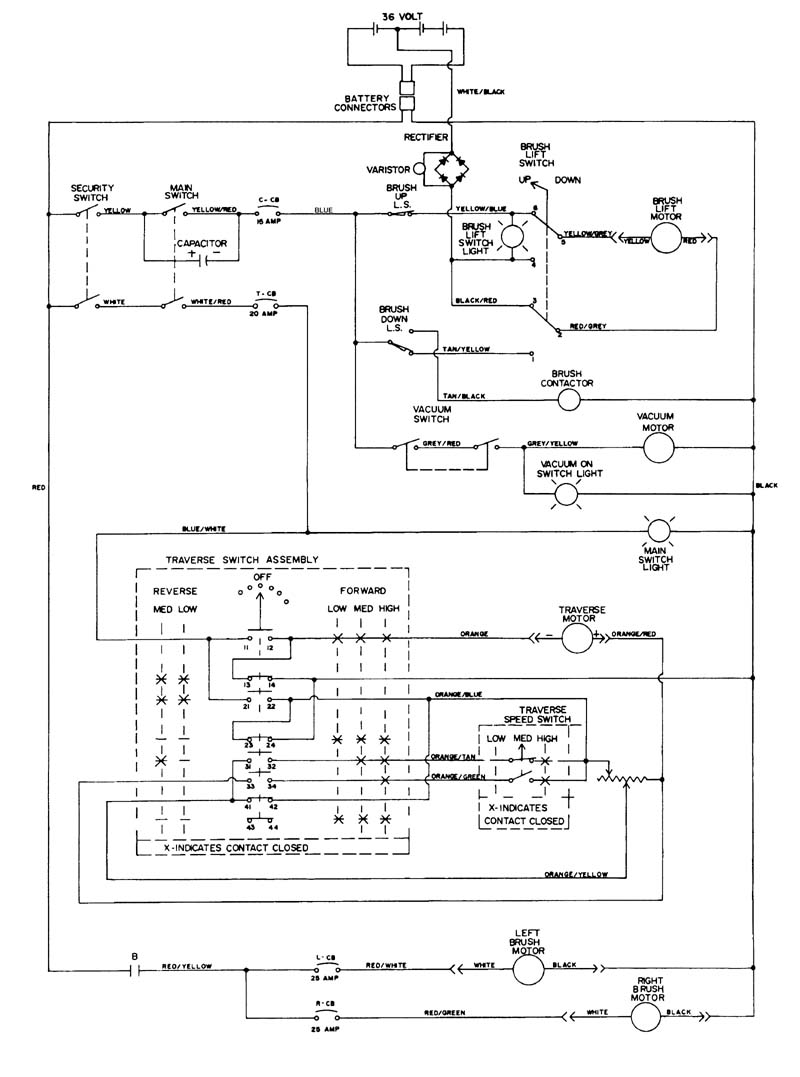

Connection - |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
|
|

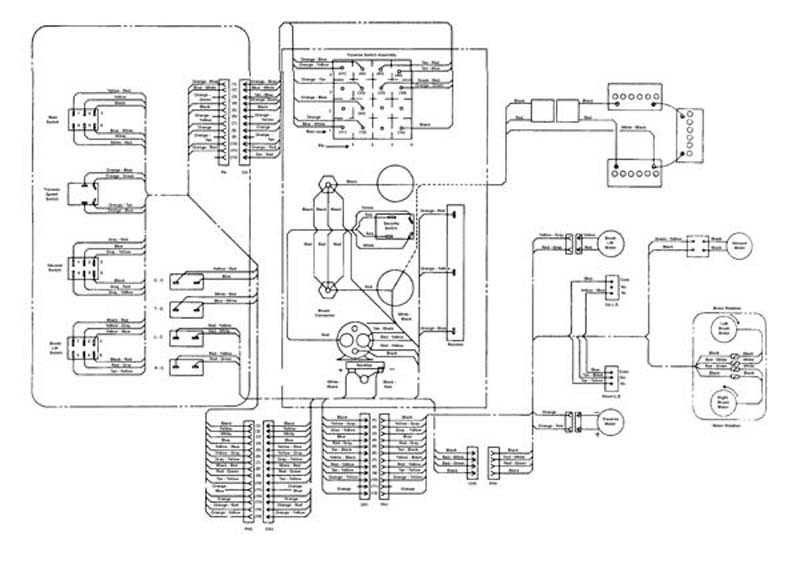

Wiring - |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
|
|
- Batteries, Brushes and Chargers - 170-9943 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
162-0002 |
12V 185Ah wet battery (SNSR) |
3 |
|
| 2 |
162-0047 |
12V 215Ah AGM battery (Group J185) |
3 |
|
| 3 |
162-5062 |
36V 20amp battery charger with small SB50 gray plug |
1 |
(configured for wet batteries; can be changed to support AGM batteries) |
|
162-9024 |
36V 12amp battery charger with small SB50 gray plug |
|
|
| 5 |
991-2105 |
SB50 50amp charger plug with pins (gray) |
1 |
|
| 6 |
996-0390 |
13 inch heavy grit stripping brush - 80 grit |
1 |
|
| 7 |
996-0253 |
13 inch medium grit scrubbing brush - 180 grit |
1 |
|
| 8 |
996-0391 |
13 inch lite grit scrubbing brush - 500 grit |
1 |
|
| 9 |
996-3773 |
13 inch daily cleaning brush |
1 |
|
| 10 |
996-0323 |
13 inch Pad driver |
1 |
|
| 11 |
996-0336 |
Clutch plate with brush holder spring |
1 |
|
|
|
- Pad Holders - 275-9029 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
991-2214 |
Center-Lok II pad holder - left hand thread (red) |
|
|
| 2a |
991-2201 |
Center-Lok II pad holder - right hand thread (black) |
|
(Pad driver side female, Floor side male) |
| 2b |
991-8577 |
Pad retainer |
|
(Pad driver side male, Floor side female) |
| 3a |
991-2202 |
Big mouth pad holder set (blue) |
|
(includes 3 screws) |
| 3b |
991-2205 |
Deep lock ring and pad grip ring |
|
|
| 4 |
991-2203 |
Big mouth pad holder male thread portion |
|
|
| 5 |
991-2206 |
Center-Lok 3 pad holder |
|
(includes 3 screws) |
| 6 |
996-0372 |
Big mouth pad holder (left hand thread) |
|
|
| 8 |
991-2209 |
Split retainer - pad holder ring (OBSOLETE) |
|
|
| 9 |
N/A |
Not available |
|
(replaced by #3 991-2202) |
| 10 |
991-2211 |
Center lock pad holding cup (male) (yellow) (OBSOLETE) |
|
|
|
|
- Frequently Replaced Parts - 999-9619 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
162-0002 |
12V 185Ah wet battery (SNSR) |
|
(3) |
| 2 |
162-5062 |
36V 20amp battery charger with small SB50 gray plug |
|
|
|
162-9024 |
36V 12amp battery charger with small SB50 gray plug |
|
|
| 3 |
991-2105 |
SB50 50amp charger plug with pins (gray) |
|
|
| 4 |
998-0010 |
Battery jumper cable - ring type (red) |
|
|
| 5 |
170-0001 |
Switch |
|
(power and vacuum) |
| 6 |
170-5566 |
Switch |
|
(brush) |
| 7 |
170-0675 |
Drive chain (OBSOLETE) |
|
|
| 8 |
170-0676 |
Connecting link |
|
|
| 9 |
170-0006 |
Manual solution valve |
|
|
| 10 |
164-0065 |
Filter screen |
|
(OEM) |
| 11 |
170-0439 |
Squeegee blade 31 inch rear (black) (OBSOLETE) |
|
|
| 12 |
170-0443 |
Squeegee blade front (OBSOLETE) |
|
|
| 13 |
170-0007 |
Squeegee hose with cuffs |
|
|
| 15 |
170-0032 |
Drain valve gasket |
|
|
| 17 |
170-0557 |
Drain hose (OBSOLETE) |
|
|
| 18 |
270-0706 |
36V 2 stage vacuum motor |
|
(Clarke) |
| 19 |
991-1217 |
36V 2 stage vacuum motor tangential with snout |
|
(NON-OEM) |
| 20 |
991-2206 |
Center-Lok 3 pad holder |
|
|
| 21 |
996-0390 |
13 inch heavy grit stripping brush - 80 grit |
|
|
| 22 |
996-0253 |
13 inch medium grit scrubbing brush - 180 grit |
|
|
| 23 |
996-0391 |
13 inch lite grit scrubbing brush - 500 grit |
|
|
| 24 |
996-3773 |
13 inch daily cleaning brush |
|
|
| 25 |
996-0323 |
13 inch Pad driver |
|
|
| 26 |
996-0336 |
Clutch plate with brush holder spring |
|
|
|
|
