Accessories - 170-6032 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 001 |
N/A |
Not available |
1 |
1 1/2 inch hose adapter |
| 002 |
991-8210 |
3-1/2 inch wide standard detailer KIT with fittings |
1 |
|
| 003 |
272-1213 |
Stand up wand |
1 |
|
| 004 |
209-0320 |
12 inch double bend high pressure stainless steel wand |
1 |
|
| 005 |
170-1427 |
10 foot hide a hose |
1 |
|
| 006 |
170-6006 |
4 inch metal hand tool (OBSOLETE) |
1 |
|
| 010 |
170-6126 |
20 foot hide a hose |
1 |
|
| N/S |
170-8995 |
Ergoex belt |
1 |
(attaches to unit to aid in the comfort of the operator) |
|
|

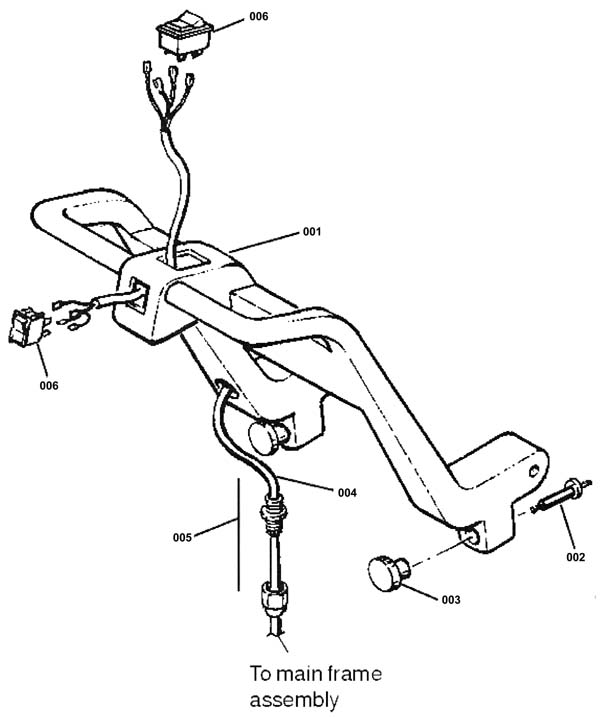

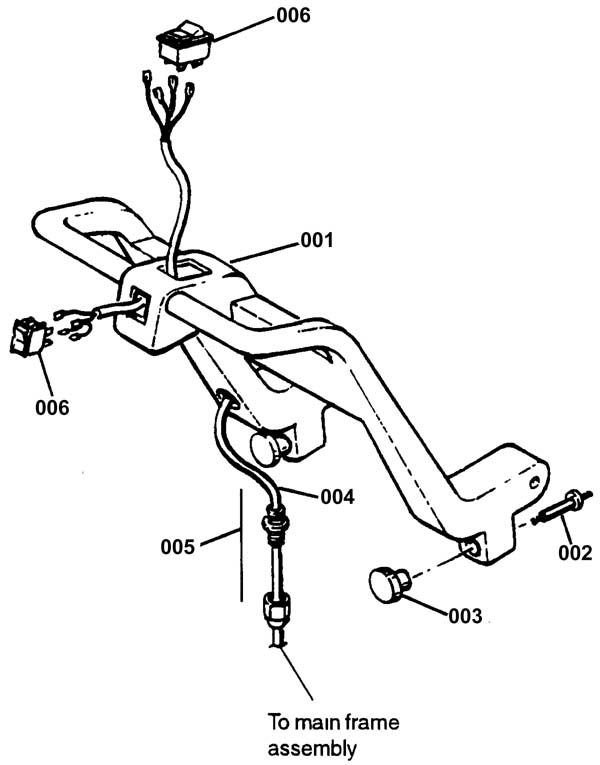

Handle Assembly - 170-6070 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 001 |
170-4668 |
Control handle (OBSOLETE) |
1 |
|
| 002 |
170-4669 |
Knob post (OBSOLETE) |
2 |
|
| 003 |
170-4670 |
Handle lock knob |
2 |
|
| 004 |
170-4671 |
Wiring harness (OBSOLETE) |
1 |
|
| 005 |
170-0292 |
Strain relief |
1 |
|
| 006 |
170-6009 |
Vacuum switch (OBSOLETE) |
2 |
|
|
|

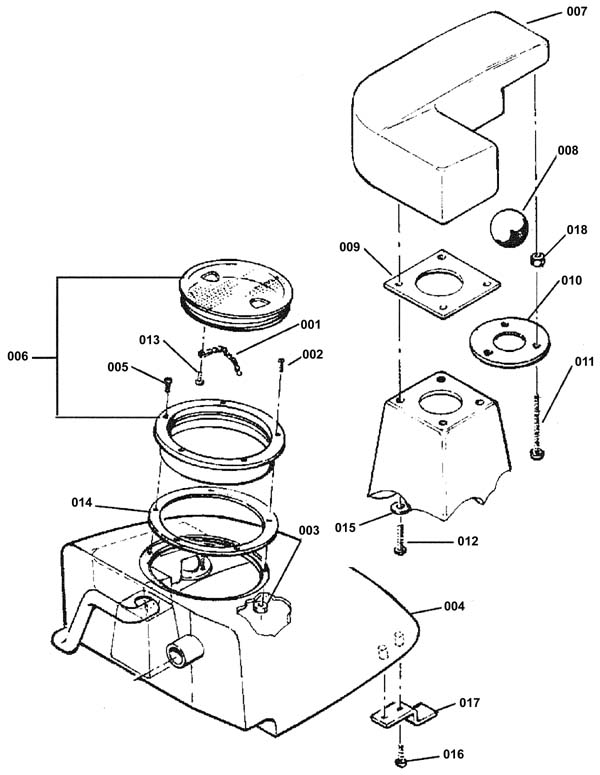

Recovery Tank Assembly - 170-6071 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 001 |
172-2474 |
8 inch chain |
1 |
|
| 002 |
170-4686 |
Screw 10-24 x 1 1/4 |
1 |
|
| 003 |
170-3757 |
Keps nut 10-24 |
1 |
|
| 004 |
170-8221 |
Recover tank (OBSOLETE) |
1 |
|
| 005 |
272-8907 |
Screw #10-16 x 1 (OBSOLETE) |
4 |
|
| 006 |
170-4688 |
Recovery lid |
1 |
|
| 007 |
170-4689 |
Vacuum chamber (OBSOLETE) |
1 |
|
| 008 |
170-4690 |
Float shut off ball (OBSOLETE) |
1 |
|
| 009 |
170-4691 |
Vacuum chamber gasket (OBSOLETE) |
1 |
|
| 010 |
170-4692 |
Flat retainer (OBSOLETE) |
1 |
|
| 011 |
170-4693 |
Screw 10-32 x 3 inch pan head stainless steel |
3 |
|
| 012 |
999-0723 |
Screw 10-32 x 1/2 pan head slotted stainless steel |
4 |
|
| 013 |
999-0663 |
Screw 10-24 x 3/8 pan head phillips thread cutting |
1 |
|
| 014 |
170-6212 |
Gasket lid |
1 |
|
| 015 |
999-0006 |
Washer 3/16 flat zinc plated |
4 |
|
| 016 |
170-4461 |
Screw 10-24 x 3/8 stainless steel |
2 |
|
| 017 |
170-4694 |
Retaining bracket (OBSOLETE) |
1 |
|
| 018 |
999-0460 |
Nut 10-32 hex |
1 |
|
|
|

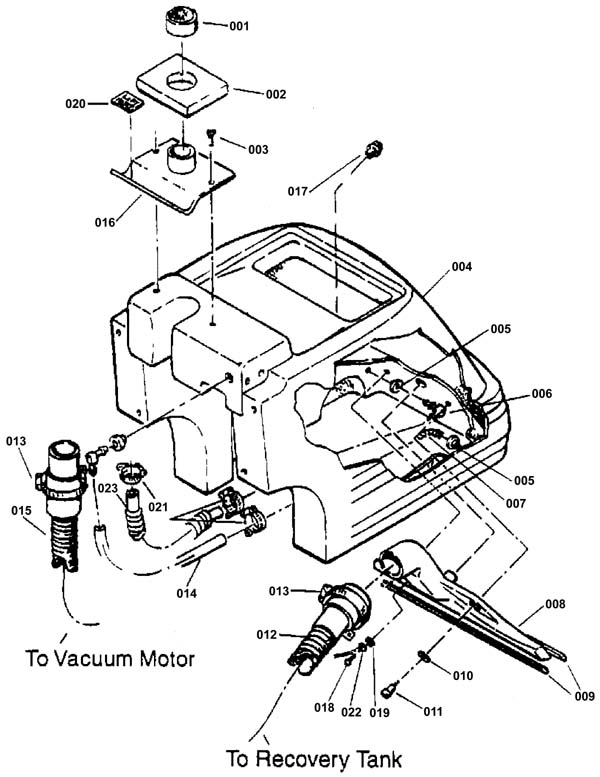

Solution Tank Assembly - 170-6072 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 001 |
170-0290 |
Strainer (OBSOLETE) |
1 |
|
| 002 |
170-4695 |
Vacuum gasket (OBSOLETE) |
1 |
|
| 003 |
999-0343 |
Screw 1/4-20 x 1/4 pan head phillips stainless steel |
2 |
|
| 004 |
170-8222 |
Solution tank (OBSOLETE) |
1 |
|
| 005 |
170-6085 |
Bushing (OBSOLETE) |
3 |
|
| 006 |
170-4697 |
Connector 3/8 x 1/4 (OBSOLETE) |
1 |
|
| 007 |
170-6086 |
Hose barb connector |
2 |
|
| 008 |
170-4698 |
Recovery tool (OBSOLETE) |
1 |
|
| 009 |
170-4699 |
Recovery shoe (OBSOLETE) |
2 |
|
| 010 |
999-0335 |
Washer 1/4 x 5/8 SAE flat stainless steel |
2 |
|
| 011 |
170-4700 |
Shoulder bolt |
2 |
|
| 012 |
170-4701 |
Recovery hose (OBSOLETE) |
1 |
|
| 013 |
997-2007 |
Hose clamp |
3 |
|
| 014 |
170-4702 |
Solution drain hose (OBSOLETE) |
1 |
|
| 015 |
170-4672 |
Squeegee vacuum hose (OBSOLETE) |
|
|
| 016 |
170-4703 |
Weldment adaptor (OBSOLETE) |
1 |
|
| 017 |
170-4704 |
Solution screen (OBSOLETE) |
1 |
|
| 018 |
999-0068 |
Screw 10-32 x 1/4 round head slotted zinc plated |
2 |
|
| 019 |
999-0311 |
Washer #10 external star lock zinc plated |
1 |
|
| 020 |
170-4705 |
Lift here label (OBSOLETE) |
1 |
|
| 021 |
997-2001 |
Hose clamp |
3 |
|
| 022 |
170-4706 |
Ground wire (OBSOLETE) |
1 |
|
| 023 |
170-1791 |
Hose (OBSOLETE) |
1 |
|
|
|

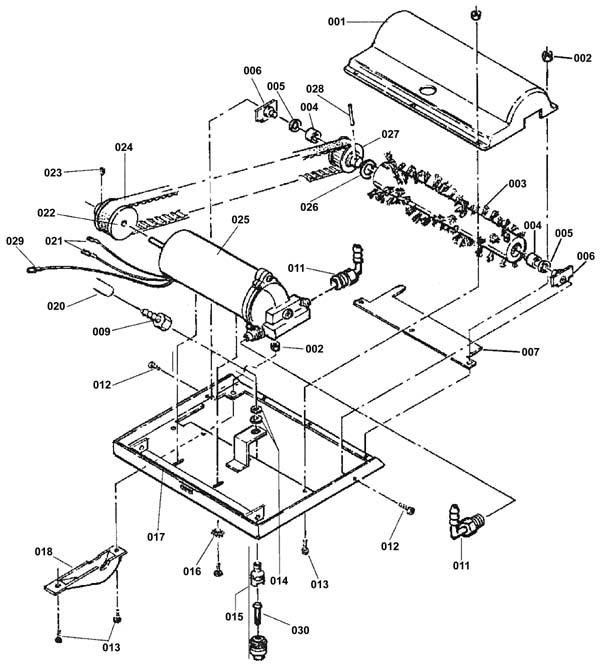

Brush/Pump Assembly - 170-6073 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 001 |
170-4649 |
Brush cover (OBSOLETE) |
1 |
|
| 003 |
170-4650 |
Carpet brush (OBSOLETE) |
1 |
|
| 004 |
170-0362 |
Radial ball bearing |
2 |
|
| 005 |
170-0700 |
Seal (OBSOLETE) |
2 |
|
| 006 |
170-4651 |
Brush pivot (OBSOLETE) |
2 |
|
| 007 |
170-4652 |
Splash guard (OBSOLETE) |
1 |
|
| 009 |
170-1350 |
Hose barb 3/8 x 1/4 inch |
1 |
|
| 012 |
170-8223 |
Screw 10-24 x 1/4 pan head |
2 |
|
| 013 |
170-4653 |
Screw 6-32 x 3/8 |
7 |
|
| 014 |
170-6073 |
Washer stainless steel |
2 |
|
| 015 |
170-3700 |
Spray nozzle (OBSOLETE) |
1 |
|
| 016 |
999-0311 |
Washer #10 external star lock zinc plated |
2 |
|
| 017 |
170-4654 |
Brush / pump frame (OBSOLETE) |
1 |
|
| 018 |
170-4655 |
Pulley guard (OBSOLETE) |
1 |
|
| 020 |
170-6064 |
14 inch solution hose |
|
|
| 021 |
170-6013 |
1/4 terminal |
2 |
|
| 022 |
170-4656 |
Timing pulley (OBSOLETE) |
1 |
|
| 023 |
170-4988 |
Screw 8 - 32 x 3/16 allen |
2 |
|
| 024 |
170-6211 |
Timing belt |
1 |
|
| 025a |
170-6210 |
Brush unit (OBSOLETE) |
1 |
|
| 025b |
170-8224 |
Brush /pump unit (OBSOLETE) |
1 |
|
| 026 |
170-0701 |
Washer wave |
1 |
|
| 027 |
N/A |
Not available |
1 |
(Brush pulley) |
| 028 |
170-0702 |
Roll pin 3/16 x 11/2 |
1 |
|
| 029 |
170-6014 |
Terminal clip |
1 |
|
| 030 |
170-3701 |
Spray jet strainer |
1 |
|
|
|

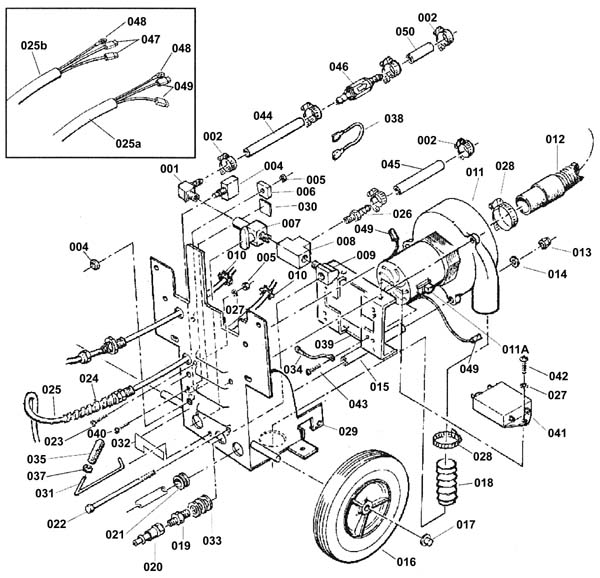

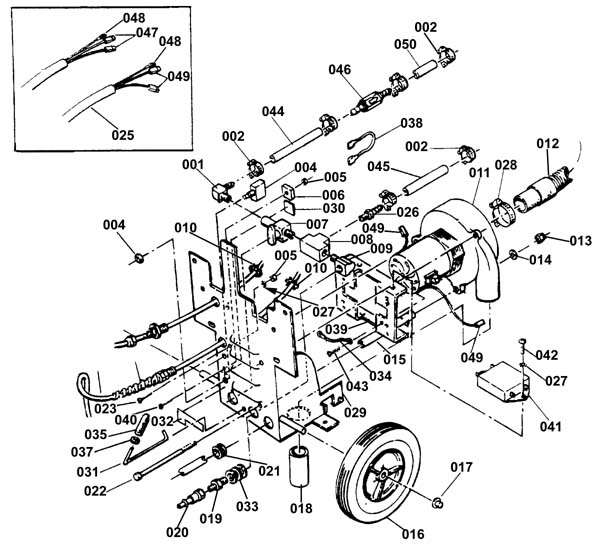

Main Frame Assembly - 170-6074 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 001 |
170-1297 |
3/8 elbow (OBSOLETE) |
1 |
|
| 002 |
997-2001 |
Hose clamp |
6 |
|
| 004a |
170-3763 |
Circuit breaker 2.5A, brush 115 volt (OBSOLETE) |
1 |
|
| 004b |
170-0087 |
1.5amp circuit breaker |
1 |
|
| 005 |
999-0460 |
Nut 10-32 hex |
3 |
|
| 007 |
170-3760 |
Plug valve |
1 |
|
| 008 |
209-0610 |
1/4 inch tee brass |
1 |
|
| 009 |
160-0054 |
45 degree elbow fitting |
1 |
|
| 010 |
170-0294 |
Nut 1/2 conduit lock |
2 |
|
| 011a |
170-3336 |
Vac motor 120V (OBSOLETE) |
1 |
|
| 011b |
170-1490 |
Carbon brush assembly |
1 |
|
| 012 |
170-4672 |
Squeegee vacuum hose (OBSOLETE) |
1 |
|
| 013 |
999-0152 |
Nut 1/4-20 nylon insert lock zinc plated |
3 |
|
| 014 |
999-0335 |
Washer 1/4 x 5/8 SAE flat stainless steel |
3 |
|
| 015 |
170-4673 |
Vacuum motor spacer (OBSOLETE) |
3 |
|
| 016 |
170-4674 |
8 Inch wheel (OBSOLETE) |
2 |
|
| 020 |
991-8149 |
1/8 inch male quick disconnect |
1 |
Need 991-8157 to mate |
| 022 |
170-4676 |
Screw 1/4 - 20 x 5 |
3 |
|
| 023 |
170-4677 |
Screw 10-32 x 3/4 (OBSOLETE) |
1 |
|
| 024 |
170-4502 |
Side broom knob (OBSOLETE) |
1 |
|
| 025a |
170-6012 |
14/3 power cord 35 foot |
1 |
|
| 025b |
170-8225 |
Cord H05vv f3G1-1/2 |
1 |
|
| 025c |
991-5005 |
14/3 replacement power cord 50 foot (yellow) |
1 |
(NON-OEM) |
| 026 |
170-6051 |
Hosebarb (OBSOLETE) |
1 |
|
| 027 |
999-0311 |
Washer #10 external star lock zinc plated |
4 |
|
| 028 |
997-2007 |
Hose clamp |
2 |
|
| 029 |
170-4678 |
Weldment frame (OBSOLETE) |
1 |
|
| 030 |
170-6011 |
Ground symbol decal |
1 |
|
| 031 |
170-4679 |
Brush height rod (OBSOLETE) |
1 |
|
| 032 |
170-4680 |
Accessory label (OBSOLETE) |
1 |
|
| 033 |
170-6073 |
Washer stainless steel |
3 |
|
| 034 |
N/A |
Not available |
1 |
Green wire assembly |
| 035 |
170-4681 |
Brush height rod cover (OBSOLETE) |
1 |
|
| 036 |
170-6058 |
Nylon hosebarb |
1 |
|
| 038 |
170-4683 |
Main power wire (OBSOLETE) |
1 |
|
| 039 |
170-8226 |
Filter bracket (OBSOLETE) |
1 |
|
| 041 |
170-3826 |
Filter (OBSOLETE) |
1 |
|
| 042 |
999-0663 |
Screw 10-24 x 3/8 pan head phillips thread cutting |
2 |
|
| 043 |
154-3951 |
Screw #10 x 3/8 inch |
1 |
|
| 044 |
170-4684 |
Solution hose (OBSOLETE) |
1 |
|
| 045 |
170-6064 |
14 inch solution hose |
1 |
|
| 046 |
170-4685 |
Solution valve check |
1 |
|
| 047 |
170-6013 |
1/4 terminal |
2 |
|
| 048 |
170-6014 |
Terminal clip |
1 |
|
| 049 |
170-6081 |
1/4 terminal |
1 |
|
| 050 |
170-6057 |
4 1/2 inch discharge and intake hose (OBSOLETE) |
1 |
|
| 051 |
170-8227 |
Power supply cord (OBSOLETE) |
1 |
|
|
|

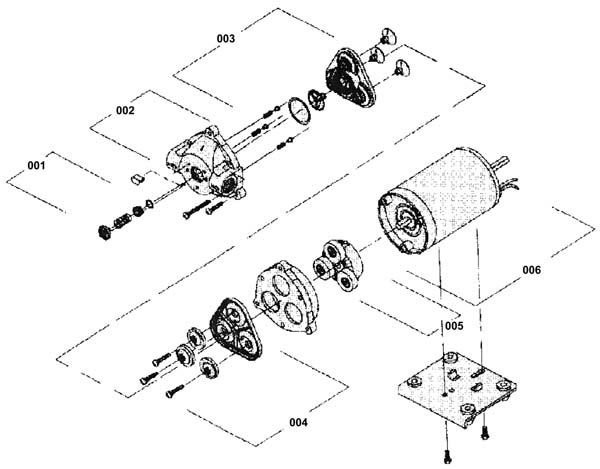

Brush/Pump Unit - 170-6075 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 001 |
170-6024 |
Check valve kit (OBSOLETE) |
1 |
|
| 002 |
170-4658 |
Upper housing kit (OBSOLETE) |
1 |
|
| 004 |
170-4660 |
Diaphragm kit (OBSOLETE) |
1 |
|
| 005 |
170-4661 |
Drive kit assembly (OBSOLETE) |
1 |
|
| 006 |
170-8228 |
Pump/brush motor 115 volt (OBSOLETE) |
1 |
|
| 007 |
170-4662 |
45 Psi pump head (OBSOLETE) |
1 |
|
|
|

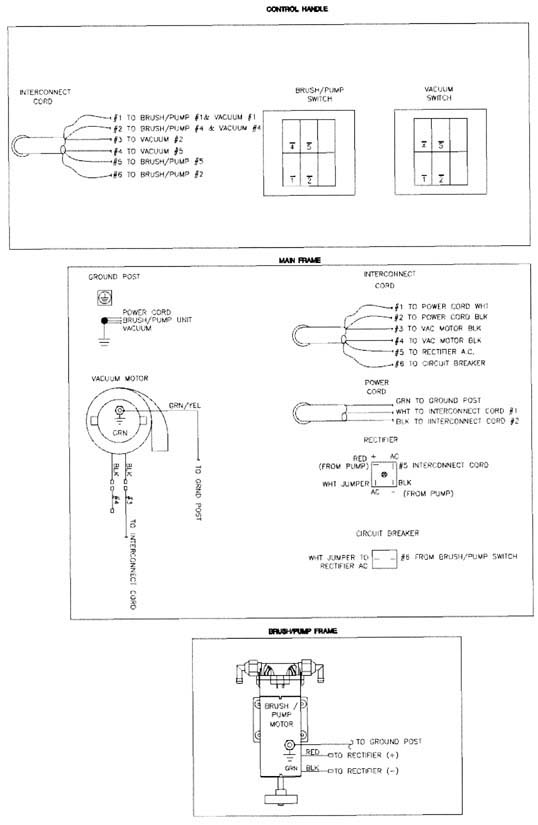

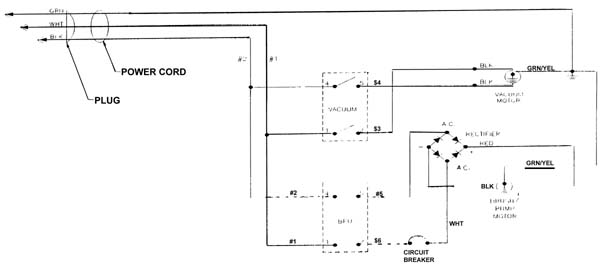

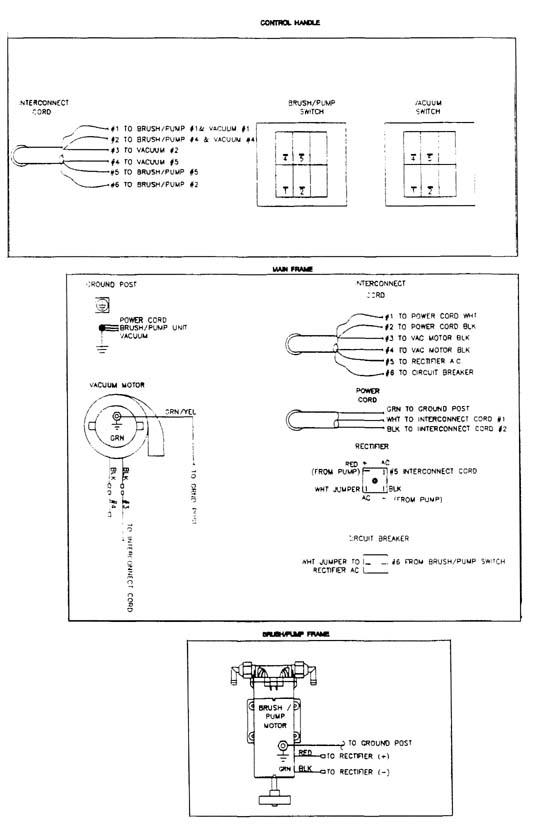

Electrical Schematic - |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
|
|

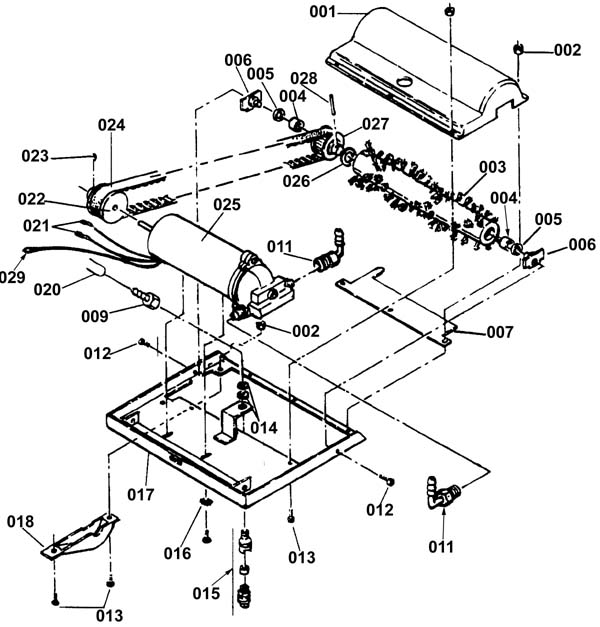

Brush and Pump Assembly - 170-6301 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 001 |
170-4649 |
Brush cover (OBSOLETE) |
1 |
|
| 002 |
999-0227 |
Nut 6-32 hex nylon insert lock jam zinc plated |
7 |
|
| 003 |
170-4650 |
Carpet brush (OBSOLETE) |
1 |
|
| 004 |
170-0362 |
Radial ball bearing |
2 |
|
| 005 |
170-0700 |
Seal (OBSOLETE) |
2 |
|
| 006 |
170-4651 |
Brush pivot (OBSOLETE) |
2 |
|
| 007 |
170-4652 |
Splash guard (OBSOLETE) |
1 |
|
| 009 |
170-1350 |
Hose barb 3/8 x 1/4 inch |
1 |
|
| 012 |
170-1211 |
Connection box and transfer cover (OBSOLETE) |
2 |
|
| 013 |
170-4653 |
Screw 6-32 x 3/8 |
7 |
|
| 014 |
170-6073 |
Washer stainless steel |
2 |
|
| 015 |
170-3700 |
Spray nozzle (OBSOLETE) |
1 |
|
| 016 |
999-0311 |
Washer #10 external star lock zinc plated |
2 |
|
| 017 |
170-4654 |
Brush / pump frame (OBSOLETE) |
1 |
|
| 018 |
170-4655 |
Pulley guard (OBSOLETE) |
1 |
|
| 020 |
170-6064 |
14 inch solution hose |
2 |
|
| 021 |
170-6013 |
1/4 terminal |
2 |
|
| 022 |
170-4656 |
Timing pulley (OBSOLETE) |
1 |
|
| 023 |
999-0332 |
Screw 10-24 x 5/8 pan head phillips stainless steel |
2 |
|
| 024 |
170-6211 |
Timing belt |
1 |
|
| 025 |
170-6210 |
Brush unit (OBSOLETE) |
1 |
|
| 026 |
170-0701 |
Washer wave |
1 |
|
| 027 |
N/A |
Not available |
1 |
(Brush pulley) |
| 028 |
170-0702 |
Roll pin 3/16 x 11/2 |
1 |
|
| 029 |
170-6014 |
Terminal clip |
1 |
|
|
|

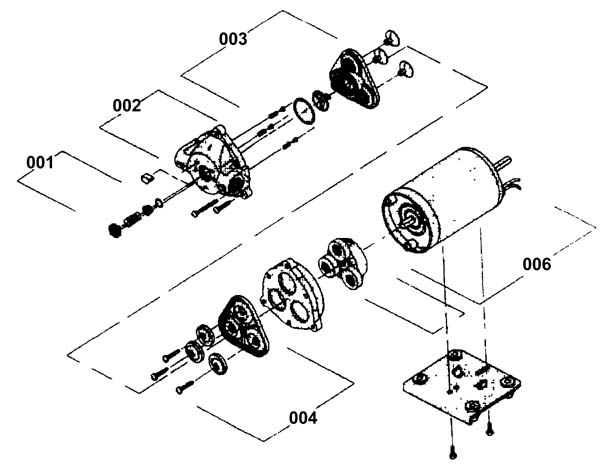

Pump - 170-6302 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 001 |
170-4567 |
Motor cover (OBSOLETE) |
1 |
|
| 002 |
170-4658 |
Upper housing kit (OBSOLETE) |
1 |
|
| 004 |
170-4660 |
Diaphragm kit (OBSOLETE) |
1 |
|
| 005 |
170-4661 |
Drive kit assembly (OBSOLETE) |
1 |
|
| 006 |
170-6209 |
Brush motor (OBSOLETE) |
1 |
|
| 007 |
170-4662 |
45 Psi pump head (OBSOLETE) |
1 |
Includes 1,2, 3, & 4 assembled |
|
|
Connection Diagram - |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
|
|
Electrical Schematic - |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
|
|

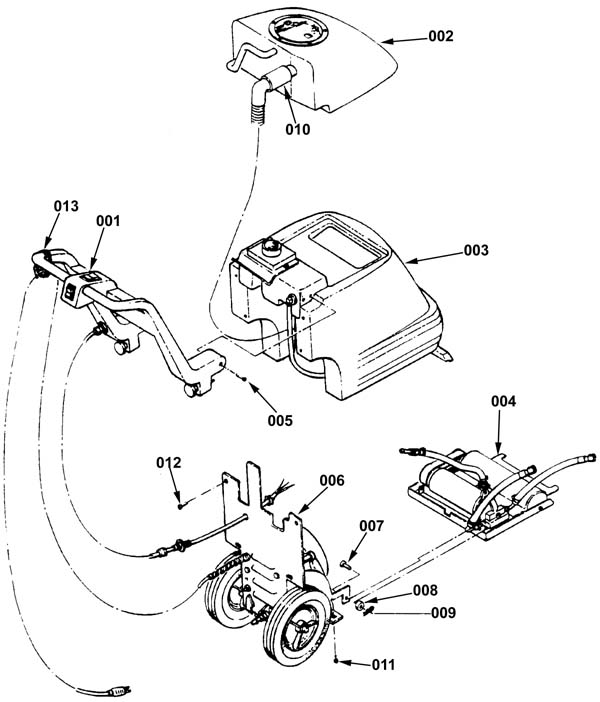

Final Assembly - 170-6305 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 001 |
N/A |
Not available |
1 |
Handle assembly; see "handle assembly" illustration and parts list. |
| 002 |
N/A |
Not available |
1 |
Recovery tank assembly; see "recovery tank assembly" illustration and parts list |
| 003 |
N/A |
Not available |
1 |
Solution tank assembly; see"solution tank assembly" illustration and parts list. |
| 004 |
N/A |
Not available |
1 |
Brush/pump assembly; see "brush / pump assembly" illustration and parts list. |
| 005 |
170-4663 |
Shoulder bolt |
2 |
|
| 006 |
N/A |
Not available |
1 |
Main frame assembly; see "main frame assembly" illustration and parts list. |
| 007 |
170-4664 |
Clevis pin (OBSOLETE) |
2 |
|
| 009 |
997-2504 |
Cotter pin 1/16 x 1/2 |
2 |
|
| 010 |
170-4666 |
Preventor drain (OBSOLETE) |
1 |
|
| 011 |
170-4661 |
Drive kit assembly (OBSOLETE) |
2 |
|
| 012 |
999-0343 |
Screw 1/4-20 x 1/4 pan head phillips stainless steel |
4 |
|
| 013 |
170-4667 |
Power cord retainer |
1 |
|
|
|
Handle Assembly - 170-6306 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 001 |
170-4668 |
Control handle (OBSOLETE) |
1 |
|
| 002 |
170-4669 |
Knob post (OBSOLETE) |
2 |
|
| 003 |
170-4670 |
Handle lock knob |
2 |
|
| 004 |
170-4671 |
Wiring harness (OBSOLETE) |
1 |
|
| 005 |
999-0506 |
Bolt 1/4-20 x 1 1/2 hex head stainless steel |
1 |
Supplied with item 4 |
| 006 |
170-6009 |
Vacuum switch (OBSOLETE) |
2 |
|
|
|
Main Frame Assembly - 170-6307 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 001 |
170-1297 |
3/8 elbow (OBSOLETE) |
1 |
|
| 002 |
997-2002 |
Hose clamp #6 |
6 |
|
| 004 |
170-3763 |
Circuit breaker 2.5A, brush 115 volt (OBSOLETE) |
1 |
|
| 005 |
999-0460 |
Nut 10-32 hex |
2 |
|
| 007 |
170-3760 |
Plug valve |
1 |
|
| 008 |
209-0610 |
1/4 inch tee brass |
1 |
|
| 009 |
160-0054 |
45 degree elbow fitting |
1 |
|
| 010 |
170-0294 |
Nut 1/2 conduit lock |
2 |
|
| 011a |
170-3336 |
Vac motor 120V (OBSOLETE) |
1 |
|
| 011b |
170-1490 |
Carbon brush assembly |
1 |
|
| 012 |
170-4672 |
Squeegee vacuum hose (OBSOLETE) |
1 |
|
| 013 |
999-0152 |
Nut 1/4-20 nylon insert lock zinc plated |
3 |
|
| 014 |
999-0335 |
Washer 1/4 x 5/8 SAE flat stainless steel |
3 |
|
| 015 |
170-4673 |
Vacuum motor spacer (OBSOLETE) |
3 |
|
| 016 |
170-4674 |
8 Inch wheel (OBSOLETE) |
2 |
|
| 018 |
170-4675 |
Vacuum adaptor (OBSOLETE) |
1 |
|
| 020 |
991-8149 |
1/8 inch male quick disconnect |
1 |
Need 991-8157 to mate |
| 022 |
170-4676 |
Screw 1/4 - 20 x 5 |
3 |
|
| 023 |
170-4677 |
Screw 10-32 x 3/4 (OBSOLETE) |
1 |
|
| 024 |
164-4502 |
Strain relief |
1 |
|
| 025a |
170-6012 |
14/3 power cord 35 foot |
1 |
|
| 025b |
991-5005 |
14/3 replacement power cord 50 foot (yellow) |
1 |
(NON-OEM) |
| 026 |
170-6051 |
Hosebarb (OBSOLETE) |
1 |
|
| 027 |
999-0311 |
Washer #10 external star lock zinc plated |
1 |
|
| 028 |
997-2007 |
Hose clamp |
1 |
|
| 029 |
170-4678 |
Weldment frame (OBSOLETE) |
1 |
|
| 030 |
170-6011 |
Ground symbol decal |
1 |
|
| 031 |
170-4679 |
Brush height rod (OBSOLETE) |
1 |
|
| 032 |
170-4680 |
Accessory label (OBSOLETE) |
1 |
|
| 033 |
170-6073 |
Washer stainless steel |
3 |
|
| 034 |
N/A |
Not available |
1 |
Ground wire |
| 035 |
170-4681 |
Brush height rod cover (OBSOLETE) |
1 |
|
| 036 |
170-6058 |
Nylon hosebarb |
1 |
|
| 038 |
170-4683 |
Main power wire (OBSOLETE) |
1 |
|
| 040 |
N/A |
Not available |
|
Screw |
| 043 |
154-3951 |
Screw #10 x 3/8 inch |
1 |
|
| 044 |
170-4684 |
Solution hose (OBSOLETE) |
1 |
|
| 045 |
170-6064 |
14 inch solution hose |
1 |
|
| 046 |
170-4685 |
Solution valve check |
1 |
|
| 048 |
170-6014 |
Terminal clip |
1 |
|
| 049 |
170-6081 |
1/4 terminal |
1 |
|
| 050 |
170-6057 |
4 1/2 inch discharge and intake hose (OBSOLETE) |
1 |
|
|
|

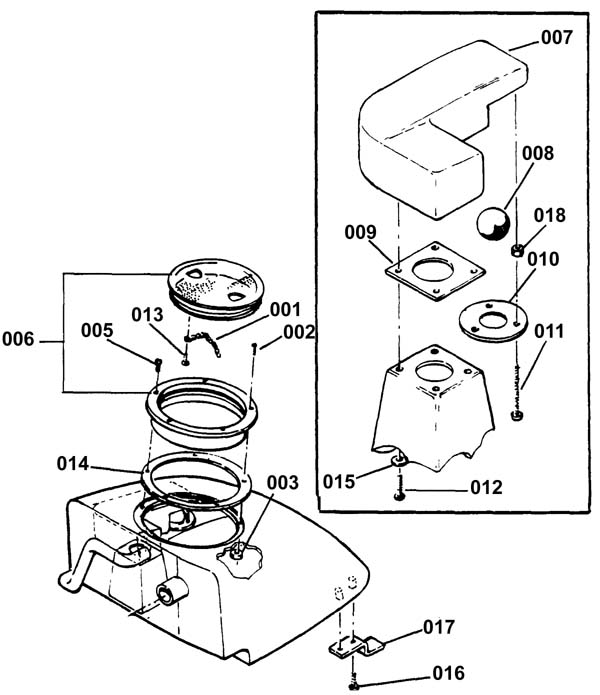

Recovery Tank Assembly - 170-6308 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 001 |
172-2474 |
8 inch chain |
1 |
|
| 002 |
170-4686 |
Screw 10-24 x 1 1/4 |
1 |
|
| 003 |
170-3757 |
Keps nut 10-24 |
1 |
|
| 004 |
170-4687 |
Recovery tank (OBSOLETE) |
1 |
|
| 005 |
272-8907 |
Screw #10-16 x 1 (OBSOLETE) |
4 |
|
| 006 |
170-4688 |
Recovery lid |
1 |
|
| 007 |
170-4689 |
Vacuum chamber (OBSOLETE) |
1 |
|
| 008 |
170-4690 |
Float shut off ball (OBSOLETE) |
1 |
|
| 009 |
170-4691 |
Vacuum chamber gasket (OBSOLETE) |
1 |
|
| 010 |
170-4692 |
Flat retainer (OBSOLETE) |
1 |
|
| 011 |
170-4693 |
Screw 10-32 x 3 inch pan head stainless steel |
3 |
|
| 012 |
999-0723 |
Screw 10-32 x 1/2 pan head slotted stainless steel |
4 |
|
| 013 |
999-0663 |
Screw 10-24 x 3/8 pan head phillips thread cutting |
1 |
|
| 014 |
170-6212 |
Gasket lid |
1 |
|
| 015 |
999-0006 |
Washer 3/16 flat zinc plated |
4 |
|
| 016 |
170-4461 |
Screw 10-24 x 3/8 stainless steel |
2 |
|
| 017 |
170-4694 |
Retaining bracket (OBSOLETE) |
1 |
|
| 018 |
999-0460 |
Nut 10-32 hex |
1 |
|
|
|

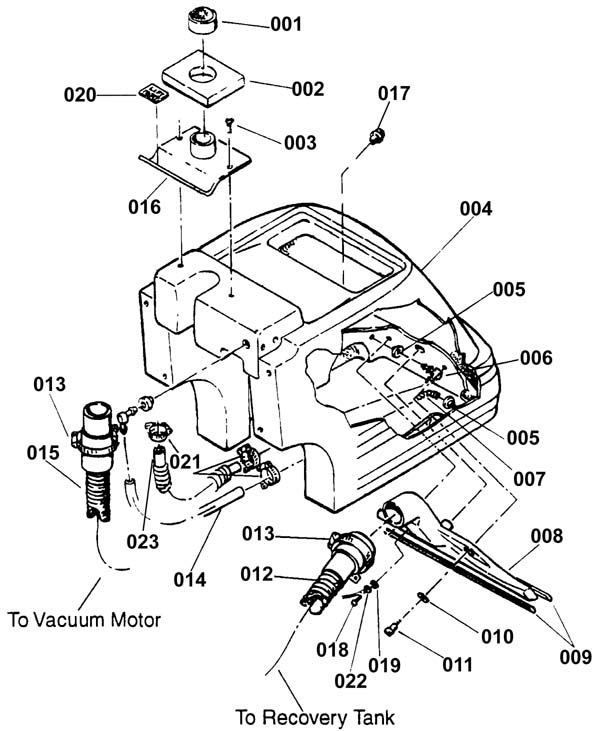

Solution Tank Assembly - 170-6309 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 001 |
170-0290 |
Strainer (OBSOLETE) |
1 |
|
| 002 |
170-4695 |
Vacuum gasket (OBSOLETE) |
1 |
|
| 003 |
999-0343 |
Screw 1/4-20 x 1/4 pan head phillips stainless steel |
2 |
|
| 004 |
170-4696 |
Solution tank (OBSOLETE) |
1 |
|
| 005 |
170-6085 |
Bushing (OBSOLETE) |
3 |
Service item only |
| 006 |
170-4697 |
Connector 3/8 x 1/4 (OBSOLETE) |
1 |
Service item only |
| 007 |
170-6086 |
Hose barb connector |
2 |
|
| 008 |
170-4698 |
Recovery tool (OBSOLETE) |
1 |
|
| 009 |
170-4699 |
Recovery shoe (OBSOLETE) |
2 |
|
| 010 |
999-0335 |
Washer 1/4 x 5/8 SAE flat stainless steel |
2 |
|
| 011 |
170-4700 |
Shoulder bolt |
2 |
|
| 012 |
170-4701 |
Recovery hose (OBSOLETE) |
1 |
|
| 013 |
997-2007 |
Hose clamp |
3 |
|
| 014 |
170-4702 |
Solution drain hose (OBSOLETE) |
1 |
|
| 015 |
170-4672 |
Squeegee vacuum hose (OBSOLETE) |
1 |
|
| 016 |
170-4703 |
Weldment adaptor (OBSOLETE) |
1 |
|
| 017 |
170-4704 |
Solution screen (OBSOLETE) |
1 |
|
| 018 |
999-0068 |
Screw 10-32 x 1/4 round head slotted zinc plated |
2 |
|
| 019 |
999-0311 |
Washer #10 external star lock zinc plated |
1 |
|
| 020 |
170-4705 |
Lift here label (OBSOLETE) |
1 |
|
| 021 |
997-2001 |
Hose clamp |
3 |
|
| 022 |
170-4706 |
Ground wire (OBSOLETE) |
1 |
|
| 023 |
170-1791 |
Hose (OBSOLETE) |
1 |
|
|
|
- Commonly Asked For Parts - 170-9954 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 01 |
991-1213 |
120V 3 stage vacuum motor tangential |
|
|
| 03 |
170-6012 |
14/3 power cord 35 foot |
|
|
| 04 |
170-0696 |
Brush drive belt |
|
|
| 05a |
164-0881 |
Vacuum motor gasket |
|
|
| 05b |
991-3029 |
Vacuum motor gasket |
|
(NON-OEM) |
| 06a |
991-5005 |
14/3 replacement power cord 50 foot (yellow) |
|
(NON-OEM) (does not include strain relief) |
| 06b |
991-5001 |
14/3 extension cord 50 foot (yellow) |
|
(NON-OEM) |
| 07 |
170-3700 |
Spray nozzle (OBSOLETE) |
|
|
| 08 |
170-3701 |
Spray jet strainer |
|
|
|
|
- Extractor Fit All Parts - 999-9400 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 001a |
991-8000 |
12 inch stainless head wand, 1 jet 120 PSI plastic valve |
|
(wands) |
| 001b |
991-8001 |
12 inch aluminum head wand, 2 jet, 120 PSI (OBSOLETE) |
|
(wands) |
| 001c |
991-8002 |
12 inch aluminum head wand, 3 jet, 120 PSI plastic valve |
|
(wands) |
| 001d |
991-8227 |
500psi brass valve |
|
(wands) |
| 002a |
991-8222 |
30 inch stair wand (open spray) |
|
(stair wand) |
| 002b |
991-8223 |
30 inch swivel head ergonomic stair wand (open spray) |
|
(stair wand) |
| 004 |
991-8129 |
Handle 1-1/2 inch low profile comfort grip assist |
|
(wands) |
| 005a |
991-8128 |
120 PSI, acetel plastic valve, low heat 140 degrees |
|
(wands) |
| 005b |
991-8127 |
120 PSI, brass valve, stainless steel stem |
|
(wands) |
| 005d |
991-8171 |
400psi cast aluminum valve |
|
|
| 007 |
991-8130 |
3-1/2 inch wide 120 PSI standard detailer, external spray |
|
(wands) |
| 008 |
991-8132 |
10ft hide-a-hose vac/sol hose assembly w/1/4 male fittings |
|
(hose assemblies and parts) |
| 009 |
991-8133 |
20ft hide-a-hose vac/sol hose assembly w/1/4 male fittings |
|
(hose assemblies and parts) |
| 010 |
991-8136 |
10ft hide-a-hose vac/sol hose assembly w 1/4 male & 1/4 feml |
|
(hose assemblies and parts) |
| 011 |
991-8137 |
20ft hide-a-hose vac/sol hose assembly w/1/4 male & 1/4 feml |
|
(hose assemblies and parts) |
| 012 |
991-8134 |
10ft hide-a-hose vac/sol hose w/1/4 female fittings 300psi |
|
(hose assemblies and parts) |
| 013 |
991-8135 |
20ft hide-a-hose vac/sol hose assembly w/1/4 female fittings |
|
(hose assemblies and parts) |
| 014 |
991-8138 |
10ft 100psi vac/sol hose assembly w/ 1/4 male fittings |
|
(hose assemblies and parts) |
| 015 |
991-8139 |
20ft 100psi vac/sol hose assembly with male fittings |
|
(hose assemblies and parts) (Maximum heat rating of 70 degrees and 100 PSI) |
| 016 |
991-8142 |
10ft 100psi vac/sol hose assembly w/1/4 female & 1/4 male |
|
(hose assemblies and parts) |
| 017 |
991-8143 |
20ft 100psi vac/sol hose assembly w/1/4 female & 1/4 male |
|
(hose assemblies and parts) |
| 018 |
991-8140 |
10ft 100psi vac/sol hose assembly w/ 1/4 female fittings |
|
(hose assemblies and parts) |
| 021 |
991-8004 |
1 1/2 inch vacuum hose (sold by the foot) |
|
(hose assemblies and parts) |
| 022 |
991-8005 |
1 1/2 inch replacement hose cuff (black) |
|
(hose assemblies and parts) |
| 023 |
991-8131 |
1 1/2 inch hide-a-hose cuff (no swivel) |
|
(hose assemblies and parts) |
| 026 |
991-8045 |
1/8 inch brass vee jet 8001 |
|
(1/8 brass vee jet) |
| 027 |
991-8046 |
1/8 inch brass vee jet 8001.5 |
|
(1/8 brass vee jet) |
| 028 |
991-8047 |
1/8 inch brass vee jet 8002 |
|
(1/8 brass vee jet) |
| 029 |
991-8048 |
1/8 inch brass vee jet 8003 |
|
(1/8 brass vee jet) |
| 030 |
991-8049 |
1/8 inch brass vee jet 8004 |
|
(1/8 brass vee jet) |
| 031 |
991-8050 |
1/8 inch brass vee jet 8005 (OBSOLETE) |
|
(1/8 brass vee jet) |
| 032 |
991-8051 |
1/8 inch brass vee jet 8006 |
|
(1/8 brass vee jet) |
| 033 |
991-8052 |
1/8 inch brass vee jet 8008 |
|
(1/8 brass vee jet) |
| 034 |
991-8053 |
1/8 inch brass vee jet 8010 |
|
(1/8 brass vee jet) |
| 035 |
991-8054 |
1/8 inch brass vee jet 9502 |
|
(1/8 brass vee jet) |
| 036 |
991-8055 |
1/8 inch brass vee jet 9503 |
|
(1/8 brass vee jet) |
| 037 |
991-8056 |
1/8 inch brass vee jet 9504 |
|
(1/8 brass vee jet) |
| 038 |
991-8057 |
1/8 inch brass vee jet 9505 |
|
(1/8 brass vee jet) |
| 039 |
991-8058 |
1/8 inch brass vee jet 9506 |
|
(1/8 brass vee jet) |
| 040 |
991-8059 |
1/8 inch brass vee jet 9508 |
|
(1/8 brass vee jet) |
| 041 |
991-8060 |
1/8 inch brass vee jet 11001 |
|
(1/8 brass vee jet) |
| 042 |
991-8061 |
1/8 inch brass vee jet 11001.5 |
|
(1/8 brass vee jet) |
| 043 |
991-8062 |
1/8 inch brass vee jet 11002 |
|
(1/8 brass vee jet) |
| 044 |
991-8063 |
1/8 inch brass vee jet 11003 |
|
(1/8 brass vee jet) |
| 045 |
991-8064 |
1/8 inch brass vee jet 11004 |
|
(1/8 brass vee jet) |
| 046 |
991-8065 |
1/8 inch brass vee jet 11005 |
|
(1/8 brass vee jet) |
| 047 |
991-8066 |
1/8 inch brass vee jet 11006 |
|
(1/8 brass vee jet) |
| 048 |
991-8067 |
1/8 inch brass vee jet 11008 |
|
(1/8 brass vee jet) |
| 049 |
991-8068 |
1/8 inch brass vee jet 11010 |
|
(1/8 brass vee jet) |
| 050 |
991-8021 |
1/4 inch brass vee jet 8001 |
|
(1/4 brass vee jet) |
| 051 |
991-8022 |
1/4 inch brass vee jet 8001.5 |
|
(1/4 brass vee jet) |
| 052 |
991-8023 |
1/4 inch brass vee jet 8002 |
|
(1/4 brass vee jet) |
| 053 |
991-3005 |
1/4 inch brass vee jet 8003 |
|
(1/4 brass vee jet) |
| 054 |
991-8025 |
1/4 inch brass vee jet 8004 |
|
(1/4 brass vee jet) |
| 055 |
991-8026 |
1/4 inch brass vee jet 8005 |
|
(1/4 brass vee jet) |
| 056 |
991-8027 |
1/4 inch brass vee jet 8006 |
|
(1/4 brass vee jet) |
| 057 |
991-8028 |
1/4 inch brass vee jet 8008 |
|
(1/4 brass vee jet) |
| 058 |
991-8029 |
1/4 inch brass vee jet 8010 |
|
(1/4 brass vee jet) |
| 059 |
991-8030 |
1/4 inch brass vee jet 9502 |
|
(1/4 brass vee jet) |
| 060 |
991-8031 |
1/4 inch brass vee jet 9503 |
|
(1/4 brass vee jet) |
| 061 |
991-8032 |
1/4 inch brass vee jet 9504 |
|
(1/4 brass vee jet) |
| 062 |
991-8033 |
1/4 inch brass vee jet 9505 |
|
(1/4 brass vee jet) |
| 063 |
991-8034 |
1/4 inch brass vee jet 9506 |
|
(1/4 brass vee jet) |
| 064 |
991-8035 |
1/4 inch brass vee jet 9508 |
|
(1/4 brass vee jet) |
| 065 |
991-8036 |
1/4 inch brass vee jet 11001 |
|
(1/4 brass vee jet) |
| 066 |
991-8037 |
1/4 inch brass vee jet 11001.5 |
|
(1/4 brass vee jet) |
| 067 |
991-8038 |
1/4 inch brass vee jet 11002 |
|
(1/4 brass vee jet) |
| 068 |
991-8039 |
1/4 inch brass vee jet 11003 |
|
(1/4 brass vee jet) |
| 069 |
991-8040 |
1/4 inch brass vee jet 11004 |
|
(1/4 brass vee jet) |
| 070 |
991-8041 |
1/4 inch brass vee jet 11005 (OBSOLETE) |
|
(1/4 brass vee jet) |
| 071 |
991-8042 |
1/4 inch brass vee jet 11006 |
|
(1/4 brass vee jet) |
| 072 |
991-3006 |
1/4 inch brass vee jet 11008 |
|
(1/4 brass vee jet) |
| 073 |
991-8044 |
1/4 inch brass vee jet 11010 |
|
(1/4 brass vee jet) |
| 074 |
991-8069 |
1/4 inch stainless vee jet 8001 |
|
(1/4 stainless vee jet) |
| 075 |
991-8070 |
1/4 inch stainless vee jet 8002 |
|
(1/4 stainless vee jet) |
| 076 |
991-8071 |
1/4 inch stainless vee jet 8003 |
|
(1/4 stainless vee jet) |
| 077 |
991-8072 |
1/4 inch stainless vee jet 8004 |
|
(1/4 stainless vee jet) |
| 078 |
991-8073 |
1/4 inch stainless vee jet 9501 |
|
(1/4 stainless vee jet) |
| 079 |
991-8074 |
1/4 inch stainless vee jet 9502 |
|
(1/4 stainless vee jet) |
| 080 |
991-8085 |
1/4 inch stainless/plastic tee jet 9502 |
|
(1/4 stainless vee jet) |
| 081 |
991-8076 |
1/4 inch stainless vee jet 9504 |
|
(1/4 stainless vee jet) |
| 082 |
991-8077 |
1/4 inch stainless vee jet 11003 |
|
(1/4 stainless vee jet) |
| 083 |
991-8078 |
1/4 inch stainless vee jet 11004 |
|
(1/4 stainless vee jet) |
| 084 |
991-8079 |
1/4 inch stainless vee jet 11006 |
|
(1/4 stainless vee jet) |
| 085 |
991-8080 |
1/4 inch stainless vee jet 11008 |
|
(1/4 stainless vee jet) |
| 086 |
991-8081 |
1/4 inch stainless/plastic tee jet 8002 |
|
(1/4 stainless/plastic tee jet) |
| 087 |
991-8082 |
1/4 inch stainless/plastic tee jet 8003 |
|
(1/4 stainless/plastic tee jet) |
| 088 |
991-8083 |
1/4 inch stainless/plastic tee jet 8004 |
|
(1/4 stainless/plastic tee jet) |
| 089 |
991-8084 |
1/4 inch stainless/plastic tee jet 9501 (OBSOLETE) |
|
(1/4 stainless/plastic tee jet) |
| 090 |
991-8085 |
1/4 inch stainless/plastic tee jet 9502 |
|
(1/4 stainless/plastic tee jet) |
| 091 |
991-8086 |
1/4 inch stainless/plastic tee jet 9504 |
|
(1/4 stainless/plastic tee jet) |
| 092 |
991-3010 |
1/4 inch stainless/plastic tee jet 11003 |
|
(1/4 stainless/plastic tee jet) |
| 093 |
991-8088 |
1/4 inch stainless/plastic tee jet 11004 |
|
(1/4 stainless/plastic tee jet) |
| 094 |
991-8089 |
1/4 inch stainless/plastic tee jet 11006 |
|
(1/4 stainless/plastic tee jet) |
| 095 |
991-8090 |
1/4 inch stainless/plastic tee jet 11008 |
|
(1/4 stainless/plastic tee jet) |
| 096 |
991-8091 |
1/4 inch x 1/8 hex nipple H21 |
|
|
| 097 |
991-8092 |
1/4 inch x 1/4 hex nipple H22 |
|
|
| 098 |
991-8093 |
1/4 inch x 3/8 hex nipple H23 |
|
|
| 099 |
991-8094 |
45 degree street elbow 1/4 inch H24 |
|
|
| 100 |
991-8095 |
45 degree street elbow 1/8 inch H25 |
|
|
| 101 |
991-8096 |
45 degree union elbow 1/4 inch H26 |
|
|
| 102 |
991-8098 |
90 degree street elbow short 1/4 inch H28 |
|
|
| 103 |
991-8098 |
90 degree street elbow short 1/4 inch H28 |
|
|
| 104 |
991-8099 |
90 degree street elbow 1/8 inch H29 |
|
|
| 105 |
991-8100 |
90 degree street elbow short 1/8 inch H30 |
|
|
| 106 |
991-8101 |
90 degree union elbow 1/4 inch H31 |
|
|
| 107 |
991-8102 |
90 degree union elbow 1/8 inch H32 |
|
|
| 108 |
991-8103 |
30 degree union elbow 1/4 inch H33 |
|
|
| 109 |
991-8104 |
1/4 inch coupling H34 |
|
|
| 110 |
991-8105 |
1/8 inch coupling H35 |
|
|
| 111 |
991-8106 |
1/4 inch adapter H36 |
|
|
| 112 |
991-8107 |
1/8 inch adapter H37 |
|
|
| 113 |
991-8108 |
1/4 inch branch tee H38 |
|
|
| 114 |
991-8109 |
1/8 inch branch tee H39 |
|
|
| 115 |
991-8110 |
1/8 inch tee H40 |
|
|
| 116 |
991-8111 |
7/16 inch stainless steel hose clamp H41 |
|
|
| 117 |
997-2002 |
Hose clamp #6 |
|
|
| 118 |
991-8113 |
Strainer for 1/8 inch vee jets H43 |
|
|
| 119 |
991-8114 |
Strainer for 1/4 inch vee jets H44 |
|
|
| 120 |
991-8115 |
Strainer/check valve for 1/4 inch vee jets H45 |
|
|
| 121 |
991-8116 |
Brass strainer/check valve for tee jets H46 |
|
|
| 122 |
991-8117 |
500 PSI ball valve 1/4 inch fpt x 1/4 inch fpt H47 |
|
|
| 123 |
991-8118 |
500 PSI ball valve 3/8 inch fpt x 3/8 inch fpt H48 |
|
|
| 124 |
991-8119 |
500 PSI ball valve 1/4 inch mpt x 3/8 inch fpt H49 |
|
|
| 125 |
991-8120 |
1/4 inch brass flood jets K1 or K2 H54 |
|
|
| 126 |
991-8158 |
1/4 inch BH2-60 female coupler (mate to QD40) |
|
|
| 127 |
991-8150 |
1/4 inch BH2-61 male nipple (mate to QD80) |
|
|
| 128 |
991-8144 |
B2C, 1/4 inch mpt, male nipple, mate to QD50 or QD55 |
|
|
| 129 |
991-8152 |
B12, 1/4 inch mpt, female coupler, mate to QD10 or QD15 |
|
|
| 130 |
991-8145 |
B3C, 1/4 inch fpt, male nipple, mate to QD50 or QD55 |
|
|
| 131 |
991-8153 |
B13, 1/4 inch fpt, female coupler, mate to QD10 or QD15 |
|
|
| 132 |
991-8146 |
BH2C, 1/4 inch, mpt male nipple, mate to QD60 or QD65 |
|
|
| 133 |
991-8154 |
B22, 1/4 inch mpt, female coupler, mate to QD20 or QD25 |
|
|
| 134 |
991-8147 |
BH3C, 1/4 inch fpt, male nipple, mate to QD60 or QD65 |
|
|
| 135 |
991-8155 |
B23, 1/4 inch fpt, female coupler, mate to QD20 or QD25 |
|
|
| 136 |
991-8148 |
Hansen 02 male nipple, mate to QD70 |
|
|
| 137 |
991-8156 |
Quick disconnect socket female to QD30 |
|
|
| 138 |
991-8149 |
1/8 inch male quick disconnect |
|
|
| 139 |
991-8157 |
1/8 inch female quick disconnect socket |
|
|
| 140 |
991-8151 |
BH3-61,3/8 inch FPT, Male Nipple, mate to QD85 |
|
|
| 141 |
991-8159 |
BH3-60, 3/8 inch fpt, female coupler, mate to QD45 |
|
|
| 142 |
991-8123 |
Bottom hex nut for Kingston or P valve H57 |
|
|
| 143 |
991-8121 |
1/8 inch brass flood jets K1 or K2 H55 |
|
|
| 144 |
991-8124 |
Inline filter H58 |
|
|
| 145 |
991-8122 |
1/8 inch special brass flood jets for V1245 H56 |
|
|
| 146 |
991-8008 |
120V 50 PSI Flo Jet pump |
|
(pumps) |
| 147 |
991-8009 |
120V 100 PSI Flo Jet pump |
|
(pumps) |
| 148 |
991-8218 |
120V 120 PSI pump |
|
(pumps) |
| 149 |
991-8220 |
1/8 fpt brass female connector |
|
|
| 150 |
991-1835 |
Crevice tool |
|
|
|
|
