Parts List Complete for CLARKE-ALT Focus C28


Brush Motor Assembly - NON-OEM - 164-0011
RefNbr Part Number Description Req Notes
000a 991-2121 24V .75HP brush motor assembly with gear box 1 (includes 001-027)
000b 991-2122 36V .75HP brush motor assembly with gear box 1 (includes 001-027) (you will also need to order 000c and 000d)
000c 999-0038 Bolt 3/8-16 x 1 hex head grade 5 zinc plated 4
000d 999-0162 Bolt 5/16-18 x 1 1/4 hex head grade 5 zinc plated 1 (Needed for mounting the hub on the shaft)
001 164-1157 Bolt 1/4-20 x 7 3/4 thru 2
002 164-1095 Negative lead 1
003a 164-0337 Top end bell (OBSOLETE) 1
003b N/A Not available 1 (Commutator bracket assembly)
004 N/A Not available 1 (Brush board assembly)
005 999-0545 Screw 10-24 x 1/2 pan head phillips self-tapping 2
006 164-0329 Top rotor bearing 1 (Commutator end)
007a 164-1084 24V armature assembly (OBSOLETE) 1
007b 164-0341 36V armature assembly 1
008 164-0342 Armature vent fan 1
009 164-0343 Stator frame assembly with magnets 1
010 164-0355 Bottom bearing large 1
011 164-1096 Positive lead 1
012 164-0345 Strain relief (OBSOLETE) 2
013 164-0324 Carbon brush spring 4
014 991-1505 Carbon brush (sold individually) 4
015 999-0111 Screw 10-32 x 1/2 round head slotted brass 4
016 164-0328 Washer 1 7/8 wave 1
017 164-0349 Oil seal 1
018 164-0350 Gear box housing 1
019 164-0352 Top bearing small 1
020 164-0353 Gear shaft 1
021 164-0132 Square keyway 1/4 x 1/4 1
022 164-0355 Bottom bearing large 1
023 164-0356 O-ring 1
024 164-0357 End cap 1
025 164-0358 Oil seal 1
026 164-0359 Snap ring 1
027a 164-0351 Gear box assembly 1 (includes 017-026) (OEM)
027b 991-5115 Gear box assembly 1 (includes 017-026) (also need to order 027c) (NON-OEM)
027c 999-0562 Bolt 3/8-16 x 1 hex head stainless steel 4 (needed with 027b)

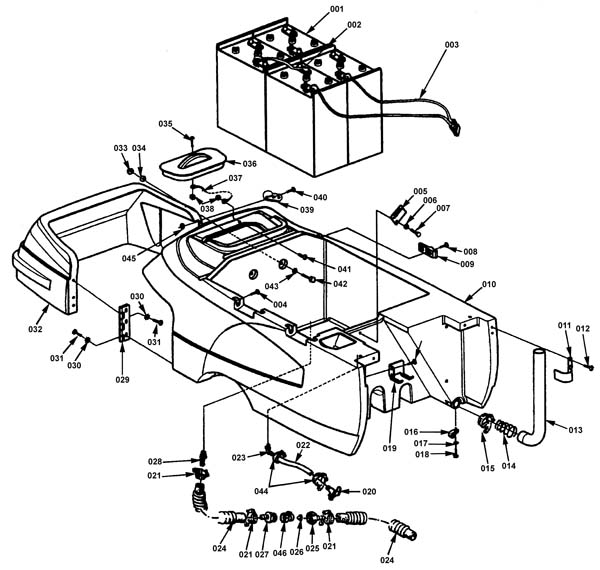

Solution Tank Assembly - 170-6158
RefNbr Part Number Description Req Notes
001 NOTE Please See Batteries, Brushes, Pad Holders and Charger Pages 4
002a 998-0010 Battery jumper cable - ring type (red) 3
002b 991-6025 Wire 4 x14.5, 3/8 ring x 3/8 ring 3 (NON-OEM)
003 270-0016 Battery cable assembly (OBSOLETE) 1
004 999-0664 Screw 10-32 x 1/2 pan head phillips thread cutting 2
005 170-7372 Tank support bracket (OBSOLETE) 1
006 999-0060 Washer 1/4 split lock plain finish 2
007 999-0334 Bolt 1/4-20 x 3/4 inch hex head stainless steel 2
008 999-0462 Screw 8-32 x 1/2 pan head slotted zinc plated 2
009 209-2377 Latch and strike 1
010 170-7373 Solution tank 1
011 170-7374 Drain hose bracket (OBSOLETE) 1
012 999-0849 Screw 10-24 x 1/2 round head slotted nylon 4
013 170-7375 Solution drain hose 1
014 170-7376 Drain hose spring (OBSOLETE) 1
015 997-2007 Hose clamp 1
016 170-7071 Metal clamp 1
017 999-0060 Washer 1/4 split lock plain finish 1
018 999-0019 Bolt 1/4-20 x 5/8 hex head grade 5 zinc plated 1
019 170-7377 Hose hanger 1
020 170-7101 Battery drain valve 1
021 997-2002 Hose clamp #6 4
022 170-7018 Hose 1
023 170-0261 Elbow 1
024 170-7102 Solution hose 2
025 170-7103 Connector 1
026 164-0065 Filter screen 1
027 170-0264 Hose barb 1
028 170-7095 Solution tank adapter (OBSOLETE) 1
029 170-7378 Cover hinge 1
030 999-0017 Washer 1/4 external star lock 6
031 999-0522 Screw 1/4-20 x 1/2 pan head phillips stainless steel 6
032 170-7379 Front cover 1
033 999-0188 Nut 3/8-16 nylon insert lock zinc plated 2
034 999-1254 Washer 3/8 SAE flat zinc plated 2
035 999-0267 Screw 10-24 x 1/2 pan head phillips zinc 1
036 170-7380 Solution tank lid (OBSOLETE) 1
037 170-7089 Strap (OBSOLETE) 1
038 999-0211 Nut 5/16-18 hex nylon insert lock zinc plated 2
039 209-2377 Latch and strike 1
040a 170-1901 Rivet 5/32 x 9/16 2
040b 999-0697 Screw 8-32 x 3/4 pan head phillips stainless steel 2
041 999-0314 Screw 10-24 x 3/4 round head phillips zinc plated 1
042 999-0550 Bolt 3/8-16 x 2 hex head stainless steel 2
043 999-0716 Washer 3/8 x 1 1/4 fender 2
044 997-2001 Hose clamp 2
045 999-0357 Nut 8-32 nylon insert lock stainless steel 2
046 170-9017 Manual solution valve 1

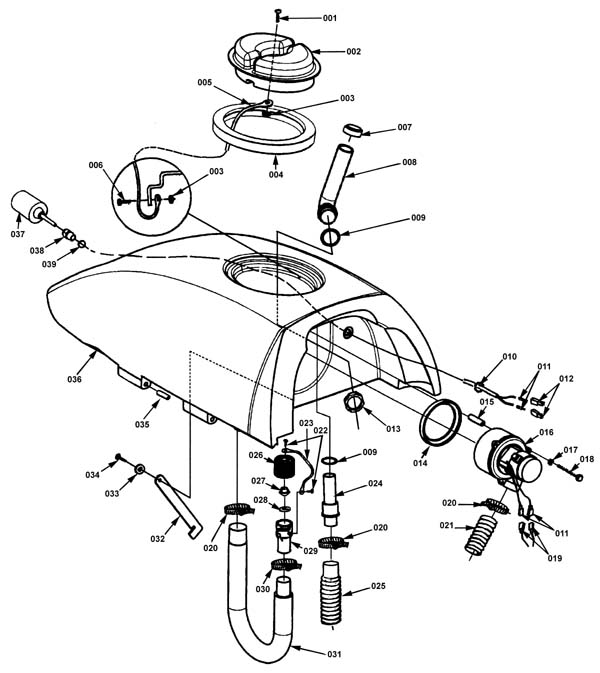

Recovery Tank Assembly - 170-6159
RefNbr Part Number Description Req Notes
001 999-0267 Screw 10-24 x 1/2 pan head phillips zinc 1
002 170-1936 Recovery tank lid 1
003 999-0211 Nut 5/16-18 hex nylon insert lock zinc plated 2
004 170-1937 Recovery tank lid gasket 1
005 170-7089 Strap (OBSOLETE) 1
006 999-0314 Screw 10-24 x 3/4 round head phillips zinc plated 1
007 170-7104 Vacuum filter screen 1
008 170-7080 Stand pipe (OBSOLETE) 1
009 170-0273 O-ring 2
010 170-0294 Nut 1/2 conduit lock 1
011 170-0279 Contact 4
012 170-0281 Connector housing (blue) 2
013 170-0647 Lock nut 1
014a 164-0881 Vacuum motor gasket 3
014b 991-3029 Vacuum motor gasket 3 (NON-OEM)
015 170-0274 Vacuum motor spacer 1
016a 172-9139 24V 3 stage vacuum motor 1 (OEM)
016b 991-1210-P 24V 3 stage vacuum motor tangential with Packard plug 1 (NON-OEM)
017 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel 3
018 999-0165 Bolt 1/4-20 x 4 hex head grade 5 zinc plated 2
019 170-0280 Connector housing (black) 3
020 997-2007 Hose clamp 3
021 170-6083 Exhaust hose 2
022 999-0110 Screw 10-16 x 1/2 pan head phillips self-drilling 1
023 170-0268 Drain chain assembly 1
024 170-7382 Squeegee hose adapter 1
025 170-7084 Squeegee vacuum hose with 1 cuff 1
026 170-7251 Drain hose housing 1
027 170-7272 Drain plug 1
028 170-7271 O-ring 1
029 170-7269 Drain valve (OBSOLETE) 1
030 164-0218 Nylon hose clamp 1
031 170-7086 Recovery tank drain hose 1
032 170-7383 Recovery tank support 1
033 999-0843 Washer 5/8 flat nylon 1
034 170-7036 Shoulder screw 2
035 170-1941 Hinge pin 1
036 170-7384 Recovery tank (OBSOLETE) 1
037 170-7081 Float switch (includes strain relief) 1
038 170-0292 Strain relief 1
039 170-0293 Seal 1

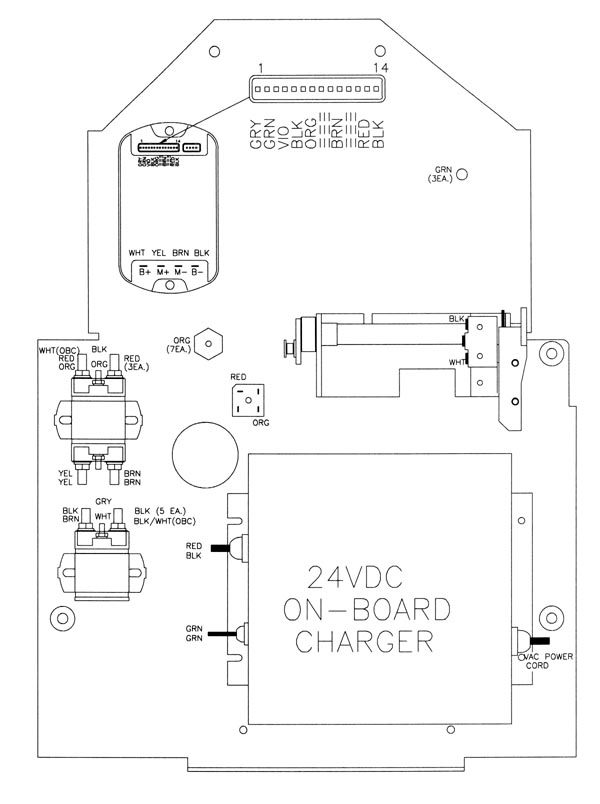

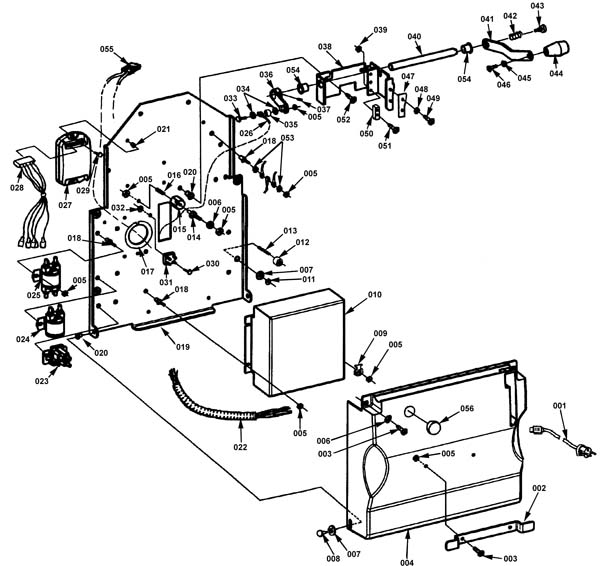

Electrical Panel Assembly - 170-6160
RefNbr Part Number Description Req Notes
001 170-7385 Onboard charger cord 1
002 170-7386 Cord wrapping bracket 1
003 999-0081 Screw 1/4-20 x 5/8 pan head slotted zinc 4
004 170-7387 Rear cover 1
005 999-0294 Nut 1/4-20 hex nylon lock type NE stainless steel 16
006 999-0016 Washer 1/4 flat plain finish 3
007 999-0549 Washer 5/16 x 3/4 SAE flat stainless steel 6
008 170-7389 Bolt 5/46 x 1/2 shoulder 2
009 170-7388 1/4 tab 1
010 272-2358 24V onboard battery charger 1
010b 164-7292 Replacement AC cord and panel assembly (Delta Q) (OBSOLETE) 1
011 999-0211 Nut 5/16-18 hex nylon insert lock zinc plated 4
012 170-7391 Spacer 4
013 999-9117 Screw 5/16-18 x 1 3/4 socket cup point set stainless steel 4
014 170-0064 Stud 1/4-20 1
015 170-0063 Insulated stand off 1
016 999-0715 Screw 1/4-20 x 3/4 cup point socket set alloy plain finish 1
017 170-7070 Gasket 1
018 170-7074 Stud 1/4-20 11
019 170-7393 Electrical panel (OBSOLETE) 1
020 170-7076 Insert 1/4-20 4
021 170-7075 Insert 8-32 2
022 270-0017 Main wiring harness (OBSOLETE) 1
023 172-2805 36V contactor 1
024a 172-2163 24V solenoid 4 post (2 large 2 small) 1
024b 991-1226 24V solenoid 4 post (2 large 2 small) 1 (NON-OEM)
025 170-1931 Main solenoid contactor 1
026 170-7064 Upper cable assembly 1
027 472-7588 I-DRIVE CONTROLLER KIT (OBSOLETE) 1
028 170-7396 Traverse harness (OBSOLETE) 1
029 999-0827 Screw 8-32 x 1 pan head phillips zinc plated 2
030 999-0314 Screw 10-24 x 3/4 round head phillips zinc plated 1
031 163-0063 240V rectifier 1
032 999-0211 Nut 5/16-18 hex nylon insert lock zinc plated 1
033 999-0197 Screw 1/4-20 x 1 socket head alloy plain finish 1
034 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel 2
035 170-0117 Spacer 1
036 170-7063 Lever weldment (OBSOLETE) 1
037 999-0627 Screw 5/16-18 x 1/2 socket cup point set ss 2
038 170-7399 Squeegee lift bracket (OBSOLETE) 1
039 999-0227 Nut 6-32 hex nylon insert lock jam zinc plated 2
040 170-7400 Squeegee lift shaft (OBSOLETE) 1
041 170-7401 Squeegee lift lever (OBSOLETE) 1
042 170-0113 Spring (OBSOLETE) 1
043 170-0112 Shoulder screw (OBSOLETE) 1
044 170-7402 Squeegee lift knob 1
045 999-0201 Washer 3/8 internal star lock 1
046 999-0587 Screw 3/8-16 x 5/8 round head slotted zinc 1
047 170-0121 Wear plate (OBSOLETE) 1
048 154-3992 Washer 3/16 star 2
049 999-0267 Screw 10-24 x 1/2 pan head phillips zinc 2
050 170-0111 Vacuum switch assembly (OBSOELTE) 1
051 999-0511 Screw 6-32 x 1 pan head phillips zinc plated 2
052 999-0019 Bolt 1/4-20 x 5/8 hex head grade 5 zinc plated 2
053 999-0017 Washer 1/4 external star lock 2
054 170-0088 Flanged bearing (OBSOLETE) 2
055 270-0019 Cable (OBSOLETE) 1
056 270-0020 Hole plug 1 3/8 inch 1

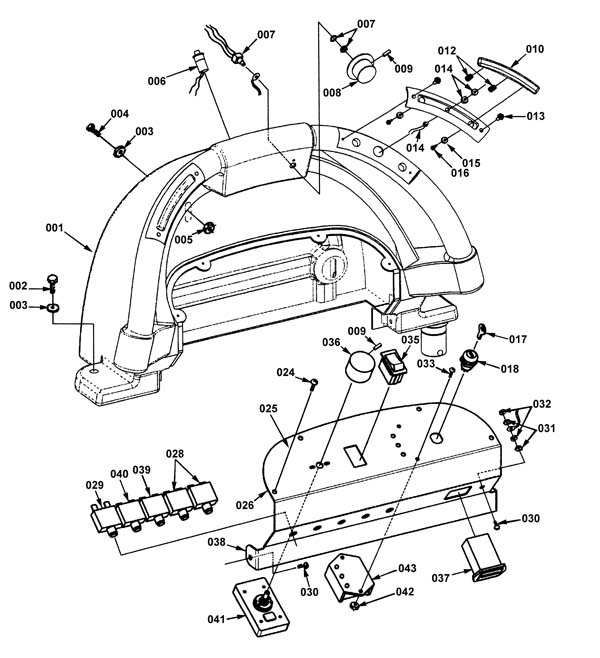

Control Panel Assembly - 170-6161
RefNbr Part Number Description Req Notes
001 170-7408 Control handle 1
002 999-0162 Bolt 5/16-18 x 1 1/4 hex head grade 5 zinc plated 2
003 999-0160 Washer 1/4 x 1 1/4 fender zinc plated 6
004 999-0132 Bolt 5/16-18 x 3/4 hex head grade 5 zinc plated 4
005 999-0211 Nut 5/16-18 hex nylon insert lock zinc plated 4
006 170-7409 Push button reverse switch 1
007 170-7411 Potentiometer harness assembly 1
008 170-1876 Traverse control knob 1
009 999-0431 Screw 8-32 x 1/4 set socket cup point alloy plain finish 2
010 170-1885 Switch lever housing 2
012 170-1887 Switch spring 4
013 999-0851 Screw 10-32 x 1/2 round head slotted nylon 4
014 170-1885 Switch lever housing 2
015 999-0412 Washer #8 SAE flat 4
016 999-0336 Screw 6-32 x 3/8 pan head phillips stainless steel 4
017 170-7412 Key 1
018 170-7413 Key switch (OBSOLETE) 1
024 999-0110 Screw 10-16 x 1/2 pan head phillips self-drilling 4
025 270-0021 Control decal (OBSOLETE) 1
026 170-0059 Gasket 1
028 170-1711 40amp circuit breaker (OBSOLETE) 2 (brush)
029 991-1627 5amp circuit breaker 1 (actuator)
030 999-0081 Screw 1/4-20 x 5/8 pan head slotted zinc 3
031 999-0017 Washer 1/4 external star lock 2
032 999-0190 Nut 1/4-20 hex plain finish 2
033 999-0267 Screw 10-24 x 1/2 pan head phillips zinc 2
035 170-0058 Rocker switch 2 position 6 prong 1 (brush)
036 170-8261 Knob solution flow module (OBSOLETE) 1
037a 170-0052 Hour meter 1 (OEM)
037b 991-7137 Hour meter 1 (NON-OEM)
038 270-0022 Control panel (OBSOLETE) 1
039 991-1625 30amp circuit breaker 1 (traverse motor)
040 991-1632 25amp circuit breaker 1 (vacuum motor)
041 170-7046 Solution flow module (OBSOLETE) 1
042 999-0211 Nut 5/16-18 hex nylon insert lock zinc plated 2
043 170-7422 Battery charge meter 1

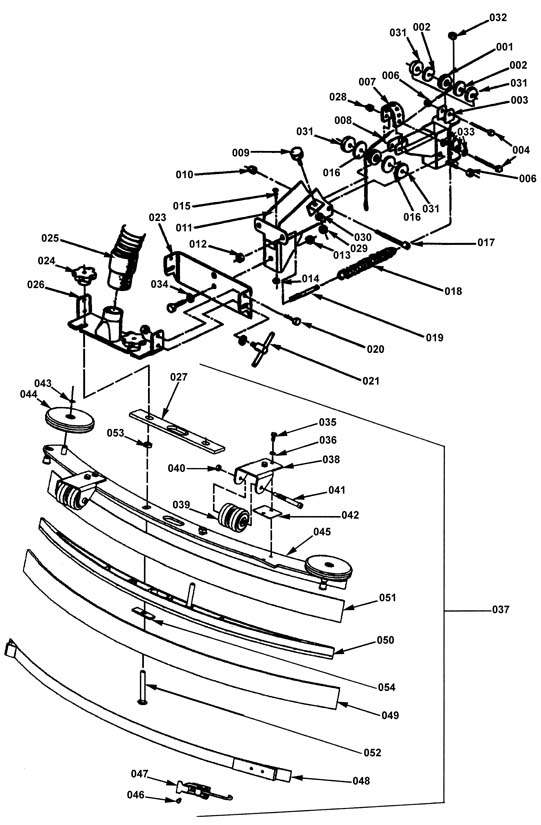

Squeegee Swing Arm Assembly - 170-6162
RefNbr Part Number Description Req Notes
001 372-2615 Squeegee pulley cable 2
002 170-7109 Washer 1 1/4 nylon 2
003 170-7110 Front swing arm 1
004 999-0506 Bolt 1/4-20 x 1 1/2 hex head stainless steel 2
006 999-0294 Nut 1/4-20 hex nylon lock type NE stainless steel 4
007 170-7111 Strap 1
008 170-7112 Lower cable 1
009 170-7113 Bumper 1
010 999-0211 Nut 5/16-18 hex nylon insert lock zinc plated 1
011 170-7114 Rear swing arm 1
012 999-0069 Nut 5/16-18 hex 2
013 999-0188 Nut 3/8-16 nylon insert lock zinc plated 1
014 999-0211 Nut 5/16-18 hex nylon insert lock zinc plated 1
015 999-0267 Screw 10-24 x 1/2 pan head phillips zinc 1
016 170-7115 Washer 1 1/2 x 1/8 flat nylon 2
017 170-2069 Screw 3/8-16 x 2 shoulder 1
018 170-7116 Squeegee pressure spring 2
019 170-7117 Stud (OBSOLETE) 2
020 999-0334 Bolt 1/4-20 x 3/4 inch hex head stainless steel 2
021 170-0714 T-handle 3
023 170-7118 Squeegee mounting bracket 1
024 170-0171 Knob 2
025 170-7084 Squeegee vacuum hose with 1 cuff 1
026 170-7119 Squeegee hose bracket 1
027 170-0164 Gasket 1
028 999-0609 Nut 1/4-20 hex stainless steel 1
029 999-0190 Nut 1/4-20 hex plain finish 1
030 999-0060 Washer 1/4 split lock plain finish 1
031 170-7132 Washer 1 1/4 4
032 999-1650 Nut 1/4-28 hex jam stainless steel 1
033 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel 4
034 999-0617 Washer 3/8 x 1 flat stainless steel 1
035 999-0661 Bolt 1/2-20 x 1 18-8 hex head stainless steel 4
036 999-0060 Washer 1/4 split lock plain finish 4
037 N/A Not available 1 (includes 027, 035, 036 and 038 thru 054) Squeegee assembly
038 170-7168 Squeegee wheel bracket 2
039 170-7169 Squeegee wheel 4
040 999-0294 Nut 1/4-20 hex nylon lock type NE stainless steel 2
041 170-7170 Bolt 5/16 x 2 1/4 shoulder 2
042 170-7177 Shim 2
043 170-7333 Snap ring 2
044 170-7172 4 inch guide wheel 2
045 170-7161 39 inch squeegee weldment 1
046 170-7163 Aluminum rivet 2
047 170-7162 Clamp latch 1
048 170-7164 39 inch retainer clamp strap 1
049a 170-7334 Squeegee blade 39 inch linatex rear (red) 1 (OEM)
049b 994-0102 Squeegee blade 39 inch gum rubber rear (red) 1
050 170-7159 39 inch squeegee spacer 1
051a 170-8919 Squeegee blade 39 inch linatex notched rear 1 (OEM)
051b 994-0103 Squeegee blade 39 inch gum rubber front 1
052 999-0887 Bolt 3/8-16 x 3 hex head hot dipped galvanized 2
053 999-0628 Nut 3/8-16 hex jam stainless steel 2
054 170-3394 Back up nut 2
N/S 999-0549 Washer 5/16 x 3/4 SAE flat stainless steel 1
N/S 999-0649 Bolt 3/8-16 x 1 1/4 hex head stainless steel 1

Traverse System Assembly - 170-6163
RefNbr Part Number Description Req Notes
001 170-0145 Clevis pin 1
002 170-0135 Cotter pin (OBSOLETE) 1
003 999-0294 Nut 1/4-20 hex nylon lock type NE stainless steel 2
004 170-7137 Swing bracket (OBSOLETE) 1
005 999-0132 Bolt 5/16-18 x 3/4 hex head grade 5 zinc plated 2
006 372-2615 Squeegee pulley cable 1
007 170-7109 Washer 1 1/4 nylon 2
008 999-0506 Bolt 1/4-20 x 1 1/2 hex head stainless steel 1
009 999-0038 Bolt 3/8-16 x 1 hex head grade 5 zinc plated 6
010 999-0197 Screw 1/4-20 x 1 socket head alloy plain finish 1
011 999-0211 Nut 5/16-18 hex nylon insert lock zinc plated 2
012 991-2011 Caster wheel assembly 2
013 999-0188 Nut 3/8-16 nylon insert lock zinc plated 12
014 270-0024 Transaxle 1
015 999-0649 Bolt 3/8-16 x 1 1/4 hex head stainless steel 4
016a 170-7139 Wheel assembly with wheel and inner tube 2
016b 170-7140 Foam filled wheel 2
018 170-7142 Nut 1/2-20 lug (OBSOLETE) 6
019 999-0017 Washer 1/4 external star lock 3
020 170-7424 Main frame 1
021 170-1657 Transaxle mount 2
023 170-7132 Washer 1 1/4 2
024 999-0887 Bolt 3/8-16 x 3 hex head hot dipped galvanized 2
025 999-0635 Nut 3/8-16 hex stainless steel 2
026 999-0659 Washer 3/8 medium split lock stainless steel 2
027 170-7145 Stud 3/8 male x 3/8 female 2
028 999-0160 Washer 1/4 x 1 1/4 fender zinc plated 2
029 170-7146 Static strap 1
030 999-0032 Washer 3/8 USS flat plain finish 6
031 999-0119 Bolt 3/8-16 x 3/4 hex head grade 5 zinc plated 4
032 999-0659 Washer 3/8 medium split lock stainless steel 4

Scrub Deck Assembly - 170-6164
RefNbr Part Number Description Req Notes
001 170-0196 Clevis pin 2
002 997-2516 Cotter pin 2
003 170-7007 Nylon spacer 2
004 270-0025 Actuator assembly (OBSOLETE) 1
005 170-0705 Washer 1/2 x 3/64 4
006 999-0714 Nut 1/2-20 hex jam stainless steel 16
007 999-0126 Washer 1/2 split lock 8
008 170-0212 Flanged bearing 8
009 170-0211 Linkage bar 4
010 999-0711 Bolt 1/2-20 x 1 1/2 hex head grade 5 zinc plated 8
011a 991-2104 50amp charger plug SB50 only (gray) 4
011b 170-0009 Connector housing 4
012a 170-1420 24V brush gear motor assembly 2 (OEM) (includes 011a and 011b)
012b 991-2121 24V .75HP brush motor assembly with gear box 2 (NON-OEM)
013 999-0334 Bolt 1/4-20 x 3/4 inch hex head stainless steel 4
014 270-0026 Solution valve (OBSOLETE) 1
015 997-2001 Hose clamp 2
016 170-7012 Hose 1
017 999-0294 Nut 1/4-20 hex nylon lock type NE stainless steel 5
018 999-0016 Washer 1/4 flat plain finish 2
019 170-7013 Solution splitter 1
020 999-0358 Screw 8-32 x 5/8 pan head phillips stainless steel 4
021 170-7019 Brush deck latch 1
022a 170-7427 28 inch left brush housing 1
022b 170-7428 33 inch left brush housing 1
023 999-0211 Nut 5/16-18 hex nylon insert lock zinc plated 6
024 170-0198 Hose clamp 2
025 170-7018 Hose 2
026 997-2001 Hose clamp 2
027 999-0357 Nut 8-32 nylon insert lock stainless steel 4
028 999-0119 Bolt 3/8-16 x 3/4 hex head grade 5 zinc plated 8
029 999-0659 Washer 3/8 medium split lock stainless steel 8
030 999-0510 Screw 1/4-20 x 1 pan head phillips zinc plated 6
031 170-0031 Brush holder spring 2
032 996-0336 Clutch plate with brush holder spring 2
033 999-0358 Screw 8-32 x 5/8 pan head phillips stainless steel 6
034 991-2206 Center-Lok 3 pad holder 2
035 NOTE Please See Batteries, Brushes, Pad Holders and Charger Pages 2
036 170-1599 Screw 5/16-18 x 3/4 socket head nylock 2
037a 170-0207 Male gimbal with collar 2
037b 170-0207 Male gimbal with collar
038 170-0233 Brush driver collar - See pop-up (OBSOLETE) 2
039 170-0706 Washer 3/4 rubber 2
040a 170-7021 28 inch brush plate (OBSOLETE) 1
040b 170-7431 33 inch brush plate (OBSOLETE) 1
041 999-0132 Bolt 5/16-18 x 3/4 hex head grade 5 zinc plated 4
042 999-0712 Screw 3/8-16 x 2 1/2 truss head slotted stainless steel 1
043 170-7009 Brush head mounting bracket (OBSOLETE) 1
044 170-7026 Latch tab 1
045 164-0132 Square keyway 1/4 x 1/4 2
046 170-7029 Keeper 1
047a 170-7432 28 inch right brush housing 1
047b 170-7433 33 inch right brush housing 1
048 999-0659 Washer 3/8 medium split lock stainless steel 1
049 999-0324 Nut 3/8-16 nylon insert lock jam zinc plated 2
050 170-0163 Guide wheel 1
051 999-0032 Washer 3/8 USS flat plain finish 2
N/S 170-7023 28 inch right skirt 1
N/S 170-0226 Moving warning decal 2 (attach to reference 012)
N/S 170-7024 33 inch right skirt 1

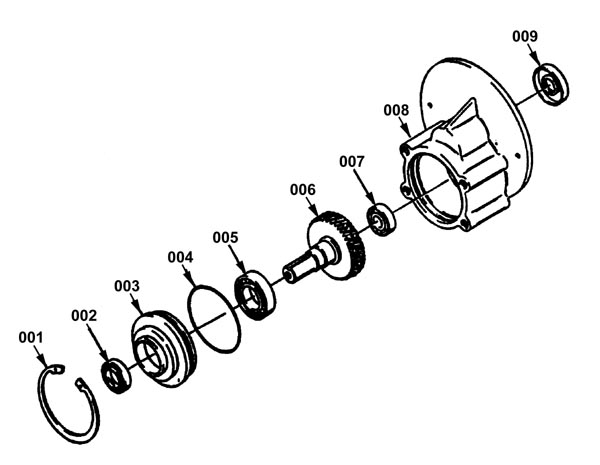

Gear Box Assembly - 170-6167
RefNbr Part Number Description Req Notes
001 170-0373 Snap ring 1
002 170-0011 Small oil seal 1
003 170-0010 End cap 1
004 170-0012 O-ring 1
005 170-0013 Large bearing 1
006 170-0375 Shaft and gearbox 1
007 170-0014 Small bearing 1
008 170-0376 Gearbox housing 1
009 170-0377 Large oil seal 1

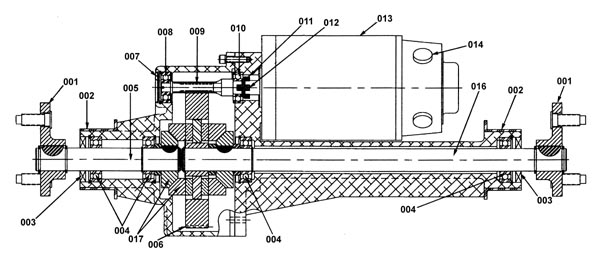

Imperial Transaxle Assembly - 170-6169
RefNbr Part Number Description Req Notes
001 170-7199 36V transaxle hub kit 2
002 170-7438 Rubber mount 2
003 170-5853 Axle oil seal 2
004 170-5854 Sealed axle bearing 4
005 170-7439 Short axle 1
006 170-7440 Output gear 1
007 170-7441 Input plug 1
008 170-7442 Outer pinion bearing 1
009 170-7443 Pinion (OBSOLETE) 1
010 170-7444 Inner pinion bearing 1
011 170-7445 Coupler steel ring 1
012 170-0694 Odum coupling 1
013a 270-0028 Motor without brake (OBSOLETE) 1
013b 270-0029 Motor with brake (OBSOLETE) 1
014a 270-0030 Carbon brush with springs (pkg of 4) (OBSOLETE) 1
014b 170-3568 Carbon brush (pkg of 4) 1
016a 170-2926 Long axle 1
016b 170-7446 Gearbox assembly without motor 1
017 170-7447 Miter gear 4

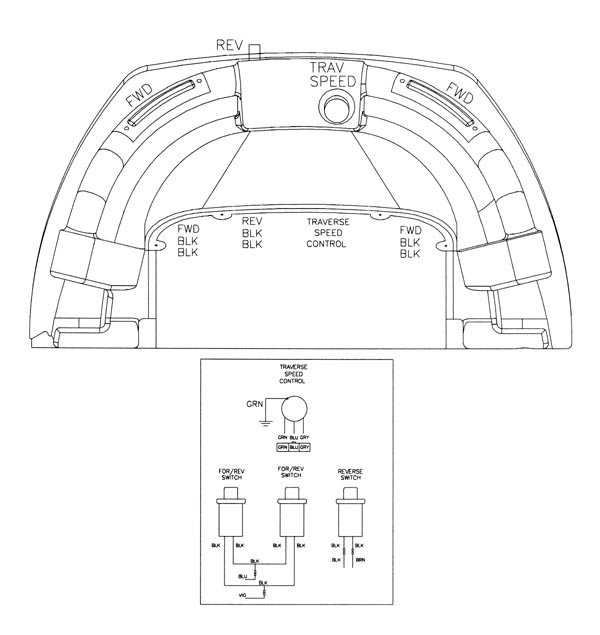

Control Panel Connection Diagram -

RefNbr Part Number Description Req Notes

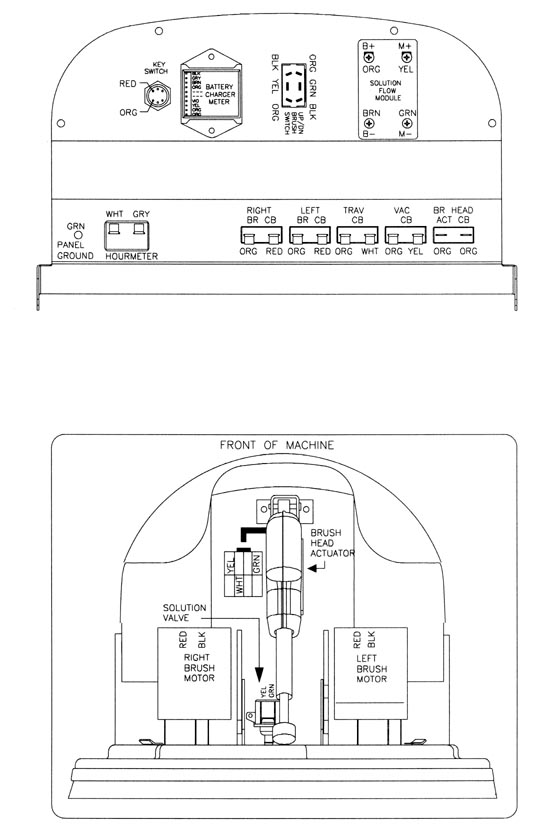

Electrical Plate Connection Diagram -

RefNbr Part Number Description Req Notes

Control Housing Connection Diagram -

RefNbr Part Number Description Req Notes

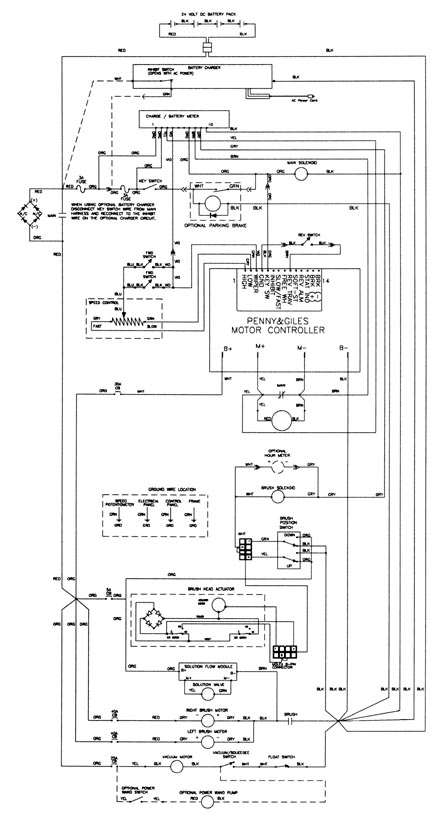

Wiring Diagram -

RefNbr Part Number Description Req Notes

- Batteries, Brushes and Charger - 28 inch - 170-6333
RefNbr Part Number Description Req Notes
01 996-0390 13 inch heavy grit stripping brush - 80 grit 2
02 996-0253 13 inch medium grit scrubbing brush - 180 grit 2
03 996-0391 13 inch lite grit scrubbing brush - 500 grit 2
04 996-0266 13 inch polypropelene scrubbing brush 2
05 996-0323 13 inch Pad driver 2
06 996-0336 Clutch plate with brush holder spring 2
08 162-5060 24V 20amp battery charger with small SB50 red plug 1
09 272-2358 24V onboard battery charger 1
10 991-2103 50amp charger plug SB50 with pins (red) 1
07 162-0005 6V 305Ah wet battery (SNSR) 4
07 162-0046 6V 335Ah AGM battery (Group J305) 4

- Pads - 255-1400
RefNbr Part Number Description Req Notes
01 255-1440 14 inch aqua plus burnishing pad (pkg of 5)
02 255-1435 14 inch Armadillo concrete scrubbing pad (pkg of 5)
03 255-1464 14 inch Blue ace pad (pkg of 5)
04 255-1442 14 inch Blue Jay burnishing pad (pkg of 5)
05 255-1412 14 inch Cure white pad (pkg of 5)
06 255-1477 14 inch Diamondback extreme stripping pad (pkg of 5)
07 255-1438 14 inch EHD Extra Heavy Duty Concrete Leveling Pad (pkg of 2
08 255-1421 14 inch gorilla lite burnishing pad (pkg of 5)
09 255-1450 14 inch gorilla spray buff/polish/burnish pad (pkg of 5)
10 255-1465 14 inch Heat concrete bonding pad (pkg of 5)
11 255-1430 14 inch jaguar burnishing pad (pkg of 5)
12 255-1487 14 inch Melamine Mela-Kleen pad (pkg of 2)
13 255-1490 14 inch premium black stripping pad (pkg of 5)
14 255-1470 14 inch premium blue cleaning pad (pkg of 5)
15 255-1492 14 inch premium brown stripping pad (pkg of 5)
16 255-1480 14 inch premium green scrubbing pad (pkg of 5)
17 255-1460 14 inch premium red scrubbing pad (pkg of 5)
18 255-1452 14 inch premium tan polishing pad (pkg of 5)
19 255-1420 14 inch premium white polishing pad (pkg of 5)
20 255-1411 14 inch superspeed rubberized pad (pkg of 5)
21 255-1495 14 inch razorback stripping pad (pkg of 5)
22 255-1447 14 inch Redwood maroon floor prep pad (pkg of 10)
23 255-1455 14 inch Ruff non-abrasive brush pad (pkg of 2)
24 255-1423 14 inch sand screen driver pad (pkg of 2)
25 255-0120 14 inch Professional sand screen 100 grit (pkg of 10)
26 255-0121 14 inch Professional sand screen 120 grit (pkg of 10)
27 255-0122 14 inch Professional sand screen 180 grit (pkg of 10)
28 255-0119 14 inch Professional sand screen 60 grit (pkg of 10)
29 255-0205 14 inch Superscreen sand screen 100 grit (pkg of 10)
30 255-0206 14 inch Superscreen sand screen 120 grit (pkg of 10)
31 255-0207 14 inch Superscreen sand screen 180 grit (pkg of 10)
32 255-0204 14 inch Superscreen sand screen 60 grit (pkg of 10)
33 255-1424 14 x 20 inch Tiger carpet bonnet (pkg of 2)
34 255-9549 14 inch Diamond by Gorilla 11000 Grit (pkg of 2)
35 255-9546 14 inch Diamond by Gorilla 1500 Grit (pkg of 2)
36 255-9543 14 inch Diamond by Gorilla 200 Grit (pkg of 2)
37 255-9547 14 inch Diamond by Gorilla 3000 Grit (pkg of 2)
38 255-9544 14 inch Diamond by Gorilla 400 Grit (pkg of 2)
39 255-9545 14 inch Diamond by Gorilla 800 Grit (pkg of 2)
40 255-9548 14 inch Diamond by Gorilla 8000 Grit (pkg of 2)
41 255-9639 14 inch Diamond starter pack (1 of each grit)
42 255-1482 14 inch Turbostrip segmented rotary pad (pkg of 4)
43 255-1415 14 inch Duala clean and shine pad - low speed (pkg of 5)
44 255-1416 14 inch 2001 Duala clean and shine pad-high speed (pkg of 5)

- Pad Holders - 275-9029
RefNbr Part Number Description Req Notes
1 991-2214 Center-Lok II pad holder - left hand thread (red)
2a 991-2201 Center-Lok II pad holder - right hand thread (black) (Pad driver side female, Floor side male)
2b 991-8577 Pad retainer (Pad driver side male, Floor side female)
3a 991-2202 Big mouth pad holder set (blue) (includes 3 screws)
3b 991-2205 Deep lock ring and pad grip ring
4 991-2203 Big mouth pad holder male thread portion
5 991-2206 Center-Lok 3 pad holder (includes 3 screws)
6 996-0372 Big mouth pad holder (left hand thread)
7 N/A Not available
8 991-2209 Split retainer - pad holder ring (OBSOLETE)
9 N/A Not available (replaced by #3 991-2202)
10 991-2211 Center lock pad holding cup (male) (yellow) (OBSOLETE)

- Frequently Replaced Parts - 999-0006
RefNbr Part Number Description Req Notes
1 162-0005 6V 305Ah wet battery (SNSR) (4)
2 162-0046 6V 335Ah AGM battery (Group J305) (4)
3 162-5060 24V 20amp battery charger with small SB50 red plug
4 272-2358 24V onboard battery charger
5 170-7385 Onboard charger cord
6 991-2103 50amp charger plug SB50 with pins (red)
7 270-0026 Solution valve (OBSOLETE)
8 998-0010 Battery jumper cable - ring type (red)
9 170-7413 Key switch (OBSOLETE) (master switch)
10 170-7412 Key
11 170-0111 Vacuum switch assembly (OBSOELTE) (vac)
12 170-0058 Rocker switch 2 position 6 prong (brush)
13 170-9017 Manual solution valve
15 170-7334 Squeegee blade 39 inch linatex rear (red)
16 170-8919 Squeegee blade 39 inch linatex notched rear
17 170-7084 Squeegee vacuum hose with 1 cuff
18 170-1936 Recovery tank lid
19 170-1937 Recovery tank lid gasket
20 170-7272 Drain plug
21 170-7086 Recovery tank drain hose
22 172-9139 24V 3 stage vacuum motor (Clarke)
23 991-1210-P 24V 3 stage vacuum motor tangential with Packard plug (NON-OEM)
24 996-0390 13 inch heavy grit stripping brush - 80 grit
25 996-0253 13 inch medium grit scrubbing brush - 180 grit
26 996-0391 13 inch lite grit scrubbing brush - 500 grit
27 996-3773 13 inch daily cleaning brush
28 996-0323 13 inch Pad driver
29 996-0336 Clutch plate with brush holder spring
30 991-2206 Center-Lok 3 pad holder
Webpage Problem Reporting
