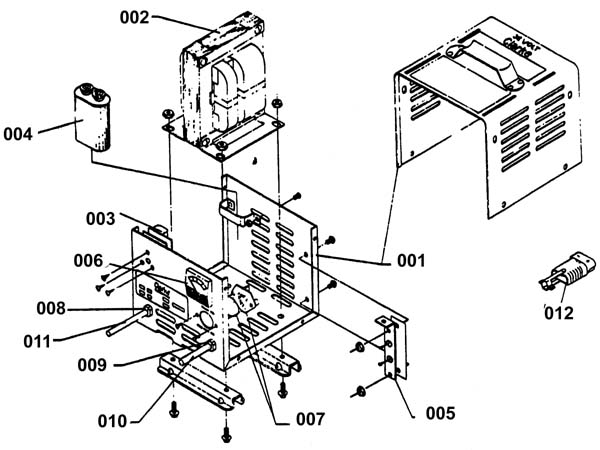

36V Battery Charger - |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
|
|

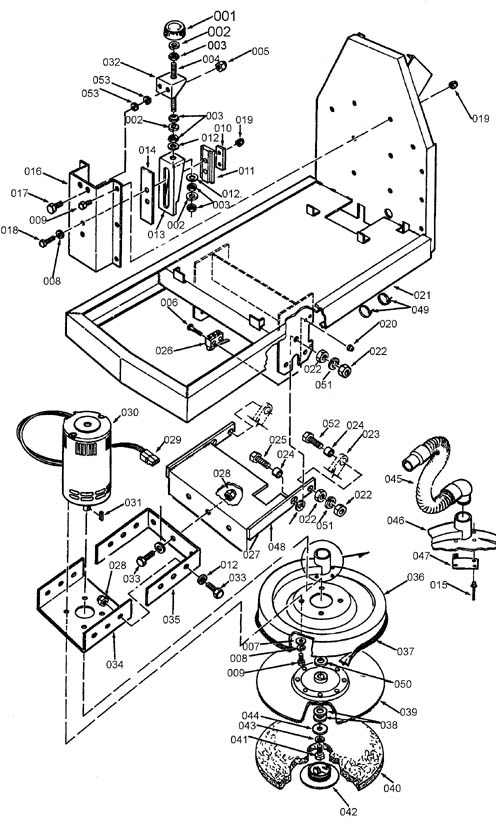

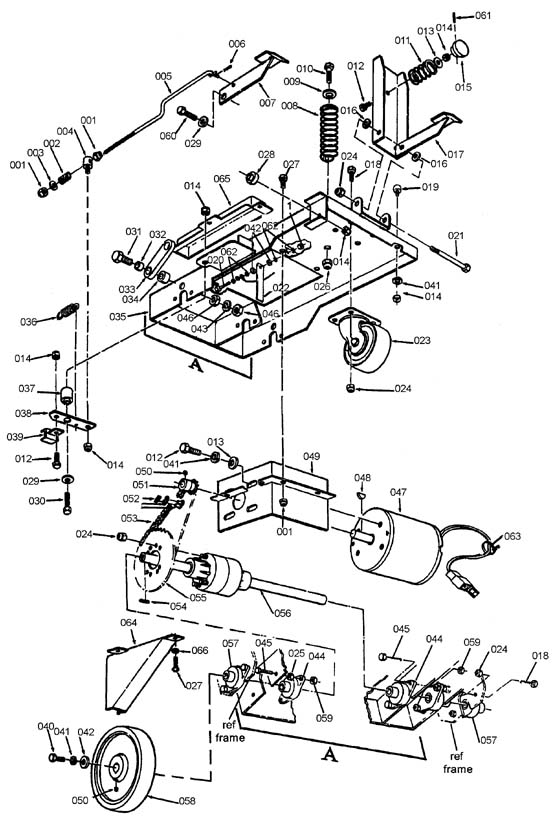

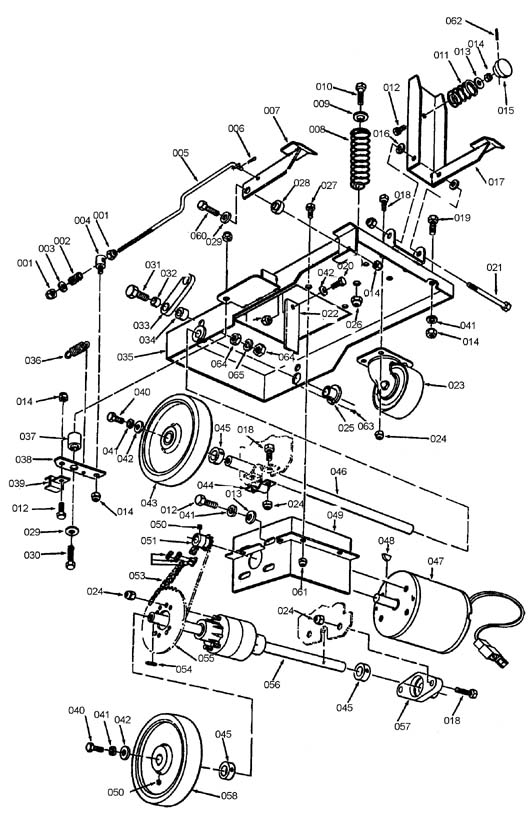

Lower Main Assembly - 1 - |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
|
|
Lower Main Assembly - 2 - |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
|
|
Lower Main Assembly - 3 - |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
|
|

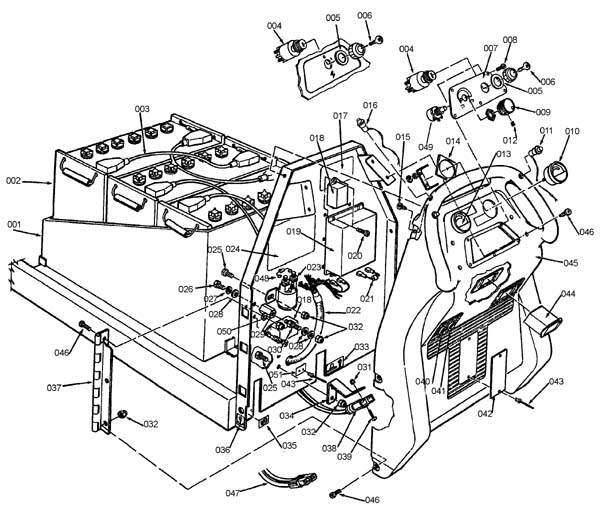

Upper Main Assembly - 1 - |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
|
|

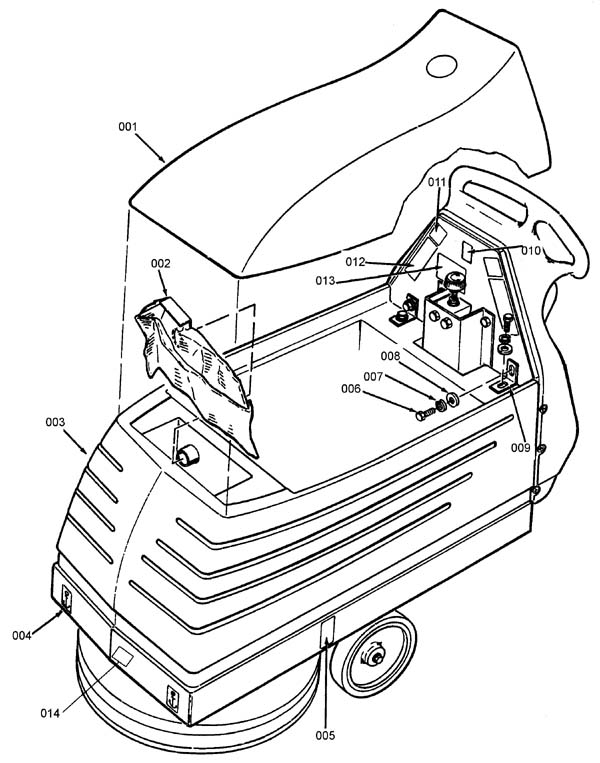

Upper Main Assembly - 2 - 170-0315 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 001 |
170-3932 |
Battery cover (OBSOLETE) |
1 |
|
| 002a |
170-0126 |
Paper vacuum bag (pkg of 10) |
1 |
|
| 002b |
991-9033 |
Paper vacuum bags (pkg of 10) (OBSOLETE) |
1 |
(NON-OEM) |
| 003 |
170-4707 |
Main body (OBSOLETE) |
1 |
|
| 004 |
170-1922 |
Tie down label (OBSOLETE) |
2 |
|
| 005 |
170-0226 |
Moving warning decal |
2 |
|
| 006 |
999-0334 |
Bolt 1/4-20 x 3/4 inch hex head stainless steel |
4 |
|
| 007 |
999-0060 |
Washer 1/4 split lock plain finish |
4 |
|
| 008 |
999-0335 |
Washer 1/4 x 5/8 SAE flat stainless steel |
4 |
|
| 010 |
170-3934 |
Head pressure label (OBSOLETE) |
1 |
|
| 011 |
170-0230 |
Falling parts warning decal |
2 |
|
| 012 |
170-0229 |
Battery warning decal |
2 |
|
| 013 |
170-3935 |
Battery label (OBSOLETE) |
1 |
|
| 014 |
170-4708 |
20 ix label (OBSOLETE) |
1 |
|
|
|

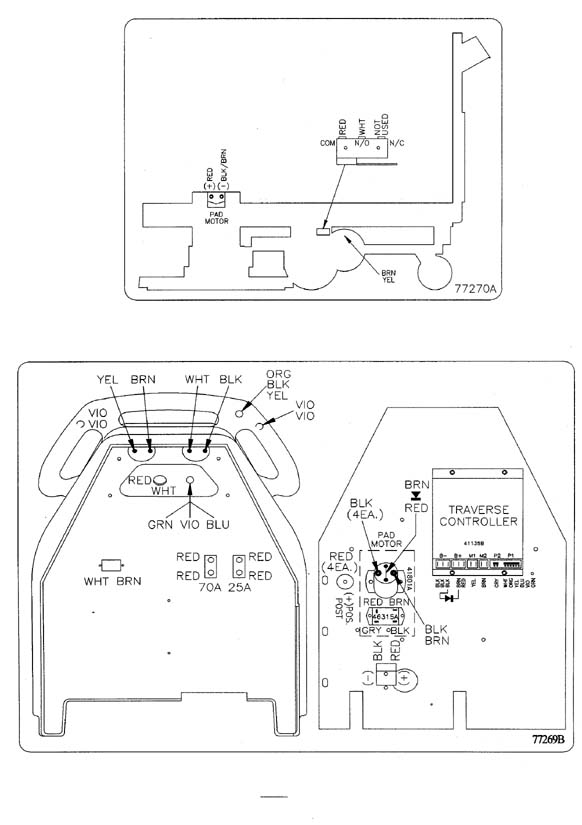

Connection Diagram - |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
|
|

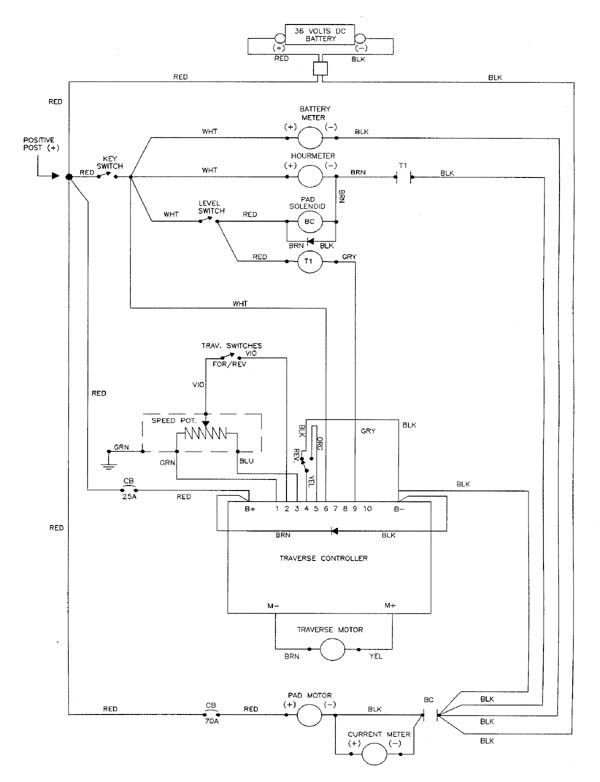

Electrical Schematic - |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
|
|

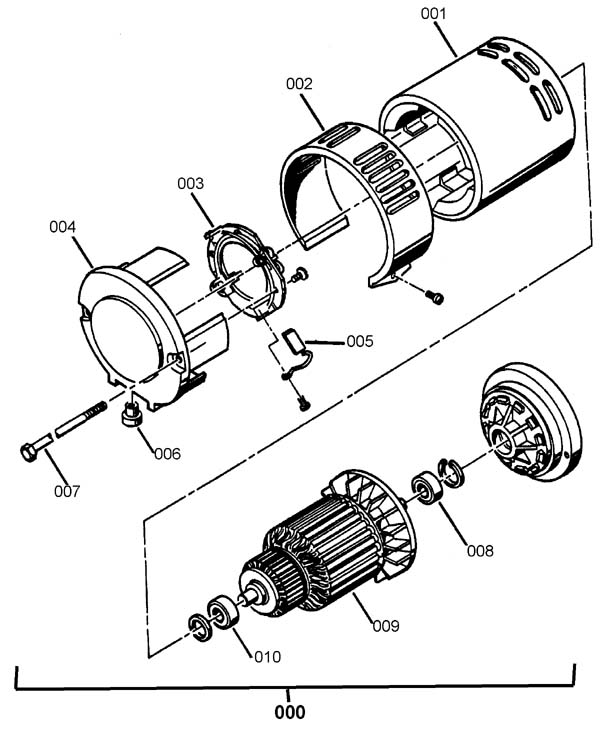

Pad Drive Motor - 170-0318 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 001 |
N/A |
Not available |
1 |
Field assembly |
| 002 |
N/A |
Not available |
1 |
Cover |
| 003 |
170-3939 |
Brush board assembly (OBSOLETE) |
1 |
|
| 004 |
N/A |
Not available |
1 |
bracket assembly |
| 005 |
170-3268 |
Carbon brush assembly |
1 |
|
| 006 |
170-3941 |
Strain relief |
2 |
|
| 007 |
N/A |
Not available |
2 |
Screw |
| 008 |
372-1890 |
Bearing (rear) |
1 |
|
| 009 |
N/A |
Not available |
1 |
Armature assembly |
| 010 |
170-0321 |
Front end bearing |
1 |
|
|
|

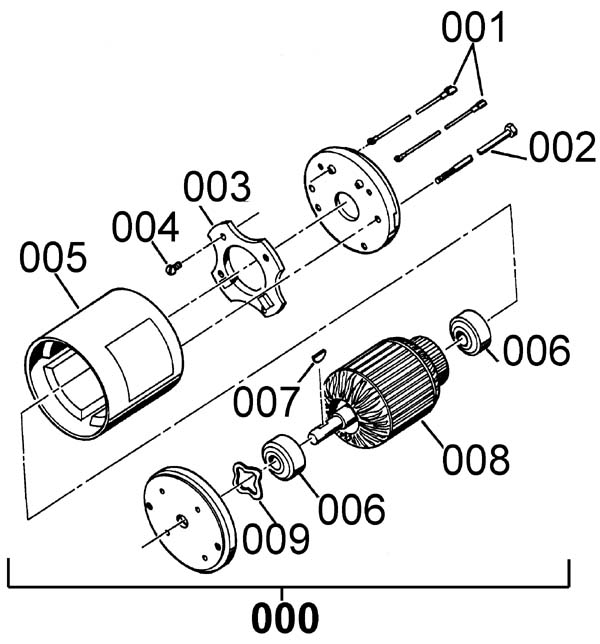

Traverse Motor - 170-0319 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 000 |
170-0680 |
Traverse motor (OBSOLETE) |
|
|
| 001 |
170-0673 |
Lead assembly (OBSOLETE) |
2 |
|
| 002 |
N/A |
Not available |
2 |
Bolt |
| 003 |
170-0689 |
Brush board assembly (OBSOLETE) |
1 |
|
| 005 |
170-0669 |
Stator frame assembly (OBSOLETE) |
1 |
|
| 006 |
170-0321 |
Front end bearing |
2 |
|
| 007 |
170-0672 |
Square keyway |
1 |
|
| 008 |
N/A |
Not available |
1 |
Armature assembly with bearing |
| 009 |
170-0379 |
Wave washer |
1 |
|
| 010 |
170-0686 |
Brush assembly (OBSOLETE) |
2 |
|
|
|
- Commonly Asked For Parts - 170-9945 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 01 |
162-0002 |
12V 185Ah wet battery (SNSR) |
3 |
|
| 02 |
162-0047 |
12V 215Ah AGM battery (Group J185) |
3 |
|
| 03 |
162-9001 |
36V 25amp battery charger with small SB50 gray plug |
|
|
| 04 |
991-2011 |
Caster wheel assembly |
|
|
| 05a |
170-0126 |
Paper vacuum bag (pkg of 10) |
|
|
| 05b |
991-9033 |
Paper vacuum bags (pkg of 10) (OBSOLETE) |
|
(NON-OEM) |
| 06 |
991-2203 |
Big mouth pad holder male thread portion |
|
|
| 08 |
170-0053 |
Key switch with 2 keys |
|
|
| 10 |
170-3913 |
Head lift pedal (OBSOLETE) |
|
|
|
|
- Pads - 255-2000 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 01 |
255-2040 |
20 inch aqua plus burnishing pad (pkg of 5) |
|
|
| 02 |
255-2035 |
20 inch Armadillo concrete scrubbing pad (pkg of 5) |
|
|
| 03 |
255-2064 |
20 inch Blue ace pad (pkg of 5) |
|
|
| 04 |
255-2042 |
20 inch Blue Jay burnishing pad (pkg of 5) |
|
|
| 05 |
255-2012 |
20 inch Cure white pad (pkg of 5) |
|
|
| 06 |
255-2077 |
20 inch Diamondback extreme stripping pad (pkg of 5) |
|
|
| 07 |
255-2038 |
20 inch EHD Extra Heavy Duty Concrete Leveling Pad (pkg of 2 |
|
|
| 08 |
255-2021 |
20 inch gorilla lite burnishing pad (pkg of 5) |
|
|
| 09 |
255-2050 |
20 inch gorilla spray buff/polish/burnish pad (pkg of 5) |
|
|
| 10 |
255-2065 |
20 inch Heat concrete bonding pad (pkg of 5) |
|
|
| 11 |
255-2030 |
20 inch jaguar burnishing pad (pkg of 5) |
|
|
| 12 |
255-2067 |
20 inch Laminated 2001 Gorilla polish pad (pkg of 5) |
|
|
| 13 |
255-2087 |
20 inch Melamine Mela-Kleen pad (pkg of 2) |
|
|
| 14 |
255-2068 |
20 inch Microclean daily cleaning pad (pkg of 2) |
|
|
| 15 |
255-2069 |
20 inch Micropolish polishing and burnishing pad (pkg of 2) |
|
|
| 16 |
255-2090 |
20 inch premium black stripping pad (pkg of 5) |
|
|
| 17 |
255-2070 |
20 inch premium blue cleaning pad (pkg of 5) |
|
|
| 18 |
255-2092 |
20 inch premium brown stripping pad (pkg of 5) |
|
|
| 19 |
255-2080 |
20 inch premium green scrubbing pad (pkg of 5) |
|
|
| 20 |
255-2060 |
20 inch premium red scrubbing pad (pkg of 5) |
|
|
| 21 |
255-2052 |
20 inch premium tan polishing pad (pkg of 5) |
|
|
| 22 |
255-2020 |
20 inch premium white polishing pad (pkg of 5) |
|
|
| 23 |
255-2011 |
20 inch superspeed rubberized pad (pkg of 5) |
|
|
| 24 |
255-2095 |
20 inch razorback stripping pad (pkg of 5) |
|
|
| 25 |
255-2047 |
20 inch Redwood maroon floor prep pad (pkg of 10) |
|
|
| 26 |
255-2055 |
20 inch Ruff non-abrasive brush pad (pkg of 2) |
|
|
| 27 |
255-2023 |
20 inch sand screen driver pad (pkg of 2) |
|
|
| 28 |
255-0157 |
20 inch Professional sand screen 100 grit (pkg of 10) |
|
|
| 29 |
255-0021 |
20 inch Professional sand screen 120 grit (pkg of 10) |
|
|
| 30 |
255-0158 |
20 inch Professional sand screen 150 grit (pkg of 10) |
|
|
| 31 |
255-0159 |
20 inch Professional sand screen 180 grit (pkg of 10) |
|
|
| 32 |
255-0160 |
20 inch Professional sand screen 220 grit (pkg of 10) |
|
|
| 33 |
255-0161 |
20 inch Professional sand screen 400 grit (pkg of 10) |
|
|
| 34 |
255-0030 |
20 inch Professional sand screen 60 grit (pkg of 10) |
|
|
| 35 |
255-0020 |
20 inch Professional sand screen 80 grit (pkg of 10) |
|
|
| 36 |
255-0249 |
20 inch Superscreen sand screen 100 grit (pkg of 10) |
|
|
| 37 |
255-0250 |
20 inch Superscreen sand screen 120 grit (pkg of 10) |
|
|
| 38 |
255-0251 |
20 inch Superscreen sand screen 150 grit (pkg of 10) |
|
|
| 39 |
255-0252 |
20 inch Superscreen sand screen 180 grit (pkg of 10) |
|
|
| 40 |
255-0253 |
20 inch Superscreen sand screen 220 grit (pkg10) (OBSOLETE) |
|
|
| 41 |
255-0254 |
20 inch Superscreen sand screen 400 grit (pkg of 10) |
|
|
| 42 |
255-0247 |
20 inch Superscreen sand screen 60 grit (pkg of 10) |
|
|
| 43 |
255-0248 |
20 inch Superscreen sand screen 80 grit (pkg of 10) |
|
|
| 45 |
255-9591 |
20 inch Diamond by Gorilla 11000 Grit (pkg of 2) |
|
|
| 46 |
255-9588 |
20 inch Diamond by Gorilla 1500 Grit (pkg of 2) |
|
|
| 47 |
255-9585 |
20 inch Diamond by Gorilla 200 Grit (pkg of 2) |
|
|
| 48 |
255-9589 |
20 inch Diamond by Gorilla 3000 Grit (pkg of 2) |
|
|
| 49 |
255-9586 |
20 inch Diamond by Gorilla 400 Grit (pkg of 2) |
|
|
| 50 |
255-9587 |
20 inch Diamond by Gorilla 800 Grit (pkg of 2) |
|
|
| 51 |
255-9590 |
20 inch Diamond by Gorilla 8000 Grit (pkg of 2) |
|
|
| 52 |
255-9645 |
20 inch Diamond starter pack (1 of each grit) |
|
|
| 53 |
255-2082 |
20 inch Turbostrip segmented rotary pad (pkg of 4) |
|
|
| 54 |
255-2015 |
20 inch Duala clean and shine pad - low speed (pkg of 5) |
|
|
| 55 |
255-2016 |
20in 2001 Duala clean& shine pad-high speed(pkg 5) (OBSOLETE |
|
|
|
|
- Pad Holders - 275-9029 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
991-2214 |
Center-Lok II pad holder - left hand thread (red) |
|
|
| 2a |
991-2201 |
Center-Lok II pad holder - right hand thread (black) |
|
(Pad driver side female, Floor side male) |
| 2b |
991-8577 |
Pad retainer |
|
(Pad driver side male, Floor side female) |
| 3a |
991-2202 |
Big mouth pad holder set (blue) |
|
(includes 3 screws) |
| 3b |
991-2205 |
Deep lock ring and pad grip ring |
|
|
| 4 |
991-2203 |
Big mouth pad holder male thread portion |
|
|
| 5 |
991-2206 |
Center-Lok 3 pad holder |
|
(includes 3 screws) |
| 6 |
996-0372 |
Big mouth pad holder (left hand thread) |
|
|
| 8 |
991-2209 |
Split retainer - pad holder ring (OBSOLETE) |
|
|
| 9 |
N/A |
Not available |
|
(replaced by #3 991-2202) |
| 10 |
991-2211 |
Center lock pad holding cup (male) (yellow) (OBSOLETE) |
|
|
|
|
