Brush Motor Assembly - NON-OEM - 164-0011 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 000a |
991-2121 |
24V .75HP brush motor assembly with gear box |
1 |
(includes 001-027) |
| 000b |
991-2122 |
36V .75HP brush motor assembly with gear box |
1 |
(includes 001-027) (you will also need to order 000c and 000d) |
| 000c |
999-0038 |
Bolt 3/8-16 x 1 hex head grade 5 zinc plated |
4 |
|
| 000d |
999-0162 |
Bolt 5/16-18 x 1 1/4 hex head grade 5 zinc plated |
1 |
(Needed for mounting the hub on the shaft) |
| 001 |
164-1157 |
Bolt 1/4-20 x 7 3/4 thru |
2 |
|
| 002 |
164-1095 |
Negative lead |
1 |
|
| 003a |
164-0337 |
Top end bell (OBSOLETE) |
1 |
|
| 003b |
N/A |
Not available |
1 |
(Commutator bracket assembly) |
| 004 |
N/A |
Not available |
1 |
(Brush board assembly) |
| 005 |
999-0545 |
Screw 10-24 x 1/2 pan head phillips self-tapping |
2 |
|
| 006 |
164-0329 |
Top rotor bearing |
1 |
(Commutator end) |
| 007a |
164-1084 |
24V armature assembly (OBSOLETE) |
1 |
|
| 007b |
164-0341 |
36V armature assembly |
1 |
|
| 008 |
164-0342 |
Armature vent fan |
1 |
|
| 009 |
164-0343 |
Stator frame assembly with magnets |
1 |
|
| 010 |
164-0355 |
Bottom bearing large |
1 |
|
| 011 |
164-1096 |
Positive lead |
1 |
|
| 012 |
164-0345 |
Strain relief (OBSOLETE) |
2 |
|
| 013 |
164-0324 |
Carbon brush spring |
4 |
|
| 014 |
991-1505 |
Carbon brush (sold individually) |
4 |
|
| 015 |
999-0111 |
Screw 10-32 x 1/2 round head slotted brass |
4 |
|
| 016 |
164-0328 |
Washer 1 7/8 wave |
1 |
|
| 018 |
164-0350 |
Gear box housing |
1 |
|
| 019 |
164-0352 |
Top bearing small |
1 |
|
| 020 |
164-0353 |
Gear shaft |
1 |
|
| 021 |
164-0132 |
Square keyway 1/4 x 1/4 |
1 |
|
| 022 |
164-0355 |
Bottom bearing large |
1 |
|
| 027a |
164-0351 |
Gear box assembly |
1 |
(includes 017-026) (OEM) |
| 027b |
991-5115 |
Gear box assembly |
1 |
(includes 017-026) (also need to order 027c) (NON-OEM) |
| 027c |
999-0562 |
Bolt 3/8-16 x 1 hex head stainless steel |
4 |
(needed with 027b) |
|
|
Solution Tank Assembly - 170-8049 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 001 |
NOTE |
Please See Batteries, Brushes, Pad Holders and Charger Pages |
6 |
|
| 002a |
998-0010 |
Battery jumper cable - ring type (red) |
5 |
(for bolt type posts) |
| 002b |
991-6025 |
Wire 4 x14.5, 3/8 ring x 3/8 ring |
5 |
(NON-OEM) |
| 003 |
170-7370 |
Black battery cable |
1 |
|
| 004 |
170-7371 |
Red battery cable |
1 |
|
| 005 |
170-7372 |
Tank support bracket (OBSOLETE) |
1 |
|
| 006 |
999-0060 |
Washer 1/4 split lock plain finish |
2 |
|
| 007 |
999-0334 |
Bolt 1/4-20 x 3/4 inch hex head stainless steel |
2 |
|
| 008 |
999-0462 |
Screw 8-32 x 1/2 pan head slotted zinc plated |
2 |
|
| 009 |
209-2377 |
Latch and strike |
1 |
|
| 010 |
170-7373 |
Solution tank |
1 |
|
| 011 |
170-7374 |
Drain hose bracket (OBSOLETE) |
1 |
|
| 012 |
999-0849 |
Screw 10-24 x 1/2 round head slotted nylon |
4 |
|
| 013 |
170-7375 |
Solution drain hose |
1 |
|
| 014 |
170-7376 |
Drain hose spring (OBSOLETE) |
1 |
|
| 015 |
997-2007 |
Hose clamp |
1 |
|
| 016 |
170-7071 |
Metal clamp |
1 |
|
| 017 |
999-0060 |
Washer 1/4 split lock plain finish |
1 |
|
| 018 |
999-0019 |
Bolt 1/4-20 x 5/8 hex head grade 5 zinc plated |
1 |
|
| 019 |
170-7377 |
Hose hanger |
1 |
|
| 020 |
170-7101 |
Battery drain valve |
1 |
|
| 021 |
997-2002 |
Hose clamp #6 |
4 |
|
| 022 |
170-7018 |
Hose |
1 |
(battery drain) |
| 024 |
170-7102 |
Solution hose |
2 |
|
| 026 |
164-0065 |
Filter screen |
1 |
|
| 028 |
170-7095 |
Solution tank adapter (OBSOLETE) |
1 |
|
| 029 |
170-7378 |
Cover hinge |
1 |
|
| 030 |
999-0017 |
Washer 1/4 external star lock |
6 |
|
| 031 |
999-0522 |
Screw 1/4-20 x 1/2 pan head phillips stainless steel |
6 |
|
| 032 |
170-7379 |
Front cover |
1 |
|
| 033 |
999-0188 |
Nut 3/8-16 nylon insert lock zinc plated |
2 |
|
| 034 |
999-0032 |
Washer 3/8 USS flat plain finish |
2 |
|
| 035 |
999-0267 |
Screw 10-24 x 1/2 pan head phillips zinc |
1 |
|
| 036 |
170-7380 |
Solution tank lid (OBSOLETE) |
1 |
|
| 037 |
170-7089 |
Strap (OBSOLETE) |
1 |
|
| 038 |
999-0211 |
Nut 5/16-18 hex nylon insert lock zinc plated |
2 |
|
| 039 |
209-2377 |
Latch and strike |
1 |
|
| 040 |
170-1901 |
Rivet 5/32 x 9/16 |
2 |
|
| 041 |
999-0314 |
Screw 10-24 x 3/4 round head phillips zinc plated |
1 |
|
| 042 |
999-0550 |
Bolt 3/8-16 x 2 hex head stainless steel |
2 |
|
| 043 |
999-0716 |
Washer 3/8 x 1 1/4 fender |
2 |
|
| 044 |
999-0664 |
Screw 10-32 x 1/2 pan head phillips thread cutting |
2 |
|
| 045 |
997-2001 |
Hose clamp |
2 |
|
|
|
Recovery Tank Assembly - 170-8050 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 001 |
999-0267 |
Screw 10-24 x 1/2 pan head phillips zinc |
1 |
|
| 002 |
170-1936 |
Recovery tank lid |
1 |
|
| 003 |
999-0211 |
Nut 5/16-18 hex nylon insert lock zinc plated |
2 |
|
| 004 |
170-1937 |
Recovery tank lid gasket |
1 |
|
| 005 |
170-7089 |
Strap (OBSOLETE) |
1 |
|
| 006 |
999-0314 |
Screw 10-24 x 3/4 round head phillips zinc plated |
1 |
|
| 007 |
170-7104 |
Vacuum filter screen |
1 |
|
| 008 |
170-7080 |
Stand pipe (OBSOLETE) |
1 |
|
| 010 |
170-0294 |
Nut 1/2 conduit lock |
1 |
|
| 012 |
170-0281 |
Connector housing (blue) |
2 |
|
| 014a |
164-0881 |
Vacuum motor gasket |
1 |
|
| 014b |
991-3029 |
Vacuum motor gasket |
1 |
(NON-OEM) |
| 015 |
170-0274 |
Vacuum motor spacer |
3 |
|
| 016a |
270-0102 |
36V 3 stage vacuum motor |
1 |
(Alto-Clarke) |
| 016b |
991-1202 |
36V 3 stage vacuum motor tangential |
1 |
(NON-OEM) |
| 016c |
991-1222 |
Plastic covered carbon brush (sold individually) |
2 |
|
| 017 |
999-0335 |
Washer 1/4 x 5/8 SAE flat stainless steel |
3 |
|
| 018 |
999-0165 |
Bolt 1/4-20 x 4 hex head grade 5 zinc plated |
3 |
|
| 019 |
170-0280 |
Connector housing (black) |
2 |
|
| 020 |
997-2007 |
Hose clamp |
3 |
|
| 021 |
170-6083 |
Exhaust hose |
1 |
|
| 022 |
999-0110 |
Screw 10-16 x 1/2 pan head phillips self-drilling |
2 |
|
| 023 |
170-0268 |
Drain chain assembly |
1 |
|
| 024 |
170-7382 |
Squeegee hose adapter |
1 |
|
| 025 |
170-7084 |
Squeegee vacuum hose with 1 cuff |
1 |
|
| 026 |
170-7251 |
Drain hose housing |
1 |
|
| 027 |
170-7272 |
Drain plug |
1 |
|
| 029 |
170-7269 |
Drain valve (OBSOLETE) |
1 |
|
| 030 |
164-0218 |
Nylon hose clamp |
1 |
|
| 031 |
170-7086 |
Recovery tank drain hose |
1 |
|
| 032 |
170-7383 |
Recovery tank support |
1 |
|
| 033 |
999-0843 |
Washer 5/8 flat nylon |
1 |
|
| 034 |
170-7036 |
Shoulder screw |
1 |
|
| 036 |
170-7384 |
Recovery tank (OBSOLETE) |
1 |
(includes 035) |
| 037 |
170-7081 |
Float switch (includes strain relief) |
1 |
(includes 038, 011 qty of 2 and 012 qty of 2) |
| 038 |
170-0292 |
Strain relief |
1 |
|
|
|

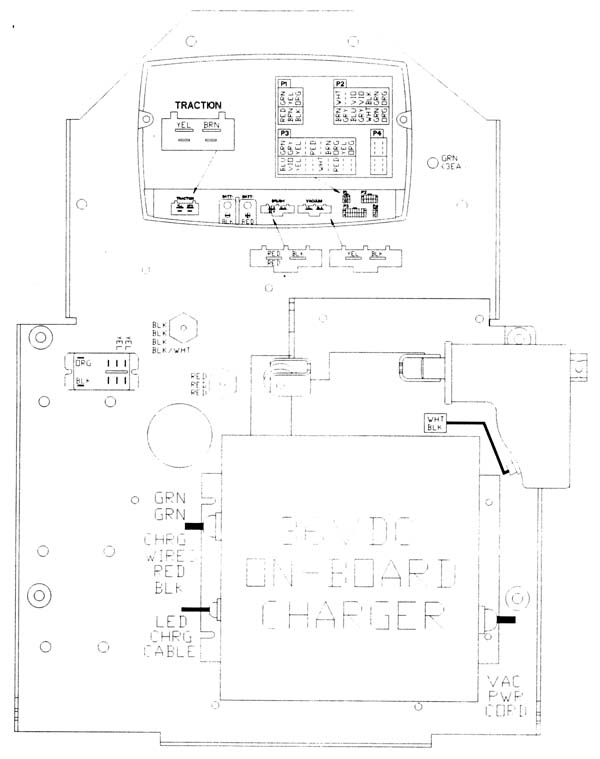

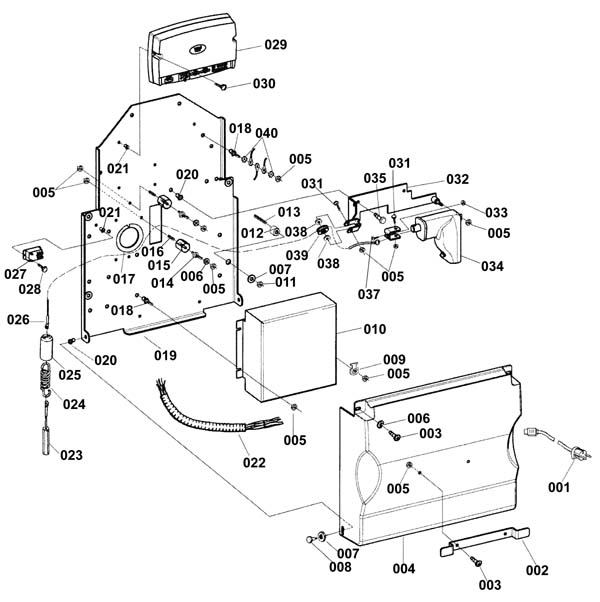

Electrical Panel Assembly - 170-8052 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 001 |
170-7385 |
Onboard charger cord |
1 |
|
| 002 |
170-7386 |
Cord wrapping bracket |
1 |
|
| 003 |
999-0081 |
Screw 1/4-20 x 5/8 pan head slotted zinc |
4 |
|
| 004 |
170-7345 |
Rear cover |
1 |
|
| 005 |
999-0294 |
Nut 1/4-20 hex nylon lock type NE stainless steel |
14 |
|
| 006 |
999-0016 |
Washer 1/4 flat plain finish |
4 |
|
| 007 |
999-0549 |
Washer 5/16 x 3/4 SAE flat stainless steel |
6 |
|
| 008 |
170-7389 |
Bolt 5/46 x 1/2 shoulder |
2 |
|
| 010 |
272-2224 |
36V onboard battery charger |
1 |
|
| 011 |
999-0211 |
Nut 5/16-18 hex nylon insert lock zinc plated |
4 |
|
| 013 |
999-9117 |
Screw 5/16-18 x 1 3/4 socket cup point set stainless steel |
4 |
|
| 014 |
170-0064 |
Stud 1/4-20 |
2 |
|
| 016 |
999-0715 |
Screw 1/4-20 x 3/4 cup point socket set alloy plain finish |
2 |
|
| 018 |
170-7074 |
Stud 1/4-20 |
5 |
|
| 019 |
170-7393 |
Electrical panel (OBSOLETE) |
1 |
|
| 020 |
170-7076 |
Insert 1/4-20 |
4 |
|
| 021 |
170-7075 |
Insert 8-32 |
4 |
|
| 022 |
170-7403 |
Main wiring harness - deluxe |
1 |
|
| 023 |
170-1626 |
Cable spring assembly (OBSOLETE) |
1 |
|
| 024 |
170-1625 |
Cable spring |
1 |
|
| 026 |
170-1623 |
Upper cable assembly (OBSOLETE) |
1 |
|
| 027 |
172-1779 |
36V relay SPST |
1 |
|
| 028 |
999-0697 |
Screw 8-32 x 3/4 pan head phillips stainless steel |
2 |
|
| 029 |
170-7405 |
Trio controller |
1 |
|
| 030 |
999-0852 |
Screw 8-32 x 1 1/4 truss head slotted stainless steel |
2 |
|
| 031 |
999-0506 |
Bolt 1/4-20 x 1 1/2 hex head stainless steel |
2 |
|
| 032 |
170-7406 |
Actuator bracket |
1 |
|
| 033 |
999-0211 |
Nut 5/16-18 hex nylon insert lock zinc plated |
1 |
|
| 034 |
170-7407 |
Squeegee actuator |
1 |
|
| 035 |
999-0019 |
Bolt 1/4-20 x 5/8 hex head grade 5 zinc plated |
2 |
|
| 036 |
170-1622 |
Pulley bracket |
1 |
|
| 037 |
999-0267 |
Screw 10-24 x 1/2 pan head phillips zinc |
1 |
|
| 038 |
170-7115 |
Washer 1 1/2 x 1/8 flat nylon |
2 |
|
| 039 |
372-2615 |
Squeegee pulley cable |
1 |
|
| 040 |
999-0017 |
Washer 1/4 external star lock |
2 |
|
|
|
Control Panel Assemby - 170-8053 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 001 |
170-7408 |
Control handle |
1 |
|
| 002 |
999-0162 |
Bolt 5/16-18 x 1 1/4 hex head grade 5 zinc plated |
2 |
|
| 003 |
999-0024 |
Washer 5/16 flat stainless steel |
6 |
|
| 004 |
999-0132 |
Bolt 5/16-18 x 3/4 hex head grade 5 zinc plated |
4 |
|
| 005 |
999-0211 |
Nut 5/16-18 hex nylon insert lock zinc plated |
4 |
|
| 006 |
170-7409 |
Push button reverse switch |
1 |
|
| 007 |
170-7411 |
Potentiometer harness assembly |
1 |
|
| 008 |
170-1876 |
Traverse control knob |
1 |
(includes 009) |
| 009 |
999-0431 |
Screw 8-32 x 1/4 set socket cup point alloy plain finish |
4 |
|
| 010 |
170-1885 |
Switch lever housing |
2 |
|
| 011 |
170-1885 |
Switch lever housing |
2 |
|
| 012 |
170-1887 |
Switch spring |
4 |
|
| 013 |
999-0851 |
Screw 10-32 x 1/2 round head slotted nylon |
4 |
|
| 015 |
999-0412 |
Washer #8 SAE flat |
4 |
|
| 016 |
999-0336 |
Screw 6-32 x 3/8 pan head phillips stainless steel |
4 |
|
| 017a |
170-7412 |
Key |
1 |
(included with 018a) |
| 017b |
170-8937 |
Key |
1 |
(included with 018b) |
| 018a |
170-7413 |
Key switch (OBSOLETE) |
1 |
(old key switch for models that start DO NOT start with SN# F or G) |
| 018b |
170-9026 |
Key switch |
1 |
(new key switch for models that start with SN# F or G) |
| 024 |
999-0110 |
Screw 10-16 x 1/2 pan head phillips self-drilling |
4 |
|
| 028 |
991-1630 |
35amp circuit breaker |
2 |
(brush) |
| 029 |
991-1627 |
5amp circuit breaker |
1 |
(squeegee actuator) |
| 030 |
999-0081 |
Screw 1/4-20 x 5/8 pan head slotted zinc |
3 |
|
| 031 |
999-0017 |
Washer 1/4 external star lock |
2 |
|
| 032 |
999-0190 |
Nut 1/4-20 hex plain finish |
2 |
|
| 033 |
999-0267 |
Screw 10-24 x 1/2 pan head phillips zinc |
2 |
|
| 034 |
170-7419 |
Momentary rocker switch |
1 |
(brush pressure) |
| 035 |
170-0058 |
Rocker switch 2 position 6 prong |
1 |
(brush up/down) |
| 036 |
170-8261 |
Knob solution flow module (OBSOLETE) |
1 |
(Solution flow control) (includes 009) |
| 037 |
170-7420 |
Control decal (OBSOLETE) |
1 |
|
| 038a |
170-7421 |
Control panel (OBSOLETE) |
1 |
|
| 038b |
170-7418 |
Control panel - L (OBSOLETE) |
1 |
|
| 039 |
991-1625 |
30amp circuit breaker |
1 |
(key switch) |
| 040 |
991-1632 |
25amp circuit breaker |
1 |
(vacuum motor) |
| 041 |
170-7046 |
Solution flow module (OBSOLETE) |
1 |
|
| 042 |
999-0211 |
Nut 5/16-18 hex nylon insert lock zinc plated |
2 |
|
| 043 |
170-7422 |
Battery charge meter |
1 |
|
| 044a |
170-0052 |
Hour meter |
1 |
(OEM) |
| 044b |
991-7137 |
Hour meter |
1 |
(NON-OEM) |
| N/S |
170-8231 |
Potentiometer and circuit board |
1 |
|
|
|
Squeegee Swing Arm Assembly - 170-8054 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 001 |
372-2615 |
Squeegee pulley cable |
2 |
|
| 002 |
170-7109 |
Washer 1 1/4 nylon |
2 |
|
| 003 |
170-7110 |
Front swing arm |
1 |
|
| 004 |
999-0506 |
Bolt 1/4-20 x 1 1/2 hex head stainless steel |
2 |
|
| 005 |
999-0649 |
Bolt 3/8-16 x 1 1/4 hex head stainless steel |
1 |
|
| 006 |
999-0294 |
Nut 1/4-20 hex nylon lock type NE stainless steel |
6 |
|
| 008 |
170-7112 |
Lower cable |
1 |
|
| 010 |
999-0211 |
Nut 5/16-18 hex nylon insert lock zinc plated |
3 |
|
| 011 |
170-7114 |
Rear swing arm |
1 |
|
| 012 |
999-0069 |
Nut 5/16-18 hex |
2 |
|
| 013 |
999-0188 |
Nut 3/8-16 nylon insert lock zinc plated |
1 |
|
| 014 |
999-0211 |
Nut 5/16-18 hex nylon insert lock zinc plated |
1 |
|
| 015 |
999-0267 |
Screw 10-24 x 1/2 pan head phillips zinc |
1 |
|
| 016 |
170-7115 |
Washer 1 1/2 x 1/8 flat nylon |
2 |
|
| 017 |
170-2069 |
Screw 3/8-16 x 2 shoulder |
1 |
|
| 018 |
170-7116 |
Squeegee pressure spring |
2 |
|
| 019 |
170-7117 |
Stud (OBSOLETE) |
2 |
|
| 020 |
999-0334 |
Bolt 1/4-20 x 3/4 inch hex head stainless steel |
2 |
|
| 022 |
999-0549 |
Washer 5/16 x 3/4 SAE flat stainless steel |
1 |
|
| 023 |
170-7118 |
Squeegee mounting bracket |
1 |
|
| 025 |
170-7084 |
Squeegee vacuum hose with 1 cuff |
1 |
|
| 026 |
170-7119 |
Squeegee hose bracket |
1 |
|
| 028 |
999-0628 |
Nut 3/8-16 hex jam stainless steel |
4 |
|
| 030 |
170-7122 |
Wheel mounting bracket |
2 |
|
| 031 |
999-0324 |
Nut 3/8-16 nylon insert lock jam zinc plated |
2 |
|
| 032 |
999-0032 |
Washer 3/8 USS flat plain finish |
4 |
|
| 033 |
170-0163 |
Guide wheel |
2 |
|
| 034 |
999-0659 |
Washer 3/8 medium split lock stainless steel |
2 |
|
| 035a |
170-7123 |
28 inch squeegee weldment (OBSOLETE) |
1 |
|
| 035b |
170-7124 |
33 inch squeegee weldment |
1 |
|
| 035c |
170-1632 |
38 inch squeegee weldment |
1 |
|
| 036 |
999-0712 |
Screw 3/8-16 x 2 1/2 truss head slotted stainless steel |
2 |
|
| 037a |
170-0155 |
28 inch spacer |
2 |
|
| 037b |
170-0154 |
33 inch spacer |
2 |
|
| 037c |
170-0184 |
38 inch spacer |
2 |
|
| 038 |
170-7126 |
Air duct (OBSOLETE) |
1 |
|
| 039 |
999-0887 |
Bolt 3/8-16 x 3 hex head hot dipped galvanized |
2 |
|
| 040 |
170-0166 |
Squeegee gripping pad |
1 |
|
| 041a |
170-0158 |
Squeegee blade 35 7/8 inch gum rubber front (black) |
1 |
(28) (OEM) |
| 041b |
994-0015 |
Squeegee blade 36 inch gum rubber front (black) |
1 |
(28) (NON-OEM) |
| 041c |
170-0157 |
Squeegee blade 40 3/8 inch neoprene front (black) |
1 |
(33) (OEM) |
| 041d |
994-0014 |
Squeegee blade 40 3/8 inch neoprene front (black) |
1 |
(33) (NON-OEM) |
| 041e |
170-0185 |
Squeegee blade 46 1/4 inch neoprene front (black) |
1 |
(38) (OEM) |
| 041f |
994-0017 |
Squeegee blade 46 inch neoprene front (black) |
1 |
(38) (NON-OEM) |
| 042a |
170-0152 |
Squeegee blade 38 1/4 inch gum rubber rear (tan) |
1 |
(28) (OEM) |
| 042b |
994-0012 |
Squeegee blade 33 inch gum rubber rear (tan) |
1 |
(28) (NON-OEM) |
| 042c |
170-0151 |
Squeegee blade 33 inch gum rubber rear (tan) |
1 |
(33) (OEM) |
| 042d |
994-0013 |
Squeegee blade 38 1/4 inch gum rubber rear (tan) |
1 |
(33) (NON-OEM) |
| 042e |
170-0183 |
Squeegee blade 47 3/4 inch gum rubber rear (tan) |
1 |
(38) (OEM) |
| 042f |
994-0016 |
Squeegee blade 48 inch gum rubber rear (tan) |
1 |
(38) (NON-OEM) |
| 043 |
170-0150 |
End clamp (OBSOLETE) |
1 |
|
| 044a |
170-7127 |
29 inch weldment clamp (OBSOLETE) |
1 |
(28) |
| 044b |
170-7128 |
Weldment clamp (OBSOLETE) |
1 |
(33) |
| 044c |
170-1629 |
Weldment clamp |
1 |
(38) |
| 045 |
999-0506 |
Bolt 1/4-20 x 1 1/2 hex head stainless steel |
1 |
|
| 047 |
999-1064 |
Bolt 1/4-20 x 1 3/4 hex head cap grade 5 zinc plated |
2 |
|
| 048 |
999-0551 |
Bolt 5/16-18 x 1 3/4 hex head stainless steel |
2 |
|
| 049 |
170-7131 |
Squeegee strap latch (OBSOLETE) |
1 |
|
| 050 |
999-0609 |
Nut 1/4-20 hex stainless steel |
1 |
|
| 051 |
999-0190 |
Nut 1/4-20 hex plain finish |
1 |
|
| 052 |
999-0060 |
Washer 1/4 split lock plain finish |
1 |
|
| 053 |
170-7132 |
Washer 1 1/4 |
4 |
|
| 054a |
170-7133 |
28 inch squeegee assembly (OBSOLETE) |
1 |
(includes 006, 010, 027-049 and 056) |
| 054b |
170-7134 |
33 inch squeegee assembly (OBSOLETE) |
1 |
(includes 006, 010, 027-049 and 056) |
| 054c |
170-1636 |
38 inch squeegee assembly (OBSOLETE) |
1 |
(includes 006, 010, 027-049 and 056) |
| 055 |
999-1650 |
Nut 1/4-28 hex jam stainless steel |
1 |
|
| 056 |
170-7136 |
Threaded insert 5-16 x 24 |
2 |
|
| 057 |
999-0335 |
Washer 1/4 x 5/8 SAE flat stainless steel |
4 |
|
| 058 |
999-0617 |
Washer 3/8 x 1 flat stainless steel |
1 |
|
|
|
Traverse System Assembly - 170-8055 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 001 |
170-0145 |
Clevis pin |
1 |
|
| 002 |
170-0135 |
Cotter pin (OBSOLETE) |
1 |
|
| 003 |
999-0294 |
Nut 1/4-20 hex nylon lock type NE stainless steel |
2 |
|
| 004 |
170-7137 |
Swing bracket (OBSOLETE) |
1 |
|
| 005 |
999-0132 |
Bolt 5/16-18 x 3/4 hex head grade 5 zinc plated |
2 |
|
| 006 |
372-2615 |
Squeegee pulley cable |
1 |
|
| 007 |
170-7109 |
Washer 1 1/4 nylon |
2 |
|
| 008 |
999-0506 |
Bolt 1/4-20 x 1 1/2 hex head stainless steel |
1 |
|
| 009 |
999-0038 |
Bolt 3/8-16 x 1 hex head grade 5 zinc plated |
6 |
|
| 010 |
999-0197 |
Screw 1/4-20 x 1 socket head alloy plain finish |
1 |
|
| 011 |
999-0211 |
Nut 5/16-18 hex nylon insert lock zinc plated |
2 |
|
| 012 |
991-2011 |
Caster wheel assembly |
2 |
|
| 013 |
999-0118 |
Nut 1/2-13 nylon insert lock zinc plated |
12 |
|
| 014 |
170-7138 |
Transaxle and motor assembly |
1 |
|
| 015 |
999-0649 |
Bolt 3/8-16 x 1 1/4 hex head stainless steel |
4 |
|
| 016a |
170-7139 |
Wheel assembly with wheel and inner tube |
2 |
(includes 016b) |
| 016b |
170-2040 |
Tube for tire (OBSOLETE) |
2 |
|
| 016c |
170-7140 |
Foam filled wheel |
2 |
(optional) |
| 018 |
170-7142 |
Nut 1/2-20 lug (OBSOLETE) |
6 |
|
| 019 |
999-0017 |
Washer 1/4 external star lock |
3 |
|
| 020 |
170-7424 |
Main frame |
1 |
|
| 021 |
170-1657 |
Transaxle mount |
2 |
|
| 023 |
170-7132 |
Washer 1 1/4 |
2 |
|
| 024 |
999-0884 |
Screw 1/4-20 x 1 1/4 x 5/16 shoulder socket head |
2 |
|
| 025 |
999-0635 |
Nut 3/8-16 hex stainless steel |
2 |
|
| 026 |
999-0659 |
Washer 3/8 medium split lock stainless steel |
2 |
|
| 027 |
170-7145 |
Stud 3/8 male x 3/8 female |
2 |
|
| 028 |
999-0160 |
Washer 1/4 x 1 1/4 fender zinc plated |
2 |
|
| 029 |
170-7146 |
Static strap |
1 |
|
| 030 |
999-0032 |
Washer 3/8 USS flat plain finish |
6 |
|
| 031 |
999-0119 |
Bolt 3/8-16 x 3/4 hex head grade 5 zinc plated |
4 |
|
| 032 |
999-0659 |
Washer 3/8 medium split lock stainless steel |
4 |
|
|
|
Brush Deck Assembly - 170-8056 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 001 |
170-0196 |
Clevis pin |
2 |
|
| 002 |
997-2516 |
Cotter pin |
2 |
|
| 003 |
170-7007 |
Nylon spacer |
2 |
|
| 004a |
170-7425 |
Actuator and tube assembly (S and D series machines only) |
1 |
(S series) |
| 004b |
170-7426 |
Actuator and tube assembly (for L series machines only) |
1 |
(L series) |
| 005 |
170-0705 |
Washer 1/2 x 3/64 |
4 |
|
| 006 |
999-0714 |
Nut 1/2-20 hex jam stainless steel |
16 |
|
| 007 |
999-0126 |
Washer 1/2 split lock |
8 |
|
| 008 |
170-0212 |
Flanged bearing |
8 |
|
| 009 |
170-0211 |
Linkage bar |
4 |
|
| 010 |
999-0711 |
Bolt 1/2-20 x 1 1/2 hex head grade 5 zinc plated |
8 |
|
| 011a |
170-0218 |
Contact pins for charger plug (sold individually) |
4 |
|
| 011b |
170-0009 |
Connector housing |
4 |
|
| 012a |
170-0209 |
36V brush motor assembly |
2 |
(OEM) |
| 012b |
991-2122 |
36V .75HP brush motor assembly with gear box |
2 |
(NON-OEM) (you will also need to order 999-0130) |
| 012c |
999-0130 |
Screw 5/16-18 x 3/4 socket head alloy plain finish |
2 |
(for NON-OEM brush motor) |
| 012d |
991-8524 |
36V 1.0HP brush motor assembly with gear box |
2 |
(NON-OEM) |
| 013 |
999-0334 |
Bolt 1/4-20 x 3/4 inch hex head stainless steel |
4 |
|
| 014 |
170-7011 |
Solenoid valve |
1 |
|
| 015 |
997-2001 |
Hose clamp |
2 |
|
| 017 |
999-0294 |
Nut 1/4-20 hex nylon lock type NE stainless steel |
5 |
|
| 018 |
999-0016 |
Washer 1/4 flat plain finish |
2 |
|
| 019 |
170-7013 |
Solution splitter |
1 |
|
| 020 |
999-0358 |
Screw 8-32 x 5/8 pan head phillips stainless steel |
4 |
|
| 021 |
170-7019 |
Brush deck latch |
1 |
|
| 022a |
170-7427 |
28 inch left brush housing |
1 |
(skirt trim not available separately) |
| 022b |
170-7428 |
33 inch left brush housing |
1 |
(skirt trim not available separately) |
| 024 |
170-0198 |
Hose clamp |
2 |
|
| 026 |
997-2001 |
Hose clamp |
2 |
|
| 027 |
999-0357 |
Nut 8-32 nylon insert lock stainless steel |
4 |
|
| 028 |
999-0119 |
Bolt 3/8-16 x 3/4 hex head grade 5 zinc plated |
8 |
|
| 029 |
999-0659 |
Washer 3/8 medium split lock stainless steel |
8 |
|
| 030 |
999-0510 |
Screw 1/4-20 x 1 pan head phillips zinc plated |
6 |
|
| 032 |
NOTE |
Please See Batteries, Brushes, Pad Holders and Charger Pages |
2 |
|
| 033 |
999-0358 |
Screw 8-32 x 5/8 pan head phillips stainless steel |
6 |
|
| 034 |
991-2206 |
Center-Lok 3 pad holder |
2 |
|
| 035 |
NOTE |
Please See Batteries, Brushes, Pad Holders and Charger Pages |
2 |
|
| 036 |
170-1599 |
Screw 5/16-18 x 3/4 socket head nylock |
2 |
|
| 037a |
170-0207 |
Male gimbal with collar |
2 |
|
| 037b |
170-0207 |
Male gimbal with collar |
|
|
| 038 |
170-0233 |
Brush driver collar - See pop-up (OBSOLETE) |
2 |
|
| 039 |
170-0706 |
Washer 3/4 rubber |
2 |
|
| 040a |
170-7021 |
28 inch brush plate (OBSOLETE) |
1 |
|
| 040b |
170-7431 |
33 inch brush plate (OBSOLETE) |
1 |
|
| 041 |
999-0132 |
Bolt 5/16-18 x 3/4 hex head grade 5 zinc plated |
4 |
|
| 042 |
999-0712 |
Screw 3/8-16 x 2 1/2 truss head slotted stainless steel |
1 |
|
| 047a |
170-7432 |
28 inch right brush housing |
1 |
(skirt trim not available separately) |
| 047b |
170-7433 |
33 inch right brush housing |
1 |
(skirt trim not available separately) |
| 048 |
999-0659 |
Washer 3/8 medium split lock stainless steel |
1 |
|
| 049 |
999-0324 |
Nut 3/8-16 nylon insert lock jam zinc plated |
2 |
|
| 050 |
170-0163 |
Guide wheel |
1 |
|
| 051 |
999-0032 |
Washer 3/8 USS flat plain finish |
2 |
|
| 053 |
164-0132 |
Square keyway 1/4 x 1/4 |
2 |
|
| 054 |
170-7009 |
Brush head mounting bracket (OBSOLETE) |
1 |
|
| 055 |
999-0211 |
Nut 5/16-18 hex nylon insert lock zinc plated |
6 |
|
| N/S |
170-0226 |
Moving warning decal |
2 |
(attaches to brush motor) |
|
|
Transaxle Assembly - 170-8060 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 000a |
170-7138 |
Transaxle and motor assembly |
1 |
(includes 000b thru 017) |
| 000b |
170-7446 |
Gearbox assembly without motor |
1 |
|
| 001 |
170-7199 |
36V transaxle hub kit |
2 |
|
| 002 |
170-7438 |
Rubber mount |
2 |
|
| 003 |
170-5853 |
Axle oil seal |
2 |
|
| 004 |
170-5854 |
Sealed axle bearing |
4 |
|
| 005 |
170-7439 |
Short axle |
1 |
|
| 006 |
170-7440 |
Output gear |
1 |
|
| 007 |
170-7441 |
Input plug |
1 |
|
| 008 |
170-7442 |
Outer pinion bearing |
1 |
|
| 009 |
170-7443 |
Pinion (OBSOLETE) |
1 |
|
| 010 |
170-7444 |
Inner pinion bearing |
1 |
|
| 011 |
170-7445 |
Coupler steel ring |
1 |
|
| 012 |
170-0694 |
Odum coupling |
1 |
|
| 013a |
170-3562 |
Transaxle (motor only) |
1 |
(motor only) |
| 013c |
991-8502 |
Drive end cap |
1 |
|
| 013d |
991-8503 |
Frame assembly |
1 |
|
| 013e |
991-8501 |
Bearing for brush and drive end |
2 |
|
| 013f |
N/A |
Not available |
1 |
(Brush and cap kit) |
| 013g |
991-8504 |
Brush tubes |
4 |
|
| 013h |
991-8505 |
Wire assembly |
1 |
|
| 013i |
991-8506 |
Motor bolts (pkg of 2) |
1 |
|
| 013j |
991-8507 |
Brush cap assembly |
1 |
(013k thru 013o required to convert to new style brush cap assembly) |
| 013k |
991-8511 |
Brush tubes |
1 |
(for new style brush cap assembly) |
| 013l |
991-8510 |
Right wire assembly |
4 |
(for new style brush cap assembly) |
| 013m |
991-8509 |
Left wire assembly |
1 |
(for new style brush cap assembly) |
| 013n |
991-8508 |
Motor bolts |
1 |
(for new style brush cap assembly) |
| 014 |
170-3568 |
Carbon brush (pkg of 4) |
1 |
|
| 015a |
170-2024 |
Plastic cap for drive motor (black) (internal thread) (OBSOL |
4 |
|
| 015b |
170-2025 |
Plastic cap for drive motor (black) (external thread) |
4 |
|
| 017 |
170-7447 |
Miter gear |
4 |
|
| N/S |
170-7437 |
Screw M3 set (OBSOLETE) |
1 |
(spare part for parking brake) |
| N/S |
170-5855 |
Key |
1 |
(spare part for parking brake) |
| N/S |
170-7435 |
Friction pad (OBSOLETE) |
1 |
(spare part for parking brake) |
| N/S |
170-7436 |
Shaft hub (OBSOLETE) |
1 |
(spare part for parking brake) |
|
|

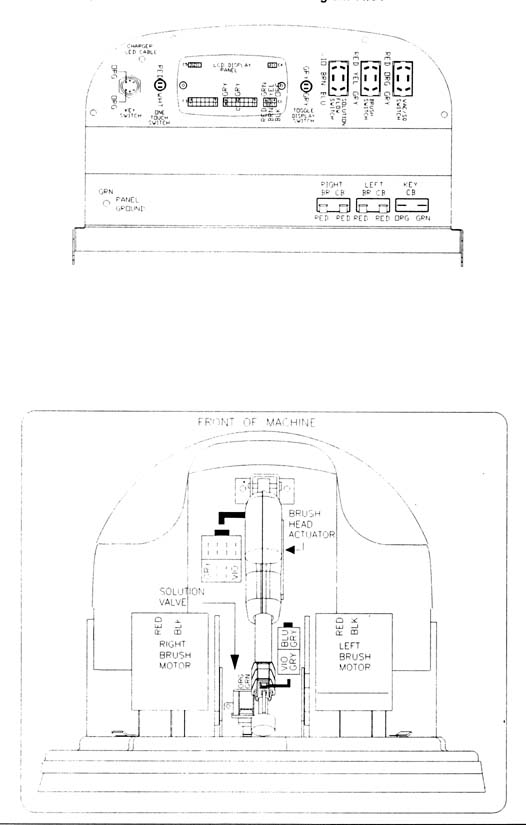

Control Panel Connection Diagram - |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
|
|
Electrical Plate Connection Diagram - |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
|
|
Control Housing Connection Diagram - |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
|
|

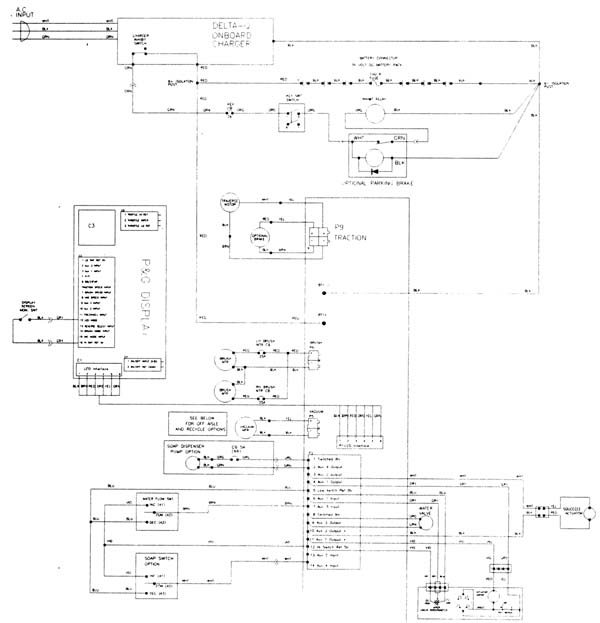

Electrical Schematic - 2 - |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
|
|

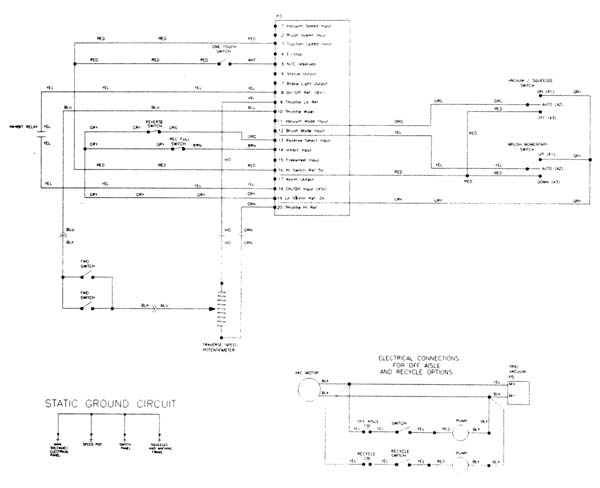

Electrical Schematic - 1 - |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
|
|
- Batteries, Brushes, and Chargers - 170-9892 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
162-0003 |
6V 225Ah wet battery (SNSR) |
6 |
|
| 2 |
162-0005 |
6V 305Ah wet battery (SNSR) |
6 |
|
| 3 |
162-0043 |
6V 224Ah AGM battery (Group GC2) |
6 |
|
| 4 |
162-0046 |
6V 335Ah AGM battery (Group J305) |
6 |
|
| 5 |
170-7469 |
36V onboard battery charger with display and cord |
1 |
|
| 6a |
162-5063 |
36V 20amp battery charger with SB175 large gray plug |
1 |
(configured for wet batteries; can be changed to support AGM batteries) |
| 6b |
162-5063 |
36V 20amp battery charger with SB175 large gray plug |
1 |
|
| 6.75 |
991-2112 |
175amp charger plug with pins (gray) SB175 |
1 |
|
| 7a |
998-0010 |
Battery jumper cable - ring type (red) |
1 |
|
| 7b |
991-6025 |
Wire 4 x14.5, 3/8 ring x 3/8 ring |
1 |
(NON-OEM) |
| 8 |
996-0533 |
16 inch lite grit scrubbing brush - 500 grit |
2 |
|
| 9 |
996-0571 |
16 inch medium grit scrubbing brush - 180 grit |
2 |
|
| 10 |
996-0553 |
16 inch heavy grit stripping brush - 80 grit |
2 |
|
| 11 |
996-0486 |
16 inch polypropelene scrubbing brush |
2 |
|
| 12 |
996-0055 |
16 inch Pad driver |
2 |
|
| 13 |
996-0336 |
Clutch plate with brush holder spring |
2 |
|
| 14 |
991-2206 |
Center-Lok 3 pad holder |
2 |
|
|
|
- Pads - 255-1700 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 01 |
255-1740 |
17 inch aqua plus burnishing pad (pkg of 5) |
|
|
| 02 |
255-1735 |
17 inch Armadillo concrete scrubbing pad (pkg of 5) |
|
|
| 03 |
255-1764 |
17 inch Blue ace pad (pkg of 5) |
|
|
| 04 |
255-1742 |
17 inch Blue Jay burnishing pad (pkg of 5) |
|
|
| 05 |
255-1712 |
17 inch Cure white pad (pkg of 5) (OBSOLETE) |
|
|
| 06 |
255-1777 |
17 inch Diamondback extreme stripping pad (pkg of 5) |
|
|
| 07 |
255-1738 |
17 inch EHD Extra Heavy Duty Concrete Leveling Pad (pkg of 2 |
|
|
| 08 |
255-1721 |
17 inch gorilla lite burnishing pad (pkg of 5) |
|
|
| 09 |
255-1750 |
17 inch gorilla spray buff/polish/burnish pad (pkg of 5) |
|
|
| 10 |
255-1765 |
17 inch Heat concrete bonding pad (pkg of 5) |
|
|
| 11 |
255-1730 |
17 inch jaguar burnishing pad (pkg of 5) |
|
|
| 12 |
255-1767 |
17 inch Laminated 2001 Gorilla polish pad (pkg of 5) |
|
|
| 13 |
255-1768 |
17 inch Microclean daily cleaning pad (pkg of 2) |
|
|
| 14 |
255-1769 |
17 inch Micropolish polishing and burnishing pad (pkg of 2) |
|
|
| 15 |
255-1790 |
17 inch premium black stripping pad (pkg of 5) |
|
|
| 16 |
255-1770 |
17 inch premium blue cleaning pad (pkg of 5) |
|
|
| 17 |
255-1792 |
17 inch premium brown stripping pad (pkg of 5) |
|
|
| 18 |
255-1780 |
17 inch premium green scrubbing pad (pkg of 5) |
|
|
| 19 |
255-1760 |
17 inch premium red scrubbing pad (pkg of 5) |
|
|
| 20 |
255-1752 |
17 inch premium tan polishing pad (pkg of 5) |
|
|
| 21 |
255-1720 |
17 inch premium white polishing pad (pkg of 5) |
|
|
| 22 |
255-1711 |
17 inch superspeed rubberized pad (pkg of 5) |
|
|
| 23 |
255-1795 |
17 inch razorback stripping pad (pkg of 5) |
|
|
| 24 |
255-1747 |
17 inch Redwood maroon floor prep pad (pkg of 10) |
|
|
| 25 |
255-1755 |
17 inch Ruff non-abrasive brush pad (pkg of 2) |
|
|
| 26 |
255-1723 |
17 inch sand screen driver pad (pkg of 2) |
|
|
| 27 |
255-0139 |
17 inch Professional sand screen 100 grit (pkg of 10) |
|
|
| 28 |
255-0019 |
17 inch Professional sand screen 120 grit (pkg of 10) |
|
|
| 29 |
255-0140 |
17 inch Professional sand screen 150 grit (pkg of 10) |
|
|
| 30 |
255-0141 |
17 inch Professional sand screen 180 grit (pkg of 10) |
|
|
| 31 |
255-0142 |
17 inch Professional sand screen 220 grit (pkg of 10) |
|
|
| 32 |
255-0143 |
17 inch Professional sand screen 400 grit (pkg of 10) |
|
|
| 33 |
255-0138 |
17 inch Professional sand screen 60 grit (pkg of 10) |
|
|
| 34 |
255-0018 |
17 inch Professional sand screen 80 grit (pkg of 10) |
|
|
| 35 |
255-0225 |
17 inch Superscreen sand screen 100 grit (pkg of 10) |
|
|
| 36 |
255-0226 |
17 inch Superscreen sand screen 120 grit (pkg of 10) |
|
|
| 37 |
255-0227 |
17 inch Superscreen sand screen 150 grit (pkg of 10) |
|
|
| 38 |
255-0228 |
17 inch Superscreen sand screen 180 grit (pkg of 10) |
|
|
| 39 |
255-0229 |
17 inch Superscreen sand screen 220 grit (pkg of 10) |
|
|
| 40 |
255-0230 |
17 inch Superscreen sand screen 400 grit (pkg of 10) |
|
|
| 41 |
255-0223 |
17 inch Superscreen sand screen 60 grit (pkg of 10) |
|
|
| 42 |
255-0224 |
17 inch Superscreen sand screen 80 grit (pkg of 10) |
|
|
| 43 |
255-1724 |
17 inch Tiger carpet bonnet (pkg of 2) |
|
|
| 44 |
255-9570 |
17 inch Diamond by Gorilla 11000 Grit (pkg of 2) |
|
|
| 45 |
255-9567 |
17 inch Diamond by Gorilla 1500 Grit (pkg of 2) |
|
|
| 46 |
255-9564 |
17 inch Diamond by Gorilla 200 Grit (pkg of 2) |
|
|
| 47 |
255-9568 |
17 inch Diamond by Gorilla 3000 Grit (pkg of 2) |
|
|
| 48 |
255-9565 |
17 inch Diamond by Gorilla 400 Grit (pkg of 2) |
|
|
| 49 |
255-9566 |
17 inch Diamond by Gorilla 800 Grit (pkg of 2) |
|
|
| 50 |
255-9569 |
17 inch Diamond by Gorilla 8000 Grit (pkg of 2) |
|
|
| 51 |
255-9642 |
17 inch Diamond starter pack (1 of each grit) |
|
|
| 52 |
255-1782 |
17 inch Turbostrip segmented rotary pad (pkg of 4) |
|
|
| 53 |
255-1715 |
17 inch Duala clean and shine pad - low speed (pkg of 5) |
|
|
| 54 |
255-1716 |
17 inch 2001 Duala clean and shine pad - high speed (pkg 5) |
|
|
|
|
- Pad Holders - 275-9029 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
991-2214 |
Center-Lok II pad holder - left hand thread (red) |
|
|
| 2a |
991-2201 |
Center-Lok II pad holder - right hand thread (black) |
|
(Pad driver side female, Floor side male) |
| 2b |
991-8577 |
Pad retainer |
|
(Pad driver side male, Floor side female) |
| 3a |
991-2202 |
Big mouth pad holder set (blue) |
|
(includes 3 screws) |
| 3b |
991-2205 |
Deep lock ring and pad grip ring |
|
|
| 4 |
991-2203 |
Big mouth pad holder male thread portion |
|
|
| 5 |
991-2206 |
Center-Lok 3 pad holder |
|
(includes 3 screws) |
| 6 |
996-0372 |
Big mouth pad holder (left hand thread) |
|
|
| 8 |
991-2209 |
Split retainer - pad holder ring (OBSOLETE) |
|
|
| 9 |
N/A |
Not available |
|
(replaced by #3 991-2202) |
| 10 |
991-2211 |
Center lock pad holding cup (male) (yellow) (OBSOLETE) |
|
|
|
|
