Parts List Complete for CLARKE-ALT FOCUS II RIDE 28D


- Pads - 255-1400
RefNbr Part Number Description Req Notes
01 255-1440 14 inch aqua plus burnishing pad (pkg of 5)
02 255-1435 14 inch Armadillo concrete scrubbing pad (pkg of 5)
03 255-1464 14 inch Blue ace pad (pkg of 5)
04 255-1442 14 inch Blue Jay burnishing pad (pkg of 5)
05 255-1412 14 inch Cure white pad (pkg of 5)
06 255-1477 14 inch Diamondback extreme stripping pad (pkg of 5)
07 255-1438 14 inch EHD Extra Heavy Duty Concrete Leveling Pad (pkg of 2
08 255-1421 14 inch gorilla lite burnishing pad (pkg of 5)
09 255-1450 14 inch gorilla spray buff/polish/burnish pad (pkg of 5)
10 255-1465 14 inch Heat concrete bonding pad (pkg of 5)
11 255-1430 14 inch jaguar burnishing pad (pkg of 5)
12 255-1487 14 inch Melamine Mela-Kleen pad (pkg of 2)
13 255-1490 14 inch premium black stripping pad (pkg of 5)
14 255-1470 14 inch premium blue cleaning pad (pkg of 5)
15 255-1492 14 inch premium brown stripping pad (pkg of 5)
16 255-1480 14 inch premium green scrubbing pad (pkg of 5)
17 255-1460 14 inch premium red scrubbing pad (pkg of 5)
18 255-1452 14 inch premium tan polishing pad (pkg of 5)
19 255-1420 14 inch premium white polishing pad (pkg of 5)
20 255-1411 14 inch superspeed rubberized pad (pkg of 5)
21 255-1495 14 inch razorback stripping pad (pkg of 5)
22 255-1447 14 inch Redwood maroon floor prep pad (pkg of 10)
23 255-1455 14 inch Ruff non-abrasive brush pad (pkg of 2)
24 255-1423 14 inch sand screen driver pad (pkg of 2)
25 255-0120 14 inch Professional sand screen 100 grit (pkg of 10)
26 255-0121 14 inch Professional sand screen 120 grit (pkg of 10)
27 255-0122 14 inch Professional sand screen 180 grit (pkg of 10)
28 255-0119 14 inch Professional sand screen 60 grit (pkg of 10)
29 255-0205 14 inch Superscreen sand screen 100 grit (pkg of 10)
30 255-0206 14 inch Superscreen sand screen 120 grit (pkg of 10)
31 255-0207 14 inch Superscreen sand screen 180 grit (pkg of 10)
32 255-0204 14 inch Superscreen sand screen 60 grit (pkg of 10)
33 255-1424 14 x 20 inch Tiger carpet bonnet (pkg of 2)
34 255-9549 14 inch Diamond by Gorilla 11000 Grit (pkg of 2)
35 255-9546 14 inch Diamond by Gorilla 1500 Grit (pkg of 2)
36 255-9543 14 inch Diamond by Gorilla 200 Grit (pkg of 2)
37 255-9547 14 inch Diamond by Gorilla 3000 Grit (pkg of 2)
38 255-9544 14 inch Diamond by Gorilla 400 Grit (pkg of 2)
39 255-9545 14 inch Diamond by Gorilla 800 Grit (pkg of 2)
40 255-9548 14 inch Diamond by Gorilla 8000 Grit (pkg of 2)
41 255-9639 14 inch Diamond starter pack (1 of each grit)
42 255-1482 14 inch Turbostrip segmented rotary pad (pkg of 4)
43 255-1415 14 inch Duala clean and shine pad - low speed (pkg of 5)
44 255-1416 14 inch 2001 Duala clean and shine pad-high speed (pkg of 5)

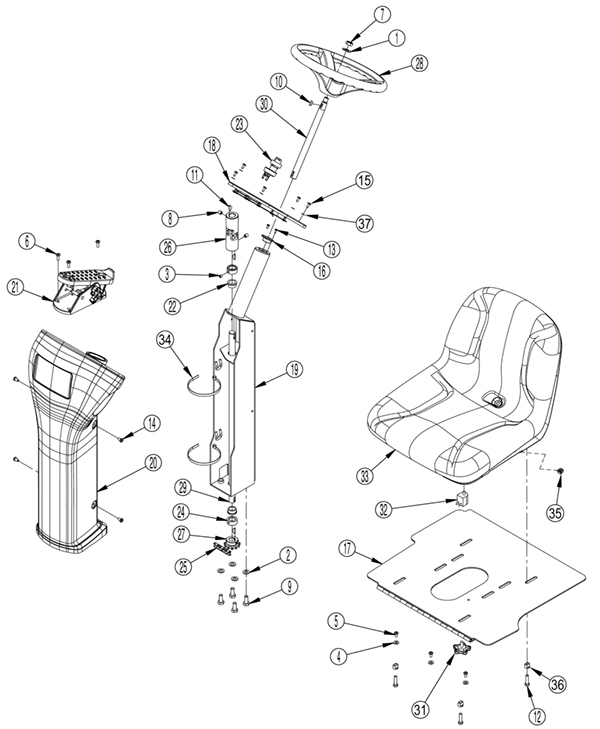

Control Assembly - 270-2432
RefNbr Part Number Description Req Notes
1 999-0114 Washer 1/2 SAE flat 1
2 999-0120 Washer 3/8 SAE flat 4
3 999-0600 Screw 3/8-16 x 1/4 socket head shoulder stainless steel 2
4 999-0123 Washer 1/4 SAE flat zinc plated 3
5 999-0508 Screw 1/4-20 x 1/2 pan head phillips zinc plated 3
6 999-0487 Screw 1/4-20 x 3/4 pan head phillips zinc plated 3
7 472-4771 SHAFT KIT-UPPER STEERING 1 (Nut) (only available in kit)
8 999-1373 Screw 3/8-16 x 3/8 socket set lock stainless steel 2
9 999-9121 Screw M10-1.5 x 25mm zinc plated 4
10 472-4771 SHAFT KIT-UPPER STEERING 1 (Square keyway) (only available in kit)
11 472-4774 HARDWARE KIT-STEERING COLUMN 3 (Square keyway) (only available in kit)
12 999-0829 Screw 5/16-18 x 1 1/4 hex head plain finish 3
13 999-0452 Screw 8-32 x 3/8 pan head phillips zinc plated 2
14 999-0508 Screw 1/4-20 x 1/2 pan head phillips zinc plated 4
15 999-1028 Screw 10-24 x 3/4 truss head phillips stainless steel 5
16 472-4774 HARDWARE KIT-STEERING COLUMN 1 (Bushing) (only available in kit)
17 270-8578 Seat panel weldment 1
18a 472-8053 USER INTERFACE KIT 1 (Control panel assembly) (only available in kit)
18b 472-8054 USER INTERFACE KIT-BOOST 1 (Control panel assembly BOOST model only) (only available in kit)
19 472-4672 STEERING COLUMN WELDT 1
20 472-4699 SHROUD-COLUMN 1
21 472-4773 FOOT PEDAL KIT 1 (includes 6)
22 472-4774 HARDWARE KIT-STEERING COLUMN 2 (Flanged bearing) (only available in kit)
23 272-2195 Key switch assembly 1
24 472-4774 HARDWARE KIT-STEERING COLUMN 2 (Shaft collar) (only available in kit)
25 172-9068 Roller chain 1
26 172-9074 Universal joint 1
27 472-4774 HARDWARE KIT-STEERING COLUMN 1 (Sprocket) (only available in kit)
28 272-8887 Steering wheel 1
29 272-8890 Lower steering shaft 1
30 472-4771 SHAFT KIT-UPPER STEERING 1 (Upper stearing shaft) (only available in kit)
31a 272-6338 Seat hardware kit 1 (Knob) (only available in kit)
31b 172-3430 Seat kit 1 (Knob) (only available in kit)
32 272-9417 Seat switch 1
33 172-3430 Seat kit 1 (Seat) (only available in kit)
34 997-2102 Cable tie 2
35 272-2177 Conduit clip 1
36a 272-6338 Seat hardware kit 3 (Flanged bushing) (only available in kit)
36b 172-3430 Seat kit 3 (Flanged bushing) (only available in kit)
37a 472-8053 USER INTERFACE KIT 1 (Nylon washer) (only available in kit)
37b 472-8054 USER INTERFACE KIT-BOOST 1 (Nylon washer) (only available in kit)
N/S 172-3430 Seat kit 1 (includes 12, and 31b-36b)
N/S 472-4771 SHAFT KIT-UPPER STEERING 1 (includes 1,7,10, and 30)
N/S 472-8053 USER INTERFACE KIT 1 (includes 15,18, and 37a)
N/S 472-8054 USER INTERFACE KIT-BOOST 1 (includes 15, 18b, and 37b)
N/S 472-4774 HARDWARE KIT-STEERING COLUMN 1 (includes 3,8,11,13,14,16,22,24, and 27)
N/S 472-4775 HARWARE KIT-STEERING MOUNT 1 (includes 2 and 9)
N/S 272-6338 Seat hardware kit 1 (includes 4,5,12,31a, and 36a)

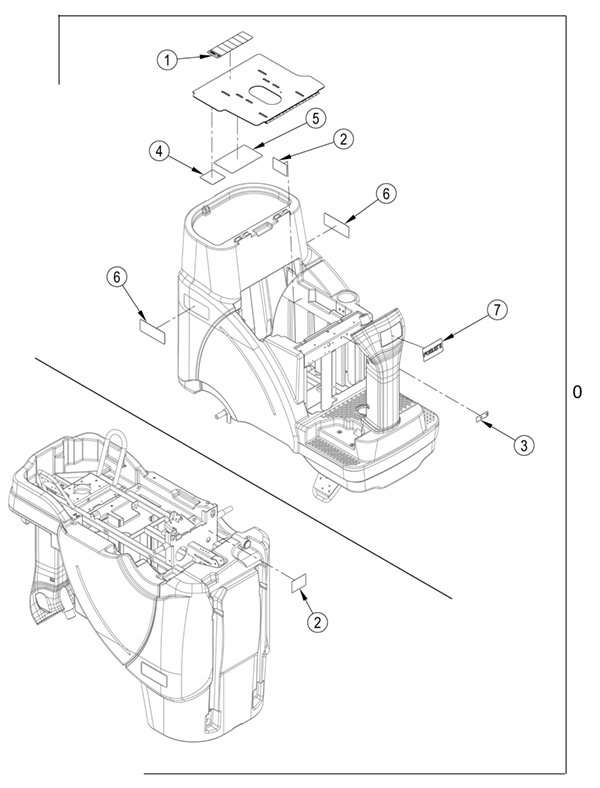

Decal Assembly - 270-2433
RefNbr Part Number Description Req Notes
0 472-4788 Decal kit Focus II Rider 1 (inlcudes 1-7)
1 472-4788 Decal kit Focus II Rider 1 (Caution decal) (only available in kit)
2 N/A Not available 2 (Serial number plate)
3 472-4788 Decal kit Focus II Rider 1 (Circuit breaker decal) (only available in kit)
4 472-4788 Decal kit Focus II Rider 1 (Battery wiring decal) (only available in kit)
5 472-4788 Decal kit Focus II Rider 1 (Error codes decal) (only available in kit)
6 472-4788 Decal kit Focus II Rider 2 (Clarke decal) (only available in kit)
7 472-4788 Decal kit Focus II Rider 1 (Focus II decal) (only available in kit)

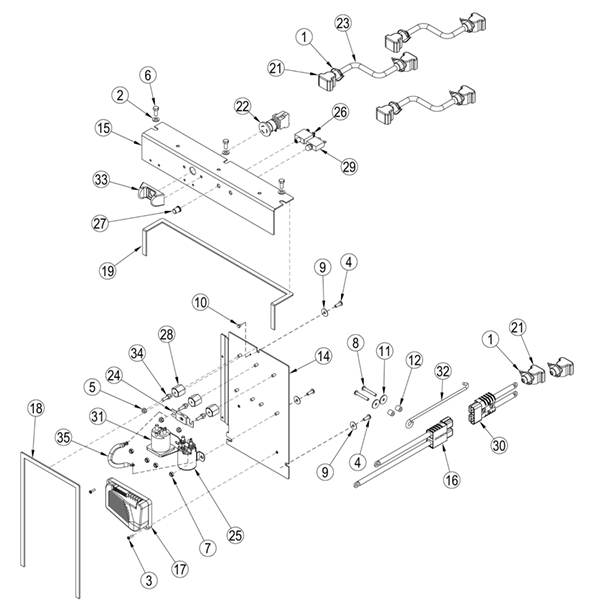

Electrical Assembly - 270-2434
RefNbr Part Number Description Req Notes
1 472-4770 BATTERY CABLE KIT 8 (Cable tie) (only available in kit)
2 999-1964 Washer 5/16 SAE flat zinc 3
3 472-4801 HARDWARE KIT-ELEC SYSTEM 2 (Screw) (only available in kit)
4 999-0487 Screw 1/4-20 x 3/4 pan head phillips zinc plated 3
5 472-4767 STANDOFF AND BREAKER KIT 3 (Nut) (only available in kit)
6 999-1232 Screw 5/16-18 x 3/4 hex head stainless steel 3
7 999-0294 Nut 1/4-20 hex nylon lock type NE stainless steel 4
8 999-0599 Screw 1/4-20 x 1 3/4 pan head phillips stainless steel 2
9 472-4801 HARDWARE KIT-ELEC SYSTEM 3 (Washer) (only available in kit)
10 472-4801 HARDWARE KIT-ELEC SYSTEM 1 (Screw) (only available in kit)
11 472-4768 PROP ROD KIT 2 (Washer) (only available in kit)
12 472-4768 PROP ROD KIT 2 (Spacer) (only available in kit)
14 N/A Not available 1 (Electrical panel)
15 270-8579 Switch panel 1
16 472-4710 HARNESS-POWER 1
17 472-4727 SPEED CONTROLLER 1
18 472-4738 GASKET-.25 X .50 X 37.38 1
19 472-4739 GASKET-.25 X .50 X 31.50 1
21 472-4770 BATTERY CABLE KIT 8 (Battery post) (only available in kit)
22 472-4766 ESTOP KIT 1 (Emergency disconnect) (only available in kit)
23 472-4770 BATTERY CABLE KIT 3 (Battery cable) (only available in kit)
24 472-4767 STANDOFF AND BREAKER KIT 1 (Fuse) (only available in kit)
25 172-2163 24V solenoid 4 post (2 large 2 small) 1
27 472-4769 CIRCUIT BREAKER KIT 1 (Reset button boot) (only available in kit)
28 472-4767 STANDOFF AND BREAKER KIT 3 (Electrical mount) (only available in kit)
29 272-9374 10amp circuit breaker 1
30 272-8792 Connector assembly 1
31 272-8794 24V contactor 1
32 472-4768 PROP ROD KIT 1 (Seat prop rod) (only available in kit)
33 472-4766 ESTOP KIT 1 (Emergency button guard) (only available in kit)
34 472-4767 STANDOFF AND BREAKER KIT 3 (Stud) (only available in kit)
35 272-8798 Cable assembly 1
N/S 472-4766 ESTOP KIT 1 (includes 22 and 33)
N/S 472-4767 STANDOFF AND BREAKER KIT 1 (includes 5,24,28 and 34)
N/S 472-4768 PROP ROD KIT 1 (includes 8,11,12, and 32)
N/S 472-4769 CIRCUIT BREAKER KIT 1 (includes 26,27, and 29)
N/S 472-4770 BATTERY CABLE KIT 1 (includes 1,21, and 23)
N/S 472-4801 HARDWARE KIT-ELEC SYSTEM 1 (includes 2-4,6,7,9, and 10)
N/S 472-4840 HARNESS-MAIN 1
N/S 272-6625 Traction harness 1
N/S 172-0236 Diode rectifier assembly 2

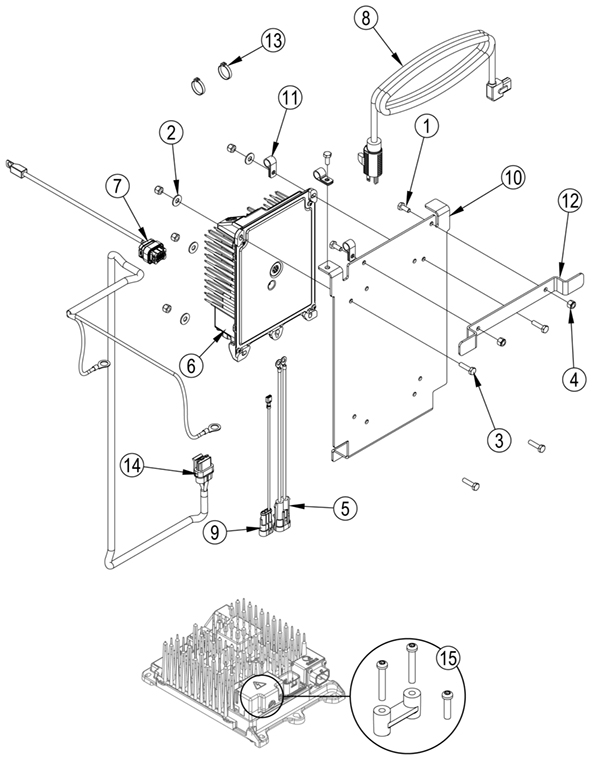

Onboard Charger Assembly - 270-2435
RefNbr Part Number Description Req Notes
1 999-1032 Screw 1/4-20 x 5/8 hex head stainless steel 3
2 999-0016 Washer 1/4 flat plain finish 4
3 999-0830 Screw 1/4-20 x 1 hex head plain finish 4
4 999-0294 Nut 1/4-20 hex nylon lock type NE stainless steel 6
5 272-6665 Power charger adapter 1
6 270-8393 24V onboard battery charger 1
7 270-8394 Temperature sensor 1
8 270-8395 AC cord 1
9 472-7971 ADAPTER-INTERLOCK 1
10 472-7975 BRACKET-OBC MOUNT 1
11 172-2122 P clamp 3
12 170-7386 Cord wrapping bracket 1
13 170-6744 Wire tie 2
14 472-4731 HARNESS-CHARGER 1
15 272-6666 Strain relief kit 1

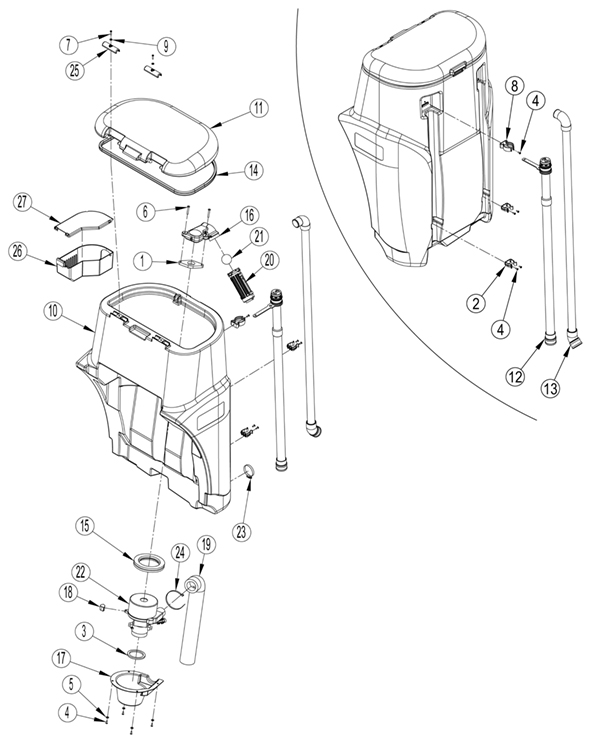

Recovery Tank Assembly - 270-2436
RefNbr Part Number Description Req Notes
1 472-4792 GASKET-AIR DUCT 1
2 472-4753 HOSE CLAMP KIT-DRAIN 2 (Plastic clamp) (only available in kit)
3 172-8889 Vacuum duct gasket 1
4 999-0267 Screw 10-24 x 1/2 pan head phillips zinc 9
5 999-0998 Washer #10 flat stainless steel 4
6 999-0599 Screw 1/4-20 x 1 3/4 pan head phillips stainless steel 2
7 472-4800 HARDWARE KIT-RECOVERY SYSTEM 2 (Screw) (only available in kit)
8 472-4753 HOSE CLAMP KIT-DRAIN 1 (Hose clamp) (only available in kit)
9 999-1862 Washer #10 flat SAE stainless steel 2
10 472-4666 TANK-RECOVERY 1
11 472-4667 COVER-RECOVERY TANK 1
12 472-7859 DRAIN HOSE ASSY-1.5-BLK 1
13 472-4703 RECOVERY HOSE ASSY 1
14 272-6343 Recovery tank gasket 1
15 472-4726 SEAL ASSY-VAC FAN 1
16 172-2118 Float duct 1
17 272-2107 Vacuum motor shroud 1
18 472-4752 VAC MOTOR KIT 3 (Mount) (only available in kit)
19 472-4752 VAC MOTOR KIT 1 (Foam tube assembly) (only available in kit)
20 272-9853 Float ball cage kit 2 (Float cage) (only available in kit)
21 272-9853 Float ball cage kit 1 (Float ball) (only available in kit)
22 472-4752 VAC MOTOR KIT 1 (24V vacuum motor) (only available in kit)
23 472-4753 HOSE CLAMP KIT-DRAIN 1 (Hose clamp) (only available in kit)
24 472-4752 VAC MOTOR KIT 1 (Cable tie) (only available in kit)
25 272-7242 Hinge clamp 2
26 272-3582 Strainer basket 1
27 272-3585 Debris cover 1
N/S 272-9853 Float ball cage kit 1 (includes 20 and 21)
N/S 472-4752 VAC MOTOR KIT 1 (includes 3,15,18,19,22, and 24)
N/S 472-4753 HOSE CLAMP KIT-DRAIN 1 (includes 2,4,8, and 23)
N/S 472-4800 HARDWARE KIT-RECOVERY SYSTEM 1 (includes 4,6,7, and 9)
N/S 472-7330 CARBON-BRUSH/SET OF 2 1

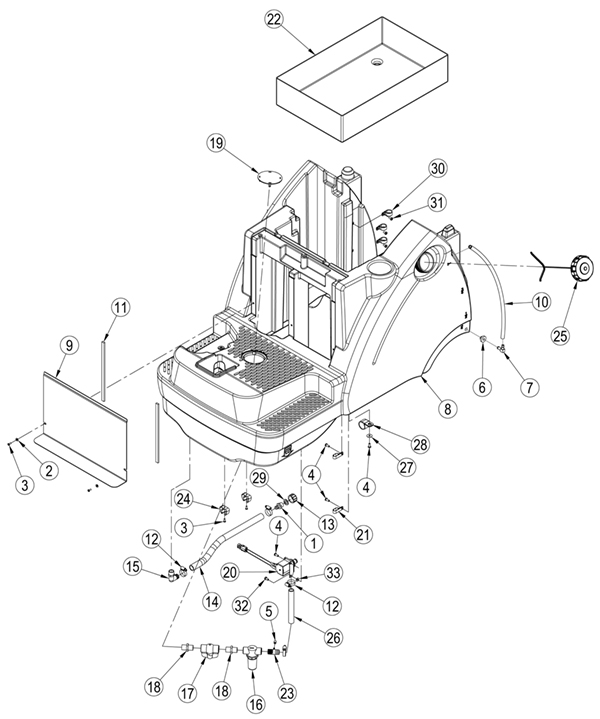

Solution Assembly - 270-2441
RefNbr Part Number Description Req Notes
1 472-4749 HOSE KIT-DRAIN 1 (Barb) (only available in kit)
2 999-1862 Washer #10 flat SAE stainless steel 2
3 999-0267 Screw 10-24 x 1/2 pan head phillips zinc 4
4 472-4750 VALVE AND FILTER KIT 3 (Screw) (only available in kit)
5 472-4750 VALVE AND FILTER KIT 1 (Rubber tip) (only available in kit)
6 472-4751 SIGHT GAUGE KIT 1 (Grommet) (only available in kit)
7 472-4751 SIGHT GAUGE KIT 1 (90 degree hose barb) (only available in kit)
8 472-4665 TANK-SOLUTION 1
9 472-4705 COVER-ELECTRICAL 1
10 472-4751 SIGHT GAUGE KIT 1 (PVC tube) (only available in kit)
11 472-4735 GASKET-.25 X .50 X 11 2
12a 472-4749 HOSE KIT-DRAIN 4 (Hose clamp) (only available in kit)
12b 472-4749 HOSE KIT-DRAIN 1 (Hose clamp) (only available in kit)
13 472-4749 HOSE KIT-DRAIN 1 (Nylon pipe cap) (only available in kit)
14 472-4749 HOSE KIT-DRAIN 1 (Hose) (only available in kit)
15 472-4749 HOSE KIT-DRAIN 1 (Elbow barb) (only available in kit)
16 272-2342 Solution filter 1
17 472-4750 VALVE AND FILTER KIT 2 (Valve) (only available in kit)
18 472-4750 VALVE AND FILTER KIT 1 (Nipple) (only available in kit)
19 172-8869 Spindle cap 1
20 272-9265 Solenoid valve 2
21 472-4750 VALVE AND FILTER KIT 1 (Hose clamp) (only available in kit)
22 272-8863 Battery box 1
23 472-4750 VALVE AND FILTER KIT 2 (Special tee) (only available in kit)
24 472-4749 HOSE KIT-DRAIN 1 (Hose clip) (only available in kit)
25 272-9352 Raw cap with tether 1
26 472-4750 VALVE AND FILTER KIT 1 (Solution hose) (only available in kit)
27 372-1512 Washer 1
28 172-9261 P clamp 1
29 472-4749 HOSE KIT-DRAIN 3 (Washer flat rubber) (only available in kit)
30 172-1154 P clamp 3
31 999-0522 Screw 1/4-20 x 1/2 pan head phillips stainless steel 1
32 272-6383 Screw 1/4-20 x 3/4 hex loc stainless steel 1
33 372-1011 Washer 1/4 1
N/S 472-4749 HOSE KIT-DRAIN 1 (includes 1,3,12a-15,24,and 29)
N/S 472-4750 VALVE AND FILTER KIT 1 (includes 4,5,12b,16-18,21,23, and 26)
N/S 472-4751 SIGHT GAUGE KIT 1 (includes 6,7,and 10)
N/S 472-4799 HARDWARE KIT-ELEC COVER 1 (includes 2 and 3)

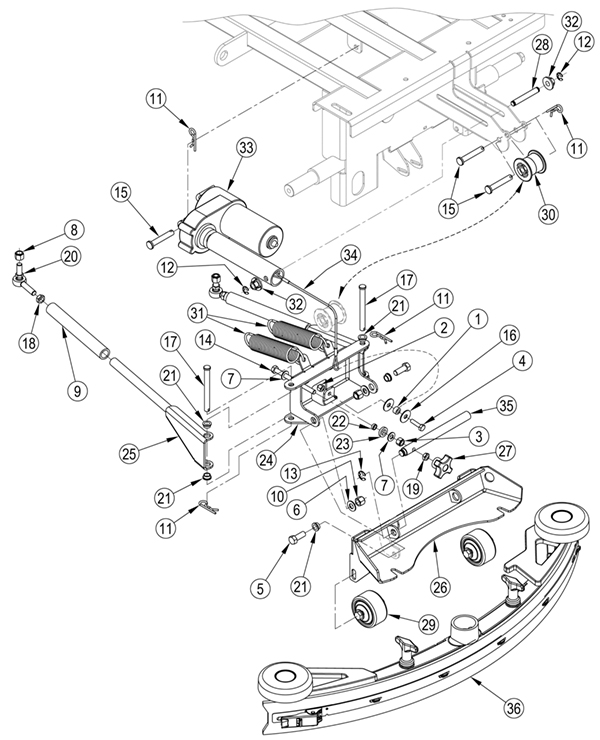

Squeegee Mount Assembly - 270-2442
RefNbr Part Number Description Req Notes
1 172-2032 Spacer 1
2 999-0294 Nut 1/4-20 hex nylon lock type NE stainless steel 1
3 999-0423 Nut 5/16-18 nylon insert lock stainless steel 1
4 999-0297 Bolt 1/4-20 x 1 hex head stainless steel 1
5 999-0562 Bolt 3/8-16 x 1 hex head stainless steel 2
6 999-9128 Washer 3/8 SAE flat stainless steel 2
7 999-0024 Washer 5/16 flat stainless steel 2
8 999-1391 Nut 3/8-24 nylon insert lock stainless steel 2
9 272-3660 Hose 2
10 999-1482 Nut 3/8-16 nylon lock stainless steel 2
11a 472-4786 CABLE KIT-SQUEEGEE (OBSOLETE) 4 (Cotter pin) (only available in kit)
11b 472-4804 HARDWARE KIT-SQUEEGEE BRACKET 4 (Cotter pin) (only available in kit)
12 472-4786 CABLE KIT-SQUEEGEE (OBSOLETE) 2 (Ring) (only available in kit)
13 472-4804 HARDWARE KIT-SQUEEGEE BRACKET 1 (Ring) (only available in kit)
14 999-6685 Screw 5/16-18 x 4 hex head full thread stainless steel 1
15 472-4786 CABLE KIT-SQUEEGEE (OBSOLETE) 3 (Clevis pin) (only available in kit)
16 472-4804 HARDWARE KIT-SQUEEGEE BRACKET 2 (Washer) (only available in kit)
17 472-4804 HARDWARE KIT-SQUEEGEE BRACKET 2 (Clevis pin) (only available in kit)
18 999-0169 Nut 3/8-24 hex jam plain finish 2
19 999-1019 Nut 5/16-18 hex jam stainless steel 1
20 272-3659 Rod end 2
21 472-4804 HARDWARE KIT-SQUEEGEE BRACKET 6 (Bearing) (only available in kit)
22 172-9202 Bushing 1
23 472-4804 HARDWARE KIT-SQUEEGEE BRACKET 1 (Washer polyurethane) (only available in kit)
24 272-6114 Squeegee pivot weldment bracket 1
25 272-3657 Bar weldment 2
26 272-6113 Squeegee mount weldment bracket 1
27 472-4804 HARDWARE KIT-SQUEEGEE BRACKET 1 (Knob) (only available in kit)
28 472-4786 CABLE KIT-SQUEEGEE (OBSOLETE) 1 (Pin) (only available in kit)
29 472-4787 ROLLER KIT-SQUEEGEE 2 (Wheel) (only available in kit)
30 472-4786 CABLE KIT-SQUEEGEE (OBSOLETE) 1 (Roller) (only available in kit)
31 172-9090 Extension spring 2
32 472-4786 CABLE KIT-SQUEEGEE (OBSOLETE) 2 (Spacer) (only available in kit)
33 272-3651 Actuator 1
34 472-4786 CABLE KIT-SQUEEGEE (OBSOLETE) 1 (Cable assembly) (only available in kit)
35 272-3655 Shaft 1
36a 272-3656 28 inch squeegee assembly 1 (28B and 28D)
36b 272-7245 34 inch squeegee assembly 1 (34D)
N/S 472-4786 CABLE KIT-SQUEEGEE (OBSOLETE) 1 (includes 11a,12,15,28,30,32, and 34)
N/S 472-4787 ROLLER KIT-SQUEEGEE 1 (includes 29)
N/S 472-4804 HARDWARE KIT-SQUEEGEE BRACKET 1 (includes 2-5,7,10,11b,13,14,16,17,19,21,23, and 27)

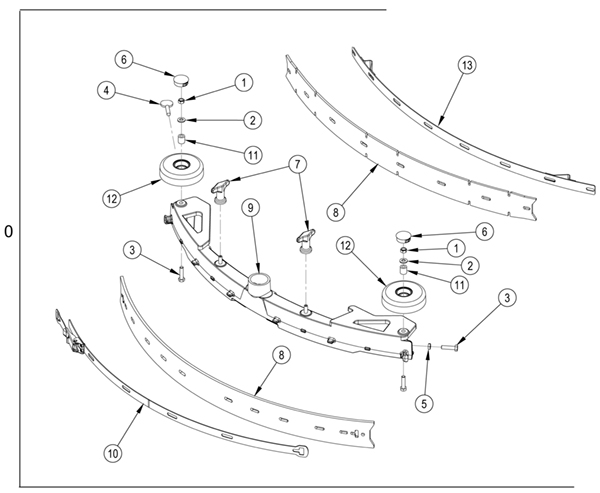

Squeegee Assembly - 270-2443
RefNbr Part Number Description Req Notes
0 272-3656 28 inch squeegee assembly 1 (includes 1-13)
1 999-0423 Nut 5/16-18 nylon insert lock stainless steel 2
2 999-9004 Washer 5/16 SAE flat stainless steel 2
3 999-0688 Bolt 5/16-18 x 1 1/4 hex head stainless steel 3
4 272-3671 Screw 5/16-18 x 1 1/4 thumb stainless steel 1
5 999-1019 Nut 5/16-18 hex jam stainless steel 1
6 272-9868 Button plug 2
7 172-4099 Nut 5/16-18 thumb 2
8a 272-3672 Squeegee blade kit 28 inch gum rubber 1 (standard)
8b 172-4688 Squeegee blade kit 34 inch gum rubber 1 (standard) (standard)
8c 272-3673 Squeegee blade kit 28 inch urethane 1 (optional)
8d 572-8127 Polyurethane squeegee blade kit (L) 1 (optional)
8e 272-3675 Squeegee blade kit 28 inch Linatex (red) 1 (optional)
8f 272-3682 Squeegee blade kit 34 inch gum rubber (red) 1 (optional)
9a 272-3656 28 inch squeegee assembly 1 (28 inch squeegee casting) (28B and 28D) (only available in kit)
9b 272-7245 34 inch squeegee assembly 1 (34 inch squeegee casting) (34D) (only available in kit)
10a 272-3679 Band clamp 1 (28B and 28D)
10b 272-3686 Band clamp 1 (34D)
11 272-9882 Bushing 2
12 272-9881 Wheel 2
13a 272-3677 Front strap 1 (28B and 28D)
13b 272-3683 Front strap 1 (34D)

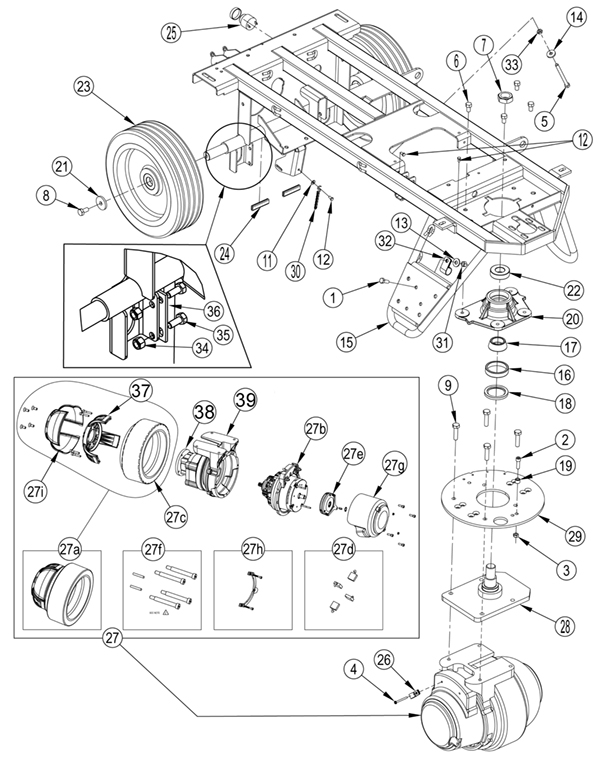

Chassis Assembly - 270-2444
RefNbr Part Number Description Req Notes
1 472-4798 HARDWARE KIT-CHASSIS SYSTEM 1 (Screw 5/16-18 x .88) (only available in kit)
2 999-0546 Screw 5/16-18 x 1 socket head alloy plain finish 1
3 472-4746 PLATE KIT-STEERING 1 (Nut) (only available in kit)
4 472-4746 PLATE KIT-STEERING 1 (Screw) (only available in kit)
5 472-4798 HARDWARE KIT-CHASSIS SYSTEM 1 (Screw 5/16-18 x 3 1/2 thread to head hex) (only available in kit)
6 272-7447 Bearing block assembly 4 (Screw) (only available in kit)
7 999-1867 Nut 1-14 hex lock zinc finish 1
8 272-1605 Bolt M10-1.5 x 20mm hex head nylon lock 2
9 999-0775 Screw M10-1.5 x 40mm hex head stainless steel 4
11 472-4748 CHAIN KIT-GROUND 1 (Washer) (only available in kit)
12 472-4748 CHAIN KIT-GROUND 3 (Screw) (only available in kit)
13 999-1964 Washer 5/16 SAE flat zinc 1
14 472-4798 HARDWARE KIT-CHASSIS SYSTEM 1 (Washer) (only available in kit)
15 272-6330 Chassis weldment 1
16a N/A Not available 1 (Bearing cup) (only available in kit)
16b 272-7447 Bearing block assembly 1 (Bearing cup) (only available in kit)
17a N/A Not available 1 (Bearing cone) (only available in kit)
17b 272-7447 Bearing block assembly 1 (Bearing cone) (only available in kit)
18a N/A Not available 1 (Seal) (only available in kit)
18b 272-7447 Bearing block assembly 1 (Seal) (only available in kit)
19 472-4746 PLATE KIT-STEERING 1 (Bushing) (only available in kit)
20 272-7447 Bearing block assembly 1 (Bearing block) (only available in kit)
21 272-1606 Washer flat 2
22a N/A Not available 1 (Bearing ball) (only available in kit)
22b 272-7447 Bearing block assembly 1 (Bearing ball) (only available in kit)
23a 172-3283 Wheel and bearing assembly 2
23b 172-2466 Wheel kit 2
24 172-8803 Edge trim 2
25 172-8839 Backup alarm 1
26 472-4746 PLATE KIT-STEERING 1 (Clamp) (only available in kit)
27 272-8807 Drive wheel motor 1 (includes 27a-27i)
27a 272-5562 Tire with hub 1
27b 272-8808 Replacement drive motor 1
27c 272-8809 Tire 1
27d 272-8810 Carbon brush kit 1
27e 272-8811 Parking brake 1
27f 272-8604 Tire puller kit 1
27g 272-8598 Drive motor cover 1
27h 272-8813 Brake lever kit 1
27i 272-8597 Gearbox motor cover 1
28 472-4747 SPINDLE KIT-MOTOR 1 (Spindle weldment) (only available in kit)
29 472-4746 PLATE KIT-STEERING 1 (Steering plate) (only available in kit)
30 472-4748 CHAIN KIT-GROUND 1 (Chain) (only available in kit)
31 999-0211 Nut 5/16-18 hex nylon insert lock zinc plated 1
32 472-4798 HARDWARE KIT-CHASSIS SYSTEM 1 (Clamp) (only available in kit)
33 999-1019 Nut 5/16-18 hex jam stainless steel 1
34 999-0423 Nut 5/16-18 nylon insert lock stainless steel 2 (after November 2017)
35 N/A Not available 2 (Screw 5/16-18 x 3/4 hex nylon lock) (after November 2017)
36 N/A Not available 1 (Bracket) (after November 2017)
37 N/A Not available 1 (Aluminum casting)
38 N/A Not available 1 (Gear box)
39 N/A Not available 1 (Bracket)
N/S 472-4746 PLATE KIT-STEERING 1 (includes 2-4,9,19,26, and 29)
N/S 472-4747 SPINDLE KIT-MOTOR 1 (includes 7 and 28)
N/S 472-4748 CHAIN KIT-GROUND 1 (includes 11,12, and 30)
N/S 472-4798 HARDWARE KIT-CHASSIS SYSTEM 1 (includes 1,5,13,14,31-33)
N/S N/A Not available 1 (includes 16a,17a,18a, and 22a)
N/S 272-7447 Bearing block assembly 1 (inlcudes 6,16b,17b,18b, and 22b)

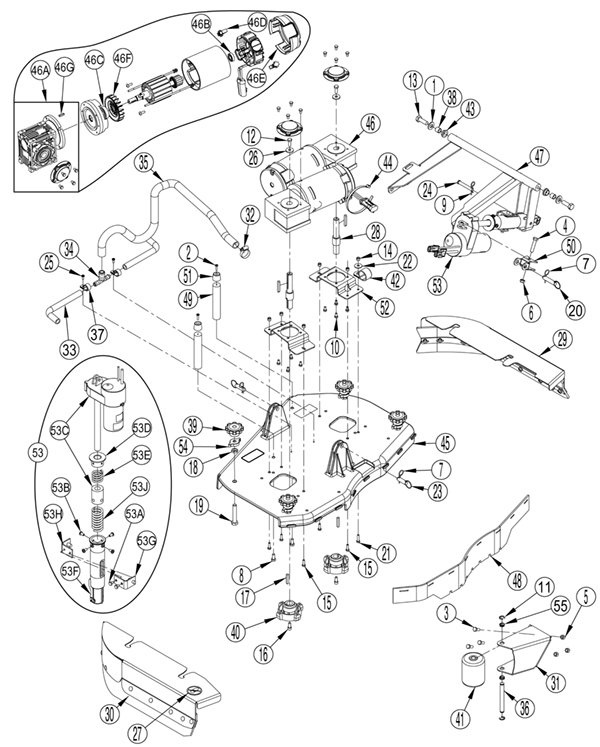

Scrub Assembly - 270-2445
RefNbr Part Number Description Req Notes
1 999-0114 Washer 1/2 SAE flat 2
2 999-0705 Screw 10-24 x 3/4 pan head phillips stainless steel 2
3 999-1232 Screw 5/16-18 x 3/4 hex head stainless steel 3
4 999-1006 Screw 3/8-16 x 1 3/4 hex head stainless steel 1
5 999-0211 Nut 5/16-18 hex nylon insert lock zinc plated 3
6 472-4763 HARDWARE KIT-ACTUATOR 1 (Nut) (only available in kit)
7a 472-4763 HARDWARE KIT-ACTUATOR 3 (Cotter pin) (only available in kit)
7b 472-4777 LIFT KIT-DECK 3 (Cotter pin) (only available in kit)
7c 272-7446 Deck linkage hardware assembly 3 (Cotter pin) (only available in kit)
8 472-4802 HARDWARE KIT-28D SCRUB SYSTEM 2 (Screw) (only available in kit)
9 472-4763 HARDWARE KIT-ACTUATOR 1 (Cotter pin) (only available in kit)
10 999-9116 Screw M6-1 x 12mm hex head stainless steel 8
11 472-4757 ROLLER KIT-L/R 2 (Ring) (only available in kit)
12 472-4762 MOTOR KIT-BRUSH 2 (Screw) (only available in kit)
13a 472-4777 LIFT KIT-DECK 2 (Screw M12-1.75 x 35mm hex lock) (only available in kit
13b 272-7446 Deck linkage hardware assembly 2 (Screw M12-1.75 x 35mm hex lock) (only available in kit
14 999-0497 Nut M6-1 nylon insert lock stainless steel 6
15 472-4764 HARDWARE KIT-MOTOR BRKT 5 (Screw M6-1 x 20mm hex thread to head) (only available in kit)
16 472-4754 GIMBLE KIT 2 (Screw) (only available in kit)
17 472-4755 SHAFT KIT-HUB MOUNT 2 (Square keyway) (only available in kit)
18 999-1377 Nut M12-1.75 hex jam 4
19 999-1349 Screw M12-1.75 x 70mm full thread hex head stainless steel 4
20 472-4763 HARDWARE KIT-ACTUATOR 1 (Pin ring) (only available in kit)
21 999-0779 Screw M6-1 x 25mm hex head plain finish 1
22 472-4802 HARDWARE KIT-28D SCRUB SYSTEM 1 (Washer) (only available in kit)
23a 472-4777 LIFT KIT-DECK 2 (Pin ring) (only available in kit)
23b 272-7446 Deck linkage hardware assembly 2 (Pin ring) (only available in kit)
24 472-4763 HARDWARE KIT-ACTUATOR 1 (Clevis pin) (only available in kit)
25 999-0267 Screw 10-24 x 1/2 pan head phillips zinc 2
26 472-4762 MOTOR KIT-BRUSH 2 (Washer) (only available in kit)
27 172-3428 No step decal 1
28 472-4755 SHAFT KIT-HUB MOUNT 2 (Hub mount shaft) (only available in kit)
29 472-4679 LEFT SKIRT ASSY-28D 1
30 472-4680 RIGHT SKIRT ASSY-28-34D 1
31 472-4778 ROLLER MOUNT KIT-RT 28D 1 (Roller bracket weldment) (only available in kit)
32 472-4776 MANIFOLD KIT-SOLUTION 28D 1 (Hose clamp) (only available in kit)
33 472-4776 MANIFOLD KIT-SOLUTION 28D 2 (Hose) (only available in kit)
34 472-4776 MANIFOLD KIT-SOLUTION 28D 1 (Tee barb) (only available in kit)
35 472-4776 MANIFOLD KIT-SOLUTION 28D 1 (Hose) (only available in kit)
36 472-4757 ROLLER KIT-L/R 1 (Pin) (only available in kit)
37 472-4776 MANIFOLD KIT-SOLUTION 28D 2 (Clamp) (only available in kit)
38a 472-4777 LIFT KIT-DECK 2 (Bushing) (only available in kit)
38b 272-7446 Deck linkage hardware assembly 2 (Bushing) (only available in kit)
39 172-9281 Knob 4
40 472-4754 GIMBLE KIT 2 (Collar assembly) (only available in kit)
41 472-4757 ROLLER KIT-L/R 1 (Roller wheel) (only available in kit)
42 472-4802 HARDWARE KIT-28D SCRUB SYSTEM 1 (Hose clamp) (only available in kit)
43a 472-4777 LIFT KIT-DECK 2 (Bearing) (only available in kit)
43b 272-7446 Deck linkage hardware assembly 2 (Bearing) (only available in kit)
44 997-2102 Cable tie 1
45 272-3604 Scrub deck weldment 1
46 472-4762 MOTOR KIT-BRUSH 2 (Motor gearbox assembly) (only available in kit)
46a 272-3606 Gearbox 1
46b 272-3607 Bearing 1
46c 172-3391 Bearing 1
46d 272-3608 Carbon brush (sold individually) 2
46e 272-3610 Brush motor cover 1
46f 272-3611 Motor fan 1
46g 272-3609 Square keyway 1
47 472-4777 LIFT KIT-DECK 1 (Deck linkage weldment) (only available in kit)
48 472-4830 BLADE FRONT 28 GUM 1
49 272-3615 Rod 2
50 472-4763 HARDWARE KIT-ACTUATOR 1 (Actuator) (only available in kit)
51 272-8773 Stop mount 2
52 472-4764 HARDWARE KIT-MOTOR BRKT 2 (Motor bracket) (only available in kit)
53 472-4812 LIFT ACTUATOR ASSEMBLY 1 (inlcudes 53a-53j)
53b 999-1129 Screw 1/4-20 x 1/2 pan head phillips thread rolling zinc 4
53c 472-4811 ACTUATOR 1
53d 272-8539 Spring housing guide 1
53e 172-8941 Compression spring 1
53f 172-8952 Spring housing 1
53g 172-8954 Nut retainer 1
53h 172-8955 Nut retainer 1
53j 272-3552 Compression spring 1
54 172-9282 Knob 4
55 472-4778 ROLLER MOUNT KIT-RT 28D 2 (Bearing) (only available in kit)
56 472-4754 GIMBLE KIT 2 (includes 16 and 40)
57 472-4755 SHAFT KIT-HUB MOUNT 2 (includes 17 and 28)
58 472-4757 ROLLER KIT-L/R 1 (inlcudes 11,36, and 41)
59 472-4762 MOTOR KIT-BRUSH 2 (includes 12,26, and 46-46g)
60 472-4763 HARDWARE KIT-ACTUATOR 1 (includes 4,6,7a,9,20,24, and 50)
61 472-4764 HARDWARE KIT-MOTOR BRKT 2 (includes 10,14a,15, and 52)
62 472-4776 MANIFOLD KIT-SOLUTION 28D 1 (includes 25,32-35, and 37)
63 472-4777 LIFT KIT-DECK 1 (includes 1,7b,13a,23a,38a,43a, and 47)
64 472-4778 ROLLER MOUNT KIT-RT 28D 1 (inlcudes 3,5,31, and 55)
65 472-4802 HARDWARE KIT-28D SCRUB SYSTEM 1 (inlcudes 8,14b,21, and 22)
66 272-7446 Deck linkage hardware assembly 1 (includes 1,7c,13b,23b,38b, and 43b)

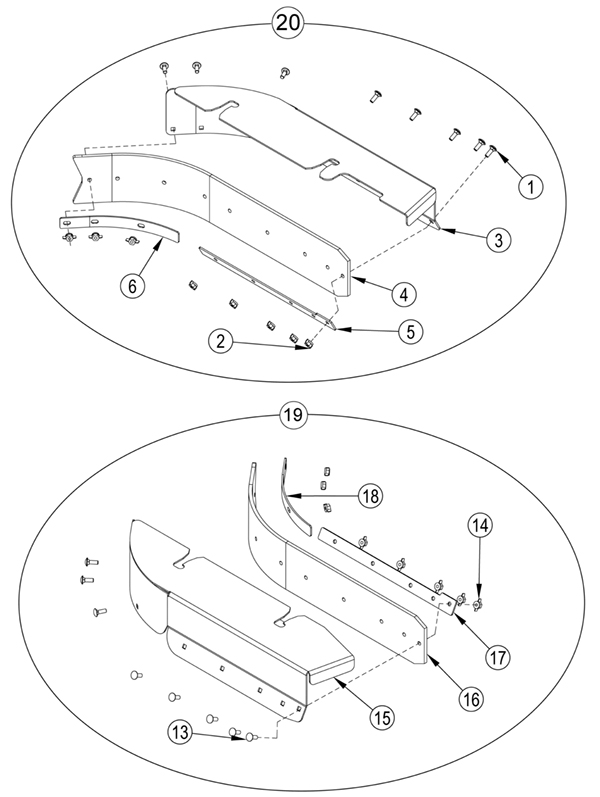

Skirt Assembly - 270-2446
RefNbr Part Number Description Req Notes
1 999-0963 Bolt 1/4-20 x 3/4 carriage head stainless steel 8
2 472-4765 HARDWARE KIT-SKIRT 8 (Wing nut plastic lock) (only available in kit)
3 472-4682 SKIRT BKT WELDT-LT-28D 1 (Machine built before March 2013 you will also need to order 5 and 6)
4 272-3633 Skirt blade kit gum rubber 1 (Skirt blade) (only available in kit)
5a 472-4820 STRAP FRONT 28D 34D 1 (after February 2013)
5b 472-4681 STRAP 1 (before March 2013)
6a 472-4822 STRAP REAR 28D 34D 1 (after February 2013)
6b 472-4681 STRAP 1 (before March 2013)
13 999-0963 Bolt 1/4-20 x 3/4 carriage head stainless steel 8
14 472-4765 HARDWARE KIT-SKIRT 8 (Wing nut plastic lock) (only available in kit)
15 472-4683 SKIRT BKT WELDT-RT-28-34D 1 (Machine built before March 2013 you will also need to order 17 and 18)
16 272-3633 Skirt blade kit gum rubber 1 (Skirt blade) (only available in kit)
17a 472-4820 STRAP FRONT 28D 34D 1 (after February 2013)
17b 472-4681 STRAP 1 (before March 2013)
18 472-4822 STRAP REAR 28D 34D 1
19 472-4680 RIGHT SKIRT ASSY-28-34D 1 (includes 13-18)
20 472-4679 LEFT SKIRT ASSY-28D 1 (includes 1-6)

- Pad Holders - 275-9029
RefNbr Part Number Description Req Notes
1 991-2214 Center-Lok II pad holder - left hand thread (red)
2a 991-2201 Center-Lok II pad holder - right hand thread (black) (Pad driver side female, Floor side male)
2b 991-8577 Pad retainer (Pad driver side male, Floor side female)
3a 991-2202 Big mouth pad holder set (blue) (includes 3 screws)
3b 991-2205 Deep lock ring and pad grip ring
4 991-2203 Big mouth pad holder male thread portion
5 991-2206 Center-Lok 3 pad holder (includes 3 screws)
6 996-0372 Big mouth pad holder (left hand thread)
7 N/A Not available
8 991-2209 Split retainer - pad holder ring (OBSOLETE)
9 N/A Not available (replaced by #3 991-2202)
10 991-2211 Center lock pad holding cup (male) (yellow) (OBSOLETE)

- Commonly Asked For Parts - 999-9757
RefNbr Part Number Description Req Notes
1 472-4722 BRUSH ASM-SOFT NYLON 16.5 2
Webpage Problem Reporting
