Parts List Complete for CLARKE-ALT FOCUS II L17


- Pads - 255-1700
RefNbr Part Number Description Req Notes
01 255-1740 17 inch aqua plus burnishing pad (pkg of 5)
02 255-1735 17 inch Armadillo concrete scrubbing pad (pkg of 5)
03 255-1764 17 inch Blue ace pad (pkg of 5)
04 255-1742 17 inch Blue Jay burnishing pad (pkg of 5)
05 255-1712 17 inch Cure white pad (pkg of 5) (OBSOLETE)
06 255-1777 17 inch Diamondback extreme stripping pad (pkg of 5)
07 255-1738 17 inch EHD Extra Heavy Duty Concrete Leveling Pad (pkg of 2
08 255-1721 17 inch gorilla lite burnishing pad (pkg of 5)
09 255-1750 17 inch gorilla spray buff/polish/burnish pad (pkg of 5)
10 255-1765 17 inch Heat concrete bonding pad (pkg of 5)
11 255-1730 17 inch jaguar burnishing pad (pkg of 5)
12 255-1767 17 inch Laminated 2001 Gorilla polish pad (pkg of 5)
13 255-1768 17 inch Microclean daily cleaning pad (pkg of 2)
14 255-1769 17 inch Micropolish polishing and burnishing pad (pkg of 2)
15 255-1790 17 inch premium black stripping pad (pkg of 5)
16 255-1770 17 inch premium blue cleaning pad (pkg of 5)
17 255-1792 17 inch premium brown stripping pad (pkg of 5)
18 255-1780 17 inch premium green scrubbing pad (pkg of 5)
19 255-1760 17 inch premium red scrubbing pad (pkg of 5)
20 255-1752 17 inch premium tan polishing pad (pkg of 5)
21 255-1720 17 inch premium white polishing pad (pkg of 5)
22 255-1711 17 inch superspeed rubberized pad (pkg of 5)
23 255-1795 17 inch razorback stripping pad (pkg of 5)
24 255-1747 17 inch Redwood maroon floor prep pad (pkg of 10)
25 255-1755 17 inch Ruff non-abrasive brush pad (pkg of 2)
26 255-1723 17 inch sand screen driver pad (pkg of 2)
27 255-0139 17 inch Professional sand screen 100 grit (pkg of 10)
28 255-0019 17 inch Professional sand screen 120 grit (pkg of 10)
29 255-0140 17 inch Professional sand screen 150 grit (pkg of 10)
30 255-0141 17 inch Professional sand screen 180 grit (pkg of 10)
31 255-0142 17 inch Professional sand screen 220 grit (pkg of 10)
32 255-0143 17 inch Professional sand screen 400 grit (pkg of 10)
33 255-0138 17 inch Professional sand screen 60 grit (pkg of 10)
34 255-0018 17 inch Professional sand screen 80 grit (pkg of 10)
35 255-0225 17 inch Superscreen sand screen 100 grit (pkg of 10)
36 255-0226 17 inch Superscreen sand screen 120 grit (pkg of 10)
37 255-0227 17 inch Superscreen sand screen 150 grit (pkg of 10)
38 255-0228 17 inch Superscreen sand screen 180 grit (pkg of 10)
39 255-0229 17 inch Superscreen sand screen 220 grit (pkg of 10)
40 255-0230 17 inch Superscreen sand screen 400 grit (pkg of 10)
41 255-0223 17 inch Superscreen sand screen 60 grit (pkg of 10)
42 255-0224 17 inch Superscreen sand screen 80 grit (pkg of 10)
43 255-1724 17 inch Tiger carpet bonnet (pkg of 2)
44 255-9570 17 inch Diamond by Gorilla 11000 Grit (pkg of 2)
45 255-9567 17 inch Diamond by Gorilla 1500 Grit (pkg of 2)
46 255-9564 17 inch Diamond by Gorilla 200 Grit (pkg of 2)
47 255-9568 17 inch Diamond by Gorilla 3000 Grit (pkg of 2)
48 255-9565 17 inch Diamond by Gorilla 400 Grit (pkg of 2)
49 255-9566 17 inch Diamond by Gorilla 800 Grit (pkg of 2)
50 255-9569 17 inch Diamond by Gorilla 8000 Grit (pkg of 2)
51 255-9642 17 inch Diamond starter pack (1 of each grit)
52 255-1782 17 inch Turbostrip segmented rotary pad (pkg of 4)
53 255-1715 17 inch Duala clean and shine pad - low speed (pkg of 5)
54 255-1716 17 inch 2001 Duala clean and shine pad - high speed (pkg 5)

- Batteries, Brushes, and Chargers - 270-1141
RefNbr Part Number Description Req Notes
01 996-1641 16 inch heavy grit stripping brush - 80 grit (OBSOLETE) 1
02 996-1642 16 inch medium grit scrubbing brush - 180 grit (OBSOLETE) 1
03 996-1643 16 inch lite grit scrubbing brush - 500 grit (OBSOLETE) 1
04 996-1644 16 inch polypropelene scrubbing brush (OBSOLETE) 1
05 996-1645 Pad driver (OBSOLETE) 1
06 996-1574 Clutch plate (OBSOLETE) 1
07 991-2206 Center-Lok 3 pad holder 1
09 270-0094 24V onboard battery charger 1
10 272-9290 Onboard charger cord 1
11 162-5061 24V 20amp battery charger with SB175 large red plug 1
12 162-5045 175amp charger plug with pins (red) SB175 1
08 162-0011 12V 105Ah wet battery (SNSR) 2
08 162-0042 12V 115Ah AGM battery (Group 31) 2

Solution Tank Assembly - 272-2377
RefNbr Part Number Description Req Notes
1 272-8941 Solution tank hardware kit 1
2 272-7164 Elbow joint 1
3 172-4689 Pedal support 1
4 572-3247 Decal kit (OBSOLETE) 1
5 172-4694 Gasket 1
6 172-4696 Gasket 1
7 172-4697 Gasket 2
8 272-0005 Squeegee lever fixing kit 1
9 172-4714 Cable kit 1
10 172-4705 Connector support bracket 1
11 272-6301 Handle bar gasket 1
12 272-8150 Squeegee lifting cable 1
13 172-4706 Plug 1
15 172-4700 Solution hose 1
20 172-4695 Locking tank cap 2
21 172-2100 90 degree barbed elbow 3/4 x 3/8 1
37 172-4699 Cap (black) 1
38 170-9040 Solution tank (OBSOLETE) 1
44 172-4691 Solution lid with chain and gasket 1
48 272-6305 Water inlet filter 1
49 272-6306 Hinge kit 1
N/S 170-9041 Clarke decal 2

Recovery Tank Assembly - 272-2378
RefNbr Part Number Description Req Notes
1 272-0618 Squeegee vacuum hose kit 1
2 272-8549 Drain hose assembly with plug 1
3 272-6307 Tank fixing kit 1
5 172-4759 Clamp 1
9 172-0517 Float cage half (2 required for full float cage) 2
10 172-0192 Float ball 1
11 270-8255 Float holder cage kit 1
14 997-2000 Hose clamp 2
18 270-0362 Recovery tank (OBSOLETE) 1
19 270-0097 Recovery tank lid (OBSOLETE) 1
20 999-1220 Screw M5-.8 x 12mm hex head stainless steel 2
21 272-8548 Recovery tank lid gasket 1
22a 270-0364 Vacuum motor gasket 1 (old style)
22b 572-3208 GASKET VACUUM MOTOR 1 (new style)
23a 172-4730 Vacuum motor gasket 1 (old style)
23b 272-9865 Vacuum motor gasket 1 (new style)
24 172-4731 Acoustic insulation panel 1
26 172-4732 Filter 1
27 272-6578 24V 2 stage vacuum motor 1
30 172-4733 Vacuum motor cover 1
31 172-4734 Acoustic insulation pipe 1
35a 272-0627 Carbon brush 1 (old style)
35b 240-6536 CARBON BRUSH SET -3 STAGE VAC 1 (new style)
37 172-4736 Vacuum motor hardware kit 1
38 272-7206 Antifoaming filter 1
N/S 172-4735 Recovery tank hardware kit 1

Chassis Assembly - 272-2379
RefNbr Part Number Description Req Notes
1 172-4737 Chassis 1
2 172-4738 Deck lifting lever 1
3 272-9283 Insert M5 1
4 172-4740 Anti-skid mat 1
5 172-4741 Flanged bushing 1
6 172-4739 Brush lifting pedal 1
9 172-4742 Flanged bushing 3
12 272-0678 Wire tie (OBSOLETE) 1
15 172-4710 Wire tie holder 1
18 172-4711 Knob 1
20 172-4746 Retaining ring 1
21 999-1302 Screw M10-1.5 x 30mm hex head 1
22 999-9096 Screw M5-.8 x 12mm socket head stainless steel 1
23 172-4747 Chassis hardware kit 1
24a 270-0365 Caster wheel kit 1
24b 272-3740 Caster wheel with hardware kit stainless steel 1

Wheel Assemblies - 272-2380
RefNbr Part Number Description Req Notes
1 270-0366 Front wheel (blue) 2 (without drive)
2 270-0367 Wheel shaft 1 (without drive)
3 272-6316 Wheel hardware kit 1 (without drive)
4 270-0369 Wheel hardware 2 (without drive)
5 270-0370 Wheel kit (pkg of 2) smooth 2 (with drive)
6 172-4750 Square keyway 2 (with drive)
7 572-3617 SPACER 20.5X25X4 10 PCS SET 2 (with drive)
8 172-4753 24V transaxle 1 (with drive)
9 272-0760 Carbon brush 2 (with drive)
10 272-6312 Drive wheel hardware kit 1 (with drive)

Handle Assemblies - 272-2381
RefNbr Part Number Description Req Notes
1 270-0629 Handle bar (OBSOLETE) 1
2 372-1160 Switch 1 (with drive)
3 270-0630 Potentiometer plate 1 (with drive)
4 170-1885 Switch lever housing 2
5 270-0386 Traction control knob 1 (with drive)
6 270-0387 Traction control decal 1 (with drive)
7a 270-0388 Handle bar harness 1 (with drive)
7b 270-0382 Handle bar harness 1 (without drive)
8 270-0389 Potentiometer 1 (with drive)
9 572-3219 HARDWARE HANDLE ASSEMBLY KIT 1

Solution System - 272-2382
RefNbr Part Number Description Req Notes
1 172-4773 90 degree rubber holder 1
2 170-5402 Manual solution valve 1
3 181-0923 Solution screen and gasket kit 1
4 572-3915 Solution system hardware kit 1
5 270-0929 Elbow valve with gasket 1 (includes 2 and 14)
8 270-0394 Complete filter kit 1
10 272-8536 24V solution solenoid valve 1
11 270-0391 Pipe fitting 1
12 272-7293 Hose kit (OBSOLETE) 1
14 272-8076 Gasket 1
18 272-6305 Water inlet filter 1

Squeegee System - 272-2383
RefNbr Part Number Description Req Notes
1 172-4774 Squeegee support bracket 1
2 172-4796 Hardware fixing kit 1
3 270-0395 Squeegee pin 1
4 172-4776 Right hand squeegee torsion spring 1
5 172-4777 Spring 1
6 270-0398 Squeegee fixing pin 2
8 999-1267 Washer M8 flat zinc 1
9 272-2000 Washer M15 x 25mm plain nylon 2
10 999-0496 Nut M8-1.25 nylon insert lock stainless steel 3
15 172-4782 Nut M10 self locking 1
17 270-0399 Split pin 2
18 172-4784 Wire tie holder 2
19 270-0114 Spring support 1
21 999-9099 Washer M10 flat stainless steel 1
23 272-7000 Squeegee mounting bracket kit 1
24 270-0401 Squeegee assembly with polyurethane blades 1 (includes 25-48)
25 270-0403 Squeegee blade kit PRIMOthane (incs front and rear blade) 1
26 372-1312 Squeegee blade kit linatex 1
27 272-8529 Knob M8 x 30mm stainless steel 1
30 272-6579 Squeegee fixing kit 1
31 172-4795 Squeegee latch kit 1
36 172-4788 Squeegee weldment 1
38 172-4789 Front squeegee strap (OBSOLETE) 1
41 172-4790 Dowel M8 x 30mm 1
46 172-4792 Rear squeegee strap and hardware kit 1
47 172-4793 Squeegee wheel kit 1
48 172-4794 Squeegee bumper wheel kit 1
49 272-8150 Squeegee lifting cable 1

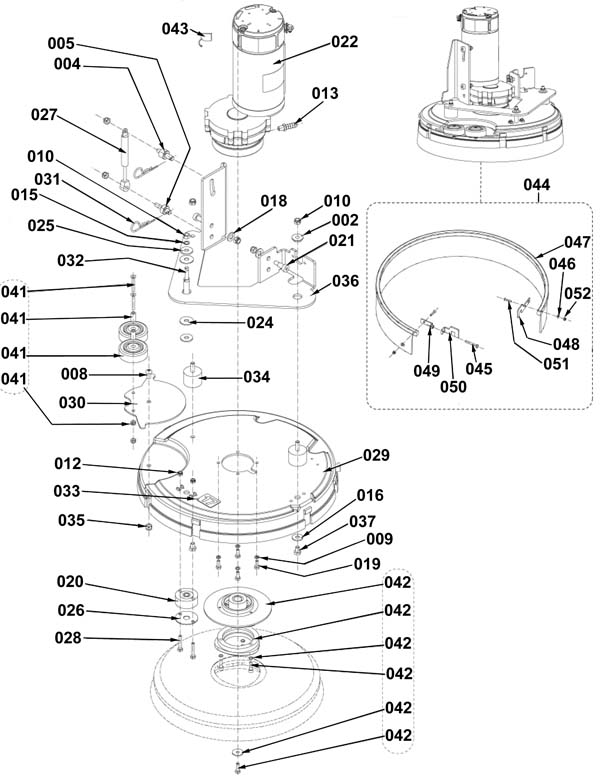

Brush System - 272-2384
RefNbr Part Number Description Req Notes
002 172-4806 Bushing 1
004 172-4814 Pin 1
005 172-4816 Pin 1
008 999-0517 Bolt M8-1.25 x 16mm hex head full thread zinc 1
009 999-1261 Washer M6 flat stainless steel 4
010 999-0496 Nut M8-1.25 nylon insert lock stainless steel 3
012 999-0497 Nut M6-1 nylon insert lock stainless steel 2
013 272-1978 Rubber barb 1
015 270-0406 Washer M8 (OBSOLETE) 1
016 999-0412 Washer #8 SAE flat 1
018 999-0006 Washer 3/16 flat zinc plated 2
019 172-4810 Screw M6 x 16mm hex head stainless steel 4
020 272-7135 Buffer 1
021 172-4807 Bolt M10 x 16mm shoulder 1
022 372-1270 24V brush motor 1
024 272-1933 Rubber gasket (OBSOLETE) 1
025 172-5079 Washer M9 x 28mm flat (OBSOLETE) 2
026 272-1939 Vibration damping plate 1
027 270-0409 Gas spring 1
028 270-0410 Screw M6-1 x 35mm hex head 2
029 270-0411 17 inch brush deck (black) 1
030 172-4817 Bumper wheel kit 1
031 272-0721 Cotter pin 2
032 N/A Not available 1 (Brush adjustment pin)
033 270-0414 17 inch brush decal (OBSOLETE) 1
034 272-1919 Vibration damping M8 (set of 2) 2
035 999-0471 Nut M8-1.25 nylon insert lock zinc plated 1
036 172-4812 Brush deck holder plate 1
037 N/A Not available 2 (Screw)
041 270-0417 Bumper wheel kit 1
042 272-5385 Polygonal holder with flange kit 1
043 272-0741 Carbon brush (pkg of 4) 1
044 272-5389 17 inch splash guard kit 1 (includes 046- 052)
045 172-4207 Screw M5 x 20mm hex head stainless steel (OBSOLETE) 1
046 572-3718 WASHER PLAIN M4X9SS ISO7089 10 2
047 270-0420 17 inch splash guard (OBSOLETE) 1
048 270-0421 Splash guard fixing bracket (OBSOLETE) 1
049 270-0422 Splash guard fixing bracket (OBSOLETE) 1
050 270-0423 Splash guard fixing bracket (OBSOLETE) 1
051 270-0424 Screw M4 x 20mm hex head (OBSOLETE) 2
052 999-0955 Nut M4-.7 hex nylon lock 2
N/S 270-0404 17 inch brush deck kit (OBSOLETE) 1 (includes 002- 052)

Control Panel System - 272-2390
RefNbr Part Number Description Req Notes
1 270-0590 Control panel decal 1
2 270-0591 Electric component cover 1
3 270-0095 Control panel 1
5 172-4856 Gasket 1
6 272-0640 Inspection plate 1
7 272-6324 Control panel hardware kit 1
8 172-4695 Locking tank cap 2
14 172-3785 Key switch with two keys 1
16 999-0531 Screw M5-.8 x 16mm pan head slotted zinc 2
17 991-1634 Key (pkg of 2) 1
18 272-9274 24V hour meter 1
22 272-0659 On-board charger cord wrap 1
23 999-9100 Washer M5 flat stainless steel 4
N/S 572-3491 FUSE BLADE 3A PKD 2
N/S 272-9276 20amp fuse 1

Electrical Components Assembly - 272-2391
RefNbr Part Number Description Req Notes
1 181-0966 Fuse holder 1
2 272-3770 Support 1
3 272-9277 Spacer 2
4 272-6326 Electrical hardware kit 2
8 272-7144 30amp fuse 2
10 272-8376 Wire tie 3
14 272-9283 Insert M5 3
16 272-6292 40amp brush fuse strip 1
19 272-8374 120amp connector (red) 1
21 472-1367 HOLDER FUSE THERMOPL. UL 94-V0 2
22 272-7142 Electromagnetic switch 1
23 272-7389 Electronic card traction kit 1 (drive models)
24 272-9288 24V relay 1
25a 272-9289 Electrical box harness 1 (drive models)
25b 270-0604 Harness electric box 1 (no drive models)
26a 272-9294 Machine harness 1 (drive models)
26b 270-0605 Machine harness 1 (no drive models)
27 272-9295 Vacuum motor harness 1
28 270-0606 Battery harness 1
29 272-9291 Screw M5 X 20 3
30 272-3771 Washer 3
31 270-0094 24V onboard battery charger 1
32 272-9290 Onboard charger cord 1
33 272-9292 Cord holder 1
34 272-1957 Screw M4-.7 x 14mm 2
35 272-9293 Screw M4 x 12mm 1

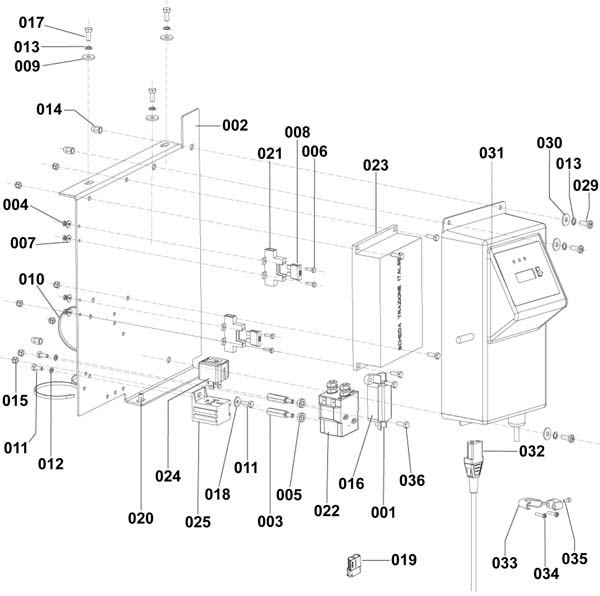

Electrical Components Assembly With Drive - 272-2392
RefNbr Part Number Description Req Notes
001 181-0966 Fuse holder 1
002 272-3770 Support 1
003 272-9277 Spacer 2
004 999-0768 Nut M3-.5 hex coarse thread plain finish 4
005 172-2430 Spacer (OBSOLETE) 2
006 999-9103 Screw M3-.5 x 10mm hex head stainless steel 4
007 999-1305 Washer M3 split lock stainless steel 4
008 272-7144 30amp fuse 2
009 999-9100 Washer M5 flat stainless steel 6
010 272-8376 Wire tie 3
011 999-0777 Screw M4-.7 x 10mm hex head plain finish 3
012 999-1115 Washer M4 flat zinc plated 2
013 999-9132 Washer M5 split lock stainless steel 5
014 272-9283 Insert M5 3
015 999-0955 Nut M4-.7 hex nylon lock 7
016 272-6292 40amp brush fuse strip 1
017 999-1220 Screw M5-.8 x 12mm hex head stainless steel 2
018 272-9285 Washer M4 flat 1
019 272-8374 120amp connector (red) 1
020 272-9286 Dowel (OBSOLETE) 1
021 472-1367 HOLDER FUSE THERMOPL. UL 94-V0 2
022 272-7142 Electromagnetic switch 1
023 272-7389 Electronic card traction kit 1
024 272-9288 24V relay 1
025 272-9289 Electrical box harness 1
029 272-9291 Screw M5 X 20 3
030 999-9100 Washer M5 flat stainless steel 3
031 270-0094 24V onboard battery charger 1
032 272-9290 Onboard charger cord 1
033 272-9292 Cord holder 1
034 999-9095 Screw M4-.7 x 14mm socket head stainless steel 2
035 272-9293 Screw M4 x 12mm 1
036 999-0521 Screw M4-.7 x 12mm pan head phillips zinc 2
N/S 270-0606 Battery harness 1
N/S 272-9295 Vacuum motor harness 1
N/S 272-9294 Machine harness 1

Chemical Mixing Assembly - 272-2393
RefNbr Part Number Description Req Notes
1 270-0608 Chemical mixing system kit 1 (includes 3-32)
3 272-3756 Chemical mix level sensor 1
4 270-0617 Chemical mixing system hose kit 1
6 270-0610 1/4 inch one-way valve 1
10 272-3755 Chemical tank adapter 1
16 272-2182 Dry break cap 1
18 272-0679 Knob (for potentiometer) 1
21 270-0612 50k potentiometer 1
22 270-0613 Barbed tee 1
23 270-0614 Pipe holder 1
28 270-0615 Chemical pump cord 1
29 270-0348 Chemical pump 1
30 270-0350 Pump bracket 1
31 270-0616 Pump bracket 1
32 270-0349 Adapter cap 1 (includes 3, 10, 16)

Wiring Diagram - Non-Drive Model -

RefNbr Part Number Description Req Notes

Wiring Diagram - Drive Model -

RefNbr Part Number Description Req Notes

- Commonly Asked For Parts - 272-4020
RefNbr Part Number Description Req Notes
1 N/A Not available 3 (Screw M6 x 16)
2 N/A Not available 6 (Main screw)
3 N/A Not available 3 (Insert M6)
4a 272-8706 Nylon scrubbing brush - CYLINDRICAL 1 (9 1/2 inch) (standard)
4b 272-8707 Natural fiber scrubbing brush - CYLINDRICAL 1 (9 1/2 inch)
4c 272-5325 Polypropelene scrubbing brush-CYLINDRICAL 1 (9 1/2 inch)
4d 272-8709 Steel mix scrubbing brush - CYLINDRICAL (OBSOLETE) 1 (9 1/2 inch)
4e 272-8710 Polypropelene scrubbing brush - CYLINDRICAL (OBSOLETE) 1 (10 inch)
4f 272-8711 Steel mix scrubbing brush - CYLINDRICAL 1 (10 inch)
4g 272-8712 Natural fiber scrubbing brush - CYLINDRICAL 1 (10 inch)
5 272-8713 Brush support (OBSOLETE) 1
6 172-3657 Right hub plate 1
7a 272-8714 Rear non-marking skirt 1
7b 272-8715 Rear skirt 1
8a 172-3659 Side non-marking skirt 2
8b 272-8716 Side skirt 2
9 272-8718 Skirt plate (OBSOLETE) 2
10 172-3661 Side skirt plate (OBSOLETE) 2
11a 272-8719 Front skirt 1
11b 272-8720 Front non-marking skirt (OBSOLETE) 1
12 N/A Not available 6 (Screw threaded)
13 999-0497 Nut M6-1 nylon insert lock stainless steel 2
14 172-3664 Knob M8 1
15 172-3665 Screw 6 x 12 hex head 2
16 172-3666 Hub plate 1
17 999-1383 Screw M6-1 x 16mm hex head stainless steel 4
18 272-8722 Lifting cable 1
19 172-3779 Clip 1
20 272-9575 Locking clip (OBSOLETE) 1
21 272-8723 Decal (OBSOLETE) 4
22 N/A Not available 4 (Nut)
23 172-3757 Spring 1
24 N/A Not available 1 (Nut)
25 472-1423 CLEVIS M6X24 GALV. DIN71752 PK 1
26 272-8724 Chain 1
27 N/A Not available 1 (Washer M4)
28 999-9089 Washer M4 flat stainless steel 1
29 N/A Not available 1 (Screw M4 x 10 cylindrical head)
31 270-8165 Right side hub assembly 1
32 270-8164 Left side hub assembly 1
33 272-5290 Hub (OBSOLETE) 1
34 272-8725 Brush hardware kit (OBSOLETE) 1 (includes 1, 2, 3, 12, 17, 22, 24, 27, 28, 29)
35 572-3251 HARDWARE BRUSH DECK KIT 1 (machine without drive)

- Pad Holders - 275-9029
RefNbr Part Number Description Req Notes
1 991-2214 Center-Lok II pad holder - left hand thread (red)
2a 991-2201 Center-Lok II pad holder - right hand thread (black) (Pad driver side female, Floor side male)
2b 991-8577 Pad retainer (Pad driver side male, Floor side female)
3a 991-2202 Big mouth pad holder set (blue) (includes 3 screws)
3b 991-2205 Deep lock ring and pad grip ring
4 991-2203 Big mouth pad holder male thread portion
5 991-2206 Center-Lok 3 pad holder (includes 3 screws)
6 996-0372 Big mouth pad holder (left hand thread)
7 N/A Not available
8 991-2209 Split retainer - pad holder ring (OBSOLETE)
9 N/A Not available (replaced by #3 991-2202)
10 991-2211 Center lock pad holding cup (male) (yellow) (OBSOLETE)
Webpage Problem Reporting
