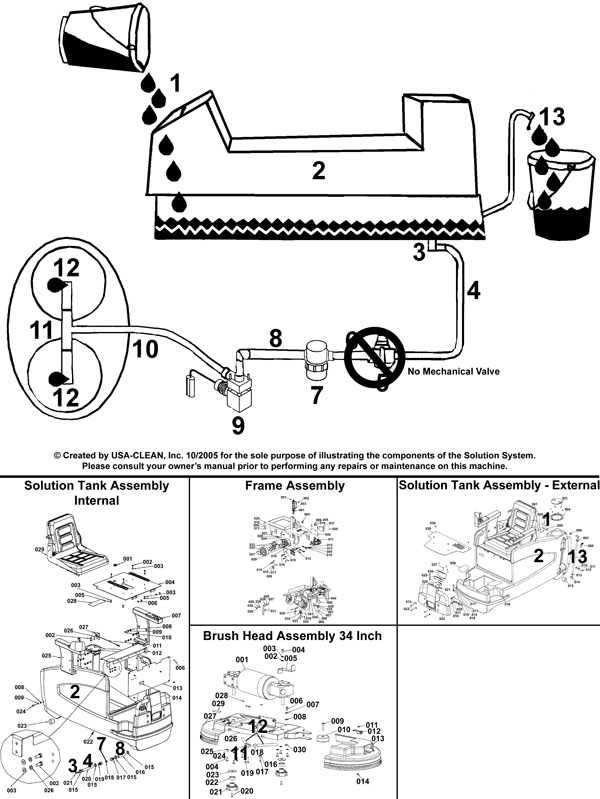

- Simplified Solution System - |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
|
|
- Batteries, Brushes, and Chargers - 170-9893 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
162-0003 |
6V 225Ah wet battery (SNSR) |
6 |
|
| 2 |
162-0005 |
6V 305Ah wet battery (SNSR) |
6 |
|
| 3 |
162-0043 |
6V 224Ah AGM battery (Group GC2) |
6 |
|
| 4 |
162-0046 |
6V 335Ah AGM battery (Group J305) |
6 |
|
| 5 |
170-7469 |
36V onboard battery charger with display and cord |
1 |
|
| 6a |
162-5063 |
36V 20amp battery charger with SB175 large gray plug |
1 |
|
| 6b |
162-5063 |
36V 20amp battery charger with SB175 large gray plug |
1 |
|
| 7 |
991-2112 |
175amp charger plug with pins (gray) SB175 |
1 |
|
| 7.5 |
998-0010 |
Battery jumper cable - ring type (red) |
1 |
|
| 8 |
996-0391 |
13 inch lite grit scrubbing brush - 500 grit |
2 |
|
| 9 |
996-0253 |
13 inch medium grit scrubbing brush - 180 grit |
2 |
|
| 10 |
996-0390 |
13 inch heavy grit stripping brush - 80 grit |
2 |
|
| 11 |
996-0266 |
13 inch polypropelene scrubbing brush |
2 |
|
| 12 |
996-0323 |
13 inch Pad driver |
2 |
|
| 13 |
996-0336 |
Clutch plate with brush holder spring |
2 |
|
| 14a |
170-6946 |
Center lok 3 |
2 |
|
| 14b |
991-2206 |
Center-Lok 3 pad holder |
2 |
|
|
|
- Pads - 255-1400 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 01 |
255-1440 |
14 inch aqua plus burnishing pad (pkg of 5) |
|
|
| 02 |
255-1435 |
14 inch Armadillo concrete scrubbing pad (pkg of 5) |
|
|
| 03 |
255-1464 |
14 inch Blue ace pad (pkg of 5) |
|
|
| 04 |
255-1442 |
14 inch Blue Jay burnishing pad (pkg of 5) |
|
|
| 05 |
255-1412 |
14 inch Cure white pad (pkg of 5) |
|
|
| 06 |
255-1477 |
14 inch Diamondback extreme stripping pad (pkg of 5) |
|
|
| 07 |
255-1438 |
14 inch EHD Extra Heavy Duty Concrete Leveling Pad (pkg of 2 |
|
|
| 08 |
255-1421 |
14 inch gorilla lite burnishing pad (pkg of 5) |
|
|
| 09 |
255-1450 |
14 inch gorilla spray buff/polish/burnish pad (pkg of 5) |
|
|
| 10 |
255-1465 |
14 inch Heat concrete bonding pad (pkg of 5) |
|
|
| 11 |
255-1430 |
14 inch jaguar burnishing pad (pkg of 5) |
|
|
| 12 |
255-1487 |
14 inch Melamine Mela-Kleen pad (pkg of 2) |
|
|
| 13 |
255-1490 |
14 inch premium black stripping pad (pkg of 5) |
|
|
| 14 |
255-1470 |
14 inch premium blue cleaning pad (pkg of 5) |
|
|
| 15 |
255-1492 |
14 inch premium brown stripping pad (pkg of 5) |
|
|
| 16 |
255-1480 |
14 inch premium green scrubbing pad (pkg of 5) |
|
|
| 17 |
255-1460 |
14 inch premium red scrubbing pad (pkg of 5) |
|
|
| 18 |
255-1452 |
14 inch premium tan polishing pad (pkg of 5) |
|
|
| 19 |
255-1420 |
14 inch premium white polishing pad (pkg of 5) |
|
|
| 20 |
255-1411 |
14 inch superspeed rubberized pad (pkg of 5) |
|
|
| 21 |
255-1495 |
14 inch razorback stripping pad (pkg of 5) |
|
|
| 22 |
255-1447 |
14 inch Redwood maroon floor prep pad (pkg of 10) |
|
|
| 23 |
255-1455 |
14 inch Ruff non-abrasive brush pad (pkg of 2) |
|
|
| 24 |
255-1423 |
14 inch sand screen driver pad (pkg of 2) |
|
|
| 25 |
255-0120 |
14 inch Professional sand screen 100 grit (pkg of 10) |
|
|
| 26 |
255-0121 |
14 inch Professional sand screen 120 grit (pkg of 10) |
|
|
| 27 |
255-0122 |
14 inch Professional sand screen 180 grit (pkg of 10) |
|
|
| 28 |
255-0119 |
14 inch Professional sand screen 60 grit (pkg of 10) |
|
|
| 29 |
255-0205 |
14 inch Superscreen sand screen 100 grit (pkg of 10) |
|
|
| 30 |
255-0206 |
14 inch Superscreen sand screen 120 grit (pkg of 10) |
|
|
| 31 |
255-0207 |
14 inch Superscreen sand screen 180 grit (pkg of 10) |
|
|
| 32 |
255-0204 |
14 inch Superscreen sand screen 60 grit (pkg of 10) |
|
|
| 33 |
255-1424 |
14 x 20 inch Tiger carpet bonnet (pkg of 2) |
|
|
| 34 |
255-9549 |
14 inch Diamond by Gorilla 11000 Grit (pkg of 2) |
|
|
| 35 |
255-9546 |
14 inch Diamond by Gorilla 1500 Grit (pkg of 2) |
|
|
| 36 |
255-9543 |
14 inch Diamond by Gorilla 200 Grit (pkg of 2) |
|
|
| 37 |
255-9547 |
14 inch Diamond by Gorilla 3000 Grit (pkg of 2) |
|
|
| 38 |
255-9544 |
14 inch Diamond by Gorilla 400 Grit (pkg of 2) |
|
|
| 39 |
255-9545 |
14 inch Diamond by Gorilla 800 Grit (pkg of 2) |
|
|
| 40 |
255-9548 |
14 inch Diamond by Gorilla 8000 Grit (pkg of 2) |
|
|
| 41 |
255-9639 |
14 inch Diamond starter pack (1 of each grit) |
|
|
| 42 |
255-1482 |
14 inch Turbostrip segmented rotary pad (pkg of 4) |
|
|
| 43 |
255-1415 |
14 inch Duala clean and shine pad - low speed (pkg of 5) |
|
|
| 44 |
255-1416 |
14 inch 2001 Duala clean and shine pad-high speed (pkg of 5) |
|
|
|
|

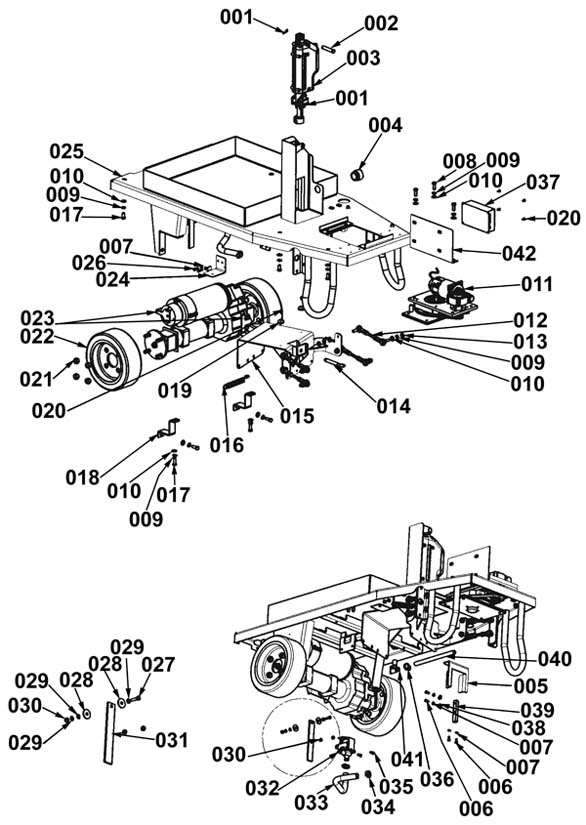

Frame Assembly - Rotary - 272-2409 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 001a |
170-8231 |
Potentiometer and circuit board |
1 |
|
| 001b |
270-0118 |
Potentiometer housing |
1 |
|
| 001c |
997-2516 |
Cotter pin |
1 |
|
| 002 |
170-0196 |
Clevis pin |
1 |
|
| 003 |
270-0119 |
Scrub head actuator |
1 |
|
| 005 |
170-8897 |
Brush head stop support |
1 |
|
| 006 |
999-0019 |
Bolt 1/4-20 x 5/8 hex head grade 5 zinc plated |
6 |
|
| 007 |
999-0060 |
Washer 1/4 split lock plain finish |
6 |
|
| 008 |
999-0038 |
Bolt 3/8-16 x 1 hex head grade 5 zinc plated |
7 |
|
| 009 |
999-0659 |
Washer 3/8 medium split lock stainless steel |
21 |
|
| 010 |
999-0032 |
Washer 3/8 USS flat plain finish |
21 |
|
| 011 |
170-8879 |
Power steering assembly |
1 |
|
| 012 |
170-8880 |
Rod linkage |
4 |
|
| 013 |
999-0169 |
Nut 3/8-24 hex jam plain finish |
8 |
|
| 014 |
170-8881 |
Quick release pin |
1 |
|
| 015 |
170-8882 |
Brush lift weldment (OBSOLETE) |
1 |
|
| 017 |
999-0119 |
Bolt 3/8-16 x 3/4 hex head grade 5 zinc plated |
10 |
|
| 018 |
170-8884 |
Transaxle clamp (OBSOLETE) |
2 |
|
| 020 |
999-0811 |
Screw 10-32 x 3/8 pan head phillips stainless steel |
6 |
|
| 021 |
170-7142 |
Nut 1/2-20 lug (OBSOLETE) |
8 |
|
| 022 |
170-8885 |
10 inch solid wheel |
2 |
|
| 023a |
170-8886 |
Transaxle |
1 |
|
| 023b |
170-8887 |
Transaxle brake (OBSOLETE) |
1 |
|
| 024 |
170-8888 |
Front squeegee mount |
1 |
|
| 025 |
170-8890 |
Main frame weldment (OBSOLETE) |
1 |
|
| 026 |
999-0275 |
Screw 1/4-20 x 3/4 hex washer hd unslotted thread rolling |
2 |
|
| 027 |
999-0197 |
Screw 1/4-20 x 1 socket head alloy plain finish |
1 |
|
| 028 |
999-0160 |
Washer 1/4 x 1 1/4 fender zinc plated |
2 |
|
| 029 |
999-0017 |
Washer 1/4 external star lock |
3 |
|
| 030 |
999-0294 |
Nut 1/4-20 hex nylon lock type NE stainless steel |
3 |
|
| 031 |
170-7146 |
Static strap |
1 |
|
| 032 |
170-7011 |
Solenoid valve |
1 |
|
| 033 |
170-7102 |
Solution hose |
1 |
|
| 034 |
997-2002 |
Hose clamp #6 |
2 |
|
| 035 |
999-0334 |
Bolt 1/4-20 x 3/4 inch hex head stainless steel |
2 |
|
| 036 |
997-2001 |
Hose clamp |
1 |
|
| 037 |
170-8894 |
Steering controller |
1 |
|
| 038 |
999-0335 |
Washer 1/4 x 5/8 SAE flat stainless steel |
2 |
|
| 039 |
170-8895 |
Brush carriage stop pad |
1 |
|
| 041 |
170-7101 |
Battery drain valve |
1 |
|
| 042 |
170-8896 |
Steering controller bracket (OBSOLETE) |
1 |
|
| N/S |
170-8900 |
Solution tank clamp grip (OBSOLETE) |
1 |
|
|
|

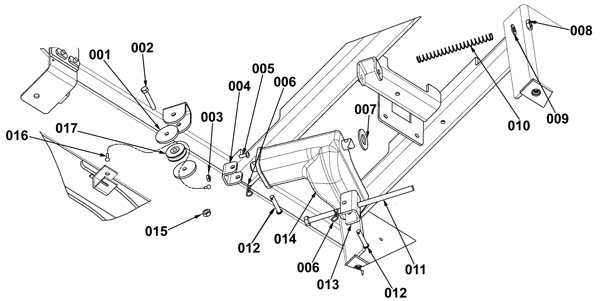

Side Squeegee Lift Assembly - 272-2411 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 001 |
170-7115 |
Washer 1 1/2 x 1/8 flat nylon |
2 |
|
| 002 |
999-0506 |
Bolt 1/4-20 x 1 1/2 hex head stainless steel |
1 |
|
| 003 |
999-0211 |
Nut 5/16-18 hex nylon insert lock zinc plated |
1 |
|
| 004 |
170-8901 |
Squeegee lift cable bracket (OBSOLETE) |
1 |
|
| 005 |
999-0267 |
Screw 10-24 x 1/2 pan head phillips zinc |
1 |
|
| 006 |
170-0135 |
Cotter pin (OBSOLETE) |
2 |
|
| 007 |
999-0349 |
Washer 5/8 SAE flat |
1 |
|
| 008 |
999-0211 |
Nut 5/16-18 hex nylon insert lock zinc plated |
1 |
|
| 009 |
999-0549 |
Washer 5/16 x 3/4 SAE flat stainless steel |
1 |
|
| 010 |
170-8992 |
Actuator spring (OBSOLETE) |
1 |
|
| 011 |
170-8993 |
Bolt 5/8-18 x 7 hex head stainless steel |
1 |
|
| 012 |
170-8994 |
Clevis pin (OBSOLETE) |
2 |
|
| 013 |
170-7249 |
Rear mount actuator bracket (OBSOLETE) |
1 |
|
| 014 |
170-7250 |
Squeegee lift actuator |
1 |
|
| 015 |
999-0294 |
Nut 1/4-20 hex nylon lock type NE stainless steel |
1 |
|
| 016 |
170-8168 |
Squeegee lift cable (OBSOLETE) |
1 |
|
| 017 |
372-2615 |
Squeegee pulley cable |
1 |
|
|
|
Front Wheel Assembly - 272-2412 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 001 |
999-1197 |
Bolt 3/4-16 x 6 hex head grade 5 plain finish |
1 |
|
| 002 |
170-7357 |
Steering yoke weldment (OBSOLETE) |
1 |
|
| 003 |
999-0032 |
Washer 3/8 USS flat plain finish |
4 |
|
| 004 |
999-0659 |
Washer 3/8 medium split lock stainless steel |
4 |
|
| 005 |
999-0812 |
Screw 3/8-16 x 7/8 hex head grade 5 plain finish |
4 |
|
| 006 |
170-7358 |
Nut 3/4-16 |
1 |
|
| 007 |
N/A |
Not available |
1 |
(Spacer) (available with 010) |
| 008 |
170-7142 |
Nut 1/2-20 lug (OBSOLETE) |
4 |
|
| 009 |
170-8885 |
10 inch solid wheel |
1 |
|
| 010 |
270-0120 |
Front wheel hub assembly |
1 |
(includes 007, 011 and 012) |
| 011 |
N/A |
Not available |
2 |
(Bearing) (available with 010) |
| 012 |
N/A |
Not available |
2 |
(Spacer) (available with 010) |
| 013 |
999-0711 |
Bolt 1/2-20 x 1 1/2 hex head grade 5 zinc plated |
4 |
|
|
|

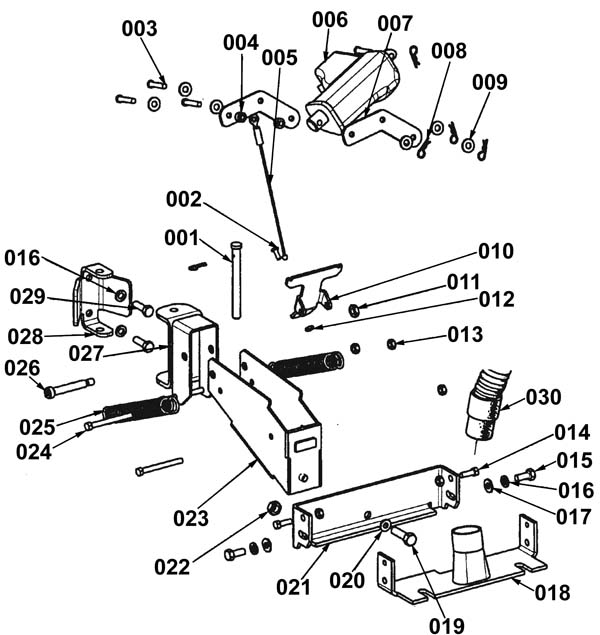

Rear Squeegee Lift Assembly - 272-2413 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 001 |
170-0145 |
Clevis pin |
1 |
|
| 002 |
999-0267 |
Screw 10-24 x 1/2 pan head phillips zinc |
1 |
|
| 003 |
170-8994 |
Clevis pin (OBSOLETE) |
4 |
|
| 004 |
170-7363 |
Spacer (OBSOLETE) |
2 |
|
| 005 |
170-8166 |
Squeegee lift cable |
1 |
|
| 006 |
170-7364 |
Squeegee actuator |
1 |
|
| 008 |
170-0135 |
Cotter pin (OBSOLETE) |
5 |
|
| 009 |
999-0335 |
Washer 1/4 x 5/8 SAE flat stainless steel |
6 |
|
| 010 |
170-7366 |
Spring lever (OBSOLETE) |
1 |
|
| 011 |
999-0211 |
Nut 5/16-18 hex nylon insert lock zinc plated |
1 |
|
| 012 |
999-0211 |
Nut 5/16-18 hex nylon insert lock zinc plated |
1 |
|
| 013 |
999-0294 |
Nut 1/4-20 hex nylon lock type NE stainless steel |
5 |
|
| 014 |
999-0334 |
Bolt 1/4-20 x 3/4 inch hex head stainless steel |
2 |
|
| 015 |
999-1186 |
Screw 5/16-24 x 3/4 hex head |
2 |
|
| 016 |
999-0028 |
Washer 5/16 split lock plain finish |
4 |
|
| 017 |
999-0549 |
Washer 5/16 x 3/4 SAE flat stainless steel |
2 |
|
| 018 |
170-7119 |
Squeegee hose bracket |
1 |
|
| 019 |
999-0649 |
Bolt 3/8-16 x 1 1/4 hex head stainless steel |
1 |
|
| 020 |
999-0617 |
Washer 3/8 x 1 flat stainless steel |
1 |
|
| 021 |
170-7118 |
Squeegee mounting bracket |
1 |
|
| 022 |
999-0188 |
Nut 3/8-16 nylon insert lock zinc plated |
1 |
|
| 023 |
170-7367 |
Rear arm weldment |
1 |
|
| 024 |
999-1187 |
Bolt 1/4-20 x 2 1/2 hex head stainless steel |
2 |
|
| 025 |
170-7116 |
Squeegee pressure spring |
2 |
|
| 026 |
170-2069 |
Screw 3/8-16 x 2 shoulder |
2 |
|
| 027 |
170-7368 |
Front arm mount |
1 |
|
| 028a |
170-7369 |
Squeegee mount bracket |
1 |
(rotary) |
| 028b |
170-8898 |
Squeegee mount bracket |
1 |
(cylindrical) |
| 029 |
999-0132 |
Bolt 5/16-18 x 3/4 hex head grade 5 zinc plated |
2 |
|
| 030 |
170-7273 |
Squeegee vacuum hose |
1 |
|
|
|

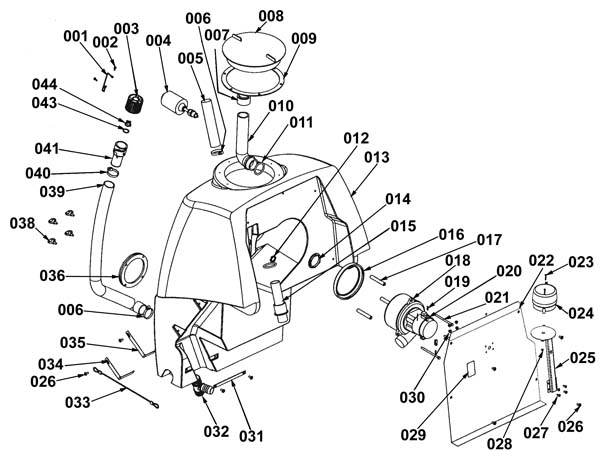

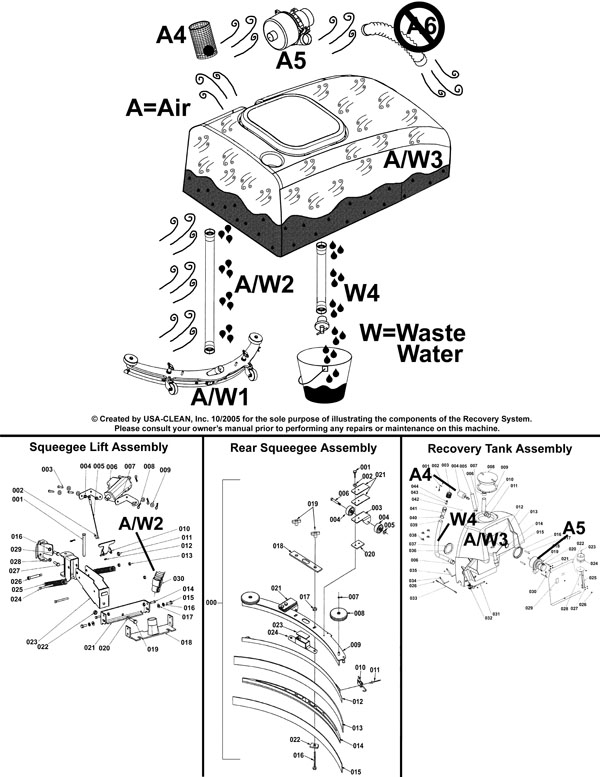

Recovery Tank Assembly - 272-2414 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 001 |
170-0268 |
Drain chain assembly |
1 |
|
| 002 |
999-0110 |
Screw 10-16 x 1/2 pan head phillips self-drilling |
2 |
|
| 003 |
170-7251 |
Drain hose housing |
1 |
|
| 004 |
170-7081 |
Float switch (includes strain relief) |
1 |
|
| 005 |
170-7252 |
Vacuum exhaust hose |
1 |
|
| 006 |
997-2000 |
Hose clamp |
1 |
|
| 007 |
170-7104 |
Vacuum filter screen |
1 |
|
| 008 |
170-7253 |
Recovery tank lid (OBSOLETE) |
1 |
|
| 009 |
170-7254 |
Recovery tank lid gasket (OBSOLETE) |
1 |
|
| 010 |
170-1361 |
Vacuum standpipe |
1 |
|
| 012 |
170-0294 |
Nut 1/2 conduit lock |
1 |
|
| 013 |
170-7256 |
Recovery tank |
1 |
|
| 015 |
170-7257 |
Straight tube (OBSOLETE) |
1 |
|
| 016a |
164-0881 |
Vacuum motor gasket |
1 |
|
| 016b |
991-3029 |
Vacuum motor gasket |
1 |
(NON-OEM) |
| 017 |
170-0274 |
Vacuum motor spacer |
3 |
|
| 018a |
270-0102 |
36V 3 stage vacuum motor |
1 |
(Alto-Clarke) |
| 018b |
991-1202 |
36V 3 stage vacuum motor tangential |
1 |
(NON-OEM) |
| 018c |
991-1222 |
Plastic covered carbon brush (sold individually) |
2 |
|
| 020 |
170-0280 |
Connector housing (black) |
2 |
|
| 021 |
999-0165 |
Bolt 1/4-20 x 4 hex head grade 5 zinc plated |
3 |
|
| 022 |
170-7258 |
Access panel |
1 |
|
| 023 |
999-0656 |
Screw #6-32 x 7/8 pan head phillips zinc plated |
2 |
(optional) |
| 024 |
170-7259 |
Strobe light |
1 |
(optional) |
| 025 |
170-7260 |
Strobe light bracket (OBSOLETE) |
1 |
(optional) |
| 026 |
999-0522 |
Screw 1/4-20 x 1/2 pan head phillips stainless steel |
8 |
|
| 027 |
999-0723 |
Screw 10-32 x 1/2 pan head slotted stainless steel |
4 |
(optional) |
| 028 |
999-0227 |
Nut 6-32 hex nylon insert lock jam zinc plated |
2 |
|
| 029 |
170-0230 |
Falling parts warning decal |
1 |
|
| 030 |
999-0460 |
Nut 10-32 hex |
4 |
(optional) |
| 031 |
170-7262 |
Lower hose retainer |
1 |
|
| 032 |
170-7261 |
Hose coupler |
1 |
|
| 033 |
170-7263 |
Cable (OBSOLETE) |
1 |
|
| 034 |
170-7264 |
Middle hose retainer |
1 |
|
| 035 |
170-7265 |
Upper hose retainer (OBSOLETE) |
1 |
|
| 036 |
170-7266 |
Clean-out gasket |
1 |
(optional) |
| 038 |
170-7268 |
Knob |
4 |
(optional) |
| 039 |
170-1819 |
Drain hose (OBSOLETE) |
1 |
|
| 040 |
164-0218 |
Nylon hose clamp |
2 |
|
| 041 |
170-7269 |
Drain valve (OBSOLETE) |
1 |
|
| 044 |
170-7272 |
Drain plug |
1 |
|
| N/S |
170-7267 |
Clean-out drain |
1 |
(optional) |
| N/S |
170-7270 |
Water level sensor (OBSOLETE) |
1 |
(optional) |
| N/S |
170-7273 |
Squeegee vacuum hose |
1 |
|
| N/S |
170-7274 |
Vacuum hose with cuff (OBSOLETE) |
1 |
|
| N/S |
170-1792 |
Hose connector |
1 |
|
|
|

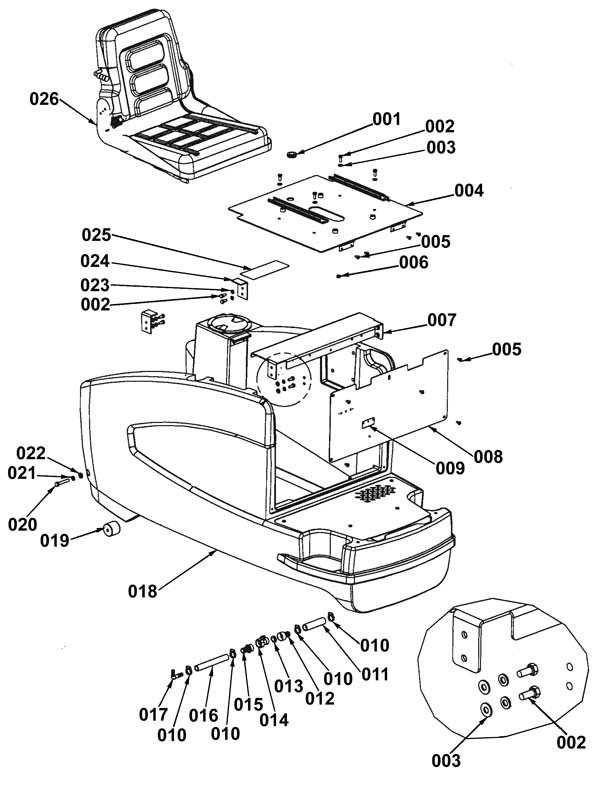

Solution Tank Assembly - Internal - 272-2415 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 001 |
170-0776 |
Rubber grommet |
1 |
|
| 002 |
999-0132 |
Bolt 5/16-18 x 3/4 hex head grade 5 zinc plated |
12 |
|
| 003 |
999-0549 |
Washer 5/16 x 3/4 SAE flat stainless steel |
13 |
|
| 004 |
170-7275 |
Seat support plate (OBSOLETE) |
1 |
|
| 005 |
999-0522 |
Screw 1/4-20 x 1/2 pan head phillips stainless steel |
9 |
|
| 006 |
999-0593 |
Nut 5/16-18 hex stainless steel |
1 |
|
| 007 |
170-7277 |
Seat assembly mount (OBSOLETE) |
1 |
|
| 008 |
170-7278 |
Cover plate (OBSOLETE) |
1 |
|
| 009 |
170-7279 |
Battery charger decal |
1 |
|
| 010 |
997-2002 |
Hose clamp #6 |
4 |
|
| 011 |
170-7280 |
Hose 5/8 x 4 inch |
1 |
|
| 013 |
164-0065 |
Filter screen |
1 |
|
| 014 |
170-9017 |
Manual solution valve |
1 |
|
| 016 |
170-7102 |
Solution hose |
1 |
|
| 017 |
170-7287 |
90 degree strainer |
1 |
|
| 018 |
170-7281 |
Solution tank |
1 |
|
| 019 |
170-7282 |
Pivot (OBSOLETE) |
2 |
|
| 020 |
999-1079 |
Bolt 3/8-16 x 2 1/4 hex head grade 5 zinc plated |
2 |
|
| 021 |
999-0659 |
Washer 3/8 medium split lock stainless steel |
2 |
|
| 022 |
999-0032 |
Washer 3/8 USS flat plain finish |
2 |
|
| 023 |
999-0028 |
Washer 5/16 split lock plain finish |
8 |
|
| 024 |
170-7284 |
Seat stop bracket (OBSOLETE) |
2 |
|
| 025 |
170-7288 |
Battery installation decal (OBSOLETE) |
1 |
|
| 026 |
170-7285 |
Adjustable seat (OBSOLETE) |
1 |
|
|
|

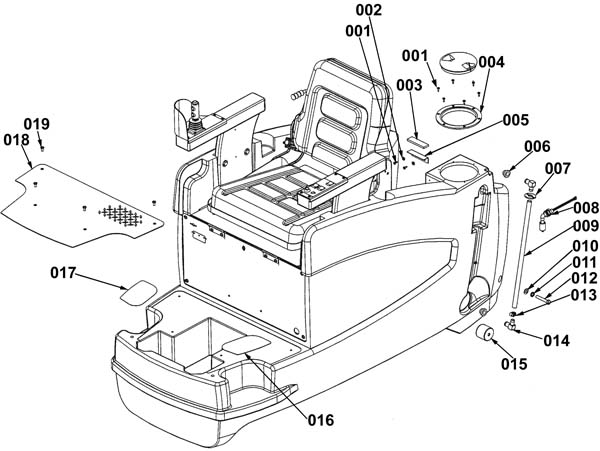

Solution Tank Assembly - External - 272-2416 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 001 |
999-0110 |
Screw 10-16 x 1/2 pan head phillips self-drilling |
8 |
|
| 002 |
999-0998 |
Washer #10 flat stainless steel |
2 |
|
| 004 |
170-7290 |
Solution tank lid (OBSOLETE) |
1 |
|
| 005 |
170-7291 |
Bracket (OBSOLETE) |
1 |
|
| 006 |
170-1387 |
Bushing fitting |
2 |
|
| 007 |
170-7293 |
Sight tube washer |
1 |
|
| 008 |
170-7270 |
Water level sensor (OBSOLETE) |
1 |
|
| 009 |
170-7294 |
Solution level indicator hose |
1 |
|
| 010 |
999-0032 |
Washer 3/8 USS flat plain finish |
10 |
|
| 011 |
999-0659 |
Washer 3/8 medium split lock stainless steel |
10 |
|
| 012 |
999-1079 |
Bolt 3/8-16 x 2 1/4 hex head grade 5 zinc plated |
2 |
|
| 013 |
997-2002 |
Hose clamp #6 |
1 |
|
| 015 |
170-7282 |
Pivot (OBSOLETE) |
2 |
|
| 016 |
170-7295 |
Left solution tank step pad |
1 |
|
| 017 |
170-7300 |
Right solution tank step pad |
1 |
|
| 018 |
170-7301 |
Deck plate (OBSOLETE) |
1 |
|
| 019 |
999-0343 |
Screw 1/4-20 x 1/4 pan head phillips stainless steel |
4 |
|
|
|

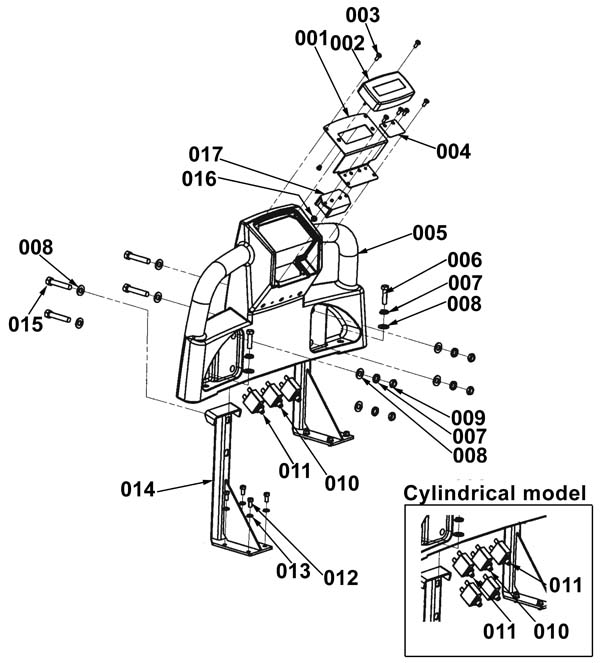

Front Cover Assembly - 272-2417 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 001 |
170-7299 |
LCD display module |
1 |
|
| 002 |
170-7298 |
LCD control panel display |
1 |
|
| 003 |
999-0723 |
Screw 10-32 x 1/2 pan head slotted stainless steel |
6 |
|
| 004 |
270-0121 |
Solution level decal (OBSOLETE) |
1 |
|
| 005 |
170-7296 |
Front cover (OBSOLETE) |
1 |
|
| 006 |
999-0162 |
Bolt 5/16-18 x 1 1/4 hex head grade 5 zinc plated |
2 |
|
| 007 |
999-0659 |
Washer 3/8 medium split lock stainless steel |
6 |
|
| 008 |
999-0032 |
Washer 3/8 USS flat plain finish |
10 |
|
| 009 |
999-0170 |
Nut 3/8-16 hex plain finish |
4 |
|
| 010 |
991-1625 |
30amp circuit breaker |
1 x 3 |
(brush) |
| 011 |
991-1627 |
5amp circuit breaker |
2 |
(main/key switch) |
| 012 |
999-0019 |
Bolt 1/4-20 x 5/8 hex head grade 5 zinc plated |
8 |
|
| 013 |
999-0060 |
Washer 1/4 split lock plain finish |
8 |
|
| 014 |
170-8878 |
Cover mount (OBSOLETE) |
2 |
|
| 015 |
999-0550 |
Bolt 3/8-16 x 2 hex head stainless steel |
4 |
|
| 016 |
999-0460 |
Nut 10-32 hex |
2 |
|
| 017 |
170-7297 |
Solution level module |
1 |
|
|
|

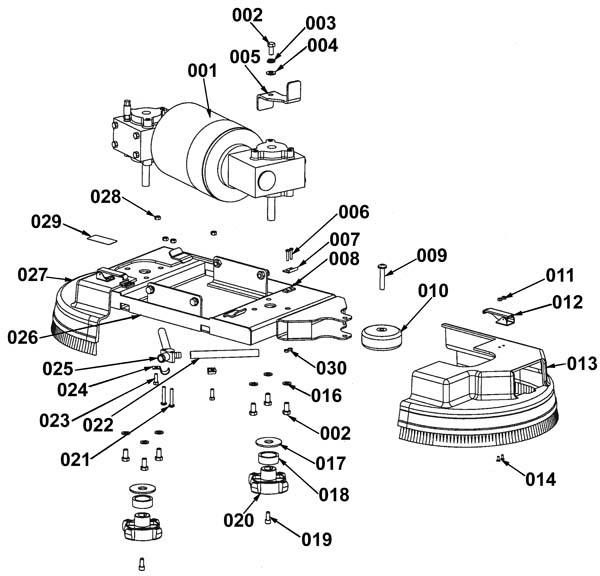

Brush Head Assembly - 272-2419 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 001a |
170-7339 |
36V dual gear box brush motor (OBSOLETE) |
1 |
|
| 001b |
164-0132 |
Square keyway 1/4 x 1/4 |
2 |
|
| 002 |
999-0119 |
Bolt 3/8-16 x 3/4 hex head grade 5 zinc plated |
12 |
|
| 003 |
999-0659 |
Washer 3/8 medium split lock stainless steel |
2 |
|
| 004 |
999-0032 |
Washer 3/8 USS flat plain finish |
2 |
|
| 005a |
170-7340 |
Squeegee plate |
1 |
(automatic side) |
| 005b |
170-7341 |
Squeegee plate |
1 |
(manual side) |
| 006 |
999-1356 |
Screw 8-32 x 7/8 pan head phillips stainlesss steel |
4 |
|
| 008 |
170-7342 |
Keeper spacer (OBSOLETE) |
2 |
|
| 009 |
999-9074 |
Screw 5/16-18 x 1 1/2 flat head stainless steel |
1 |
|
| 010 |
170-7343 |
4 inch guide wheel (OBSOLETE) |
1 |
|
| 011 |
999-1036 |
Nut 8-32 hex NTM nylon insert jam lock stainless steel |
4 |
|
| 012 |
170-7019 |
Brush deck latch |
2 |
|
| 013 |
170-7344 |
28 inch right main brush housing |
1 |
|
| 014 |
999-9075 |
Screw 10-32 x 3/8 flat head socket steel |
2 |
|
| 016 |
999-0659 |
Washer 3/8 medium split lock stainless steel |
10 |
|
| 017 |
170-0706 |
Washer 3/4 rubber |
2 |
|
| 018 |
170-0233 |
Brush driver collar - See pop-up (OBSOLETE) |
2 |
|
| 019 |
170-1599 |
Screw 5/16-18 x 3/4 socket head nylock |
2 |
|
| 020a |
170-0207 |
Male gimbal with collar |
2 |
|
| 020b |
170-0207 |
Male gimbal with collar |
1 |
|
| 021 |
999-0398 |
Screw 1/4-20 x 1 1/2 pan head phillips zinc plated |
2 |
|
| 022 |
154-0037 |
Tubing 1/2 x 5/8 (clear) (sold by the foot) |
2 |
|
| 023 |
999-0334 |
Bolt 1/4-20 x 3/4 inch hex head stainless steel |
2 |
|
| 024 |
170-0198 |
Hose clamp |
2 |
|
| 025 |
170-7013 |
Solution splitter |
1 |
|
| 026 |
170-7346 |
28 inch brush motor frame (OBSOLETE) |
1 |
|
| 027 |
170-7347 |
28 inch left main brush housing |
1 |
|
| 028 |
999-0294 |
Nut 1/4-20 hex nylon lock type NE stainless steel |
4 |
|
| 029 |
170-0226 |
Moving warning decal |
1 |
|
| 030 |
999-0357 |
Nut 8-32 nylon insert lock stainless steel |
4 |
|
|
|

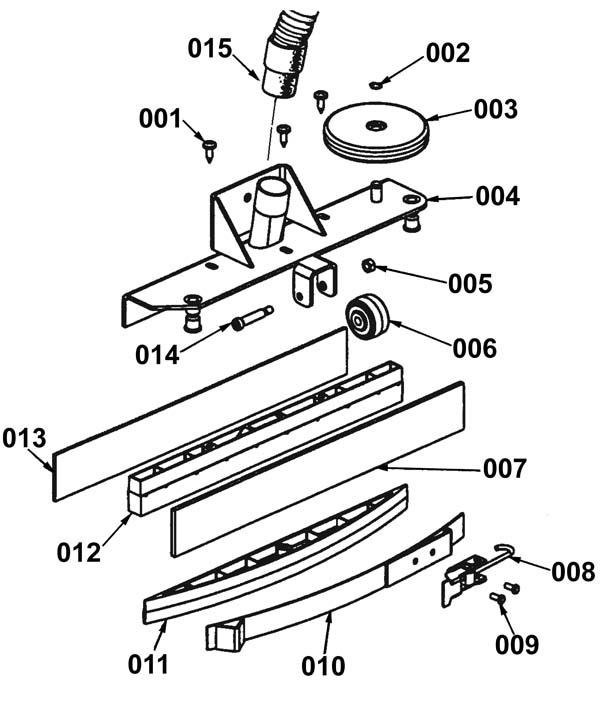

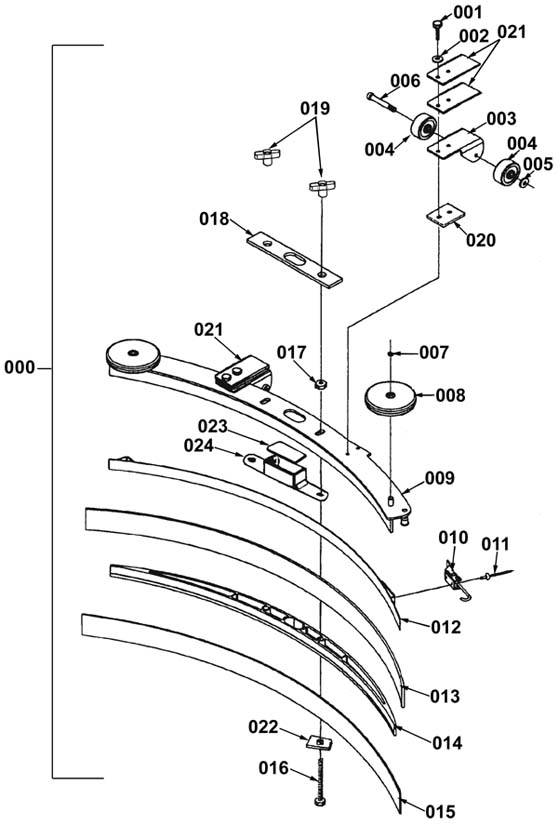

Rear Squeegee Assembly - 272-2423 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 000a |
170-1668 |
32 inch squeegee assembly |
1 |
(28 inch) |
| 000b |
170-7188 |
39 inch squeegee assembly |
1 |
(34 inch) |
| 000c |
270-0649 |
41 inch squeegee assembly (OBSOLETE) |
1 |
(optional) |
| 001a |
999-0830 |
Screw 1/4-20 x 1 hex head plain finish |
4 |
(28 inch) |
| 001b |
999-9073 |
Screw 12-24 x 1 hex head slotted zinc indent |
4 |
(34 inch) |
| 002 |
999-0060 |
Washer 1/4 split lock plain finish |
4 |
|
| 003 |
170-7168 |
Squeegee wheel bracket |
2 |
|
| 004 |
170-7169 |
Squeegee wheel |
4 |
|
| 005 |
999-0294 |
Nut 1/4-20 hex nylon lock type NE stainless steel |
2 |
|
| 006 |
170-7170 |
Bolt 5/16 x 2 1/4 shoulder |
2 |
|
| 008 |
170-7172 |
4 inch guide wheel |
2 |
|
| 009a |
170-7173 |
32 inch squeegee weldment |
1 |
(28 inch) |
| 009b |
170-7161 |
39 inch squeegee weldment |
1 |
(34 inch) |
| 009c |
270-0132 |
41 inch squeegee weldment |
1 |
(optional) |
| 010 |
170-7162 |
Clamp latch |
1 |
|
| 011 |
170-7163 |
Aluminum rivet |
2 |
|
| 012a |
170-7175 |
32 inch retainer clamp strap |
1 |
(28 inch) |
| 012b |
170-7164 |
39 inch retainer clamp strap |
1 |
(34 inch) |
| 012c |
270-0133 |
41 inch retainer clamp strap |
1 |
(optional) |
| 013a |
270-0134 |
Squeegee blade 32 inch gum rubber rear (tan) |
1 |
(28 inch) |
| 013b |
170-7336 |
Squeegee blade 32 inch linatex rear (OBSOLETE) |
1 |
(28 inch) |
| 013c |
170-8919 |
Squeegee blade 39 inch linatex notched rear |
1 |
(34 inch) |
| 013d |
170-7334 |
Squeegee blade 39 inch linatex rear (red) |
1 |
(34 inch) |
| 013e |
170-8171 |
Squeegee blade 42 inch gum rubber rear (tan) |
1 |
(optional) (OEM) |
| 013f |
994-0022 |
Squeegee blade 42 inch gum rubber rear (tan) |
1 |
(optional) (NON-OEM) |
| 013g |
270-0084 |
Squeegee blade 41 inch linatex rear BOOST |
1 |
(optional) |
| 014a |
170-7176 |
32 inch squeegee spacer |
1 |
(28 inch) |
| 014b |
170-7159 |
39 inch squeegee spacer |
1 |
(34 inch) |
| 014c |
270-0135 |
41 inch squeegee spacer |
2 |
(optional) |
| 015a |
170-7165 |
Squeegee blade 33 inch urethane front (clear) |
1 |
(28 inch) (OEM) |
| 015b |
994-0019 |
Squeegee blade 33 inch urethane front (clear) |
1 |
(28 inch) (NON-OEM) |
| 015c |
170-8935 |
Squeegee blade 32 inch front linatex (red) |
1 |
(28 inch) (OEM) |
| 015d |
994-0023 |
Squeegee blade 32 inch gum rubber front notched (red) |
1 |
(28 inch) (NON-OEM) |
| 015e |
170-7167 |
Squeegee blade 40 1/4 inch urethane front (clear) |
1 |
(34 inch) (OEM) |
| 015f |
994-0021 |
Squeegee blade 40 1/4 inch urethane front (clear) |
1 |
(34 inch) (NON-OEM) |
| 015g |
270-0083 |
Squeegee blade 41 inch gum rubber front BOOST |
1 |
(optional) |
| 016 |
999-0887 |
Bolt 3/8-16 x 3 hex head hot dipped galvanized |
2 |
|
| 017 |
999-0628 |
Nut 3/8-16 hex jam stainless steel |
2 |
|
| 021 |
170-7338 |
Squeegee weight |
2 |
(optional) |
| 022 |
170-3394 |
Back up nut |
2 |
|
| 023 |
170-0166 |
Squeegee gripping pad |
1 |
|
| 024 |
170-7126 |
Air duct (OBSOLETE) |
1 |
|
|
|
Front Squeegee Assembly - 272-2424 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 001 |
999-0717 |
Screw 1/4-14 x 3/4 pan head phillips self-drilling SS |
3 |
|
| 003 |
170-7172 |
4 inch guide wheel |
1 |
|
| 004 |
170-7449 |
Front squeegee base weldment (OBSOLETE) |
1 |
|
| 005 |
999-0294 |
Nut 1/4-20 hex nylon lock type NE stainless steel |
1 |
|
| 006 |
170-3310 |
Front wheel |
1 |
|
| 007 |
170-8169 |
Squeegee blade gum rubber rear (tan) (OBSOLETE) |
1 |
|
| 008 |
170-7162 |
Clamp latch |
1 |
|
| 009 |
170-7163 |
Aluminum rivet |
2 |
|
| 010 |
170-7450 |
Squeegee weldment strap (OBSOLETE) |
1 |
|
| 011 |
170-7451 |
Secondary squeegee wedge |
1 |
|
| 012 |
170-7452 |
Secondary squeegee spacer |
1 |
|
| 013 |
994-0019 |
Squeegee blade 33 inch urethane front (clear) |
1 |
OEM blade no longer available |
| 014 |
999-0813 |
Bolt 5/16-18 x 1 x 1/4-20 socket head shoulder |
1 |
|
| 015 |
170-7453 |
Squeegee vacuum hose |
1 |
|
|
|

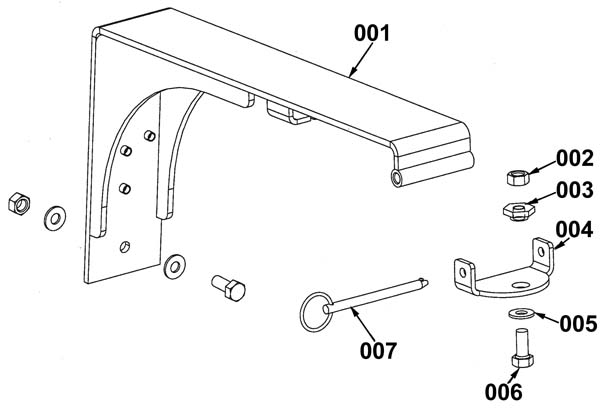

Front Squeegee Arm Assembly - 272-2425 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 001 |
170-8167 |
Weldment arm |
1 |
|
| 002 |
999-0593 |
Nut 5/16-18 hex stainless steel |
2 |
|
| 004 |
170-1956 |
Pivot arm (OBSOLETE) |
1 |
|
| 005 |
999-0549 |
Washer 5/16 x 3/4 SAE flat stainless steel |
3 |
|
| 006 |
999-0132 |
Bolt 5/16-18 x 3/4 hex head grade 5 zinc plated |
2 |
|
| 007 |
170-8871 |
Quick release pin |
1 |
|
| N/S |
170-7338 |
Squeegee weight |
2 |
(optional) |
|
|

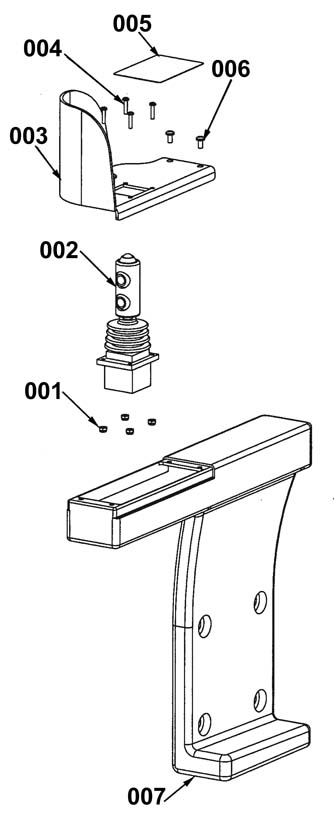

Right Arm Control Assembly - 272-2426 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 001 |
999-0227 |
Nut 6-32 hex nylon insert lock jam zinc plated |
4 |
|
| 002 |
170-7454 |
3 button joystick weldment (OBSOLETE) |
1 |
|
| 003 |
170-7458 |
Joystick control panel (OBSOLETE) |
1 |
|
| 004 |
999-0365 |
Screw 6-32 x 5/8 pan head phillips zinc plated |
4 |
|
| 005 |
170-7456 |
Joystick panel decal (OBSOLETE) |
1 |
|
| 006 |
999-0409 |
Screw 10-24 x 3/8 pan head slotted zinc plated |
4 |
|
| 007 |
170-7457 |
Right arm control |
1 |
|
|
|

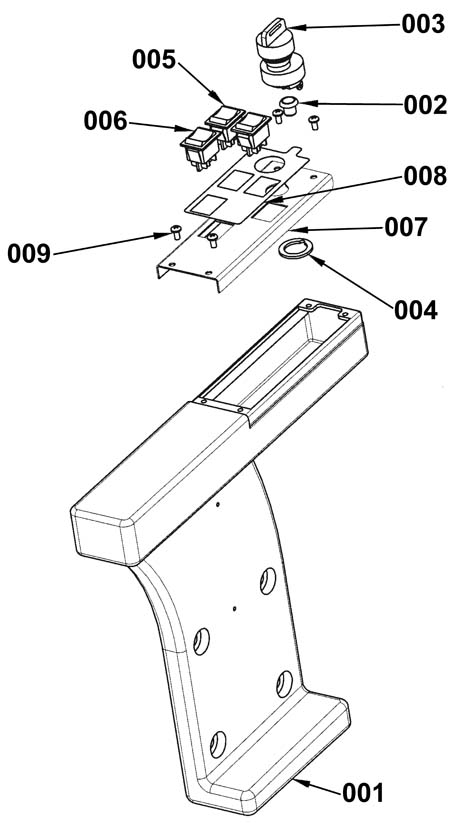

Left Arm Control Assembly - 272-2427 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 001 |
170-7463 |
Left arm control |
1 |
|
| 002 |
170-7459 |
Momentary push switch (OBSOLETE) |
1 |
|
| 003a |
170-9026 |
Key switch |
1 |
|
| 004 |
272-8524 |
Key switch spacer |
1 |
|
| 005 |
170-7538 |
Momentary rocker switch |
2 |
|
| 006 |
170-7461 |
Maintained rocker switch |
1 |
|
| 007 |
270-0138 |
Control panel |
1 |
|
| 008 |
270-0139 |
Control panel decal (OBSOLETE) |
1 |
|
| 009 |
999-0409 |
Screw 10-24 x 3/8 pan head slotted zinc plated |
4 |
|
|
|

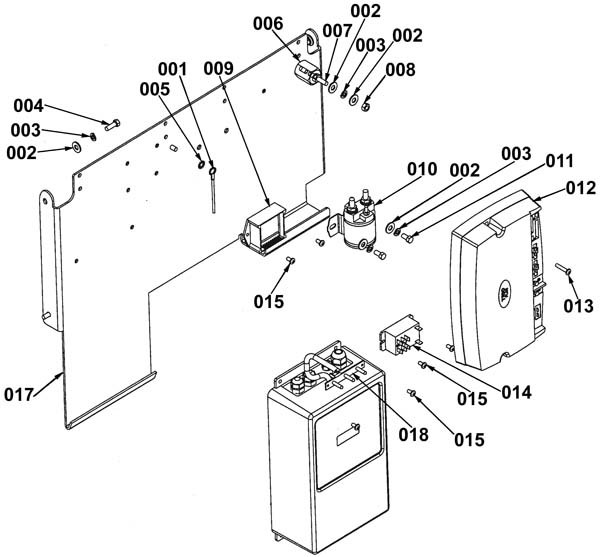

Electrical Panel Assembly - 272-2428 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 001a |
170-7464 |
Main power harness (OBSOLETE) |
1 |
(rotary) |
| 001b |
270-0140 |
Main power harness (OBSOLETE) |
1 |
(cylindrical) |
| 002 |
999-0335 |
Washer 1/4 x 5/8 SAE flat stainless steel |
8 |
|
| 003 |
999-0060 |
Washer 1/4 split lock plain finish |
7 |
|
| 004 |
999-0275 |
Screw 1/4-20 x 3/4 hex washer hd unslotted thread rolling |
4 |
|
| 005 |
999-0017 |
Washer 1/4 external star lock |
1 |
|
| 006 |
170-0063 |
Insulated stand off |
1 |
|
| 007 |
170-0064 |
Stud 1/4-20 |
1 |
|
| 008 |
999-0294 |
Nut 1/4-20 hex nylon lock type NE stainless steel |
1 |
|
| 009 |
170-7466 |
Speed interface module (OBSOLETE) |
1 |
|
| 010 |
172-2805 |
36V contactor |
1 |
|
| 011 |
999-0273 |
Screw 1/4-20 x 1/2 hex washer head thread rolling zinc |
2 |
|
| 012a |
270-0142 |
Main controller |
1 |
(28 inch) |
| 012b |
170-7468 |
Main controller (OBSOLETE) |
1 |
(34 inch) |
| 013 |
999-0389 |
Screw 10-32 x 1 round head slotted zinc plated |
1 |
|
| 014 |
172-1779 |
36V relay SPST |
1 |
|
| 015 |
999-0811 |
Screw 10-32 x 3/8 pan head phillips stainless steel |
6 |
|
| 017 |
170-7470 |
Electrical panel (OBSOLETE) |
1 |
|
| 018 |
170-7469 |
36V onboard battery charger with display and cord |
1 |
|
| N/S |
170-7471 |
Battery connection decal (OBSOLETE) |
1 |
|
| N/S |
170-8873 |
32 inch negative battery cable (OBSOLETE) |
1 |
|
| N/S |
170-8874 |
200amp fusable cable |
1 |
|
| N/S |
170-8872 |
24 inch positive battery cable |
1 |
|
| N/S |
170-7472 |
Logic harness (OBSOLETE) |
1 |
|
| N/S |
170-0229 |
Battery warning decal |
1 |
|
|
|

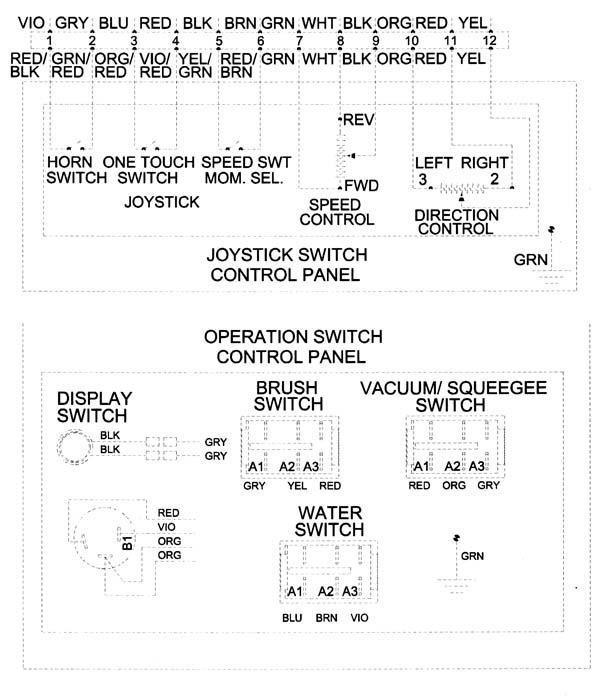

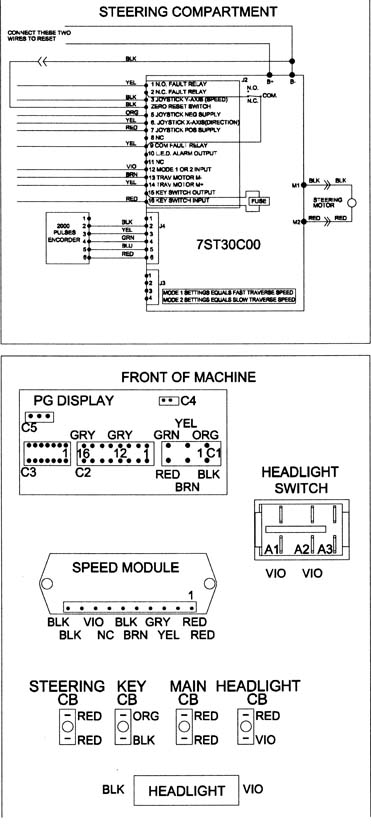

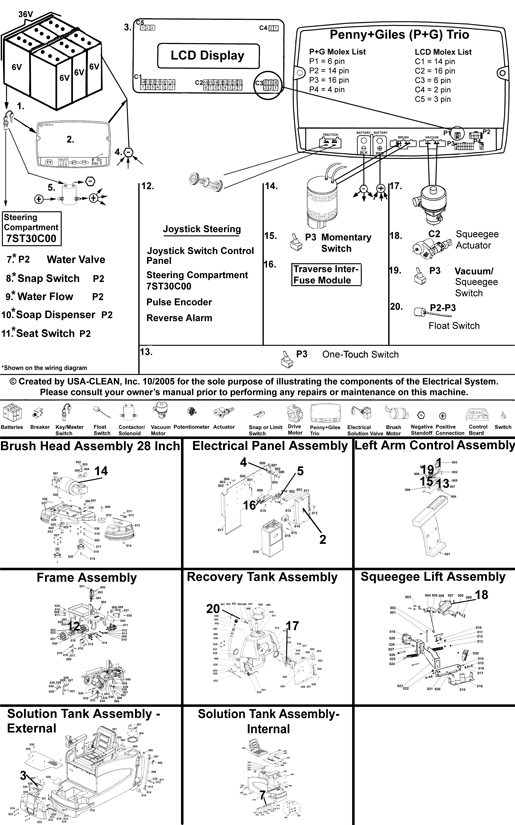

Electrical Connection Diagram 1 - |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
|
|

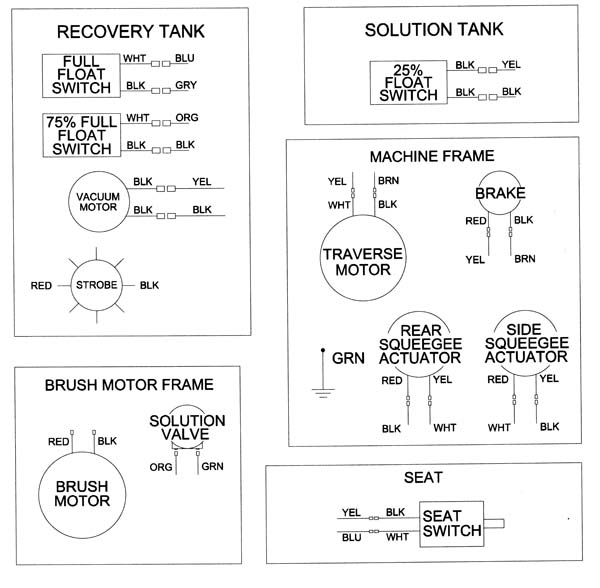

Electrical Connection Diagram 2 - |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
|
|

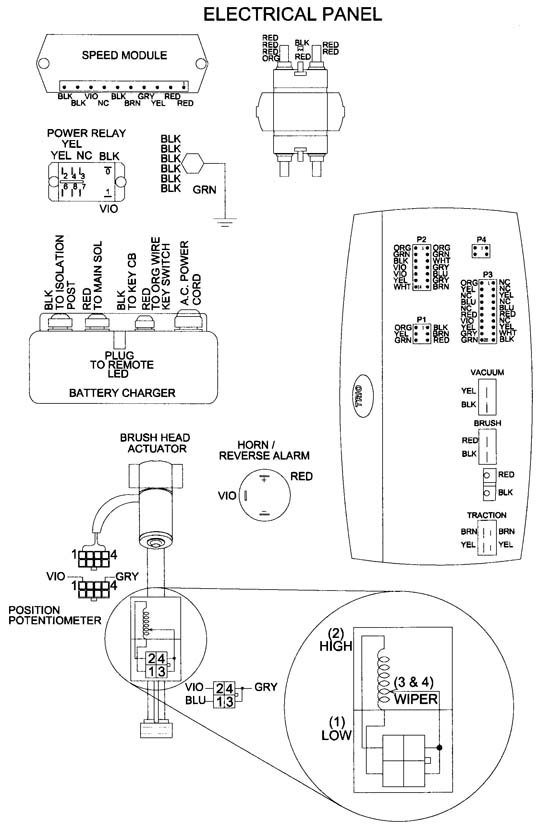

Electrical Connection Diagram 3 - |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
|
|
Electrical Connection Diagram 4 - |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
|
|

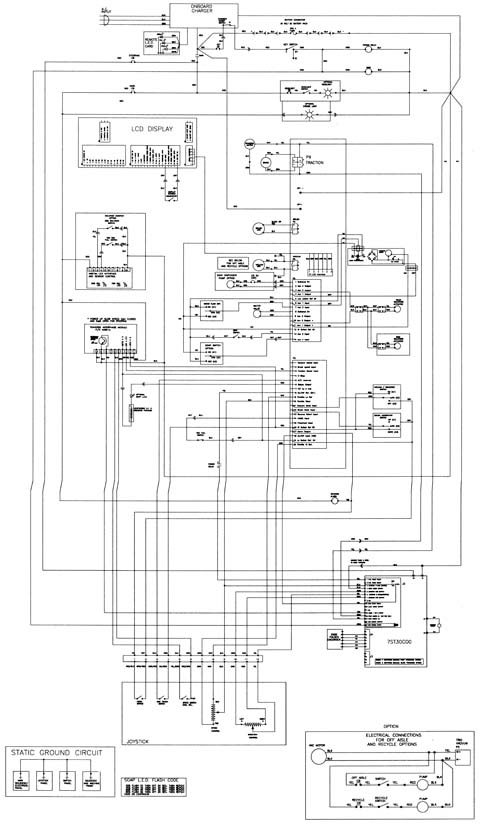

Wiring Diagram - |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
|
|
- Pad Holders - 275-9029 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
991-2214 |
Center-Lok II pad holder - left hand thread (red) |
|
|
| 2a |
991-2201 |
Center-Lok II pad holder - right hand thread (black) |
|
(Pad driver side female, Floor side male) |
| 2b |
991-8577 |
Pad retainer |
|
(Pad driver side male, Floor side female) |
| 3a |
991-2202 |
Big mouth pad holder set (blue) |
|
(includes 3 screws) |
| 3b |
991-2205 |
Deep lock ring and pad grip ring |
|
|
| 4 |
991-2203 |
Big mouth pad holder male thread portion |
|
|
| 5 |
991-2206 |
Center-Lok 3 pad holder |
|
(includes 3 screws) |
| 6 |
996-0372 |
Big mouth pad holder (left hand thread) |
|
|
| 8 |
991-2209 |
Split retainer - pad holder ring (OBSOLETE) |
|
|
| 9 |
N/A |
Not available |
|
(replaced by #3 991-2202) |
| 10 |
991-2211 |
Center lock pad holding cup (male) (yellow) (OBSOLETE) |
|
|
|
|
- Frequently Replaced Parts - 999-0043 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
162-0003 |
6V 225Ah wet battery (SNSR) |
6 |
|
| 2 |
162-0005 |
6V 305Ah wet battery (SNSR) |
6 |
|
| 3 |
162-0005 |
6V 305Ah wet battery (SNSR) |
6 |
|
| 4 |
162-0043 |
6V 224Ah AGM battery (Group GC2) |
6 |
|
| 5 |
162-0046 |
6V 335Ah AGM battery (Group J305) |
6 |
|
| 6a |
162-5063 |
36V 20amp battery charger with SB175 large gray plug |
|
|
| 6b |
162-5063 |
36V 20amp battery charger with SB175 large gray plug |
|
|
| 8 |
170-7469 |
36V onboard battery charger with display and cord |
|
|
| 9 |
991-2112 |
175amp charger plug with pins (gray) SB175 |
|
|
| 10 |
998-0010 |
Battery jumper cable - ring type (red) |
|
|
| 12 |
170-7538 |
Momentary rocker switch |
|
(vacuum) |
| 13 |
170-7461 |
Maintained rocker switch |
|
(brush) |
| 14 |
170-7011 |
Solenoid valve |
|
|
| 15 |
170-9017 |
Manual solution valve |
|
|
| 16 |
164-0065 |
Filter screen |
|
|
| 17 |
270-0134 |
Squeegee blade 32 inch gum rubber rear (tan) |
|
|
| 18 |
170-7336 |
Squeegee blade 32 inch linatex rear (OBSOLETE) |
|
|
| 19 |
170-8935 |
Squeegee blade 32 inch front linatex (red) |
|
|
| 19.1 |
994-0023 |
Squeegee blade 32 inch gum rubber front notched (red) |
|
(NON-OEM) |
| 20 |
170-7273 |
Squeegee vacuum hose |
|
|
| 21 |
170-7253 |
Recovery tank lid (OBSOLETE) |
|
|
| 22 |
170-7254 |
Recovery tank lid gasket (OBSOLETE) |
|
|
| 24 |
170-1819 |
Drain hose (OBSOLETE) |
|
|
| 25 |
270-0102 |
36V 3 stage vacuum motor |
|
(Alto-Clarke) |
| 26 |
991-1202 |
36V 3 stage vacuum motor tangential |
|
(NON-OEM) |
| 27 |
991-1222 |
Plastic covered carbon brush (sold individually) |
|
|
| 28 |
996-0390 |
13 inch heavy grit stripping brush - 80 grit |
|
|
| 29 |
996-0253 |
13 inch medium grit scrubbing brush - 180 grit |
|
|
| 30 |
996-0391 |
13 inch lite grit scrubbing brush - 500 grit |
|
|
| 31 |
996-3773 |
13 inch daily cleaning brush |
|
|
| 32 |
996-0323 |
13 inch Pad driver |
|
|
| 33 |
996-0336 |
Clutch plate with brush holder spring |
|
|
| 34 |
991-2206 |
Center-Lok 3 pad holder |
|
|
|
|
