- Commonly Asked For Parts - 170-9914 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 01 |
996-3171 |
12 inch pad driver (OBSOLETE) |
1 |
|
| 02 |
996-5265 |
Clutch plate (OBSOLETE) |
1 |
|
|
|
Solution Tank Kit - NON-OEM - 172-2089 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 000a |
209-0013 |
4 gallon solution tank kit for round handle side x sides |
1 |
(includes 001-018) |
| 000b |
209-0014 |
4 gallon solution tank kit for square handle side x sides |
1 |
|
| 000c |
209-0017 |
2 1/2 gallon solution tank kit (OBSOLETE) |
1 |
|
| 001 |
209-0033 |
Cap (black) |
1 |
|
| 002 |
209-0034 |
Brass handle rod (OBSOLETE) |
1 |
|
| 003 |
209-0035 |
1/8 inch grommet |
1 |
|
| 004 |
N/A |
Not available |
1 |
(Tank only) |
| 005 |
209-0036 |
Solution valve |
1 |
(includes 006 and 007) |
| 006 |
N/A |
Not available |
1 |
(Washer) |
| 007 |
209-0038 |
Nut 1/4 brass pipe thread straight |
1 |
|
| 008 |
209-0039 |
Hose barb 1/4 |
1 |
|
| 009 |
209-0040 |
Hose 3/8 x 24 inch |
1 |
|
| 010 |
209-0041 |
Coupling 1/8 brass |
1 |
|
| 011 |
209-0042 |
1/8 inch brass nipple |
1 |
|
| 012 |
209-0043 |
Washer 1/8 brass |
2 |
|
| 013 |
209-0044 |
Nut 1/8 brass lock (OBSOLETE) |
1 |
|
| 014 |
209-0045 |
Hose assembly (OBSOLETE) |
1 |
(includes 009-013) |
| 015 |
209-0046 |
5/16 inch u bolt |
2 |
(only used for round handle buffers) |
| 016 |
209-0047 |
Washer bar |
2 |
|
| 017 |
999-0069 |
Nut 5/16-18 hex |
2 |
|
| 018 |
209-0049 |
U bolt assembly (set of 2) |
1 |
(only used for round handle side x sides) (includes 015-017) |
| 019 |
209-0051 |
Advance adapter U-bolts assembly (set of 2) (OBSOLETE) |
1 |
|
|
|
- Pads - 255-1300 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 01 |
255-1340 |
13 inch aqua plus burnishing pad (pkg of 5) |
|
|
| 02 |
255-1335 |
13 inch Armadillo concrete scrubbing pad (pkg of 5) |
|
|
| 03 |
255-1364 |
13 inch Blue ace pad (pkg of 5) |
|
|
| 04 |
255-1342 |
13 inch Blue Jay burnishing pad (pkg of 5) |
|
|
| 05 |
255-1312 |
13 inch Cure white pad (pkg of 5) |
|
|
| 06 |
255-1377 |
13 inch Diamondback extreme stripping pad (pkg of 5) |
|
|
| 07 |
255-1338 |
13 inch EHD Extra Heavy Duty Concrete Leveling Pad (pkg of 2 |
|
|
| 08 |
255-1321 |
13 inch gorilla lite burnishing pad (pkg of 5) |
|
|
| 09 |
255-1350 |
13 inch gorilla spray buff/polish/burnish pad (pkg of 5) |
|
|
| 10 |
255-1365 |
13 inch Heat concrete bonding pad (pkg of 5) |
|
|
| 11 |
255-1330 |
13 inch jaguar burnishing pad (pkg of 5) |
|
|
| 12 |
255-1387 |
13 inch Melamine Mela-Kleen pad (pkg of 2) |
|
|
| 13 |
255-1390 |
13 inch premium black stripping pad (pkg of 5) |
|
|
| 14 |
255-1370 |
13 inch premium blue cleaning pad (pkg of 5) |
|
|
| 15 |
255-1392 |
13 inch premium brown stripping pad (pkg of 5) |
|
|
| 16 |
255-1380 |
13 inch premium green scrubbing pad (pkg of 5) |
|
|
| 17 |
255-1360 |
13 inch premium red scrubbing pad (pkg of 5) |
|
|
| 18 |
255-1352 |
13 inch premium tan polishing pad (pkg of 5) |
|
|
| 19 |
255-1320 |
13 inch premium white polishing pad (pkg of 5) |
|
|
| 20 |
255-1311 |
13 inch superspeed rubberized pad (pkg of 5) |
|
|
| 21 |
255-1395 |
13 inch razorback stripping pad (pkg of 5) |
|
|
| 22 |
255-1347 |
13 inch Redwood maroon floor prep pad (pkg of 10) |
|
|
| 23 |
255-1355 |
13 inch Ruff non-abrasive brush pad (pkg of 2) |
|
|
| 24 |
255-1323 |
13 inch sand screen driver pad (pkg of 2) |
|
|
| 25 |
255-0198 |
13 inch Superscreen sand screen 100 grit (pkg of 10) |
|
|
| 26 |
255-0199 |
13 inch Superscreen sand screen 120 grit (pkg of 10) |
|
|
| 27 |
255-0200 |
13 inch Superscreen sand screen 150 grit (pkg of 10) |
|
|
| 28 |
255-0201 |
13 inch Superscreen sand screen 180 grit (pkg of 10) |
|
|
| 29 |
255-0202 |
13 inch Superscreen sand screen 220 grit (pkg of 10) |
|
|
| 30 |
255-0203 |
13 inch Superscreen sand screen 400 grit (pkg of 10) |
|
|
| 31 |
255-0196 |
13 inch Superscreen sand screen 60 grit(pkg of 10) (OBSOLETE |
|
|
| 32 |
255-0197 |
13 inch Superscreen sand screen 80 grit (pkg of 10) |
|
|
| 33 |
255-0113 |
13 inch Professional sand screen 100 grit (pkg of 10) |
|
|
| 34 |
255-0114 |
13 inch Professional sand screen 120 grit (pkg of 10) |
|
|
| 35 |
255-0115 |
13 inch Professional sand screen 150 grit (pkg of 10) |
|
|
| 36 |
255-0116 |
13 inch Professional sand screen 180 grit (pkg of 10) |
|
|
| 37 |
255-0117 |
13 inch Pro sand screen 220 grit (pkg of 10) (OBSOLETE) |
|
|
| 38 |
255-0118 |
13 inch Professional sand screen 400 grit (pkg of 10) |
|
|
| 39 |
255-0111 |
13 inch Professional sand screen 60 grit (pkg of 10) |
|
|
| 40 |
255-0112 |
13 inch Professional sand screen 80 grit (pkg of 10) |
|
|
| 41 |
255-1324 |
13 inch Tiger carpet bonnet (pkg of 2) |
|
|
| 42 |
255-9542 |
13 inch Diamond by Gorilla 11000 Grit (pkg of 2) |
|
|
| 43 |
255-9539 |
13 inch Diamond by Gorilla 1500 Grit (pkg of 2) |
|
|
| 44 |
255-9536 |
13 inch Diamond by Gorilla 200 Grit (pkg of 2) |
|
|
| 45 |
255-9540 |
13 inch Diamond by Gorilla 3000 Grit (pkg of 2) |
|
|
| 46 |
255-9537 |
13 inch Diamond by Gorilla 400 Grit (pkg of 2) |
|
|
| 47 |
255-9538 |
13 inch Diamond by Gorilla 800 Grit (pkg of 2) |
|
|
| 48 |
255-9541 |
13 inch Diamond by Gorilla 8000 Grit (pkg of 2) |
|
|
| 49 |
255-9638 |
13 inch Diamond starter pack (1 of each grit) |
|
|
| 50 |
255-1382 |
13 inch Turbostrip segmented rotary pad (pkg of 4) |
|
|
| 51 |
255-1315 |
13 inch Duala clean and shine pad - low speed (pkg of 5) |
|
|
| 52 |
255-1316 |
13 inch 2001 Duala clean and shine pad-high speed (OBSOLETE) |
|
|
|
|

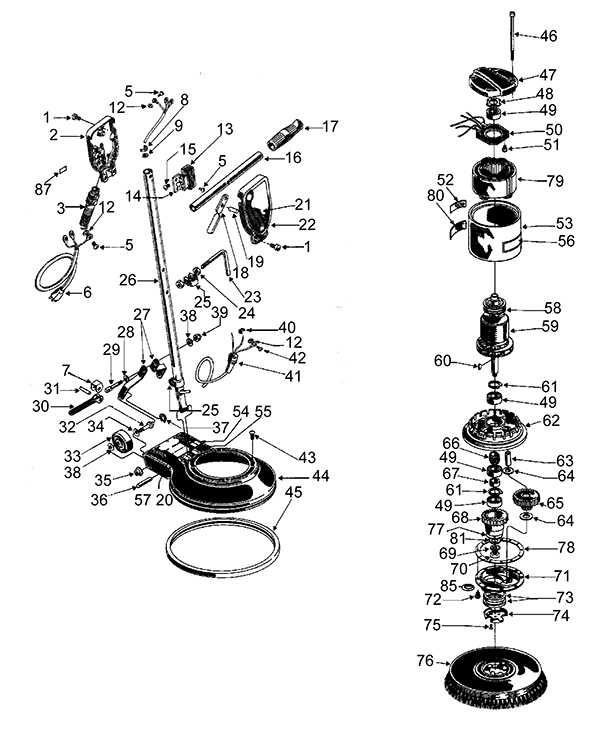

Complete Assembly - 270-0078 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
170-5576 |
Screw 1/4-20 x 3/4 socket cap |
3 |
|
| 2 |
170-5503 |
Rear switch housing cover |
1 |
|
| 3 |
170-5504 |
Strain reliever |
1 |
|
| 5 |
270-4937 |
Screw 8-32 x 5/16 |
4 |
|
| 6 |
170-5505 |
Power cord (OBSOLETE) |
1 |
|
| 7 |
170-5506 |
Cam lock stop plate (OBSOLETE) |
1 |
|
| 8 |
170-5507 |
Strain relief (OBSOLETE) |
1 |
|
| 9 |
170-5508 |
Wear washer (OBSOLETE) |
1 |
|
| 12 |
999-0092 |
Washer #8 internal star lock zinc plated |
3 |
|
| 14 |
170-5512 |
Switch mounting plate (OBSOLETE) |
1 |
|
| 15 |
270-0974 |
Screw 4-36 x 3/16 pan head stainless steal (OBSOLETE) |
2 |
|
| 16 |
170-5513 |
Cross handle tube (OBSOLETE) |
1 |
|
| 17 |
170-0532 |
Handle grip (OBSOLETE) |
2 |
|
| 19 |
170-5516 |
Dowel 3/16 diameter x 3/4 long (OBSOLETE) |
1 |
|
| 20 |
170-0775 |
1/8 inch rivet pop aluminum |
2 |
|
| 21 |
270-0975 |
Switch decal (OBSOLETE) |
1 |
|
| 23 |
170-2705 |
18 Hook cord (OBSOLETE) |
1 |
|
| 24 |
999-0247 |
Nut 3/8-16 hex jam plain finish |
2 |
|
| 25 |
170-5519 |
Handle tube clamp (OBSOLETE) |
2 |
|
| 26 |
170-5520 |
Handle tube (OBSOLETE) |
1 |
|
| 27 |
170-5521 |
Handle tube arm |
2 |
|
| 28 |
170-5522 |
Wear washer |
1 |
|
| 29 |
170-5523 |
Locking cam bolt (OBSOLETE) |
1 |
|
| 30 |
170-1267 |
Cam assembly with grip, bolt and locking lever |
1 |
|
| 32 |
170-5526 |
Wheel shaft (OBSOLETE) |
2 |
|
| 33 |
170-0165 |
Wheel (OBSOLETE) |
2 |
|
| 34 |
170-5527 |
Washer 13/32 x 11/16 spring (OBSOLETE) |
2 |
|
| 35 |
170-5528 |
Nut 3/8 push |
2 |
|
| 36 |
170-5529 |
Drive lock pin 3/8 x 2 1/4 (OBSOLETE) |
1 |
|
| 37 |
170-5530 |
Lock link arm ring (OBSOLETE) |
2 |
|
| 38 |
170-0304 |
Washer 15/32 x 1/32 |
2 |
|
| 39 |
999-0324 |
Nut 3/8-16 nylon insert lock jam zinc plated |
1 |
|
| 40 |
270-0977 |
Strain relief clip |
1 |
|
| 41 |
170-5531 |
Interconnecting cord (OBSOLETE) |
1 |
|
| 42 |
999-0317 |
Screw 8-32 x 1/4 pan head slotted zinc plated |
1 |
|
| 43 |
999-0522 |
Screw 1/4-20 x 1/2 pan head phillips stainless steel |
4 |
|
| 44 |
270-0978 |
Main frame (OBSOLETE) |
1 |
|
| 45 |
170-2523 |
Bumper red C1300 (OBSOLETE) |
1 |
|
| 46 |
270-0979 |
Screw 8-32 x 6 socket cup stainless steel cap (OBSOLETE) |
4 |
|
| 47 |
270-0980 |
Motor cover (OBSOLETE) |
1 |
|
| 48 |
170-2438 |
56 Spring load |
1 |
|
| 50 |
170-9025 |
Stationary switch (OBSOLETE) |
1 |
|
| 51 |
999-0463 |
Screw 6-32 x 3/8 pan head slotted zinc plated |
2 |
|
| 52 |
N/A |
Not available |
1 |
(Serial number plate) |
| 53 |
170-2511 |
Housing motor west fm-13 (OBSOLETE) |
1 |
|
| 54 |
N/A |
Not available |
1 |
(Label- csa 115v only) |
| 55 |
N/A |
Not available |
1 |
(Label- u.l 115v only) |
| 56 |
270-0981 |
Decal (OBSOLETE) |
1 |
|
| 57 |
170-5541 |
Fire warning plate (OBSOLETE) |
1 |
|
| 58 |
270-0982 |
Rotary switch (OBSOLETE) |
1 |
|
| 59 |
170-2505 |
Armature asm 115/230V (OBSOLETE) |
1 |
|
| 60 |
170-5543 |
1/8 x 5/8 Woodruff key |
1 |
|
| 61 |
170-5544 |
Retaining ring |
2 |
|
| 62 |
270-0983 |
Motor adapter plate (OBSOLETE) |
1 |
|
| 63 |
170-5546 |
Intermediate shaft |
1 |
|
| 64 |
170-5547 |
Thrust washer |
2 |
|
| 65 |
170-5548 |
Gear (OBSOLETE) |
1 |
|
| 66 |
N/A |
Not available |
1 |
(Motor pinion gear) |
| 67 |
170-5550 |
Bearing spacer (OBSOLETE) |
1 |
|
| 68 |
170-5551 |
Drive gear (OBSOLETE) |
1 |
|
| 69 |
999-1144 |
Washer 3/8 external star lock stainless steel |
1 |
|
| 70 |
370-6656 |
NUT-3/8-24 LH HEX |
1 |
|
| 71 |
170-5552 |
Gear housing (OBSOLETE) |
1 |
|
| 72 |
999-0322 |
Screw 10-24 x 1/2 socket head alloy plain finish |
6 |
|
| 74 |
170-5540 |
Brush drive plate (OBSOLETE) |
1 |
|
| 75 |
370-6757 |
SCR 10-24X 3/8 SF ST NYLOK |
4 |
|
| 76 |
370-2173 |
BRUSH UNION MIX (OBSOLETE) |
1 |
|
| 77 |
170-5539 |
Brush plate to gear gasket (OBSOLETE) |
1 |
|
| 78 |
170-5538 |
Gear unit gasket (OBSOLETE) |
1 |
|
| 79 |
170-2507 |
Field 115V west fm13#314p674s (OBSOLETE) |
1 |
|
| 80 |
270-0984 |
115V 50 cycle motor data plate (OBSOLETE) |
1 |
|
| 81 |
999-0032 |
Washer 3/8 USS flat plain finish |
2 |
|
| 85 |
999-0006 |
Washer 3/16 flat zinc plated |
6 |
|
| 87 |
170-3503 |
Inspection label (OBSOLETE) |
1 |
|
| N/S |
170-6133 |
Caution label |
1 |
|
| N/S |
370-6629 |
TERMINAL CLIP- 8 STUD |
5 |
|
|
|

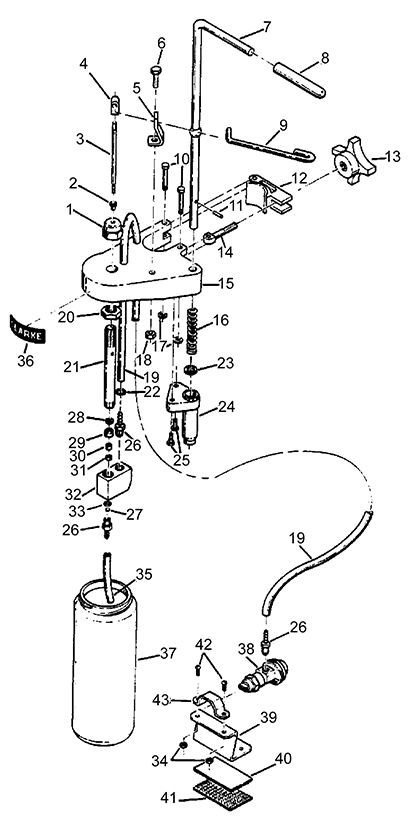

Spray Buff Assembly - 270-0079 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
170-5691 |
Barrel Cap (OBSOLETE) |
1 |
|
| 2 |
170-5692 |
Nyliner Bearing (OBSOLETE) |
1 |
|
| 3 |
170-5693 |
Plunger (OBSOLETE) |
1 |
|
| 4 |
170-5694 |
Rod End (OBSOLETE) |
1 |
|
| 5 |
170-5695 |
Pivot Bracket (OBSOLETE) |
1 |
|
| 6 |
370-6717 |
SCREW 1/4-20 X 7/8 HEX HD |
1 |
|
| 7 |
170-5696 |
handle (OBSOLETE) |
1 |
|
| 8 |
170-5697 |
Handle Grip (OBSOLETE) |
1 |
|
| 9 |
170-5574 |
Interlock label |
1 |
|
| 10 |
170-5699 |
Pin (OBSOLETE) |
2 |
|
| 12 |
170-5700 |
Clamp (OBSOLETE) |
1 |
|
| 13 |
170-5701 |
Knob (OBSOLETE) |
1 |
|
| 14 |
170-5724 |
Bolt swing (OBSOLETE) |
1 |
|
| 15 |
170-5703 |
Cover (OBSOLETE) |
1 |
|
| 16 |
170-5704 |
Spring (OBSOLETE) |
1 |
|
| 17 |
170-5705 |
Ring E (OBSOLETE) |
2 |
|
| 18 |
170-0465 |
Nut 1/4-20 ESNA heavy jam |
1 |
|
| 19 |
170-5706 |
Large Tube 60 Inches (OBSOLETE) |
1 |
|
| 20 |
999-0714 |
Nut 1/2-20 hex jam stainless steel |
1 |
|
| 21 |
170-5707 |
Barrel (OBSOLETE) |
1 |
|
| 22 |
170-5708 |
O Ring (OBSOLETE) |
1 |
|
| 23 |
170-5709 |
Spacer (OBSOLETE) |
1 |
|
| 24 |
170-5710 |
Guide (OBSOLETE) |
1 |
|
| 25 |
999-0332 |
Screw 10-24 x 5/8 pan head phillips stainless steel |
2 |
|
| 26 |
160-0052 |
Fitting 1/4 barb x 1/4mp |
3 |
|
| 27 |
170-5711 |
5/32 Diameter Stainless Steel Ball (OBSOLETE) |
1 |
|
| 28 |
170-5725 |
Washer (OBSOLETE) |
1 |
|
| 29 |
170-5712 |
Piston (OBSOLETE) |
1 |
|
| 30 |
170-5713 |
Piston Spacer (OBSOLETE) |
1 |
|
| 31 |
170-6358 |
Nut 4-40 esna (OBSOLETE) |
1 |
|
| 32 |
170-5714 |
Manifold (OBSOLETE) |
1 |
|
| 33 |
170-5715 |
Ball Retainer (OBSOLETE) |
1 |
|
| 34 |
999-0062 |
Nut 10-24 hex |
2 |
|
| 35 |
170-5716 |
Tube (OBSOLETE) |
1 |
|
| 36 |
170-5717 |
Clarke Label (OBSOLETE) |
1 |
|
| 37 |
170-5718 |
Bottle (OBSOLETE) |
1 |
|
| 38 |
170-5719 |
Nozzle assembly (OBSOLETE) |
1 |
|
| 39 |
170-5720 |
Nozzle Bracket (OBSOLETE) |
1 |
|
| 40 |
170-5721 |
Upper Pad (OBSOLETE) |
1 |
|
| 41 |
170-5722 |
Lower Pad (OBSOLETE) |
1 |
|
| 42 |
999-0267 |
Screw 10-24 x 1/2 pan head phillips zinc |
2 |
|
| 43 |
170-5723 |
Nozzle Clamp (OBSOLETE) |
1 |
|
|
|
Wiring Assembly - |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
|
|
- Pad Holders - 275-9029 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
991-2214 |
Center-Lok II pad holder - left hand thread (red) |
|
|
| 2a |
991-2201 |
Center-Lok II pad holder - right hand thread (black) |
|
(Pad driver side female, Floor side male) |
| 2b |
991-8577 |
Pad retainer |
|
(Pad driver side male, Floor side female) |
| 3a |
991-2202 |
Big mouth pad holder set (blue) |
|
(includes 3 screws) |
| 3b |
991-2205 |
Deep lock ring and pad grip ring |
|
|
| 4 |
991-2203 |
Big mouth pad holder male thread portion |
|
|
| 5 |
991-2206 |
Center-Lok 3 pad holder |
|
(includes 3 screws) |
| 6 |
996-0372 |
Big mouth pad holder (left hand thread) |
|
|
| 8 |
991-2209 |
Split retainer - pad holder ring (OBSOLETE) |
|
|
| 9 |
N/A |
Not available |
|
(replaced by #3 991-2202) |
| 10 |
991-2211 |
Center lock pad holding cup (male) (yellow) (OBSOLETE) |
|
|
|
|
