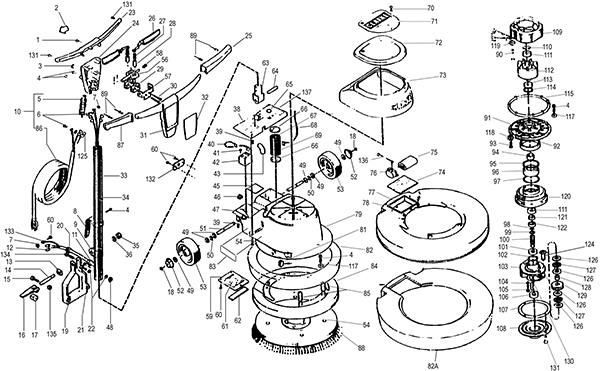

Floor Maintainer - 170-6012 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
999-0368 |
Screw 10-24 x 1 socket head alloy plain finish |
1 |
|
| 2 |
170-5574 |
Interlock label |
1 |
|
| 4a |
170-5576 |
Screw 1/4-20 x 3/4 socket cap |
7 |
|
| 4b |
170-5576 |
Screw 1/4-20 x 3/4 socket cap |
5 |
(fm2300) |
| 5a |
172-1561 |
Strain relief |
1 |
|
| 5b |
170-5578 |
Strain relief |
1 |
(fm2300) |
| 6 |
999-0409 |
Screw 10-24 x 3/8 pan head slotted zinc plated |
2 |
|
| 7 |
154-3992 |
Washer 3/16 star |
3 |
|
| 9 |
170-5553 |
Handle tube clamp |
1 |
|
| 10a |
170-5581 |
50ft extension cord assembly |
1 |
(includes 005, 006, 086) |
| 10b |
170-5582 |
Cord assembly 50ft extension FM2300 (OBSOLETE) |
1 |
(fm2300) |
| 11 |
170-5583 |
Strain relief |
1 |
|
| 12a |
170-5584 |
Connector |
2 |
(120V) |
| 12b |
170-5584 |
Connector |
3 |
(230V) |
| 13 |
170-6224 |
Guide handle lock |
1 |
|
| 14 |
170-5586 |
Cam lock bolt |
1 |
|
| 15 |
999-0524 |
Screw 1/4-20 x 3/4 socket head shoulder |
1 |
|
| 16 |
170-5557 |
Cam locking handle |
1 |
|
| 17 |
N/A |
Not available |
1 |
(clamp stop) |
| 18 |
999-0323 |
Screw 1/4-20 x 1/2 pan head slotted zinc plated |
2 |
|
| 19 |
154-3979 |
Adjusting arm weldment |
1 |
|
| 20 |
170-5590 |
Strain relief |
1 |
|
| 21 |
999-0401 |
Bolt 5/16-18 x 7/8 hex head grade 5 zinc plated |
1 |
|
| 22 |
999-0028 |
Washer 5/16 split lock plain finish |
3 |
|
| 23 |
170-5591 |
Handle and switch housing |
1 |
|
| 24a |
170-5592 |
Switch housing cover |
1 |
|
| 24b |
170-5593 |
Switch housing cover FM 2300 (OBSOLETE) |
1 |
(fm2300) |
| 25 |
170-5594 |
Left handle grip |
1 |
|
| 26 |
170-5554 |
Switch lever |
2 |
|
| 27 |
170-5555 |
Switch lever spring |
2 |
|
| 28 |
170-5564 |
Switch adaptor |
2 |
|
| 30 |
170-5595 |
Screw 6-32 x 1 5/8 pan head st |
2 |
|
| 31 |
170-5596 |
Switch front cover |
1 |
|
| 32a |
170-5597 |
Switch housing label FM1500 (OBSOLETE) |
1 |
(fm1500) |
| 32b |
170-5598 |
Switch housing label FM 1700 (OBSOLETE) |
1 |
(fm1700) |
| 32c |
170-5599 |
Switch housing label FM 2000 |
1 |
(fm2000) |
| 32d |
170-5600 |
Switch housing label FM 2300 (OBSOLETE) |
1 |
(fm2300) |
| 33 |
154-3719 |
Handle assembly |
1 |
(includes 009) |
| 36 |
999-0118 |
Nut 1/2-13 nylon insert lock zinc plated |
1 |
|
| 38 |
170-5604 |
Main housing cover |
1 |
|
| 39 |
154-3990 |
Screw 1/4 x 5/16 set |
2 |
|
| 40a |
154-3993 |
Capacitor wiring harness |
1 |
|
| 40b |
154-3993 |
Capacitor wiring harness |
2 |
(fm2300) |
| 41 |
999-0463 |
Screw 6-32 x 3/8 pan head slotted zinc plated |
1 |
|
| 42 |
170-5608 |
Motor relay 3/4 hp - 1 1/2 hp FM 2300 |
1 |
(fm2300) |
| 43 |
154-3973 |
Elbow insulator |
1 |
|
| 46b |
170-5611 |
Bushing |
3 |
(fm2300) |
| 47 |
170-5613 |
Bushing Link Arm |
2 |
|
| 48 |
999-0211 |
Nut 5/16-18 hex nylon insert lock zinc plated |
1 |
|
| 49 |
170-5570 |
Wheel thrust washer |
6 |
|
| 50 |
170-5614 |
Retaining Ring |
2 |
|
| 51 |
154-3994 |
Wheel shaft |
1 |
|
| 53 |
170-5556 |
Wheel assembly (set of 2 w/hardware) (gray) |
1 |
|
| 54 |
999-0338 |
Screw 1/4-20 x 1/2 socket head shoulder |
9 |
|
| 56 |
170-5616 |
Switch interlock stop |
1 |
|
| 57 |
170-5617 |
Stop switch bracket |
1 |
|
| 58 |
170-5561 |
Switch lever spring |
1 |
|
| 59a |
154-3986 |
Main bottom cover |
1 |
|
| 59b |
170-5619 |
Main Housing (Bottom Cover) FM2300 (OBSOLETE) |
1 |
(fm2300) |
| 60 |
999-0574 |
Screw 10-24 x 1 3/4 pan head slotted zinc plated |
6 |
|
| 61a |
170-5620 |

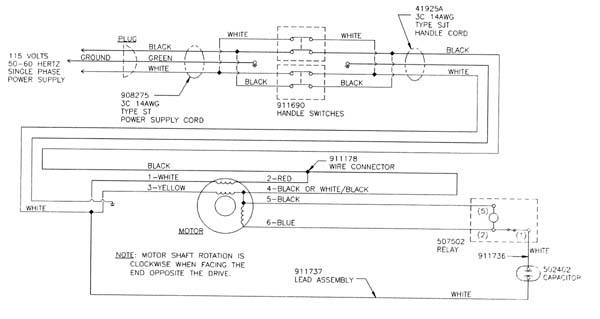

Wiring Diagram |
1 |
|
| 61b |
170-5621 |

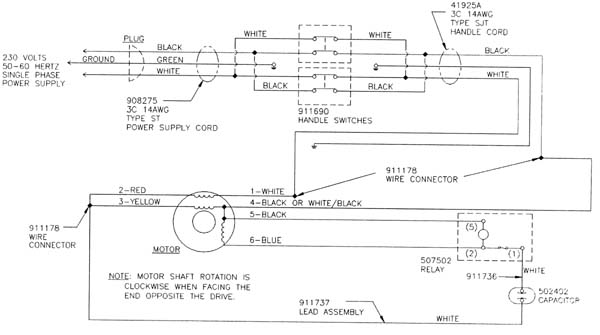

Wiring Diagram |
1 |
|
| 62 |
170-5622 |
Cushion Capacitor (OBSOLETE) |
2 |
|
| 63 |
154-3955 |
Handle tube tongue |
1 |
|
| 64 |
154-3981 |
Pin handle pivot |
1 |
|
| 65 |
154-3987 |
25/32 inch button plug |
1 |
|
| 66 |
154-3972 |
Capacitor cushion |
2 |
|
| 67 |
170-5627 |
Capacitor Cover |
1 |
|
| 68 |
154-3993 |
Capacitor wiring harness |
1 |
|
| 69 |
170-0491 |
115V capacitor |
1 |
|
| 70 |
999-0462 |
Screw 8-32 x 1/2 pan head slotted zinc plated |
3 |
|
| 73 |
154-3977 |
Main housing bumper |
1 |
|
| 74 |
170-5633 |
Cushion Capacitor (bottom) |
1 |
|
| 75 |
170-5634 |
Run Capacitor FM2300 (OBSOLETE) |
2 |
|
| 76 |
170-5635 |
Run Capacitor Boot (OBSOLETE) |
2 |
|
| 77 |
170-5636 |
Capacitor Cushion (OBSOLETE) |
1 |
(fm2300) |
| 78 |
170-5637 |
Shield (OBSOLETE) |
1 |
(fm2300) |
| 79a |
154-3970 |
Main housing |
1 |
|
| 79b |
170-5649 |
Main Housing FM-2300 (OBSOLETE) |
1 |
(fm2300) |
| 82a |
170-5651 |
Bumper FM 1500 |
1 |
(fm1500) |
| 82b |
170-5652 |
Bumper FM 1700 |
1 |
(fm1700) |
| 82c |
170-5653 |
Bumper FM 2000 |
1 |
(fm2000) |
| 82d |
170-5654 |
Bumper FM 2300 (OBSOLETE) |
1 |
(fm2300) |
| 84a |
170-5656 |
FM1500 brush shield (OBSOLETE) |
1 |
|
| 84b |
170-5657 |
FM1700 brush shield |
1 |
|
| 84c |
170-5658 |
FM2000 brush shield |
1 |
|
| 85 |
170-5659 |
Brush Shield Spacer |
2 |
|
| 86a |
170-5660 |
Cord 50 Ft |
1 |
|
| 86b |
170-5661 |
Cord 50 Ft (OBSOLETE) |
1 |
(fm2300) |
| 86c |
991-5005 |
14/3 replacement power cord 50 foot (yellow) |
1 |
(NON-OEM) (does not include strain relief) |
| 86d |
991-5001 |
14/3 extension cord 50 foot (yellow) |
1 |
(NON-OEM) |
| 87 |
170-5639 |
Grip Handle (right) (OBSOLETE) |
1 |
|
| 88a |
996-0830 |
Polypropelene scrubbing brush (OBSOLETE) |
1 |
(fm1500HD) |
| 88b |
996-0832 |
Polypropelene scrubbing brush |
1 |
(fm1700HD) |
| 88c |
996-0696 |
Polypropelene scrubbing brush |
1 |
(fm2000) |
| 88d |
996-0831 |
Polypropelene scrubbing brush |
1 |
(fm2300) |
| 89 |
170-5642 |
Rivet 1/8 x 3/8 |
4 |
|
| 90a |
999-0652 |
Screw 10-24 x 2 round head slotted zinc plated |
4 |
|
| 90b |
999-0610 |
Screw 1/4-20 x 2 1/2 pan head phillips stainless steel |
4 |
(fm2300) |
| 91 |
170-5643 |
Adapter Gear Unit |
1 |
|
| 93a |
999-0415 |
Screw 1/4-20 x 3/4 pan head slotted zinc plated |
8 |
|
| 93b |
999-0398 |
Screw 1/4-20 x 1 1/2 pan head phillips zinc plated |
10 |
|
| 94 |
170-5645 |
Coupling Drive |
1 |
(Please review part picture before ordering. Does not work for older models with a shear coupler. If your unit has a shear coupler, you will need to replace the gearbox.) |
| 95 |
170-5646 |
Retaining Ring |
1 |
|
| 97 |
170-5648 |
Gear O ring seal |
1 |
|
| 99 |
170-5663 |
Retaining Ring |
1 |
|
| 100 |
170-5664 |
Pinion Shaft |
1 |
|
| 102 |
170-5666 |
Idler Housing O Ring Seal |
1 |
|
| 103 |
170-5667 |
Idler Housing Gear |
1 |
|
| 104 |
999-0028 |
Washer 5/16 split lock plain finish |
2 |
|
| 105 |
999-0573 |
Screw 5/16-18 x 1 1/4 socket head alloy plain finish |
2 |
|
| 106 |
164-0355 |
Bottom bearing large |
1 |
|
| 107 |
170-5668 |
Gear unit gasket |
1 |
|
| 108 |
170-5669 |
Gear Housing Cover Ring |
1 |
|
| 109a |
170-5670 |
FM 15-17-2000 Field 1 HP |
1 |
|
| 109b |
170-5726 |
Field 1 1/2 HP (OBSOLETE) |
1 |
(fm2300) |
| 110 |
170-5671 |
Load Spring |
1 |
|
| 111 |
170-0321 |
Front end bearing |
2 |
|
| 112a |
154-3975 |
Field and rotor kit |
1 |
|
| 112b |
170-5673 |
FM 15-17-2000 Amature 1-1/2 HP (OBSOLETE) |
1 |
(fm2300) |
| 113 |
170-0320 |
Bottom bearing |
1 |
|
| 114 |
170-5674 |
Retaining Ring |
1 |
|
| 115 |
170-5675 |
Gear Spacer Unit FM 2300 (OBSOLETE) |
1 |
|
| 117 |
999-0060 |
Washer 1/4 split lock plain finish |
2 |
|
| 118 |
999-0017 |
Washer 1/4 external star lock |
8 |
|
| 119 |
999-0311 |
Washer #10 external star lock zinc plated |
|
|
| 120 |
170-5677 |
Ring Gear Housing |
1 |
|
| 121 |
170-5678 |
Oil Seal Spacer |
1 |
|
| 122 |
170-0011 |
Small oil seal |
1 |
|
| 124 |
170-5680 |
Planet Gear Shaft |
2 |
|
| 125 |
170-5681 |
Terminal clip |
|
|
| 126 |
154-3688 |
Thrust washer |
8 |
|
| 127 |
170-5682 |
Thrust Bearing |
4 |
|
| 128 |
170-5683 |
Idler Needle Bearing |
2 |
|
| 129 |
170-5684 |
Idler Gear Bearing |
2 |
|
| 130 |
170-5686 |
5/16 x 1-1/4 Dowel Pin |
1 |
|
| 131 |
999-0322 |
Screw 10-24 x 1/2 socket head alloy plain finish |
10 |
|
| 132 |
154-3988 |
Strain relief plate |
1 |
|
| 133a |
170-6014 |
Terminal clip |
1 |
|
| 133b |
170-5688 |
Terminal Clip FM 2300 |
1 |
(fm2300) |
| 134 |
999-0573 |
Screw 5/16-18 x 1 1/4 socket head alloy plain finish |
1 |
|
| 135 |
170-0465 |
Nut 1/4-20 ESNA heavy jam |
1 |
|
| 137 |
170-5689 |
Fire and Sanding Plate |
1 |
|
| N/S |
170-5690 |
White Lead Assembly FM 2300 (OBSOLETE) |
2 |
|
| N/S |
170-0694 |
Odum coupling |
1 |
|
| N/S |
170-2344 |
Motor assembly 1 HP |
1 |
|
| N/S |
170-6226 |
Groove pin type 5 1/4x1 |
1 |
|
| N/S |
996-0074 |
14 inch Pad driver w/ riser |
1 |
(fm1500) |
| N/S |
375-7487 |
Rivet 1/8 x 5/16 inch (OBSOLETE) |
2 |
|
| N/S |
991-2206 |
Center-Lok 3 pad holder |
1 |
|
|
|

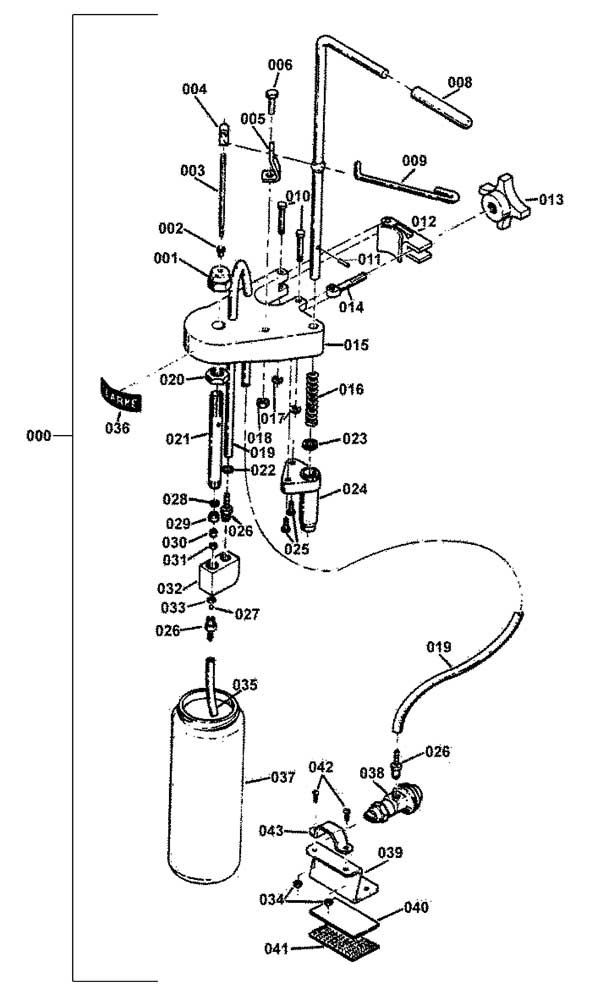

Spray Buff Accessory - 170-6013 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 000 |
170-2572 |
Spray buff attachment (OBSOLETE) |
|
Entire Spray buff accessory |
| 001 |
170-5691 |
Barrel Cap (OBSOLETE) |
1 |
|
| 002 |
170-5692 |
Nyliner Bearing (OBSOLETE) |
1 |
|
| 003 |
170-5693 |
Plunger (OBSOLETE) |
1 |
|
| 004 |
170-5694 |
Rod End (OBSOLETE) |
1 |
|
| 005 |
170-5695 |
Pivot Bracket (OBSOLETE) |
1 |
|
| 006 |
999-0300 |
Bolt 1/4-20 x 7/8 hex head grade 5 zinc plated |
1 |
|
| 008 |
170-5697 |
Handle Grip (OBSOLETE) |
1 |
|
| 009 |
170-5698 |
Pump Lever |
1 |
|
| 010 |
170-5699 |
Pin (OBSOLETE) |
2 |
|
| 012 |
170-5700 |
Clamp (OBSOLETE) |
1 |
|
| 013 |
170-5701 |
Knob (OBSOLETE) |
1 |
|
| 014 |
170-5724 |
Bolt swing (OBSOLETE) |
1 |
|
| 015 |
170-5703 |
Cover (OBSOLETE) |
1 |
|
| 016 |
170-5704 |
Spring (OBSOLETE) |
1 |
|
| 017 |
170-5705 |
Ring E (OBSOLETE) |
2 |
|
| 018 |
170-0465 |
Nut 1/4-20 ESNA heavy jam |
1 |
|
| 019 |
170-5706 |
Large Tube 60 Inches (OBSOLETE) |
1 |
|
| 020 |
999-0714 |
Nut 1/2-20 hex jam stainless steel |
1 |
|
| 021 |
170-5707 |
Barrel (OBSOLETE) |
1 |
|
| 022 |
170-5708 |
O Ring (OBSOLETE) |
1 |
|
| 023 |
170-5709 |
Spacer (OBSOLETE) |
1 |
|
| 024 |
170-5710 |
Guide (OBSOLETE) |
1 |
|
| 025 |
999-0269 |
Screw 10-24 x 5/8 pan head phillips zinc plated |
2 |
|
| 026 |
160-0052 |
Fitting 1/4 barb x 1/4mp |
3 |
|
| 027 |
170-5711 |
5/32 Diameter Stainless Steel Ball (OBSOLETE) |
1 |
|
| 028 |
170-5725 |
Washer (OBSOLETE) |
1 |
|
| 029 |
170-5712 |
Piston (OBSOLETE) |
1 |
|
| 030 |
170-5713 |
Piston Spacer (OBSOLETE) |
1 |
|
| 031 |
999-0295 |
Nut 4-40 nylon insert lock stainless steel |
1 |
|
| 032 |
170-5714 |
Manifold (OBSOLETE) |
1 |
|
| 033 |
170-5715 |
Ball Retainer (OBSOLETE) |
1 |
|
| 034 |
999-0062 |
Nut 10-24 hex |
2 |
|
| 035 |
170-5716 |
Tube (OBSOLETE) |
1 |
|
| 036 |
170-5717 |
Clarke Label (OBSOLETE) |
1 |
|
| 037 |
170-5718 |
Bottle (OBSOLETE) |
1 |
|
| 038 |
170-5719 |
Nozzle assembly (OBSOLETE) |
1 |
|
| 039 |
170-5720 |
Nozzle Bracket (OBSOLETE) |
1 |
|
| 040 |
170-5721 |
Upper Pad (OBSOLETE) |
1 |
|
| 041 |
170-5722 |
Lower Pad (OBSOLETE) |
1 |
|
| 042 |
999-0267 |
Screw 10-24 x 1/2 pan head phillips zinc |
2 |
|
| 043 |
170-5723 |
Nozzle Clamp (OBSOLETE) |
1 |
|
|
|
Wiring Diagram 1 - |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
|
|
Wiring Diagram 2 - |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
|
|
Brushes - 170-9897 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
996-0053 |
21 inch heavy grit stripping brush - 80 grit |
1 |
|
| 2 |
996-0027 |
21 inch medium grit scrubbing brush - 180 grit |
2 |
|
| 3 |
996-0013 |
21 inch lite grit scrubbing brush - 500 grit |
1 |
|
| 4 |
996-0271 |
21 inch polypropelene scrubbing brush |
1 |
|
| 5 |
996-0066 |
22 inch Pad driver |
1 |
|
| 6 |
991-2208 |
3 hole clutch plate (formerly 6 hole) |
1 |
|
|
|
Solution Tank Kit - NON-OEM - 172-2089 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 000a |
209-0013 |
4 gallon solution tank kit for round handle side x sides |
1 |
(includes 001-018) |
| 000b |
209-0014 |
4 gallon solution tank kit for square handle side x sides |
1 |
|
| 000c |
209-0017 |
2 1/2 gallon solution tank kit (OBSOLETE) |
1 |
|
| 001 |
209-0033 |
Cap (black) |
1 |
|
| 002 |
209-0034 |
Brass handle rod (OBSOLETE) |
1 |
|
| 003 |
209-0035 |
1/8 inch grommet |
1 |
|
| 004 |
N/A |
Not available |
1 |
(Tank only) |
| 005 |
209-0036 |
Solution valve |
1 |
(includes 006 and 007) |
| 006 |
N/A |
Not available |
1 |
(Washer) |
| 007 |
209-0038 |
Nut 1/4 brass pipe thread straight |
1 |
|
| 008 |
209-0039 |
Hose barb 1/4 |
1 |
|
| 009 |
209-0040 |
Hose 3/8 x 24 inch |
1 |
|
| 010 |
209-0041 |
Coupling 1/8 brass |
1 |
|
| 011 |
209-0042 |
1/8 inch brass nipple |
1 |
|
| 012 |
209-0043 |
Washer 1/8 brass |
2 |
|
| 013 |
209-0044 |
Nut 1/8 brass lock (OBSOLETE) |
1 |
|
| 014 |
209-0045 |
Hose assembly (OBSOLETE) |
1 |
(includes 009-013) |
| 015 |
209-0046 |
5/16 inch u bolt |
2 |
(only used for round handle buffers) |
| 016 |
209-0047 |
Washer bar |
2 |
|
| 017 |
999-0069 |
Nut 5/16-18 hex |
2 |
|
| 018 |
209-0049 |
U bolt assembly (set of 2) |
1 |
(only used for round handle side x sides) (includes 015-017) |
| 019 |
209-0051 |
Advance adapter U-bolts assembly (set of 2) (OBSOLETE) |
1 |
|
|
|
- Pads - 255-2200 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 01 |
255-2240 |
22 inch aqua plus burnishing pad (pkg of 5) |
|
|
| 03 |
255-2264 |
22 inch Blue ace pad (pkg of 5) |
|
|
| 05 |
255-2242 |
22 inch Blue Jay burnishing pad (pkg of 5) |
|
|
| 07 |
255-2212 |
22 inch Cure white pad (pkg of 5) |
|
|
| 09 |
255-2277 |
22 inch Diamondback extreme stripping pad (pkg of 5) |
|
|
| 11 |
255-2238 |
22 inch EHD Extra Heavy Duty Concrete Leveling Pad (pkg of 2 |
|
|
| 12 |
255-2221 |
22 inch gorilla lite burnishing pad (pkg of 5) |
|
|
| 14 |
255-2250 |
22 inch gorilla spray buff/polish/burnish pad (pkg of 5) |
|
|
| 16 |
255-2265 |
22 inch Heat concrete bonding pad (pkg of 5) |
|
|
| 18 |
255-2230 |
22 inch jaguar burnishing pad (pkg of 5) |
|
|
| 20 |
255-2290 |
22 inch premium black stripping pad (pkg of 5) |
|
|
| 22 |
255-2270 |
22 inch premium blue cleaning pad (pkg of 5) |
|
|
| 24 |
255-2292 |
22 inch premium brown stripping pad (pkg of 5) |
|
|
| 26 |
255-2280 |
22 inch premium green scrubbing pad (pkg of 5) |
|
|
| 28 |
255-2260 |
22 inch premium red scrubbing pad (pkg of 5) |
|
|
| 30 |
255-2252 |
22 inch premium tan polishing pad (pkg of 5) |
|
|
| 32 |
255-2220 |
22 inch premium white polishing pad (pkg of 5) |
|
|
| 34 |
255-2211 |
22 inch superspeed rubberized pad (pkg of 5) |
|
|
| 36 |
255-2295 |
22 inch razorback stripping pad (pkg of 5) |
|
|
| 38 |
255-2247 |
22 inch Redwood maroon floor prep pad (pkg of 10) |
|
|
| 40 |
255-0166 |
22 inch Professional sand screen 100 grit (pkg of 10) |
|
|
| 42 |
255-0167 |
22 inch Professional sand screen 120 grit (pkg of 10) |
|
|
| 44 |
255-0168 |
22 inch Professional sand screen 180 grit (pkg of 10) |
|
|
| 46 |
255-0169 |
22 inch Professional sand screen 220 grit (pkg of 10) |
|
|
| 48 |
255-0259 |
22 inch Superscreen sand screen 100 grit (pkg of 10) |
|
|
| 50 |
255-0260 |
22 inch Superscreen sand screen 120 grit (pkg of 10) |
|
|
| 52 |
255-0261 |
22 inch Superscreen sand screen 180 grit (pkg of 10) |
|
|
| 54 |
255-0262 |
22 inch Superscreen sand screen 220 grit (pkg of 10) |
|
|
| 56 |
255-9605 |
22 inch Diamond by Gorilla 11000 Grit (pkg of 2) |
|
|
| 57 |
255-9602 |
22 inch Diamond by Gorilla 1500 Grit (pkg of 2) |
|
|
| 58 |
255-9599 |
22 inch Diamond by Gorilla 200 Grit (pkg of 2) |
|
|
| 59 |
255-9603 |
22 inch Diamond by Gorilla 3000 Grit (pkg of 2) |
|
|
| 60 |
255-9600 |
22 inch Diamond by Gorilla 400 Grit (pkg of 2) |
|
|
| 61 |
255-9601 |
22 inch Diamond by Gorilla 800 Grit (pkg of 2) |
|
|
| 62 |
255-9604 |
22 inch Diamond by Gorilla 8000 Grit (pkg of 2) |
|
|
| 63 |
255-9647 |
22 inch Diamond starter pack (1 of each grit) |
|
|
|
|
- Pad Holders - 275-9029 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
991-2214 |
Center-Lok II pad holder - left hand thread (red) |
|
|
| 2a |
991-2201 |
Center-Lok II pad holder - right hand thread (black) |
|
(Pad driver side female, Floor side male) |
| 2b |
991-8577 |
Pad retainer |
|
(Pad driver side male, Floor side female) |
| 3a |
991-2202 |
Big mouth pad holder set (blue) |
|
(includes 3 screws) |
| 3b |
991-2205 |
Deep lock ring and pad grip ring |
|
|
| 4 |
991-2203 |
Big mouth pad holder male thread portion |
|
|
| 5 |
991-2206 |
Center-Lok 3 pad holder |
|
(includes 3 screws) |
| 6 |
996-0372 |
Big mouth pad holder (left hand thread) |
|
|
| 8 |
991-2209 |
Split retainer - pad holder ring (OBSOLETE) |
|
|
| 9 |
N/A |
Not available |
|
(replaced by #3 991-2202) |
| 10 |
991-2211 |
Center lock pad holding cup (male) (yellow) (OBSOLETE) |
|
|
|
|
