Parts List Complete for CLARKE-ALT EX20

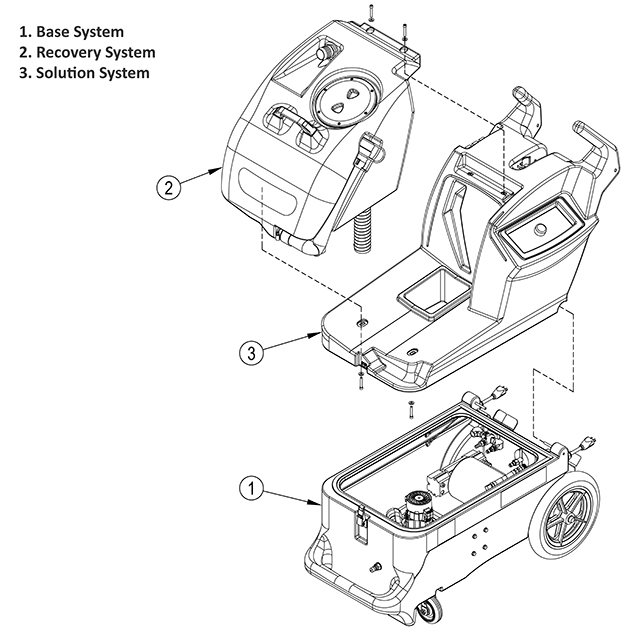

- Know Your Machine -

RefNbr Part Number Description Req Notes

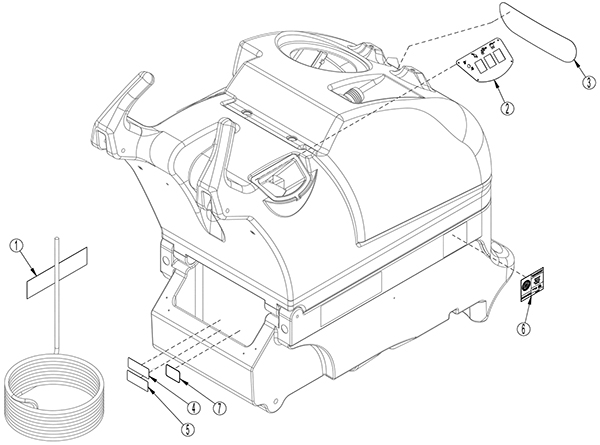

Decal Assembly - 170-2201
RefNbr Part Number Description Req Notes
1 272-6871 Extension cord caution decal 1 (2 for model 56105289)
2a 172-9130 Switchplate decal 1 (only used on models 56105290 and 56384705)
2b 172-9131 Switchplate decal 1 (only used on model 56105289)
2c 472-3921 DECAL-SWITCHPLATE OVERLAY-100C 1 (ony used on model 56105288)
3a 372-3080 EX20 decal 1
3b 270-8638 EX20-HDTR decal (OBSOLETE) 1 (only used on model 56384705)
4 209-6083 Danger decal 1
5 209-6084 Danger decal 1 (ony used on model 56105289)
6 209-6085 Bronze decal 2 (ony used on model 56105289)
7 372-1631 Prop 65 decal 1

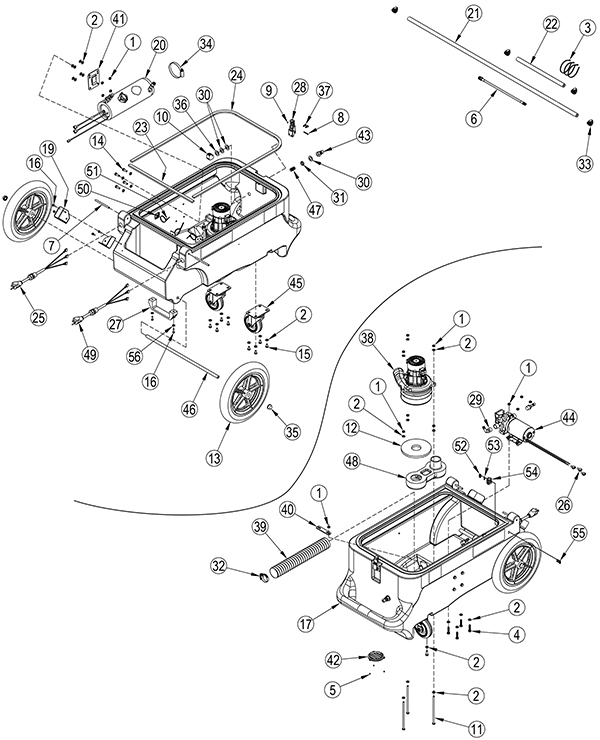

Base System Assembly - 170-2202
RefNbr Part Number Description Req Notes
1 999-0294 Nut 1/4-20 hex nylon lock type NE stainless steel 15 (11 for cold system) (included in KIT1)
2 999-0006 Washer 3/16 flat zinc plated 34 (22 for cold system) (included in KIT1)
3 209-0652 8 inch tie (black) 3
4 N/A Not available 4 (screw 1/4-20 x 1 1/4 hex head) (only available with KIT1)
5 N/A Not available 3 (screw) (only available with KIT1)
6 209-0622 Braided hose 1 (heated system only)
7 209-0648 Hinge pin 2
8 N/A Not available 1 (screw 2-56 x 1 pan head) (only available with KIT1)
9 N/A Not available 1 (nut 2-56) (only available with KIT1)
10 270-8593 90 degree elbow 1 (heated system only)
11 N/A Not available 3 (bolt 1/4 x 20 full thread) (only available with KIT1)
12 209-0005 Vacuum motor gasket 1
13 209-0357 12 inch wheel 2
14 N/A Not available 5 (screw 1/4-20 x 1/4 hex head) (1 for cold system) (only available with KIT1)
15 N/A Not available 8 (screw hex head lock) (only available with KIT1)
16 999-0898 Screw 10-16 x 3/4 pan head phillips stainless steel type B 6 (4 for cold system)
17a 209-6086 Base 1 (only used on models 56105290 and 56384705)
17b 209-0653 Base 1 (only used on model 56105289)
17c 270-8633 100c base 1
19 209-6087 Wand bracket 2
20a 209-0654 120V heater 1 (heated system only) (only used on models 56105290 and 56384705)
20b 209-0655 120V heater 1 (heated system only) (only used on model 56105289)
21 172-9136 Hose (red) 1
22 209-6088 Hose (red) 1
23 272-6804 Gasket 1
24 209-6090 Gasket 1
25 272-6805 Pigtail power cord 1
26 N/A Not available 3 (.250 tab) (only available with KIT2)
27 N/A Not available 1 (grab handle) (heated system only) (only available with KIT3)
28 172-0094 Latch 1
29 N/A Not available 2 (nylon hose barb) (only available with KIT2)
30 N/A Not available 3 (washer) (heated system only) (only available with KIT1)
31 209-0125 Fiber bushing 1
32 209-0657 Hose clamp 1
33 209-0604 Hose clamp 4
34 209-0405 Hose clamp 1 (heated system only)
35 170-5410 Axle cap (OBSOLETE) 2
36 N/A Not available 1 (washer) (only available with KIT1)
37 N/A Not available 2 (bolt 8-32 x 1/2) (heated system only) (only available with KIT1)
38a 209-0330 120V 3 stage vacuum motor 1
38b 209-0658 Carbon brush kit 1 (heated system only) (only used on model 56105255)
39 209-0344 Vacuum hose 1
40 209-0345 Vacuum hose bar (OBSOLETE) 1
41 209-0621 Heat exchanger mount 1 (heated system only)
42 209-0659 Louver 1
43 209-0336 Male quick disconnect 1
44 N/A Not available 1 (100 psi pump) (only available with KIT2)
45 209-0480 Caster wheel (gray) 2
46 209-0356 Axle rod 1
47 209-0124 Nipple 1
48 209-0132 Vacuum manifold 1
49 272-6811 Pigtail power cord (red) 1 (heated system only) (only used on model 56105289)
50 270-8621 Mounting pad 3
51 272-6806 4 inch tie 3
52 270-8623 Nut nylon lock 6/32 Z.P 4 (2 for cold system) (2 for models 56105290 and 56384705)
53 272-6808 Washer 4 (2 for cold system) (2 for models 56105290 and 56384705)
54 172-4094 Terminal block 2 (1 for models 56105290 and 56384705)
55 272-6809 Screw 4 (2 for cold system) (2 for models 56105290 and 56384705)
56 999-1862 Washer #10 flat SAE stainless steel 2 (heated system only) (included in KIT3)
N/S 272-6802 Main harness 1
N/S 172-2906 Priming hose with quick disconnect 1
N/S 209-0354 25 foot power cord 1
N/S N/A Not available 8 (screw 1/4-20 x 1/2 hex head) (cold system only) (only available with KIT1)
N/S N/A Not available 3 (washer) (cold system only) (only available with KIT1)
N/S 209-0039 Hose barb 1/4 1
N/S 999-0916 Screw 8-32 x 1/2 pan head phillips stainless steel 2 (included in KIT1)
N/S 209-0609 90 degree elbow 1
N/S 209-0333 Bi-metallic heat repair kit 1 (only used on model 56105289)
N/S 209-0662 Bi-metallic heat repair kit 1 (only used on models 56105290 and 56384705)
KIT1 172-9138 Hardware base kit 1 (includes 1-2, 4-5, 8-9, 11, 14-15, 30, 36-37)
KIT2 172-9140 100PSI pump kit 1 (includes 26, 29, 44)
KIT3 209-0656 Handle grip kit 1 (includes 27 and 56)

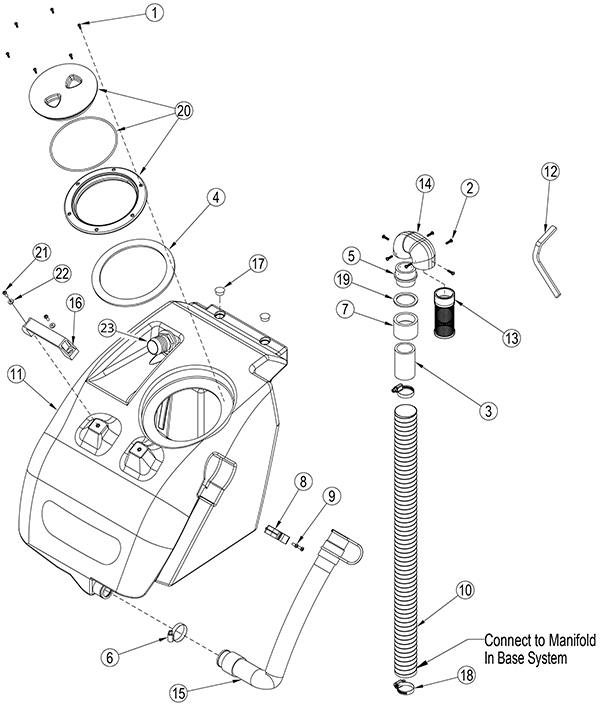

Recovery System Assembly - 170-2203
RefNbr Part Number Description Req Notes
1 N/A Not available 6 (screw 6 x 1/2 phillips head) (only available with KIT1)
2 N/A Not available 6 (screw 8 x 3/8 high low) (only available with KIT2)
3 209-0668 PVC pipe 3 in
4 N/A Not available 1 (lid gasket) (only available with KIT1)
5 N/A Not available 1 (adapter) (only available with KIT2)
6 270-8636 Hose clamp 3/4 x 1 3/4 SS 1
7 270-8637 1 1/2 inch female adapter 1
8 272-1159 Plastic clamp 1
9 999-0267 Screw 10-24 x 1/2 pan head phillips zinc 2
10 172-9333 Vacuum hose 1
11 472-3924 TANK-RECOVERY-FINISHED-BLUE 1
12 172-9334 Gasket 1
13 N/A Not available 1 (ball float filter) (only available with KIT2)
14 N/A Not available 1 (ball float manifold) (only available with KIT2)
15a 209-0669 Drain hose (OBSOLETE) 1
15b 172-9338 Drain hose cap 1 (only usde on model 56113125)
16 N/A Not available 1 (grab handle) (only available with KIT3)
17 172-1803 Plug 2
18 209-0657 Hose clamp 2
19 N/A Not available 1 (washer 1-3/4) (only available with KIT2)
20a N/A Not available 1 (clear lid with ring) (only available with KIT1)
20b 472-7879 O-ring 1
21 999-0332 Screw 10-24 x 5/8 pan head phillips stainless steel 2 (included with KIT3)
22 999-1862 Washer #10 flat SAE stainless steel 2 (included with KIT3)
23 172-2481 Hose barb 1
KIT1 172-9339 Tank lid kit 1 (includes 1, 4, 20a)
KIT2 172-9341 Ball float kit 1 (includes 2, 5, 13-14, 19)
KIT3 209-0656 Handle grip kit 1 (includes 16, 21-22)

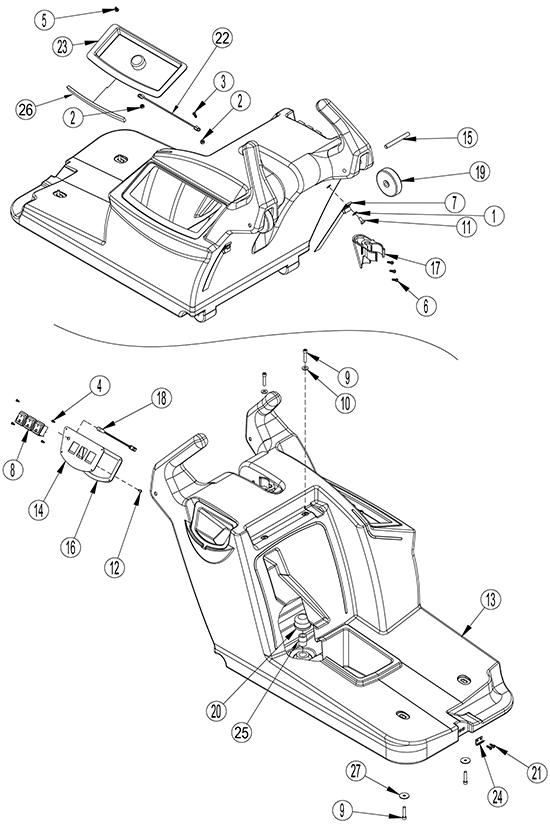

Solution System Assembly - 170-2204
RefNbr Part Number Description Req Notes
1 999-0006 Washer 3/16 flat zinc plated 2 (included in KIT1)
2 999-1353 Nut 10-32 hex nylon lock insert stainless steel 2 (included in KIT1)
3 N/A Not available 1 (screw) (only available with KIT1)
4 N/A Not available 4 (screw 4 x 3/8) (only avaiable with KIT1)
5 N/A Not available 1 (screw 10-32 x 3/8 brass) (only available with KIT1)
6 N/A Not available 3 (screw 8 x 5/8 combo tapping) (only available with KIT1)
7 209-0363 Cord strap 2
8 172-9342 Rocker switch 3 (2 on model 56105288)
9 N/A Not available 4 (screw 1/4-20 x 1 1/4 allen head) (only available with KIT1)
10 999-0123 Washer 1/4 SAE flat zinc plated 2 (included in KIT1)
11 N/A Not available 2 (screw hex head lock) (only available with KIT1)
12 999-1865 Screw 6-32 x 5/16 pan head phillips thread cutting ss 1 (included in KIT1)
13 472-3922 TANK-SOLUTION-FINISHED-BLUE 1
14a 209-6102 Switchplate 1 (only used on model 56105289)
14b 472-3920 SWITCHPLATE 1 (only used on model 56105288)
14c 209-6103 Switchplate 1 (only used on models 56105290 and 56384705)
15 209-6104 Wheel axle 2
16 209-6105 Switchplate gasket 1
17 372-1354 Wand clip 1
18 209-0671 Light (green) 1 (only used on model 56105289)
19a 172-0083 3 inch guide wheel 2
19b 991-3060 Bumper wheel 2 (NON-OEM)
20 209-0150 Filter 1
21 999-0916 Screw 8-32 x 1/2 pan head phillips stainless steel 2 (included in KIT1)
22 172-2474 8 inch chain 1
23 209-6106 Solution tank lid 1
24 209-0140 Latch strike 1
25 209-0603 Nipple 1/2 NPT 1
26 172-9334 Gasket 1
27 N/A Not available 2 (washer) (only available with KIT1)
N/S 172-9343 Jumper wire (white) 1 (only used on models 56105290, 56105288 and 56384705)
N/A 172-9422 Jumper wire (black) 1 (only used on models 56105290, 56105288 and 56384705)
KIT1 172-9423 Solution tank hardware kit 1 (includes 1-6, 9-12, 21, 27)

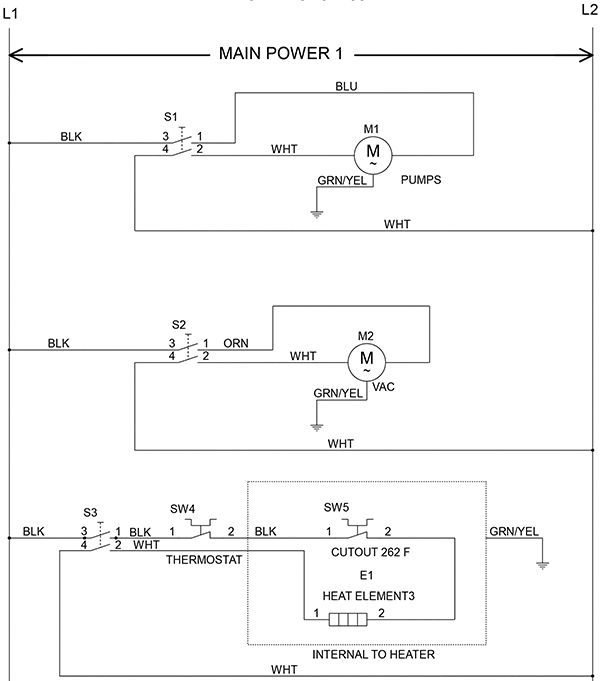

Wiring Diagram - Single Cord Heated - 170-2205
RefNbr Part Number Description Req Notes
E1 209-0654 120V heater 1
M1 172-9140 100PSI pump kit 1
N/S 209-0658 Carbon brush kit 1 (for 209-0330)
KIT1 209-0662 Bi-metallic heat repair kit 1 (includes SW4 and SW5)

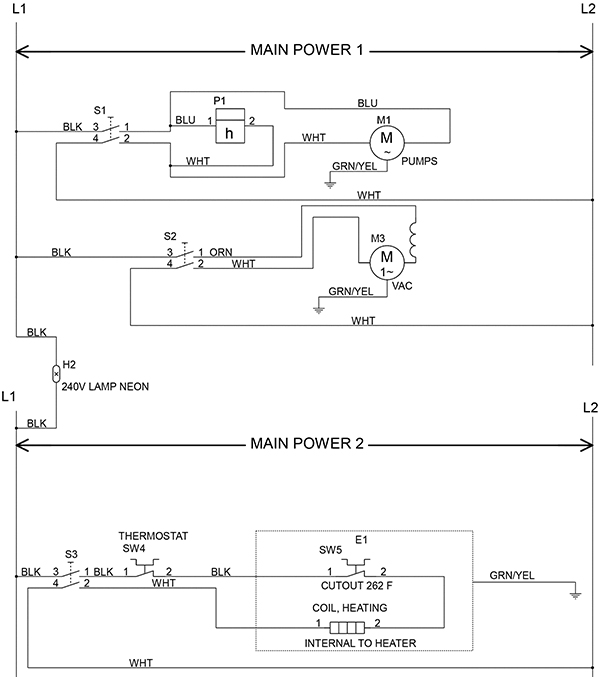

Wiring Diagram - Dual Cord Heated - 170-2206
RefNbr Part Number Description Req Notes
E1 209-0655 120V heater 1
H2 209-0671 Light (green) 1
M1 172-9140 100PSI pump kit 1
M3 209-0330 120V 3 stage vacuum motor 1
S3 172-9342 Rocker switch 1
SW5 N/A Not available 1 (thermal cut out) (only available with KIT1)
N/S 209-0658 Carbon brush kit 1 (for 209-0330)
KIT1 209-0333 Bi-metallic heat repair kit 1 (includes SW4 and SW5)

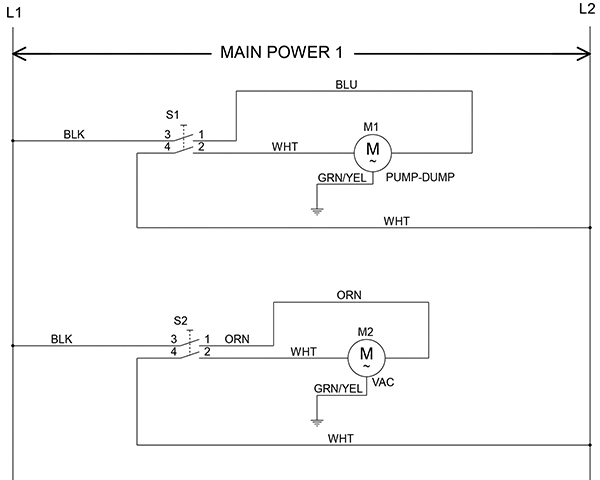

Wiring Diagram - Single Cord Cold - 170-2207
RefNbr Part Number Description Req Notes
M1 172-9140 100PSI pump kit 1
M3 209-0330 120V 3 stage vacuum motor 1
N/S 209-0658 Carbon brush kit 1 (for 209-0330)

- Commonly Asked For Parts - 170-9866
RefNbr Part Number Description Req Notes
01 172-9342 Rocker switch
02 172-9339 Tank lid kit
03 172-3545 Vac hose-Pressure line 15ft
04 209-2197 VAC HOSE/PRESSURE LN. 25 EXTE
05 272-6489 25 foot vacuum/solution hose
