Parts List Complete for CLARKE-ALT ENCORE S-28XP


Brush Motor Assembly - NON-OEM - 164-0011
RefNbr Part Number Description Req Notes
000a 991-2121 24V .75HP brush motor assembly with gear box 1 (includes 001-027)
000b 991-2122 36V .75HP brush motor assembly with gear box 1 (includes 001-027) (you will also need to order 000c and 000d)
000c 999-0038 Bolt 3/8-16 x 1 hex head grade 5 zinc plated 4
000d 999-0162 Bolt 5/16-18 x 1 1/4 hex head grade 5 zinc plated 1 (Needed for mounting the hub on the shaft)
001 164-1157 Bolt 1/4-20 x 7 3/4 thru 2
002 164-1095 Negative lead 1
003a 164-0337 Top end bell (OBSOLETE) 1
003b N/A Not available 1 (Commutator bracket assembly)
004 N/A Not available 1 (Brush board assembly)
005 999-0545 Screw 10-24 x 1/2 pan head phillips self-tapping 2
006 164-0329 Top rotor bearing 1 (Commutator end)
007a 164-1084 24V armature assembly (OBSOLETE) 1
007b 164-0341 36V armature assembly 1
008 164-0342 Armature vent fan 1
009 164-0343 Stator frame assembly with magnets 1
010 164-0355 Bottom bearing large 1
011 164-1096 Positive lead 1
012 164-0345 Strain relief (OBSOLETE) 2
013 164-0324 Carbon brush spring 4
014 991-1505 Carbon brush (sold individually) 4
015 999-0111 Screw 10-32 x 1/2 round head slotted brass 4
016 164-0328 Washer 1 7/8 wave 1
017 164-0349 Oil seal 1
018 164-0350 Gear box housing 1
019 164-0352 Top bearing small 1
020 164-0353 Gear shaft 1
021 164-0132 Square keyway 1/4 x 1/4 1
022 164-0355 Bottom bearing large 1
023 164-0356 O-ring 1
024 164-0357 End cap 1
025 164-0358 Oil seal 1
026 164-0359 Snap ring 1
027a 164-0351 Gear box assembly 1 (includes 017-026) (OEM)
027b 991-5115 Gear box assembly 1 (includes 017-026) (also need to order 027c) (NON-OEM)
027c 999-0562 Bolt 3/8-16 x 1 hex head stainless steel 4 (needed with 027b)

Connection Diagram -

RefNbr Part Number Description Req Notes

Solution and Recovery Assembly - 170-0014
RefNbr Part Number Description Req Notes
001 170-0023 Recovery tank lid gasket 1
002 170-0022 Recovery tank lid 1
003 170-7080 Stand pipe (OBSOLETE) 1
004 170-7081 Float switch (includes strain relief) 1
005 170-0292 Strain relief 1
006 170-0293 Seal 1
007 170-0273 O-ring 2
008 170-0647 Lock nut 1
009a 164-0881 Vacuum motor gasket 1
009b 991-3029 Vacuum motor gasket 1 (NON-OEM)
010 170-0274 Vacuum motor spacer 3
011 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel 3
012 999-0165 Bolt 1/4-20 x 4 hex head grade 5 zinc plated 3
013a 270-0102 36V 3 stage vacuum motor 1 (Alto-Clarke)
013b 991-1202 36V 3 stage vacuum motor tangential 1 (NON-OEM)
013c 991-1221 Carbon brush without plastic cover (pkg of 2) 2
014 170-0100 Hose clamp 1
015 999-0162 Bolt 5/16-18 x 1 1/4 hex head grade 5 zinc plated 4
016 999-0028 Washer 5/16 split lock plain finish 4
017 999-0160 Washer 1/4 x 1 1/4 fender zinc plated 4
018 170-7084 Squeegee vacuum hose with 1 cuff 1
019 170-7107 Well nut 1
020 170-7085 Squeegee adapter (OBSOLETE) 1
021 170-0279 Contact 4
022 170-0294 Nut 1/2 conduit lock 1
023 170-7086 Recovery tank drain hose 1
024 997-2007 Hose clamp 3
025 170-7087 Hinge pin 4
026 170-7088 Recovery tank (OBSOLETE) 1
027 NOTE Please See Batteries, Brushes, Pad Holders and Charger Pages 6
028 170-7089 Strap (OBSOLETE) 4
029 999-0267 Screw 10-24 x 1/2 pan head phillips zinc 2
030 999-0032 Washer 3/8 USS flat plain finish 2
031 999-0188 Nut 3/8-16 nylon insert lock zinc plated 2
032 999-0211 Nut 5/16-18 hex nylon insert lock zinc plated 4
033 170-0282 Solution tank lid 1
034a 170-7090 Front cover (for 28 and 33) (OBSOLETE) 1
034b 170-7184 Front cover (for 38) (OBSOLETE) 1
035 170-7372 Tank support bracket (OBSOLETE) 1
036 999-0060 Washer 1/4 split lock plain finish 2
037 999-0334 Bolt 1/4-20 x 3/4 inch hex head stainless steel 2
038 999-0843 Washer 5/8 flat nylon 1
039 170-7036 Shoulder screw 1
040 170-7093 Recovery tank support 1
041 170-7094 Latch 2
042 999-0462 Screw 8-32 x 1/2 pan head slotted zinc plated 4
043 170-7095 Solution tank adapter (OBSOLETE) 1 (no longer with strainer)
044 997-2002 Hose clamp #6 6
045a 170-0224 Battery cable 5 (quantity depends on battery posts, clamp type posts)
045b 998-0010 Battery jumper cable - ring type (red) 5 (quantity depends on battery posts, for bolt type post batteries, bolt type posts)
045c 991-6025 Wire 4 x14.5, 3/8 ring x 3/8 ring 1 (NON-OEM)
046a 170-0225 Battery cable 1 (wire from plug to battery)
046b 991-7024 36 inch charger cord w/ 50g plug 1 (NON-OEM)
047 999-0716 Washer 3/8 x 1 1/4 fender 2
048 999-1229 Bolt 3/8-16 x 1 1/2 tap head full thread grade 5 zinc plated 2
049 170-7097 Solution tank 1
050 170-7098 Stationary handle (OBSOLETE) 1
051 170-7099 Hose (OBSOLETE) 2
052 999-0078 Screw 10-24 x 3/4 round head slotted zinc 2
053 170-0042 Drain valve handle 2
054 170-0032 Drain valve gasket 2
055 170-0043 Drain valve 2
056 164-0218 Nylon hose clamp 2
057 999-0576 Screw 8-18 x 1/2 pan head phillips self-drilling ss 2
058 170-7100 12 inch drain hose 1 (solution drain hose)
059 170-7101 Battery drain valve 1
060 170-7102 Solution hose 2 (from filter to solenoid)
061 170-7103 Connector 1
062 164-0065 Filter screen 1
063 170-0264 Hose barb 1
064 170-0261 Elbow 1
065 170-7018 Hose 1
066 170-7104 Vacuum filter screen 1
067 170-7071 Metal clamp 1
068 170-0281 Connector housing (blue) 2
069 170-0280 Connector housing (black) 2
070 170-6048 Drain valve assembly 1 (includes 028 and 052-057)
071 999-0060 Washer 1/4 split lock plain finish 1
072 999-0019 Bolt 1/4-20 x 5/8 hex head grade 5 zinc plated 1
073 170-7106 Washer rubber 1
074 999-0016 Washer 1/4 flat plain finish 1
075 999-0717 Screw 1/4-14 x 3/4 pan head phillips self-drilling SS 1
076 999-0314 Screw 10-24 x 3/4 round head phillips zinc plated 2
077 999-0389 Screw 10-32 x 1 round head slotted zinc plated 1
N/S 170-0229 Battery warning decal 1
N/S 170-0230 Falling parts warning decal 1
N/S 170-7083 Battery label (OBSOLETE) 1

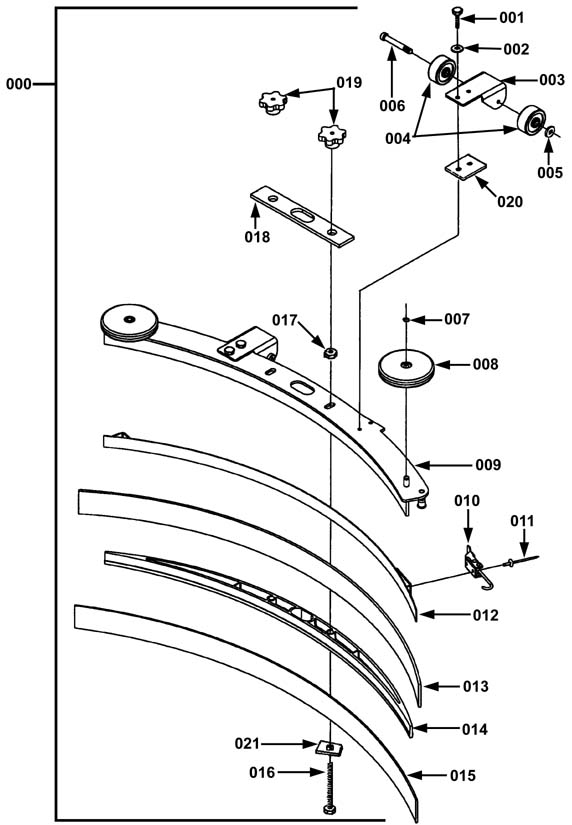

Squeegee Assembly - 170-0015
RefNbr Part Number Description Req Notes
000 170-7188 39 inch squeegee assembly 1 (includes 001-021)
001 999-0506 Bolt 1/4-20 x 1 1/2 hex head stainless steel 4
002 999-0060 Washer 1/4 split lock plain finish 4
003 170-7168 Squeegee wheel bracket 2
004 170-7169 Squeegee wheel 4
005 999-0294 Nut 1/4-20 hex nylon lock type NE stainless steel 2
006 170-7170 Bolt 5/16 x 2 1/4 shoulder 2
007 170-7171 3/8 inch snap ring 2
008 170-7172 4 inch guide wheel 2
009 170-7161 39 inch squeegee weldment 1
010 170-7162 Clamp latch 1
011 170-7163 Aluminum rivet 2
012 170-7164 39 inch retainer clamp strap 1
013a 170-7160 Squeegee blade 43 1/2 inch gum rubber rear (tan) 1 (OEM) (Standard)
013b 994-0018 Squeegee blade 43 1/2 inch gum rubber rear (tan) 1 (NON-OEM)
013c 170-8920 Squeegee blade 43 1/2 inch linatex rear (red) 1 (Optional)
014 170-7159 39 inch squeegee spacer 1
015a 170-7167 Squeegee blade 40 1/4 inch urethane front (clear) 1 (OEM) (Standard)
015b 994-0021 Squeegee blade 40 1/4 inch urethane front (clear) 1 (NON-OEM)
015c 170-8919 Squeegee blade 39 inch linatex notched rear 1 (Optional)
016 999-0626 Screw 3/8-16 x 3 carriage head stainless steel 2
017 999-0628 Nut 3/8-16 hex jam stainless steel 2
018 170-0164 Gasket 1
019 170-0171 Knob 2
020 170-7177 Shim 8
021 170-3394 Back up nut 2

Traverse System Assembly - 170-0016
RefNbr Part Number Description Req Notes
001 170-0145 Clevis pin 1
002 170-0135 Cotter pin (OBSOLETE) 1
003 999-0190 Nut 1/4-20 hex plain finish 2
004 170-7137 Swing bracket (OBSOLETE) 1
005 999-0132 Bolt 5/16-18 x 3/4 hex head grade 5 zinc plated 2
006 372-2615 Squeegee pulley cable 1
007 170-7109 Washer 1 1/4 nylon 2
008 999-0634 Bolt 1/4-20 x 1 1/2 hex head full thread grade 5 zinc plated 1
009 999-1229 Bolt 3/8-16 x 1 1/2 tap head full thread grade 5 zinc plated 6
010 999-0197 Screw 1/4-20 x 1 socket head alloy plain finish 1
011 999-0211 Nut 5/16-18 hex nylon insert lock zinc plated 2
012a 991-2011 Caster wheel assembly 2 (includes 012b)
012b 170-7201 Caster wheel 1
013 999-0188 Nut 3/8-16 nylon insert lock zinc plated 12
014a 170-7138 Transaxle and motor assembly 1 (includes 014b and 014c)
014b 170-3562 Transaxle (motor only) 1
014c 170-3568 Carbon brush (pkg of 4) 1
015 999-0649 Bolt 3/8-16 x 1 1/4 hex head stainless steel 4
016a 170-7139 Wheel assembly with wheel and inner tube 2 (includes 016b and 016c)
016b 170-7140 Foam filled wheel 2 (optional)
016c 170-2040 Tube for tire (OBSOLETE) 2
017 170-7141 Wheel cover (OBSOLETE) 2
018 170-7142 Nut 1/2-20 lug (OBSOLETE) 6
019 999-0017 Washer 1/4 external star lock 3
020 170-7000 Main frame (OBSOLETE) 1
021 170-7183 Transaxle mount 2
022 170-7144 Plate 2
023 170-7132 Washer 1 1/4 2
024 999-0887 Bolt 3/8-16 x 3 hex head hot dipped galvanized 2
025 999-0635 Nut 3/8-16 hex stainless steel 2
026 999-0034 Washer 3/8 split lock plain finish 2
027 170-7145 Stud 3/8 male x 3/8 female 2
028 999-0160 Washer 1/4 x 1 1/4 fender zinc plated 2
029 170-7146 Static strap 1
030 999-0032 Washer 3/8 USS flat plain finish 6
031 999-0119 Bolt 3/8-16 x 3/4 hex head grade 5 zinc plated 4
032 999-0034 Washer 3/8 split lock plain finish 4
033 170-7199 36V transaxle hub kit 1
N/S 170-5854 Sealed axle bearing 1
N/S 170-5855 Key 1 (for wheel hub)
N/S 170-5853 Axle oil seal 1
N/S 991-8501 Bearing for brush and drive end 2
N/S 170-2926 Long axle 1

Wiring Diagram -

RefNbr Part Number Description Req Notes

Squeegee Swing Arm Assembly - 170-0030
RefNbr Part Number Description Req Notes
001 372-2615 Squeegee pulley cable 2
002 170-7109 Washer 1 1/4 nylon 2
003 170-7110 Front swing arm 1
004 999-0634 Bolt 1/4-20 x 1 1/2 hex head full thread grade 5 zinc plated 2
005a 999-0649 Bolt 3/8-16 x 1 1/4 hex head stainless steel 1
005b 999-0617 Washer 3/8 x 1 flat stainless steel 1
006 999-0294 Nut 1/4-20 hex nylon lock type NE stainless steel 5
007 170-7111 Strap 1
008 170-7112 Lower cable 1
009 170-7113 Bumper 1
010 999-0211 Nut 5/16-18 hex nylon insert lock zinc plated 2
011 170-7114 Rear swing arm 1
012 999-0069 Nut 5/16-18 hex 2
013 999-0513 Nut 3/8-16 nylon insert lock type NE stainless steel 1
014 999-0211 Nut 5/16-18 hex nylon insert lock zinc plated 1
015 999-0333 Screw 10-24 x 1/2 pan head phillips stainless steel 1
016 170-7115 Washer 1 1/2 x 1/8 flat nylon 2
017 999-0636 Screw 5/16-18 x 2 socket head shoulder 1
018 170-7116 Squeegee pressure spring 2
019 170-7117 Stud (OBSOLETE) 2
020 999-0334 Bolt 1/4-20 x 3/4 inch hex head stainless steel 2
021 170-0714 T-handle 3
022 999-0549 Washer 5/16 x 3/4 SAE flat stainless steel 1
023 170-7118 Squeegee mounting bracket 1
024 170-0171 Knob 2
025 170-7084 Squeegee vacuum hose with 1 cuff 1
026 170-7119 Squeegee hose bracket 1
027 999-0152 Nut 1/4-20 nylon insert lock zinc plated 1
028 999-0190 Nut 1/4-20 hex plain finish 1
029 999-0060 Washer 1/4 split lock plain finish 1
030 170-7132 Washer 1 1/4 4
031 999-0718 Nut 1/4-28 hex jam zinc plated 1
032 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel 4

Scrub Deck Assembly - 170-0058
RefNbr Part Number Description Req Notes
001 170-0196 Clevis pin 2
002 170-7000 Main frame (OBSOLETE) 1
003 997-2516 Cotter pin 2
004 999-0119 Bolt 3/8-16 x 3/4 hex head grade 5 zinc plated 9
005 170-7001 Switch bracket (OBSOLETE) 1
006 999-0412 Washer #8 SAE flat 4
007 999-0227 Nut 6-32 hex nylon insert lock jam zinc plated 4
008 999-0188 Nut 3/8-16 nylon insert lock zinc plated 1
009 999-0211 Nut 5/16-18 hex nylon insert lock zinc plated 6
010a 170-7002 Switch mounting bracket (OBSOLETE) 1 (non-XP models)
010b 170-7185 Switch mounting bracket (OBSOLETE) 1 (XP models)
011 170-0191 Snap switch 1
012 999-0511 Screw 6-32 x 1 pan head phillips zinc plated 4
013 170-0213 Nylon washer 2
014 170-0062 Diode 1 (XP models)
015a 170-7003 Actuator and tube assembly 1 (S series models and S-XP models) (includes 016)
015b 170-1585 Actuator and tube assembly (OBSOLETE) 1 (L series models, includes item 071)
016 170-7004 Pressure tube 1
017a 999-0701 Bolt 1/4-20 x 2 3/4 hex head grade 5 zinc plated 1 (non-XP models)
017b 999-0683 Bolt 1/4-20 x 3 hex head grade 5 zinc plated 1 (XP models)
018 999-0016 Washer 1/4 flat plain finish 5
019 997-2001 Hose clamp 2
020 170-7005 Switch 1
021 170-0211 Linkage bar 4
022 999-0711 Bolt 1/2-20 x 1 1/2 hex head grade 5 zinc plated 8
023 170-0212 Flanged bearing 8
024 999-0714 Nut 1/2-20 hex jam stainless steel 6
025 999-0126 Washer 1/2 split lock 8
026 170-0705 Washer 1/2 x 3/64 4
027 999-0190 Nut 1/4-20 hex plain finish 5
028a 170-7006 Spacer 1 (non-XP models)
028b 170-7186 Spacer 1 (XP models)
029 170-7007 Nylon spacer 2
030a 170-7187 Pressure spring 1 (L series models and S-XP models)
030b 170-7008 Pressure spring 1 (S series models)
031 170-7009 Brush head mounting bracket (OBSOLETE) 1
032a 991-2105 SB50 50amp charger plug with pins (gray) 4
032b 991-2104 50amp charger plug SB50 only (gray) 4
032c 170-0218 Contact pins for charger plug (sold individually) 4
033a 170-0209 36V brush motor assembly 2 (OEM)
033b 991-2122 36V .75HP brush motor assembly with gear box 2 (NON-OEM) (you will also need to order 999-0130)
033c 999-0130 Screw 5/16-18 x 3/4 socket head alloy plain finish 2 (for NON-OEM brush motor)
033d 991-8524 36V 1.0HP brush motor assembly with gear box 2 (NON-OEM)
034 164-0132 Square keyway 1/4 x 1/4 2
035 999-0334 Bolt 1/4-20 x 3/4 inch hex head stainless steel 4
036 170-7190 U bolt 5/16-18 zinc 1
037 170-7011 Solenoid valve 1
038 997-2002 Hose clamp #6 2
039 170-7012 Hose 1
040 170-7013 Solution splitter 1
041a 170-7014 28 inch left brush housing 1
041b 170-7015 33 inch left brush housing 1
041c 170-1597 38 inch left brush housing 1
042a 170-7016 28 inch left skirt 1
042b 170-7017 33 inch left skirt 1
042c 170-1598 38 inch left skirt 1
043 170-0198 Hose clamp 2
044 170-7018 Hose 2
045 999-0357 Nut 8-32 nylon insert lock stainless steel 4
046 170-0031 Brush holder spring 2
048 170-7019 Brush deck latch 1
049 999-0358 Screw 8-32 x 5/8 pan head phillips stainless steel 4
050 999-0034 Washer 3/8 split lock plain finish 8
051 999-0510 Screw 1/4-20 x 1 pan head phillips zinc plated 6
052 170-0706 Washer 3/4 rubber 2
053a 170-0207 Male gimbal with collar 2
053b 170-0207 Male gimbal with collar
054 999-0130 Screw 5/16-18 x 3/4 socket head alloy plain finish 2
055 NOTE Please See Batteries, Brushes, Pad Holders and Charger Pages 2
056 991-2206 Center-Lok 3 pad holder 2
057 999-0358 Screw 8-32 x 5/8 pan head phillips stainless steel 6
058 170-0233 Brush driver collar - See pop-up (OBSOLETE) 2
059a 170-7021 28 inch brush plate (OBSOLETE) 1
059b 170-7022 33 inch brush plate 1
059c 170-1601 38 inch brush plate (OBSOLETE) 1
060 999-0132 Bolt 5/16-18 x 3/4 hex head grade 5 zinc plated 4
061a 170-7023 28 inch right skirt 1
061b 170-7024 33 inch right skirt 1
061c 170-7025 38 inch right skirt 1
062 170-7026 Latch tab 1
063 999-0712 Screw 3/8-16 x 2 1/2 truss head slotted stainless steel 1
064a 999-0726 Screw 10-32 x 5/8 pan head phillips zinc plated 11 (28 inch)
064b 999-0726 Screw 10-32 x 5/8 pan head phillips zinc plated 12 (33 and 38 inch)
065a 170-7027 T-nut 10-32 11 (28 inch)
065b 170-7027 T-nut 10-32 12 (33 and 38 inch)
066 170-7029 Keeper 1
067a 170-7030 28 inch right brush housing (OBSOLETE) 1
067b 170-1604 33 inch right brush housing 1
067c 170-1606 38 inch right brush housing (OBSOLETE) 1
068 999-0324 Nut 3/8-16 nylon insert lock jam zinc plated 2
069 170-0163 Guide wheel 1
070 999-0032 Washer 3/8 USS flat plain finish 2
071 170-7192 Brush head pressure sensor 1 (L series models and S-XP models)
072 999-0659 Washer 3/8 medium split lock stainless steel 1
N/S 170-1607 Front motor decal (OBSOLETE) 1 (S series)
N/S 170-0226 Moving warning decal 1
N/S 170-7034 Front motor decal (OBSOLETE) 1 (L series)

Control Housing Assembly - 170-0060
RefNbr Part Number Description Req Notes
001a 170-8261 Knob solution flow module (OBSOLETE) 2 (S and S-XP series)
001b 170-8261 Knob solution flow module (OBSOLETE) 3 (L series)
002 170-0058 Rocker switch 2 position 6 prong 1
003 170-0089 Rocker switch (OBSOLETE) 1 (L series)
004 999-0409 Screw 10-24 x 3/8 pan head slotted zinc plated 6
005a 170-1610 Control panel decal (OBSOLETE) 1 (L series)
005b 170-1611 Control panel (OBSOLETE) 1 (L series)
006a 170-7044 Control panel decal 1 (S and S-XP series)
006b 170-7045 Control panel 1 (S and S-XP series)
007 170-7046 Solution flow module (OBSOLETE) 1
008a 270-0707 Speed control harness (OBSOLETE) 1 (L series)
008b 270-0647 Traverse harness 1 (S and S-XP series)
009 170-7178 Battery meter 1
010 170-7179 Spacer 2
011 999-0227 Nut 6-32 hex nylon insert lock jam zinc plated 2
012 170-1612 Pressure adjuster (OBSOLETE) 1 (L series)
013 999-0081 Screw 1/4-20 x 5/8 pan head slotted zinc 2
014a 999-0019 Bolt 1/4-20 x 5/8 hex head grade 5 zinc plated 5 (L series)
014b 999-0019 Bolt 1/4-20 x 5/8 hex head grade 5 zinc plated 2 (S and S-XP series)
015 999-0358 Screw 8-32 x 5/8 pan head phillips stainless steel 4 (L series)
016 170-0717 Brush head pressure control board (OBSOLETE) 1 (L series)
017 N/A Not available 1 (Upper electrical panel, L series)
018a 170-0053 Key switch with 2 keys 1
018b 991-1635 Key
019 170-0716 Actuator control board 1 (L series)
020 170-0063 Insulated stand off 1
021 999-0715 Screw 1/4-20 x 3/4 cup point socket set alloy plain finish 1
022 991-1630 35amp circuit breaker 2 (brush motor)
023a 999-0431 Screw 8-32 x 1/4 set socket cup point alloy plain finish 3 (L series)
023b 999-0431 Screw 8-32 x 1/4 set socket cup point alloy plain finish 2 (S and S-XP series)
024 991-1625 30amp circuit breaker 1 (traverse motor)
025 991-1632 25amp circuit breaker 1 (vacuum motor)
026 991-1627 5amp circuit breaker 1 (brush actuator)
027 170-0087 1.5amp circuit breaker 1 (L series)
028a 170-1614 Control housing (OBSOLETE) 1 (L series)
028b 170-7182 Control housing (OBSOLETE) 1 (S and S-XP series)
029 170-7051 Washer nylon 1
030a 170-0052 Hour meter 1 (OEM)
030b 991-7137 Hour meter 1 (NON-OEM)
031 170-7052 Control handle (OBSOLETE) 1
032 999-0625 Screw 1/4-20 x 1 1/4 pan head phillips stainless steel 2
033 170-7053 Left hand pin (OBSOLETE) 1
034 170-1615 Control harness actuator (OBSOLETE) 1 (L series)
035 999-0060 Washer 1/4 split lock plain finish 2
036 170-7054 Toggle switch 1
037 170-0067 Centering bracket (OBSOLETE) 1
038 999-0627 Screw 5/16-18 x 1/2 socket cup point set ss 4 (must use red loctite)
039 170-0068 Control handle spring (OBSOLETE) 2
040 170-7055 Control bracket (OBSOLETE) 1
041 170-7056 Right hand pin (OBSOLETE) 1
042a 170-1616 Main harness (OBSOLETE) 1 (L series)
042b 170-7057 Main harness (OBSOLETE) 1 (S series)
042c 170-7181 Main harness (OBSOLETE) 1 (S-XP Series)
043 170-0064 Stud 1/4-20 1
044a 999-0016 Washer 1/4 flat plain finish 2 (S and S-XP series)
044b 999-0016 Washer 1/4 flat plain finish 5 (L series)
045a 999-0060 Washer 1/4 split lock plain finish 6 (L series)
045b 999-0060 Washer 1/4 split lock plain finish 3 (S and S-XP series)
046 170-7075 Insert 8-32 8 (L series)
047 999-1356 Screw 8-32 x 7/8 pan head phillips stainlesss steel 4 (L series)
048 999-0549 Washer 5/16 x 3/4 SAE flat stainless steel 1
049 170-7036 Shoulder screw 1
050a 170-7037 Panel gasket (OBSOLETE) 1 (S and S-XP series)
050b 170-1618 Panel gasket (OBSOLETE) 1 (L series)
051a 170-1619 Control wiring decal (OBSOLETE) 1 (L series)
051b 170-7038 Control wiring decal (OBSOLETE) 1 (S and S-XP series)
052 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel 2
053 999-0294 Nut 1/4-20 hex nylon lock type NE stainless steel 1
054 170-0071 Collar (OBSOLETE) 1
055 170-7040 Key and hour meter retainer (OBSOLETE) 1
056 170-7041 Threaded stud 5/16 x 1/4-20 inch (OBSOLETE) 1
057 170-7180 Sequencer module 1
058 170-7043 Sequencer harness (OBSOLETE) 1
059 999-0267 Screw 10-24 x 1/2 pan head phillips zinc 2 (L series)
060 270-0708 Potentiometer retainer 1

Rear Cover Assembly - 170-0063
RefNbr Part Number Description Req Notes
001 170-1620 Mounting bracket (OBSOLETE) 1 (L series)
002 999-0019 Bolt 1/4-20 x 5/8 hex head grade 5 zinc plated 5
003 999-0506 Bolt 1/4-20 x 1 1/2 hex head stainless steel 2 (L series)
004 372-2615 Squeegee pulley cable 1 (L series)
005a 999-0294 Nut 1/4-20 hex nylon lock type NE stainless steel 11 (L series)
005b 999-0294 Nut 1/4-20 hex nylon lock type NE stainless steel 9 (S and S-XP series)
006 170-1622 Pulley bracket 1 (L series)
007 999-0197 Screw 1/4-20 x 1 socket head alloy plain finish 1 (S series)
008 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel 2 (S series)
009 170-0117 Spacer 1 (S series)
010 170-0088 Flanged bearing (OBSOLETE) 2 (S series)
011 170-0718 Squeegee lift actuator 1 (L series)
012a 999-0227 Nut 6-32 hex nylon insert lock jam zinc plated 2 (L series)
012b 999-0227 Nut 6-32 hex nylon insert lock jam zinc plated 4 (S and S-XP series)
013 170-7060 Shaft 1 (S series)
014 170-7061 Squeegee lever 1 (S series)
015 170-0113 Spring (OBSOLETE) 1 (S series)
016 170-0112 Shoulder screw (OBSOLETE) 1 (S series)
017 170-7062 Squeegee lift bracket 1 (S series)
018 170-0121 Wear plate (OBSOLETE) 1 (S series)
019 154-3992 Washer 3/16 star 2 (S series)
020 999-0267 Screw 10-24 x 1/2 pan head phillips zinc 2 (S series)
021 170-0111 Vacuum switch assembly (OBSOELTE) 1 (S series)
022a 999-0511 Screw 6-32 x 1 pan head phillips zinc plated 2 (L series)
022b 999-0511 Screw 6-32 x 1 pan head phillips zinc plated 4 (S and S-XP series)
023 999-0627 Screw 5/16-18 x 1/2 socket cup point set ss 2 (S series)
024 170-7063 Lever weldment (OBSOLETE) 1 (S series)
025 170-7064 Upper cable assembly 1 (S series)
026a 170-0225 Battery cable 1
026b 991-7024 36 inch charger cord w/ 50g plug 1 (NON-OEM)
027 998-0057 Cable assembly with plug 1
028 172-2805 36V contactor 2
029 170-7065 Plug bracket (OBSOLETE) 1
030 170-1623 Upper cable assembly (OBSOLETE) 1 (L series)
031 170-1624 Sleeve 1 (L series)
032 170-1625 Cable spring 1 (L series)
033 170-1626 Cable spring assembly (OBSOLETE) 1 (L series)
034 170-7066 Lower electrical panel (OBSOLETE) 1
035 170-0077 Relay 1 (L series)
036 172-2805 36V contactor 1
037 999-0549 Washer 5/16 x 3/4 SAE flat stainless steel 2
038 170-7036 Shoulder screw 2
039a 170-7068 Traverse control board (black) 1
039b 170-2010 Traverse control board (Shiny metal) 1
040 999-0358 Screw 8-32 x 5/8 pan head phillips stainless steel 4
041a 170-1627 Rear cover 1 (L series)
041b 170-7069 Rear cover 1 (S and S-XP series)
042 999-0081 Screw 1/4-20 x 5/8 pan head slotted zinc 2
043 999-0016 Washer 1/4 flat plain finish 6
044 999-0060 Washer 1/4 split lock plain finish 4
045 999-0020 Bolt 1/4-20 x 3/4 hex head grade 5 zinc plated 1
046 999-0697 Screw 8-32 x 3/4 pan head phillips stainless steel 2 (L series)
047 170-7070 Gasket 1
048 170-7132 Washer 1 1/4 4 (L series)
049 170-7115 Washer 1 1/2 x 1/8 flat nylon 2 (L series)
050 170-7071 Metal clamp 1
051 N/A Not available 1 (Panel)
052 375-7487 Rivet 1/8 x 5/16 inch (OBSOLETE) 2
053 170-7074 Stud 1/4-20 8
054 170-0060 Diode 1
055a 170-7075 Insert 8-32 6 (L series)
055b 170-7075 Insert 8-32 4 (S and S-XP series)
056 170-7076 Insert 1/4-20 2
057 170-7077 Hose bracket 2
058 999-0110 Screw 10-16 x 1/2 pan head phillips self-drilling 4
059 999-0267 Screw 10-24 x 1/2 pan head phillips zinc 1 (L series)
060 999-0211 Nut 5/16-18 hex nylon insert lock zinc plated 1 (L series)
061a 170-1630 L series decal (OBSOLETE) 1 (L series)
061b 170-7078 S series decal (OBSOLETE) 1 (S series)
061c 170-7078 S series decal (OBSOLETE) 1 (S-XP series)
062 170-7079 Traverse decal (OBSOLETE) 1
063 170-5510 Serial tag 1
064 170-3005 Pop rivet 1

Transaxle Assembly - 170-8060
RefNbr Part Number Description Req Notes
000a 170-7138 Transaxle and motor assembly 1 (includes 000b thru 017)
000b 170-7446 Gearbox assembly without motor 1
001 170-7199 36V transaxle hub kit 2
002 170-7438 Rubber mount 2
003 170-5853 Axle oil seal 2
004 170-5854 Sealed axle bearing 4
005 170-7439 Short axle 1
006 170-7440 Output gear 1
007 170-7441 Input plug 1
008 170-7442 Outer pinion bearing 1
009 170-7443 Pinion (OBSOLETE) 1
010 170-7444 Inner pinion bearing 1
011 170-7445 Coupler steel ring 1
012 170-0694 Odum coupling 1
013a 170-3562 Transaxle (motor only) 1 (motor only)
013b 991-8500 Armature 1
013c 991-8502 Drive end cap 1
013d 991-8503 Frame assembly 1
013e 991-8501 Bearing for brush and drive end 2
013f N/A Not available 1 (Brush and cap kit)
013g 991-8504 Brush tubes 4
013h 991-8505 Wire assembly 1
013i 991-8506 Motor bolts (pkg of 2) 1
013j 991-8507 Brush cap assembly 1 (013k thru 013o required to convert to new style brush cap assembly)
013k 991-8511 Brush tubes 1 (for new style brush cap assembly)
013l 991-8510 Right wire assembly 4 (for new style brush cap assembly)
013m 991-8509 Left wire assembly 1 (for new style brush cap assembly)
013n 991-8508 Motor bolts 1 (for new style brush cap assembly)
014 170-3568 Carbon brush (pkg of 4) 1
015a 170-2024 Plastic cap for drive motor (black) (internal thread) (OBSOL 4
015b 170-2025 Plastic cap for drive motor (black) (external thread) 4
016 170-2926 Long axle 1
017 170-7447 Miter gear 4
N/S 170-5855 Key 1 (spare part for parking brake)
N/S 170-7435 Friction pad (OBSOLETE) 1 (spare part for parking brake)
N/S 170-7437 Screw M3 set (OBSOLETE) 1 (spare part for parking brake)
N/S 170-7436 Shaft hub (OBSOLETE) 1 (spare part for parking brake)

-Simplified Recovery System -

RefNbr Part Number Description Req Notes

-Simplified Electrical System -

RefNbr Part Number Description Req Notes

-Simplified Solution System -

RefNbr Part Number Description Req Notes

- Batteries, Brushes and Charger - 28 inch - 170-9925
RefNbr Part Number Description Req Notes
1 162-0003 6V 225Ah wet battery (SNSR) 6
2 162-0005 6V 305Ah wet battery (SNSR) 6
3 162-0043 6V 224Ah AGM battery (Group GC2) 6
4 162-0046 6V 335Ah AGM battery (Group J305) 6
5 162-5062 36V 20amp battery charger with small SB50 gray plug 1 (configured for wet batteries; can be changed to support AGM batteries)
162-9024 36V 12amp battery charger with small SB50 gray plug
6 991-2105 SB50 50amp charger plug with pins (gray) 1
7 996-0390 13 inch heavy grit stripping brush - 80 grit 2
8 996-0253 13 inch medium grit scrubbing brush - 180 grit 2
9 996-0391 13 inch lite grit scrubbing brush - 500 grit 2
10 996-3773 13 inch daily cleaning brush 2
11 996-0323 13 inch Pad driver 2
12 996-0336 Clutch plate with brush holder spring 2
13 991-2206 Center-Lok 3 pad holder 1

- Pads - 255-1400
RefNbr Part Number Description Req Notes
01 255-1440 14 inch aqua plus burnishing pad (pkg of 5)
02 255-1435 14 inch Armadillo concrete scrubbing pad (pkg of 5)
03 255-1464 14 inch Blue ace pad (pkg of 5)
04 255-1442 14 inch Blue Jay burnishing pad (pkg of 5)
05 255-1412 14 inch Cure white pad (pkg of 5)
06 255-1477 14 inch Diamondback extreme stripping pad (pkg of 5)
07 255-1438 14 inch EHD Extra Heavy Duty Concrete Leveling Pad (pkg of 2
08 255-1421 14 inch gorilla lite burnishing pad (pkg of 5)
09 255-1450 14 inch gorilla spray buff/polish/burnish pad (pkg of 5)
10 255-1465 14 inch Heat concrete bonding pad (pkg of 5)
11 255-1430 14 inch jaguar burnishing pad (pkg of 5)
12 255-1487 14 inch Melamine Mela-Kleen pad (pkg of 2)
13 255-1490 14 inch premium black stripping pad (pkg of 5)
14 255-1470 14 inch premium blue cleaning pad (pkg of 5)
15 255-1492 14 inch premium brown stripping pad (pkg of 5)
16 255-1480 14 inch premium green scrubbing pad (pkg of 5)
17 255-1460 14 inch premium red scrubbing pad (pkg of 5)
18 255-1452 14 inch premium tan polishing pad (pkg of 5)
19 255-1420 14 inch premium white polishing pad (pkg of 5)
20 255-1411 14 inch superspeed rubberized pad (pkg of 5)
21 255-1495 14 inch razorback stripping pad (pkg of 5)
22 255-1447 14 inch Redwood maroon floor prep pad (pkg of 10)
23 255-1455 14 inch Ruff non-abrasive brush pad (pkg of 2)
24 255-1423 14 inch sand screen driver pad (pkg of 2)
25 255-0120 14 inch Professional sand screen 100 grit (pkg of 10)
26 255-0121 14 inch Professional sand screen 120 grit (pkg of 10)
27 255-0122 14 inch Professional sand screen 180 grit (pkg of 10)
28 255-0119 14 inch Professional sand screen 60 grit (pkg of 10)
29 255-0205 14 inch Superscreen sand screen 100 grit (pkg of 10)
30 255-0206 14 inch Superscreen sand screen 120 grit (pkg of 10)
31 255-0207 14 inch Superscreen sand screen 180 grit (pkg of 10)
32 255-0204 14 inch Superscreen sand screen 60 grit (pkg of 10)
33 255-1424 14 x 20 inch Tiger carpet bonnet (pkg of 2)
34 255-9549 14 inch Diamond by Gorilla 11000 Grit (pkg of 2)
35 255-9546 14 inch Diamond by Gorilla 1500 Grit (pkg of 2)
36 255-9543 14 inch Diamond by Gorilla 200 Grit (pkg of 2)
37 255-9547 14 inch Diamond by Gorilla 3000 Grit (pkg of 2)
38 255-9544 14 inch Diamond by Gorilla 400 Grit (pkg of 2)
39 255-9545 14 inch Diamond by Gorilla 800 Grit (pkg of 2)
40 255-9548 14 inch Diamond by Gorilla 8000 Grit (pkg of 2)
41 255-9639 14 inch Diamond starter pack (1 of each grit)
42 255-1482 14 inch Turbostrip segmented rotary pad (pkg of 4)
43 255-1415 14 inch Duala clean and shine pad - low speed (pkg of 5)
44 255-1416 14 inch 2001 Duala clean and shine pad-high speed (pkg of 5)

- Pad Holders - 275-9029
RefNbr Part Number Description Req Notes
1 991-2214 Center-Lok II pad holder - left hand thread (red)
2a 991-2201 Center-Lok II pad holder - right hand thread (black) (Pad driver side female, Floor side male)
2b 991-8577 Pad retainer (Pad driver side male, Floor side female)
3a 991-2202 Big mouth pad holder set (blue) (includes 3 screws)
3b 991-2205 Deep lock ring and pad grip ring
4 991-2203 Big mouth pad holder male thread portion
5 991-2206 Center-Lok 3 pad holder (includes 3 screws)
6 996-0372 Big mouth pad holder (left hand thread)
7 N/A Not available
8 991-2209 Split retainer - pad holder ring (OBSOLETE)
9 N/A Not available (replaced by #3 991-2202)
10 991-2211 Center lock pad holding cup (male) (yellow) (OBSOLETE)

- Batteries - 999-5046
RefNbr Part Number Description Req Notes
1 162-0003 6V 225Ah wet battery (SNSR) 6
2 162-0005 6V 305Ah wet battery (SNSR) 6
3 162-0043 6V 224Ah AGM battery (Group GC2) 6
4 162-0046 6V 335Ah AGM battery (Group J305) 6

- Chargers - 999-5068
RefNbr Part Number Description Req Notes
1 162-5062 36V 20amp battery charger with small SB50 gray plug 1
2 162-9024 36V 12amp battery charger with small SB50 gray plug 1
4 991-2105 SB50 50amp charger plug with pins (gray) 1
5a 162-5079 SCR assembly kit 1
5b 372-1254 Fuse assembly 1
6 162-5087 AC cord set kit 1
7 162-5081 Control board assembly 1
Webpage Problem Reporting
