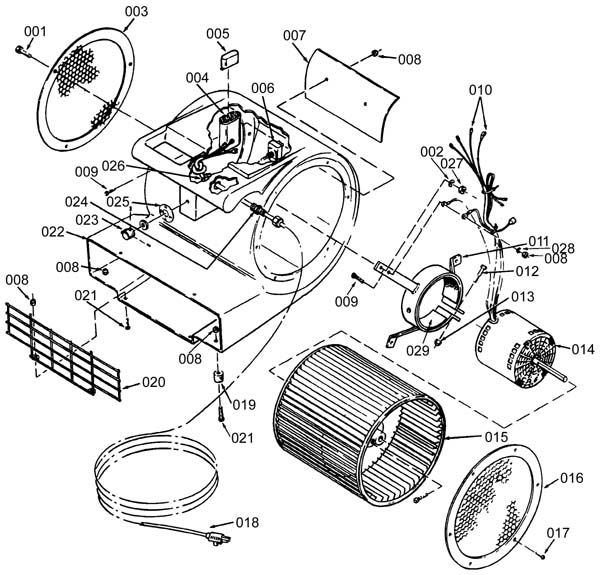

Entire Assembly - 170-8001 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 001 |
999-0866 |
Screw 1/4-20 x 7/8 round head slotted zinc plated |
3 |
|
| 002 |
999-0016 |
Washer 1/4 flat plain finish |
3 |
|
| 003 |
170-1568 |
3 hole intake guard (OBSOLETE) |
1 |
|
| 004 |
170-1569 |
Capacitor (OBSOLETE) |
1 |
|
| 005 |
170-1570 |
Capacitor boot (OBSOLETE) |
1 |
|
| 006 |
170-1571 |
Rotary switch |
1 |
(deluxe model) |
| 007 |
170-1572 |
Wiring cover (OBSOLETE) |
1 |
|
| 008 |
999-0211 |
Nut 5/16-18 hex nylon insert lock zinc plated |
7 |
|
| 009 |
999-0231 |
Screw 10-24 x 1/2 round head slotted zinc plated |
3 |
|
| 010 |
170-6013 |
1/4 terminal |
7 |
|
| 011 |
170-1573 |
Motor support (OBSOLETE) |
1 |
|
| 012 |
999-0161 |
Screw 3/8-16 x 2 round head slotted zinc |
1 |
|
| 013 |
999-0324 |
Nut 3/8-16 nylon insert lock jam zinc plated |
1 |
|
| 014 |
170-9908 |
120V 1/2HP motor (OBSOLETE) |
1 |
|
| 015 |
170-1574 |
Turbine fan (OBSOLETE) |
1 |
|
| 016 |
170-1575 |
6 hole intake guard |
1 |
|
| 017 |
999-0678 |
Screw 8-18 x 5/8 pan head self-drilling stainless steel |
6 |
|
| 018a |
270-0690 |
18/3 power cord |
1 |
(OEM) |
| 018b |
991-5007 |
18/3 replacement power cord 50 foot (black) |
1 |
(NON-OEM) |
| 018c |
991-5008 |
18/3 replacement power cord 50 foot (beige) |
1 |
(NON-OEM) |
| 019 |
375-7513 |
Plastic bumper (OBSOLETE) |
2 |
|
| 020 |
170-1578 |
Finger guard |
1 |
|
| 021 |
999-0705 |
Screw 10-24 x 3/4 pan head phillips stainless steel |
4 |
|
| 022 |
N/A |
Not available |
1 |
(Blower housing) |
| 023 |
170-1580 |
Switch knob |
1 |
(deluxe model) |
| 024 |
170-1581 |
Strain relief |
1 |
|
| 025 |
170-1582 |
Switch decal (OBSOLETE) |
1 |
(deluxe model) |
| 026 |
999-0188 |
Nut 3/8-16 nylon insert lock zinc plated |
1 |
|
| 027 |
999-0190 |
Nut 1/4-20 hex plain finish |
3 |
|
| 028 |
999-0311 |
Washer #10 external star lock zinc plated |
1 |
|
| 029 |
170-1583 |
Gasket (OBSOLETE) |
1 |
|
|
|
- Frequently Replaced Parts - 999-9507 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
270-0690 |
18/3 power cord |
|
(OEM) |
| 2 |
991-5007 |
18/3 replacement power cord 50 foot (black) |
|
(NON-OEM) |
| 5 |
170-1574 |
Turbine fan (OBSOLETE) |
|
|
| 6 |
375-7513 |
Plastic bumper (OBSOLETE) |
|
|
|
|
|
