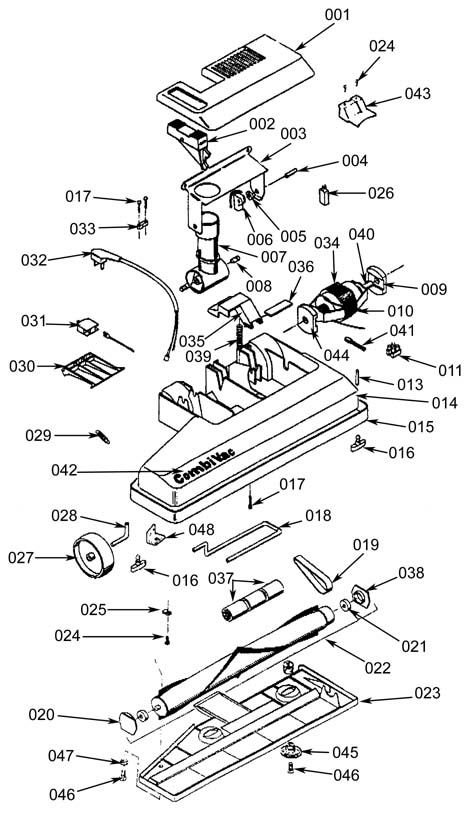

Head Assembly - 170-2017 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 003 |
170-2221 |
Pivot bracket |
1 |
|
| 004 |
170-9913 |
Cylinder pin |
1 |
|
| 005 |
170-9914 |
Bushing (OBSOLETE) |
2 |
|
| 006 |
170-9915 |
Wear plate (OBSOLETE) |
1 |
|
| 007 |
170-5064 |
Pivot handle |
1 |
|
| 008 |
170-5066 |
Shaft pivot (OBSOLETE) |
2 |
|
| 009a |
170-9916 |
Inner motor mount (OBSOLETE) |
1 |
For Combivac 614 |
| 009b |
170-5096 |
Outer mount brush motor (OBSOLETE) |
1 |
For Combivac 618 |
| 010a |
170-9917 |
Brush motor 120V |
1 |
For Combivac 614 |
| 010b |
170-3340 |
Vac motor 120V |
1 |
For Combivac 618 |
| 011 |
170-4611 |
Terminal block (OBSOLETE) |
1 |
|
| 013 |
170-5103 |
Pin (OBSOLETE) |
2 |
|
| 014a |
170-9921 |
Housing (OBSOLETE) |
1 |
For Combivac 614 |
| 014b |
170-9922 |
Housing (OBSOLETE) |
1 |
For Combivac 618 |
| 015a |
170-5104 |
Bumper 14 inch (OBSOLETE) |
1 |
For Combivac 614 |
| 015b |
170-5105 |
Bumper 18 inch (OBSOLETE) |
1 |
For Combivac 618 |
| 016 |
170-5113 |
Tension lever |
2 |
|
| 018 |
170-5106 |
Adjusting axle |
1 |
|
| 019 |
170-3326 |
Drive belt (OBSOELTE) |
1 |
|
| 020 |
170-5108 |
Block bearing (OBSOLETE) |
1 |
|
| 021 |
170-0362 |
Radial ball bearing |
2 |
|
| 022a |
170-5132 |
Brush assembly |
1 |
For Combivac 614 |
| 022b |
170-3328 |
Brush assembly 18in (OBSOLETE) |
1 |
For Combivac 618 |
| 023a |
170-5111 |
Plate nozzle |
1 |
For Combivac 614 |
| 023b |
170-5112 |
Nozzle plate |
1 |
For Combivac 618 |
| 024 |
170-9924 |
Screw 4 x 12 polyfast (OBSOLETE) |
4 |
|
| 025 |
170-5107 |
Plate fixing (OBSOLETE) |
2 |
|
| 026 |
170-9925 |
Brush motor circuit breaker (OBSOLETE) |
1 |
|
| 027 |
170-5076 |
Rear wheel |
2 |
|
| 028a |
170-9926 |
Wheel axle (OBSOLETE) |
2 |
There has been a malfunction with this part. You will most likely want to replace with 170-5075 (028b). |
| 028b |
170-5075 |
Axle wheel |
2 |
|
| 029 |
170-5070 |
Spring (OBSOLETE) |
1 |
|
| 030 |
170-5090 |
Switch cover mounting |
1 |
|
| 031 |
270-0005 |
one pole switch |
1 |
|
| 032a |
170-9927 |
Cord assembly (OBSOLETE) |
1 |
|
| 032b |
991-5006 |
16/3 replacement power cord 50 foot (yellow) |
1 |
|
| 032c |
991-5002 |
16/3 extension cord 50 foot (orange) |
1 |
(NON-OEM) |
| 033 |
170-5067 |
Strain relief clamp (OBSOLETE) |
1 |
|
| 034 |
170-9928 |
Strip gasket (OBSOLETE) |
1 |
|
| 035 |
170-5091 |
Latch foot |
1 |
|
| 036 |
170-5092 |
Rail stop (OBSOLETE) |
1 |
|
| 038 |
170-5082 |
Bearing block left side (OBSOLETE) |
1 |
|
| 039 |
170-9929 |
Tension spring (OBSOLETE) |
1 |
|
| 040 |
170-3333 |
Belt drive shaft (OBSOLETE) |
1 |
|
| 041a |
170-9930 |
Carbon brush (OBSOLETE) |
2 |
For Combivac 614 |
| 041b |
170-5102 |
Carbon Brushes |
2 |
For Combivac 618 |
| 042a |
170-9931 |
Label (OBSOLETE) |
1 |
For Combivac 614 |
| 042b |
170-9932 |
Label (OBSOLETE) |
1 |
For Combivac 618 |
| 043 |
170-8094 |
Exhaust side foam (OBSOLETE) |
1 |
|
| 044a |
170-5097 |
Inner motor mount (OBSOLETE) |
1 |
For Combivac 614 |
| 044b |
170-5093 |
Inner Mount Brush Motor (OBSOLETE) |
1 |
For Combivac 618 |
| 045 |
170-9933 |
Washer (OBSOLETE) |
2 |
|
| 046 |
170-5085 |
Screw nozzle plate (OBSOLETE) |
3 |
|
| 047 |
170-5072 |
Security disc |
1 |
For Combivac 618 |
| 048 |
170-5083 |
Retainer brush housing (OBSOLETE) |
1 |
For Combivac 618 |
| N/S |
170-9934 |
Bridge rectifier (OBSOLETE) |
1 |
|
| N/S |
991-9033 |
Paper vacuum bags (pkg of 10) (OBSOLETE) |
|
(NON-OEM) |
| N/S |
170-0126 |
Paper vacuum bag (pkg of 10) |
|
|
|
|

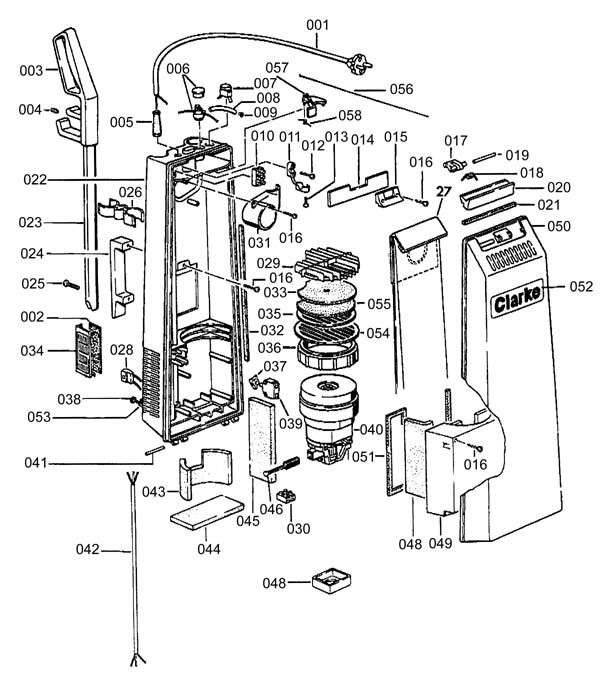

Main Frame - 170-2018 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 001 |
170-8910 |
Power cord 120V |
1 |
|
| 002 |
170-9936 |
Exhaust filter |
1 |
|
| 003 |
170-5129 |
Handle (OBSOLETE) |
1 |
|
| 004 |
170-9937 |
Screw M6 x 12 (OBSOLETE) |
1 |
|
| 005 |
170-9938 |
Cord sleeve 115V (OBSOLETE) |
1 |
|
| 006 |
170-9940 |
Indicator light 115V (OBSOLETE) |
1 |
|
| 007 |
170-5131 |
Master switch |
1 |
|
| 008 |
170-5035 |
Tubing (OBSOLETE) |
1 |
|
| 009 |
170-5036 |
Rivet (OBSOLETE) |
1 |
|
| 010 |
170-5022 |
Block terminal (OBSOLETE) |
2 |
|
| 011 |
170-9942 |
Strain relief (OBSOLETE) |
1 |
|
| 012 |
170-9943 |
Screw B 2.9 x 16 (OBSOLETE) |
1 |
|
| 013 |
999-1180 |
Screw M3-.5 x 16mm pan head stainless steel |
3 |
|
| 014 |
170-9944 |
Cover plate (OBSOLETE) |
1 |
|
| 015 |
170-9945 |
Tank catch (OBSOLETE) |
1 |
|
| 017 |
170-9946 |
Housing latch (OBSOLETE) |
1 |
|
| 018 |
170-9947 |
Spring (OBSOLETE) |
1 |
|
| 019 |
170-9948 |
Cylinder pin (OBSOLETE) |
1 |
|
| 020 |
170-9949 |
Release bar (OBSOLETE) |
1 |
|
| 021 |
170-9950 |
Tank gasket (OBSOLETE) |
1 |
|
| 022 |
170-9951 |
Rear housing (OBSOLETE) |
1 |
|
| 023 |
170-9952 |
Handle tube (OBSOLETE) |
1 |
|
| 024 |
170-9953 |
Carrying handle (OBSOLETE) |
1 |
|
| 025 |
170-9954 |
Screw 6 x 40 thumb (OBSOLETE) |
1 |
|
| 026 |
170-5130 |
Accessory clamp (OBSOLETE) |
1 |
|
| 027a |
170-0126 |
Paper vacuum bag (pkg of 10) |
1 |
(OEM) Pkg of 10 |
| 027b |
991-9033 |
Paper vacuum bags (pkg of 10) (OBSOLETE) |
1 |
(NON-OEM) |
| 028 |
170-9955 |
ReceptIcal (OBSOLETE) |
1 |
|
| 029 |
170-9956 |
Filter holder (OBSOLETE) |
1 |
|
| 030 |
170-4611 |
Terminal block (OBSOLETE) |
1 |
|
| 031 |
170-9958 |
Bag adapter (OBSOLETE) |
1 |
|
| 032 |
170-9959 |
Gasket (OBSOLETE) |
1 |
|
| 033 |
170-3327 |
Vac motor filter (OBSOLETE) |
1 |
|
| 034 |
170-9960 |
Filter frame (OBSOLETE) |
1 |
|
| 035 |
170-9961 |
Filter spacer (OBSOLETE) |
1 |
|
| 036 |
170-9962 |
Motor mounting ring (OBSOLETE) |
1 |
|
| 037 |
170-5016 |
Switch cap |
1 |
|
| 038 |
170-5015 |
Thumb screw set of 2 |
1 |
|
| 039 |
170-5017 |
Switch wand |
1 |
|
| 040 |
170-9964 |
Vacuum motor 115V (OBSOLETE) |
1 |
|
| 041 |
170-9966 |
Grooved pin (OBSOLETE) |
2 |
|
| 042 |
170-9967 |
Connecting cord w/3 wires (OBSOLETE) |
1 |
|
| 043 |
170-5050 |
Foam (OBSOLETE) |
1 |
|
| 044 |
170-5019 |
Insulating insert |
1 |
|
| 045 |
170-9969 |
Exhaust filter |
1 |
|
| 046 |
170-5023 |
Carbon brushes 120v (OBSOLETE) |
2 |
|
| 047 |
170-9970 |
Motor mount (OBSOLETE) |
1 |
|
| 048 |
170-9971 |
Foam (OBSOLETE) |
1 |
|
| 049 |
170-9972 |
Vacuum motor cover (OBSOLETE) |
1 |
|
| 050 |
170-9973 |
Front housing (OBSOLETE) |
1 |
|
| 051 |
170-9974 |
Gasket (OBSOLETE) |
1 |
|
| 052 |
170-9975 |
Clarke label (OBSOLETE) |
1 |
|
| 053 |
170-9976 |
Clarke label |
1 |
|
| 054 |
170-9977 |
Filter disc (OBSOLETE) |
1 |
|
| 055 |
170-9982 |
Microstaph filter (OBSOLETE) |
1 |
Pkg of 6, optional |
| 056 |
170-9979 |
Nylon cord (OBSOLETE) |
1 |
|
| 057 |
170-5032 |
Locking bar |
1 |
|
| 058 |
170-5033 |
Spiral spring (OBSOLETE) |
1 |
|
| 059 |
170-5020 |
Circuit breaker (OBSOLETE) |
1 |
|
| KIT |
170-1097 |
Screwed connection |
1 |
Optional Accessories |
| KIT |
170-5056 |
Kit of 6 Microfilters (OBSOLETE) |
1 |
Optional Accessories |
| N/S |
170-5124 |
Cloth filter bag (Combivacs) (OBSOLETE) |
1 |
|
| N/S |
170-5052 |
Tool-furniture brush |
1 |
|
| N/S |
170-9982 |
Microstaph filter (OBSOLETE) |
1 |
|
| N/S |
170-5053 |
Tool - floor |
1 |
|
|
|

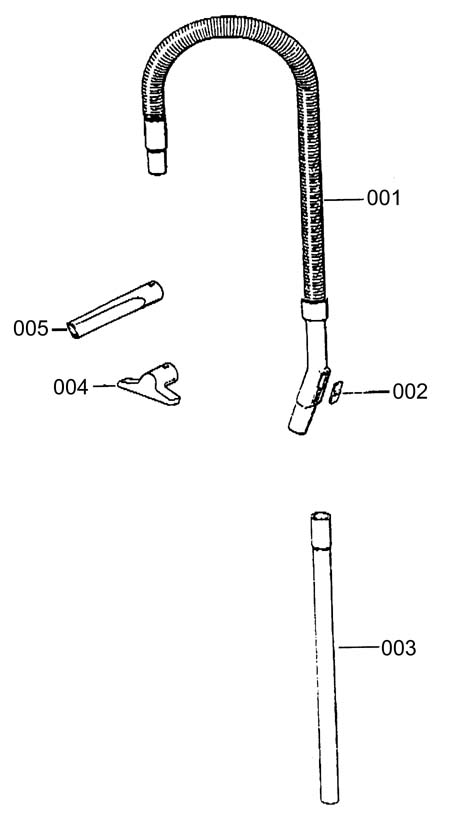

Wand Assembly - 170-2019 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 002 |
170-9983 |
Bleed off slide (OBSOLETE) |
1 |
|
| 003 |
170-5118 |
Black wand (OBSOLETE) |
1 |
|
| 004 |
170-5122 |
Upholstery tool |
1 |
|
| 005 |
170-5121 |
Crevice tool |
