Solution Tank Kit - NON-OEM - 172-2089 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 000a |
209-0013 |
4 gallon solution tank kit for round handle side x sides |
1 |
(includes 001-018) |
| 000b |
209-0014 |
4 gallon solution tank kit for square handle side x sides |
1 |
|
| 000c |
209-0017 |
2 1/2 gallon solution tank kit (OBSOLETE) |
1 |
|
| 001 |
209-0033 |
Cap (black) |
1 |
|
| 002 |
209-0034 |
Brass handle rod (OBSOLETE) |
1 |
|
| 003 |
209-0035 |
1/8 inch grommet |
1 |
|
| 004 |
N/A |
Not available |
1 |
(Tank only) |
| 005 |
209-0036 |
Solution valve |
1 |
(includes 006 and 007) |
| 006 |
N/A |
Not available |
1 |
(Washer) |
| 007 |
209-0038 |
Nut 1/4 brass pipe thread straight |
1 |
|
| 008 |
209-0039 |
Hose barb 1/4 |
1 |
|
| 009 |
209-0040 |
Hose 3/8 x 24 inch |
1 |
|
| 010 |
209-0041 |
Coupling 1/8 brass |
1 |
|
| 011 |
209-0042 |
1/8 inch brass nipple |
1 |
|
| 012 |
209-0043 |
Washer 1/8 brass |
2 |
|
| 013 |
209-0044 |
Nut 1/8 brass lock (OBSOLETE) |
1 |
|
| 014 |
209-0045 |
Hose assembly (OBSOLETE) |
1 |
(includes 009-013) |
| 015 |
209-0046 |
5/16 inch u bolt |
2 |
(only used for round handle buffers) |
| 016 |
209-0047 |
Washer bar |
2 |
|
| 017 |
999-0069 |
Nut 5/16-18 hex |
2 |
|
| 018 |
209-0049 |
U bolt assembly (set of 2) |
1 |
(only used for round handle side x sides) (includes 015-017) |
| 019 |
209-0051 |
Advance adapter U-bolts assembly (set of 2) (OBSOLETE) |
1 |
|
|
|
- Pads - 17 inch - 255-1700 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 01 |
255-1740 |
17 inch aqua plus burnishing pad (pkg of 5) |
|
|
| 02 |
255-1735 |
17 inch Armadillo concrete scrubbing pad (pkg of 5) |
|
|
| 03 |
255-1764 |
17 inch Blue ace pad (pkg of 5) |
|
|
| 04 |
255-1742 |
17 inch Blue Jay burnishing pad (pkg of 5) |
|
|
| 05 |
255-1712 |
17 inch Cure white pad (pkg of 5) (OBSOLETE) |
|
|
| 06 |
255-1777 |
17 inch Diamondback extreme stripping pad (pkg of 5) |
|
|
| 07 |
255-1738 |
17 inch EHD Extra Heavy Duty Concrete Leveling Pad (pkg of 2 |
|
|
| 08 |
255-1721 |
17 inch gorilla lite burnishing pad (pkg of 5) |
|
|
| 09 |
255-1750 |
17 inch gorilla spray buff/polish/burnish pad (pkg of 5) |
|
|
| 10 |
255-1765 |
17 inch Heat concrete bonding pad (pkg of 5) |
|
|
| 11 |
255-1730 |
17 inch jaguar burnishing pad (pkg of 5) |
|
|
| 12 |
255-1767 |
17 inch Laminated 2001 Gorilla polish pad (pkg of 5) |
|
|
| 13 |
255-1768 |
17 inch Microclean daily cleaning pad (pkg of 2) |
|
|
| 14 |
255-1769 |
17 inch Micropolish polishing and burnishing pad (pkg of 2) |
|
|
| 15 |
255-1790 |
17 inch premium black stripping pad (pkg of 5) |
|
|
| 16 |
255-1770 |
17 inch premium blue cleaning pad (pkg of 5) |
|
|
| 17 |
255-1792 |
17 inch premium brown stripping pad (pkg of 5) |
|
|
| 18 |
255-1780 |
17 inch premium green scrubbing pad (pkg of 5) |
|
|
| 19 |
255-1760 |
17 inch premium red scrubbing pad (pkg of 5) |
|
|
| 20 |
255-1752 |
17 inch premium tan polishing pad (pkg of 5) |
|
|
| 21 |
255-1720 |
17 inch premium white polishing pad (pkg of 5) |
|
|
| 22 |
255-1711 |
17 inch superspeed rubberized pad (pkg of 5) |
|
|
| 23 |
255-1795 |
17 inch razorback stripping pad (pkg of 5) |
|
|
| 24 |
255-1747 |
17 inch Redwood maroon floor prep pad (pkg of 10) |
|
|
| 25 |
255-1755 |
17 inch Ruff non-abrasive brush pad (pkg of 2) |
|
|
| 26 |
255-1723 |
17 inch sand screen driver pad (pkg of 2) |
|
|
| 27 |
255-0139 |
17 inch Professional sand screen 100 grit (pkg of 10) |
|
|
| 28 |
255-0019 |
17 inch Professional sand screen 120 grit (pkg of 10) |
|
|
| 29 |
255-0140 |
17 inch Professional sand screen 150 grit (pkg of 10) |
|
|
| 30 |
255-0141 |
17 inch Professional sand screen 180 grit (pkg of 10) |
|
|
| 31 |
255-0142 |
17 inch Professional sand screen 220 grit (pkg of 10) |
|
|
| 32 |
255-0143 |
17 inch Professional sand screen 400 grit (pkg of 10) |
|
|
| 33 |
255-0138 |
17 inch Professional sand screen 60 grit (pkg of 10) |
|
|
| 34 |
255-0018 |
17 inch Professional sand screen 80 grit (pkg of 10) |
|
|
| 35 |
255-0225 |
17 inch Superscreen sand screen 100 grit (pkg of 10) |
|
|
| 36 |
255-0226 |
17 inch Superscreen sand screen 120 grit (pkg of 10) |
|
|
| 37 |
255-0227 |
17 inch Superscreen sand screen 150 grit (pkg of 10) |
|
|
| 38 |
255-0228 |
17 inch Superscreen sand screen 180 grit (pkg of 10) |
|
|
| 39 |
255-0229 |
17 inch Superscreen sand screen 220 grit (pkg of 10) |
|
|
| 40 |
255-0230 |
17 inch Superscreen sand screen 400 grit (pkg of 10) |
|
|
| 41 |
255-0223 |
17 inch Superscreen sand screen 60 grit (pkg of 10) |
|
|
| 42 |
255-0224 |
17 inch Superscreen sand screen 80 grit (pkg of 10) |
|
|
| 43 |
255-1724 |
17 inch Tiger carpet bonnet (pkg of 2) |
|
|
| 44 |
255-9570 |
17 inch Diamond by Gorilla 11000 Grit (pkg of 2) |
|
|
| 45 |
255-9567 |
17 inch Diamond by Gorilla 1500 Grit (pkg of 2) |
|
|
| 46 |
255-9564 |
17 inch Diamond by Gorilla 200 Grit (pkg of 2) |
|
|
| 47 |
255-9568 |
17 inch Diamond by Gorilla 3000 Grit (pkg of 2) |
|
|
| 48 |
255-9565 |
17 inch Diamond by Gorilla 400 Grit (pkg of 2) |
|
|
| 49 |
255-9566 |
17 inch Diamond by Gorilla 800 Grit (pkg of 2) |
|
|
| 50 |
255-9569 |
17 inch Diamond by Gorilla 8000 Grit (pkg of 2) |
|
|
| 51 |
255-9642 |
17 inch Diamond starter pack (1 of each grit) |
|
|
| 52 |
255-1782 |
17 inch Turbostrip segmented rotary pad (pkg of 4) |
|
|
| 53 |
255-1715 |
17 inch Duala clean and shine pad - low speed (pkg of 5) |
|
|
| 54 |
255-1716 |
17 inch 2001 Duala clean and shine pad - high speed (pkg 5) |
|
|
|
|
- Pads - 20 inch - 255-2000 |
|
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 01 |
255-2040 |
20 inch aqua plus burnishing pad (pkg of 5) |
|
|
| 02 |
255-2035 |
20 inch Armadillo concrete scrubbing pad (pkg of 5) |
|
|
| 03 |
255-2064 |
20 inch Blue ace pad (pkg of 5) |
|
|
| 04 |
255-2042 |
20 inch Blue Jay burnishing pad (pkg of 5) |
|
|
| 05 |
255-2012 |
20 inch Cure white pad (pkg of 5) |
|
|
| 06 |
255-2077 |
20 inch Diamondback extreme stripping pad (pkg of 5) |
|
|
| 07 |
255-2038 |
20 inch EHD Extra Heavy Duty Concrete Leveling Pad (pkg of 2 |
|
|
| 08 |
255-2021 |
20 inch gorilla lite burnishing pad (pkg of 5) |
|
|
| 09 |
255-2050 |
20 inch gorilla spray buff/polish/burnish pad (pkg of 5) |
|
|
| 10 |
255-2065 |
20 inch Heat concrete bonding pad (pkg of 5) |
|
|
| 11 |
255-2030 |
20 inch jaguar burnishing pad (pkg of 5) |
|
|
| 12 |
255-2067 |
20 inch Laminated 2001 Gorilla polish pad (pkg of 5) |
|
|
| 13 |
255-2087 |
20 inch Melamine Mela-Kleen pad (pkg of 2) |
|
|
| 14 |
255-2068 |
20 inch Microclean daily cleaning pad (pkg of 2) |
|
|
| 15 |
255-2069 |
20 inch Micropolish polishing and burnishing pad (pkg of 2) |
|
|
| 16 |
255-2090 |
20 inch premium black stripping pad (pkg of 5) |
|
|
| 17 |
255-2070 |
20 inch premium blue cleaning pad (pkg of 5) |
|
|
| 18 |
255-2092 |
20 inch premium brown stripping pad (pkg of 5) |
|
|
| 19 |
255-2080 |
20 inch premium green scrubbing pad (pkg of 5) |
|
|
| 20 |
255-2060 |
20 inch premium red scrubbing pad (pkg of 5) |
|
|
| 21 |
255-2052 |
20 inch premium tan polishing pad (pkg of 5) |
|
|
| 22 |
255-2020 |
20 inch premium white polishing pad (pkg of 5) |
|
|
| 23 |
255-2011 |
20 inch superspeed rubberized pad (pkg of 5) |
|
|
| 24 |
255-2095 |
20 inch razorback stripping pad (pkg of 5) |
|
|
| 25 |
255-2047 |
20 inch Redwood maroon floor prep pad (pkg of 10) |
|
|
| 26 |
255-2055 |
20 inch Ruff non-abrasive brush pad (pkg of 2) |
|
|
| 27 |
255-2023 |
20 inch sand screen driver pad (pkg of 2) |
|
|
| 28 |
255-0157 |
20 inch Professional sand screen 100 grit (pkg of 10) |
|
|
| 29 |
255-0021 |
20 inch Professional sand screen 120 grit (pkg of 10) |
|
|
| 30 |
255-0158 |
20 inch Professional sand screen 150 grit (pkg of 10) |
|
|
| 31 |
255-0159 |
20 inch Professional sand screen 180 grit (pkg of 10) |
|
|
| 32 |
255-0160 |
20 inch Professional sand screen 220 grit (pkg of 10) |
|
|
| 33 |
255-0161 |
20 inch Professional sand screen 400 grit (pkg of 10) |
|
|
| 34 |
255-0030 |
20 inch Professional sand screen 60 grit (pkg of 10) |
|
|
| 35 |
255-0020 |
20 inch Professional sand screen 80 grit (pkg of 10) |
|
|
| 36 |
255-0249 |
20 inch Superscreen sand screen 100 grit (pkg of 10) |
|
|
| 37 |
255-0250 |
20 inch Superscreen sand screen 120 grit (pkg of 10) |
|
|
| 38 |
255-0251 |
20 inch Superscreen sand screen 150 grit (pkg of 10) |
|
|
| 39 |
255-0252 |
20 inch Superscreen sand screen 180 grit (pkg of 10) |
|
|
| 40 |
255-0253 |
20 inch Superscreen sand screen 220 grit (pkg10) (OBSOLETE) |
|
|
| 41 |
255-0254 |
20 inch Superscreen sand screen 400 grit (pkg of 10) |
|
|
| 42 |
255-0247 |
20 inch Superscreen sand screen 60 grit (pkg of 10) |
|
|
| 43 |
255-0248 |
20 inch Superscreen sand screen 80 grit (pkg of 10) |
|
|
| 45 |
255-9591 |
20 inch Diamond by Gorilla 11000 Grit (pkg of 2) |
|
|
| 46 |
255-9588 |
20 inch Diamond by Gorilla 1500 Grit (pkg of 2) |
|
|
| 47 |
255-9585 |
20 inch Diamond by Gorilla 200 Grit (pkg of 2) |
|
|
| 48 |
255-9589 |
20 inch Diamond by Gorilla 3000 Grit (pkg of 2) |
|
|
| 49 |
255-9586 |
20 inch Diamond by Gorilla 400 Grit (pkg of 2) |
|
|
| 50 |
255-9587 |
20 inch Diamond by Gorilla 800 Grit (pkg of 2) |
|
|
| 51 |
255-9590 |
20 inch Diamond by Gorilla 8000 Grit (pkg of 2) |
|
|
| 52 |
255-9645 |
20 inch Diamond starter pack (1 of each grit) |
|
|
| 53 |
255-2082 |
20 inch Turbostrip segmented rotary pad (pkg of 4) |
|
|
| 54 |
255-2015 |
20 inch Duala clean and shine pad - low speed (pkg of 5) |
|
|
| 55 |
255-2016 |
20in 2001 Duala clean& shine pad-high speed(pkg 5) (OBSOLETE |
|
|
|
|
Entire Assembly - 270-5002 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 2 |
270-0077 |
Switch assembly |
1 |
|
| 3 |
270-0143 |
Front handle |
1 |
|
| 4 |
163-0201 |
Handle decal (OBSOLETE) |
1 |
|
| 5 |
999-1275 |
Screw 10-32 x 3/4 hex head stainless steel |
6 |
|
| 7a |
163-0202 |
14/3 power cord 50 foot |
1 |
(OEM) |
| 7b |
991-5005 |
14/3 replacement power cord 50 foot (yellow) |
1 |
(NON-OEM) (does not include strain relief) |
| 7c |
172-1561 |
Strain relief |
1 |
|
| 7d |
170-6013 |
1/4 terminal |
2 |
|
| 8 |
170-1517 |
Handle clamp |
1 |
|
| 9 |
163-0203 |
Interconnect cord |
1 |
|
| 10a |
170-1267 |
Cam assembly with grip, bolt and locking lever |
1 |
|
| 11a |
170-1267 |
Cam assembly with grip, bolt and locking lever |
1 |
|
| 11b |
170-1267 |
Cam assembly with grip, bolt and locking lever |
1 |
|
| 11c |
163-0205 |
Coiled pin |
1 |
|
| 11 |
170-5522 |
Wear washer |
1 |
|
| 12 |
999-0188 |
Nut 3/8-16 nylon insert lock zinc plated |
1 |
|
| 13a |
163-0214 |
CFP 2000 decal |
1 |
|
| 13b |
370-3186 |
LABEL CFP-2000 230/50 (OBSOLETE) |
1 |
|
| 14 |
999-1276 |
Screw 10-32 x 3/8 hex head stainless steel |
5 |
|
| 15 |
272-8200 |
Button head screw |
2 |
|
| 16 |
172-3050 |
5 inch wheel |
2 |
|
| 17 |
999-0114 |
Washer 1/2 SAE flat |
2 |
|
| 18 |
272-8202 |
Bowed washer |
2 |
|
| 19 |
170-7802 |
Right linkage arm |
1 |
|
| 21 |
170-7797 |
Left linkage arm |
1 |
|
| 23a |
170-7828 |
Gearbox |
1 |
(1700DS, 2000DS) |
| 23b |
170-7817 |
Drip cover |
1 |
(130, 170, 200, 1700, 2000) |
| 23c |
170-7818 |
Drip cover |
1 |
(1700DS, 2000DS) |
| 25 |
170-0497 |
Clarke decal |
1 |
|
| 26 |
170-7815 |
Housing assembly |
1 |
(includes 27g and 27h) (200, 2000) |
| 27 |
163-0218 |
Screw 5/16-18 |
4 |
|
| 29 |
163-0204 |
1/2 split pin |
2 |
|
| 30 |
999-0998 |
Washer #10 flat stainless steel |
1 |
|
| N/S |
154-3996 |
Prop 65 decal |
1 |
|
| N/S |
996-0071 |
19 inch pad driver |
1 |
|
|
|
Wiring Diagram - |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
|
|
Electrical Schematic - |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
|
|

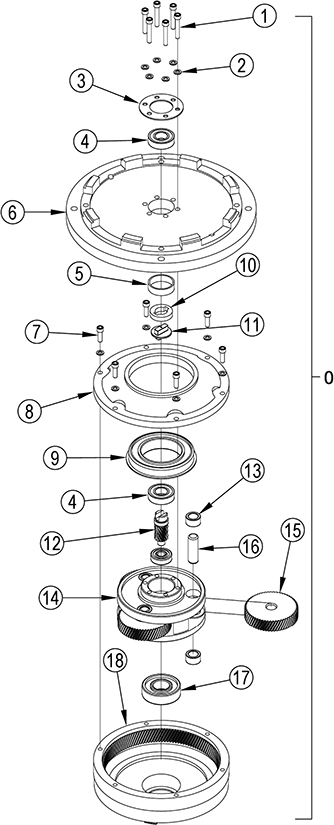

Gearbox Assembly - 270-5005 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 0a |
170-7821 |
Gearbox |
1 |
(includes 1-18) |
| 0b |
170-7825 |
Gearbox |
1 |
(includes 1-18) |
| 0c |
170-7828 |
Gearbox |
1 |
(includes 1-18) |
| 1 |
270-0705 |
Screw 10-32 x 1 |
6 |
|
| 2 |
170-6125 |
Washer 1/8 lock |
6 |
|
| 3 |
170-0337 |
Retaining plate |
1 |
|
| 4 |
170-0338 |
Ball bearing |
3 |
|
| 5 |
170-1560 |
Sleeved spacer |
1 |
|
| 6a |
270-0701 |
Mounting plate |
1 |
(dual speed) |
| 6b |
270-0704 |
Mounting plate |
1 |
(single speed) |
| 7 |
999-0705 |
Screw 10-24 x 3/4 pan head phillips stainless steel |
6 |
|
| 8 |
170-0341 |
Housing cover (OBSOLETE) |
1 |
|
| 9 |
170-0342 |
Ball bearing |
1 |
|
| 10 |
170-0343 |
Shaft retainer |
1 |
|
| 11 |
170-0694 |
Odum coupling |
1 |
|
| 13 |
170-0348 |
Needle bearing |
6 |
|
| 14 |
N/A |
Not available |
1 |
(cage) |
| 17 |
170-0320 |
Bottom bearing |
1 |
|
| 18 |
170-1225 |
Drive housing |
1 |
|
| N/S |
170-2669 |
Grease-14 Ounce Tube |
1 |
(0a uses 9 ounces) (0b and 0c use 8 ounces) |
|
|

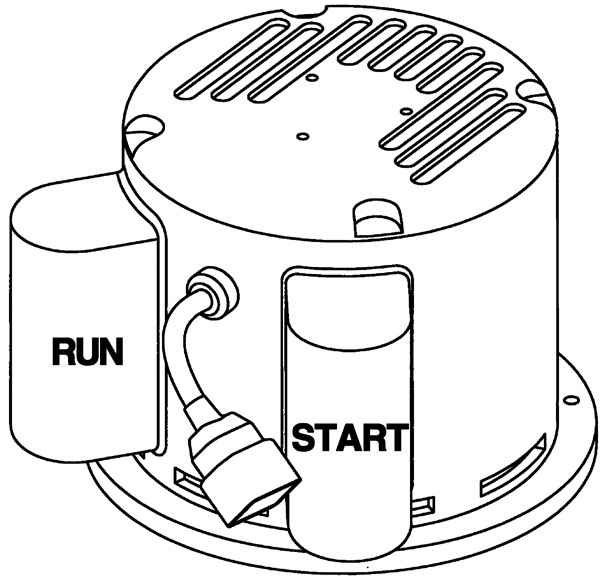

Motor Assembly - 270-5008 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1a |
170-7819 |
Brush motor (OBSOLETE) |
1 |
(130, 170, 200) |
| 1b |
270-0985 |
230V motor |
1 |
(170, 200) |
| 1c |
372-1162 |
Motor |
1 |
(1700, 2000) |
| 1d |
370-1942 |
MOTOR 1.1KW 230/50 (OBSOLETE) |
1 |
(1700, 2000) |
| 2 |
272-7066 |
Start capacitor |
1 |
|
| 3a |
272-7067 |
Run capacitor |
1 |
|
| 3b |
170-7823 |
Run capacitor |
1 |
|
| 4 |
170-7820 |
Start switch |
1 |
|
| 5 |
270-0691 |
1HP rotor (OBSOLETE) |
1 |
|
| 6a |
270-0696 |
Capacitor cover (OBSOLETE) |
2 |
|
| 6b |
270-0697 |
Capacitor cover (OBSOLETE) |
2 |
|
| 7 |
270-0698 |
Aluminum end shield |
1 |
|
| 8 |
270-0699 |
Wiring cover (OBSOLETE) |
1 |
|
| 9 |
270-0700 |
4-pole centrifugal |
1 |
|
| 10 |
270-0702 |
Connection decal |
1 |
|
| 11 |
270-0703 |
Thru bolt 1/4-20 |
4 |
|
| 12 |
999-0452 |
Screw 8-32 x 3/8 pan head phillips zinc plated |
11 |
|
| 13 |
170-0321 |
Front end bearing |
1 |
|
| 14 |
270-0705 |
Screw 10-32 x 1 |
6 |
|
| 15 |
170-6201 |
Nut wire (orange) |
2 |
|
| 17 |
170-1284 |
Strain relief |
1 |
|
| 20 |
270-0705 |
Screw 10-32 x 1 |
6 |
|
| 21 |
170-6201 |
Nut wire (orange) |
2 |
|
| 23 |
170-1284 |
Strain relief |
1 |
|
| N/S |
270-0695 |
1.5HP stator |
1 |
|
|
|
- Pad Holders - 275-9029 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
991-2214 |
Center-Lok II pad holder - left hand thread (red) |
|
|
| 2a |
991-2201 |
Center-Lok II pad holder - right hand thread (black) |
|
(Pad driver side female, Floor side male) |
| 2b |
991-8577 |
Pad retainer |
|
(Pad driver side male, Floor side female) |
| 3a |
991-2202 |
Big mouth pad holder set (blue) |
|
(includes 3 screws) |
| 3b |
991-2205 |
Deep lock ring and pad grip ring |
|
|
| 4 |
991-2203 |
Big mouth pad holder male thread portion |
|
|
| 5 |
991-2206 |
Center-Lok 3 pad holder |
|
(includes 3 screws) |
| 6 |
996-0372 |
Big mouth pad holder (left hand thread) |
|
|
| 8 |
991-2209 |
Split retainer - pad holder ring (OBSOLETE) |
|
|
| 9 |
N/A |
Not available |
|
(replaced by #3 991-2202) |
| 10 |
991-2211 |
Center lock pad holding cup (male) (yellow) (OBSOLETE) |
|
|
|
|
