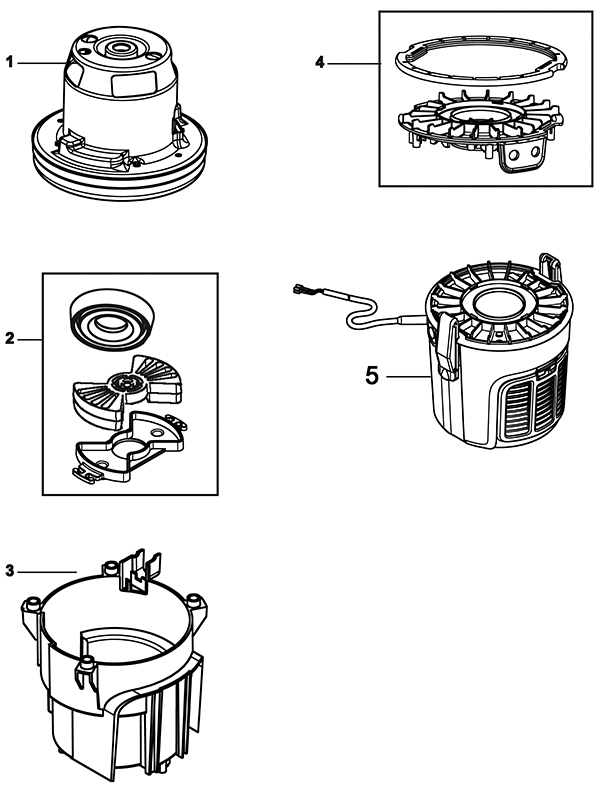

Motor Assembly - 170-0526 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
272-9157 |
120V vacuum motor |
1 |
|
| 2 |
272-9158 |
Motor suspension kit |
1 |
|
| 3 |
272-9159 |
Vacuum motor cover |
1 |
|
| 5 |
372-3692 |
120V motorhead |
1 |
|
|
|

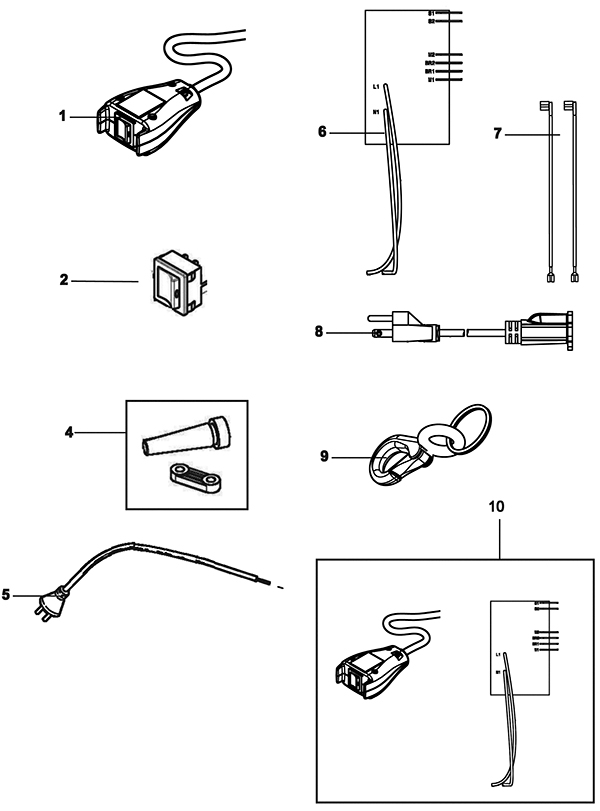

Electrical Assembly - 170-0527 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
272-9161 |
230V PCB cord and switch kit |
1 |
|
| 4 |
181-0527 |
Protection sleeve kit (OBSOLETE) |
1 |
(anti strain clip included) |
| 5 |
272-9163 |
16/3 pigtail cord 18 inch |
1 |
(1.3 feet) |
| 6 |
272-9164 |
120V PCB cord and switch kit |
1 |
|
| 7 |
272-9165 |
Internal wire kit |
1 |
(2 wires included) |
| 8 |
272-9166 |
Extension cord |
1 |
(50 feet) |
| 9 |
272-9167 |
Anti-strain snap hook |
1 |
|
| 10 |
272-9164 |
120V PCB cord and switch kit |
1 |
|
|
|

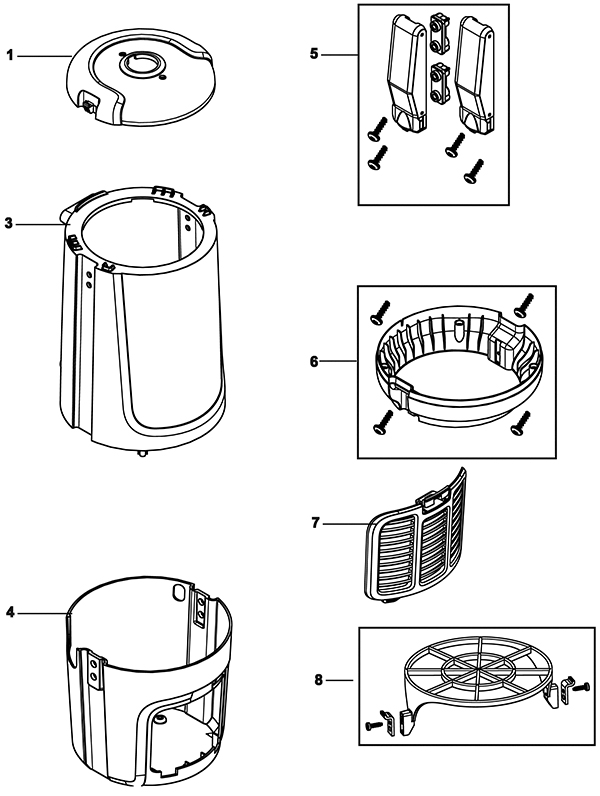

Container Assembly - 170-0528 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
272-9169 |
Outer lid (10XP) |
1 |
(grey) |
| 3 |
272-8948 |
Container |
1 |
(grey) |
| 4 |
272-9177 |
Outer cover (dark gray) (6XP) |
1 |
|
| 5 |
272-9173 |
Latch kit |
1 |
(2 latches, screws, and screw towers included) |
| 6 |
272-9174 |
Adapter (10XP) |
1 |
(screws included) |
| 7 |
272-9175 |
Exhaust grid |
1 |
|
| 8 |
272-9176 |
Basket filter |
1 |
(hooks and screws included) |
|
|

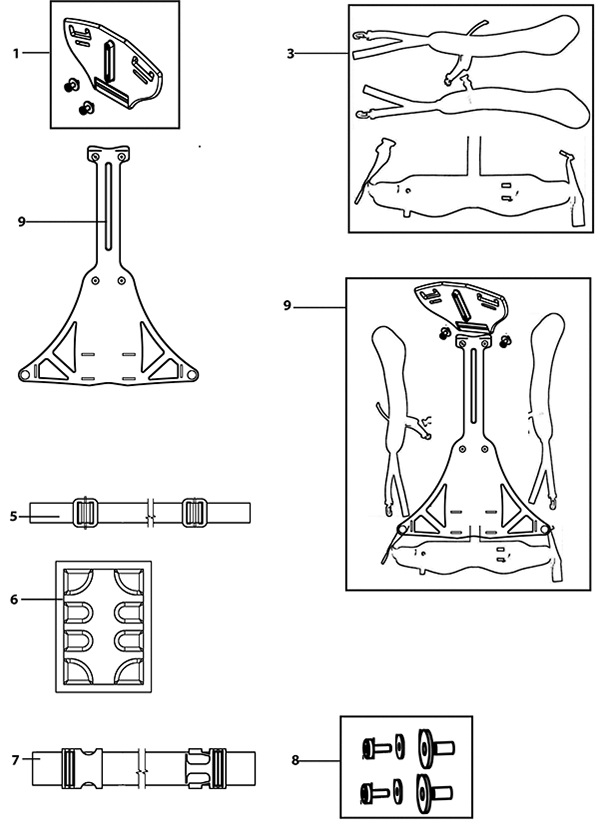

Strap Assembly - 170-0529 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
272-9178 |
Adjusting plate |
1 |
|
| 3 |
272-9179 |
Premium harness w/ hardware |
1 |
(screws and washers included) |
| 5 |
272-9180 |
Lifting strap |
1 |
|
| 6 |
272-9181 |
Back plate padding |
1 |
|
| 7 |
272-9182 |
Extension belt |
1 |
(400mm long) |
| 8 |
272-9183 |
Screw kit (for premium harness) |
1 |
(for harness premium) |
| 9 |
272-9184 |
Premium harness complete |
1 |
(with adjusting plate and support) |
|
|

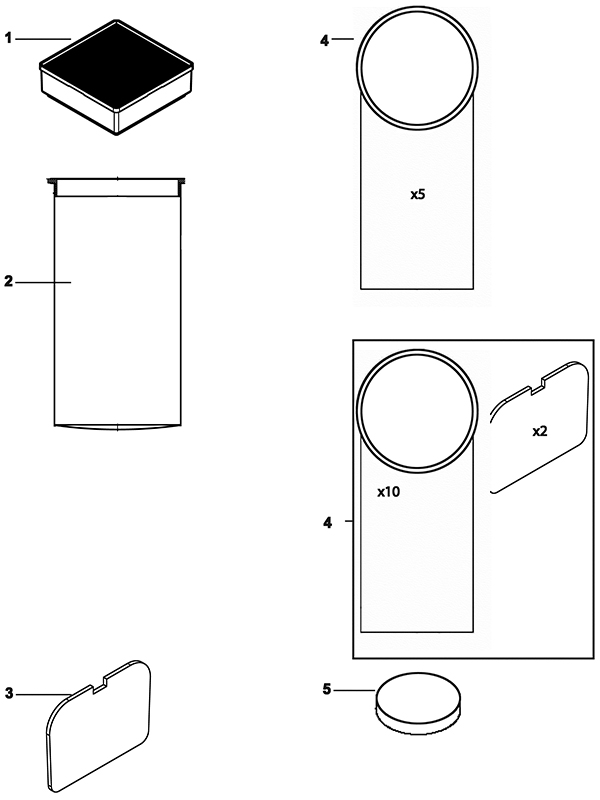

Filter Assembly - 170-0530 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 2 |
272-9187 |
Cloth bag (10XP) |
1 |
|
| 3 |
272-9188 |
Exhaust filter (pkg of 3) |
1 |
|
| 4a |
272-9190 |
Paper vacuum bags (pkg of 10) Adgility 10XP |
1 |
|
| 4b |
991-9094 |
Paper vacuum bags (pkg of 10 & 2 filters) |
1 |
(NON-OEM) |
| 5 |
272-9191 |
Prefilter (pkg of 3) |
1 |
|
|
|

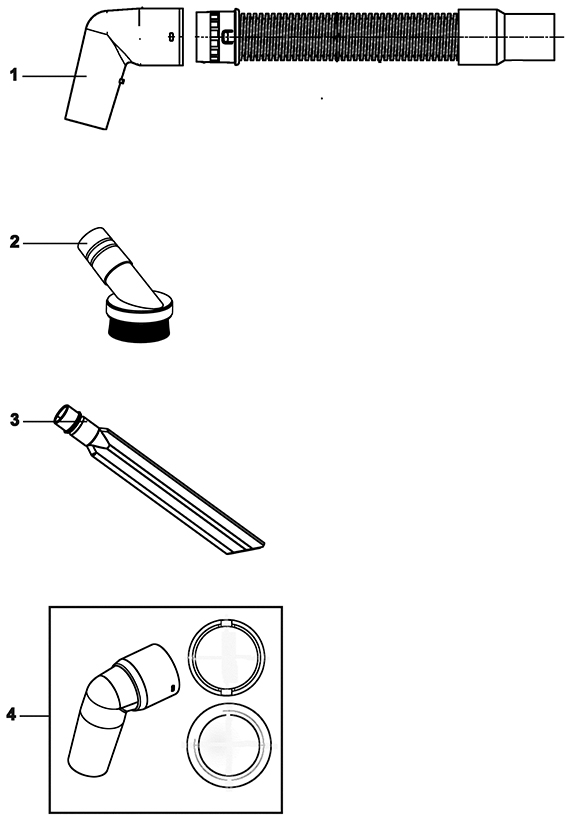

Hose Assembly - 170-0531 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
154-3686 |
64 inch hose assembly |
1 |
|
| 2 |
172-1986 |
Dusting tool |
1 |
|
| 3 |
272-9197 |
Crevice tool |
1 |
|
| 4 |
272-7246 |
Hose coupling |
1 |
|
|
|

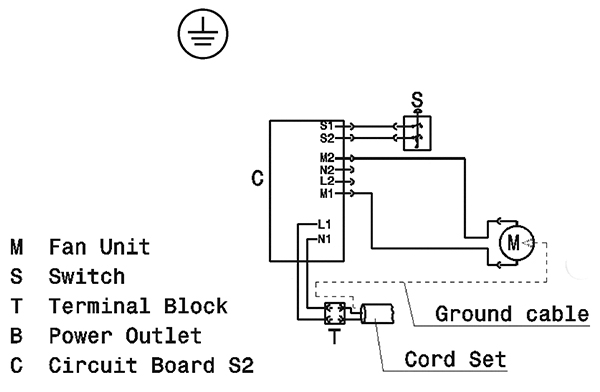

Wiring Diagram - |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
|
|
- Commonly Asked For Parts - 170-9868 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 01 |
272-9157 |
120V vacuum motor |
|
|
|
|
