Parts List Complete for CLARKE-ALT CARPETMASTER 30

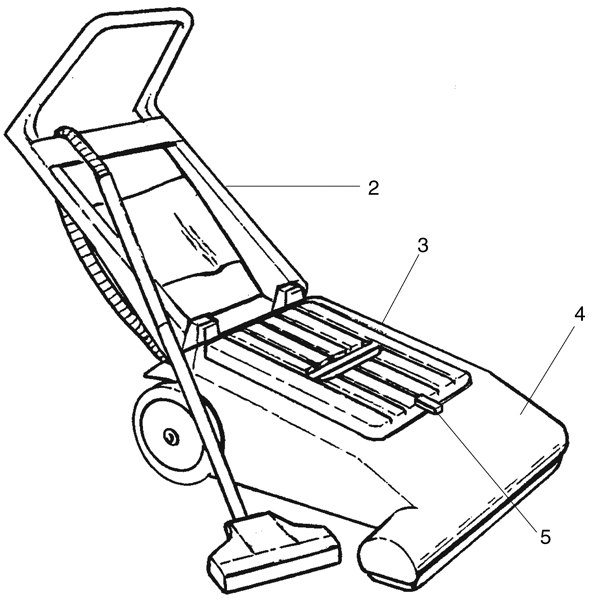

Final Assembly - 170-2099
RefNbr Part Number Description Req Notes
2 170-5135 Machine handle 1
3 170-5136 Cover 1
4 170-5137 Body (OBSOLETE) 1
5 372-1172 Latch kit (OBSOLETE) 1 (After 05.06)
N/S 170-5138 Front label 1

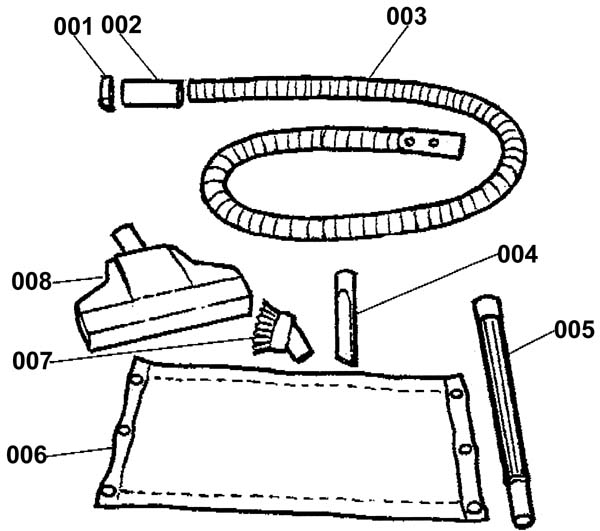

Hose and Accessories - 170-2100
RefNbr Part Number Description Req Notes
1 372-1173 Clamp with screw 1
2 372-1174 Cuff 2
3 372-1175 Hose 1
4 170-2870 Crevice tool (OBSOLETE) 1
5 170-2873 Extension wand 1
6 372-1176 Tool storage bag 1
7 372-1177 Dusting tool 1
8 372-1178 Turbo tool 1

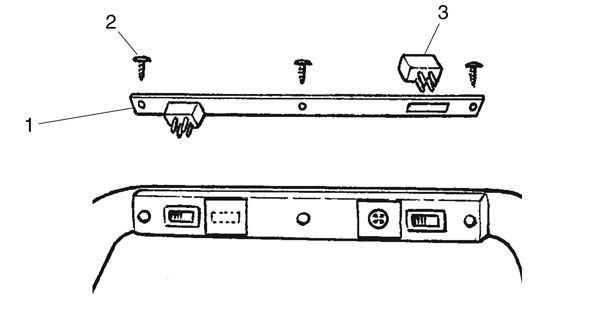

Switch Assembly - 170-2101
RefNbr Part Number Description Req Notes
1 170-7913 Switch plate 1
2 N/A Not available 3
3 170-7912 20amp rocker switch 2
N/S 372-1179 Switch lead assembly 1

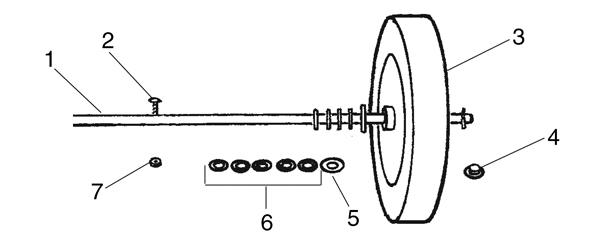

Wheel Assembly - 170-2102
RefNbr Part Number Description Req Notes
1 270-8511 Shaft wheel 1
2 N/A Not available 1
3 170-6075 Wheel (OBSOLETE) 2
4 170-6076 Pal nut 2
5 N/A Not available 2
6 372-1180 Fibre washer 11 (Quantity of 5 on one side and quantity of 6 on the other)
7 N/A Not available 1

Cover Assembly - 170-2103
RefNbr Part Number Description Req Notes
1 372-1181 Cover 1
2 372-1182 Cover gasket 1
3 372-1183 Brace 1
4 N/A Not available 2 (Nut)
5 N/A Not available 2 (Screw)
6 N/A Not available 2 (Screw)
7 372-1184 Handle cap 2
8 372-1185 Dust cover handle 1
N/S 170-3669 Bags, 10-pack 1
N/S 170-9000 Cloth bag 1
N/S 170-0100 Hose clamp 2

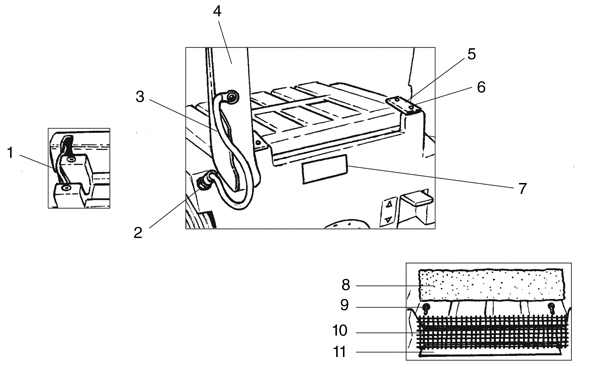

Handle and Exhaust Filter Assembly - 170-2300
RefNbr Part Number Description Req Notes
1a 372-1186 Wiring harness 1
1b 372-1187 Connectors 5
2a 372-1188 75 foot cord assembly 1
2b 164-4502 Strain relief 1
3 170-1744 Nylon clip 1
4 170-5135 Machine handle 1
5 372-1189 Handle bracket 2
6 N/A Not available 2 (Screw)
7 372-1190 Warning decal 1
8 372-1191 Exhaust filter 1
9 N/A Not available 4 (Screw)
10 372-1192 Filter screen 1
11 372-1193 Sound deadener 1

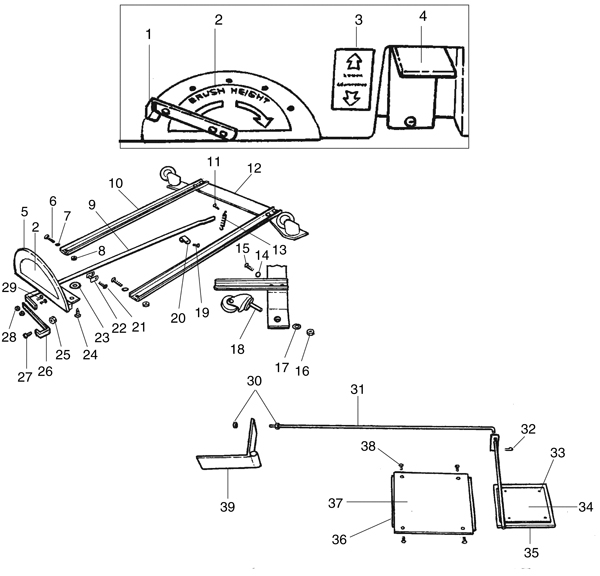

Switch Assembly - 170-2301
RefNbr Part Number Description Req Notes
1 270-8140 Brush height adjustment assembly 1
2 372-1194 Brush adjustment decal 1
3 372-1195 Brush accessory decal 1
4 N/A Not available 1 (Foot pedal and brush accessory)
5 372-1196 Adjustment plate 1
6 N/A Not available 2 (Screw)
7 N/A Not available 2 (Washer)
8 N/A Not available 2 (Nut)
9 270-8141 Rod 1
10 372-1197 Arm support 2
11 N/A Not available 1 (Screw)
12 N/A Not available 1 (Caster support)
13 372-1199 Spring 1
14 N/A Not available 4 (Washer)
15 N/A Not available 4 (Screw)
16 N/A Not available 2 (Nut)
17 N/A Not available 2 (Washer)
18 170-7914 Caster wheel 2
19 N/A Not available 1 (Screw)
20 372-1198 Bracket 1
21 N/A Not available 2 (Screw)
22 372-1200 Adjustment rod stop 2
23 N/A Not available 1 (Washer)
24 N/A Not available 2 (Screw)
25 270-8142 Nut 1
26 270-8143 Adjustment arm 1
27 N/A Not available 1 (Screw)
28 N/A Not available 2 (Nut)
29 N/A Not available 2 (Screw)
30 N/A Not available 2 (Nut)
31 372-1202 Vacuum adjustment rod 1
32 372-1203 Cotter pin 1
33 N/A Not available 4 (Screw)
34 372-1204 Vacuum door plate 1
35 372-1205 Vacuum door seal 1
36 372-1206 Dust gasket 1
37 372-1207 Plate 1
38 N/A Not available 4 (Screw)
39 N/A Not available 1 (Foot pedal)

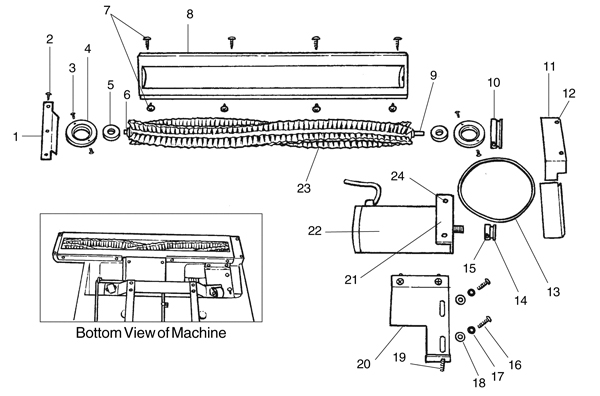

Wheel Assembly - 170-2302
RefNbr Part Number Description Req Notes
1 372-1209 Shoe end 1
2 N/A Not available 3 (Screw)
3 N/A Not available 2 (Screw)
4 270-8074 Bearing housing 2
5 170-7915 Bearing 2
6 270-8073 Brush and shaft assembly 1
7 N/A Not available 8 (Screw)
8 170-7917 Brush shoe 1
9 270-8073 Brush and shaft assembly 1
10 372-1210 Brush pulley 1
11 372-1211 Guard belt 1
12 N/A Not available 4 (Screw)
13 272-5368 Drive belt 1
14 372-1213 Motor pulley 1
15 N/A Not available 2 (Screw)
16 N/A Not available 2 (Screw)
17 N/A Not available 2 (Washer)
18 N/A Not available 2 (Washer)
19 N/A Not available 3 (Screw)
20 372-1214 Brush motor bracket 1
21 372-1215 Motor support 1
22 372-1216 Brush motor 1
23a 270-8073 Brush and shaft assembly 1
23b 270-8073 Brush and shaft assembly 1
24 N/A Not available 4 (Screw)

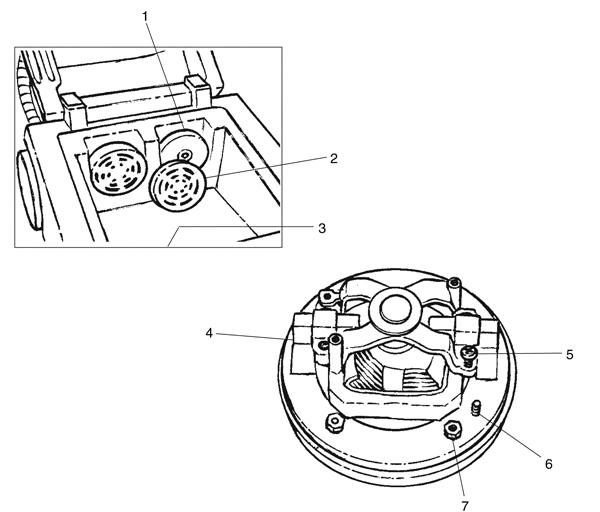

Vacuum Motor and Filter Assembly - 170-2303
RefNbr Part Number Description Req Notes
1 372-1217 Vacuum motor 2
2 991-5119 Vacuum motor filter 2
3 170-7911 Hopper gasket (OBSOLETE) 1
4 372-1218 Vacuum motor gasket (OBSOLETE) 2
5 372-1219 Lead assembly (green) 2
6 N/A Not available 8 (Screw)
7 N/A Not available 8 (Nut)

- Commonly Asked For Parts - 170-9923
RefNbr Part Number Description Req Notes
01 170-9000 Cloth bag
02 170-3669 Bags, 10-pack
03 206-3007 14/3 power cord assembly 75 foot
04 372-1216 Brush motor
05 270-8073 Brush and shaft assembly
06 272-5368 Drive belt
07 270-8074 Bearing housing
08 991-5119 Vacuum motor filter
09 270-8140 Brush height adjustment assembly
10 270-0934 HEPA filter
11 170-7911 Hopper gasket (OBSOLETE)
12 170-7912 20amp rocker switch
13 170-7913 Switch plate
14 170-7914 Caster wheel
15 170-7915 Bearing
16 170-7917 Brush shoe
17 370-6856 P-050

- Frequently Replaced Parts - 991-9009
RefNbr Part Number Description Req Notes
206-3007 14/3 power cord assembly 75 foot 1
991-5005 14/3 replacement power cord 50 foot (yellow) 1 (NON-OEM) (does not include strain relief)
164-4502 Strain relief 1
170-7912 20amp rocker switch 2
372-1217 Vacuum motor 2
170-3669 Bags, 10-pack 1
170-9000 Cloth bag 1
170-7914 Caster wheel 2
170-6075 Wheel (OBSOLETE) 2
372-1213 Motor pulley 1
170-5135 Machine handle 1
270-8073 Brush and shaft assembly 1
170-7915 Bearing 2
272-5368 Drive belt 1
