Parts List Complete for CLARKE-ALT BSW 28 SWEEPER


- Commonly Asked For Parts - 170-9907
RefNbr Part Number Description Req Notes
272-8556 Floor seal kit 1
272-8543 Side broom 1
472-0733 BROOM MAIN 200X500 1
272-8984 Belt 1
272-8544 Polyester filter kit 1
272-6577 Belt 1
272-8980 Belt 1
272-8965 Wheel kit 1
272-7298 Fan 1
272-2572 30amp circuit breaker 1
272-8551 12V 6amp onboard battery charger 1
162-6022 12V 102Ah gel battery (SNSR) 1
272-9517 12V 70amp relay 1
272-9516 5amp circuit breaker 1
472-0742 PANEL CONTROL KIT 1
272-8977 12V electric motor 1
272-8314 250V microswitch 1
472-1218 REDUCTION GEARMOTOR 40W12V PKD 1
172-4846 Carbon brush kit (one kit each motor) 1
272-8970 7 1/2amp fuse 1
270-0723 Main broom 1

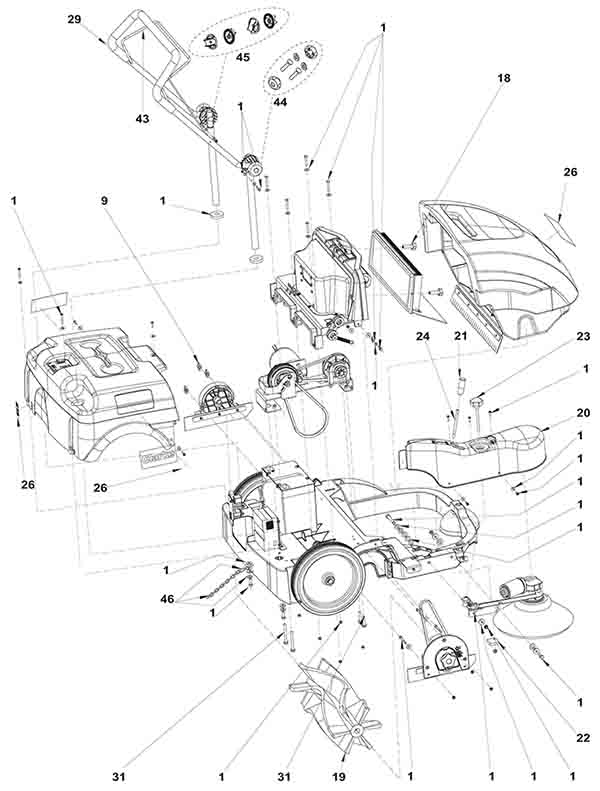

Body Assembly - 270-0066
RefNbr Part Number Description Req Notes
1 272-8954 Main hardware kit 1
9 999-0938 Nut M6 wing stainless steel 3
18 272-8955 M6 handwheel 2
19A 472-0733 BROOM MAIN 200X500 1
19B 270-0723 Main broom 1
20 472-0734 CASE SIDE 1
21 272-8957 Handle 1
22 272-8958 Side boom adjuster block 1
23 272-8959 M8 handwheel 1
24 272-9602 Side broom lever 1
26 270-8576 Decals kit 1
29 270-0722 Handle bar 1
31 272-8962 Transmission hardware kit 1
34 N/A Not available 1 (chassis assembly)
35 N/A Not available 1 (side broom assembly)
36 N/A Not available 1 (hopper assembly)
37 N/A Not available 1 (transmission assembly)
38 N/A Not available 1 (left hatch assembly)
39 N/A Not available 1 (right hatch assembly)
40 N/A Not available 1 (dust control assembly)
41 N/A Not available 1 (filter assembly)
42 N/A Not available 1 (control panel assembly)
43 270-0721 Traction cable 1
44 272-8963 Handle fixing kit 1
45 181-0896 Handle adjuster kit 1
46 272-8964 Chain kit 1

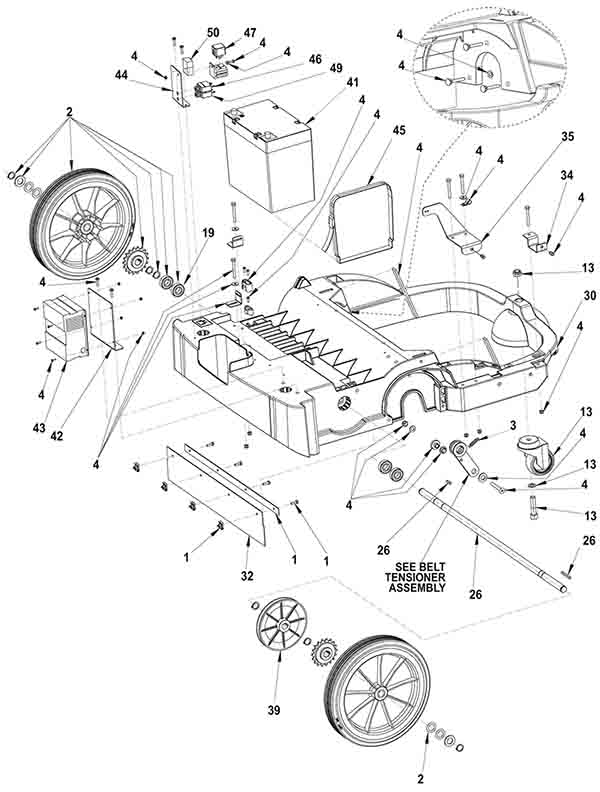

Chassis Assembly - 270-0067
RefNbr Part Number Description Req Notes
1 272-9526 Skirts kit 1
2 272-8965 Wheel kit 2
3 272-9488 Spring 1
4 272-8966 Transmission hardware kit 1
13 272-8967 Caster wheel kit 1
19 172-7074 Ball Bearing 4
26 272-8968 Wheel shaft kit 1
30 272-9503 Chassis 1
32 272-8556 Floor seal kit 1
34 272-9507 Carter fixing bracket 1
35 272-9508 Carter fixing bracket 1
39 272-9512 Pulley 1
41 162-6022 12V 102Ah gel battery (SNSR) 1
42 272-9514 Battery charger fix bracket 1
43 272-8551 12V 6amp onboard battery charger 1
44 272-9515 Electronic component support 1
45 272-8552 Battery strap 1
46 272-9516 5amp circuit breaker 1
47 272-9517 12V 70amp relay 1
49 272-2572 30amp circuit breaker 1
50 272-9519 Fuse carrier 1
N/S 272-9524 Machine harness 1
N/S 272-9290 Onboard charger cord 1
N/S 272-8970 7 1/2amp fuse 1

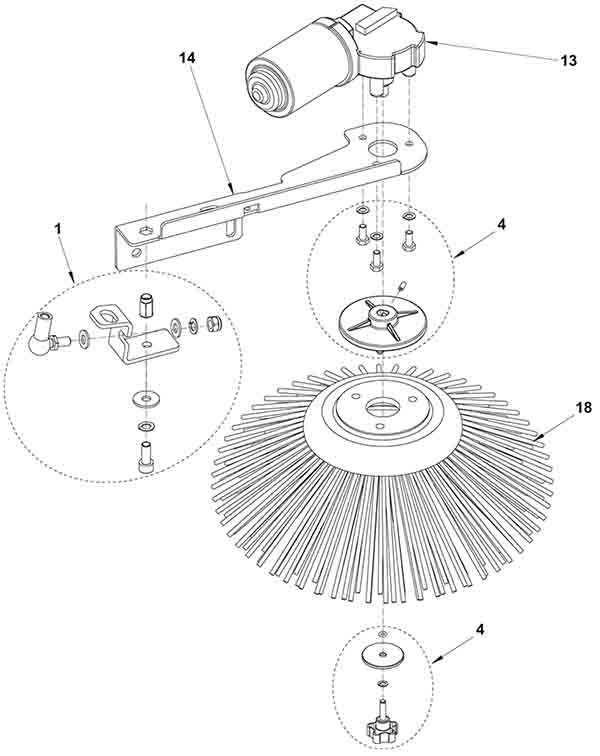

Side Broom Assembly - 270-0068
RefNbr Part Number Description Req Notes
1 272-8971 Side broom hardware kit 1
4 272-8612 Side broom hub fixing kit 1
13 472-1218 REDUCTION GEARMOTOR 40W12V PKD 1
14 272-9534 Side broom support 1
18 272-8543 Side broom 1

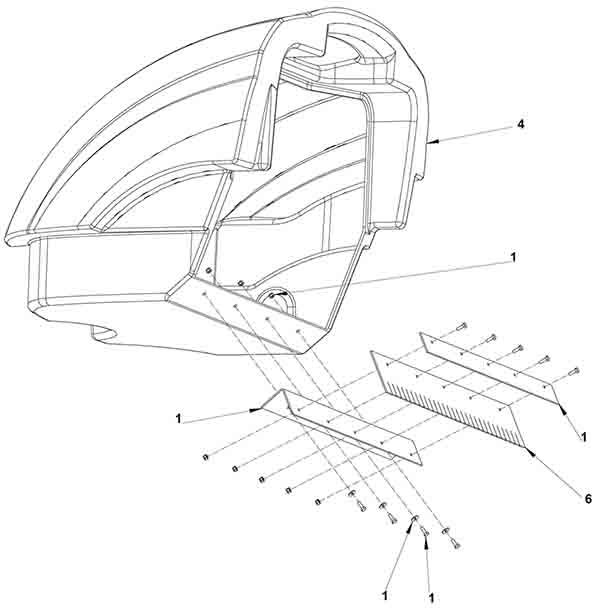

Hopper Assembly - 270-0069
RefNbr Part Number Description Req Notes
1 272-9526 Skirts kit 1
4 472-0735 DIRT CONTAINER FOR SWEEPER 1
6 272-8556 Floor seal kit 1

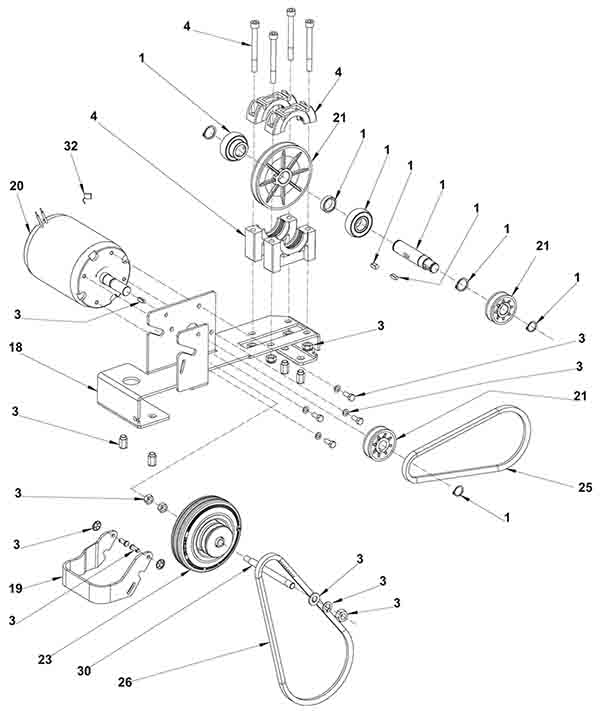

Transmission Assembly - 270-0070
RefNbr Part Number Description Req Notes
1 272-8973 Shaft pulley kit 1
3 272-8962 Transmission hardware kit 1
4 272-8974 Bearing support kit 1
18 272-8975 Motor support plate 1
19 272-8976 Bracket 1
20 272-8977 12V electric motor 1
21 272-8978 Pulley kit 1
23 272-8979 Friction wheel 1
25 272-8980 Belt 1
26 272-6577 Belt 1
30 272-8981 Shaft 1
32 172-4846 Carbon brush kit (one kit each motor) 1

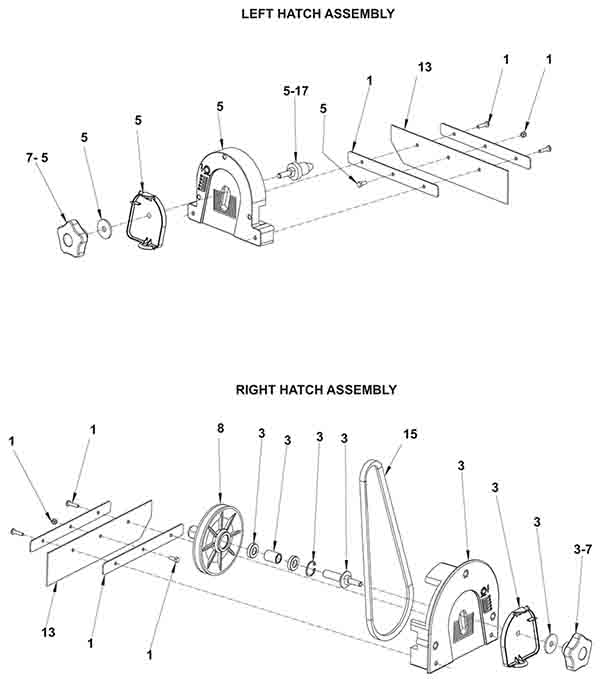

Left and Right Hatch Assembly - 270-0071
RefNbr Part Number Description Req Notes
1 272-9526 Skirts kit 1
3 272-8982 Right hatch fixing kit 1
5 272-9809 Left hatch fixing kit 1
7 272-0709 Handwheel 2
8 272-8983 Pulley 1
13 272-8556 Floor seal kit 1
15 272-8984 Belt 1
17 272-8985 Main broom pin 1

Belt Tensioner Assembly - 270-0072
RefNbr Part Number Description Req Notes
1 272-8986 Double belt tensioner kit 1
2 272-8987 Belt tensioner kit 1

Dust Control System Assembly - 270-0073
RefNbr Part Number Description Req Notes
1 272-8988 Dust control hardware kit 1
12 272-8989 Filter support 1
13 272-8990 Gasket 1
15 270-0717 Handle 1
16 270-0718 Filter shaker 1
18 172-3700 Spring 1
19 272-8314 250V microswitch 1
23 272-8991 Gasket kit 1

Vacuum System and Filter Assembly - 270-0074
RefNbr Part Number Description Req Notes
1 272-8992 Filter fixing hardware kit 1
5 272-7298 Fan 1
6 272-8993 Convoyer 1
7 272-8994 Sheath 1
12 272-8544 Polyester filter kit 1

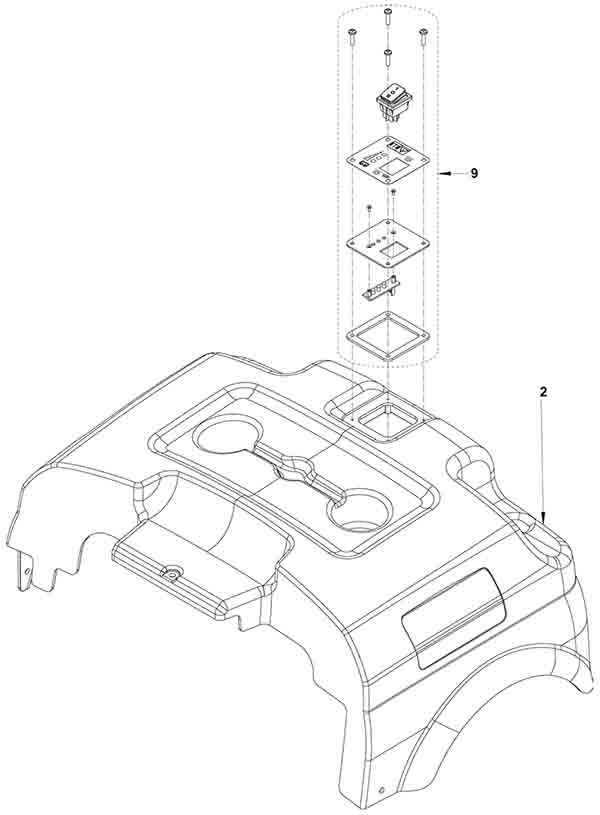

Control Panel Assembly - 270-0075
RefNbr Part Number Description Req Notes
2 472-0736 BONNET REAR 1
9 472-0742 PANEL CONTROL KIT 1

Wiring Diagram -

RefNbr Part Number Description Req Notes

- Know Your Machine -

RefNbr Part Number Description Req Notes

- Frequently Replaced Parts - 991-9010
RefNbr Part Number Description Req Notes
162-6022 12V 102Ah gel battery (SNSR) 1
162-0042 12V 115Ah AGM battery (Group 31) 1
272-8551 12V 6amp onboard battery charger 1
272-8552 Battery strap 1
272-8967 Caster wheel kit 1
270-0722 Handle bar 1
272-9526 Skirts kit 1
270-0723 Main broom 1
272-8970 7 1/2amp fuse 1
272-9516 5amp circuit breaker 1
272-2572 30amp circuit breaker 1
272-8544 Polyester filter kit 1
