Parts List Complete for CLARKE-ALT BOS-18


- Pads - 255-1218
RefNbr Part Number Description Req Notes
01 255-9001 12 X 18 inch Premium Black Stripping Pad (pkg of 5)
02 255-9013 12 X 18 inch Premium Blue Cleaning Pad (pkg of 5)
03 255-9007 12 X 18 inch Premium Green Scrubbing Pad (pkg of 5)
04 255-9019 12 X 18 inch Premium Red Pad (pkg of 5)
05 255-9025 12 X 18 inch Premium White Polishing Pad (pkg of 5)
06 255-9033 12 x 18 inch Redwood maroon floor prep pad (pkg of 10)
07 255-9040 12 x 18 inch Ruff non-abrasive brush pad (pkg of 2)
08 255-0102 12 x 18 inch Professional sand screen 100 grit (pkg of 10)
09 255-0103 12 x 18 inch Professional sand screen 120 grit (pkg of 10)
10 255-0104 12 x 18 inch Professional sand screen 180 grit (pkg of 10)
11 255-0105 12 x 18 inch Professional sand screen 220 grit (pkg of 10)
12 255-0100 12 x 18 inch Professional sand screen 60 grit (pkg of 10)
13 255-0101 12 x 18 inch Professional sand screen 80 grit (pkg of 10)
14 255-0272 12 x 18 inch Superscreen sand screen 100 grit (pkg of 10)
15 255-0273 12 x 18 inch Superscreen sand screen 120 grit (pkg of 10)
16 255-0274 12 x 18 inch Superscreen sand screen 180 grit (pkg of 10)
17 255-0275 12 x 18 inch Superscreen sand screen 220 grit (pkg of 10)
18 255-0270 12 x 18 inch Superscreen sand screen 60 grit (pkg of 10)
19 255-0271 12 x 18 inch Superscreen sand screen 80 grit (pkg of 10)
20 255-0290 12x18 inch Duala clean and shine pad - low speed (pkg of 5)
21 255-0294 12x18 2001 Duala clean and shine pad - high speed (pkg 5)

- Frequently Replaced Parts - 270-3006
RefNbr Part Number Description Req Notes
01 270-0076 14/3 power cord 50 foot (OEM)
02 991-5005 14/3 replacement power cord 50 foot (yellow) (NON-OEM) (does not include strain relief)
03 270-0077 Switch assembly
04 375-7611 Wheel
05 270-0080 Axle
06 373-3022 Base Orbital
07 270-0113 Pad gripper
08 370-6852 PAD-BLACK-12X18-5/CS
09 370-1740 PAD-MAROON-12X18-10/CS
10 370-6853 PAD-RED-12X18-5/CS
11 472-7995 PAD-GROUT-12X18-4/CS
12 255-9025 12 X 18 inch Premium White Polishing Pad (pkg of 5)
13 472-7687 PAD-RED-12X18-20/CS

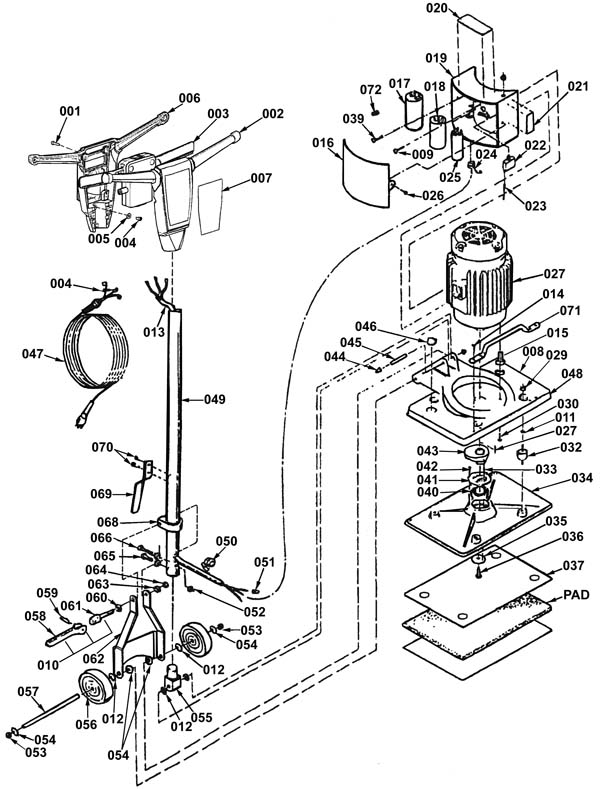

Handle and Motor Assembly - 272-6054
RefNbr Part Number Description Req Notes
001 999-1275 Screw 10-32 x 3/4 hex head stainless steel 6
002 270-0143 Front handle 1
003 270-0077 Switch assembly 1
004 999-1276 Screw 10-32 x 3/8 hex head stainless steel 2
005 999-0998 Washer #10 flat stainless steel 1
006 270-0145 Rear handle 1
007 270-0146 BOS18 handle decal 1
008 373-3021 Mainframe Obs-18dc 1
009 272-8481 Screw 1/4-20 x 5/8 socket 1
010 170-1267 Cam assembly with grip, bolt and locking lever 2 (includes 58-61)
011 999-0017 Washer 1/4 external star lock 1
012 272-8202 Bowed washer 4
013 154-3954 Cord interconnect 2
014 373-3017 Screw 1/4-20 x 3/4 1
015 170-4710 Hose adapter 3/8 to 1/8 npt 1
016 154-3949 Enclosure cover 1
017 270-0150 Start capacitor 1
018 270-0151 Run capacitor 1
019 154-3947 Start motor enclosure 1
020 373-3016 Decal 1
021 372-1644 Decal 1
022 170-0531 15amp circuit breaker 1
023 170-5182 Terminal 1
024 154-3948 7/8 inch strain relief bushing 1
025 154-2805 Starter switch 1
026 999-0462 Screw 8-32 x 1/2 pan head slotted zinc plated 1
027a 154-3936 115V Motor 2
027b 270-0157 Fan cover 1
027c 170-1679 Square keyway 1
029 999-0152 Nut 1/4-20 nylon insert lock zinc plated 1
030 270-0158 Screw 3/8-16 x 1 4
032 270-0159 Spring mounting kit 4
033 373-3020 Pin roll 1
034 373-3022 Base Orbital 1
035 270-0160 Eccentric retainer 1
036 373-3018 Screw 1/2-13 x 3/4 1
037 270-0113 Pad gripper 1
039 154-3951 Screw #10 x 3/8 inch 1
040 270-0065 Bearing 1
041 270-0162 Bearing retainer 1
042 270-0163 Screw 1/4-20 x 1/2 3
043 270-0164 Eccentric disk 1
044 170-6076 Pal nut 2
045 373-3015 Shaft-handle pivot (OBSOLETE) 1
046 270-0166 Plug 1
047a 270-0076 14/3 power cord 50 foot 1 (OEM)
047b 991-5005 14/3 replacement power cord 50 foot (yellow) 1 (NON-OEM) (does not include strain relief)
048 373-3011 Bumper frame (black) 1
049 154-3958 Handle tube 1
050 170-5583 Strain relief 1
051 170-5584 Connector 3
052 999-0211 Nut 5/16-18 hex nylon insert lock zinc plated 1
053 170-5676 Retaining ring 2
054 170-5570 Wheel thrust washer 4
055 154-3955 Handle tube tongue 1
056 375-7611 Wheel 2
057 270-0080 Axle 1
058 170-1267 Cam assembly with grip, bolt and locking lever 1
059 170-5525 Pin 1
060 170-1267 Cam assembly with grip, bolt and locking lever 1
061 170-5522 Wear washer 1
062 270-0168 Lower arm linkage 1
063 999-0032 Washer 3/8 USS flat plain finish 1
064 999-0324 Nut 3/8-16 nylon insert lock jam zinc plated 1
065 999-0401 Bolt 5/16-18 x 7/8 hex head grade 5 zinc plated 1
066 999-0354 Screw 5/16-18 x 2 round head slotted zinc plated 1
068 170-1239 Clamp 1
069 373-3005 Hook cord 1
070 154-3960 5/32 inch rivet 2
071 373-3012 Handle lift 1
072 170-5584 Connector 1
N/S 272-7406 Complete handle with cord relief 1
N/S 999-0028 Washer 5/16 split lock plain finish 2
N/S 170-4950 Solution tank assembly 1

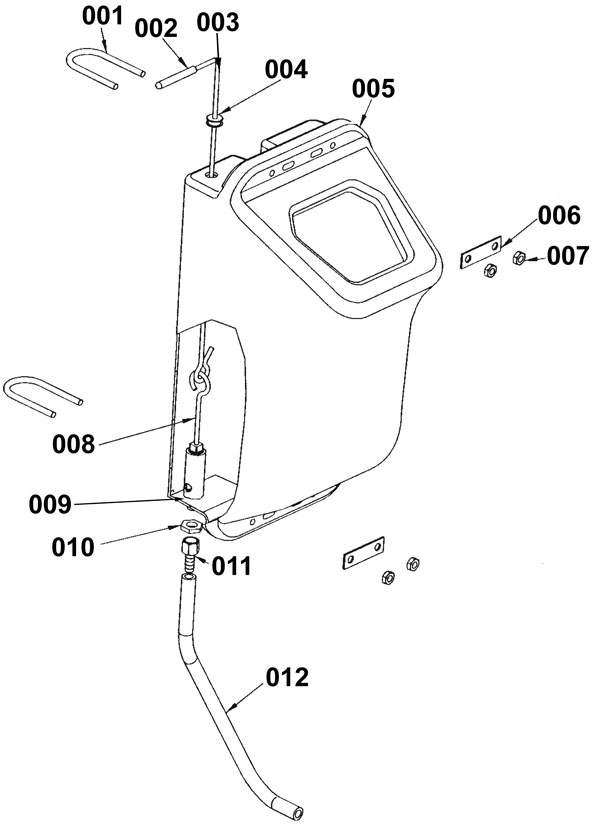

Solution Tank Assembly - 272-6055
RefNbr Part Number Description Req Notes
001 209-0046 5/16 inch u bolt 2
002 209-0033 Cap (black) 1
003 209-0034 Brass handle rod (OBSOLETE) 1
004 209-0035 1/8 inch grommet 1
005 209-0013 4 gallon solution tank kit for round handle side x sides 1
006 209-0047 Washer bar 2
007 999-0211 Nut 5/16-18 hex nylon insert lock zinc plated 4
008 209-0036 Solution valve 1 (includes 9)
009 170-7790 Neoprene washer 1
010 209-0038 Nut 1/4 brass pipe thread straight 1
011 170-1350 Hose barb 3/8 x 1/4 inch 1
012 209-0040 Hose 3/8 x 24 inch 1
N/S 209-0017 2 1/2 gallon solution tank kit (OBSOLETE)

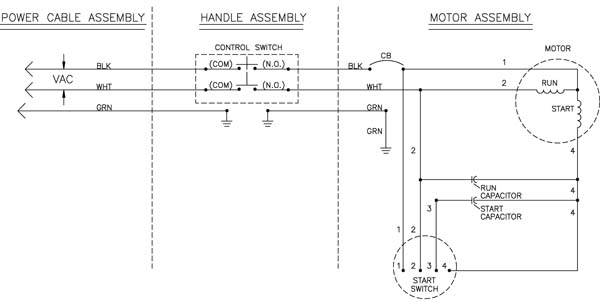

Wiring Diagram -

RefNbr Part Number Description Req Notes
