Parts List Complete for CLARKE-ALT AMERICAN 12

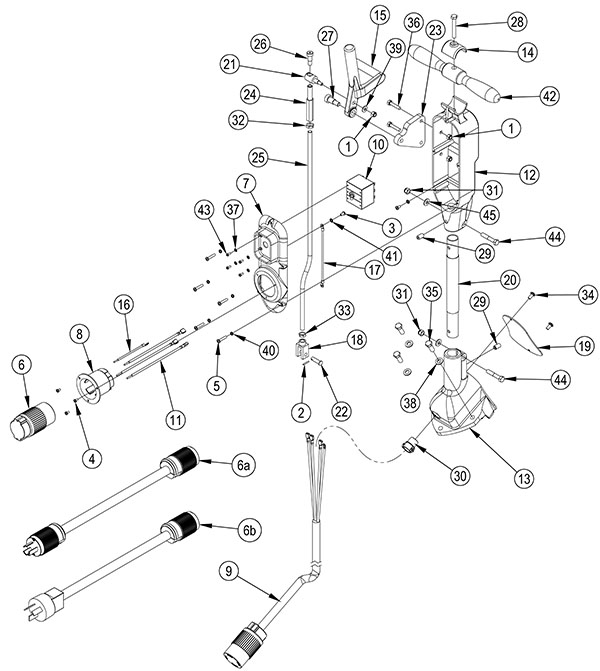

Handle Assembly (Models 07001A,07108A,07109A,07044C,07049C) - 170-0481
RefNbr Part Number Description Req Notes
1 170-7514 Nut 1/4-20 stop 3
2 997-2500 Cotter pin 1
3 999-0409 Screw 10-24 x 3/8 pan head slotted zinc plated 2
4 999-0317 Screw 8-32 x 1/4 pan head slotted zinc plated 3
5 999-0400 Screw 10-24 x 1 pan head phillips zinc plated 5
6 170-3152 Connector nema (obsolete) 1
6A 154-9230 100 foot hard service cordset 1
6B 375-7495 Cable assembly AU2-15P (OBSOLETE) 1
7 372-1778 Switch cover 1
8 372-1775 250V 20amp flanged inlet 1
9 372-1797 Interconnecting cord 1
10 372-1788 Circuit breaker 1
11 372-1783 Wire assembly (OBSOLETE) 2
12 372-1796 Switch box 1
13 170-2329 handle bracket (obsolete) 1
14 372-1790 Clamp 1
15 372-1792 Lever control 1
16 372-1781 Wire assembly (OBSOLETE) 1
17 372-1779 Wire assembly 1
18 372-1921 Control rod clevis (OBSOLETE) 1
19 170-6760 cover-brkt-hdl (obsolete) 1
20 170-4718 handle pipe black (obsolete) 1
21 372-1785 Pivot control rod 1
22 372-1922 Pin (OBSOLETE) 1
23 372-1791 Plate (OBSOLETE) 1
24 372-1787 Control rod adjuster 1
25 170-4719 rod control am-12 (obsolete) 1
26 370-4780 BOLT SHOULDER 3/8 X 5/8 1
27 372-1786 Bolt 1/2 x 5/8 shoulder 1
28 370-6199 SCREW5/16-18 X 2 1/2 HX HD 1
29 370-6229 SCR 3/8 -16X 5/8 ST ST DOGPT 2
30 170-0826 Conduit connector 1
31 999-0211 Nut 5/16-18 hex nylon insert lock zinc plated 2
32 999-0247 Nut 3/8-16 hex jam plain finish 1
33 999-0170 Nut 3/8-16 hex plain finish 1
34 999-0231 Screw 10-24 x 1/2 round head slotted zinc plated 2
35 999-0038 Bolt 3/8-16 x 1 hex head grade 5 zinc plated 3
36 999-0432 Screw 1/4-20 x 1 1/4 pan head phillips zinc plated 2
37 999-0148 Washer #6 external star lock zinc plated 4
38 999-0659 Washer 3/8 medium split lock stainless steel 3
39 999-0016 Washer 1/4 flat plain finish 1
40 170-6125 Washer 1/8 lock 5
41 372-1780 Washer (OBSOLETE) 2
42 372-1789 Handle 1
43 999-0463 Screw 6-32 x 3/8 pan head slotted zinc plated 4
44 999-0551 Bolt 5/16-18 x 1 3/4 hex head stainless steel 2
45 999-0549 Washer 5/16 x 3/4 SAE flat stainless steel 2
N/S 154-3996 Prop 65 decal 1

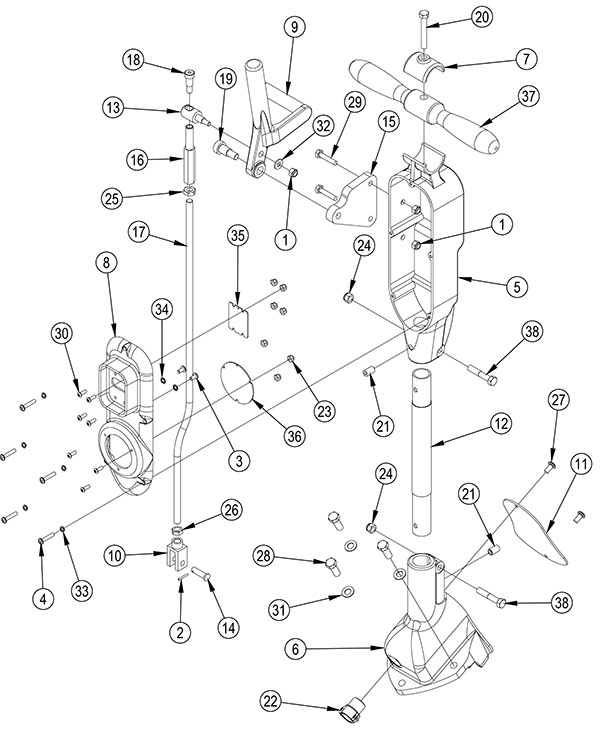

Handle Assembly( model 07120A) - 170-0482
RefNbr Part Number Description Req Notes
1 170-7514 Nut 1/4-20 stop 3
2 997-2500 Cotter pin 1
3 999-0409 Screw 10-24 x 3/8 pan head slotted zinc plated 2
4 999-0400 Screw 10-24 x 1 pan head phillips zinc plated 5
5 372-1796 Switch box 1
6 170-2329 handle bracket (obsolete) 1
7 372-1790 Clamp 1
8 372-1778 Switch cover 1
9 372-1792 Lever control 1
10 372-1921 Control rod clevis (OBSOLETE) 1
11 170-6760 cover-brkt-hdl (obsolete) 1
12 170-4718 handle pipe black (obsolete) 1
13 372-1785 Pivot control rod 1
14 372-1922 Pin (OBSOLETE) 1
15 372-1791 Plate (OBSOLETE) 1
16 372-1787 Control rod adjuster 1
17 170-4719 rod control am-12 (obsolete) 1
18 370-4780 BOLT SHOULDER 3/8 X 5/8 1
19 372-1786 Bolt 1/2 x 5/8 shoulder 1
20 370-6199 SCREW5/16-18 X 2 1/2 HX HD 1
21 370-6229 SCR 3/8 -16X 5/8 ST ST DOGPT 2
22 170-0826 Conduit connector 1
23 170-2034 Nut 8-32 7
24 999-0211 Nut 5/16-18 hex nylon insert lock zinc plated 2
25 999-0247 Nut 3/8-16 hex jam plain finish 1
26 999-0170 Nut 3/8-16 hex plain finish 1
27 999-0231 Screw 10-24 x 1/2 round head slotted zinc plated 2
28 999-0038 Bolt 3/8-16 x 1 hex head grade 5 zinc plated 3
29 999-0432 Screw 1/4-20 x 1 1/4 pan head phillips zinc plated 2
30 999-0462 Screw 8-32 x 1/2 pan head slotted zinc plated 7
31 999-0659 Washer 3/8 medium split lock stainless steel 3
32 999-0016 Washer 1/4 flat plain finish 1
33 170-6125 Washer 1/8 lock 5
34 372-1780 Washer (OBSOLETE) 2
35 375-7528 Cover switch (OBSOLETE) 1
36 375-7529 Cover inlet (OBSOLETE) 1
37 372-1789 Handle 1
38 999-0551 Bolt 5/16-18 x 1 3/4 hex head stainless steel 2
N/S 154-3996 Prop 65 decal 1

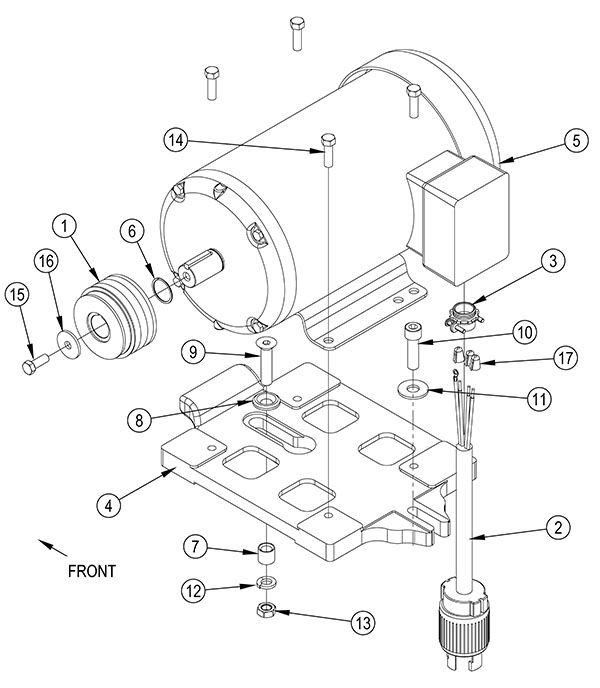

Motor Assembly (model 07001A) - 170-0483
RefNbr Part Number Description Req Notes
1 170-3422 motor pulley (obsolete) 1
2 170-3419 motor cord (obsolete) 1
3 170-3430 cable connector (obsolete) 1
4 170-4351 platform motor black (obsolete) 1
5 170-4488 motor 10 30230/460v (obsolete) 1
6 372-1882 Retaining ring 1
7 170-4489 spacer screw motor (obsolete) 1
8 170-4540 washer screw motor(obsolete) 1
9 370-6018 SCREW 1/2-13 X 2 1/4 FLAT HD 1
10 999-0372 Bolt 1/2-13 x 1 3/4 hex head 1
11 372-1806 Washer .56 x 1.38 x .11 flat (OBSOLETE) 1
12 370-6352 WASHER LOCK 1/2 NOM 1
13 999-0050 Nut 1/2-13 hex jam plain finish 1
14 999-0649 Bolt 3/8-16 x 1 1/4 hex head stainless steel 4
15 999-0038 Bolt 3/8-16 x 1 hex head grade 5 zinc plated 1
16 372-1883 Retainer pulley 1
17 370-0822 CONNECTORWIRE NUT-RED 3

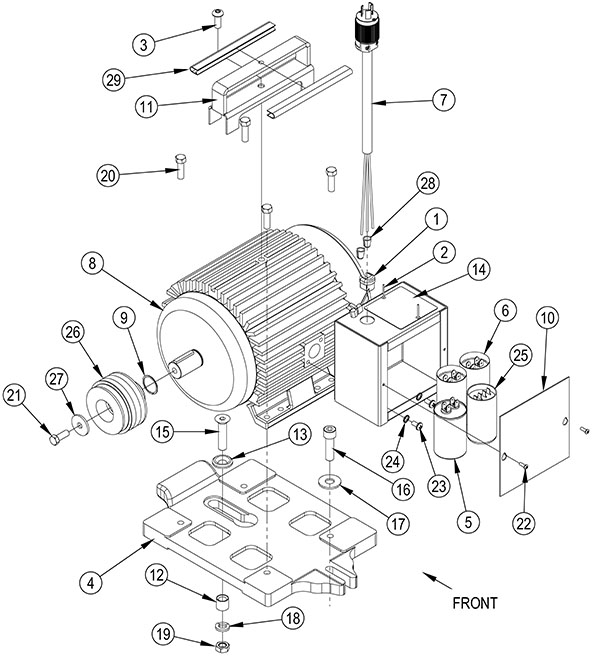

Motor Assembly (models 07044C,07108A,07049C,07109A) - 170-0484
RefNbr Part Number Description Req Notes
1 370-2601 STRAIN RELIEF-BUSHING SR 8L-1 1
2 372-1873 Rivet 2
3 370-6776 SCR 3/8 -16X1 BT ST ALLEN 1
4 170-4351 platform motor black (obsolete) 1
5 372-1877 Run capacitor 1
6 375-7633 Start capacitor 2
7 372-1880 Cord (OBSOLETE) 1
8 372-1811 Motor 1
9 372-1882 Retaining ring 1
10 170-7691 motor start(obsolete) 1
11 372-1871 Motor handle (OBSOLETE) 1
12 170-4489 spacer screw motor (obsolete) 1
13 170-4540 washer screw motor(obsolete) 1
14 372-1874 Safety plate 1
15 370-6018 SCREW 1/2-13 X 2 1/4 FLAT HD 1
16 999-0372 Bolt 1/2-13 x 1 3/4 hex head 1
17 372-1806 Washer .56 x 1.38 x .11 flat (OBSOLETE) 1
18 370-6352 WASHER LOCK 1/2 NOM 1
19 999-0050 Nut 1/2-13 hex jam plain finish 1
20 999-0649 Bolt 3/8-16 x 1 1/4 hex head stainless steel 4
21 999-0038 Bolt 3/8-16 x 1 hex head grade 5 zinc plated 1
22 999-0462 Screw 8-32 x 1/2 pan head slotted zinc plated 2
23 999-0323 Screw 1/4-20 x 1/2 pan head slotted zinc plated 2
24 999-0017 Washer 1/4 external star lock 2
25 372-1878 Start switch 1
26 170-7633 motor pulley(obsolete) 1
27 372-1883 Retainer pulley 1
28 370-0822 CONNECTORWIRE NUT-RED 2
29 370-6803 TRIMVINYLBLACK400 FT. SPOOL 1.12"

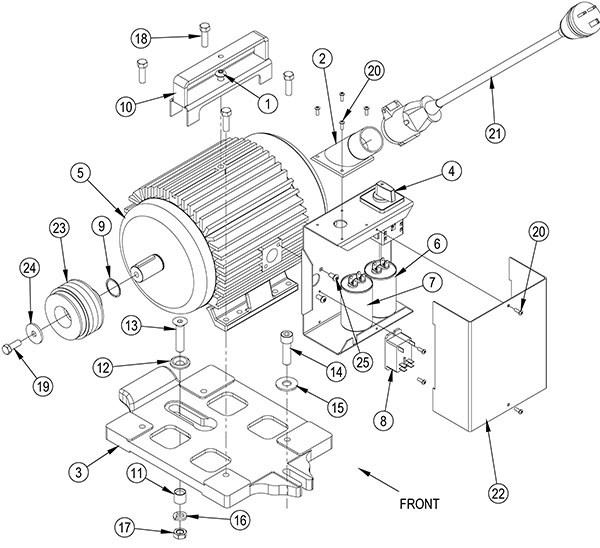

Motor Assembly(models 07120A) - 170-0485
RefNbr Part Number Description Req Notes
1 370-6776 SCR 3/8 -16X1 BT ST ALLEN 1
2 372-1982 Inlet assembly (OBSOLETE) 1
3 170-4351 platform motor black (obsolete) 1
4 372-1986 Switch control (OBSOLETE) 1
5 170-5739 motor (obsolete) 1
6 372-1877 Run capacitor 1
7 372-1653 115V run capacitor 1
8 372-1984 Relay (OBSOLETE) 1
9 372-1882 Retaining ring 1
10 372-1871 Motor handle (OBSOLETE) 1
11 170-4489 spacer screw motor (obsolete) 1
12 170-4540 washer screw motor(obsolete) 1
13 370-6018 SCREW 1/2-13 X 2 1/4 FLAT HD 1
14 999-0372 Bolt 1/2-13 x 1 3/4 hex head 1
15 372-1806 Washer .56 x 1.38 x .11 flat (OBSOLETE) 1
16 370-6352 WASHER LOCK 1/2 NOM 1
17 999-0050 Nut 1/2-13 hex jam plain finish 1
18 999-0649 Bolt 3/8-16 x 1 1/4 hex head stainless steel 4
19 999-0038 Bolt 3/8-16 x 1 hex head grade 5 zinc plated 1
20 999-0462 Screw 8-32 x 1/2 pan head slotted zinc plated 8
21 375-7496 Cable assembly UK1-13P (OBSOLETE) 1
22 170-2426 enclosure switch(obsolete) 1
23 170-7633 motor pulley(obsolete) 1
24 372-1883 Retainer pulley 1
25 270-0163 Screw 1/4-20 x 1/2 2

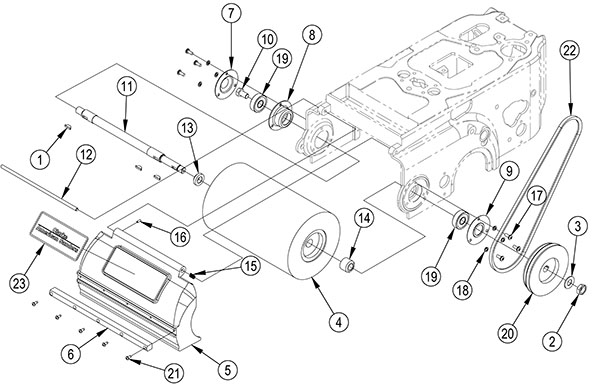

Drum Assembly - 170-0486
RefNbr Part Number Description Req Notes
1 170-0672 Square keyway 3
2 999-0003 Nut 5/8-18 hex jam stainless steel 1
3 170-4530 Washer 2 x 16 13/32 x 32 1
4 170-3375 drum assembly(obsolete) 1
5 170-3376 drum cover(obsolete) 1
6 170-3392 bumper assembly(obsolete) 1
7 372-1821 Cover 1
8 372-1825 Housing 1
9 372-1840 Retainer washer 1
10 370-2563 SCR 1
11 170-3395 drum shaft(obsolete) 1
12 170-3464 drum cover shaft(obsolete) 1
13 170-3482 shaft drum spacer(obsolete) 1
14 170-3482 shaft drum spacer(obsolete) 1
15 372-1835 Spring 1
16 999-0431 Screw 8-32 x 1/4 set socket cup point alloy plain finish 1
17 999-0081 Screw 1/4-20 x 5/8 pan head slotted zinc 6
18 999-0060 Washer 1/4 split lock plain finish 6
19 372-1824 Ball bearing 2
20 170-3502 drum pulley(obsolete) 1
21 170-1544 Screw 5
22 170-3534 belt drum(obsolete) 1
23 170-3545 plate name CAS(obsolete) 1

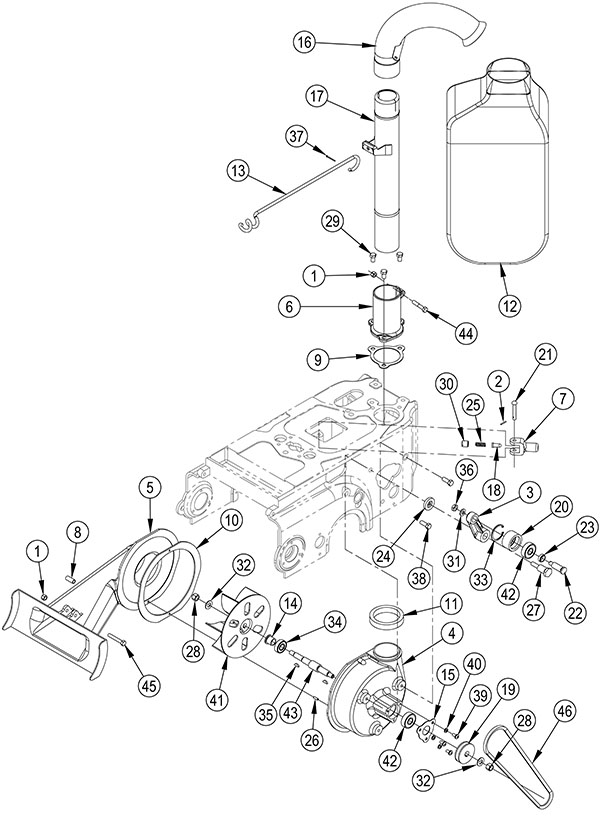

Dust Control Assembly - 170-0487
RefNbr Part Number Description Req Notes
1 999-0069 Nut 5/16-18 hex 2
2 997-2500 Cotter pin 1
3 170-4547 idle arm black(obsolete) 1
4 170-4603 fan housing black(obsolete) 1
5 170-4604 dust pan(obsolete) 1
6 372-1817 Support 1
7 170-4523 yoke(obsolete) 1
8 170-4605 bushing(obsolete) 1
9 372-1818 Gasket 1
10 372-1818 Gasket 1
11 170-4635 washer felt(obsolete) 1
12 372-1810 Bag (OBSOLETE) 1
13 372-1807 Cable 1
14 372-1831 Collar 1
15 372-1844 Cap 1
16 372-1805 Pipe assembly 1
17 372-1809 Pipe assembly (OBSOLETE) 1
18 170-4657 plunger(obsolete) 1
19 170-4659 pulley fan am(obsolete) 1
20 170-4714 pulley idle am(obsolete) 1
21 370-2552 PIN-HINGE YOKE 1
22 170-4722 shaft(obsolete) 1
23 170-4723 spacer bearing idler pulley(obsolete) 1
24 170-4732 spacer(obsolete) 1
25 170-4733 spring(obsolete) 1
26 170-4740 stud(obsolete) 1
27 170-4740 stud(obsolete) 1
28 370-5208 NUT 7/16-14 HX ST LH 2
29 370-6200 SCREW 3/8-16 X 5/8 HX CAP G5 3
30 370-6236 SCR 5/8 -11X 5/8 ST ST 1
31 170-8184 Washer 1
32 372-1829 Washer flat .47 x .94 x .06 flat steel (OBSOLETE) 2
33 370-6414 RINGRETAININGINTERNAL8 BEL 1
34 270-0808 Bearing 1
35 170-5543 1/8 x 5/8 Woodruff key 2
36 999-0247 Nut 3/8-16 hex jam plain finish 1
37 170-3541 Cotter pin 1
38 999-0038 Bolt 3/8-16 x 1 hex head grade 5 zinc plated 2
39 999-0323 Screw 1/4-20 x 1/2 pan head slotted zinc plated 3
40 999-0060 Washer 1/4 split lock plain finish 3
41 170-4743 fan(obsolete) 1
42 372-1843 Ball bearing 2
43 170-4779 shaft fan(obsolete) 1
44 999-0551 Bolt 5/16-18 x 1 3/4 hex head stainless steel 1
45 999-0354 Screw 5/16-18 x 2 round head slotted zinc plated 1
46 170-4802 belt fan am-12 (obsolete) 1

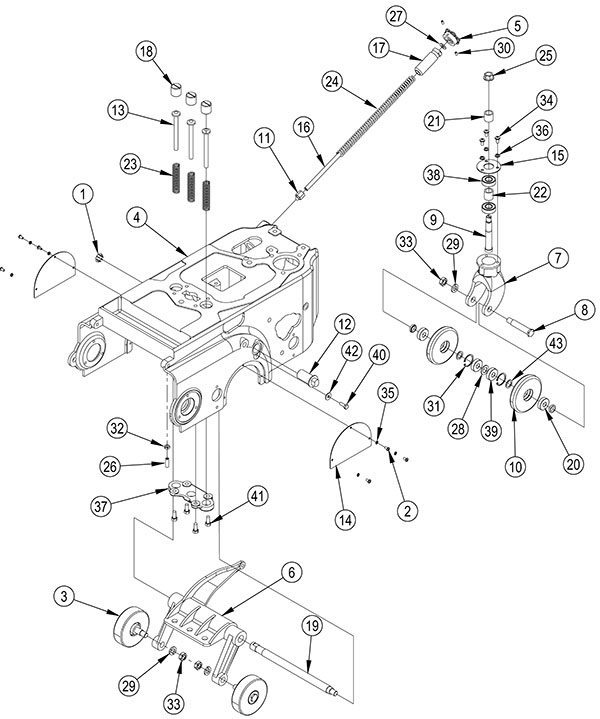

Base Assembly(models 07001A,07108A,07109A,07120A) - 170-0488
RefNbr Part Number Description Req Notes
1 154-3987 25/32 inch button plug 1
2 999-0409 Screw 10-24 x 3/8 pan head slotted zinc plated 6
3 372-1933 Wheel assembly (urethane) 2
4 170-0136 frame(obsolete) 1
5 372-1894 Knob 1
6 170-0138 reach lever(obsolete) 1
7 372-1916 Wheel yoke 1
8 372-1917 Axle 1
9 372-1907 Pivot bolt 1
10 154-3745 Urethane wheel 2
11 372-1923 Nut 1
12 372-1905 Eccentric 1
13 372-1900 Spring plunger 3
14 372-1903 Cover plate 2
15 372-1914 Bearing retainer (OBSOLETE) 1
16 170-0146 rod pilot(obsolete) 1
17 372-1896 Drum pressure screw 1
18 170-0199 screw(obsolete) 3
19 170-0200 shaft lever(obsolete) 1
20 372-1932 Spacer 2
21 170-0201 spacer(obsolete) 1
22 170-0202 spacer drum sander(obsolete) 1
23 372-1901 Spring 3
24 170-0205 spring drum(obsolete) 1
25 370-5210 NUT LARGE FLANGE 1/2-13 1
26 370-6235 SCR 5/16-18X1 ST ST CUP PT 1
27 170-8184 Washer 1
28 370-6324 WASHER .59X1.00X.09 FLAT ST 1
29 370-6352 WASHER LOCK 1/2 NOM 3
30 370-6472 SET SCREW-10-24X3/8 CONE POINT 2
31 170-0210 rietaining ring(obsolete) 2
32 999-0430 Nut 5/16-18 hex jam plain finish 1
33 999-0050 Nut 1/2-13 hex jam plain finish 3
34 999-0323 Screw 1/4-20 x 1/2 pan head slotted zinc plated 3
35 170-6125 Washer 1/8 lock 6
36 999-0060 Washer 1/4 split lock plain finish 3
37 170-0222 plunger plate(obsolete) 1
38 372-1915 Ball bearing 2
39 170-7308 Sealed ball bearing 4
40 999-0020 Bolt 1/4-20 x 3/4 hex head grade 5 zinc plated 1
41 999-0132 Bolt 5/16-18 x 3/4 hex head grade 5 zinc plated 4
42 999-0016 Washer 1/4 flat plain finish 1
43 154-3905 Spacer 2

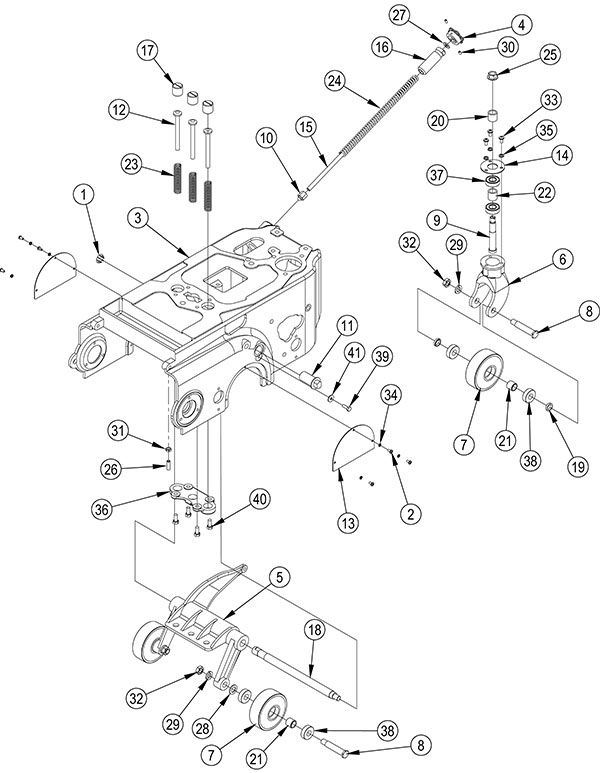

Base Assembly(models 07044C,07049C) - 170-0489
RefNbr Part Number Description Req Notes
1 154-3987 25/32 inch button plug 1
2 999-0409 Screw 10-24 x 3/8 pan head slotted zinc plated 6
3 170-0136 frame(obsolete) 1
4 372-1894 Knob 1
5 170-0138 reach lever(obsolete) 1
6 372-1916 Wheel yoke 1
7 154-3744 Steel wheel 3
8 372-1917 Axle 3
9 372-1907 Pivot bolt 1
10 372-1923 Nut 1
11 372-1905 Eccentric 1
12 372-1900 Spring plunger 3
13 372-1903 Cover plate 2
14 372-1914 Bearing retainer (OBSOLETE) 1
15 170-0146 rod pilot(obsolete) 1
16 372-1896 Drum pressure screw 1
17 170-0199 screw(obsolete) 3
18 170-0200 shaft lever(obsolete) 1
19 372-1932 Spacer 2
20 170-0201 spacer(obsolete) 1
21 372-1934 Spacer 3
22 170-0202 spacer drum sander(obsolete) 1
23 372-1901 Spring 3
24 170-0205 spring drum(obsolete) 1
25 370-5210 NUT LARGE FLANGE 1/2-13 1
26 370-6235 SCR 5/16-18X1 ST ST CUP PT 1
27 170-8184 Washer 1
28 370-6324 WASHER .59X1.00X.09 FLAT ST 2
29 370-6352 WASHER LOCK 1/2 NOM 3
30 370-6472 SET SCREW-10-24X3/8 CONE POINT 2
31 999-0430 Nut 5/16-18 hex jam plain finish 1
32 999-0050 Nut 1/2-13 hex jam plain finish 3
33 999-0323 Screw 1/4-20 x 1/2 pan head slotted zinc plated 3
34 170-6125 Washer 1/8 lock 6
35 999-0060 Washer 1/4 split lock plain finish 3
36 170-0222 plunger plate(obsolete) 1
37 372-1915 Ball bearing 2
38 172-4656 Ball bearing 6
39 999-0020 Bolt 1/4-20 x 3/4 hex head grade 5 zinc plated 1
40 999-0132 Bolt 5/16-18 x 3/4 hex head grade 5 zinc plated 4
41 999-0016 Washer 1/4 flat plain finish 1

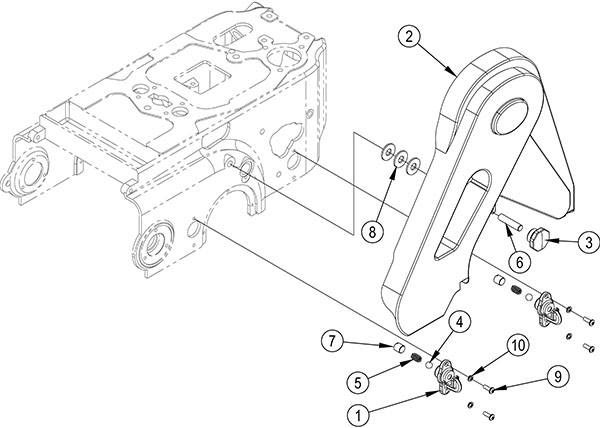

Belt Guard Assembly(models 07001A,07108A,07109A,07044C,07049C) - 170-0490
RefNbr Part Number Description Req Notes
1 170-0027 Clamp-belt guard-black(obsolete) 2
2 170-0030 guard-belt pntd(obsolete) 1
3 170-0039 nut-black(oboslete) 1
4 370-2122 BALL 1/2 C.R. STEEL 2
5 170-0040 spring(obsolete) 2
6 170-0056 stud-guard belt (obsolete) 1
7 370-6236 SCR 5/8 -11X 5/8 ST ST 2
8 372-1806 Washer .56 x 1.38 x .11 flat (OBSOLETE) 3
9 999-0456 Screw 1/4-20 x 3/4 pan head phillips stainless steel 4
10 999-0060 Washer 1/4 split lock plain finish 4

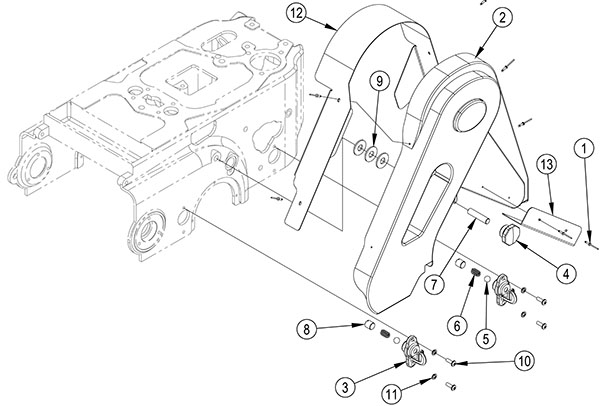

Belt Guard Assembly(model 07120A) - 170-0491
RefNbr Part Number Description Req Notes
1 372-1873 Rivet 7
2 170-0073 guard beltam-12 ce (obsolete) 1
3 170-0027 Clamp-belt guard-black(obsolete) 2
4 170-0039 nut-black(oboslete) 1
5 370-2122 BALL 1/2 C.R. STEEL 2
6 170-0040 spring(obsolete) 2
7 170-0056 stud-guard belt (obsolete) 1
8 370-6236 SCR 5/8 -11X 5/8 ST ST 2
9 372-1806 Washer .56 x 1.38 x .11 flat (OBSOLETE) 3
10 999-0456 Screw 1/4-20 x 3/4 pan head phillips stainless steel 4
11 999-0060 Washer 1/4 split lock plain finish 4
12 170-0083 shield upper guard(obsolete) 1
13 170-0094 shield lower belt guard(obsolete) 1

- Pads - 255-1200
RefNbr Part Number Description Req Notes
01 255-1240 12 inch aqua plus burnishing pad (pkg of 20)
02 255-1235 12 inch Armadillo concrete scrubbing pad (pkg of 5)
03 255-1264 12 inch Blue ace pad (pkg of 20)
04 255-1242 12 inch Blue Jay burnishing pad (pkg of 20)
05 255-1212 12 inch Cure white pad (pkg of 5)
06 255-1277 12 inch Diamondback extreme stripping pad (pkg of 20)
07 255-1238 12 inch EHD Extra Heavy Duty Concrete Leveling Pad (pkg of 2
08 255-1221 12 inch gorilla lite burnishing pad (pkg of 20)
09 255-1250 12 inch gorilla spray buff/polish/burnish pad (pkg of 20)
10 255-1265 12 inch Heat concrete bonding pad (pkg of 5)
11 255-1230 12 inch jaguar burnishing pad (pkg of 20)
12 255-1290 12 inch premium black stripping pad (pkg of 20)
13 255-1270 12 inch premium blue cleaning pad (pkg of 20)
14 255-1292 12 inch premium brown stripping pad (pkg of 20)
15 255-1280 12 inch premium green scrubbing pad (pkg of 20)
16 255-1260 12 inch premium red scrubbing pad (pkg of 20)
17 255-1252 12 inch premium tan polishing pad (pkg of 20)
18 255-1220 12 inch premium white polishing pad (pkg of 20)
19 255-1295 12 inch razorback stripping pad (pkg of 20)
20 255-1247 12 inch Redwood maroon floor prep pad (pkg of 10)
21 255-1255 12 inch Ruff non-abrasive brush pad (pkg of 2)
22 255-1211 12 inch superspeed rubberized pad (pkg of 20)
23 255-0193 12 inch Superscreen sand screen 100grit(pkg of 10) (OBSOLETE
24 255-0194 12 inch Superscreen sand screen 120 grit (pkg of 10)
25 255-0195 12 inch Superscreen sand screen 180 grit (pkg of 10)
26 255-0191 12 inch Superscreen sand screen 60 grit (pkg of 10)
27 255-0192 12 inch Superscreen sand screen 80 grit (pkg of 10)
28 255-0108 12 inch Professional sand screen 100 grit (pkg of 10)
29 255-0109 12 inch Professional sand screen 120 grit (pkg of 10)
30 255-0110 12 inch Professional sand screen 180 grit (pkg of 10)
31 255-0106 12 inch Professional sand screen 60 grit (pkg of 10)
32 255-0107 12 inch Professional sand screen 80 grit (pkg of 10)
34 255-1224 12 inch Tiger carpet bonnet (pkg of 2)
35 255-9535 12 inch Diamond by Gorilla 11000 Grit (pkg of 2)
36 255-9532 12 inch Diamond by Gorilla 1500 Grit (pkg of 2)
37 255-9529 12 inch Diamond by Gorilla 200 Grit (pkg of 2)
38 255-9533 12 inch Diamond by Gorilla 3000 Grit (pkg of 2)
39 255-9530 12 inch Diamond by Gorilla 400 Grit (pkg of 2)
40 255-9531 12 inch Diamond by Gorilla 800 Grit (pkg of 2)
41 255-9534 12 inch Diamond by Gorilla 8000 Grit (pkg of 2)
42 255-9637 12 inch Diamond starter pack (1 of each grit)
43 255-1215 12 inch Duala clean and shine pad - low speed (pkg of 5)
44 255-1216 12 inch 2001 Duala clean and shine pad-high speed (pkg of 5)

- Commonly Asked For Parts - 270-9990
RefNbr Part Number Description Req Notes
01 372-1788 Circuit breaker 1
Webpage Problem Reporting
