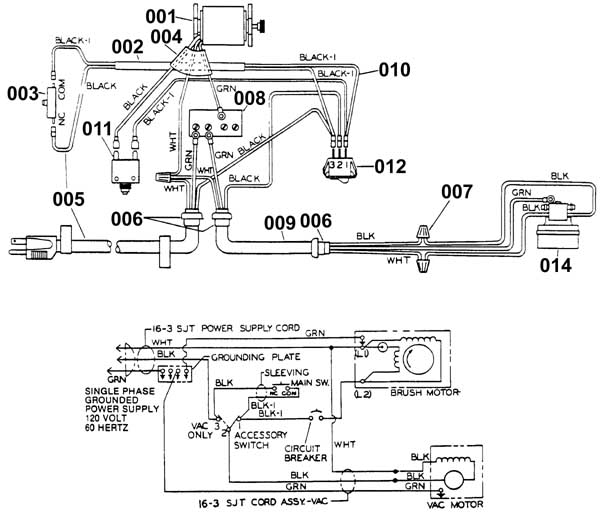

Wiring Diagram - |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
|
|

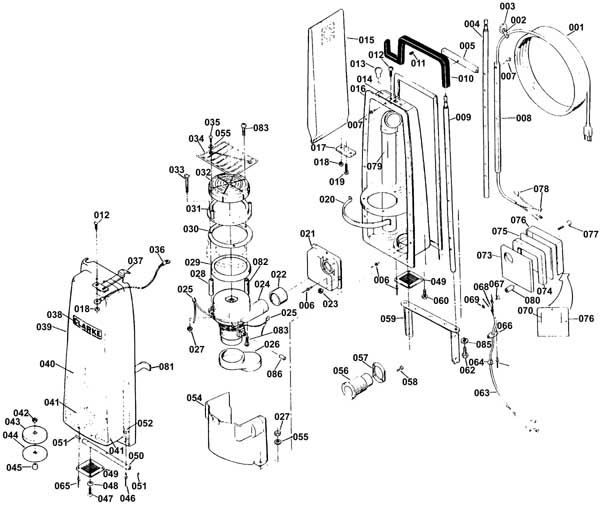

Handle Assembly - 170-2089 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 015a |
170-3285 |
Paper bags (OBSOLETE) |
1 |
(OEM) Pkg.of 6 |
| 015b |
991-9019 |
Paper vacuum bags (pkg of 10 with 2 prefilters) |
1 |
(NON-OEM) |
| 015c |
991-9153 |
Paper vacuum bags (pkg of 10 with 2 prefilters) |
1 |
(NON-OEM) |
| 056 |
170-2722 |
Clamp-hose |
1 |
|
| 057 |
170-2753 |
Hose-standpipe (OBSOLETE) |
1 |
|
|
|

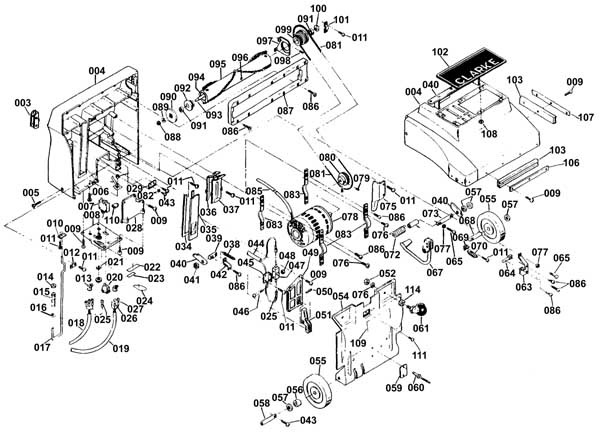

Head Assembly - 170-2090 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 043 |
999-0656 |
Screw #6-32 x 7/8 pan head phillips zinc plated |
2 |
|
| 056 |
170-3725 |
Wheel spacer (OBSOLETE) |
1 |
|
| 057 |
170-3726 |
Wheel spacer (OBSOLETE) |
1 |
|
| 058 |
N/A |
Not available |
1 |
Wheel pivot |
| 068 |
170-2770 |
Wheel pivot left side (OBSOLETE) |
1 |
|
|
|
