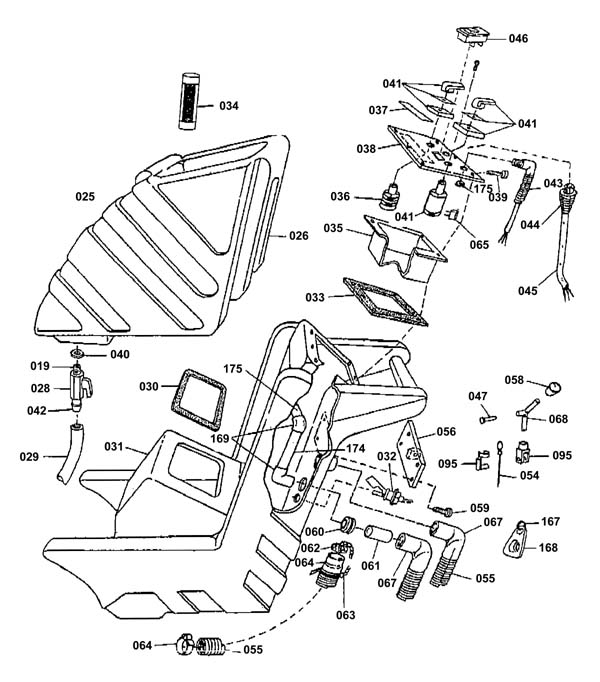

Tank Assembly - 230-0000 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1a |
228-2471 |
Paper vacuum bags (pkg of 10 with 2 filters) |
|
|
| 1b |
991-9001 |
Paper vacuum bags (pkg of 10) |
|
|
|
|

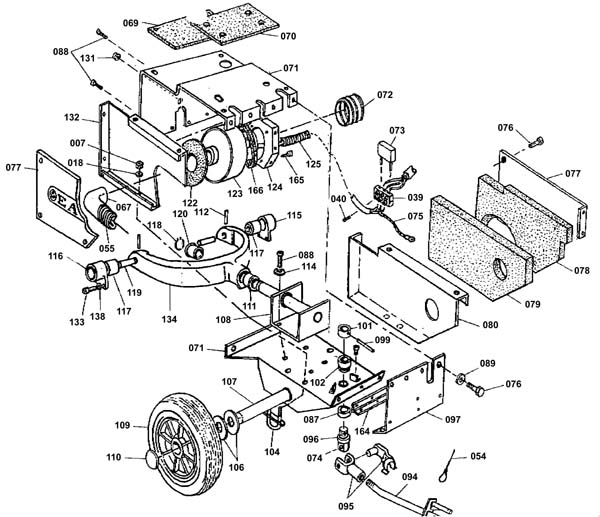

Chassis Assembly - |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
|
|

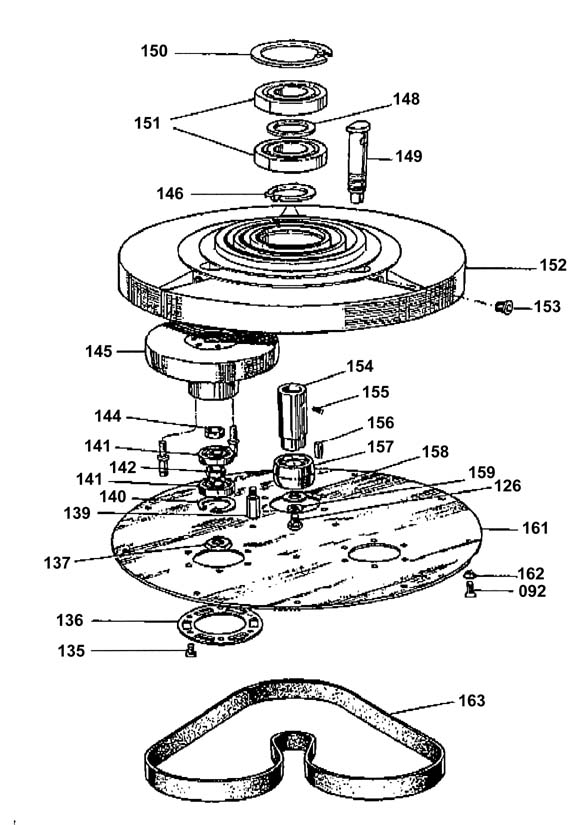

Drive Assembly - |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
|
|

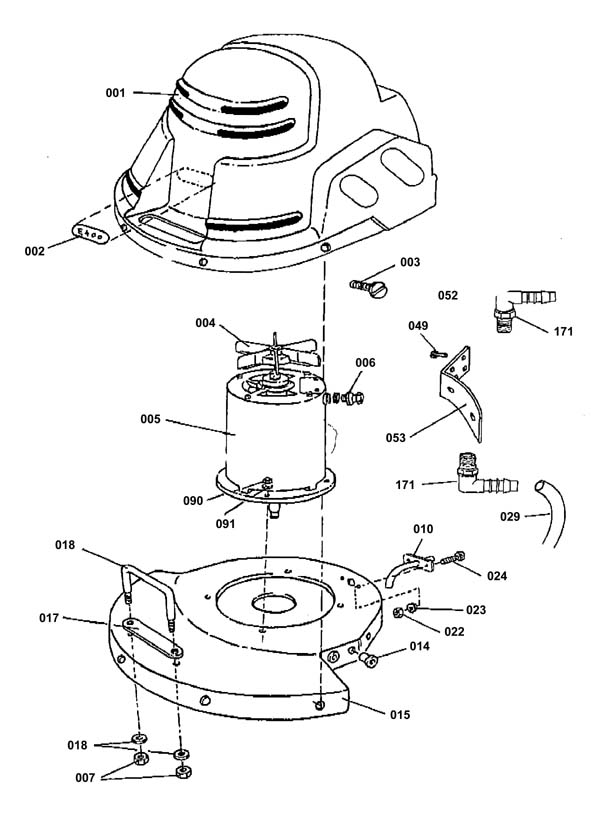

Head Assembly - |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
|
|

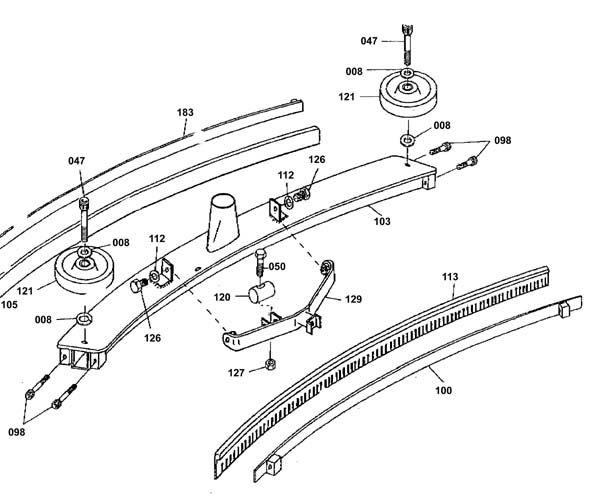

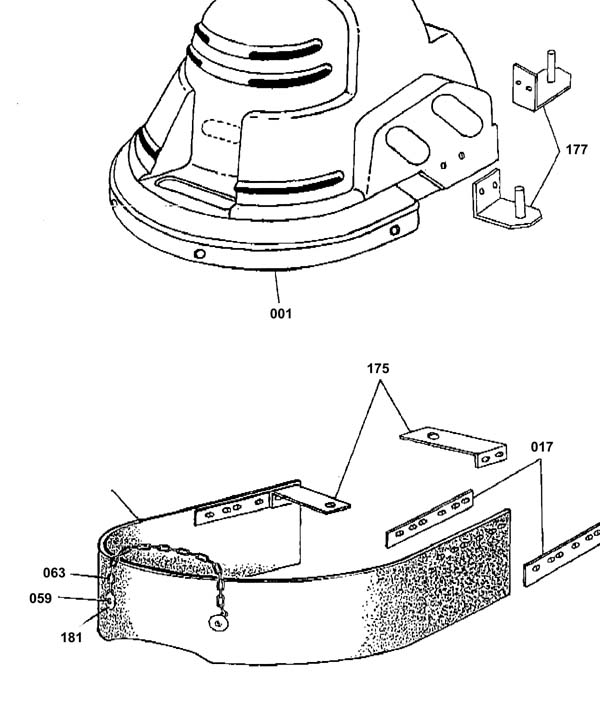

Skirt Assembly - 230-0004 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| KIT |
230-0031 |
Splash skirt complete |
|
|
|
|

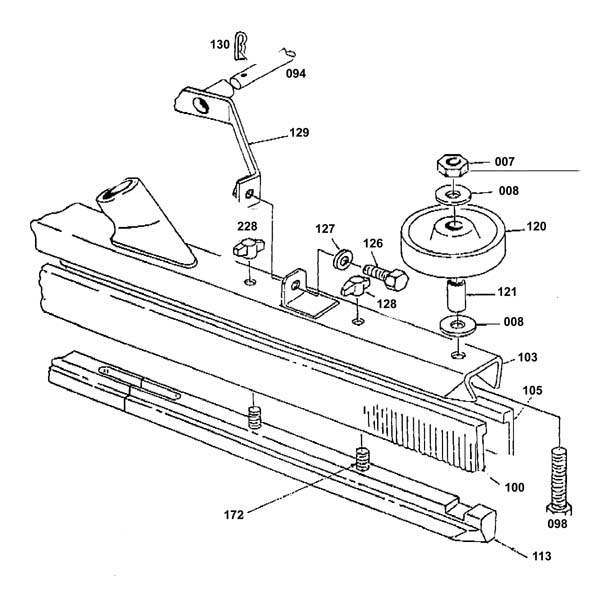

New Squeegee Assembly - |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
|
|
Old Squeegee Assembly - |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
|
|

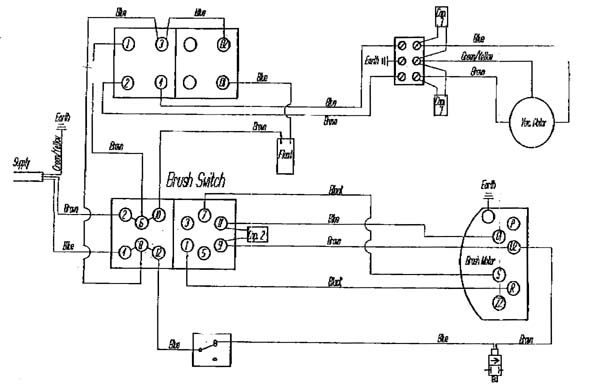

Electrical Diagram - |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
|
|
- Batteries, Brushes, and Chargers - 230-9997 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 0.9835 |
996-1671 |
Extra heavy grit stripping brush - 46 grit |
1 |
|
| 0.9835 |
996-1675 |
Pad driver |
1 |
|
| 0.9835 |
996-1430 |
Lite grit scrubbing brush - 500 grit |
1 |
|
| 0.9835 |
996-1674 |
Polypropelene scrubbing brush |
1 |
|
| 0.9835 |
996-1429 |
Medium grit scrubbing brush - 180 grit |
1 |
|
|
|
- Pad Holders - 275-9029 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
991-2214 |
Center-Lok II pad holder - left hand thread (red) |
|
|
| 2a |
991-2201 |
Center-Lok II pad holder - right hand thread (black) |
|
(Pad driver side female, Floor side male) |
| 2b |
991-8577 |
Pad retainer |
|
(Pad driver side male, Floor side female) |
| 3a |
991-2202 |
Big mouth pad holder set (blue) |
|
(includes 3 screws) |
| 3b |
991-2205 |
Deep lock ring and pad grip ring |
|
|
| 4 |
991-2203 |
Big mouth pad holder male thread portion |
|
|
| 5 |
991-2206 |
Center-Lok 3 pad holder |
|
(includes 3 screws) |
| 6 |
996-0372 |
Big mouth pad holder (left hand thread) |
|
|
| 8 |
991-2209 |
Split retainer - pad holder ring (OBSOLETE) |
|
|
| 9 |
N/A |
Not available |
|
(replaced by #3 991-2202) |
| 10 |
991-2211 |
Center lock pad holding cup (male) (yellow) (OBSOLETE) |
|
|
|
|
