Solution Tank Kit - NON-OEM - 172-2089 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 000a |
209-0013 |
4 gallon solution tank kit for round handle side x sides |
1 |
(includes 001-018) |
| 000b |
209-0014 |
4 gallon solution tank kit for square handle side x sides |
1 |
|
| 000c |
209-0017 |
2 1/2 gallon solution tank kit (OBSOLETE) |
1 |
|
| 001 |
209-0033 |
Cap (black) |
1 |
|
| 002 |
209-0034 |
Brass handle rod (OBSOLETE) |
1 |
|
| 003 |
209-0035 |
1/8 inch grommet |
1 |
|
| 004 |
N/A |
Not available |
1 |
(Tank only) |
| 005 |
209-0036 |
Solution valve |
1 |
(includes 006 and 007) |
| 006 |
N/A |
Not available |
1 |
(Washer) |
| 007 |
209-0038 |
Nut 1/4 brass pipe thread straight |
1 |
|
| 008 |
209-0039 |
Hose barb 1/4 |
1 |
|
| 009 |
209-0040 |
Hose 3/8 x 24 inch |
1 |
|
| 010 |
209-0041 |
Coupling 1/8 brass |
1 |
|
| 011 |
209-0042 |
1/8 inch brass nipple |
1 |
|
| 012 |
209-0043 |
Washer 1/8 brass |
2 |
|
| 013 |
209-0044 |
Nut 1/8 brass lock (OBSOLETE) |
1 |
|
| 014 |
209-0045 |
Hose assembly (OBSOLETE) |
1 |
(includes 009-013) |
| 015 |
209-0046 |
5/16 inch u bolt |
2 |
(only used for round handle buffers) |
| 016 |
209-0047 |
Washer bar |
2 |
|
| 017 |
999-0069 |
Nut 5/16-18 hex |
2 |
|
| 018 |
209-0049 |
U bolt assembly (set of 2) |
1 |
(only used for round handle side x sides) (includes 015-017) |
| 019 |
209-0051 |
Advance adapter U-bolts assembly (set of 2) (OBSOLETE) |
1 |
|
|
|

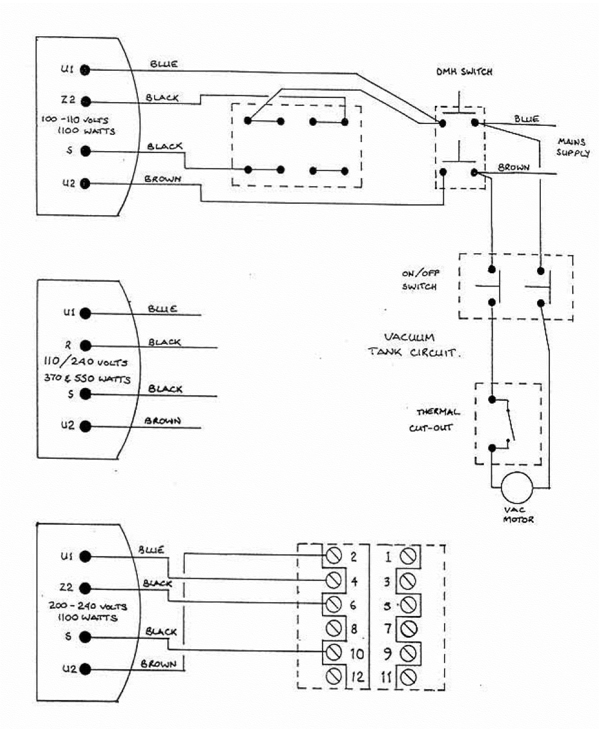

Wiring Diagram - |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
|
|

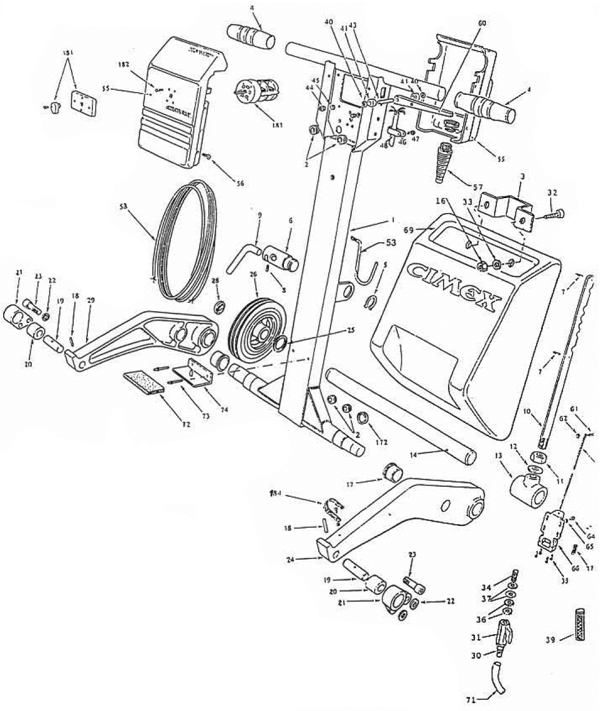

Handle Assembly - 230-0551 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 3 |
230-0116 |
Top tank bracket |
1 |
|
| 5 |
230-0041 |
External circlip 3/4 inch |
1 |
|
| 9 |
230-0067 |
Locking handle |
1 |
|
| 10 |
230-0052 |
Swivel clamp rod |
1 |
|
| 16 |
230-0105 |
Nut M6 nylok stainless steel |
2 |
|
| 17 |
230-0048 |
Fork handle bushing |
2 |
|
| 18 |
230-5011 |
Sellock pin |
2 |
|
| 20 |
230-5012 |
Right hand pivot bracket with bearing |
2 |
|
| 21b |
230-5013 |
Left hand pivot bracket with bearing |
1 |
|
| 23 |
999-1420 |
Screw M10-1.5 x 30mm socket head stainless steel |
4 |
|
| 24 |
230-5015 |
Left hand lifting fork |
1 |
|
| 30 |
230-0107 |
Water outlet |
1 |
|
| 34 |
230-0118 |
Valve insert |
1 |
|
| 39 |
230-0119 |
Nylon filter |
1 |
|
| 41 |
N/A |
Not available |
1 |
(Washer) |
| 48 |
230-0077 |
Wire (switch to the motor) |
1 |
|
| 48 |
230-0077 |
Wire (switch to the motor) |
1 |
|
| 56 |
230-0103 |
Screw M5 x 16mm pozi pan head stainless steel |
6 |
|
| 57 |
230-0063 |
Cable gland with backnut |
1 |
|
| 60 |
230-0070 |
Water valve lever |
1 |
|
| 64 |
230-0098 |
Screw M4 x 8mm pozi pan head stainless steel |
4 |
|
| 66 |
230-0112 |
Water valve |
1 |
|
| 69 |
230-0111 |
Cyclone supply tank |
1 |
|
| 72 |
230-0115 |
Foam handle pad |
1 |
|
| 74 |
230-0117 |
Lower solution tank bracket |
1 |
|
| 131 |
N/A |
Not available |
1 |
(Knob assembly) |
| 172 |
N/A |
Not available |
1 |
(Bearing) |
| 181 |
230-0078 |
Rotary switch |
1 |
|
| 184 |
230-0047 |
Earth lead |
2 |
|
|
|

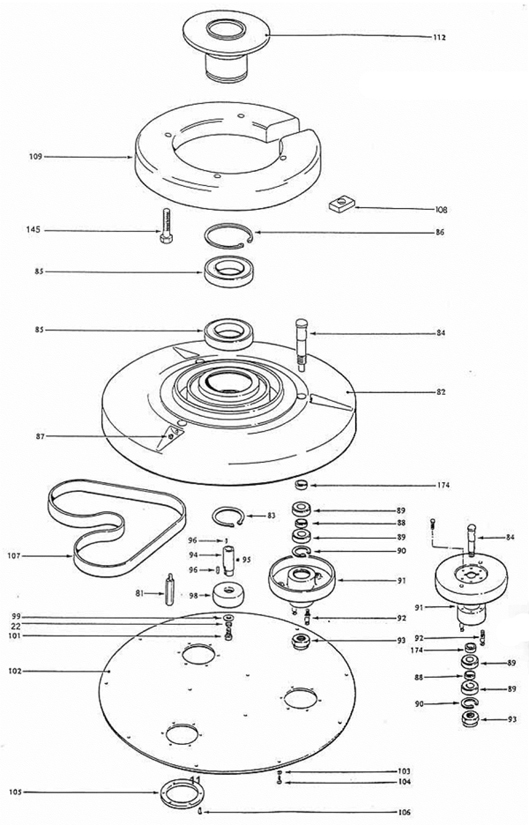

Base Assembly - 230-0553 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 82b |
230-0152 |
EDU bowl (blue) |
1 |
|
| 83 |
230-0136 |
External circlip |
1 |
|
| 84 |
230-0146 |
Brush spindle |
3 |
|
| 86 |
230-0134 |
Internal circlip 75mm |
1 |
|
| 87 |
230-0133 |
Plastic insert |
3 |
|
| 88 |
230-0150 |
Pulley bearing spacer |
3 |
|
| 90 |
230-0125 |
Internal circlip 35mm |
3 |
|
| 91a |
230-5033 |
Brush pulley |
3 |
|
| 91b |
230-0272 |
Brush pulley |
3 |
|
| 92 |
230-0155 |
Brush driving pins |
6 |
|
| 93 |
230-0153 |
Nut M16 nylok machined |
3 |
|
| 94 |
230-5034 |
Motor shaft extension |
1 |
|
| 94b |
230-0149 |
Motor shaft extension |
1 |
|
| 95 |
230-0177 |
Screw M6 x 6 grub socket head |
1 |
|
| 96 |
251-5035 |
Round ended steel key |
2 |
|
| 96b |
230-0143 |
Key 3/16 x 3/16 x 25mm |
2 |
|
| 101 |
230-0182 |
Bolt M10 x 20 zinc |
1 |
|
| 102a |
251-5037 |
Bottom cover plate |
1 |
|
| 102b |
230-0145 |
Bottom cover plate |
1 |
|
| 102c |
251-5038 |
Bottom cover plate |
1 |
|
| 104 |
230-0102 |
Screw M5 x 12mm countersunk |
12 |
|
| 106 |
230-0132 |
Screw self tapping 10 X 12 mm pozi pan head stainless steel |
18 |
|
| 107 |
N/A |
Not available |
|
(Belt) |
| 112 |
N/A |
Not available |
1 |
(Spigot plate) (Only available with bumper shield) |
| 174 |
230-0147 |
Brush pulley spacer |
3 |
|
|
|
- Commonly Asked For Parts - 230-9987 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 01 |
230-5005 |
Silicone tube 7.5mm (42 inch) |
|
|
| 02 |
230-0111 |
Cyclone supply tank |
|
|
| 03 |
230-1912 |
Solution outlet |
|
|
|
|
- Pads - 255-0600 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 01 |
255-0690 |
6 inch premium black stripping pad (pkg of 20) |
|
|
| 03 |
255-0670 |
6 inch premium blue cleaning pad (pkg of 20) |
|
|
| 05 |
255-0692 |
6 inch premium brown stripping pad (pkg of 20) |
|
|
| 07 |
255-0680 |
6 inch premium green scrubbing pad (pkg of 20) |
|
|
| 09 |
255-0660 |
6 inch premium red scrubbing pad (pkg of 20) |
|
|
| 11 |
255-0652 |
6 inch premium tan polishing pad (pkg of 20) |
|
|
| 13 |
255-0620 |
6 inch premium white polishing pad (pkg of 20) |
|
|
| 15 |
255-0647 |
6 inch Redwood maroon floor prep pad (pkg of 10) |
|
|
|
|
- Pad Holders - 275-9029 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
991-2214 |
Center-Lok II pad holder - left hand thread (red) |
|
|
| 2a |
991-2201 |
Center-Lok II pad holder - right hand thread (black) |
|
(Pad driver side female, Floor side male) |
| 2b |
991-8577 |
Pad retainer |
|
(Pad driver side male, Floor side female) |
| 3a |
991-2202 |
Big mouth pad holder set (blue) |
|
(includes 3 screws) |
| 3b |
991-2205 |
Deep lock ring and pad grip ring |
|
|
| 4 |
991-2203 |
Big mouth pad holder male thread portion |
|
|
| 5 |
991-2206 |
Center-Lok 3 pad holder |
|
(includes 3 screws) |
| 6 |
996-0372 |
Big mouth pad holder (left hand thread) |
|
|
| 8 |
991-2209 |
Split retainer - pad holder ring (OBSOLETE) |
|
|
| 9 |
N/A |
Not available |
|
(replaced by #3 991-2202) |
| 10 |
991-2211 |
Center lock pad holding cup (male) (yellow) (OBSOLETE) |
|
|
|
|
