Solution Tank Kit - NON-OEM - 172-2089 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 000a |
209-0013 |
4 gallon solution tank kit for round handle side x sides |
1 |
(includes 001-018) |
| 000b |
209-0014 |
4 gallon solution tank kit for square handle side x sides |
1 |
|
| 000c |
209-0017 |
2 1/2 gallon solution tank kit (OBSOLETE) |
1 |
|
| 001 |
209-0033 |
Cap (black) |
1 |
|
| 002 |
209-0034 |
Brass handle rod (OBSOLETE) |
1 |
|
| 003 |
209-0035 |
1/8 inch grommet |
1 |
|
| 004 |
N/A |
Not available |
1 |
(Tank only) |
| 005 |
209-0036 |
Solution valve |
1 |
(includes 006 and 007) |
| 006 |
N/A |
Not available |
1 |
(Washer) |
| 007 |
209-0038 |
Nut 1/4 brass pipe thread straight |
1 |
|
| 008 |
209-0039 |
Hose barb 1/4 |
1 |
|
| 009 |
209-0040 |
Hose 3/8 x 24 inch |
1 |
|
| 010 |
209-0041 |
Coupling 1/8 brass |
1 |
|
| 011 |
209-0042 |
1/8 inch brass nipple |
1 |
|
| 012 |
209-0043 |
Washer 1/8 brass |
2 |
|
| 013 |
209-0044 |
Nut 1/8 brass lock (OBSOLETE) |
1 |
|
| 014 |
209-0045 |
Hose assembly (OBSOLETE) |
1 |
(includes 009-013) |
| 015 |
209-0046 |
5/16 inch u bolt |
2 |
(only used for round handle buffers) |
| 016 |
209-0047 |
Washer bar |
2 |
|
| 017 |
999-0069 |
Nut 5/16-18 hex |
2 |
|
| 018 |
209-0049 |
U bolt assembly (set of 2) |
1 |
(only used for round handle side x sides) (includes 015-017) |
| 019 |
209-0051 |
Advance adapter U-bolts assembly (set of 2) (OBSOLETE) |
1 |
|
|
|
Handle Assembly - 230-1000 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 000 |
230-0090 |
Handle assembly |
1 |
|
| 002 |
230-0041 |
External circlip 3/4 inch |
1 |
|
| 004 |
230-0061 |
Handle grip |
2 |
|
| 006 |
230-0063 |
Cable gland with backnut |
1 |
|
| 008 |
230-0065 |
Rectangular plug |
1 |
|
| 013 |
230-0066 |
Earth point label |
1 |
|
| 014 |
230-0067 |
Locking handle |
1 |
|
| 016 |
230-0069 |
Switch enclosure (front and rear) |
1 |
|
| 017 |
230-0070 |
Water valve lever |
1 |
|
| 018 |
230-0071 |
Cable hook |
1 |
|
| 019 |
230-0072 |
Common handle frame |
1 |
|
| 029 |
230-0078 |
Rotary switch |
1 |
|
| 040 |
230-0081 |
Washer M5 form A zinc plated |
2 |
|
| 041 |
230-0082 |
Nut M5 nyloc zinc plated |
1 |
|
| 042 |
230-0083 |
Screw M5 x 10 socket set zinc plated |
1 |
|
| 043 |
230-0084 |
Screw M5 x 18 pozi pan head stainless steel |
6 |
|
| 044 |
230-0085 |
Screw M5 x 40 pan head stainless steel |
1 |
|
| 045 |
230-0086 |
Nut M10 standard form mild steel zinc plated |
1 |
|
| 046 |
230-0087 |
Washer M4 shakeproof |
2 |
|
| 047 |
230-0088 |
Screw M4 x 10 POZI pan head stainless steel |
2 |
|
| 048 |
230-0089 |
Nut M4 full stainless steel |
2 |
|
| N/S |
230-0073 |
Warning name plate |
1 |
|
| N/S |
230-0076 |
Spade terminal spring |
6 |
|
| N/S |
230-0079 |
Handle core components |
1 |
|
| N/S |
230-0080 |
Handle rotary switch (OBSOLETE) |
1 |
|
| N/S |
230-0261 |
Replacement power cord |
1 |
|
| N/S |
230-0075 |
Straight terminal |
2 |
|
| N/S |
230-0077 |
Wire (switch to the motor) |
80 in |
|
|
|

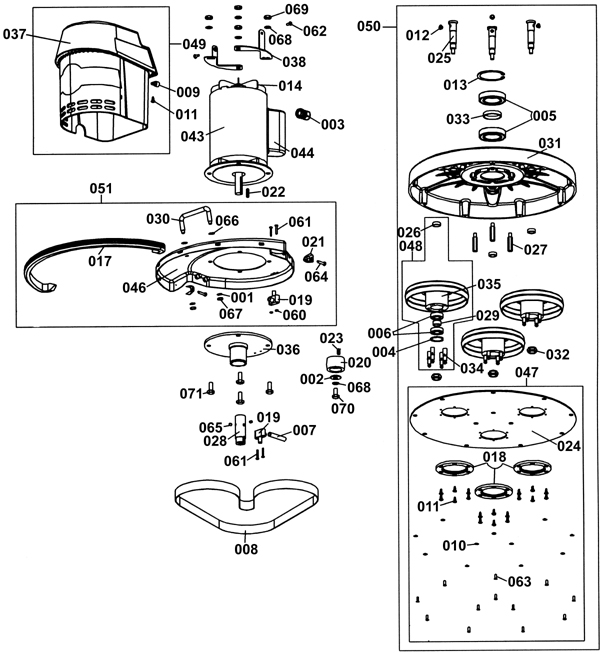

Head Assembly - 230-1001 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 001 |
230-0122 |
Washer M8 shakeproof |
2 |
|
| 002 |
999-1262 |
Washer M10 flat |
1 |
|
| 003 |
230-0124 |
Cable gland |
1 |
|
| 004 |
230-0125 |
Internal circlip 35mm |
3 |
|
| 007 |
230-5005 |
Silicone tube 7.5mm (42 inch) |
2 in |
|
| 010 |
230-0131 |
Washer brass cup #8 |
12 |
|
| 011 |
230-0132 |
Screw self tapping 10 X 12 mm pozi pan head stainless steel |
19 |
|
| 012 |
230-0133 |
Plastic insert |
3 |
|
| 013 |
230-0134 |
Internal circlip 75mm |
1 |
|
| 014 |
230-0135 |
Motor cooling fan with pin |
1 |
|
| 015 |
230-0136 |
External circlip |
1 |
|
| 017 |
230-0285 |
Bumper strip |
1 |
|
| 019 |
230-0140 |
Water feed elbow |
2 |
|
| 020 |
230-0141 |
Motor pulley |
1 |
|
| 021 |
230-0142 |
Rubber bumper clip |
2 |
|
| 022 |
230-0143 |
Key 3/16 x 3/16 x 25mm |
1 |
|
| 023 |
230-0144 |
Key 3/16 x 3/16 x 5/8 |
1 |
|
| 024 |
230-0145 |
Bottom cover plate |
1 |
|
| 025 |
230-0146 |
Brush spindle |
3 |
|
| 026 |
230-0147 |
Brush pulley spacer |
3 |
|
| 027 |
230-0287 |
Bottom cover spacer |
3 |
|
| 028 |
230-0149 |
Motor shaft extension |
1 |
|
| 029 |
230-0150 |
Pulley bearing spacer |
3 |
|
| 030 |
230-0151 |
Lifting handle |
1 |
|
| 031 |
230-0152 |
EDU bowl (blue) |
1 |
|
| 032 |
230-0153 |
Nut M16 nylok machined |
3 |
|
| 033 |
230-0154 |
Center bearing spacer |
1 |
|
| 034 |
230-0155 |
Brush driving pins |
12 |
|
| 035 |
230-0272 |
Brush pulley |
3 |
|
| 036 |
230-0157 |
Spigot plate |
1 |
|
| 037 |
230-0158 |
Motor cover |
1 |
|
| 038 |
230-0159 |
Motor cover bracket |
2 |
|
| 039 |
230-0160 |
Front bars decal |
1 |
|
| 044a |
230-0165 |
Start capacitor for Tyco and Lemac motors (OBSOLETE) |
1 |
|
| 044b |
230-0166 |
Run capacitor (OBSOLETE) |
1 |
|
| 046 |
230-0167 |
Bumper shield assembly |
1 |
|
| 047 |
230-0168 |
Bottom cover assembly |
1 |
|
| 048 |
230-0169 |
Brush pulley assembly |
3 |
|
| 049 |
230-0170 |
Motor cover assembly |
1 |
|
| 050 |
230-0171 |
EDU assembly |
1 |
|
| 051 |
230-0172 |
Bumper shield includes bumper and handle |
1 |
|
| 060 |
230-0173 |
Nut M4 brass |
2 |
|
| 061 |
230-0174 |
Screw M4 x 25 pozi pan head stainless steel |
4 |
|
| 062 |
230-0175 |
Screw M5 x 12 pozi pan head stainless steel |
2 |
|
| 063 |
230-0102 |
Screw M5 x 12mm countersunk |
12 |
|
| 064 |
230-0176 |
Screw M5 x 25 pozi pan head stainless steel |
2 |
|
| 065 |
230-0177 |
Screw M6 x 6 grub socket head |
2 |
|
| 066 |
230-0178 |
Washer M8 type B stainless steel |
2 |
|
| 067 |
230-0179 |
Washer M8 type B stainless steel |
2 |
|
| 068 |
230-0180 |
Washer M10 internal shakeproof |
5 |
|
| 069 |
230-0181 |
Nut M10 lock zinc |
4 |
|
| 070 |
230-0182 |
Bolt M10 x 20 zinc |
1 |
|
| 071 |
230-0183 |
Bolt M10 x 25 zinc |
4 |
|
| N/S |
230-0162 |
Left and right hand side decal |
1 |
|
| N/S |
230-0161 |
Front badge decal |
1 |
|
| N/S |
230-0266 |
Champaign pads (pkg of 15) |
|
|
| N/S |
230-0163 |
Cimex from Truvox decal |
1 |
|
|
|

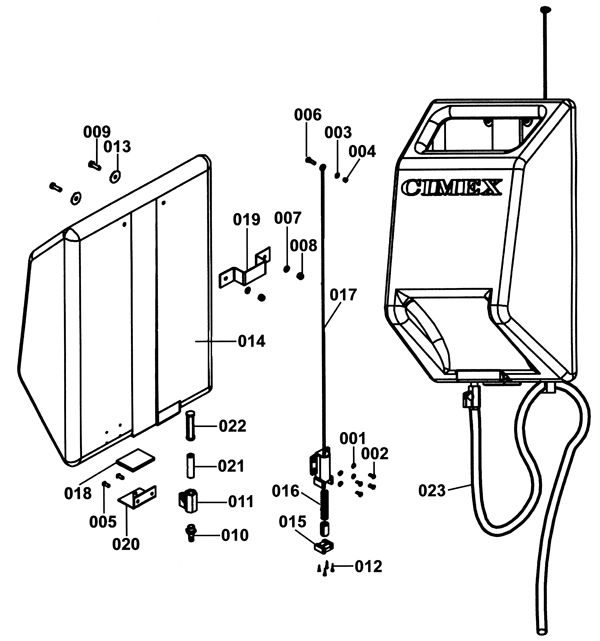

Solution Tank Assembly - 230-1002 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 001 |
230-0097 |
Washer M4 form stainless steel |
4 |
|
| 002 |
230-0098 |
Screw M4 x 8mm pozi pan head stainless steel |
4 |
|
| 003 |
230-0099 |
Washer M5 form stainless steel |
1 |
|
| 004 |
230-0100 |
Nut M5 nylok |
1 |
|
| 005 |
230-0102 |
Screw M5 x 12mm countersunk |
2 |
|
| 006 |
230-0103 |
Screw M5 x 16mm pozi pan head stainless steel |
1 |
|
| 007 |
230-0104 |
Washer M6 stainless steel |
2 |
|
| 008 |
230-0105 |
Nut M6 nylok stainless steel |
2 |
|
| 009 |
230-0106 |
Bolt M6 x 20mm hex head SS (old style tank) (OBSOLETE) |
2 |
|
| 010 |
230-0107 |
Water outlet |
1 |
|
| 011 |
230-0108 |
Ball valve |
1 |
|
| 012 |
230-0109 |
Screw self tapper |
4 |
|
| 014 |
230-0111 |
Cyclone supply tank |
1 |
|
| 015 |
230-0112 |
Water valve |
1 |
|
| 017 |
230-0114 |
Solution tank rod |
1 |
|
| 018 |
230-0115 |
Foam handle pad |
1 |
|
| 019 |
230-0116 |
Top tank bracket |
1 |
|
| 020 |
230-0117 |
Lower solution tank bracket |
1 |
|
| 021 |
230-0118 |
Valve insert |
1 |
|
| 022 |
230-0119 |
Nylon filter |
1 |
|
| 023 |
230-5005 |
Silicone tube 7.5mm (42 inch) |
63 in |
|
|
|

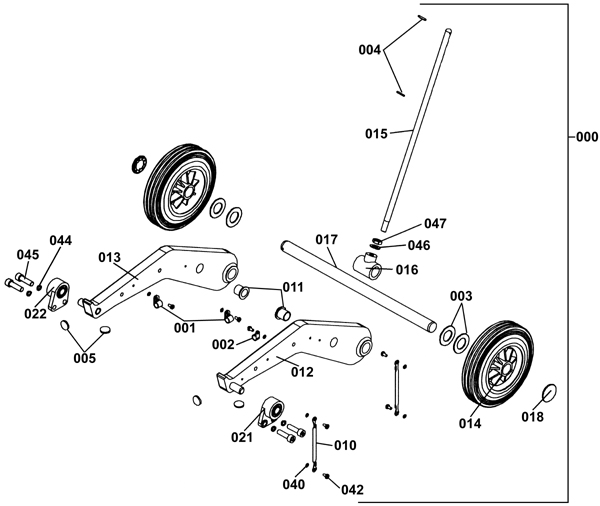

Heavy Duty Chassis Assembly - 230-1003 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 000 |
230-0096 |
Heavy duty chassis assembly |
1 |
|
| 004 |
230-0045 |
Sellock pin |
2 |
|
| 005 |
230-0046 |
Rubber buffer |
4 |
|
| 010 |
230-0047 |
Earth lead |
2 |
|
| 011 |
230-0048 |
Fork handle bushing |
2 |
|
| 012 |
230-0049 |
Left hand solid lifing fork |
1 |
|
| 013 |
230-0050 |
Right hand solid lifting fork |
1 |
|
| 015 |
230-0052 |
Swivel clamp rod |
1 |
|
| 016 |
230-0053 |
Handle tee |
1 |
|
| 018 |
230-0055 |
Starlock hub cap |
2 |
|
| 021 |
230-0057 |
Left hand pivot block |
1 |
|
| 022 |
230-0058 |
Right hand pivot block |
1 |
|
| 040 |
230-0059 |
Washer M5 internal star lock |
7 |
|
| 042 |
230-0091 |
Screw M5 x 10mm pozi pan head stainless steel |
7 |
|
| 044 |
230-0092 |
Washer M10 spring |
4 |
|
| 045 |
230-0093 |
Screw M10 x 30mm cap head stainless steel |
4 |
|
| 046 |
230-0094 |
Washer M12 form stainless steel |
1 |
|
| 047 |
230-0095 |
Nut M12 lock stainless steel |
1 |
|
| N/S |
230-0056 |
Conduit |
42 in |
|
|
|

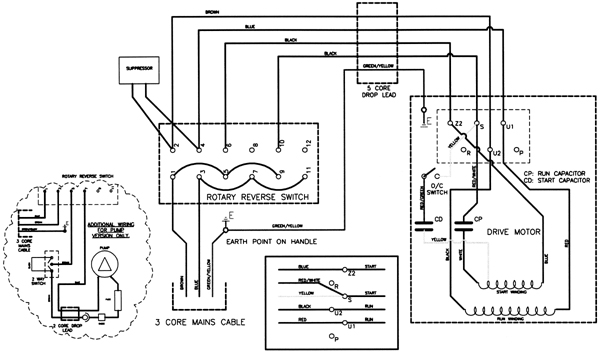

Wiring Diagram - |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
|
|
- Commonly Asked For Parts - 230-9993 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 01 |
230-0037 |
Solution tank valve |
|
|
| 02 |
230-0038 |
Water valve operating rod |
|
|
| 05 |
996-1452 |
Lite grit scrubbing brush - 500 grit |
|
|
| 06 |
996-1450 |
Medium grit scrubbing brush - 180 grit (set of 3) |
|
|
| 07 |
996-1683 |
Polypropelene scrubbing brush (set of 3) |
|
|
| 08 |
230-0264 |
Soft brush (pkg of 3) |
|
|
| 09 |
996-1448 |
Extra heavy grit stripping brush - 46 grit |
|
|
| 10 |
996-1676 |
Heavy grit stripping brush - 80 grit |
|
|
| 11 |
230-0263 |
Velcro pad driver (pkg of 3) |
|
|
| 12 |
996-1685 |
Pad driver (set of 3) |
|
|
| 13 |
996-1892 |
Anti-static scrub brush |
|
|
|
|
- Pads - 255-0800 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 01 |
255-0838 |
8 inch EHD Extra Heavy Duty Concrete Leveling Pad (pkg of 2) |
|
|
| 02 |
255-0847 |
8 inch Redwood maroon floor prep pad (pkg of 10) |
|
|
| 04 |
255-9514 |
8 inch Diamond by Gorilla 11000 Grit (pkg of 2) |
|
|
| 05 |
255-9511 |
8 inch Diamond by Gorilla 1500 Grit (pkg of 2) |
|
|
| 06 |
255-9508 |
8 inch Diamond by Gorilla 200 Grit (pkg of 2) |
|
|
| 07 |
255-9512 |
8 inch Diamond by Gorilla 3000 Grit (pkg of 2) |
|
|
| 08 |
255-9509 |
8 inch Diamond by Gorilla 400 Grit (pkg of 2) |
|
|
| 09 |
255-9510 |
8 inch Diamond by Gorilla 800 Grit (pkg of 2) |
|
|
| 10 |
255-9513 |
8 inch Diamond by Gorilla 8000 Grit (pkg of 2) |
|
|
| 11 |
255-0824 |
8 inch Tiger carpet bonnet (pkg of 2) |
|
|
|
|
- Pad Holders - 275-9029 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
991-2214 |
Center-Lok II pad holder - left hand thread (red) |
|
|
| 2a |
991-2201 |
Center-Lok II pad holder - right hand thread (black) |
|
(Pad driver side female, Floor side male) |
| 2b |
991-8577 |
Pad retainer |
|
(Pad driver side male, Floor side female) |
| 3a |
991-2202 |
Big mouth pad holder set (blue) |
|
(includes 3 screws) |
| 3b |
991-2205 |
Deep lock ring and pad grip ring |
|
|
| 4 |
991-2203 |
Big mouth pad holder male thread portion |
|
|
| 5 |
991-2206 |
Center-Lok 3 pad holder |
|
(includes 3 screws) |
| 6 |
996-0372 |
Big mouth pad holder (left hand thread) |
|
|
| 8 |
991-2209 |
Split retainer - pad holder ring (OBSOLETE) |
|
|
| 9 |
N/A |
Not available |
|
(replaced by #3 991-2202) |
| 10 |
991-2211 |
Center lock pad holding cup (male) (yellow) (OBSOLETE) |
|
|
|
|
