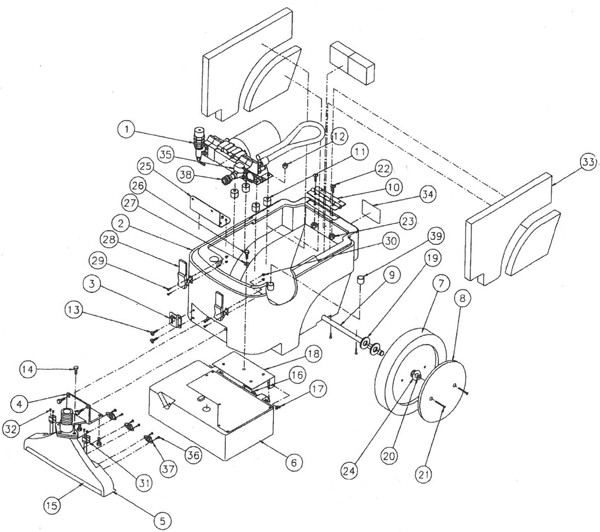

Base Assembly - 216-1234 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
216-0041 |
Pump and motor assembly |
1 |
|
| 2 |
N/A |
Not available |
1 |
(Base) |
| 3 |
N/A |
Not available |
1 |
(Locking bracket) |
| 4 |
N/A |
Not available |
1 |
(Bracket) |
| 5 |
N/A |
Not available |
1 |
(Tool head) |
| 6 |
N/A |
Not available |
1 |
(Agitator assembly) |
| 7 |
N/A |
Not available |
1 |
(12 inch wheel) |
| 8 |
N/A |
Not available |
1 |
(Hub cap) |
| 9 |
N/A |
Not available |
1 |
(Axle) |
| 10 |
N/A |
Not available |
1 |
(Hinge) |
| 11 |
N/A |
Not available |
4 |
(Motor mount) |
| 12 |
216-0110 |
Nut 1/4-20 zinc |
4 |
|
| 13 |
999-0456 |
Screw 1/4-20 x 3/4 pan head phillips stainless steel |
2 |
|
| 14 |
216-0315 |
Bolt 5/16-18 x 1 |
7 |
|
| 15 |
N/A |
Not available |
1 |
(Tool head shoe) |
| 16 |
N/A |
Not available |
1 |
(Screw) |
| 17 |
N/A |
Not available |
1 |
(Wing nut) |
| 18 |
N/A |
Not available |
1 |
(Nut) |
| 19 |
N/A |
Not available |
4 |
(Washer) |
| 20 |
N/A |
Not available |
1 |
(E-ring) |
| 21 |
216-0124 |
Screw #10 x 1 pan head phillips |
4 |
|
| 22 |
N/A |
Not available |
2 |
(Screw) |
| 23 |
N/A |
Not available |
2 |
(Screw) |
| 25 |
N/A |
Not available |
1 |
(Nut plate) |
| 27 |
N/A |
Not available |
1 |
(Washer) |
| 28 |
N/A |
Not available |
2 |
(Latch) |
| 29 |
216-0110 |
Nut 1/4-20 zinc |
4 |
|
| 30 |
N/A |
Not available |
4 |
(Nut) |
| 31 |
N/A |
Not available |
2 |
(Spring clip) |
| 33 |
N/A |
Not available |
6 |
(Foam) |
| 34 |
N/A |
Not available |
1 |
(Label) |
| 35 |
216-0035 |
Solution valve |
1 |
|
| 36 |
N/A |
Not available |
1 |
(Screw) |
| 37 |
N/A |
Not available |
1 |
(Air valve) |
| 38 |
216-0019 |
Quick disconnect valve |
1 |
|
| 39 |
N/A |
Not available |
1 |
(Sleeve grip) |
|
|

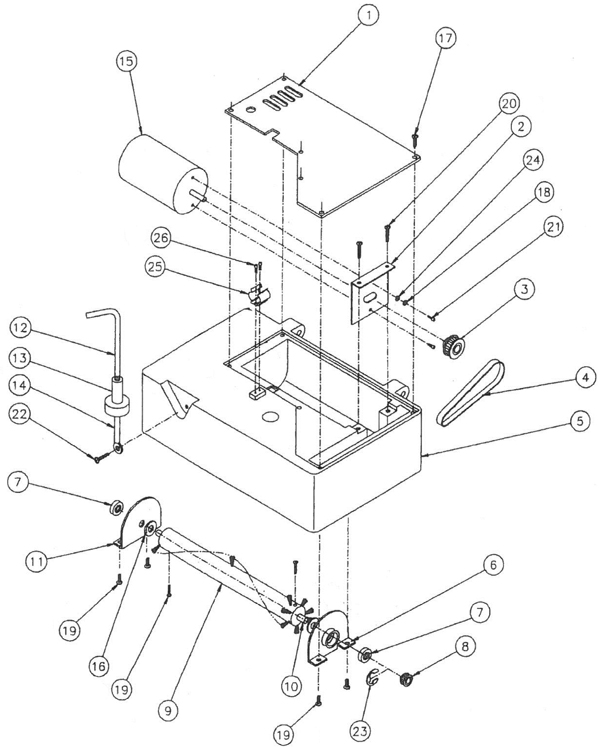

Agitator Assembly - 216-1235 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
N/A |
Not available |
1 |
(Agitator cover) |
| 2 |
N/A |
Not available |
1 |
(Bracket) |
| 3 |
N/A |
Not available |
1 |
(Pulley) |
| 5 |
N/A |
Not available |
1 |
(Agitator housing) |
| 6 |
N/A |
Not available |
1 |
(Bearing bracket) |
| 7 |
216-0220 |
Brush bearing |
1 |
|
| 8 |
216-0221 |
Brush pulley |
1 |
|
| 9 |
216-0043 |
Brush (OBSOLETE) |
1 |
|
| 10 |
N/A |
Not available |
1 |
(Agitator brush shaft) |
| 11 |
N/A |
Not available |
1 |
(Bearing bracket) |
| 12 |
N/A |
Not available |
1 |
(Agitator hook) |
| 13 |
N/A |
Not available |
1 |
(Knob) |
| 14 |
N/A |
Not available |
1 |
(Agitator lowering lift) |
| 15 |
N/A |
Not available |
1 |
(Motor) |
| 16 |
N/A |
Not available |
2 |
(Washer) |
| 17 |
216-0088 |
Screw #6 x 3/4mm pan head stainless steel |
2 |
|
| 18 |
N/A |
Not available |
1 |
(Washer) |
| 19 |
N/A |
Not available |
2 |
(Scrwe) |
| 20 |
999-0522 |
Screw 1/4-20 x 1/2 pan head phillips stainless steel |
2 |
|
| 21 |
N/A |
Not available |
2 |
(Screw) |
| 22 |
N/A |
Not available |
1 |
(screw) |
| 23 |
N/A |
Not available |
1 |
(E-clip) |
| 24 |
999-0998 |
Washer #10 flat stainless steel |
1 |
|
| 25 |
N/A |
Not available |
1 |
(Spring clip) |
|
|

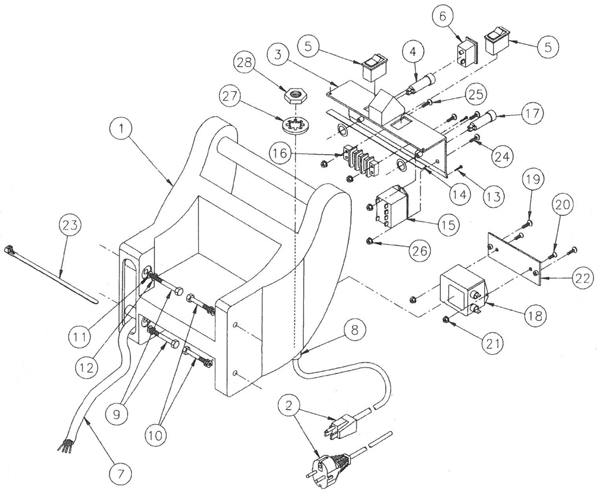

Handle Assembly - 216-1236 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
N/A |
Not available |
1 |
(Handle) |
| 2 |
216-0047 |
Power cord 50 ft 14/3 |
1 |
|
| 3 |
N/A |
Not available |
1 |
(Control panel) |
| 4 |
N/A |
Not available |
1 |
(Circuit breaker) |
| 5 |
216-0034 |
Rocker switch 115V |
1 |
|
| 6 |
216-0048 |
Master switch |
1 |
|
| 7 |
N/A |
Not available |
1 |
(Wiring harness) |
| 8 |
N/A |
Not available |
1 |
(Strain relief) |
| 10 |
N/A |
Not available |
1 |
(Screw) |
| 11 |
N/A |
Not available |
4 |
(Washer) |
| 12 |
N/A |
Not available |
4 |
(Washer) |
| 13 |
216-0088 |
Screw #6 x 3/4mm pan head stainless steel |
6 |
|
| 14 |
N/A |
Not available |
1 |
(Gasket) |
| 15 |
216-0017 |
Heavy duty relay |
1 |
|
| 16 |
N/A |
Not available |
1 |
(Terminal board) |
| 17 |
N/A |
Not available |
1 |
(Circuit breaker) |
| 18 |
N/A |
Not available |
1 |
(Filter) |
| 20 |
N/A |
Not available |
2 |
(Screw) |
| 21 |
216-0165 |
Nut 10-32 kep zinc |
2 |
|
| 22 |
N/A |
Not available |
1 |
(Plate) |
| 23 |
N/A |
Not available |
1 |
(Cable tie) |
| 24 |
999-0916 |
Screw 8-32 x 1/2 pan head phillips stainless steel |
2 |
|
| 25 |
N/A |
Not available |
2 |
(Screw) |
| 26 |
N/A |
Not available |
4 |
(Nut) |
| 27 |
N/A |
Not available |
1 |
(Washer) |
| 28 |
N/A |
Not available |
1 |
(Nut) |
|
|

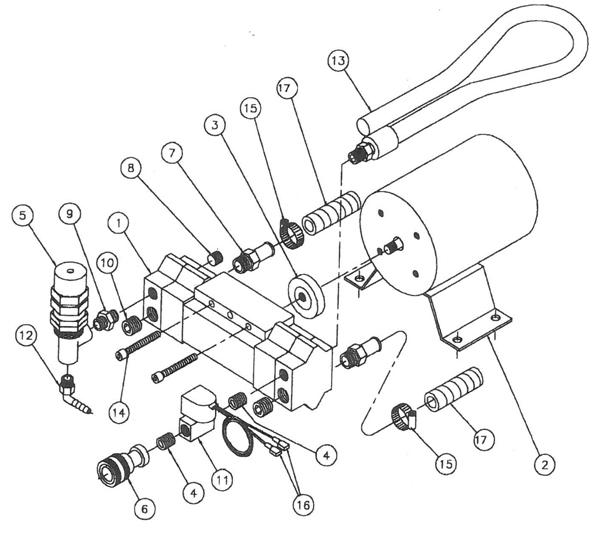

Pump Assembly - 216-1237 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 2 |
N/A |
Not available |
1 |
(Motor) |
| 3 |
N/A |
Not available |
1 |
(Bearing) |
| 4 |
N/A |
Not available |
1 |
(Bearing) |
| 5 |
N/A |
Not available |
1 |
(Pressure regulator) |
| 6 |
216-0019 |
Quick disconnect valve |
1 |
|
| 7 |
N/A |
Not available |
2 |
(Beaded barb) |
| 8 |
N/A |
Not available |
2 |
(Plug) |
| 9 |
N/A |
Not available |
1 |
(Nipple) |
| 10 |
N/A |
Not available |
2 |
(Plug) |
| 11 |
216-0035 |
Solution valve |
1 |
|
| 12 |
N/A |
Not available |
1 |
(Elbow barb) |
| 13 |
N/A |
Not available |
1 |
(Pulse dampner) |
| 14 |
N/A |
Not available |
4 |
(Screw) |
| 16 |
N/A |
Not available |
1 |
(Terminal) |
| 17a |
216-0071 |
1/2 inch wire reinforced hose (sold by the inch) |
28 inch |
|
| 17b |
216-0071 |
1/2 inch wire reinforced hose (sold by the inch) |
30 inch |
|
|
|

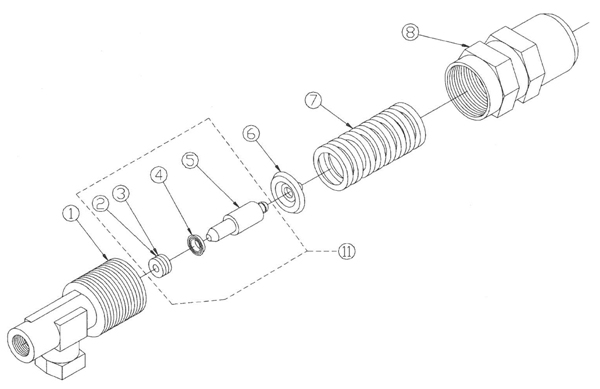

Pressure Regulator Assembly - 216-1238 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
N/A |
Not available |
1 |
(Regulator body) |
| 2 |
N/A |
Not available |
1 |
(Only available in kit) (O-ring) |
| 3 |
N/A |
Not available |
1 |
(Only available in kit) (Seat) |
| 4 |
N/A |
Not available |
1 |
(Only available in kit) (Quad ring) |
| 5 |
N/A |
Not available |
1 |
(Only available in kit) (Piston) |
| 6 |
N/A |
Not available |
1 |
(Thrust plate) |
| 7 |
N/A |
Not available |
1 |
(Spring) |
| 8 |
N/A |
Not available |
1 |
(Handle) |
| 11 |
N/A |
Not available |
1 |
(Includes 2-5) (Pressure regulator rebuild kit) |
|
|

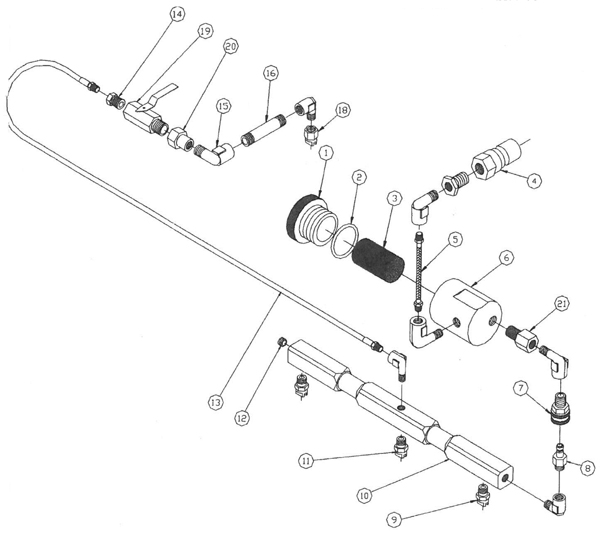

Spray Header Assembly - 216-1239 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
N/A |
Not available |
1 |
(Plug) |
| 2 |
N/A |
Not available |
1 |
(O-ring) |
| 3 |
N/A |
Not available |
1 |
(Filter) |
| 4 |
N/A |
Not available |
1 |
(Quick disconnect nipple) |
| 5 |
N/A |
Not available |
1 |
(Hose assembly) |
| 6 |
N/A |
Not available |
1 |
(Housing) |
| 7 |
216-0204 |
Quick disconnect coupler |
1 |
|
| 8 |
216-0054 |
1/8 inch male quick disconnect nipple |
1 |
|
| 9 |
216-0044 |
Spray nozzle |
2 |
|
| 10 |
N/A |
Not available |
1 |
(Header) |
| 11 |
216-0045 |
Spray nozzle |
1 |
|
| 12 |
N/A |
Not available |
1 |
(Plug) |
| 13 |
216-0038 |
Solution hose |
1 |
|
| 14 |
N/A |
Not available |
1 |
(Bushing) |
| 15 |
N/A |
Not available |
7 |
(Street elbow) |
| 16 |
N/A |
Not available |
1 |
(Nipple) |
| 18 |
N/A |
Not available |
1 |
(Nozzle) |
| 19 |
216-0036 |
Manual valve |
1 |
|
| 20 |
N/A |
Not available |
1 |
(Reducer coupling) |
| 21 |
N/A |
Not available |
1 |
(Adapter) |
|
|

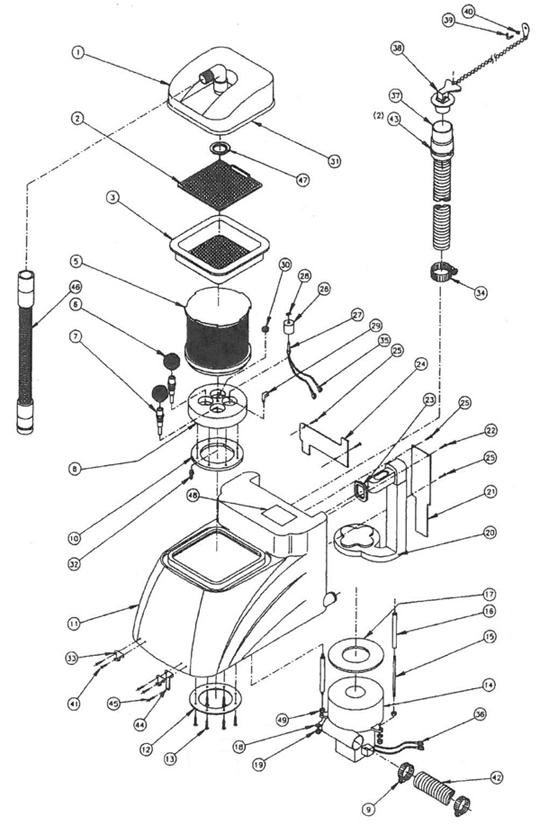

Tank Assembly - 216-1240 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
216-0039 |
Recovery tank lid (OBSOLETE) |
1 |
|
| 2 |
216-0046 |
Filter (screen) |
1 |
|
| 3 |
N/A |
Not available |
1 |
(Inlet filter) |
| 5 |
N/A |
Not available |
1 |
(Filter cage) |
| 7 |
N/A |
Not available |
1 |
(Fitting) |
| 8 |
216-0255 |
Filter mound assembly |
1 |
|
| 9 |
N/A |
Not available |
2 |
(Clamp) |
| 10 |
216-0138 |
Filter mount gasket |
1 |
|
| 11 |
N/A |
Not available |
1 |
(Tank) |
| 12 |
216-0125 |
Ring washer |
1 |
|
| 13 |
216-0124 |
Screw #10 x 1 pan head phillips |
8 |
|
| 14 |
216-0009 |
Vac motor 120V |
1 |
|
| 15 |
216-0091 |
Rod 3/16 x 5 1/2 stainless steel |
3 |
|
| 16 |
N/A |
Not available |
3 |
(Spacer) |
| 17 |
N/A |
Not available |
1 |
(Vacuum gasket) |
| 18 |
999-0998 |
Washer #10 flat stainless steel |
3 |
|
| 19 |
999-0442 |
Nut 10-24 nylon insert lock stainless steel |
3 |
|
| 20 |
N/A |
Not available |
1 |
(Vacuum standpipe) |
| 21 |
N/A |
Not available |
1 |
(Plate) |
| 23 |
N/A |
Not available |
1 |
(Gasket) |
| 24 |
N/A |
Not available |
1 |
(Plate) |
| 25 |
216-0114 |
Screw #8 x 5/8mm pan head |
1 |
|
| 26 |
216-0141 |
Float switch |
1 |
|
| 27 |
N/A |
Not available |
1 |
(Only availble with 26) (Wire) |
| 29 |
N/A |
Not available |
1 |
(Elbow) |
| 31 |
216-0040 |
Recovery tank lid gasket (OBSOLETE) |
1 |
|
| 32 |
N/A |
Not available |
1 |
(Hose barb) |
| 33 |
N/A |
Not available |
2 |
(Keeper) |
| 35 |
N/A |
Not available |
1 |
(Terminal) |
| 36 |
N/A |
Not available |
1 |
(Terminal) |
| 38 |
190-0215 |
Drain hose plug |
1 |
|
| 39 |
N/A |
Not available |
1 |
(Hook) |
| 40 |
N/A |
Not available |
1 |
(Nut) |
| 41 |
999-0916 |
Screw 8-32 x 1/2 pan head phillips stainless steel |
4 |
|
| 43 |
N/A |
Not available |
2 |
(Clamp) |
| 44 |
N/A |
Not available |
1 |
(Retainer) |
| 45 |
216-0114 |
Screw #8 x 5/8mm pan head |
1 |
|
| 46 |
N/A |
Not available |
1 |
(Hose) |
| 47 |
N/A |
Not available |
1 |
(Nut) |
| 48 |
N/A |
Not available |
1 |
(Label) |
| 49 |
N/A |
Not available |
3 |
(Nut) |
|
|
- Extractor Fit All Parts - 999-9400 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 001a |
991-8000 |
12 inch stainless head wand, 1 jet 120 PSI plastic valve |
|
(wands) |
| 001b |
991-8001 |
12 inch aluminum head wand, 2 jet, 120 PSI (OBSOLETE) |
|
(wands) |
| 001c |
991-8002 |
12 inch aluminum head wand, 3 jet, 120 PSI plastic valve |
|
(wands) |
| 001d |
991-8227 |
500psi brass valve |
|
(wands) |
| 002a |
991-8222 |
30 inch stair wand (open spray) |
|
(stair wand) |
| 002b |
991-8223 |
30 inch swivel head ergonomic stair wand (open spray) |
|
(stair wand) |
| 004 |
991-8129 |
Handle 1-1/2 inch low profile comfort grip assist |
|
(wands) |
| 005a |
991-8128 |
120 PSI, acetel plastic valve, low heat 140 degrees |
|
(wands) |
| 005b |
991-8127 |
120 PSI, brass valve, stainless steel stem |
|
(wands) |
| 005d |
991-8171 |
400psi cast aluminum valve |
|
|
| 007 |
991-8130 |
3-1/2 inch wide 120 PSI standard detailer, external spray |
|
(wands) |
| 008 |
991-8132 |
10ft hide-a-hose vac/sol hose assembly w/1/4 male fittings |
|
(hose assemblies and parts) |
| 009 |
991-8133 |
20ft hide-a-hose vac/sol hose assembly w/1/4 male fittings |
|
(hose assemblies and parts) |
| 010 |
991-8136 |
10ft hide-a-hose vac/sol hose assembly w 1/4 male & 1/4 feml |
|
(hose assemblies and parts) |
| 011 |
991-8137 |
20ft hide-a-hose vac/sol hose assembly w/1/4 male & 1/4 feml |
|
(hose assemblies and parts) |
| 012 |
991-8134 |
10ft hide-a-hose vac/sol hose w/1/4 female fittings 300psi |
|
(hose assemblies and parts) |
| 013 |
991-8135 |
20ft hide-a-hose vac/sol hose assembly w/1/4 female fittings |
|
(hose assemblies and parts) |
| 014 |
991-8138 |
10ft 100psi vac/sol hose assembly w/ 1/4 male fittings |
|
(hose assemblies and parts) |
| 015 |
991-8139 |
20ft 100psi vac/sol hose assembly with male fittings |
|
(hose assemblies and parts) (Maximum heat rating of 70 degrees and 100 PSI) |
| 016 |
991-8142 |
10ft 100psi vac/sol hose assembly w/1/4 female & 1/4 male |
|
(hose assemblies and parts) |
| 017 |
991-8143 |
20ft 100psi vac/sol hose assembly w/1/4 female & 1/4 male |
|
(hose assemblies and parts) |
| 018 |
991-8140 |
10ft 100psi vac/sol hose assembly w/ 1/4 female fittings |
|
(hose assemblies and parts) |
| 021 |
991-8004 |
1 1/2 inch vacuum hose (sold by the foot) |
|
(hose assemblies and parts) |
| 022 |
991-8005 |
1 1/2 inch replacement hose cuff (black) |
|
(hose assemblies and parts) |
| 023 |
991-8131 |
1 1/2 inch hide-a-hose cuff (no swivel) |
|
(hose assemblies and parts) |
| 026 |
991-8045 |
1/8 inch brass vee jet 8001 |
|
(1/8 brass vee jet) |
| 027 |
991-8046 |
1/8 inch brass vee jet 8001.5 |
|
(1/8 brass vee jet) |
| 028 |
991-8047 |
1/8 inch brass vee jet 8002 |
|
(1/8 brass vee jet) |
| 029 |
991-8048 |
1/8 inch brass vee jet 8003 |
|
(1/8 brass vee jet) |
| 030 |
991-8049 |
1/8 inch brass vee jet 8004 |
|
(1/8 brass vee jet) |
| 031 |
991-8050 |
1/8 inch brass vee jet 8005 (OBSOLETE) |
|
(1/8 brass vee jet) |
| 032 |
991-8051 |
1/8 inch brass vee jet 8006 |
|
(1/8 brass vee jet) |
| 033 |
991-8052 |
1/8 inch brass vee jet 8008 |
|
(1/8 brass vee jet) |
| 034 |
991-8053 |
1/8 inch brass vee jet 8010 |
|
(1/8 brass vee jet) |
| 035 |
991-8054 |
1/8 inch brass vee jet 9502 |
|
(1/8 brass vee jet) |
| 036 |
991-8055 |
1/8 inch brass vee jet 9503 |
|
(1/8 brass vee jet) |
| 037 |
991-8056 |
1/8 inch brass vee jet 9504 |
|
(1/8 brass vee jet) |
| 038 |
991-8057 |
1/8 inch brass vee jet 9505 |
|
(1/8 brass vee jet) |
| 039 |
991-8058 |
1/8 inch brass vee jet 9506 |
|
(1/8 brass vee jet) |
| 040 |
991-8059 |
1/8 inch brass vee jet 9508 |
|
(1/8 brass vee jet) |
| 041 |
991-8060 |
1/8 inch brass vee jet 11001 |
|
(1/8 brass vee jet) |
| 042 |
991-8061 |
1/8 inch brass vee jet 11001.5 |
|
(1/8 brass vee jet) |
| 043 |
991-8062 |
1/8 inch brass vee jet 11002 |
|
(1/8 brass vee jet) |
| 044 |
991-8063 |
1/8 inch brass vee jet 11003 |
|
(1/8 brass vee jet) |
| 045 |
991-8064 |
1/8 inch brass vee jet 11004 |
|
(1/8 brass vee jet) |
| 046 |
991-8065 |
1/8 inch brass vee jet 11005 |
|
(1/8 brass vee jet) |
| 047 |
991-8066 |
1/8 inch brass vee jet 11006 |
|
(1/8 brass vee jet) |
| 048 |
991-8067 |
1/8 inch brass vee jet 11008 |
|
(1/8 brass vee jet) |
| 049 |
991-8068 |
1/8 inch brass vee jet 11010 |
|
(1/8 brass vee jet) |
| 050 |
991-8021 |
1/4 inch brass vee jet 8001 |
|
(1/4 brass vee jet) |
| 051 |
991-8022 |
1/4 inch brass vee jet 8001.5 |
|
(1/4 brass vee jet) |
| 052 |
991-8023 |
1/4 inch brass vee jet 8002 |
|
(1/4 brass vee jet) |
| 053 |
991-3005 |
1/4 inch brass vee jet 8003 |
|
(1/4 brass vee jet) |
| 054 |
991-8025 |
1/4 inch brass vee jet 8004 |
|
(1/4 brass vee jet) |
| 055 |
991-8026 |
1/4 inch brass vee jet 8005 |
|
(1/4 brass vee jet) |
| 056 |
991-8027 |
1/4 inch brass vee jet 8006 |
|
(1/4 brass vee jet) |
| 057 |
991-8028 |
1/4 inch brass vee jet 8008 |
|
(1/4 brass vee jet) |
| 058 |
991-8029 |
1/4 inch brass vee jet 8010 |
|
(1/4 brass vee jet) |
| 059 |
991-8030 |
1/4 inch brass vee jet 9502 |
|
(1/4 brass vee jet) |
| 060 |
991-8031 |
1/4 inch brass vee jet 9503 |
|
(1/4 brass vee jet) |
| 061 |
991-8032 |
1/4 inch brass vee jet 9504 |
|
(1/4 brass vee jet) |
| 062 |
991-8033 |
1/4 inch brass vee jet 9505 |
|
(1/4 brass vee jet) |
| 063 |
991-8034 |
1/4 inch brass vee jet 9506 |
|
(1/4 brass vee jet) |
| 064 |
991-8035 |
1/4 inch brass vee jet 9508 |
|
(1/4 brass vee jet) |
| 065 |
991-8036 |
1/4 inch brass vee jet 11001 |
|
(1/4 brass vee jet) |
| 066 |
991-8037 |
1/4 inch brass vee jet 11001.5 |
|
(1/4 brass vee jet) |
| 067 |
991-8038 |
1/4 inch brass vee jet 11002 |
|
(1/4 brass vee jet) |
| 068 |
991-8039 |
1/4 inch brass vee jet 11003 |
|
(1/4 brass vee jet) |
| 069 |
991-8040 |
1/4 inch brass vee jet 11004 |
|
(1/4 brass vee jet) |
| 070 |
991-8041 |
1/4 inch brass vee jet 11005 (OBSOLETE) |
|
(1/4 brass vee jet) |
| 071 |
991-8042 |
1/4 inch brass vee jet 11006 |
|
(1/4 brass vee jet) |
| 072 |
991-3006 |
1/4 inch brass vee jet 11008 |
|
(1/4 brass vee jet) |
| 073 |
991-8044 |
1/4 inch brass vee jet 11010 |
|
(1/4 brass vee jet) |
| 074 |
991-8069 |
1/4 inch stainless vee jet 8001 |
|
(1/4 stainless vee jet) |
| 075 |
991-8070 |
1/4 inch stainless vee jet 8002 |
|
(1/4 stainless vee jet) |
| 076 |
991-8071 |
1/4 inch stainless vee jet 8003 |
|
(1/4 stainless vee jet) |
| 077 |
991-8072 |
1/4 inch stainless vee jet 8004 |
|
(1/4 stainless vee jet) |
| 078 |
991-8073 |
1/4 inch stainless vee jet 9501 |
|
(1/4 stainless vee jet) |
| 079 |
991-8074 |
1/4 inch stainless vee jet 9502 |
|
(1/4 stainless vee jet) |
| 080 |
991-8085 |
1/4 inch stainless/plastic tee jet 9502 |
|
(1/4 stainless vee jet) |
| 081 |
991-8076 |
1/4 inch stainless vee jet 9504 |
|
(1/4 stainless vee jet) |
| 082 |
991-8077 |
1/4 inch stainless vee jet 11003 |
|
(1/4 stainless vee jet) |
| 083 |
991-8078 |
1/4 inch stainless vee jet 11004 |
|
(1/4 stainless vee jet) |
| 084 |
991-8079 |
1/4 inch stainless vee jet 11006 |
|
(1/4 stainless vee jet) |
| 085 |
991-8080 |
1/4 inch stainless vee jet 11008 |
|
(1/4 stainless vee jet) |
| 086 |
991-8081 |
1/4 inch stainless/plastic tee jet 8002 |
|
(1/4 stainless/plastic tee jet) |
| 087 |
991-8082 |
1/4 inch stainless/plastic tee jet 8003 |
|
(1/4 stainless/plastic tee jet) |
| 088 |
991-8083 |
1/4 inch stainless/plastic tee jet 8004 |
|
(1/4 stainless/plastic tee jet) |
| 089 |
991-8084 |
1/4 inch stainless/plastic tee jet 9501 (OBSOLETE) |
|
(1/4 stainless/plastic tee jet) |
| 090 |
991-8085 |
1/4 inch stainless/plastic tee jet 9502 |
|
(1/4 stainless/plastic tee jet) |
| 091 |
991-8086 |
1/4 inch stainless/plastic tee jet 9504 |
|
(1/4 stainless/plastic tee jet) |
| 092 |
991-3010 |
1/4 inch stainless/plastic tee jet 11003 |
|
(1/4 stainless/plastic tee jet) |
| 093 |
991-8088 |
1/4 inch stainless/plastic tee jet 11004 |
|
(1/4 stainless/plastic tee jet) |
| 094 |
991-8089 |
1/4 inch stainless/plastic tee jet 11006 |
|
(1/4 stainless/plastic tee jet) |
| 095 |
991-8090 |
1/4 inch stainless/plastic tee jet 11008 |
|
(1/4 stainless/plastic tee jet) |
| 096 |
991-8091 |
1/4 inch x 1/8 hex nipple H21 |
|
|
| 097 |
991-8092 |
1/4 inch x 1/4 hex nipple H22 |
|
|
| 098 |
991-8093 |
1/4 inch x 3/8 hex nipple H23 |
|
|
| 099 |
991-8094 |
45 degree street elbow 1/4 inch H24 |
|
|
| 100 |
991-8095 |
45 degree street elbow 1/8 inch H25 |
|
|
| 101 |
991-8096 |
45 degree union elbow 1/4 inch H26 |
|
|
| 102 |
991-8098 |
90 degree street elbow short 1/4 inch H28 |
|
|
| 103 |
991-8098 |
90 degree street elbow short 1/4 inch H28 |
|
|
| 104 |
991-8099 |
90 degree street elbow 1/8 inch H29 |
|
|
| 105 |
991-8100 |
90 degree street elbow short 1/8 inch H30 |
|
|
| 106 |
991-8101 |
90 degree union elbow 1/4 inch H31 |
|
|
| 107 |
991-8102 |
90 degree union elbow 1/8 inch H32 |
|
|
| 108 |
991-8103 |
30 degree union elbow 1/4 inch H33 |
|
|
| 109 |
991-8104 |
1/4 inch coupling H34 |
|
|
| 110 |
991-8105 |
1/8 inch coupling H35 |
|
|
| 111 |
991-8106 |
1/4 inch adapter H36 |
|
|
| 112 |
991-8107 |
1/8 inch adapter H37 |
|
|
| 113 |
991-8108 |
1/4 inch branch tee H38 |
|
|
| 114 |
991-8109 |
1/8 inch branch tee H39 |
|
|
| 115 |
991-8110 |
1/8 inch tee H40 |
|
|
| 116 |
991-8111 |
7/16 inch stainless steel hose clamp H41 |
|
|
| 117 |
997-2002 |
Hose clamp #6 |
|
|
| 118 |
991-8113 |
Strainer for 1/8 inch vee jets H43 |
|
|
| 119 |
991-8114 |
Strainer for 1/4 inch vee jets H44 |
|
|
| 120 |
991-8115 |
Strainer/check valve for 1/4 inch vee jets H45 |
|
|
| 121 |
991-8116 |
Brass strainer/check valve for tee jets H46 |
|
|
| 122 |
991-8117 |
500 PSI ball valve 1/4 inch fpt x 1/4 inch fpt H47 |
|
|
| 123 |
991-8118 |
500 PSI ball valve 3/8 inch fpt x 3/8 inch fpt H48 |
|
|
| 124 |
991-8119 |
500 PSI ball valve 1/4 inch mpt x 3/8 inch fpt H49 |
|
|
| 125 |
991-8120 |
1/4 inch brass flood jets K1 or K2 H54 |
|
|
| 126 |
991-8158 |
1/4 inch BH2-60 female coupler (mate to QD40) |
|
|
| 127 |
991-8150 |
1/4 inch BH2-61 male nipple (mate to QD80) |
|
|
| 128 |
991-8144 |
B2C, 1/4 inch mpt, male nipple, mate to QD50 or QD55 |
|
|
| 129 |
991-8152 |
B12, 1/4 inch mpt, female coupler, mate to QD10 or QD15 |
|
|
| 130 |
991-8145 |
B3C, 1/4 inch fpt, male nipple, mate to QD50 or QD55 |
|
|
| 131 |
991-8153 |
B13, 1/4 inch fpt, female coupler, mate to QD10 or QD15 |
|
|
| 132 |
991-8146 |
BH2C, 1/4 inch, mpt male nipple, mate to QD60 or QD65 |
|
|
| 133 |
991-8154 |
B22, 1/4 inch mpt, female coupler, mate to QD20 or QD25 |
|
|
| 134 |
991-8147 |
BH3C, 1/4 inch fpt, male nipple, mate to QD60 or QD65 |
|
|
| 135 |
991-8155 |
B23, 1/4 inch fpt, female coupler, mate to QD20 or QD25 |
|
|
| 136 |
991-8148 |
Hansen 02 male nipple, mate to QD70 |
|
|
| 137 |
991-8156 |
Quick disconnect socket female to QD30 |
|
|
| 138 |
991-8149 |
1/8 inch male quick disconnect |
|
|
| 139 |
991-8157 |
1/8 inch female quick disconnect socket |
|
|
| 140 |
991-8151 |
BH3-61,3/8 inch FPT, Male Nipple, mate to QD85 |
|
|
| 141 |
991-8159 |
BH3-60, 3/8 inch fpt, female coupler, mate to QD45 |
|
|
| 142 |
991-8123 |
Bottom hex nut for Kingston or P valve H57 |
|
|
| 143 |
991-8121 |
1/8 inch brass flood jets K1 or K2 H55 |
|
|
| 144 |
991-8124 |
Inline filter H58 |
|
|
| 145 |
991-8122 |
1/8 inch special brass flood jets for V1245 H56 |
|
|
| 146 |
991-8008 |
120V 50 PSI Flo Jet pump |
|
(pumps) |
| 147 |
991-8009 |
120V 100 PSI Flo Jet pump |
|
(pumps) |
| 148 |
991-8218 |
120V 120 PSI pump |
|
(pumps) |
| 149 |
991-8220 |
1/8 fpt brass female connector |
|
|
| 150 |
991-1835 |
Crevice tool |
|
|
|
|
|
