Parts List Complete for CENTURY400 NINJA Warrior 200PSI

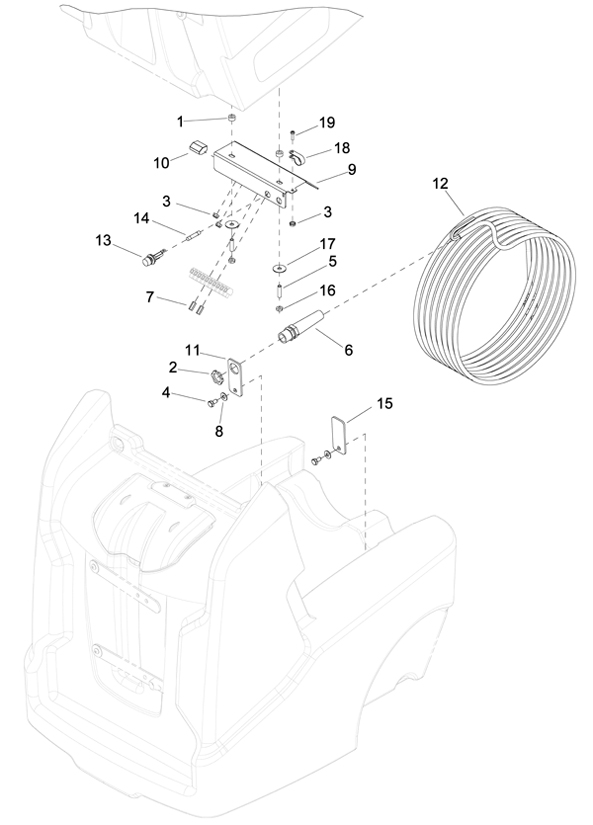

Electrical Assembly - 2 Stage Vacuum - 227-3256
RefNbr Part Number Description Req Notes
1 273-6879 Nylon spacer 2
2 173-2478 Nut 1/2 conduit nickel plated thread (OBSOLETE) 1
3 227-1249 Nut 3
4 999-0644 Bolt 1/4-20 x 1/2 hex head stainless steel 2
5 999-0096 Screw 1/4-20 x 1/4 cup point socket set plain finish 2
6 173-2081 Strain relief 1
7 173-1520 Nylon standoff 2
8 999-0123 Washer 1/4 SAE flat zinc plated 2
9 273-6880 Electrical bracket 1
10 273-6881 Connector 1
11 273-6882 Strain relief bracket 1
12 273-6883 14/3 cord assembly 25 foot (black) 1
13 273-6884 Fuse holder 1
14 273-4214 4amp fuse 1
15 273-6888 Cord bracket (OBSOLETE) 1
16 999-0294 Nut 1/4-20 hex nylon lock type NE stainless steel 2
17 999-0016 Washer 1/4 flat plain finish 2
18 173-1139 5/8 nylon clamp 1
19 999-0371 Screw 10-32 x 1/2 pan head phillips zinc plated 1

Wiring Diagram - 2 Stage Vacuum -

RefNbr Part Number Description Req Notes

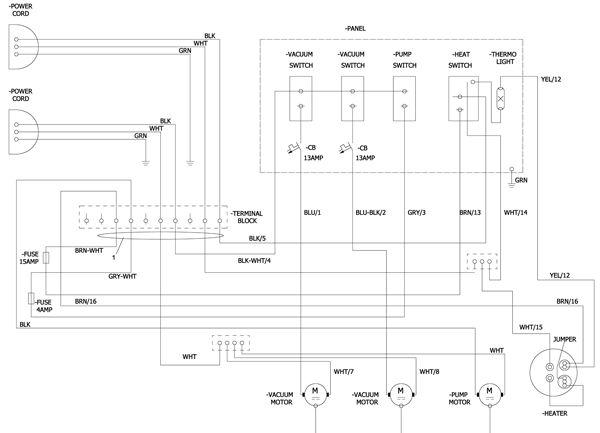

Wiring With Heat Diagram - 227-3268
RefNbr Part Number Description Req Notes
1 273-6949 Heated harness kit 1

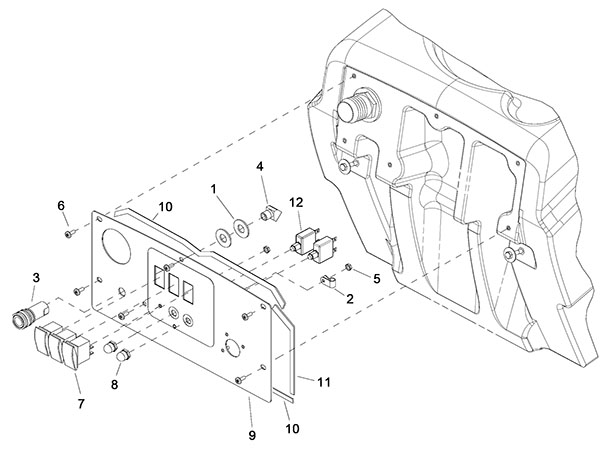

Control Panel Assembly - 227-9008
RefNbr Part Number Description Req Notes
1 999-1685 Washer 9/16 USS flat 2
2 173-2094 P clamp 1
3 991-8158 1/4 inch BH2-60 female coupler (mate to QD40) 1
4 227-1248 Elbow (OBSOLETE) 1
5 227-1249 Nut 2
6 999-1341 Screw 10-32 x 2 1/2 truss head phillips zinc 6
7 189-0319 2 position rocker switch 3
8 173-1522 3/8 inch circuit breaker boot 2
9 991-9159 Control panel 1
10 273-6873 Gasket 2
11 273-6874 Gasket 4
12 273-6875 13amp circuit breaker 2

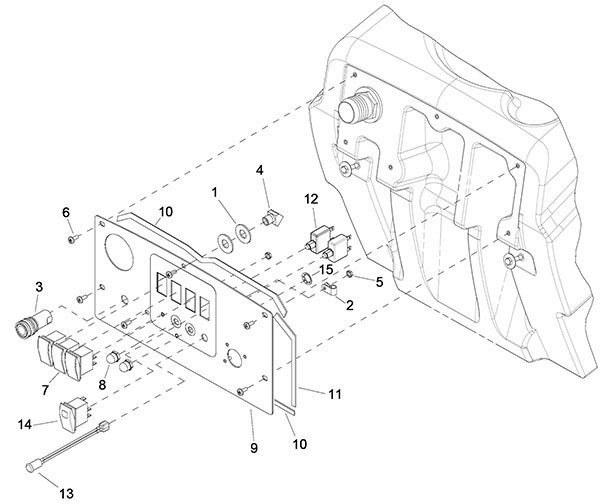

Control Panel with Heat Assembly - 227-9009
RefNbr Part Number Description Req Notes
1 999-1685 Washer 9/16 USS flat 2
2 173-2094 P clamp 1
3 991-8158 1/4 inch BH2-60 female coupler (mate to QD40) 1
4 227-1248 Elbow (OBSOLETE) 1
5 227-1249 Nut 2
6 999-1341 Screw 10-32 x 2 1/2 truss head phillips zinc 6
7 189-0319 2 position rocker switch 3
8 173-1522 3/8 inch circuit breaker boot 2
9 991-9160 Control panel with heat 1
10 273-6873 Gasket 2
11 273-6874 Gasket 4
12 273-6875 13amp circuit breaker 2
13 273-6876 120V heater light assembly 1
14 273-6877 2 position rocker switch 1
15 173-9156 Neon lamp clip 1

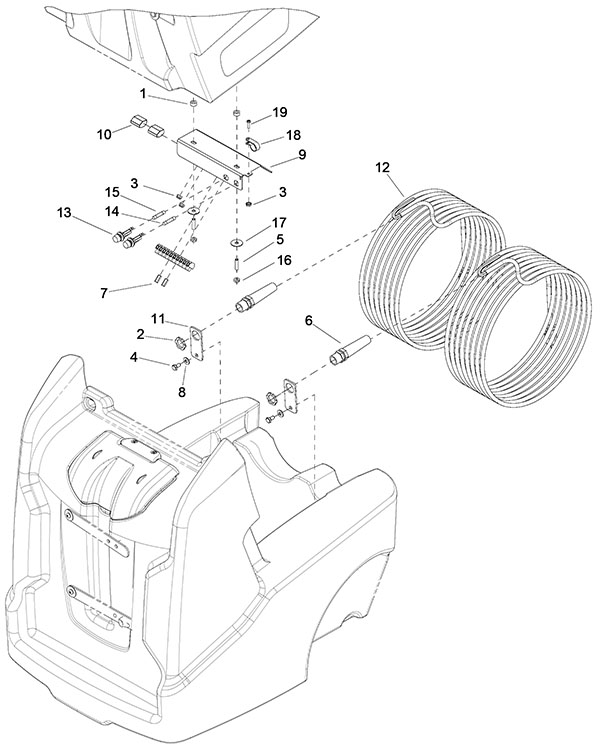

Electrical with Heat Assembly- 3 Stage Vacuum - 227-9010
RefNbr Part Number Description Req Notes
1 273-6879 Nylon spacer 2
2 173-2478 Nut 1/2 conduit nickel plated thread (OBSOLETE) 2
3 227-1249 Nut 3
4 999-0644 Bolt 1/4-20 x 1/2 hex head stainless steel 2
5 999-0096 Screw 1/4-20 x 1/4 cup point socket set plain finish 2
6 173-2081 Strain relief 2
7 173-1520 Nylon standoff 2
8 999-0123 Washer 1/4 SAE flat zinc plated 2
9 273-6880 Electrical bracket 1
10 273-6881 Connector 2
11 273-6882 Strain relief bracket 2
12 273-6883 14/3 cord assembly 25 foot (black) 2
13 273-6884 Fuse holder 2
14 273-6885 15amp fuse 1
15 273-4214 4amp fuse 1
16 999-0294 Nut 1/4-20 hex nylon lock type NE stainless steel 2
17 999-0016 Washer 1/4 flat plain finish 2
18 173-1139 5/8 nylon clamp 1
19 999-0371 Screw 10-32 x 1/2 pan head phillips zinc plated 1

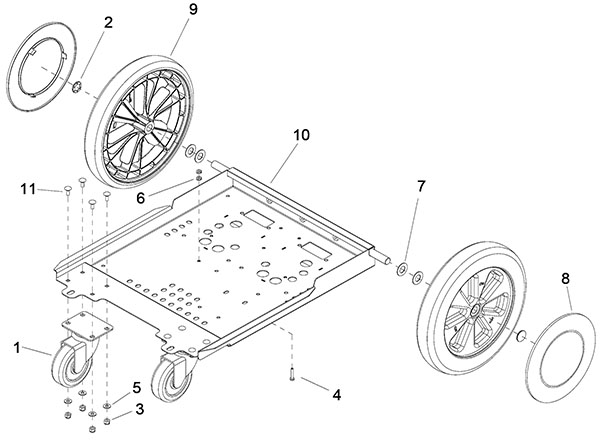

Frame Assembly - 227-9011
RefNbr Part Number Description Req Notes
1 227-1244 4 inch caster 2
2 173-2064 Axle cap 2
3 999-0294 Nut 1/4-20 hex nylon lock type NE stainless steel 8
4 173-7043 Screw 10-32 x 1 phillips pan head green 1
5 999-0123 Washer 1/4 SAE flat zinc plated 8
6 227-1249 Nut 2
7 999-9127 Washer 5/8 SAE flat stainless steel 4
8 273-3529 Hubcap (black) 2
9 273-6890 12 inch wheel 2
10 273-6891 Frame with built in axle 1
11 273-5894 Screw 1/4-20 x 5/8 carriage head stainless steel 8

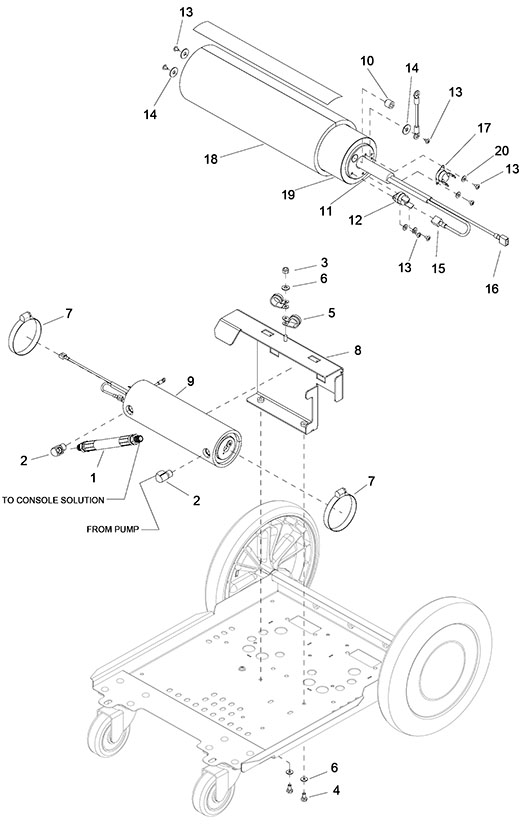

Heater Assembly - 227-9012
RefNbr Part Number Description Req Notes
1 273-6893 Pulse hose 1
2 173-2098 Street elbow 1/4 2
3 999-0294 Nut 1/4-20 hex nylon lock type NE stainless steel 1
4 999-0644 Bolt 1/4-20 x 1/2 hex head stainless steel 2
5 173-3112 P clamp 2
6 999-0123 Washer 1/4 SAE flat zinc plated 3
7 273-6894 Worm gear clamp 2
8 273-6895 Heater mounting bracket 1
9 273-6896 120V heater assembly 1
10 173-2090 1/8 plug (OBSOLETE) 1
11 273-6897 Cartridge heater 1
12 273-6520 Thermostat reset 1
13 999-1686 Screw 6-32 x 3/16 phillips head machine 7
14 999-0998 Washer #10 flat stainless steel 3
15 273-6898 Female coupler 1
16 173-4416 Male coupler 1
17 273-6899 Thermostat 1
18 273-6900 Heater insulation 1
19 273-6901 Heater cartridge case 1
20 273-6902 Washer #5 stainless steel 4

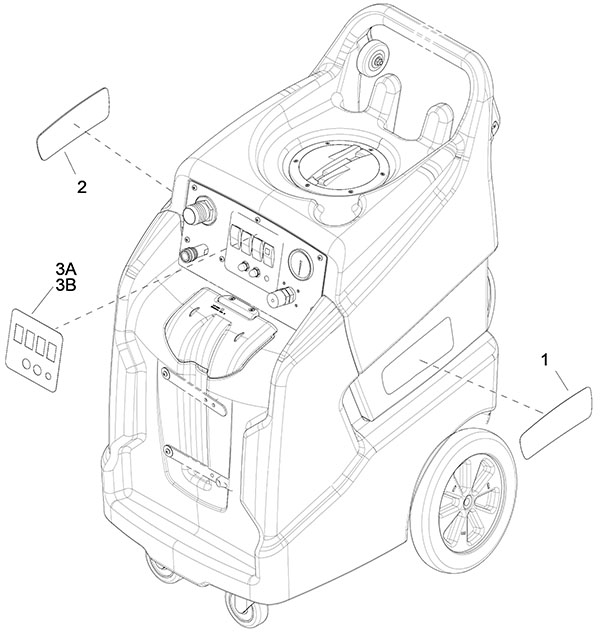

Decal Assembly - 227-9013
RefNbr Part Number Description Req Notes
1 273-3662 Left hand ninja decal 1
2 273-3663 Right hand ninja decal 1
3a 373-1345 Ninja warrior decal with heat 1
3b 273-3665 No heat decal 1

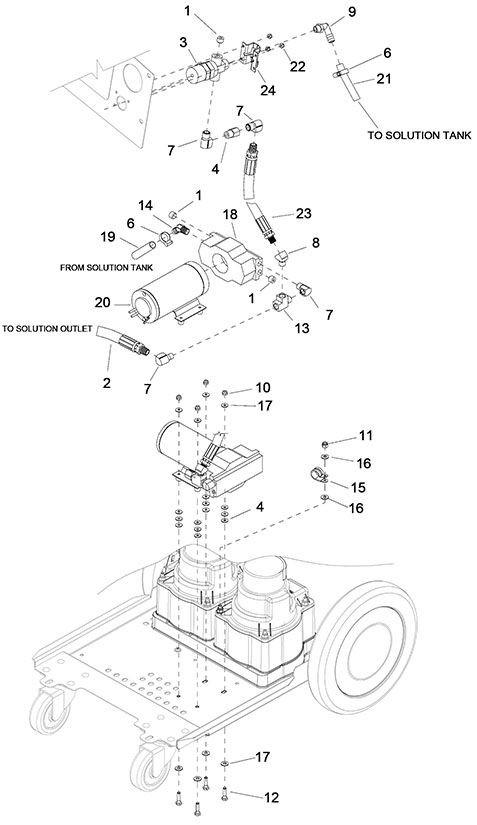

Pump Assembly - 227-9014
RefNbr Part Number Description Req Notes
1 273-3340 Plug 3
2 273-6893 Pulse hose 1
3 273-3338 200PSI pump 1
4 273-7215 Washer 1/4 rubber 12
5 173-0656 Adapter 1
6 173-1821 Hose clamp 2
7 173-2098 Street elbow 1/4 4
8 227-1248 Elbow (OBSOLETE) 1
9 173-8683 Hosebarb 1/4 X 3/8 1
10 999-0442 Nut 10-24 nylon insert lock stainless steel 4
11 999-1466 Nut 1/4-20 lock with external toothed lockwasher SS 1
12 173-2690 Screw 10-32 x 1 3/8 pan heas machine 4
13 227-1267 1/4 street tee 1
14 273-2008 Hosebarb 1
15 173-3112 P clamp 1
16 999-0123 Washer 1/4 SAE flat zinc plated 2
17 999-0998 Washer #10 flat stainless steel 8
18 273-3342 112V pump with cam 1
19 273-3336 42 inch hose 1
20 273-3343 120V motor 1
21 273-6908 Wire bound hose 3/8 x 26 inch 1
22 999-0151 Nut 8-32 nylon insert lock zinc plated 3
23 273-3339 47 inch hose 1
24 227-1249 Nut 1
N/S 273-3341 Bracket 1
N/S 273-3337 16 1/4 inch hose 1 (to heater)

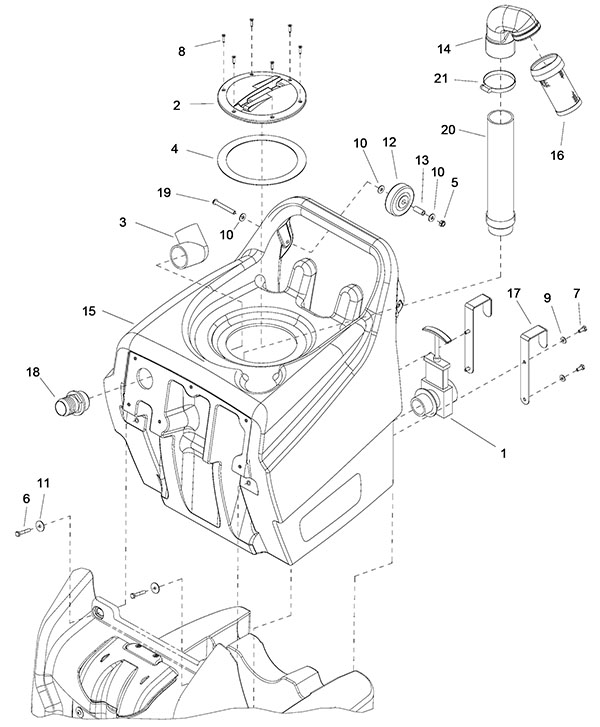

Recovery Assembly - 227-9016
RefNbr Part Number Description Req Notes
2 173-8584 Tank lid (OBSOLETE) 1
3 173-7181 Elbow 1-1/2 1
4 173-8585 Tank lid gasket 1
5 999-1458 Nut 5/16-18 acorn nickel plated 2
6 999-0506 Bolt 1/4-20 x 1 1/2 hex head stainless steel 2
7 999-1032 Screw 1/4-20 x 5/8 hex head stainless steel 4
8 999-1141 Screw 8 x 3/4 pan head phillips zinc plated 6
9 999-0123 Washer 1/4 SAE flat zinc plated 4
10 999-0549 Washer 5/16 x 3/4 SAE flat stainless steel 6
11 999-0016 Washer 1/4 flat plain finish 2
13 173-1634 Bushing 2
14 273-6915 Adapter 1
15 273-6916 Recovery tank 1
16 273-6918 Float cage assembly 1
17 273-6919 Cord mount bracket (OBSOLETE) 2
18 273-6920 Hose barb 1
19 273-7644 Screw 5/16-18 x 2 1/2 socket head cap screw stainless steel 2
20 273-6922 Stand pipe 1
21 173-0988 2 inch hose clamp 1

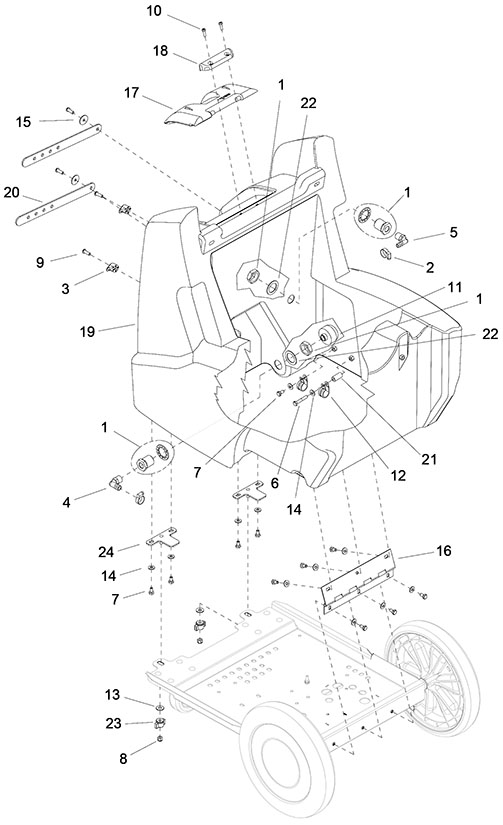

Solution Tank Assembly - 227-9017
RefNbr Part Number Description Req Notes
1 273-6924 Adapter 2
2 173-1821 Hose clamp 2
3 273-5721 Strap hook 2
4 173-1072 Hosebarb 3/8 x 1/2 inch 1
5 173-1572 Hosebarb 3/8 x 3/8 inch 1
6 999-0506 Bolt 1/4-20 x 1 1/2 hex head stainless steel 1
7 999-0644 Bolt 1/4-20 x 1/2 hex head stainless steel 11
8 999-0294 Nut 1/4-20 hex nylon lock type NE stainless steel 2
9 999-1480 Screw 1/4-20 x 5/8 button head socket cap stainless steel 4
10 999-1937 Screw 10-32 x 5/8 phillips pan head black oxide SS 2
11 189-4181 3/8 inch mesh strainer 1
12 173-3112 P clamp 2
13 999-0549 Washer 5/16 x 3/4 SAE flat stainless steel 2
14 999-0123 Washer 1/4 SAE flat zinc plated 12
15 999-0016 Washer 1/4 flat plain finish 2
16 273-6925 Hinge 1
17 273-6926 Solution tank lid (OBSOLETE) 1
18 273-6451 Solution lid hinge bracket 1
19 273-3655 Solution tank 1
20 273-5724 Hand tool strap 2
21 273-6927 Spacer 1
22 273-6928 Washer 2
23 173-9161 Hex wing knob 2
24 273-6929 Solution mounting plate 2

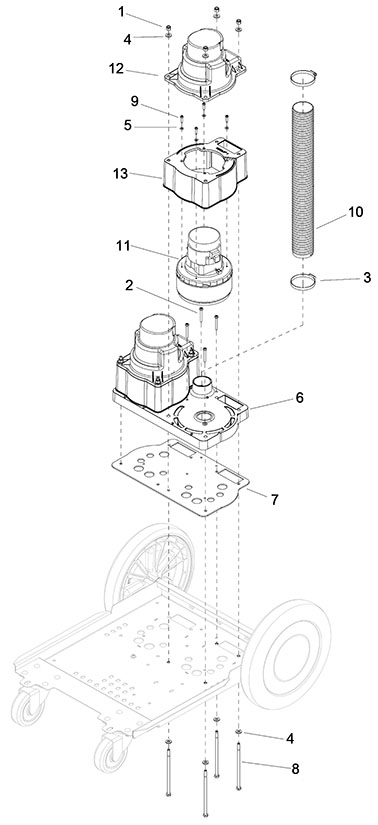

Vacuum Assembly - 227-9018
RefNbr Part Number Description Req Notes
1 999-0294 Nut 1/4-20 hex nylon lock type NE stainless steel 8
2 999-1631 Screw 10-32 x 1 1/2 pan head phillips stainless steel 5
3 273-6930 Hose clamp 2
4 999-0123 Washer 1/4 SAE flat zinc plated 16
6 273-6931 Dual vacuum manifold 1
7 273-6932 Manifold gasket (OBSOLETE) 1
8b 999-9145 Screw 1/4-20 x 5 1/2 cap grade 18-8 stainless steel 8 (2 Stage)
8b 273-6939 Screw 1/4-20 x 6 1/2 hex head cap 8 (3 stage)
9 999-0870 Screw 8 x 3/4 pan head phillips stainless steel 8
10 273-6934 Vacuum hose 2 x 18 1/2 inches 1
11a 273-6935 120V 2 stage vacuum motor 2 (2 stage)
11b 273-6943 120V 3 stage vacuum motor 2 (3 stage)
11c 272-4024 Bulb 1
12 273-6936 Vacuum motor cover 2
13 273-6944 Vacuum motor base (OBSOLETE) 2
N/S 273-6945 Vac housing 1 (3 stage) (includes 12 and 13b)
N/S 273-6938 Vacuum housing 1 (2 stage) (includes 12 and 13a)

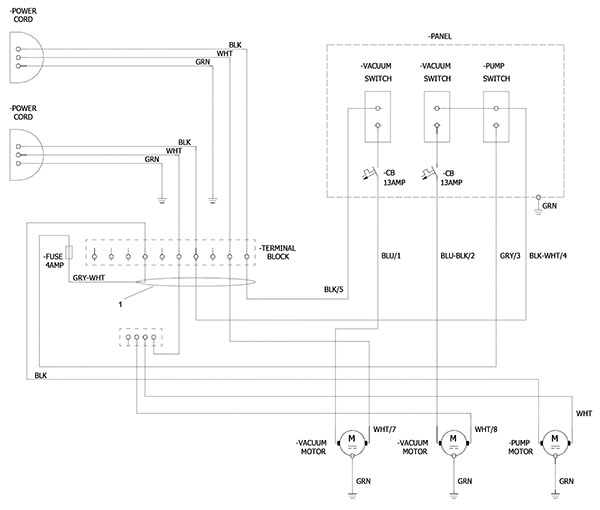

Wiring Assembly - 3 Stage Vacuum - 227-9019
RefNbr Part Number Description Req Notes
1 273-3666 Dual cord harness kit 1
