- Commonly Asked For Parts - 275-8524 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 0.9835 |
175-1787 |
1/8 inch v-jet brass nozzle with screen |
|
|
|
|

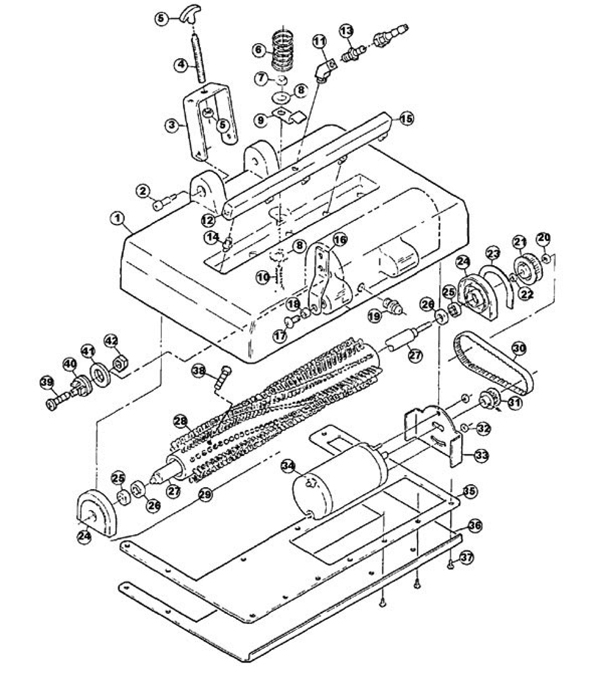

Base Assembly - 275-8877 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
175-3538 |
20 inch base (black) |
1 |
|
| 2 |
175-6156 |
Screw 3/8 x 3/4 shoulder |
2 |
|
| 3 |
N/A |
Not available |
1 |
(Bracket) |
| 4 |
175-6114 |
Threaded stud |
1 |
|
| 5 |
175-6113 |
Height adjustment knob |
1 |
|
| 6 |
475-0637 |
SPRING, CMPR, 0.80OD .09WIR 02.0L |
1 |
|
| 7 |
999-0513 |
Nut 3/8-16 nylon insert lock type NE stainless steel |
1 |
|
| 8 |
999-0355 |
Washer 3/8 x 7/8 SAE flat stainless steel |
2 |
|
| 9 |
N/A |
Not available |
1 |
(Clamp) |
| 10 |
999-1006 |
Screw 3/8-16 x 1 3/4 hex head stainless steel |
1 |
|
| 11 |
175-6041 |
Elbow 1/8 x 1/8 inch |
1 |
|
| 14 |
175-1795 |
1/8 v-jet brass nozzle |
5 |
|
| 15 |
175-6040 |
20 inch spray bar manifold |
1 |
|
| 16 |
N/A |
Not available |
1 |
(Bracket) |
| 17 |
175-6187 |
Screw 3/8-16 x 3/4 inch truss head phillips |
2 |
|
| 19 |
N/A |
Not available |
1 |
(Cord grip) |
| 20 |
999-0430 |
Nut 5/16-18 hex jam plain finish |
1 |
|
| 21 |
175-6140 |
Brush pulley |
1 |
|
| 23 |
175-6143 |
Bearing block gasket |
1 |
|
| 24 |
175-6133 |
Bearing block |
2 |
|
| 25 |
175-0069 |
Brush bearing |
2 |
|
| 26 |
175-6134 |
Brush bearing seal |
2 |
|
| 27 |
175-6138 |
20 inch brush shaft |
1 |
|
| 28 |
175-6136 |
Scrubbing brush - CYLINDRICAL |
1 |
|
| 29 |
675-9929 |
20 inch brush assembly |
1 |
|
| 30 |
175-6141 |
Brush drive belt |
1 |
|
| 31 |
175-6129 |
Motor pulley (Tennant Industrial) |
1 |
|
| 32 |
999-0239 |
Nut 10-32 k-lock zinc plated |
2 |
|
| 33 |
175-6130 |
Motor bracket |
1 |
|
| 34a |
175-6131 |
120V brush motor |
1 |
|
| 34b |
175-6132 |
Drive Motor Brush 230V |
1 |
|
| 35 |
175-6235 |
20 inch base gasket |
1 |
|
| 36 |
175-6145 |
20 inch brush base plate (black) |
1 |
|
| 37 |
999-0811 |
Screw 10-32 x 3/8 pan head phillips stainless steel |
12 |
|
| 38 |
999-0334 |
Bolt 1/4-20 x 3/4 inch hex head stainless steel |
1 |
|
| 39 |
999-0249 |
Screw 6-32 x 5/8 round head slotted zinc plated |
1 |
|
| 40 |
175-6052 |
15amp rectifier |
1 |
|
| 41 |
999-0144 |
Nut 6-32 k-lock zinc plated |
1 |
|
|
|

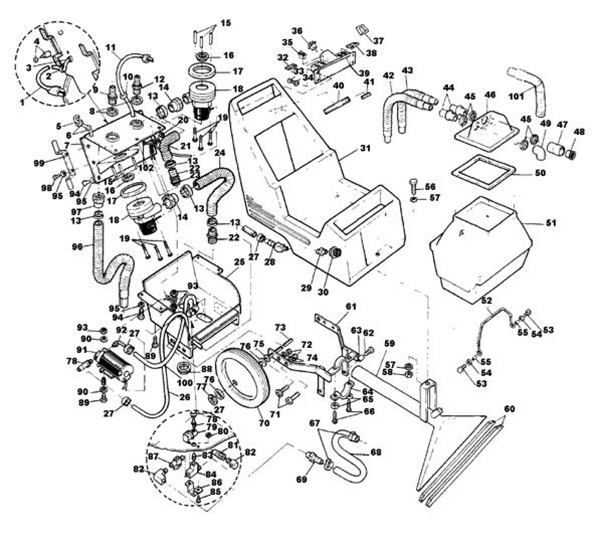

Entire Assembly - 275-8878 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
N/A |
Not available |
1 |
(Power cord) |
| 3 |
175-6591 |
Strain relief bushing |
1 |
|
| 4 |
175-0030 |
1.5amp circuit breaker |
1 |
|
| 5 |
N/A |
Not available |
1 |
(Belt) |
| 7 |
N/A |
Not available |
1 |
(Enclosure) |
| 8 |
175-1304 |
Drain valve gasket |
2 |
|
| 9 |
175-0203 |
Hose barb fitting |
1 |
|
| 10 |
175-6591 |
Strain relief bushing |
1 |
|
| 11 |
N/A |
Not available |
1 |
(Cord) |
| 12 |
N/A |
Not available |
1 |
(Hose barb) |
| 14 |
N/A |
Not available |
1 |
(Adapter) |
| 15 |
N/A |
Not available |
6 |
(Spacer) |
| 16 |
175-2907 |
Nut 1 1/2 flanged hex |
2 |
|
| 17 |
675-9893 |
Vacuum motor gasket |
2 |
|
| 18a |
175-0196 |
Motor 5.7 vacuum 2 stage 220V |
2 |
|
| 18b |
175-6537 |
Vacuum motor |
2 |
|
| 19 |
999-0244 |
Bolt 1/4-20 x 2 1/2 hex head grade 5 zinc plated cap |
6 |
|
| 20 |
999-0356 |
Nut 10-24 lock stainless steel |
1 |
|
| 21 |
475-7772 |
PIN, ROLL, .250D X 1.12L, .250/.256 (Tennant Industrial) |
1 |
|
| 22 |
N/A |
Not available |
1 |
(Hose barb) |
| 23 |
175-1304 |
Drain valve gasket |
1 |
|
| 24 |
N/A |
Not available |
1 |
(Hose) |
| 25 |
N/A |
Not available |
1 |
(Weldment pump) |
| 26 |
N/A |
Not available |
2 |
(Decal) |
| 29 |
175-6239 |
1/4 inch nipple |
1 |
|
| 30 |
175-6079 |
Mesh filter screen |
1 |
|
| 31 |
N/A |
Not available |
1 |
(Sleeve) |
| 32 |
N/A |
Not available |
1 |
(Decal) |
| 33 |
999-0231 |
Screw 10-24 x 1/2 round head slotted zinc plated |
1 |
|
| 34 |
999-1026 |
Washer #10 internal lock stainless steel |
4 |
|
| 35 |
175-0005 |
Rocker switch |
4 |
|
| 37 |
N/A |
Not available |
1 |
(Decal) |
| 39 |
N/A |
Not available |
1 |
(Switch box) |
| 40 |
N/A |
Not available |
1 |
(Name plate) |
| 41 |
N/A |
Not available |
1 |
(Decal) |
| 42 |
N/A |
Not available |
1 |
(Hose) |
| 44 |
175-0203 |
Hose barb fitting |
2 |
|
| 45 |
175-1304 |
Drain valve gasket |
4 |
|
| 46 |
275-5831 |
Recovery tank lid (OBSOLETE) |
1 |
|
| 49 |
475-0633 |
FITTING, PVC, E90, PF24/1.50D [SLIP] |
1 |
|
| 50 |
475-0794 |
GASKET, DOME |
3 |
|
| 51 |
N/A |
Not available |
1 |
(Tank) |
| 52 |
N/A |
Not available |
1 |
(Handle) |
| 53 |
999-0334 |
Bolt 1/4-20 x 3/4 inch hex head stainless steel |
1 |
|
| 54 |
999-1119 |
Washer 1/4 x 1 fender zinc plated |
2 |
|
| 55 |
N/A |
Not available |
2 |
(Seal kit) |
| 56 |
175-5709 |
Screw 3/8-16 x 2 1/2 hex head stainless steel |
1 |
|
| 57 |
999-0617 |
Washer 3/8 x 1 flat stainless steel |
2 |
|
| 58 |
999-0513 |
Nut 3/8-16 nylon insert lock type NE stainless steel |
1 |
|
| 59 |
N/A |
Not available |
1 |
(Tool pickup) |
| 60 |
175-6147 |
20 inch pick-up shoe plate stainless steel |
2 |
|
| 61 |
N/A |
Not available |
1 |
(Bracket) |
| 62 |
175-6187 |
Screw 3/8-16 x 3/4 inch truss head phillips |
2 |
|
| 64 |
175-1606 |
Floor tool clamp |
1 |
|
| 65 |
999-0632 |
Washer 1/4 split lock stainless steel |
2 |
|
| 66 |
175-1271 |
Screw 1/4-20 x 1 1/2 |
2 |
|
| 68 |
175-6023 |
Hose 1/4 x 36 inch (gray) |
2 |
|
| 71 |
N/A |
Not available |
4 |
(Screw) |
| 72 |
999-0211 |
Nut 5/16-18 hex nylon insert lock zinc plated |
4 |
|
| 73 |
N/A |
Not available |
1 |
(Axle) |
| 74 |
N/A |
Not available |
4 |
(Washer) |
| 75 |
175-0293 |
Washer 1/2 compression zinc plated |
2 |
|
| 76 |
N/A |
Not available |
4 |
(Washer) |
| 77 |
475-0093 |
RING, RETAINING, 0.44D |
2 |
|
| 78 |
175-2613 |
Straight brass fitting |
2 |
|
| 79a |
175-6025 |
Solution solenoid valve |
1 |
|
| 79b |
175-6026 |
Solenoid valve 220 v 50 hz |
1 |
|
| 80 |
999-0442 |
Nut 10-24 nylon insert lock stainless steel |
2 |
|
| 81 |
991-8150 |
1/4 inch BH2-61 male nipple (mate to QD80) |
1 |
|
| 82 |
175-2614 |
90 degree elbow fitting |
2 |
|
| 84 |
N/A |
Not available |
1 |
(Bracket tee) |
| 85 |
999-0811 |
Screw 10-32 x 3/8 pan head phillips stainless steel |
2 |
|
| 86 |
175-6029 |
Straight tee |
1 |
|
| 88 |
175-2907 |
Nut 1 1/2 flanged hex |
1 |
|
| 89 |
175-1138 |
Screw 10-24 x 1 1/4 phillips round head |
3 |
|
| 90 |
999-0006 |
Washer 3/16 flat zinc plated |
4 |
|
| 91 |
N/A |
Not available |
1 |
(Pump) |
| 92 |
175-6012 |
100 psi 240 v pump |
1 |
|
| 93 |
999-0356 |
Nut 10-24 lock stainless steel |
4 |
|
| 94 |
999-0231 |
Screw 10-24 x 1/2 round head slotted zinc plated |
1 |
|
| 95 |
999-1026 |
Washer #10 internal lock stainless steel |
14 |
|
| 97 |
N/A |
Not available |
1 |
(Adapter) |
| 98 |
999-1008 |
Screw 10-32 x 3/4 round head phillips stainless steel |
4 |
|
| 99 |
N/A |
Not available |
2 |
(Cord holder) |
| 100 |
N/A |
Not available |
1 |
(Decal) |
| 101 |
N/A |
Not available |
1 |
(Hose) |
| 102 |
999-1026 |
Washer #10 internal lock stainless steel |
1 |
|
|
|
Pump Assembly - 275-8879 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
N/A |
Not available |
1 |
(Upper housing) |
| 2 |
475-1506 |
VALVE KIT, CHECK [FLOJET] |
1 |
|
| 3 |
N/A |
Not available |
1 |
(Diaphragm kit) |
| 4 |
475-1313 |
COVER KIT, BRG |
1 |
|
| 5 |
N/A |
Not available |
1 |
(Cam bearing) |
| 6 |
475-0992 |
SHROUD, FAN, 100PSI [FLOJET] |
1 |
|
|
|
- Extractor Fit All Parts - 999-9400 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 001a |
991-8000 |
12 inch stainless head wand, 1 jet 120 PSI plastic valve |
|
(wands) |
| 001b |
991-8001 |
12 inch aluminum head wand, 2 jet, 120 PSI (OBSOLETE) |
|
(wands) |
| 001c |
991-8002 |
12 inch aluminum head wand, 3 jet, 120 PSI plastic valve |
|
(wands) |
| 001d |
991-8227 |
500psi brass valve |
|
(wands) |
| 002a |
991-8222 |
30 inch stair wand (open spray) |
|
(stair wand) |
| 002b |
991-8223 |
30 inch swivel head ergonomic stair wand (open spray) |
|
(stair wand) |
| 004 |
991-8129 |
Handle 1-1/2 inch low profile comfort grip assist |
|
(wands) |
| 005a |
991-8128 |
120 PSI, acetel plastic valve, low heat 140 degrees |
|
(wands) |
| 005b |
991-8127 |
120 PSI, brass valve, stainless steel stem |
|
(wands) |
| 005d |
991-8171 |
400psi cast aluminum valve |
|
|
| 007 |
991-8130 |
3-1/2 inch wide 120 PSI standard detailer, external spray |
|
(wands) |
| 008 |
991-8132 |
10ft hide-a-hose vac/sol hose assembly w/1/4 male fittings |
|
(hose assemblies and parts) |
| 009 |
991-8133 |
20ft hide-a-hose vac/sol hose assembly w/1/4 male fittings |
|
(hose assemblies and parts) |
| 010 |
991-8136 |
10ft hide-a-hose vac/sol hose assembly w 1/4 male & 1/4 feml |
|
(hose assemblies and parts) |
| 011 |
991-8137 |
20ft hide-a-hose vac/sol hose assembly w/1/4 male & 1/4 feml |
|
(hose assemblies and parts) |
| 012 |
991-8134 |
10ft hide-a-hose vac/sol hose w/1/4 female fittings 300psi |
|
(hose assemblies and parts) |
| 013 |
991-8135 |
20ft hide-a-hose vac/sol hose assembly w/1/4 female fittings |
|
(hose assemblies and parts) |
| 014 |
991-8138 |
10ft 100psi vac/sol hose assembly w/ 1/4 male fittings |
|
(hose assemblies and parts) |
| 015 |
991-8139 |
20ft 100psi vac/sol hose assembly with male fittings |
|
(hose assemblies and parts) (Maximum heat rating of 70 degrees and 100 PSI) |
| 016 |
991-8142 |
10ft 100psi vac/sol hose assembly w/1/4 female & 1/4 male |
|
(hose assemblies and parts) |
| 017 |
991-8143 |
20ft 100psi vac/sol hose assembly w/1/4 female & 1/4 male |
|
(hose assemblies and parts) |
| 018 |
991-8140 |
10ft 100psi vac/sol hose assembly w/ 1/4 female fittings |
|
(hose assemblies and parts) |
| 021 |
991-8004 |
1 1/2 inch vacuum hose (sold by the foot) |
|
(hose assemblies and parts) |
| 022 |
991-8005 |
1 1/2 inch replacement hose cuff (black) |
|
(hose assemblies and parts) |
| 023 |
991-8131 |
1 1/2 inch hide-a-hose cuff (no swivel) |
|
(hose assemblies and parts) |
| 026 |
991-8045 |
1/8 inch brass vee jet 8001 |
|
(1/8 brass vee jet) |
| 027 |
991-8046 |
1/8 inch brass vee jet 8001.5 |
|
(1/8 brass vee jet) |
| 028 |
991-8047 |
1/8 inch brass vee jet 8002 |
|
(1/8 brass vee jet) |
| 029 |
991-8048 |
1/8 inch brass vee jet 8003 |
|
(1/8 brass vee jet) |
| 030 |
991-8049 |
1/8 inch brass vee jet 8004 |
|
(1/8 brass vee jet) |
| 031 |
991-8050 |
1/8 inch brass vee jet 8005 (OBSOLETE) |
|
(1/8 brass vee jet) |
| 032 |
991-8051 |
1/8 inch brass vee jet 8006 |
|
(1/8 brass vee jet) |
| 033 |
991-8052 |
1/8 inch brass vee jet 8008 |
|
(1/8 brass vee jet) |
| 034 |
991-8053 |
1/8 inch brass vee jet 8010 |
|
(1/8 brass vee jet) |
| 035 |
991-8054 |
1/8 inch brass vee jet 9502 |
|
(1/8 brass vee jet) |
| 036 |
991-8055 |
1/8 inch brass vee jet 9503 |
|
(1/8 brass vee jet) |
| 037 |
991-8056 |
1/8 inch brass vee jet 9504 |
|
(1/8 brass vee jet) |
| 038 |
991-8057 |
1/8 inch brass vee jet 9505 |
|
(1/8 brass vee jet) |
| 039 |
991-8058 |
1/8 inch brass vee jet 9506 |
|
(1/8 brass vee jet) |
| 040 |
991-8059 |
1/8 inch brass vee jet 9508 |
|
(1/8 brass vee jet) |
| 041 |
991-8060 |
1/8 inch brass vee jet 11001 |
|
(1/8 brass vee jet) |
| 042 |
991-8061 |
1/8 inch brass vee jet 11001.5 |
|
(1/8 brass vee jet) |
| 043 |
991-8062 |
1/8 inch brass vee jet 11002 |
|
(1/8 brass vee jet) |
| 044 |
991-8063 |
1/8 inch brass vee jet 11003 |
|
(1/8 brass vee jet) |
| 045 |
991-8064 |
1/8 inch brass vee jet 11004 |
|
(1/8 brass vee jet) |
| 046 |
991-8065 |
1/8 inch brass vee jet 11005 |
|
(1/8 brass vee jet) |
| 047 |
991-8066 |
1/8 inch brass vee jet 11006 |
|
(1/8 brass vee jet) |
| 048 |
991-8067 |
1/8 inch brass vee jet 11008 |
|
(1/8 brass vee jet) |
| 049 |
991-8068 |
1/8 inch brass vee jet 11010 |
|
(1/8 brass vee jet) |
| 050 |
991-8021 |
1/4 inch brass vee jet 8001 |
|
(1/4 brass vee jet) |
| 051 |
991-8022 |
1/4 inch brass vee jet 8001.5 |
|
(1/4 brass vee jet) |
| 052 |
991-8023 |
1/4 inch brass vee jet 8002 |
|
(1/4 brass vee jet) |
| 053 |
991-3005 |
1/4 inch brass vee jet 8003 |
|
(1/4 brass vee jet) |
| 054 |
991-8025 |
1/4 inch brass vee jet 8004 |
|
(1/4 brass vee jet) |
| 055 |
991-8026 |
1/4 inch brass vee jet 8005 |
|
(1/4 brass vee jet) |
| 056 |
991-8027 |
1/4 inch brass vee jet 8006 |
|
(1/4 brass vee jet) |
| 057 |
991-8028 |
1/4 inch brass vee jet 8008 |
|
(1/4 brass vee jet) |
| 058 |
991-8029 |
1/4 inch brass vee jet 8010 |
|
(1/4 brass vee jet) |
| 059 |
991-8030 |
1/4 inch brass vee jet 9502 |
|
(1/4 brass vee jet) |
| 060 |
991-8031 |
1/4 inch brass vee jet 9503 |
|
(1/4 brass vee jet) |
| 061 |
991-8032 |
1/4 inch brass vee jet 9504 |
|
(1/4 brass vee jet) |
| 062 |
991-8033 |
1/4 inch brass vee jet 9505 |
|
(1/4 brass vee jet) |
| 063 |
991-8034 |
1/4 inch brass vee jet 9506 |
|
(1/4 brass vee jet) |
| 064 |
991-8035 |
1/4 inch brass vee jet 9508 |
|
(1/4 brass vee jet) |
| 065 |
991-8036 |
1/4 inch brass vee jet 11001 |
|
(1/4 brass vee jet) |
| 066 |
991-8037 |
1/4 inch brass vee jet 11001.5 |
|
(1/4 brass vee jet) |
| 067 |
991-8038 |
1/4 inch brass vee jet 11002 |
|
(1/4 brass vee jet) |
| 068 |
991-8039 |
1/4 inch brass vee jet 11003 |
|
(1/4 brass vee jet) |
| 069 |
991-8040 |
1/4 inch brass vee jet 11004 |
|
(1/4 brass vee jet) |
| 070 |
991-8041 |
1/4 inch brass vee jet 11005 (OBSOLETE) |
|
(1/4 brass vee jet) |
| 071 |
991-8042 |
1/4 inch brass vee jet 11006 |
|
(1/4 brass vee jet) |
| 072 |
991-3006 |
1/4 inch brass vee jet 11008 |
|
(1/4 brass vee jet) |
| 073 |
991-8044 |
1/4 inch brass vee jet 11010 |
|
(1/4 brass vee jet) |
| 074 |
991-8069 |
1/4 inch stainless vee jet 8001 |
|
(1/4 stainless vee jet) |
| 075 |
991-8070 |
1/4 inch stainless vee jet 8002 |
|
(1/4 stainless vee jet) |
| 076 |
991-8071 |
1/4 inch stainless vee jet 8003 |
|
(1/4 stainless vee jet) |
| 077 |
991-8072 |
1/4 inch stainless vee jet 8004 |
|
(1/4 stainless vee jet) |
| 078 |
991-8073 |
1/4 inch stainless vee jet 9501 |
|
(1/4 stainless vee jet) |
| 079 |
991-8074 |
1/4 inch stainless vee jet 9502 |
|
(1/4 stainless vee jet) |
| 080 |
991-8085 |
1/4 inch stainless/plastic tee jet 9502 |
|
(1/4 stainless vee jet) |
| 081 |
991-8076 |
1/4 inch stainless vee jet 9504 |
|
(1/4 stainless vee jet) |
| 082 |
991-8077 |
1/4 inch stainless vee jet 11003 |
|
(1/4 stainless vee jet) |
| 083 |
991-8078 |
1/4 inch stainless vee jet 11004 |
|
(1/4 stainless vee jet) |
| 084 |
991-8079 |
1/4 inch stainless vee jet 11006 |
|
(1/4 stainless vee jet) |
| 085 |
991-8080 |
1/4 inch stainless vee jet 11008 |
|
(1/4 stainless vee jet) |
| 086 |
991-8081 |
1/4 inch stainless/plastic tee jet 8002 |
|
(1/4 stainless/plastic tee jet) |
| 087 |
991-8082 |
1/4 inch stainless/plastic tee jet 8003 |
|
(1/4 stainless/plastic tee jet) |
| 088 |
991-8083 |
1/4 inch stainless/plastic tee jet 8004 |
|
(1/4 stainless/plastic tee jet) |
| 089 |
991-8084 |
1/4 inch stainless/plastic tee jet 9501 (OBSOLETE) |
|
(1/4 stainless/plastic tee jet) |
| 090 |
991-8085 |
1/4 inch stainless/plastic tee jet 9502 |
|
(1/4 stainless/plastic tee jet) |
| 091 |
991-8086 |
1/4 inch stainless/plastic tee jet 9504 |
|
(1/4 stainless/plastic tee jet) |
| 092 |
991-3010 |
1/4 inch stainless/plastic tee jet 11003 |
|
(1/4 stainless/plastic tee jet) |
| 093 |
991-8088 |
1/4 inch stainless/plastic tee jet 11004 |
|
(1/4 stainless/plastic tee jet) |
| 094 |
991-8089 |
1/4 inch stainless/plastic tee jet 11006 |
|
(1/4 stainless/plastic tee jet) |
| 095 |
991-8090 |
1/4 inch stainless/plastic tee jet 11008 |
|
(1/4 stainless/plastic tee jet) |
| 096 |
991-8091 |
1/4 inch x 1/8 hex nipple H21 |
|
|
| 097 |
991-8092 |
1/4 inch x 1/4 hex nipple H22 |
|
|
| 098 |
991-8093 |
1/4 inch x 3/8 hex nipple H23 |
|
|
| 099 |
991-8094 |
45 degree street elbow 1/4 inch H24 |
|
|
| 100 |
991-8095 |
45 degree street elbow 1/8 inch H25 |
|
|
| 101 |
991-8096 |
45 degree union elbow 1/4 inch H26 |
|
|
| 102 |
991-8098 |
90 degree street elbow short 1/4 inch H28 |
|
|
| 103 |
991-8098 |
90 degree street elbow short 1/4 inch H28 |
|
|
| 104 |
991-8099 |
90 degree street elbow 1/8 inch H29 |
|
|
| 105 |
991-8100 |
90 degree street elbow short 1/8 inch H30 |
|
|
| 106 |
991-8101 |
90 degree union elbow 1/4 inch H31 |
|
|
| 107 |
991-8102 |
90 degree union elbow 1/8 inch H32 |
|
|
| 108 |
991-8103 |
30 degree union elbow 1/4 inch H33 |
|
|
| 109 |
991-8104 |
1/4 inch coupling H34 |
|
|
| 110 |
991-8105 |
1/8 inch coupling H35 |
|
|
| 111 |
991-8106 |
1/4 inch adapter H36 |
|
|
| 112 |
991-8107 |
1/8 inch adapter H37 |
|
|
| 113 |
991-8108 |
1/4 inch branch tee H38 |
|
|
| 114 |
991-8109 |
1/8 inch branch tee H39 |
|
|
| 115 |
991-8110 |
1/8 inch tee H40 |
|
|
| 116 |
991-8111 |
7/16 inch stainless steel hose clamp H41 |
|
|
| 117 |
997-2002 |
Hose clamp #6 |
|
|
| 118 |
991-8113 |
Strainer for 1/8 inch vee jets H43 |
|
|
| 119 |
991-8114 |
Strainer for 1/4 inch vee jets H44 |
|
|
| 120 |
991-8115 |
Strainer/check valve for 1/4 inch vee jets H45 |
|
|
| 121 |
991-8116 |
Brass strainer/check valve for tee jets H46 |
|
|
| 122 |
991-8117 |
500 PSI ball valve 1/4 inch fpt x 1/4 inch fpt H47 |
|
|
| 123 |
991-8118 |
500 PSI ball valve 3/8 inch fpt x 3/8 inch fpt H48 |
|
|
| 124 |
991-8119 |
500 PSI ball valve 1/4 inch mpt x 3/8 inch fpt H49 |
|
|
| 125 |
991-8120 |
1/4 inch brass flood jets K1 or K2 H54 |
|
|
| 126 |
991-8158 |
1/4 inch BH2-60 female coupler (mate to QD40) |
|
|
| 127 |
991-8150 |
1/4 inch BH2-61 male nipple (mate to QD80) |
|
|
| 128 |
991-8144 |
B2C, 1/4 inch mpt, male nipple, mate to QD50 or QD55 |
|
|
| 129 |
991-8152 |
B12, 1/4 inch mpt, female coupler, mate to QD10 or QD15 |
|
|
| 130 |
991-8145 |
B3C, 1/4 inch fpt, male nipple, mate to QD50 or QD55 |
|
|
| 131 |
991-8153 |
B13, 1/4 inch fpt, female coupler, mate to QD10 or QD15 |
|
|
| 132 |
991-8146 |
BH2C, 1/4 inch, mpt male nipple, mate to QD60 or QD65 |
|
|
| 133 |
991-8154 |
B22, 1/4 inch mpt, female coupler, mate to QD20 or QD25 |
|
|
| 134 |
991-8147 |
BH3C, 1/4 inch fpt, male nipple, mate to QD60 or QD65 |
|
|
| 135 |
991-8155 |
B23, 1/4 inch fpt, female coupler, mate to QD20 or QD25 |
|
|
| 136 |
991-8148 |
Hansen 02 male nipple, mate to QD70 |
|
|
| 137 |
991-8156 |
Quick disconnect socket female to QD30 |
|
|
| 138 |
991-8149 |
1/8 inch male quick disconnect |
|
|
| 139 |
991-8157 |
1/8 inch female quick disconnect socket |
|
|
| 140 |
991-8151 |
BH3-61,3/8 inch FPT, Male Nipple, mate to QD85 |
|
|
| 141 |
991-8159 |
BH3-60, 3/8 inch fpt, female coupler, mate to QD45 |
|
|
| 142 |
991-8123 |
Bottom hex nut for Kingston or P valve H57 |
|
|
| 143 |
991-8121 |
1/8 inch brass flood jets K1 or K2 H55 |
|
|
| 144 |
991-8124 |
Inline filter H58 |
|
|
| 145 |
991-8122 |
1/8 inch special brass flood jets for V1245 H56 |
|
|
| 146 |
991-8008 |
120V 50 PSI Flo Jet pump |
|
(pumps) |
| 147 |
991-8009 |
120V 100 PSI Flo Jet pump |
|
(pumps) |
| 148 |
991-8218 |
120V 120 PSI pump |
|
(pumps) |
| 149 |
991-8220 |
1/8 fpt brass female connector |
|
|
| 150 |
991-1835 |
Crevice tool |
|
|
|
|
|
