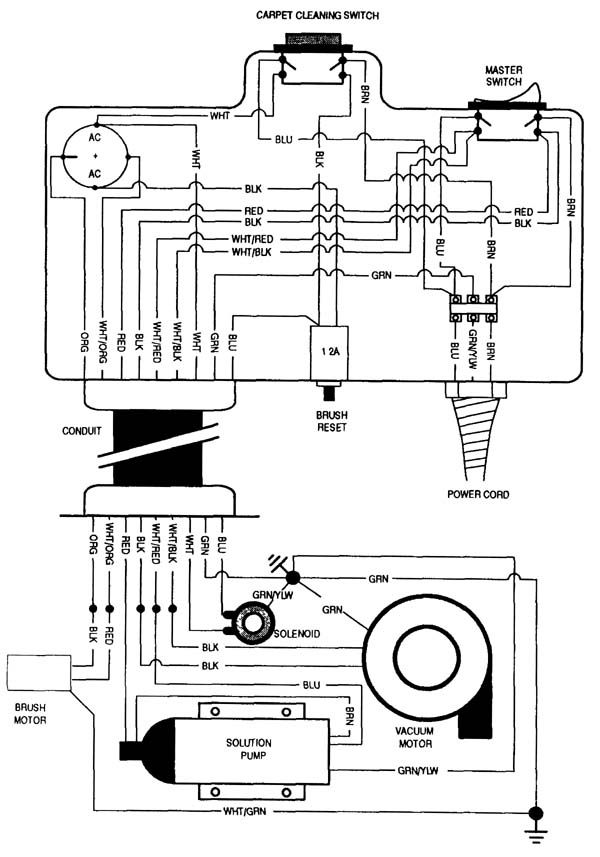

Wiring Diagram 1 - |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
|
|
Wiring Diagram 2 - |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
|
|

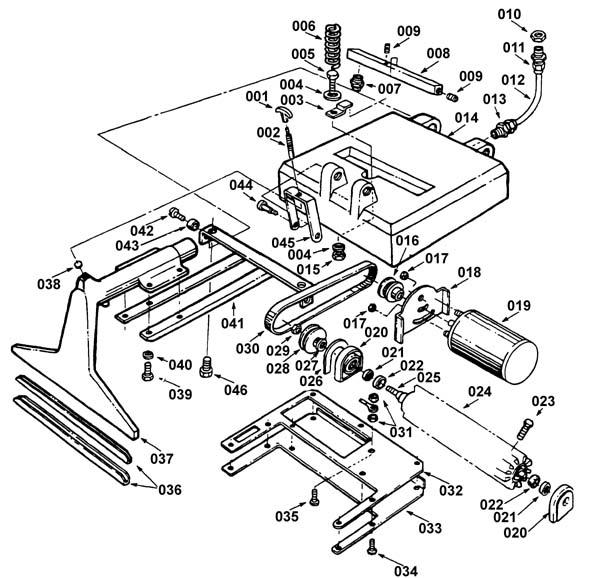

Brush - 175-6003 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 001 |
175-6113 |
Height adjustment knob |
1 |
|
| 002 |
175-6114 |
Threaded stud |
1 |
|
| 003 |
175-6115 |
Spray bar clamp |
1 |
|
| 004 |
175-6157 |
Steering weldment (Tennant industrial) |
2 |
|
| 005 |
999-0649 |
Bolt 3/8-16 x 1 1/4 hex head stainless steel |
1 |
|
| 007a |
175-6117 |
Spray tip assembly |
4 |
|
| 007b |
175-6118 |
Spray tip assembly |
5 |
|
| 008a |
175-6039 |
16 inch spray bar manifold |
1 |
|
| 008b |
175-6040 |
20 inch spray bar manifold |
1 |
|
| 009 |
175-6121 |
Brass plug |
3 |
|
| 010 |
175-6158 |
Nut 1/2 conduit |
1 |
|
| 011 |
175-6063 |
Strain relief |
1 |
|
| 012 |
175-6065 |
Interconnect cord |
1 |
|
| 014a |
175-6125 |
120v 16 in blue base brush |
1 |
|
| 014b |
175-6126 |
Brush housing 16 inch (gray) (OBSOLETE) |
1 |
|
| 014c |
175-6127 |
20 inch (500mm) brush housing (blue) |
1 |
|
| 015 |
999-0513 |
Nut 3/8-16 nylon insert lock type NE stainless steel |
1 |
|
| 016 |
175-6129 |
Motor pulley (Tennant Industrial) |
1 |
|
| 017 |
999-0239 |
Nut 10-32 k-lock zinc plated |
2 |
|
| 018 |
175-6130 |
Motor bracket |
1 |
|
| 019a |
175-6131 |
120V brush motor |
1 |
|
| 019b |
175-6132 |
Drive Motor Brush 230V |
1 |
|
| 020 |
175-6133 |
Bearing block |
2 |
|
| 021a |
175-0069 |
Brush bearing |
2 |
(OEM) |
| 021b |
991-5125 |
Brush bearing |
2 |
(NON-OEM) |
| 022 |
175-6134 |
Brush bearing seal |
2 |
|
| 023 |
999-0334 |
Bolt 1/4-20 x 3/4 inch hex head stainless steel |
4 |
|
| 024a |
175-6135 |
Scrubbing brush - CYLINDRICAL |
1 |
|
| 024b |
175-6136 |
Scrubbing brush - CYLINDRICAL |
1 |
|
| 025a |
175-6137 |
16 inch brush shaft |
1 |
|
| 025b |
175-6138 |
20 inch brush shaft |
1 |
|
| 026 |
175-6143 |
Bearing block gasket |
1 |
|
| 028 |
175-6140 |
Brush pulley |
1 |
|
| 029 |
999-1019 |
Nut 5/16-18 hex jam stainless steel |
1 |
|
| 030 |
175-6141 |
Brush drive belt |
1 |
|
| 031 |
999-0356 |
Nut 10-24 lock stainless steel |
2 |
|
| 032a |
175-6142 |
16 inch base gasket |
2 |
|
| 032b |
175-6235 |
20 inch base gasket |
1 |
|
| 033a |
175-6144 |
16 inch brush base plate |
1 |
|
| 033b |
175-6145 |
20 inch brush base plate (black) |
1 |
|
| 034 |
999-0811 |
Screw 10-32 x 3/8 pan head phillips stainless steel |
12 |
|
| 035 |
999-0071 |
Screw 10-24 x 1/2 flat head slotted zinc plated |
1 |
|
| 036a |
175-6146 |
16 inch pick-up shoe plate stainless steel |
2 |
|
| 036b |
175-6147 |
20 inch pick-up shoe plate stainless steel |
2 |
|
| 037a |
175-6148 |
16 inch pick-up tool (black) |
1 |
|
| 037b |
175-6149 |
120 v 16 in blue pickup tool (OBSOLETE) |
1 |
|
| 037c |
175-6150 |
120 v 20 in blue pickup tool (OBSOLETE) |
1 |
|
| 037d |
175-6151 |
20 inch pick-up tool (black) |
1 |
|
| 039 |
999-0424 |
Bolt 5/16-18 x 1 hex head stainless steel |
4 |
|
| 040 |
999-0553 |
Washer 5/16 medium split lock stainless steel |
6 |
|
| 041 |
175-6153 |
Mounting bracket |
1 |
|
| 042 |
999-0185 |
Screw 3/8-16 x 3/4 flat head slotted zinc plated |
2 |
|
| 044 |
175-6156 |
Screw 3/8 x 3/4 shoulder |
2 |
|
| 045a |
175-6155 |
Blue height adjustable bracket (OBSOLETE) |
1 |
|
| 045b |
175-6152 |
Height adjustment bracket |
1 |
|
| 046 |
999-0601 |
Screw 5/16-18 x 5/8 pan head phillips zinc plated |
2 |
|
|
|

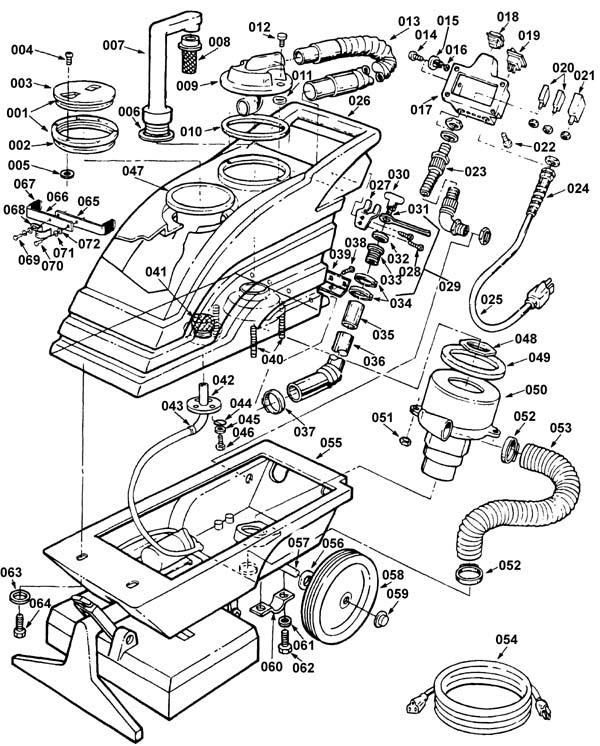

Main Chassis - 175-6004 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 001 |
175-6045 |
Tank lid assembly |
1 |
|
| 002 |
164-0205 |
Tank lid ring (black) |
1 |
|
| 003a |
164-0044 |
Tank lid (clear) |
1 |
|
| 003b |
991-1928 |
Tank lid (clear) (OBSOLETE) |
1 |
(NON-OEM) |
| 004 |
999-1028 |
Screw 10-24 x 3/4 truss head phillips stainless steel |
6 |
|
| 005 |
999-0016 |
Washer 1/4 flat plain finish |
6 |
|
| 007a |
175-6046 |
8 gallon model standpipe (OBSOLETE) |
1 |
|
| 007b |
175-6047 |
Standpipe |
1 |
|
| 008a |
675-9887 |
Shut-off float |
1 |
(OEM) |
| 008b |
991-5136 |
Shut-off float |
1 |
(NON-OEM) |
| 009 |
175-6048 |
Tank lid assembly |
1 |
|
| 010 |
175-6049 |
Tank lid gasket |
1 |
|
| 011 |
175-6161 |
Nylon washer |
2 |
|
| 013a |
175-6038 |
Vacuum hose with cuffs 1 1/2 x 53 inch |
1 |
(OEM) |
| 013b |
991-5154 |
Vacuum hose with cuffs 1 1/2 x 53 inch |
1 |
(NON-OEM) |
| 014 |
999-0475 |
Screw 6-32 x 3/4 pan head slotted zinc plated |
1 |
|
| 015 |
175-6052 |
15amp rectifier |
1 |
|
| 016 |
999-0227 |
Nut 6-32 hex nylon insert lock jam zinc plated |
1 |
|
| 017a |
175-6053 |
120v blue switchbox assembly (OBSOLETE) |
1 |
|
| 017b |
175-6054 |
blue switchbox only |
1 |
|
| 017c |
175-6055 |
Gray switchbox assembly 120v (OBSOLETE) |
1 |
|
| 017d |
175-6056 |
Gray switchbox only 220v |
1 |
|
| 018a |
175-6057 |
Brush pulse switch |
1 |
(120v) |
| 018b |
175-6058 |
Push switch |
1 |
(220v) |
| 019a |
175-0005 |
Rocker switch |
1 |
(120V) |
| 019b |
175-2693 |
Rocker switch |
1 |
(220V) |
| 020 |
175-6060 |
1.5amp circuit breaker |
2 |
|
| 021 |
175-6061 |
12amp circuit breaker |
1 |
|
| 022 |
999-0557 |
Screw 1/4-20 x 1/2 truss head slotted stainless steel |
4 |
|
| 023 |
175-3554 |
Wiring harness |
1 |
|
| 024a |
175-0001 |
Strain relief |
1 |
(120V) |
| 024b |
175-6063 |
Strain relief |
1 |
(220V) |
| 025a |
175-6064 |
14/3 pigtail cord 18 inch |
1 |
(120V) |
| 025b |
175-6065 |
Interconnect cord |
1 |
(220V) |
| 026a |
175-6066 |
White recovery tank 8 gallon (OBSOLETE) |
1 |
(8 gallon) |
| 026b |
175-6067 |
White recovery tank 10 gallon (OBSOLETE) |
1 |
(10 gallon, white) |
| 026c |
275-6385 |
Recovery tank |
1 |
(10 gallon, gray) |
| 027 |
175-6069 |
Drain hose bracket |
1 |
|
| 028 |
999-1111 |
Screw 6-32 x 3/4 pan head phillips sheet metal |
2 |
|
| 029 |
175-6070 |
Drain plug assembly |
1 |
(includes items 030-033) |
| 030 |
175-6071 |
Drain plug knob |
1 |
|
| 031 |
175-6072 |
Drain plug strap |
1 |
|
| 032 |
999-1446 |
Washer 3/8 x 1 1/2 fender stainless steel |
1 |
|
| 034 |
175-1789 |
Hose clamp |
2 |
|
| 035 |
175-6074 |
Drain hose sleeve |
1 |
|
| 036a |
175-1535 |
Drain hose assembly |
1 |
|
| 036b |
991-1907 |
22 inch molded hose with drain cap |
1 |
(NON-OEM) |
| 037 |
997-2007 |
Hose clamp |
1 |
|
| 038 |
999-0557 |
Screw 1/4-20 x 1/2 truss head slotted stainless steel |
7 |
|
| 039 |
175-6077 |
Tank hinge |
4 |
|
| 040 |
175-6078 |
Stud 1/4-20 x 5 inch full threaded |
3 |
|
| 041 |
175-6079 |
Mesh filter screen |
1 |
|
| 042 |
175-6021 |
Bladder plate fitting |
1 |
|
| 043 |
175-6081 |
Hose clamp |
1 |
|
| 044 |
999-0016 |
Washer 1/4 flat plain finish |
2 |
|
| 045 |
999-0632 |
Washer 1/4 split lock stainless steel |
4 |
|
| 046 |
999-1032 |
Screw 1/4-20 x 5/8 hex head stainless steel |
4 |
|
| 047a |
175-6082 |
8 gallon bladder (OBSOLETE) |
1 |
(8 gallon) |
| 047b |
175-6083 |
10 gallon bladder bag |
1 |
(10 gallon) |
| 048 |
175-2907 |
Nut 1 1/2 flanged hex |
1 |
|
| 049a |
175-6084 |
Vacuum motor gasket |
1 |
(120V) |
| 049b |
175-6085 |
Gasket |
1 |
(220V) |
| 050a |
175-0198 |
120V 3 stage vacuum motor |
1 |
(120V, 10 gallon) |
| 050b |
175-6086 |
Carbon brush (pkg of 2) |
1 |
|
| 050c |
175-6087 |
Vacuum fan cover |
1 |
|
| 050d |
175-0196 |
Motor 5.7 vacuum 2 stage 220V |
1 |
(220V, 10 gallon) |
| 050e |
175-0052 |
Carbon brush set |
1 |
|
| 050f |
175-0197 |
120V 3 stage vacuum motor |
1 |
(120V, 8 gallon) |
| 050g |
275-5835 |
Carbon brush (pkg of 2) |
1 |
|
| 050h |
991-1213 |
120V 3 stage vacuum motor tangential |
1 |
(NON-OEM) |
| 051 |
999-0152 |
Nut 1/4-20 nylon insert lock zinc plated |
4 |
|
| 052 |
175-2057 |
Hose clamp |
2 |
|
| 053 |
175-6090 |
Exhaust hose 2 x 26 inch (black) |
2 |
|
| 054a |
175-6091 |
16/3 extension cord 50 foot (yellow) |
1 |
(120V) |
| 054b |
175-6092 |
18/3 x 75 ft black 220 v cord (OBSOLETE) |
1 |
(220V) |
| 054c |
991-5002 |
16/3 extension cord 50 foot (yellow) |
1 |
(NON-OEM) |
| 054d |
991-5007 |
18/3 replacement power cord 50 foot (black) |
1 |
(NON-OEM) |
| 055a |
175-6036 |
Blue chassis |
1 |
|
| 055b |
175-6037 |
Chassis (gray) (OBSOLETE) |
1 |
|
| 056 |
999-0187 |
Washer 1/2 flat plain finish |
2 |
|
| 060 |
175-6098 |
Axle bracket |
2 |
|
| 061 |
999-0632 |
Washer 1/4 split lock stainless steel |
4 |
|
| 062 |
999-1032 |
Screw 1/4-20 x 5/8 hex head stainless steel |
4 |
|
| 063 |
175-6157 |
Steering weldment (Tennant industrial) |
2 |
|
| 064 |
999-0649 |
Bolt 3/8-16 x 1 1/4 hex head stainless steel |
2 |
|
| 065 |
175-6099 |
Tank brace bracket with threads |
1 |
|
| 066 |
175-6100 |
Tank brace bracket with holes |
1 |
|
| 068 |
175-6103 |
Tank brace clamp |
1 |
|
| 069 |
999-1032 |
Screw 1/4-20 x 5/8 hex head stainless steel |
1 |
|
| 070 |
999-0323 |
Screw 1/4-20 x 1/2 pan head slotted zinc plated |
1 |
|
| 071 |
999-0632 |
Washer 1/4 split lock stainless steel |
2 |
|
| 072 |
999-0016 |
Washer 1/4 flat plain finish |
2 |
|
| N/S |
175-6108 |
Height adjustment decal |
1 |
|
| N/S |
175-6111 |
Pe800 left side decal (OBSOLETE) |
1 |
|
| N/S |
175-6110 |
Pe800 right side decal (OBSOLETE) |
1 |
|
| N/S |
175-6107 |
Always drain decal |
1 |
|
| N/S |
275-9008 |
Warning decal |
1 |
|
| N/S |
175-6101 |
Always close decal |
1 |
|
| N/S |
275-2370 |
Read manual decal |
1 |
|
| N/S |
175-0027 |
25amp terminal strip |
1 |
|
| N/S |
175-6109 |
Do not allow foam decal |
1 |
|
| N/S |
175-6059 |
1.2 amp 220v circuit breaker |
1 |
|
| N/S |
175-6105 |
Nobles logo decal |
1 |
|
| N/S |
175-6104 |
Castex logo decal |
1 |
|
|
|

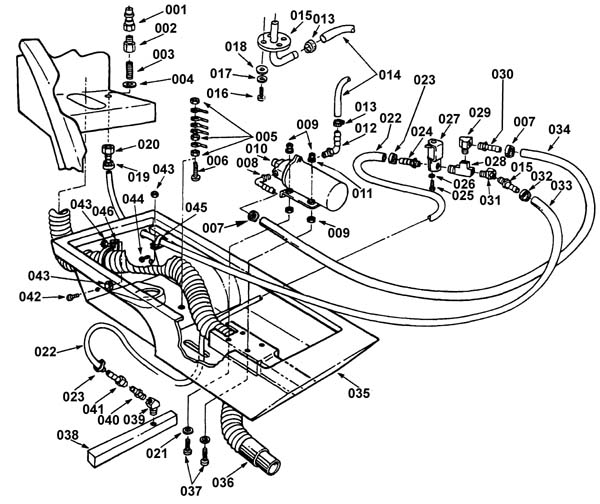

Plumbing - 175-6005 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 001 |
991-8150 |
1/4 inch BH2-61 male nipple (mate to QD80) |
1 |
|
| 004 |
999-0187 |
Washer 1/2 flat plain finish |
1 |
|
| 005 |
999-0356 |
Nut 10-24 lock stainless steel |
3 |
|
| 006 |
999-1195 |
Screw 10-24 x 1 1/4 round head phillips zinc plated |
1 |
|
| 007 |
175-0199 |
Hose clamp |
2 |
|
| 009 |
999-0356 |
Nut 10-24 lock stainless steel |
8 |
|
| 010a |
175-6011 |
120V 100 PSI pump |
1 |
|
| 010b |
175-6012 |
100 psi 240 v pump |
1 |
|
| 010c |
991-8225 |
Shurflo pump |
1 |
|
| 011 |
999-0006 |
Washer 3/16 flat zinc plated |
4 |
|
| 012 |
175-6019 |
90 degree barbed elbow |
1 |
|
| 013 |
175-6081 |
Hose clamp |
2 |
|
| 014 |
175-6020 |
Braided hose 3/8 x 45 inch (gray) |
3 ft |
|
| 015 |
175-6021 |
Bladder plate fitting |
1 |
|
| 016 |
999-1032 |
Screw 1/4-20 x 5/8 hex head stainless steel |
4 |
|
| 017 |
999-0632 |
Washer 1/4 split lock stainless steel |
4 |
|
| 018 |
999-0016 |
Washer 1/4 flat plain finish |
4 |
|
| 019 |
175-6081 |
Hose clamp |
1 |
|
| 020 |
175-6022 |
Brass fitting |
1 |
|
| 021 |
999-0393 |
Washer 3/16 flat aluminum |
4 |
|
| 022 |
175-6023 |
Hose 1/4 x 36 inch (gray) |
2 ft |
|
| 023 |
175-6170 |
Hose clamp |
2 |
|
| 025 |
999-0411 |
Screw 8-32 x 3/8 pan head slotted zinc plated |
2 |
|
| 026 |
999-1083 |
Washer #8 internal star lock stainless steel |
2 |
|
| 027a |
175-6025 |
Solution solenoid valve |
1 |
(if solenoid valve is leaking try replacing the plunger with spring first before replacing entire solenoid valve) |
| 027b |
991-8598 |
Replacement plunger with spring for solenoid valve |
1 |
|
| 027c |
175-6026 |
Solenoid valve 220 v 50 hz |
1 |
|
| 027d |
175-6027 |
Solenoid valve 100 v 50 hz (OBSOLETE) |
1 |
|
| 027e |
175-6028 |
Solenoid valve 240 v 50 hz |
1 |
|
| 028 |
175-6029 |
Straight tee |
1 |
|
| 029 |
175-2614 |
90 degree elbow fitting |
1 |
|
| 030 |
175-6030 |
Straight hosebarb |
1 |
|
| 031 |
175-6031 |
Straight jet fitting |
1 |
|
| 032 |
175-6032 |
Hose clamp |
1 |
|
| 033a |
175-6020 |
Braided hose 3/8 x 45 inch (gray) |
5 ft |
|
| 033b |
175-6020 |
Braided hose 3/8 x 45 inch (gray) |
5 ft |
|
| 034 |
175-6035 |
26 inch rubber hose (red) |
2 ft |
|
| 035a |
175-6036 |
Blue chassis |
1 |
|
| 035b |
175-6037 |
Chassis (gray) (OBSOLETE) |
1 |
|
| 036a |
175-6038 |
Vacuum hose with cuffs 1 1/2 x 53 inch |
1 |
(OEM) |
| 036b |
991-5154 |
Vacuum hose with cuffs 1 1/2 x 53 inch |
1 |
(NON-OEM) |
| 037 |
999-1195 |
Screw 10-24 x 1 1/4 round head phillips zinc plated |
4 |
|
| 038a |
175-6039 |
16 inch spray bar manifold |
1 |
|
| 038b |
175-6040 |
20 inch spray bar manifold |
1 |
|
| 039 |
175-6041 |
Elbow 1/8 x 1/8 inch |
1 |
|
| 042 |
999-0400 |
Screw 10-24 x 1 pan head phillips zinc plated |
1 |
|
| 043 |
999-0442 |
Nut 10-24 nylon insert lock stainless steel |
3 |
|
| 044 |
999-0034 |
Washer 3/8 split lock plain finish |
1 |
|
|
|

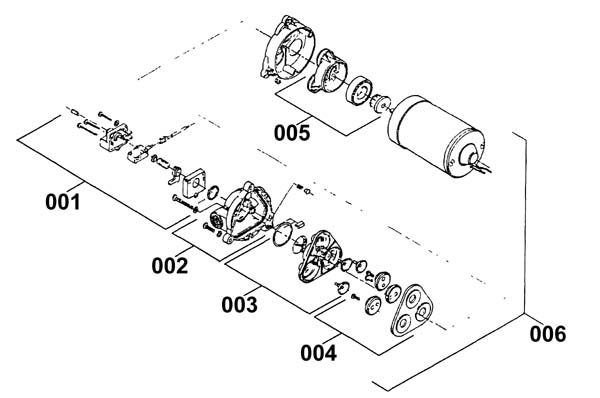

Pump - |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
|
|
- Extractor Fit All Parts - 999-9400 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 001a |
991-8000 |
12 inch stainless head wand, 1 jet 120 PSI plastic valve |
|
(wands) |
| 001b |
991-8001 |
12 inch aluminum head wand, 2 jet, 120 PSI (OBSOLETE) |
|
(wands) |
| 001c |
991-8002 |
12 inch aluminum head wand, 3 jet, 120 PSI plastic valve |
|
(wands) |
| 001d |
991-8227 |
500psi brass valve |
|
(wands) |
| 002a |
991-8222 |
30 inch stair wand (open spray) |
|
(stair wand) |
| 002b |
991-8223 |
30 inch swivel head ergonomic stair wand (open spray) |
|
(stair wand) |
| 004 |
991-8129 |
Handle 1-1/2 inch low profile comfort grip assist |
|
(wands) |
| 005a |
991-8128 |
120 PSI, acetel plastic valve, low heat 140 degrees |
|
(wands) |
| 005b |
991-8127 |
120 PSI, brass valve, stainless steel stem |
|
(wands) |
| 005d |
991-8171 |
400psi cast aluminum valve |
|
|
| 007 |
991-8130 |
3-1/2 inch wide 120 PSI standard detailer, external spray |
|
(wands) |
| 008 |
991-8132 |
10ft hide-a-hose vac/sol hose assembly w/1/4 male fittings |
|
(hose assemblies and parts) |
| 009 |
991-8133 |
20ft hide-a-hose vac/sol hose assembly w/1/4 male fittings |
|
(hose assemblies and parts) |
| 010 |
991-8136 |
10ft hide-a-hose vac/sol hose assembly w 1/4 male & 1/4 feml |
|
(hose assemblies and parts) |
| 011 |
991-8137 |
20ft hide-a-hose vac/sol hose assembly w/1/4 male & 1/4 feml |
|
(hose assemblies and parts) |
| 012 |
991-8134 |
10ft hide-a-hose vac/sol hose w/1/4 female fittings 300psi |
|
(hose assemblies and parts) |
| 013 |
991-8135 |
20ft hide-a-hose vac/sol hose assembly w/1/4 female fittings |
|
(hose assemblies and parts) |
| 014 |
991-8138 |
10ft 100psi vac/sol hose assembly w/ 1/4 male fittings |
|
(hose assemblies and parts) |
| 015 |
991-8139 |
20ft 100psi vac/sol hose assembly with male fittings |
|
(hose assemblies and parts) (Maximum heat rating of 70 degrees and 100 PSI) |
| 016 |
991-8142 |
10ft 100psi vac/sol hose assembly w/1/4 female & 1/4 male |
|
(hose assemblies and parts) |
| 017 |
991-8143 |
20ft 100psi vac/sol hose assembly w/1/4 female & 1/4 male |
|
(hose assemblies and parts) |
| 018 |
991-8140 |
10ft 100psi vac/sol hose assembly w/ 1/4 female fittings |
|
(hose assemblies and parts) |
| 021 |
991-8004 |
1 1/2 inch vacuum hose (sold by the foot) |
|
(hose assemblies and parts) |
| 022 |
991-8005 |
1 1/2 inch replacement hose cuff (black) |
|
(hose assemblies and parts) |
| 023 |
991-8131 |
1 1/2 inch hide-a-hose cuff (no swivel) |
|
(hose assemblies and parts) |
| 026 |
991-8045 |
1/8 inch brass vee jet 8001 |
|
(1/8 brass vee jet) |
| 027 |
991-8046 |
1/8 inch brass vee jet 8001.5 |
|
(1/8 brass vee jet) |
| 028 |
991-8047 |
1/8 inch brass vee jet 8002 |
|
(1/8 brass vee jet) |
| 029 |
991-8048 |
1/8 inch brass vee jet 8003 |
|
(1/8 brass vee jet) |
| 030 |
991-8049 |
1/8 inch brass vee jet 8004 |
|
(1/8 brass vee jet) |
| 031 |
991-8050 |
1/8 inch brass vee jet 8005 (OBSOLETE) |
|
(1/8 brass vee jet) |
| 032 |
991-8051 |
1/8 inch brass vee jet 8006 |
|
(1/8 brass vee jet) |
| 033 |
991-8052 |
1/8 inch brass vee jet 8008 |
|
(1/8 brass vee jet) |
| 034 |
991-8053 |
1/8 inch brass vee jet 8010 |
|
(1/8 brass vee jet) |
| 035 |
991-8054 |
1/8 inch brass vee jet 9502 |
|
(1/8 brass vee jet) |
| 036 |
991-8055 |
1/8 inch brass vee jet 9503 |
|
(1/8 brass vee jet) |
| 037 |
991-8056 |
1/8 inch brass vee jet 9504 |
|
(1/8 brass vee jet) |
| 038 |
991-8057 |
1/8 inch brass vee jet 9505 |
|
(1/8 brass vee jet) |
| 039 |
991-8058 |
1/8 inch brass vee jet 9506 |
|
(1/8 brass vee jet) |
| 040 |
991-8059 |
1/8 inch brass vee jet 9508 |
|
(1/8 brass vee jet) |
| 041 |
991-8060 |
1/8 inch brass vee jet 11001 |
|
(1/8 brass vee jet) |
| 042 |
991-8061 |
1/8 inch brass vee jet 11001.5 |
|
(1/8 brass vee jet) |
| 043 |
991-8062 |
1/8 inch brass vee jet 11002 |
|
(1/8 brass vee jet) |
| 044 |
991-8063 |
1/8 inch brass vee jet 11003 |
|
(1/8 brass vee jet) |
| 045 |
991-8064 |
1/8 inch brass vee jet 11004 |
|
(1/8 brass vee jet) |
| 046 |
991-8065 |
1/8 inch brass vee jet 11005 |
|
(1/8 brass vee jet) |
| 047 |
991-8066 |
1/8 inch brass vee jet 11006 |
|
(1/8 brass vee jet) |
| 048 |
991-8067 |
1/8 inch brass vee jet 11008 |
|
(1/8 brass vee jet) |
| 049 |
991-8068 |
1/8 inch brass vee jet 11010 |
|
(1/8 brass vee jet) |
| 050 |
991-8021 |
1/4 inch brass vee jet 8001 |
|
(1/4 brass vee jet) |
| 051 |
991-8022 |
1/4 inch brass vee jet 8001.5 |
|
(1/4 brass vee jet) |
| 052 |
991-8023 |
1/4 inch brass vee jet 8002 |
|
(1/4 brass vee jet) |
| 053 |
991-3005 |
1/4 inch brass vee jet 8003 |
|
(1/4 brass vee jet) |
| 054 |
991-8025 |
1/4 inch brass vee jet 8004 |
|
(1/4 brass vee jet) |
| 055 |
991-8026 |
1/4 inch brass vee jet 8005 |
|
(1/4 brass vee jet) |
| 056 |
991-8027 |
1/4 inch brass vee jet 8006 |
|
(1/4 brass vee jet) |
| 057 |
991-8028 |
1/4 inch brass vee jet 8008 |
|
(1/4 brass vee jet) |
| 058 |
991-8029 |
1/4 inch brass vee jet 8010 |
|
(1/4 brass vee jet) |
| 059 |
991-8030 |
1/4 inch brass vee jet 9502 |
|
(1/4 brass vee jet) |
| 060 |
991-8031 |
1/4 inch brass vee jet 9503 |
|
(1/4 brass vee jet) |
| 061 |
991-8032 |
1/4 inch brass vee jet 9504 |
|
(1/4 brass vee jet) |
| 062 |
991-8033 |
1/4 inch brass vee jet 9505 |
|
(1/4 brass vee jet) |
| 063 |
991-8034 |
1/4 inch brass vee jet 9506 |
|
(1/4 brass vee jet) |
| 064 |
991-8035 |
1/4 inch brass vee jet 9508 |
|
(1/4 brass vee jet) |
| 065 |
991-8036 |
1/4 inch brass vee jet 11001 |
|
(1/4 brass vee jet) |
| 066 |
991-8037 |
1/4 inch brass vee jet 11001.5 |
|
(1/4 brass vee jet) |
| 067 |
991-8038 |
1/4 inch brass vee jet 11002 |
|
(1/4 brass vee jet) |
| 068 |
991-8039 |
1/4 inch brass vee jet 11003 |
|
(1/4 brass vee jet) |
| 069 |
991-8040 |
1/4 inch brass vee jet 11004 |
|
(1/4 brass vee jet) |
| 070 |
991-8041 |
1/4 inch brass vee jet 11005 (OBSOLETE) |
|
(1/4 brass vee jet) |
| 071 |
991-8042 |
1/4 inch brass vee jet 11006 |
|
(1/4 brass vee jet) |
| 072 |
991-3006 |
1/4 inch brass vee jet 11008 |
|
(1/4 brass vee jet) |
| 073 |
991-8044 |
1/4 inch brass vee jet 11010 |
|
(1/4 brass vee jet) |
| 074 |
991-8069 |
1/4 inch stainless vee jet 8001 |
|
(1/4 stainless vee jet) |
| 075 |
991-8070 |
1/4 inch stainless vee jet 8002 |
|
(1/4 stainless vee jet) |
| 076 |
991-8071 |
1/4 inch stainless vee jet 8003 |
|
(1/4 stainless vee jet) |
| 077 |
991-8072 |
1/4 inch stainless vee jet 8004 |
|
(1/4 stainless vee jet) |
| 078 |
991-8073 |
1/4 inch stainless vee jet 9501 |
|
(1/4 stainless vee jet) |
| 079 |
991-8074 |
1/4 inch stainless vee jet 9502 |
|
(1/4 stainless vee jet) |
| 080 |
991-8085 |
1/4 inch stainless/plastic tee jet 9502 |
|
(1/4 stainless vee jet) |
| 081 |
991-8076 |
1/4 inch stainless vee jet 9504 |
|
(1/4 stainless vee jet) |
| 082 |
991-8077 |
1/4 inch stainless vee jet 11003 |
|
(1/4 stainless vee jet) |
| 083 |
991-8078 |
1/4 inch stainless vee jet 11004 |
|
(1/4 stainless vee jet) |
| 084 |
991-8079 |
1/4 inch stainless vee jet 11006 |
|
(1/4 stainless vee jet) |
| 085 |
991-8080 |
1/4 inch stainless vee jet 11008 |
|
(1/4 stainless vee jet) |
| 086 |
991-8081 |
1/4 inch stainless/plastic tee jet 8002 |
|
(1/4 stainless/plastic tee jet) |
| 087 |
991-8082 |
1/4 inch stainless/plastic tee jet 8003 |
|
(1/4 stainless/plastic tee jet) |
| 088 |
991-8083 |
1/4 inch stainless/plastic tee jet 8004 |
|
(1/4 stainless/plastic tee jet) |
| 089 |
991-8084 |
1/4 inch stainless/plastic tee jet 9501 (OBSOLETE) |
|
(1/4 stainless/plastic tee jet) |
| 090 |
991-8085 |
1/4 inch stainless/plastic tee jet 9502 |
|
(1/4 stainless/plastic tee jet) |
| 091 |
991-8086 |
1/4 inch stainless/plastic tee jet 9504 |
|
(1/4 stainless/plastic tee jet) |
| 092 |
991-3010 |
1/4 inch stainless/plastic tee jet 11003 |
|
(1/4 stainless/plastic tee jet) |
| 093 |
991-8088 |
1/4 inch stainless/plastic tee jet 11004 |
|
(1/4 stainless/plastic tee jet) |
| 094 |
991-8089 |
1/4 inch stainless/plastic tee jet 11006 |
|
(1/4 stainless/plastic tee jet) |
| 095 |
991-8090 |
1/4 inch stainless/plastic tee jet 11008 |
|
(1/4 stainless/plastic tee jet) |
| 096 |
991-8091 |
1/4 inch x 1/8 hex nipple H21 |
|
|
| 097 |
991-8092 |
1/4 inch x 1/4 hex nipple H22 |
|
|
| 098 |
991-8093 |
1/4 inch x 3/8 hex nipple H23 |
|
|
| 099 |
991-8094 |
45 degree street elbow 1/4 inch H24 |
|
|
| 100 |
991-8095 |
45 degree street elbow 1/8 inch H25 |
|
|
| 101 |
991-8096 |
45 degree union elbow 1/4 inch H26 |
|
|
| 102 |
991-8098 |
90 degree street elbow short 1/4 inch H28 |
|
|
| 103 |
991-8098 |
90 degree street elbow short 1/4 inch H28 |
|
|
| 104 |
991-8099 |
90 degree street elbow 1/8 inch H29 |
|
|
| 105 |
991-8100 |
90 degree street elbow short 1/8 inch H30 |
|
|
| 106 |
991-8101 |
90 degree union elbow 1/4 inch H31 |
|
|
| 107 |
991-8102 |
90 degree union elbow 1/8 inch H32 |
|
|
| 108 |
991-8103 |
30 degree union elbow 1/4 inch H33 |
|
|
| 109 |
991-8104 |
1/4 inch coupling H34 |
|
|
| 110 |
991-8105 |
1/8 inch coupling H35 |
|
|
| 111 |
991-8106 |
1/4 inch adapter H36 |
|
|
| 112 |
991-8107 |
1/8 inch adapter H37 |
|
|
| 113 |
991-8108 |
1/4 inch branch tee H38 |
|
|
| 114 |
991-8109 |
1/8 inch branch tee H39 |
|
|
| 115 |
991-8110 |
1/8 inch tee H40 |
|
|
| 116 |
991-8111 |
7/16 inch stainless steel hose clamp H41 |
|
|
| 117 |
997-2002 |
Hose clamp #6 |
|
|
| 118 |
991-8113 |
Strainer for 1/8 inch vee jets H43 |
|
|
| 119 |
991-8114 |
Strainer for 1/4 inch vee jets H44 |
|
|
| 120 |
991-8115 |
Strainer/check valve for 1/4 inch vee jets H45 |
|
|
| 121 |
991-8116 |
Brass strainer/check valve for tee jets H46 |
|
|
| 122 |
991-8117 |
500 PSI ball valve 1/4 inch fpt x 1/4 inch fpt H47 |
|
|
| 123 |
991-8118 |
500 PSI ball valve 3/8 inch fpt x 3/8 inch fpt H48 |
|
|
| 124 |
991-8119 |
500 PSI ball valve 1/4 inch mpt x 3/8 inch fpt H49 |
|
|
| 125 |
991-8120 |
1/4 inch brass flood jets K1 or K2 H54 |
|
|
| 126 |
991-8158 |
1/4 inch BH2-60 female coupler (mate to QD40) |
|
|
| 127 |
991-8150 |
1/4 inch BH2-61 male nipple (mate to QD80) |
|
|
| 128 |
991-8144 |
B2C, 1/4 inch mpt, male nipple, mate to QD50 or QD55 |
|
|
| 129 |
991-8152 |
B12, 1/4 inch mpt, female coupler, mate to QD10 or QD15 |
|
|
| 130 |
991-8145 |
B3C, 1/4 inch fpt, male nipple, mate to QD50 or QD55 |
|
|
| 131 |
991-8153 |
B13, 1/4 inch fpt, female coupler, mate to QD10 or QD15 |
|
|
| 132 |
991-8146 |
BH2C, 1/4 inch, mpt male nipple, mate to QD60 or QD65 |
|
|
| 133 |
991-8154 |
B22, 1/4 inch mpt, female coupler, mate to QD20 or QD25 |
|
|
| 134 |
991-8147 |
BH3C, 1/4 inch fpt, male nipple, mate to QD60 or QD65 |
|
|
| 135 |
991-8155 |
B23, 1/4 inch fpt, female coupler, mate to QD20 or QD25 |
|
|
| 136 |
991-8148 |
Hansen 02 male nipple, mate to QD70 |
|
|
| 137 |
991-8156 |
Quick disconnect socket female to QD30 |
|
|
| 138 |
991-8149 |
1/8 inch male quick disconnect |
|
|
| 139 |
991-8157 |
1/8 inch female quick disconnect socket |
|
|
| 140 |
991-8151 |
BH3-61,3/8 inch FPT, Male Nipple, mate to QD85 |
|
|
| 141 |
991-8159 |
BH3-60, 3/8 inch fpt, female coupler, mate to QD45 |
|
|
| 142 |
991-8123 |
Bottom hex nut for Kingston or P valve H57 |
|
|
| 143 |
991-8121 |
1/8 inch brass flood jets K1 or K2 H55 |
|
|
| 144 |
991-8124 |
Inline filter H58 |
|
|
| 145 |
991-8122 |
1/8 inch special brass flood jets for V1245 H56 |
|
|
| 146 |
991-8008 |
120V 50 PSI Flo Jet pump |
|
(pumps) |
| 147 |
991-8009 |
120V 100 PSI Flo Jet pump |
|
(pumps) |
| 148 |
991-8218 |
120V 120 PSI pump |
|
(pumps) |
| 149 |
991-8220 |
1/8 fpt brass female connector |
|
|
| 150 |
991-1835 |
Crevice tool |
|
|
|
|
|
