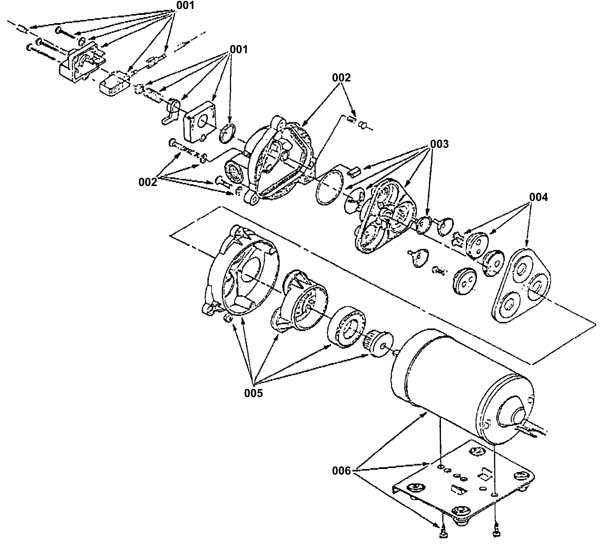

Motor Assembly - 175-6203 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 000 |
175-6299 |
Pump motor assembly (OBSOLETE) |
1 |
|
| 001 |
175-6300 |
Switch assembly 100 psi (OBSOLETE) |
1 |
|
| 002 |
175-6301 |
Female upper housing (OBSOLETE) |
1 |
|
| 003 |
175-6302 |
EPDM valve assembly (OBSOLETE) |
1 |
|
| 004 |
175-6303 |
Diaphragm kit santoprene |
1 |
|
| 005 |
175-6304 |
Lower housing drive assembly (OBSOLETE) |
1 |
|
| N/S |
175-6306 |
Rectifier kit (OBSOLETE) |
1 |
|
|
|
Main Frame and Water Assembly - 175-6204 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 001 |
175-6307 |
Frame (OBSOLETE) |
1 |
|
| 002 |
175-6308 |
Wheels 10 diameter (OBSOLETE) |
2 |
|
| 003 |
175-6309 |
Axle spacer (OBSOLETE) |
2 |
|
| 004 |
999-9079 |
Screw M8 x 80mm hex head stainless steel |
2 |
|
| 005 |
175-6311 |
Grommet (OBSOLETE) |
1 |
|
| 006 |
175-6312 |
Washer flat (OBSOLETE) |
4 |
|
| 007 |
999-0471 |
Nut M8-1.25 nylon insert lock zinc plated |
2 |
|
| 008 |
175-6313 |
Data plate decal (OBSOLETE) |
1 |
|
| 009 |
175-6314 |
Screw hex head (OBSOLETE) |
4 |
|
| 010 |
175-6315 |
Nut hex lock (OBSOLETE) |
8 |
|
| 011 |
999-9100 |
Washer M5 flat stainless steel |
8 |
|
| 012 |
175-6299 |
Pump motor assembly (OBSOLETE) |
1 |
|
| 013 |
175-6316 |
Hose adapter 3/8 x 3/8 (OBSOLETE) |
1 |
|
| 014 |
175-6317 |
Hose clamp (OBSOLETE) |
3 |
|
| 015 |
175-6318 |
Hose 3/8 x 8 inch |
1 |
|
| 016 |
175-6319 |
Grommet (OBSOLETE) |
1 |
|
| 017 |
175-6320 |
Elbow fitting (OBSOLETE) |
1 |
|
| 018 |
175-6321 |
Hose (OBSOLETE) |
1 |
|
| 019 |
175-0411 |
Cable clip |
1 |
|
| 020 |
175-6322 |
Wiring decal (OBSOLETE) |
1 |
|
| 021 |
999-0569 |
Screw 10 x 1/2 pan head phillips sheet metal |
2 |
|
| 022 |
175-6323 |
Washer lock (OBSOLETE) |
2 |
|
| 023 |
175-6324 |
Grommet (OBSOLETE) |
1 |
|
| 024 |
175-6325 |
Pump cover (OBSOLETE) |
1 |
|
| 025 |
999-0517 |
Bolt M8-1.25 x 16mm hex head full thread zinc |
4 |
|
| 026 |
175-0399 |
Washer 8mm plain (OBSOLETE) |
4 |
|
| 027 |
175-2844 |
90 degree elbow fitting |
1 |
|
| 028 |
175-6326 |
Hex plug pipe (OBSOLETE) |
1 |
|
| 030 |
175-6328 |
Manifold (OBSOLETE) |
1 |
|
| 031 |
175-6329 |
Water pickup shoe (OBSOLETE) |
1 |
|
| 032 |
175-4192 |
Quick jet body |
4 |
|
| 033 |
175-4193 |
Quick jet gasket |
4 |
|
| 034 |
175-4194 |
Quick jet cap (green) |
4 |
|
| 035a |
175-4195 |
Brass spray nozzle 11015 (E-17P and E-179PR only) (OBSOLETE) |
4 |
|
| 035b |
175-6330 |
Spray nozzle |
4 |
|
| 036 |
175-6331 |
Vacuum shoe glide (OBSOLETE) |
2 |
|
| 037 |
999-0581 |
Bolt M8-1.25 x 25mm hex head full thread zinc |
4 |
|
| 038 |
175-6332 |
Washer lock (OBSOLETE) |
4 |
|
| 039 |
175-6333 |
Washer 8.4mm 17 1.6 flat stainless steel (OBSOLETE) |
4 |
|
| 040 |
175-6334 |
Street elbow (OBSOLETE) |
1 |
|
| 041 |
N/A |
Not available |
1 |
(Check valve) |
| 042 |
175-6336 |
Hose fitting (OBSOLETE) |
1 |
|
| 043 |
175-6337 |
Hose clamp |
3 |
|
| 044 |
175-6326 |
Hex plug pipe (OBSOLETE) |
1 |
|
| 045 |
175-6338 |
Quick connect fitting (OBSOLETE) |
1 |
|
| 046 |
175-9723 |
Brass female quick connect fitting |
1 |
|
| 047 |
175-6340 |
Coupling mount angle (OBSOLETE) |
1 |
|
| 048 |
999-0507 |
Bolt M6-1 x 16mm hex head full thread plain finish |
2 |
|
| 050 |
999-0471 |
Nut M8-1.25 nylon insert lock zinc plated |
2 |
|
| 051 |
175-6341 |
Vacuum hose (OBSOLETE) |
1 |
|
| 052 |
175-2844 |
90 degree elbow fitting |
1 |
|
| 053 |
175-6342 |
Hose (OBSOLETE) |
1 |
|
| 054 |
175-6343 |
Anchor connector (OBSOLETE) |
1 |
|
|
|

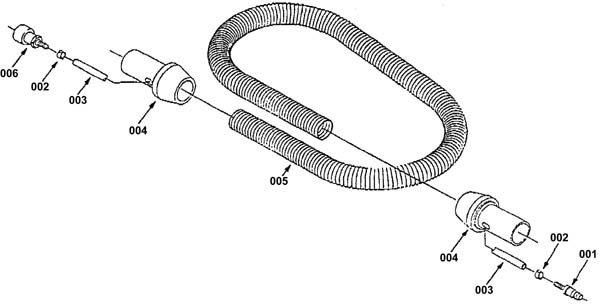

Hose Assembly - 175-6205 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 000 |
175-6344 |
Power wand hose assembly |
1 |
|
| 001 |
175-6345 |
Quick connect male fitting |
1 |
|
| 002 |
175-6346 |
Hose clamp |
2 |
|
| 003 |
175-6347 |
Hose 1/4 inch x 13 foot |
1 |
|
| 004 |
175-6348 |
1 1/2 inch swivel cuff |
2 |
|
| 005 |
175-6349 |
Vacuum hose 1 1/2 x 10 foot |
1 |
|
| 006 |
175-6350 |
Quick connect female connector |
1 |
|
|
|

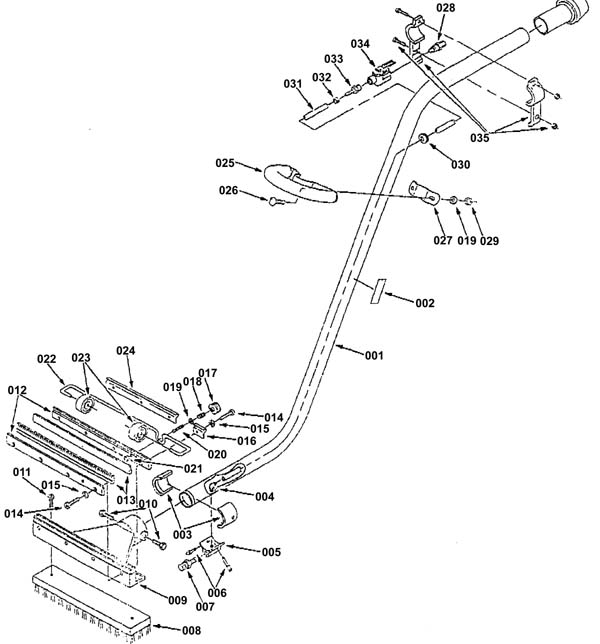

Hard Floor Wand - 175-6206 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 001 |
175-6351 |
Double bend wand |
1 |
|
| 002 |
175-6352 |
Id label (OBSOLETE) |
1 |
|
| 003 |
175-6353 |
Head and wand adapter |
1 |
|
| 004 |
175-1662 |
90 degree elbow fitting |
1 |
|
| 005 |
175-6354 |
Spray nozzle adapter |
2 |
|
| 007 |
175-6356 |
Spray nozzle |
1 |
|
| 008 |
175-6357 |
Wand attachment brush |
2 |
|
| 009 |
175-6358 |
Wand head (OBSOLETE) |
1 |
|
| 010 |
999-0557 |
Screw 1/4-20 x 1/2 truss head slotted stainless steel |
1 |
|
| 011 |
175-6360 |
Screw 10 - 16 x 3/4 phillips head self-tapping (OBSOLETE) |
1 |
|
| 012 |
175-6361 |
Squeegee blade retainer |
2 |
|
| 013 |
175-6362 |
Squeegee blade 17 inch |
2 |
|
| 014 |
999-1040 |
Screw M3-.5 x 20mm pan head |
2 |
|
| 015 |
175-6323 |
Washer lock (OBSOLETE) |
2 |
|
| 016 |
175-6363 |
Axle bracket |
8 |
|
| 018 |
175-6364 |
Compression spring |
1 |
|
| 019 |
999-1261 |
Washer M6 flat stainless steel |
1 |
|
| 020 |
175-6366 |
Adjustment stud |
1 |
|
| 021 |
175-6367 |
Nut jam m6 (OBSOLETE) |
3 |
|
| 023 |
175-6369 |
Wheel (rubber) |
1 |
|
| 024 |
175-6370 |
Axle bracket |
1 |
|
| 025 |
175-6371 |
Wand handle |
2 |
|
| 027 |
175-6373 |
Handle bracket |
1 |
|
| 028 |
175-6374 |
Male quick connect plug |
2 |
|
| 029 |
175-6375 |
Nut hex lock .25-20 unc (OBSOLETE) |
1 |
|
| 031 |
175-6377 |
Solution hose |
2 |
|
| 032 |
175-6378 |
Hose clamp |
1 |
|
| 033 |
175-6379 |
1/4 inch hose barb fitting |
1 |
|
| 034 |
175-1683 |
Water control valve |
1 |
|
| 035 |
175-6380 |
Valve mounting bracket |
1 |
|
|
|

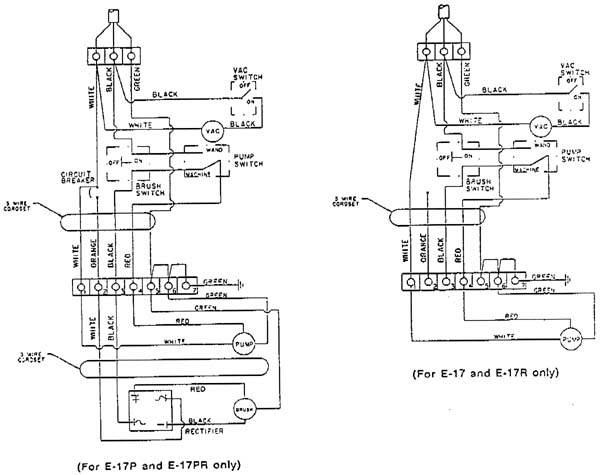

Electrical Shematic - |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
|
|

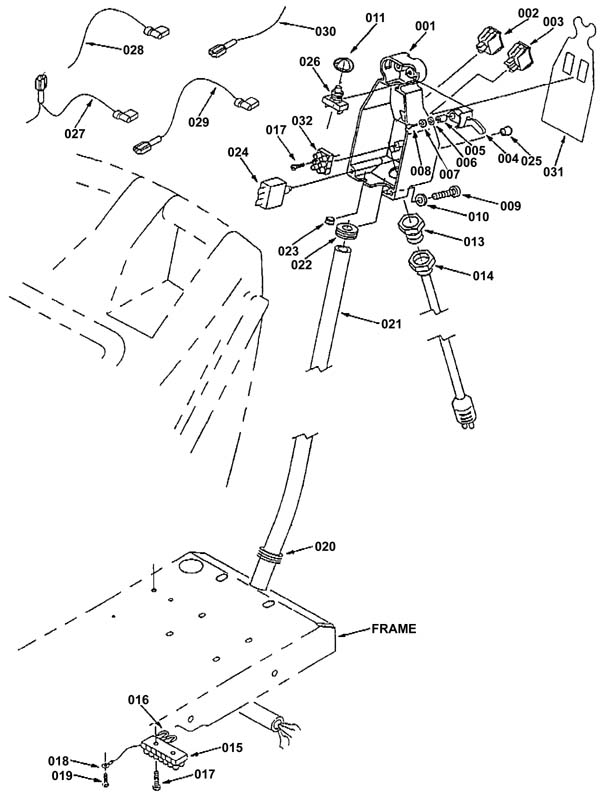

Electrical Panel Assembly - 175-6208 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 001 |
175-6381 |
Console cover (OBSOLETE) |
1 |
|
| 002 |
N/A |
Not available |
1 |
(rocker switch) |
| 003 |
175-0136 |
On/off rocker switch |
1 |
|
| 004 |
175-6383 |
Trigger arm (OBSOLETE) |
2 |
|
| 005 |
175-6384 |
Trigger spacer |
2 |
|
| 006 |
999-1115 |
Washer M4 flat zinc plated |
2 |
|
| 007 |
999-0479 |
Washer #4 internal star lock zinc plated |
2 |
|
| 008 |
999-0805 |
Bolt M3-.5 x 16mm hex head |
2 |
|
| 009 |
999-1085 |
Screw M5-.8 x 30mm pan head phillips zinc plated |
2 |
|
| 010 |
175-6323 |
Washer lock (OBSOLETE) |
2 |
|
| 011 |
175-6386 |
Washer 1/2 flat spring disc zinc plated |
1 |
|
| 013 |
175-6387 |
Pigtail strain relief (OBSOLETE) |
1 |
|
| 014 |
175-6388 |
Cord set (OBSOLETE) |
1 |
|
| 015 |
175-6389 |
Terminal block and pin |
1 |
|
| 016 |
175-6390 |
Jumper wire (OBSOLETE) |
2 |
|
| 017 |
175-6391 |
Screw 6 pan head self-tapping type 3 (OBSOLETE) |
4 |
|
| 018 |
175-6392 |
Ground wire assembly (OBSOLETE) |
1 |
|
| 019 |
175-6393 |
Screw 10 - 3/8 slotted zince plated hex head type f (OBS) |
1 |
|
| 020 |
175-6394 |
Motor frame strain relief (OBSOLETE) |
1 |
|
| 021a |
175-6395 |
5 wire harness (OBSOLETE) |
1 |
|
| 021b |
175-6396 |
5 wire harness (OBSOLETE) |
1 |
|
| 022 |
175-6311 |
Grommet (OBSOLETE) |
1 |
|
| 023 |
175-6397 |
Grommet (OBSOLETE) |
1 |
|
| 024 |
175-6398 |
Circuit breaker 3 amp (OBSOLETE) |
1 |
|
| 025 |
175-6399 |
Button plug (OBSOLETE) |
1 |
|
| 026 |
175-6400 |
Push button switch kit |
1 |
|
| 028 |
175-6402 |
Accessory switch wire assembly (OBSOLETE) |
1 |
|
| 029 |
175-6403 |
Vacuum switch wire assembly (OBSOLETE) |
1 |
|
| 030 |
175-6404 |
Vacuum motor wire assembly (OBSOLETE) |
1 |
|
| 031a |
175-6405 |
Console decal (OBSOLETE) |
1 |
|
| 031b |
175-6406 |
Console decal (OBSOLETE) |
1 |
|
| 032 |
175-0027 |
25amp terminal strip |
1 |
|
|
|

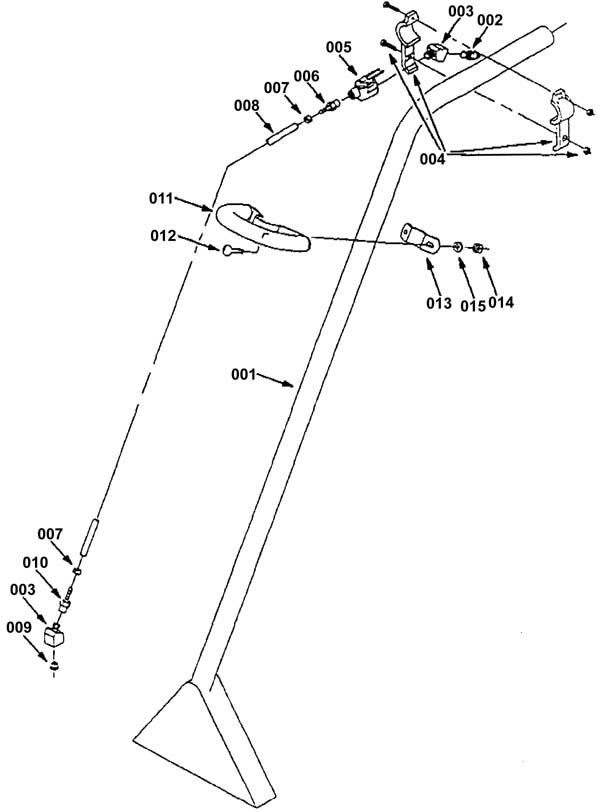

Carpet Wand Assembly - 175-6209 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 001 |
175-6408 |
Carpet wand assembly (OBSOLETE) |
1 |
|
| 002 |
175-6374 |
Male quick connect plug |
1 |
|
| 003 |
175-6031 |
Straight jet fitting |
2 |
|
| 004 |
175-6380 |
Valve mounting bracket |
1 |
|
| 005 |
175-1683 |
Water control valve |
1 |
|
| 006 |
175-6379 |
1/4 inch hose barb fitting |
1 |
|
| 007 |
175-6346 |
Hose clamp |
2 |
|
| 008 |
175-6409 |
43 1/2 inch PVC hose |
1 |
|
| 009 |
175-6410 |
Quick-jet tip spray |
1 |
|
| 010 |
175-6411 |
Hose barb fitting (OBSOLETE) |
1 |
|
| 011 |
175-6371 |
Wand handle |
1 |
|
| 013 |
175-6373 |
Handle bracket |
1 |
|
| 014 |
175-6375 |
Nut hex lock .25-20 unc (OBSOLETE) |
2 |
|
| 015 |
999-1261 |
Washer M6 flat stainless steel |
3 |
|
| KIT |
175-6412 |
Handle assembly (OBSOLETE) |
1 |
|
|
|

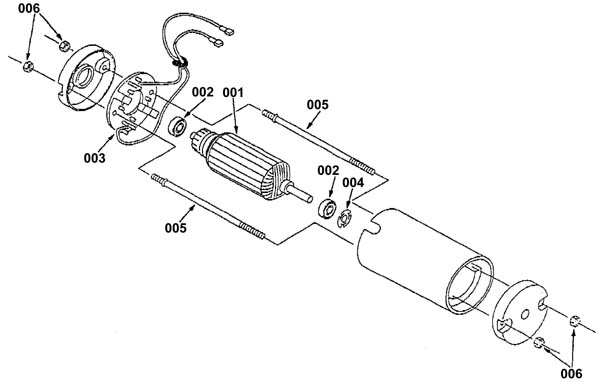

Brush Motor Assembly - 175-6210 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 000 |
175-6413 |
Brush motor assembly (OBSOLETE) |
1 |
|
| 001 |
175-6414 |
Armature with bearing (OBSOLETE) |
1 |
|
| 002 |
175-6415 |
Bearing (OBSOLETE) |
2 |
|
| 003 |
175-6416 |
Brush holder assembly (OBSOLETE) |
1 |
|
| 004 |
175-6417 |
Thrust washer (OBSOLETE) |
1 |
|
| 005 |
175-6418 |
Bolt through (OBSOLETE) |
2 |
|
| 006 |
999-0460 |
Nut 10-32 hex |
4 |
|
|
|

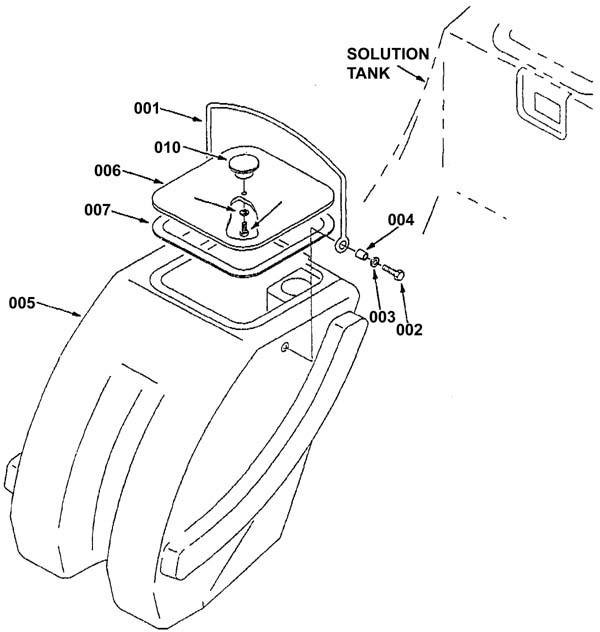

Non-Recycle Recovery Tank Assembly - 175-6211 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 001 |
175-6419 |
Tank handle (OBSOLETE) |
1 |
|
| 002 |
175-3679 |
Screw M8 x 1 1/4 x 20 |
2 |
|
| 003 |
175-6333 |
Washer 8.4mm 17 1.6 flat stainless steel (OBSOLETE) |
2 |
|
| 004 |
175-1450 |
Washer 25/64 x 17/64 (OBSOLETE) |
2 |
|
| 005 |
175-6420 |
Recovery pail tank (OBSOLETE) |
1 |
|
| 006 |
175-6421 |
Recovery tank assembly cover (OBSOLETE) |
1 |
|
| 007 |
175-6422 |
Recovery tank cover gasket (OBSOLETE) |
1 |
|
| 008 |
999-0456 |
Screw 1/4-20 x 3/4 pan head phillips stainless steel |
1 |
|
| 009 |
999-1261 |
Washer M6 flat stainless steel |
1 |
|
| 010 |
175-6425 |
Fill cover knob (OBSOLETE) |
1 |
|
|
|

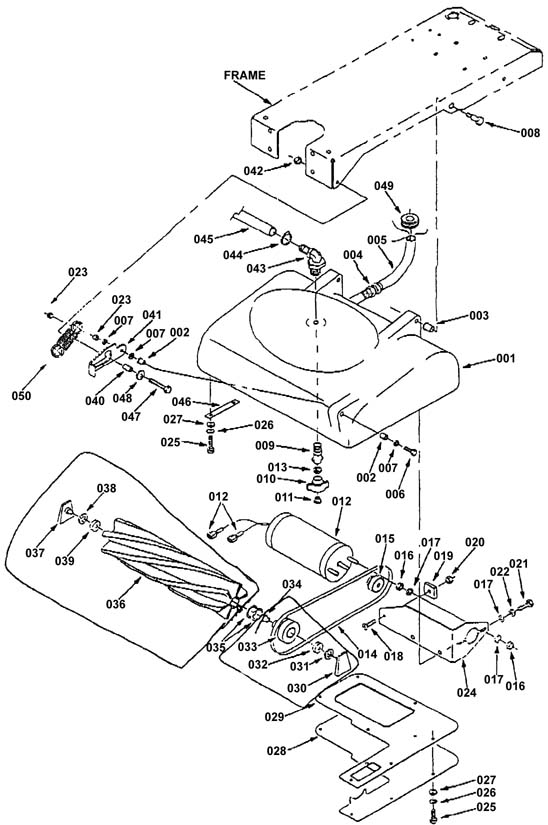

Powerbrush Assembly - 175-6212 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 001 |
175-6426 |
Brush assembly housing (OBSOLETE) |
1 |
|
| 002 |
175-6427 |
Flange bearing (OBSOLETE) |
2 |
|
| 003 |
175-5163 |
Flanged bearing |
2 |
|
| 004 |
175-6428 |
Liquid tight fitting 3/8 nickel plated thread (OBSOLETE) |
1 |
|
| 005 |
175-6429 |
Harness 3 wire (OBSOLETE) |
1 |
|
| 006 |
175-6430 |
Screw m06 x 45 hex head (OBSOLETE) |
1 |
|
| 007 |
999-1261 |
Washer M6 flat stainless steel |
3 |
|
| 008 |
999-1256 |
Screw 5/16-18 x 3/8 x 1 socket head shoulder |
2 |
|
| 009 |
175-4192 |
Quick jet body |
1 |
|
| 010 |
175-6431 |
Quick-jet cap |
1 |
|
| 011 |
175-6432 |
Quick jet tip (OBSOLETE) |
1 |
|
| 012 |
175-6413 |
Brush motor assembly (OBSOLETE) |
1 |
|
| 013 |
175-4193 |
Quick jet gasket |
1 |
|
| 015 |
175-6434 |
Motor sheave (OBSOLETE) |
1 |
|
| 016 |
999-0460 |
Nut 10-32 hex |
4 |
|
| 018 |
175-2897 |
Screw M5 x 16mm |
1 |
|
| 020 |
175-6436 |
Nut m05 hex lock (OBSOLETE) |
1 |
|
| 021 |
175-5113 |
Bolt M6 x 12mm hex head |
2 |
|
| 023 |
999-0471 |
Nut M8-1.25 nylon insert lock zinc plated |
2 |
|
| 024 |
175-6438 |
Motor mounting bracket |
1 |
|
| 026 |
175-6440 |
Washer 4.1 lock (OBSOLETE) |
10 |
|
| 027 |
999-1652 |
Washer M4.3 flat |
10 |
|
| 028 |
175-6441 |
Base assembly plate (OBSOLETE) |
1 |
|
| 029 |
175-6442 |
Floor plate gasket (OBSOLETE) |
1 |
|
| 030 |
175-6445 |
Bearing mount |
1 |
|
| 031 |
175-6444 |
Brush seal |
1 |
|
| 032a |
175-0069 |
Brush bearing |
1 |
(OEM) |
| 032b |
991-5125 |
Brush bearing |
1 |
(NON-OEM) |
| 033 |
175-6443 |
Brush assembly pully (OBSOLETE) |
1 |
|
| 034 |
175-6446 |
Cap plug (OBSOLETE) |
1 |
|
| 035 |
175-6447 |
Washer wave |
2 |
|
| 036 |
175-6448 |
Brush assembly |
1 |
|
| 037 |
175-6445 |
Bearing mount |
1 |
|
| 038 |
175-6444 |
Brush seal |
1 |
|
| 039a |
175-0069 |
Brush bearing |
1 |
(OEM) |
| 039b |
991-5125 |
Brush bearing |
1 |
(NON-OEM) |
| 040 |
175-6451 |
Spaces 7/16 x 1.85 (OBSOLETE) |
1 |
|
| 041 |
175-6452 |
Head lift angle (OBSOLETE) |
1 |
|
| 042 |
999-0211 |
Nut 5/16-18 hex nylon insert lock zinc plated |
1 |
|
| 043 |
175-2844 |
90 degree elbow fitting |
1 |
|
| 045 |
175-6453 |
Black hose 190mm (OBSOLETE) |
1 |
|
| 046 |
175-6454 |
Bearing retaining strap (OBSOLETE) |
1 |
|
| 047 |
175-6455 |
Screw 5/16 - 18 hex head (OBSOLETE) |
1 |
|
| 048 |
175-0399 |
Washer 8mm plain (OBSOLETE) |
1 |
|
| 049 |
175-6456 |
Motor leads strain relief (OBSOLETE) |
1 |
|
| 050 |
175-6457 |
Spring 38.1 12.7 1.04 (OBSOLETE) |
1 |
|
|
|

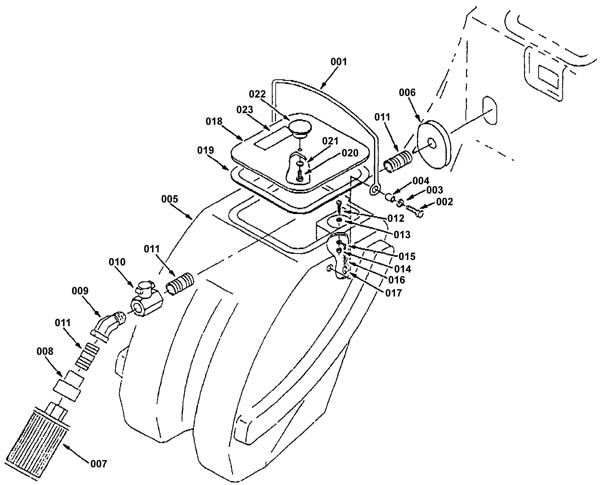

Recycle Recovery Tank Assembly - 175-6213 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 001 |
175-6419 |
Tank handle (OBSOLETE) |
1 |
|
| 002 |
175-3679 |
Screw M8 x 1 1/4 x 20 |
2 |
|
| 003 |
175-6333 |
Washer 8.4mm 17 1.6 flat stainless steel (OBSOLETE) |
2 |
|
| 004 |
175-1450 |
Washer 25/64 x 17/64 (OBSOLETE) |
2 |
|
| 005a |
175-6459 |
Recovery pail assembly tank (OBSOLETE) |
1 |
|
| 005b |
175-6460 |
Recovery pail assembly tank (OBSOLETE) |
1 |
|
| 006 |
175-6461 |
Water seal (OBSOLETE) |
1 |
|
| 007 |
175-6462 |
Mesh filter (OBSOLETE) |
1 |
|
| 008 |
175-6463 |
Reducer bushing (OBSOLETE) |
1 |
|
| 009 |
175-6464 |
Street elbow (OBSOLETE) |
1 |
|
| 010 |
175-6465 |
Ball valve (OBSOLETE) |
1 |
|
| 011 |
175-6466 |
Nipple fitting (OBSOLETE) |
3 |
|
| 013 |
175-3687 |
Washer m5 x 1 flat |
1 |
|
| 014 |
175-6436 |
Nut m05 hex lock (OBSOLETE) |
1 |
|
| 015 |
175-5586 |
End coupling |
1 |
|
| 016 |
175-6469 |
Ball chain #10 stainless steel |
1 |
|
| 017 |
175-6470 |
Spacing link (OBSOLETE) |
1 |
|
| 018 |
175-6471 |
Recovery tank assembly cover (OBSOLETE) |
1 |
|
| 019 |
175-6422 |
Recovery tank cover gasket (OBSOLETE) |
1 |
|
| 020 |
999-0456 |
Screw 1/4-20 x 3/4 pan head phillips stainless steel |
1 |
|
| 021 |
999-1261 |
Washer M6 flat stainless steel |
1 |
|
| 022 |
175-6425 |
Fill cover knob (OBSOLETE) |
1 |
|
| 023 |
175-6472 |
Recycle label (OBSOLETE) |
1 |
|
|
|

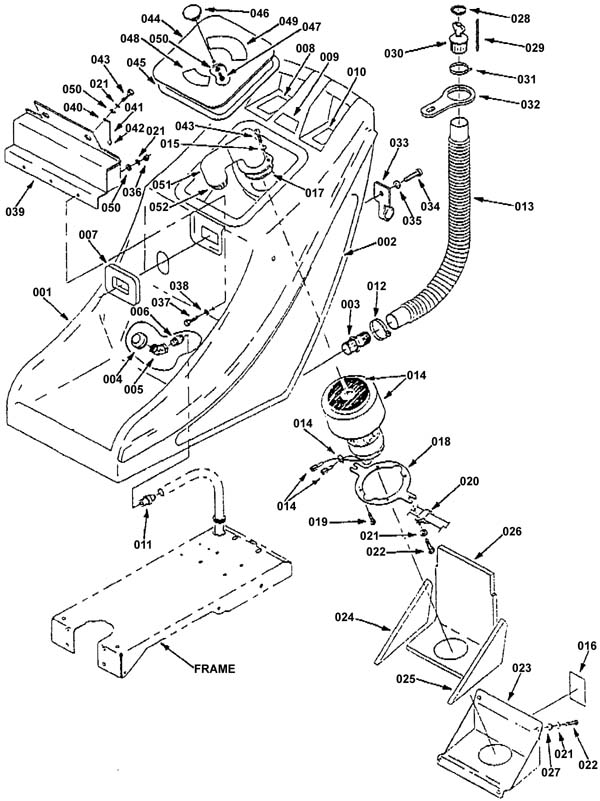

Solution Tank Assembly - 175-6214 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 001a |
175-6473 |
Solution tank assembly (OBSOLETE) |
1 |
For model E-17PR only |
| 001b |
175-6474 |
Solution tank assembly (OBSOLETE) |
1 |
For model E-17R only |
| 001c |
175-6475 |
Solution tank assembly (OBSOLETE) |
1 |
For model E-17P only |
| 001d |
175-6476 |
Solution tank assembly (OBSOLETE) |
1 |
For model E-17 only |
| 002 |
175-6477 |
Side decal (OBSOLETE) |
1 |
|
| 003 |
175-6478 |
Hose fitting (OBSOLETE) |
1 |
|
| 004 |
175-6479 |
Pump filter (OBSOLETE) |
1 |
|
| 005 |
175-6480 |
Fitting (OBSOLETE) |
1 |
|
| 006 |
175-6481 |
Nipple fitting (OBSOLETE) |
1 |
|
| 007 |
175-6482 |
Tank connection gasket (OBSOLETE) |
1 |
|
| 008 |
175-6483 |
Read manual decal (OBSOLETE) |
1 |
|
| 009a |
175-6484 |
Model decal (OBSOLETE) |
1 |
For model E-17PR only |
| 009b |
175-6485 |
Model decal (OBSOLETE) |
1 |
For model E-17R only |
| 009c |
175-6486 |
Model decal (OBSOLETE) |
1 |
For model E-17 only |
| 009c |
175-6486 |
Model decal (OBSOLETE) |
1 |
For model E-17 only |
| 009d |
175-6487 |
Model decal (OBSOLETE) |
1 |
For model E-17P only |
| 009d |
175-6487 |
Model decal (OBSOLETE) |
1 |
For model E-17P only |
| 010 |
175-6488 |
After use decal (OBSOLETE) |
1 |
|
| 011 |
175-6316 |
Hose adapter 3/8 x 3/8 (OBSOLETE) |
1 |
|
| 012 |
175-2057 |
Hose clamp |
1 |
|
| 013 |
175-6489 |
Drain hose (OBSOLETE) |
1 |
|
| 014 |
175-6490 |
Vacuum fan assembly (OBSOLETE) |
1 |
|
| 015 |
175-3687 |
Washer m5 x 1 flat |
1 |
|
| 016 |
175-6491 |
Hazard voltage decal (OBSOLETE) |
1 |
|
| 017 |
175-6492 |
O-ring (OBSOLETE) |
1 |
|
| 018 |
175-6493 |
Vacuum motor bracket (OBSOLETE) |
1 |
|
| 019 |
999-0332 |
Screw 10-24 x 5/8 pan head phillips stainless steel |
4 |
|
| 020 |
175-7808 |
1/2 inch insulated P clamp |
1 |
|
| 021 |
175-6496 |
Washer lock (OBSOLETE) |
11 |
|
| 022 |
999-1084 |
Screw M6-1 x 16mm truss head slotted stainless steel |
6 |
|
| 023 |
175-6497 |
Vacuum fan assembly cover (OBSOLETE) |
1 |
|
| 024 |
175-6498 |
Sound foam (OBSOLETE) |
1 |
|
| 025 |
175-6499 |
Sound foam (OBSOLETE) |
1 |
|
| 026 |
175-6500 |
Sound foam (OBSOLETE) |
1 |
|
| 027 |
175-6501 |
Washer 6-13/22 x 18 x 1-1/2 flat (OBSOLETE) |
4 |
|
| 028 |
175-6502 |
Chain ring |
1 |
|
| 029 |
175-5129 |
Ball chain #10 stainless steel |
1 |
|
| 030 |
175-2653 |
1 1/2 inch expansion plug |
1 |
|
| 032 |
175-2654 |
Drain hose strap |
1 |
|
| 033 |
175-6504 |
Hose drain clip (OBSOLETE) |
1 |
|
| 035 |
175-6505 |
Washer 5-5/16 x 15 x 1-5/8 flat steel plated (OBSOLETE) |
1 |
|
| 036 |
999-1308 |
Nut M6-1 hex stainless steel |
3 |
|
| 037 |
999-1312 |
Screw M6-1 x 20mm hex head stainless steel |
3 |
|
| 038 |
175-6507 |
Sealing washer (OBSOLETE) |
3 |
|
| 039 |
175-6508 |
Solution tank baffle (OBSOLETE) |
1 |
|
| 040 |
175-5586 |
End coupling |
1 |
|
| 041 |
175-6469 |
Ball chain #10 stainless steel |
1 |
|
| 042 |
175-6470 |
Spacing link (OBSOLETE) |
1 |
|
| 044a |
175-6509 |
Solution tank assembly cover (OBSOLETE) |
1 |
For models E-17R and E-17PR only |
| 044b |
175-6510 |
Solution tank assembly cover (OBSOLETE) |
1 |
For models E-17 and E-17P only |
| 045 |
175-6511 |
Solution tank cover gasket (OBSOLETE) |
1 |
|
| 046 |
175-6425 |
Fill cover knob (OBSOLETE) |
1 |
|
| 047 |
999-0456 |
Screw 1/4-20 x 3/4 pan head phillips stainless steel |
1 |
|
| 048a |
175-6512 |
Solution tank inchFill inch decal (OBSOLETE) |
1 |
E-17R and E-17PR only |
| 048b |
175-6513 |
Solution tank inchFill inch decal (OBSOLETE) |
1 |
E-17 and E-17P only |
| 049 |
175-6514 |
Flammable material decal (OBSOLETE) |
1 |
|
| 050 |
999-1261 |
Washer M6 flat stainless steel |
6 |
|
| 051 |
175-6515 |
Vacuum inlet elbow (OBSOLETE) |
1 |
|
| 052 |
175-4196 |
Vacuum inlet screen (OBSOLETE) |
1 |
|
|
|

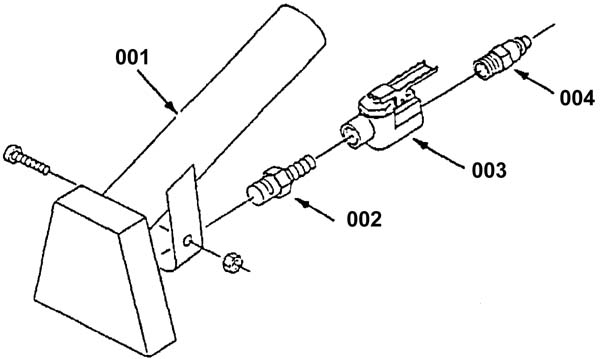

Upholstery Tool - 175-6215 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 001 |
175-6516 |
Upholstery tool assembly (OBSOLETE) |
1 |
|
| 003 |
175-1683 |
Water control valve |
1 |
|
| 004 |
175-6374 |
Male quick connect plug |
1 |
|
|
|

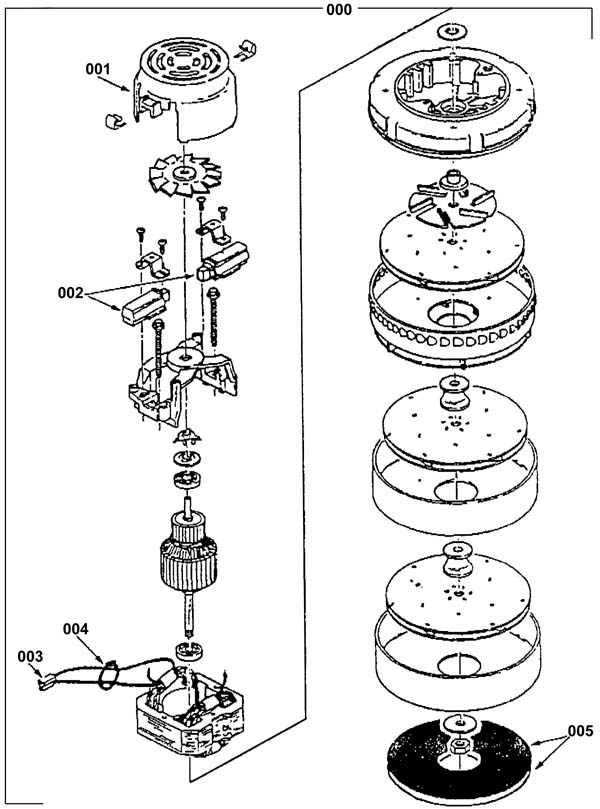

Vacuum Fan Assembly - 175-6216 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 000 |
175-6490 |
Vacuum fan assembly (OBSOLETE) |
1 |
|
| 001 |
175-6518 |
Vacuum fan motor cover (OBSOLETE) |
1 |
|
| 002 |
175-6519 |
Vacuum fan motor brush (OBSOLETE) |
2 |
|
| 003 |
175-0923 |
Male terminal |
2 |
|
| 005 |
175-3910 |
Vacuum motor gasket |
2 |
|
|
|
- Extractor Fit All Parts - 999-9400 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 001a |
991-8000 |
12 inch stainless head wand, 1 jet 120 PSI plastic valve |
|
(wands) |
| 001b |
991-8001 |
12 inch aluminum head wand, 2 jet, 120 PSI (OBSOLETE) |
|
(wands) |
| 001c |
991-8002 |
12 inch aluminum head wand, 3 jet, 120 PSI plastic valve |
|
(wands) |
| 001d |
991-8227 |
500psi brass valve |
|
(wands) |
| 002a |
991-8222 |
30 inch stair wand (open spray) |
|
(stair wand) |
| 002b |
991-8223 |
30 inch swivel head ergonomic stair wand (open spray) |
|
(stair wand) |
| 004 |
991-8129 |
Handle 1-1/2 inch low profile comfort grip assist |
|
(wands) |
| 005a |
991-8128 |
120 PSI, acetel plastic valve, low heat 140 degrees |
|
(wands) |
| 005b |
991-8127 |
120 PSI, brass valve, stainless steel stem |
|
(wands) |
| 005d |
991-8171 |
400psi cast aluminum valve |
|
|
| 007 |
991-8130 |
3-1/2 inch wide 120 PSI standard detailer, external spray |
|
(wands) |
| 008 |
991-8132 |
10ft hide-a-hose vac/sol hose assembly w/1/4 male fittings |
|
(hose assemblies and parts) |
| 009 |
991-8133 |
20ft hide-a-hose vac/sol hose assembly w/1/4 male fittings |
|
(hose assemblies and parts) |
| 010 |
991-8136 |
10ft hide-a-hose vac/sol hose assembly w 1/4 male & 1/4 feml |
|
(hose assemblies and parts) |
| 011 |
991-8137 |
20ft hide-a-hose vac/sol hose assembly w/1/4 male & 1/4 feml |
|
(hose assemblies and parts) |
| 012 |
991-8134 |
10ft hide-a-hose vac/sol hose w/1/4 female fittings 300psi |
|
(hose assemblies and parts) |
| 013 |
991-8135 |
20ft hide-a-hose vac/sol hose assembly w/1/4 female fittings |
|
(hose assemblies and parts) |
| 014 |
991-8138 |
10ft 100psi vac/sol hose assembly w/ 1/4 male fittings |
|
(hose assemblies and parts) |
| 015 |
991-8139 |
20ft 100psi vac/sol hose assembly with male fittings |
|
(hose assemblies and parts) (Maximum heat rating of 70 degrees and 100 PSI) |
| 016 |
991-8142 |
10ft 100psi vac/sol hose assembly w/1/4 female & 1/4 male |
|
(hose assemblies and parts) |
| 017 |
991-8143 |
20ft 100psi vac/sol hose assembly w/1/4 female & 1/4 male |
|
(hose assemblies and parts) |
| 018 |
991-8140 |
10ft 100psi vac/sol hose assembly w/ 1/4 female fittings |
|
(hose assemblies and parts) |
| 021 |
991-8004 |
1 1/2 inch vacuum hose (sold by the foot) |
|
(hose assemblies and parts) |
| 022 |
991-8005 |
1 1/2 inch replacement hose cuff (black) |
|
(hose assemblies and parts) |
| 023 |
991-8131 |
1 1/2 inch hide-a-hose cuff (no swivel) |
|
(hose assemblies and parts) |
| 026 |
991-8045 |
1/8 inch brass vee jet 8001 |
|
(1/8 brass vee jet) |
| 027 |
991-8046 |
1/8 inch brass vee jet 8001.5 |
|
(1/8 brass vee jet) |
| 028 |
991-8047 |
1/8 inch brass vee jet 8002 |
|
(1/8 brass vee jet) |
| 029 |
991-8048 |
1/8 inch brass vee jet 8003 |
|
(1/8 brass vee jet) |
| 030 |
991-8049 |
1/8 inch brass vee jet 8004 |
|
(1/8 brass vee jet) |
| 031 |
991-8050 |
1/8 inch brass vee jet 8005 (OBSOLETE) |
|
(1/8 brass vee jet) |
| 032 |
991-8051 |
1/8 inch brass vee jet 8006 |
|
(1/8 brass vee jet) |
| 033 |
991-8052 |
1/8 inch brass vee jet 8008 |
|
(1/8 brass vee jet) |
| 034 |
991-8053 |
1/8 inch brass vee jet 8010 |
|
(1/8 brass vee jet) |
| 035 |
991-8054 |
1/8 inch brass vee jet 9502 |
|
(1/8 brass vee jet) |
| 036 |
991-8055 |
1/8 inch brass vee jet 9503 |
|
(1/8 brass vee jet) |
| 037 |
991-8056 |
1/8 inch brass vee jet 9504 |
|
(1/8 brass vee jet) |
| 038 |
991-8057 |
1/8 inch brass vee jet 9505 |
|
(1/8 brass vee jet) |
| 039 |
991-8058 |
1/8 inch brass vee jet 9506 |
|
(1/8 brass vee jet) |
| 040 |
991-8059 |
1/8 inch brass vee jet 9508 |
|
(1/8 brass vee jet) |
| 041 |
991-8060 |
1/8 inch brass vee jet 11001 |
|
(1/8 brass vee jet) |
| 042 |
991-8061 |
1/8 inch brass vee jet 11001.5 |
|
(1/8 brass vee jet) |
| 043 |
991-8062 |
1/8 inch brass vee jet 11002 |
|
(1/8 brass vee jet) |
| 044 |
991-8063 |
1/8 inch brass vee jet 11003 |
|
(1/8 brass vee jet) |
| 045 |
991-8064 |
1/8 inch brass vee jet 11004 |
|
(1/8 brass vee jet) |
| 046 |
991-8065 |
1/8 inch brass vee jet 11005 |
|
(1/8 brass vee jet) |
| 047 |
991-8066 |
1/8 inch brass vee jet 11006 |
|
(1/8 brass vee jet) |
| 048 |
991-8067 |
1/8 inch brass vee jet 11008 |
|
(1/8 brass vee jet) |
| 049 |
991-8068 |
1/8 inch brass vee jet 11010 |
|
(1/8 brass vee jet) |
| 050 |
991-8021 |
1/4 inch brass vee jet 8001 |
|
(1/4 brass vee jet) |
| 051 |
991-8022 |
1/4 inch brass vee jet 8001.5 |
|
(1/4 brass vee jet) |
| 052 |
991-8023 |
1/4 inch brass vee jet 8002 |
|
(1/4 brass vee jet) |
| 053 |
991-3005 |
1/4 inch brass vee jet 8003 |
|
(1/4 brass vee jet) |
| 054 |
991-8025 |
1/4 inch brass vee jet 8004 |
|
(1/4 brass vee jet) |
| 055 |
991-8026 |
1/4 inch brass vee jet 8005 |
|
(1/4 brass vee jet) |
| 056 |
991-8027 |
1/4 inch brass vee jet 8006 |
|
(1/4 brass vee jet) |
| 057 |
991-8028 |
1/4 inch brass vee jet 8008 |
|
(1/4 brass vee jet) |
| 058 |
991-8029 |
1/4 inch brass vee jet 8010 |
|
(1/4 brass vee jet) |
| 059 |
991-8030 |
1/4 inch brass vee jet 9502 |
|
(1/4 brass vee jet) |
| 060 |
991-8031 |
1/4 inch brass vee jet 9503 |
|
(1/4 brass vee jet) |
| 061 |
991-8032 |
1/4 inch brass vee jet 9504 |
|
(1/4 brass vee jet) |
| 062 |
991-8033 |
1/4 inch brass vee jet 9505 |
|
(1/4 brass vee jet) |
| 063 |
991-8034 |
1/4 inch brass vee jet 9506 |
|
(1/4 brass vee jet) |
| 064 |
991-8035 |
1/4 inch brass vee jet 9508 |
|
(1/4 brass vee jet) |
| 065 |
991-8036 |
1/4 inch brass vee jet 11001 |
|
(1/4 brass vee jet) |
| 066 |
991-8037 |
1/4 inch brass vee jet 11001.5 |
|
(1/4 brass vee jet) |
| 067 |
991-8038 |
1/4 inch brass vee jet 11002 |
|
(1/4 brass vee jet) |
| 068 |
991-8039 |
1/4 inch brass vee jet 11003 |
|
(1/4 brass vee jet) |
| 069 |
991-8040 |
1/4 inch brass vee jet 11004 |
|
(1/4 brass vee jet) |
| 070 |
991-8041 |
1/4 inch brass vee jet 11005 (OBSOLETE) |
|
(1/4 brass vee jet) |
| 071 |
991-8042 |
1/4 inch brass vee jet 11006 |
|
(1/4 brass vee jet) |
| 072 |
991-3006 |
1/4 inch brass vee jet 11008 |
|
(1/4 brass vee jet) |
| 073 |
991-8044 |
1/4 inch brass vee jet 11010 |
|
(1/4 brass vee jet) |
| 074 |
991-8069 |
1/4 inch stainless vee jet 8001 |
|
(1/4 stainless vee jet) |
| 075 |
991-8070 |
1/4 inch stainless vee jet 8002 |
|
(1/4 stainless vee jet) |
| 076 |
991-8071 |
1/4 inch stainless vee jet 8003 |
|
(1/4 stainless vee jet) |
| 077 |
991-8072 |
1/4 inch stainless vee jet 8004 |
|
(1/4 stainless vee jet) |
| 078 |
991-8073 |
1/4 inch stainless vee jet 9501 |
|
(1/4 stainless vee jet) |
| 079 |
991-8074 |
1/4 inch stainless vee jet 9502 |
|
(1/4 stainless vee jet) |
| 080 |
991-8085 |
1/4 inch stainless/plastic tee jet 9502 |
|
(1/4 stainless vee jet) |
| 081 |
991-8076 |
1/4 inch stainless vee jet 9504 |
|
(1/4 stainless vee jet) |
| 082 |
991-8077 |
1/4 inch stainless vee jet 11003 |
|
(1/4 stainless vee jet) |
| 083 |
991-8078 |
1/4 inch stainless vee jet 11004 |
|
(1/4 stainless vee jet) |
| 084 |
991-8079 |
1/4 inch stainless vee jet 11006 |
|
(1/4 stainless vee jet) |
| 085 |
991-8080 |
1/4 inch stainless vee jet 11008 |
|
(1/4 stainless vee jet) |
| 086 |
991-8081 |
1/4 inch stainless/plastic tee jet 8002 |
|
(1/4 stainless/plastic tee jet) |
| 087 |
991-8082 |
1/4 inch stainless/plastic tee jet 8003 |
|
(1/4 stainless/plastic tee jet) |
| 088 |
991-8083 |
1/4 inch stainless/plastic tee jet 8004 |
|
(1/4 stainless/plastic tee jet) |
| 089 |
991-8084 |
1/4 inch stainless/plastic tee jet 9501 (OBSOLETE) |
|
(1/4 stainless/plastic tee jet) |
| 090 |
991-8085 |
1/4 inch stainless/plastic tee jet 9502 |
|
(1/4 stainless/plastic tee jet) |
| 091 |
991-8086 |
1/4 inch stainless/plastic tee jet 9504 |
|
(1/4 stainless/plastic tee jet) |
| 092 |
991-3010 |
1/4 inch stainless/plastic tee jet 11003 |
|
(1/4 stainless/plastic tee jet) |
| 093 |
991-8088 |
1/4 inch stainless/plastic tee jet 11004 |
|
(1/4 stainless/plastic tee jet) |
| 094 |
991-8089 |
1/4 inch stainless/plastic tee jet 11006 |
|
(1/4 stainless/plastic tee jet) |
| 095 |
991-8090 |
1/4 inch stainless/plastic tee jet 11008 |
|
(1/4 stainless/plastic tee jet) |
| 096 |
991-8091 |
1/4 inch x 1/8 hex nipple H21 |
|
|
| 097 |
991-8092 |
1/4 inch x 1/4 hex nipple H22 |
|
|
| 098 |
991-8093 |
1/4 inch x 3/8 hex nipple H23 |
|
|
| 099 |
991-8094 |
45 degree street elbow 1/4 inch H24 |
|
|
| 100 |
991-8095 |
45 degree street elbow 1/8 inch H25 |
|
|
| 101 |
991-8096 |
45 degree union elbow 1/4 inch H26 |
|
|
| 102 |
991-8098 |
90 degree street elbow short 1/4 inch H28 |
|
|
| 103 |
991-8098 |
90 degree street elbow short 1/4 inch H28 |
|
|
| 104 |
991-8099 |
90 degree street elbow 1/8 inch H29 |
|
|
| 105 |
991-8100 |
90 degree street elbow short 1/8 inch H30 |
|
|
| 106 |
991-8101 |
90 degree union elbow 1/4 inch H31 |
|
|
| 107 |
991-8102 |
90 degree union elbow 1/8 inch H32 |
|
|
| 108 |
991-8103 |
30 degree union elbow 1/4 inch H33 |
|
|
| 109 |
991-8104 |
1/4 inch coupling H34 |
|
|
| 110 |
991-8105 |
1/8 inch coupling H35 |
|
|
| 111 |
991-8106 |
1/4 inch adapter H36 |
|
|
| 112 |
991-8107 |
1/8 inch adapter H37 |
|
|
| 113 |
991-8108 |
1/4 inch branch tee H38 |
|
|
| 114 |
991-8109 |
1/8 inch branch tee H39 |
|
|
| 115 |
991-8110 |
1/8 inch tee H40 |
|
|
| 116 |
991-8111 |
7/16 inch stainless steel hose clamp H41 |
|
|
| 117 |
997-2002 |
Hose clamp #6 |
|
|
| 118 |
991-8113 |
Strainer for 1/8 inch vee jets H43 |
|
|
| 119 |
991-8114 |
Strainer for 1/4 inch vee jets H44 |
|
|
| 120 |
991-8115 |
Strainer/check valve for 1/4 inch vee jets H45 |
|
|
| 121 |
991-8116 |
Brass strainer/check valve for tee jets H46 |
|
|
| 122 |
991-8117 |
500 PSI ball valve 1/4 inch fpt x 1/4 inch fpt H47 |
|
|
| 123 |
991-8118 |
500 PSI ball valve 3/8 inch fpt x 3/8 inch fpt H48 |
|
|
| 124 |
991-8119 |
500 PSI ball valve 1/4 inch mpt x 3/8 inch fpt H49 |
|
|
| 125 |
991-8120 |
1/4 inch brass flood jets K1 or K2 H54 |
|
|
| 126 |
991-8158 |
1/4 inch BH2-60 female coupler (mate to QD40) |
|
|
| 127 |
991-8150 |
1/4 inch BH2-61 male nipple (mate to QD80) |
|
|
| 128 |
991-8144 |
B2C, 1/4 inch mpt, male nipple, mate to QD50 or QD55 |
|
|
| 129 |
991-8152 |
B12, 1/4 inch mpt, female coupler, mate to QD10 or QD15 |
|
|
| 130 |
991-8145 |
B3C, 1/4 inch fpt, male nipple, mate to QD50 or QD55 |
|
|
| 131 |
991-8153 |
B13, 1/4 inch fpt, female coupler, mate to QD10 or QD15 |
|
|
| 132 |
991-8146 |
BH2C, 1/4 inch, mpt male nipple, mate to QD60 or QD65 |
|
|
| 133 |
991-8154 |
B22, 1/4 inch mpt, female coupler, mate to QD20 or QD25 |
|
|
| 134 |
991-8147 |
BH3C, 1/4 inch fpt, male nipple, mate to QD60 or QD65 |
|
|
| 135 |
991-8155 |
B23, 1/4 inch fpt, female coupler, mate to QD20 or QD25 |
|
|
| 136 |
991-8148 |
Hansen 02 male nipple, mate to QD70 |
|
|
| 137 |
991-8156 |
Quick disconnect socket female to QD30 |
|
|
| 138 |
991-8149 |
1/8 inch male quick disconnect |
|
|
| 139 |
991-8157 |
1/8 inch female quick disconnect socket |
|
|
| 140 |
991-8151 |
BH3-61,3/8 inch FPT, Male Nipple, mate to QD85 |
|
|
| 141 |
991-8159 |
BH3-60, 3/8 inch fpt, female coupler, mate to QD45 |
|
|
| 142 |
991-8123 |
Bottom hex nut for Kingston or P valve H57 |
|
|
| 143 |
991-8121 |
1/8 inch brass flood jets K1 or K2 H55 |
|
|
| 144 |
991-8124 |
Inline filter H58 |
|
|
| 145 |
991-8122 |
1/8 inch special brass flood jets for V1245 H56 |
|
|
| 146 |
991-8008 |
120V 50 PSI Flo Jet pump |
|
(pumps) |
| 147 |
991-8009 |
120V 100 PSI Flo Jet pump |
|
(pumps) |
| 148 |
991-8218 |
120V 120 PSI pump |
|
(pumps) |
| 149 |
991-8220 |
1/8 fpt brass female connector |
|
|
| 150 |
991-1835 |
Crevice tool |
|
|
|
|
