Wiring Diagram - 50/60 Hz - |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
|
|
Entire Assembly - 275-3103 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
175-1646 |
Recovery tank (white) (OBSOLETE) |
1 |
|
| 2 |
999-1165 |
Screw 8-32 x 3/8 truss head phillips stainless steel |
8 |
|
| 3a |
275-9770 |
Dual logo decal (Tennant Industrial) |
2 |
|
| 3b |
275-9771 |
TCO small decal |
1 |
|
| 3c |
175-1674 |
Nobles Anser decal (OBSOLETE) |
2 |
|
| 4a |
375-7802 |
Latch |
2 |
(OEM) |
| 4b |
991-8561 |
Rubber draw latch with keeper |
2 |
(NON-OEM) |
| 5 |
175-1647 |
Solution tank gasket |
1 |
|
| 7 |
175-1649 |
90 degree elbow |
1 |
|
| 8 |
175-1650 |
1/8 inch male connector with nut |
2 |
|
| 9 |
175-1651 |
Nylon tubing .17 x 12 inch |
1 |
|
| 10 |
175-1652 |
1/8 inch female brass quick coupler |
1 |
|
| 11 |
999-0355 |
Washer 3/8 x 7/8 SAE flat stainless steel |
1 |
|
| 12 |
175-1653 |
Solution tank (white) |
1 |
(includes 13-17) |
| 13 |
175-1654 |
Solution tank filter |
1 |
|
| 14 |
175-1655 |
Adapter fitting |
1 |
|
| 15 |
175-6107 |
Always drain decal |
1 |
|
| 16 |
175-1675 |
Gallon mark decal |
1 |
|
| 17 |
175-3906 |
Warning decal |
1 |
|
| 19a |
175-1660 |
Solution pump |
1 |
(120v) |
| 19b |
175-3907 |
Pump 30PSI 230V 50HZ |
1 |
(230v) |
| 20 |
175-1661 |
90 degree elbow fitting |
1 |
|
| 21 |
175-1662 |
90 degree elbow fitting |
1 |
|
| 22 |
999-0999 |
Screw 10-24 x 3/8 truss head phillips stainless steel |
14 |
|
| 23 |
175-1663 |
Bottom panel (black) (OBSOLETE) |
1 |
|
| 24 |
999-0231 |
Screw 10-24 x 1/2 round head slotted zinc plated |
3 |
|
| 25 |
999-0356 |
Nut 10-24 lock stainless steel |
9 |
|
| 26 |
175-1664 |
Baffle plate |
1 |
|
| 27 |
175-3134 |
Snap bushing |
1 |
|
| 28 |
175-1665 |
Vacuum motor mounting plate |
1 |
|
| 29 |
175-1666 |
Vacuum motor plate gasket |
1 |
|
| 30a |
275-5853 |
120V 2 stage vacuum motor |
1 |
(includes 31a)(OEM) |
| 30b |
991-1304 |
120V 2 stage vacuum motor peripheral 4.8 dia (OBSOLETE) |
1 |
(NON-OEM) |
| 30c |
175-3908 |
Vacuum motor 4.8 - 2 STG |
1 |
(includes 31b) (230V) |
| 31a |
175-0251 |
Carbon brush (pkg of 2) |
2 |
|
| 31b |
175-0052 |
Carbon brush set |
1 |
|
| 32 |
175-1668 |
Rear cover panel (black) |
1 |
|
| 33 |
999-0188 |
Nut 3/8-16 nylon insert lock zinc plated |
1 |
|
| 34 |
999-1008 |
Screw 10-32 x 3/4 round head phillips stainless steel |
1 |
|
| 35 |
175-0006 |
Rocker switch |
1 |
|
| 36 |
175-6063 |
Strain relief |
1 |
|
| 37 |
175-1669 |
18/3 power cord 25 foot |
1 |
|
| 38 |
999-0151 |
Nut 8-32 nylon insert lock zinc plated |
2 |
|
| 39 |
175-1670 |
Vacuum filter |
1 |
|
| 40 |
175-1671 |
Screen filter |
1 |
|
| 41 |
175-1672 |
Male adapter |
1 |
|
| 42 |
999-0393 |
Washer 3/16 flat aluminum |
4 |
|
| 43 |
999-0442 |
Nut 10-24 nylon insert lock stainless steel |
4 |
|
| 44 |
175-1673 |
Pump mounting bracket |
2 |
|
| 46 |
175-1657 |
Hose 1/4 x 5 1/4 inch |
1 |
|
| 47 |
175-1658 |
Hose 1/4 x 10 1/2 inch |
1 |
|
| 49 |
175-3910 |
Vacuum motor gasket |
1 |
|
| 50 |
999-0231 |
Screw 10-24 x 1/2 round head slotted zinc plated |
4 |
|
|
|

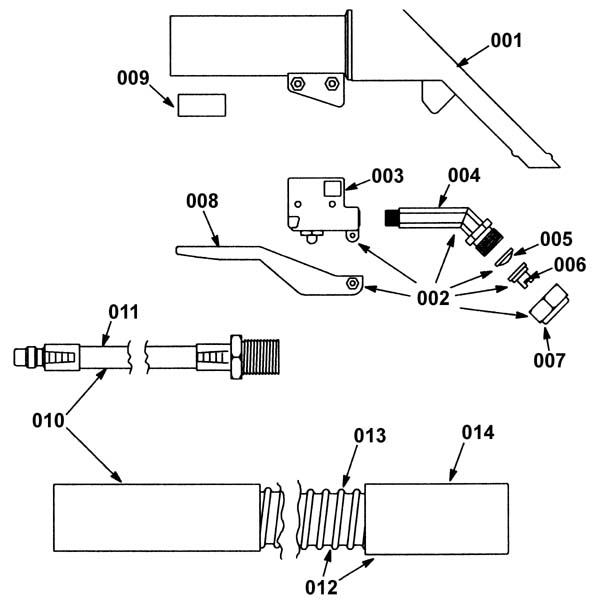

Hand Tool Assembly - Old Style - 275-3104 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 001 |
275-5824 |
4 inch metal hand tool assembly with trigger and hose |
1 |
(includes 002-008) |
| 002 |
N/A |
Not available |
1 |
(trigger assembly) |
| 003 |
175-1699 |
Valve body |
1 |
|
| 004 |
175-1700 |
Spray nozzle |
1 |
|
| 009 |
175-1705 |
Solution hose seal |
1 |
|
| 010 |
175-3913 |
10 ft vacuum and solution hose assembly |
1 |
(includes 011-014) |
| 011 |
275-6727 |
Braided hose |
1 |
|
| 012 |
N/A |
Not available |
1 |
(vacuum hose w/ cuff) |
| 013 |
N/A |
Not available |
1 |
(vacuum hose) |
| 014 |
N/A |
Not available |
1 |
(cuff) |
| N/S |
275-6057 |
Tool assembly with trigger |
1 |
|
|
|

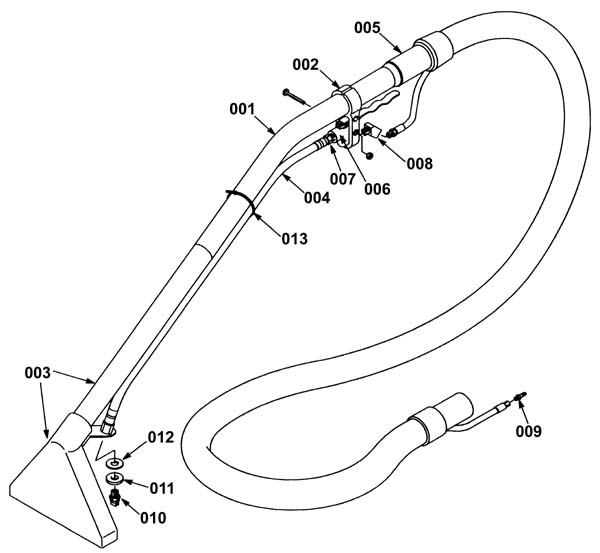

Hand Tool Assembly - Optional - 275-3105 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 001a |
175-1677 |
8 inch floor tool assembly with hose |
1 |
(includes 001b- 013) (old style) |
| 001b |
175-1678 |
Upper section wand |
1 |
|
| 001c |
275-5825 |
Metal floor tool assembly with hose |
1 |
(new style) |
| 001d |
991-8224 |
Metal floor tool assembly with hose |
1 |
(NON-OEM) |
| 002 |
175-1679 |
Valve hanger assembly |
1 |
|
| 003 |
175-1680 |
8 inch head and lower tube assembly |
1 |
|
| 004 |
175-1681 |
3 foot hose assembly |
1 |
|
| 005 |
175-1682 |
Hide-a-hose assembly 1 1/4 inch x 10 foot |
1 |
|
| 006 |
175-1683 |
Water control valve |
1 |
|
| 007 |
175-2613 |
Straight brass fitting |
1 |
|
| 008 |
175-6031 |
Straight jet fitting |
1 |
|
| 009 |
175-1684 |
Quick disconnect fitting |
1 |
|
| 010 |
175-1685 |
Plastic v-jet |
1 |
|
| 011 |
175-1686 |
Washer flat |
1 |
|
|
|
Hand Cart Assembly - 275-3106 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 000 |
175-1687 |
Hand cart assembly |
1 |
(includes 1-9) |
| 001 |
175-1688 |
Cart handle |
1 |
|
| 002 |
999-0454 |
Screw 10-24 x 1/2 truss head phillips zinc plated |
2 |
|
| 003 |
999-0016 |
Washer 1/4 flat plain finish |
4 |
|
| 004 |
175-1780 |
3 inch swivel caster wheel |
1 |
|
| 005 |
175-1689 |
Cart weldment |
1 |
|
| 008 |
175-1690 |
8 inch wheel (gray) |
2 |
|
| 009 |
999-0187 |
Washer 1/2 flat plain finish |
2 |
|
|
|

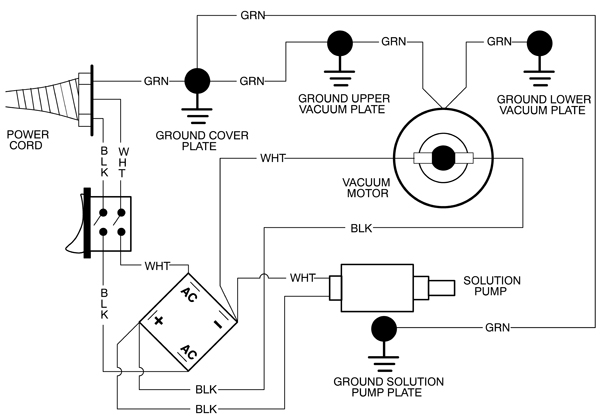

Wiring Diagram - 400 Hz - |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
|
|

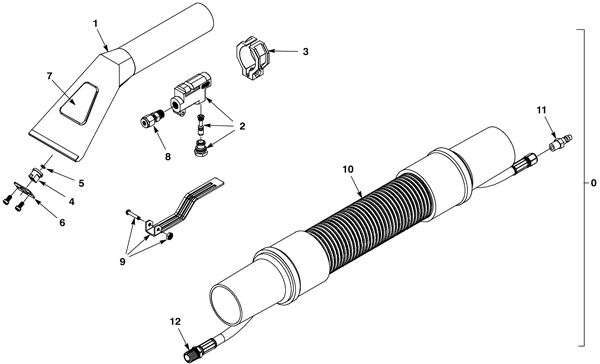

Hand Tool Assembly - New Style - 275-3155 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 0a |
275-5824 |
4 inch metal hand tool assembly with trigger and hose |
1 |
|
| 0b |
275-6057 |
Tool assembly with trigger |
1 |
|
| 1 |
275-6058 |
Tool with window |
1 |
|
| 2 |
275-6059 |
Hand tool valve |
1 |
|
| 3 |
275-6060 |
Hanger valve |
1 |
|
| 4 |
275-6061 |
Jet tee fitting |
1 |
|
| 7 |
275-6064 |
Replacement window for hand tool |
1 |
|
| 9 |
275-6066 |
Trigger handle |
1 |
|
| 10 |
175-3913 |
10 ft vacuum and solution hose assembly |
1 |
|
| 11 |
175-1684 |
Quick disconnect fitting |
1 |
|
| 12 |
275-5776 |
Brass fitting |
1 |
|
|
|
