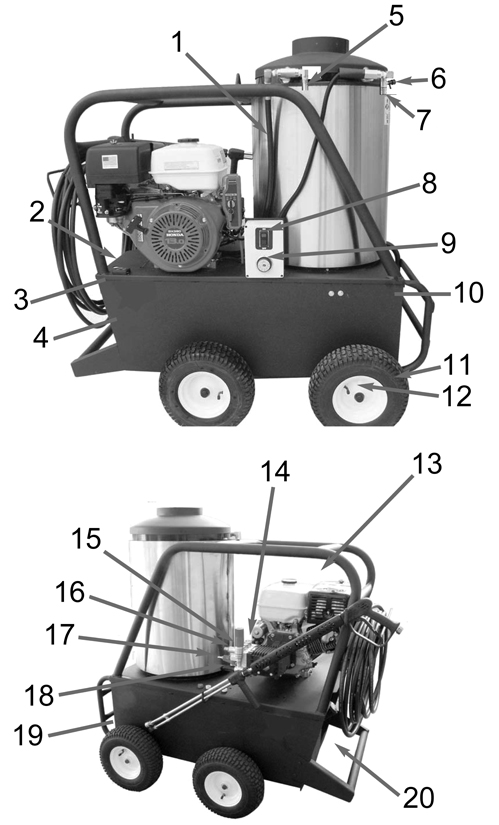

Entire Assembly - 208-2003 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
208-0152 |
10 inch jumper hose |
|
|
| 2 |
208-0132 |
12V hour meter |
|
|
| 3 |
208-0027 |
Vacuum switch (OBSOLETE) |
|
|
| 5 |
208-0054 |
Pressure valve |
|
|
| 6 |
208-0155 |
Chemical injector |
|
|
| 7 |
208-0154 |
Discharge coupler |
|
|
| 10 |
208-0031 |
DC fuel pump burner with valve |
|
|
| 11 |
208-0016 |
Wheel (white) |
|
|
| 13 |
208-0045 |
16 HP Vanguard engine |
|
|
| 14 |
208-0168 |
Thermal valve |
|
|
| 15 |
208-0009 |
Pressure gauge casing |
|
|
| 18 |
208-0006 |
Garden hose inlet |
|
|
| 20 |
208-0176 |
8 gallon burner diesel tank |
|
|
|
|

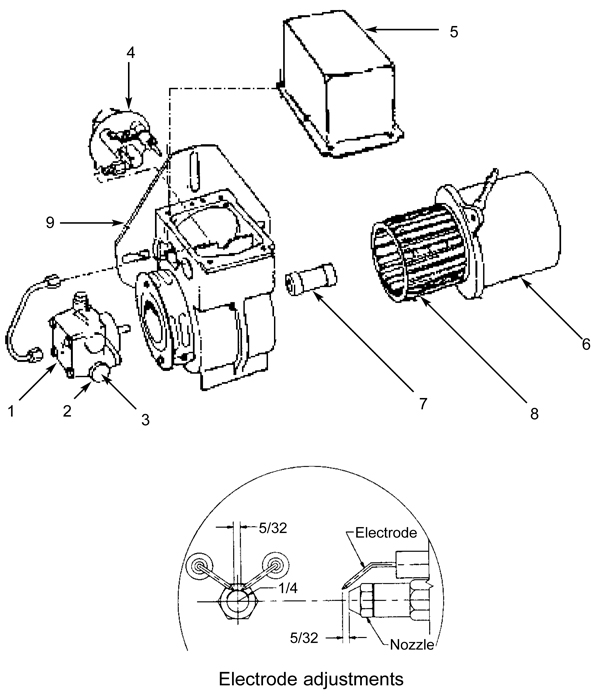

Burner Breakdown Assembly - 208-8000 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
208-0216 |
Fuel pump with valve |
|
|
| N/S |
208-0222 |
Strainer kit |
|
|
| N/S |
208-0027 |
Vacuum switch (OBSOLETE) |
|
|
| N/S |
208-0037 |
Burner relay |
|
|
|
|

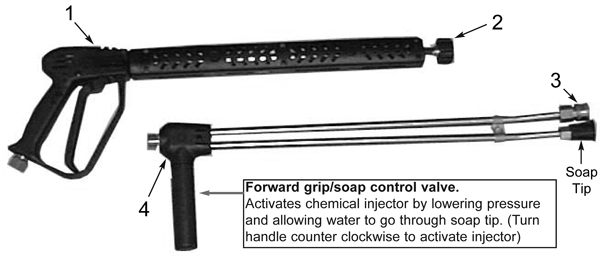

Accessories - 208-8001 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 2 |
208-0223 |
Twist fast socket 6 7/20 x 22mm |
|
|
| 3 |
208-0003 |
Quick disconnect |
|
|
| 4 |
208-0002 |
Dual wand with quick connect |
|
|
| N/S |
991-4005 |
3/8 inch rubber o-ring for high pressure |
|
|
| N/S |
991-8190 |
0 degree nozzle (red) (0005.5) |
|
|
| N/S |
991-8191 |
15 degree nozzle (yellow) (1505.5) |
|
|
| N/S |
991-8192 |
25 degree nozzle (green) (2505.5) |
|
|
| N/S |
991-8193 |
40 degree nozzle (white) (4005.5) |
|
|
| N/S |
208-0224 |
Hose 3/8 inch x 20 foot |
|
|
| N/S |
208-0225 |
Hose 3/8 inch x 30 foot |
|
|
| N/S |
208-0020 |
Hose 3/8 inch x 40 foot |
|
|
| N/S |
272-2527 |
Hose 3/8 inch x 50 foot |
|
|
| N/S |
208-0023 |
Hose 3/8 inch x 100 foot |
|
|
| N/S |
208-0226 |
Hose with coupler ends 3/8 inch x 20 foot |
|
|
| N/S |
208-0227 |
Hose with coupler ends 3/8 inch x 40 foot |
|
|
| N/S |
208-0001 |
Hose with coupler ends 3/8 inch x 50 foot |
|
|
| N/S |
991-4033 |
100 foot non marking double wire braid high pressure hose |
|
|
|
|
- Commonly Asked For Parts - 208-8002 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 0.9835 |
208-0046 |
Cube relay |
|
|
| 0.9835 |
208-0070 |
Brass kit for pump seal kit |
|
|
| 0.9835 |
208-0041 |
40 degree nozzle tip |
|
(these 6 parts make up removable nozzle 208-0038,0039, 0040, 0041, 0060, 0003 - 1 of ea) |
| 0.9835 |
208-0129 |
Pressure gauge |
|
|
| 0.9835 |
991-4005 |
3/8 inch rubber o-ring for high pressure |
|
|
| 0.9835 |
208-0054 |
Pressure valve |
|
|
| 0.9835 |
208-0023 |
Hose 3/8 inch x 100 foot |
|
|
| 0.9835 |
208-0036 |
Flow switch |
|
|
| 0.9835 |
208-0021 |
Motor |
|
(armiature for this part is not available seperately) |
| 0.9835 |
208-0037 |
Burner relay |
|
|
| 0.9835 |
208-0027 |
Vacuum switch (OBSOLETE) |
|
|
| 0.9835 |
208-0042 |
Unloader valve |
|
|
| 0.9835 |
208-0010 |
Thermostat |
|
|
| 0.9835 |
208-0057 |
79 inch wand |
|
(you will need 208-0059 and 208-0003) |
| 0.9835 |
208-0039 |
15 degree nozzle tip |
|
(these 6 parts make up removable nozzle 208-0038,0039, 0040, 0041, 0060, 0003 - 1 of ea) |
| 0.9835 |
208-0040 |
25 degree nozzle tip |
|
(these 6 parts make up removable nozzle 208-0038,0039, 0040, 0041, 0060, 0003 - 1 of ea) |
| 0.9835 |
991-4033 |
100 foot non marking double wire braid high pressure hose |
|
|
| 0.9835 |
208-0038 |
0 degree nozzle tip |
|
(these 6 parts make up removable nozzle 208-0038,0039, 0040, 0041, 0060, 0003 - 1 of ea) |
| 0.9835 |
208-0033 |
Thermostat |
|
|
| 0.9835 |
208-0024 |
4 foot hose |
|
|
| 0.9835 |
208-0031 |
DC fuel pump burner with valve |
|
|
| 0.9835 |
208-0065 |
2.0 fuel tip |
|
|
| 0.9835 |
208-0056 |
48 inch wand |
|
(you will need 208-0059 and 208-0003) |
| 0.9835 |
208-0006 |
Garden hose inlet |
|
|
| 0.9835 |
991-4001 |
50 foot non marring double wire braid high pressure hose |
|
|
| 0.9835 |
991-4034 |
3/8 fpt quick connect for high pressure hose |
|
|
| 0.9835 |
208-0016 |
Wheel (white) |
|
|
| 0.9835 |
208-0060 |
50 degree nozzle tip |
|
(these 6 parts make up removable nozzle 208-0038,0039, 0040, 0041, 0060, 0003 - 1 of ea) |
| 0.9835 |
208-0047 |
Fuel filter |
|
|
| 0.9835 |
162-0028 |
Auto battery top post |
|
|
| 0.9835 |
208-0058 |
8 to 24 foot telescopic wand (comes with gun and couplers) |
|
(used for very high buildings only, includes gun and quick coupler) |
| 0.9835 |
208-0003 |
Quick disconnect |
|
(these 6 parts make up removable nozzle 208-0038,0039, 0040, 0041, 0060, 0003 - 1 of ea) |
| 0.9835 |
208-0022 |
Thermostat |
|
|
| 0.9835 |
208-0015 |
Wheel cap |
|
|
| 0.9835 |
208-0196 |
Hose reel |
|
|
| 0.9835 |
208-0048 |
Locking caster wheel |
|
|
| 0.9835 |
208-0032 |
Burner switch housing |
|
|
|
|
|
