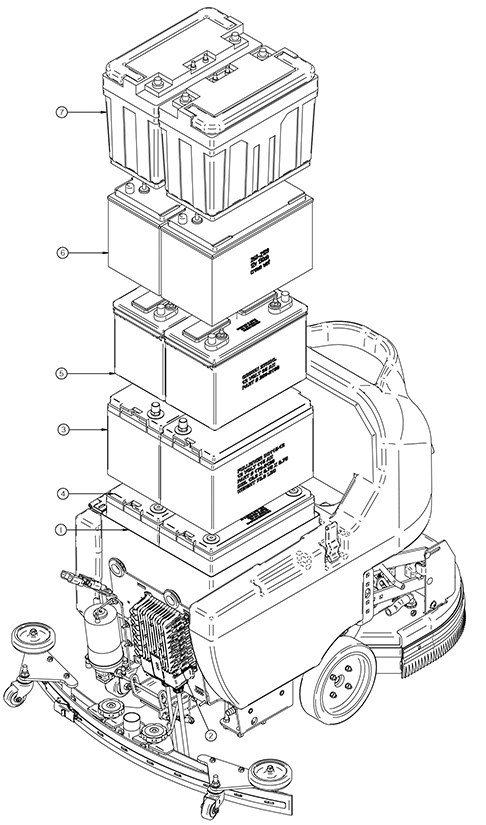

- Batteries, Brushes, and Chargers - 202-0680 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
|
162-0045 |
12V 140Ah AGM battery |
2 |
|
|
162-0042 |
12V 115Ah AGM battery (Group 31) |
2 |
|
|
162-0011 |
12V 105Ah wet battery (SNSR) |
2 |
|
|
162-0057 |
12V 150Ah wet battery |
2 |
|
|
202-9930 |
24V onboard charger with power cord |
1 |
|
|
202-3908 |
17 inch brush midi-grit 7-lobe |
1 |
|
|
202-3909 |
17 inch brush light-grit 7-lobe |
1 |
|
|
202-3910 |
17 inch brush nylon 7-lobe |
1 |
|
|
202-3911 |
17 inch pad driver 7-lobe |
1 |
|
|
|

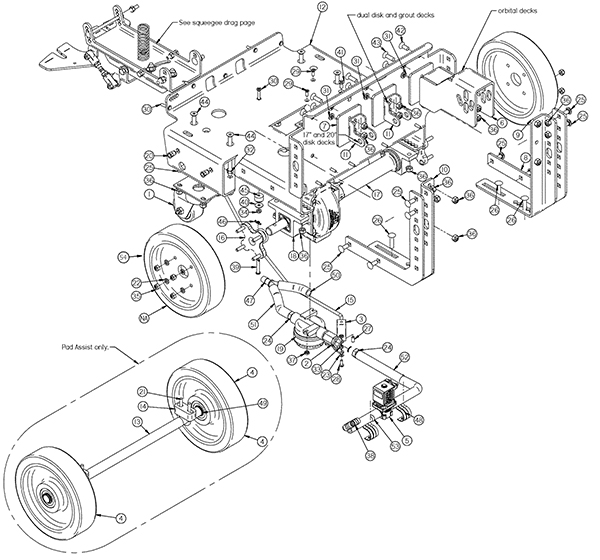

Frame Assembly - 202-2517 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
202-5064 |
Caster wheel |
2 |
|
| 2 |
202-5363 |
3/8 inch ball valve |
1 |
|
| 4 |
202-4149 |
Tire (black) |
2 |
|
| 5 |
202-6246 |
Solenoid,24V,3/8 inchNPTx3/8 inch |
1 |
|
| 6 |
202-9829 |
Lifting bracket |
1 |
|
| 7 |
202-3901 |
Lift bracket spacer |
3 |
|
| 9 |
202-9831 |
Left hand frame bracket |
1 |
|
| 10 |
202-9832 |
Right hand frame bracket |
1 |
|
| 11 |
202-9833 |
Upper actuator bracket |
2 |
|
| 14 |
202-9836 |
Axle spacer |
2 |
|
| 15 |
202-9837 |
Solution valve cable |
1 |
|
| 16 |
N/A |
Not available |
2 |
(transaxle hub) |
| 17 |
202-3902 |
24V transaxle w/ connectors |
1 |
|
| 18 |
N/A |
Not available |
2 |
(axle mount) |
| 19 |
202-3234 |
Inline filter |
1 |
|
| 20 |
202-5284 |
Nut 1/4-20 hex crimp long |
4 |
|
| 22 |
999-1049 |
Washer 1/4 split lock zinc plated |
8 |
|
| 23 |
999-1215 |
Washer #6 SAE flat zinc plated |
1 |
|
| 24 |
202-3236 |
Threaded barb |
2 |
|
| 25 |
999-9069 |
Bolt 5/16-18 x 3/4 carriage head |
16 |
|
| 26 |
999-1334 |
Bolt 5/16-18 x 1 1/4 carriage head stainless steel |
4 |
|
| 27 |
999-1468 |
Screw 1/4-20 x 1/2 knurled point set alloy steel |
1 |
|
| 28 |
999-0447 |
Screw 6-32 x 1/2 pan head phillips zinc plated |
1 |
|
| 29 |
202-9285 |
Screw,PFHM,#10-32x1/2 inch Zinc |
2 |
|
| 30 |
999-9235 |
Screw #10-32 x 1 flat head phillips zinc plated |
11 |
|
| 31 |
999-0553 |
Washer 5/16 medium split lock stainless steel |
6 |
|
| 32 |
999-0069 |
Nut 5/16-18 hex |
8 |
|
| 33 |
999-6688 |
Nut 6-32 hex nylon insert lock stainless steel |
1 |
|
| 34 |
999-0086 |
Nut 10-32 nylon insert lock zinc plated |
1 |
|
| 35 |
999-0152 |
Nut 1/4-20 nylon insert lock zinc plated |
12 |
|
| 36 |
999-0211 |
Nut 5/16-18 hex nylon insert lock zinc plated |
35 |
|
| 37 |
202-2067 |
Nut 10-32 keps |
2 |
|
| 38 |
202-4070 |
90 degree barbed elbow |
1 |
|
| 39 |
N/A |
Not available |
2 |
(clevis pin) |
| 40 |
202-3316 |
Washer flat stainless steel |
1 |
|
| 41 |
999-0990 |
Screw 1/4-20 x 5/8 flat head phillips stainless steel |
1 |
|
| 42 |
999-1258 |
Screw 5/16-18 x 3/4 flat head phillips stainless steel |
4 |
|
| 43 |
999-9243 |
Screw 5/16-18 x 1 flat head socket cap (3/16 hex drive) |
6 |
|
| 44 |
202-9839 |
Screw 5/16-18 x 4 1/4 flat head socket cap screw zinc |
4 |
|
| 45 |
202-3275 |
Rubber bumper |
1 |
|
| 46 |
202-0585 |
Cotter ring |
2 |
|
| 48 |
202-9642 |
3/4 inch clamp zinc |
2 |
|
| 49 |
202-5330 |
Retaining ring |
4 |
|
| 50 |
202-9840 |
1/2 inch ID x 5 foot clear hose |
1 |
|
| 51 |
202-9840 |
1/2 inch ID x 5 foot clear hose |
1 |
|
| 52 |
202-9840 |
1/2 inch ID x 5 foot clear hose |
1 |
|
| 53 |
202-9840 |
1/2 inch ID x 5 foot clear hose |
1 |
|
| 54a |
202-9827 |
8 inch poly tire (grey) |
2 |
|
| 54b |
202-9828 |
8 inch poly tire (black) |
2 |
|
|
|

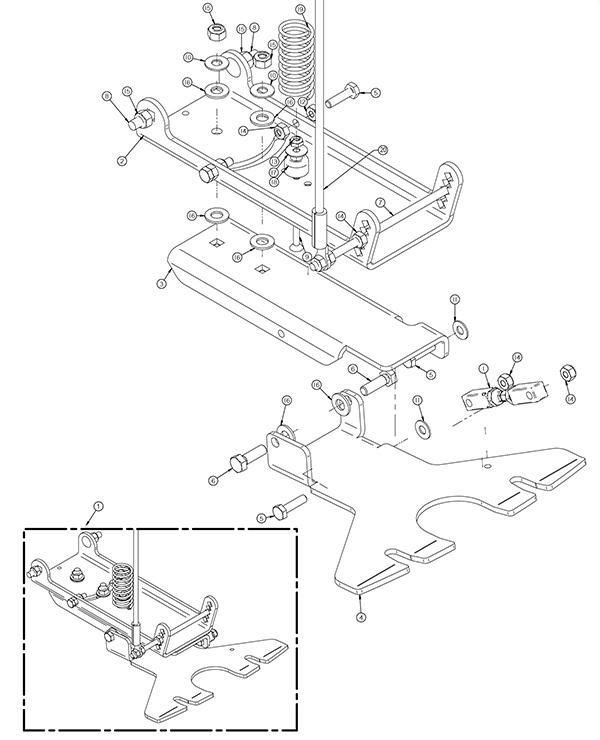

Squeegee Trail Arm Assembly - 202-2518 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
202-6432 |
Body, Adjustable Lateral Arm Assy |
1 |
|
| 2 |
202-9841 |
Squeegee swing plate |
1 |
|
| 3 |
202-9842 |
Squeegee trail arm |
1 |
|
| 4 |
202-9843 |
Triangle plate |
1 |
|
| 5 |
999-9072 |
Bolt 1/4-20 x 1 hex head cap |
4 |
|
| 6 |
999-0031 |
Bolt 5/16-18 x 1 hex head grade 5 zinc plated |
2 |
|
| 7 |
999-9236 |
Bolt 1/4-20 x 6 carriage head zinc plated |
1 |
|
| 8 |
999-0252 |
Screw 5/16-18 x 1 carriage head grade 5 zinc |
4 |
|
| 9 |
999-9235 |
Screw #10-32 x 1 flat head phillips zinc plated |
1 |
|
| 10 |
202-1201 |
Washer 5/16 uss |
2 |
|
| 11 |
999-0123 |
Washer 1/4 SAE flat zinc plated |
2 |
|
| 12 |
999-0190 |
Nut 1/4-20 hex plain finish |
2 |
|
| 13 |
999-0086 |
Nut 10-32 nylon insert lock zinc plated |
1 |
|
| 14 |
999-0152 |
Nut 1/4-20 nylon insert lock zinc plated |
7 |
|
| 15 |
999-0211 |
Nut 5/16-18 hex nylon insert lock zinc plated |
6 |
|
| 16 |
202-2210 |
Washer 3/8 x 3/4 flat nylon |
6 |
|
| 17 |
202-3316 |
Washer flat stainless steel |
1 |
|
| 18 |
202-3275 |
Rubber bumper |
1 |
|
| 20 |
202-9845 |
23-1/4 squeegee lift cable (black) |
1 |
(For M series models) |
|
|

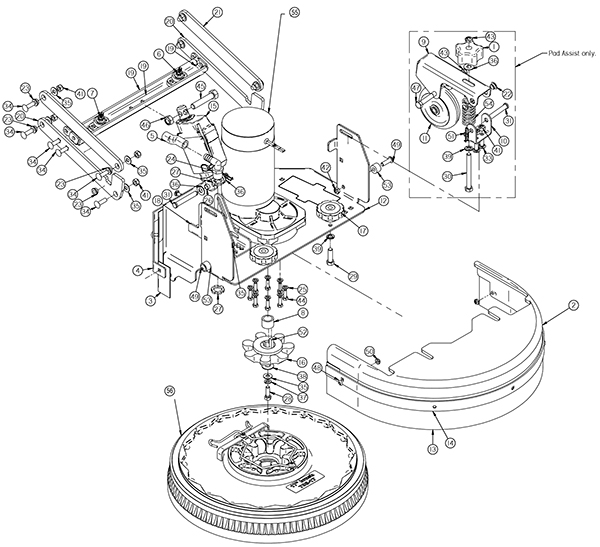

17 Inch - Scrub Deck Disk - 202-2519 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 2 |
202-4108 |
17 inch front shroud |
1 |
|
| 3 |
202-4128 |
17 inch curtain |
1 |
|
| 4 |
202-4126 |
17 inch curtain band |
1 |
|
| 5 |
202-4116 |
Hose 1/2 x 2 3/4 inch (clear) |
1 |
|
| 6 |
202-6396 |
Power Post, Black, 1/4 Terminal |
1 |
|
| 7 |
202-6397 |
Power Post, Red, 1/4 Terminal |
1 |
|
| 8 |
202-6418 |
Spacer, Driver |
1 |
|
| 9 |
202-2078 |
Deck Wheel Pivot Bracket |
1 |
|
| 10 |
202-2079 |
Deck wheel pivot support |
1 |
|
| 11 |
202-2080 |
4.0 inch Wheel |
1 |
|
| 12 |
N/A |
Not available |
2 |
(17 inch disk deck) |
| 13 |
202-3903 |
17 inch shroud curtain |
1 |
|
| 14 |
N/A |
Not available |
1 |
(17 inch shroud curtain band) |
| 15 |
202-9851 |
24V actuator |
1 |
|
| 16 |
202-9852 |
Brush driver |
1 |
|
| 17 |
202-9853 |
3/8-16 star knob |
2 |
|
| 18 |
202-9854 |
20 inch disk lifting bracket |
1 |
|
| 19 |
202-9855 |
Lift arm cross bar |
1 |
|
| 20 |
202-3904 |
Lateral arm disk, dog leg |
2 |
|
| 21 |
202-3905 |
Lateral arm disk, short |
2 |
|
| 22 |
202-1239 |
Flanged bearing |
2 |
|
| 23 |
202-7656 |
Bushing,Flanged,5/16 inchIDx1/2 inchODx 1/4 inch, Hardened S |
8 |
|
| 25 |
999-1049 |
Washer 1/4 split lock zinc plated |
8 |
|
| 27 |
999-0330 |
Nut 1/2-13 acorn brass |
2 |
|
| 28 |
999-0031 |
Bolt 5/16-18 x 1 hex head grade 5 zinc plated |
1 |
|
| 29 |
999-9237 |
Screw 3/8-16 x 1 1/4 hex cap |
2 |
|
| 30 |
999-9238 |
Bolt 3/8-16 x 3 1/2 hex cap |
1 |
|
| 31 |
202-5193 |
Clevis pin 3/8 x 2 |
2 |
|
| 32 |
999-9239 |
Bolt 1/4-20 x 1/2 carriage |
5 |
|
| 33 |
999-9069 |
Bolt 5/16-18 x 3/4 carriage head |
6 |
|
| 34 |
999-0252 |
Screw 5/16-18 x 1 carriage head grade 5 zinc |
12 |
|
| 35 |
202-1201 |
Washer 5/16 uss |
13 |
|
| 36 |
999-0617 |
Washer 3/8 x 1 flat stainless steel |
3 |
|
| 37 |
999-0553 |
Washer 5/16 medium split lock stainless steel |
1 |
|
| 38 |
999-0659 |
Washer 3/8 medium split lock stainless steel |
1 |
|
| 39 |
999-0659 |
Washer 3/8 medium split lock stainless steel |
3 |
|
| 40 |
999-0304 |
Nut 1/4-20 nylon lock jam stainless steel |
5 |
|
| 41 |
999-0211 |
Nut 5/16-18 hex nylon insert lock zinc plated |
18 |
|
| 42 |
999-0278 |
Nut 5/16-18 nylon insert lock jam zinc plated |
2 |
|
| 43 |
999-0324 |
Nut 3/8-16 nylon insert lock jam zinc plated |
2 |
|
| 44 |
999-1304 |
Screw M6-1 x 16mm hex head zinc |
8 |
|
| 45 |
999-9223 |
Screw M12-1.75 x 60 hex cap zinc |
1 |
|
| 46 |
999-1122 |
Nut M12-1.75 hex nylon insert lock stainless steel |
1 |
|
| 47 |
202-9345 |
Screw,Hex Cap,3/8-16x2-1/2 inch Stainless |
1 |
|
| 48 |
999-1480 |
Screw 1/4-20 x 5/8 button head socket cap stainless steel |
5 |
|
| 49 |
999-1507 |
Screw 5/16-18 x 1 button head socket stainless steel |
2 |
|
| 50 |
999-0304 |
Nut 1/4-20 nylon lock jam stainless steel |
5 |
|
| 52 |
N/A |
Not available |
1 |
(key) |
| 53 |
202-4123 |
Plastic spacer |
2 |
|
| 55a |
202-3906 |
24v motor |
1 |
(traction drive) |
| 55b |
202-3907 |
24v motor w/ connectors |
1 |
(brush assist) |
| 56a |
202-3908 |
17 inch brush midi-grit 7-lobe |
1 |
|
| 56b |
202-3909 |
17 inch brush light-grit 7-lobe |
1 |
|
| 56c |
202-3910 |
17 inch brush nylon 7-lobe |
1 |
|
| 56d |
202-3911 |
17 inch pad driver 7-lobe |
1 |
|
| 56e |
N/A |
Not available |
1 |
(pad retainer) |
| 56f |
N/A |
Not available |
1 |
(spring clip) |
|
|

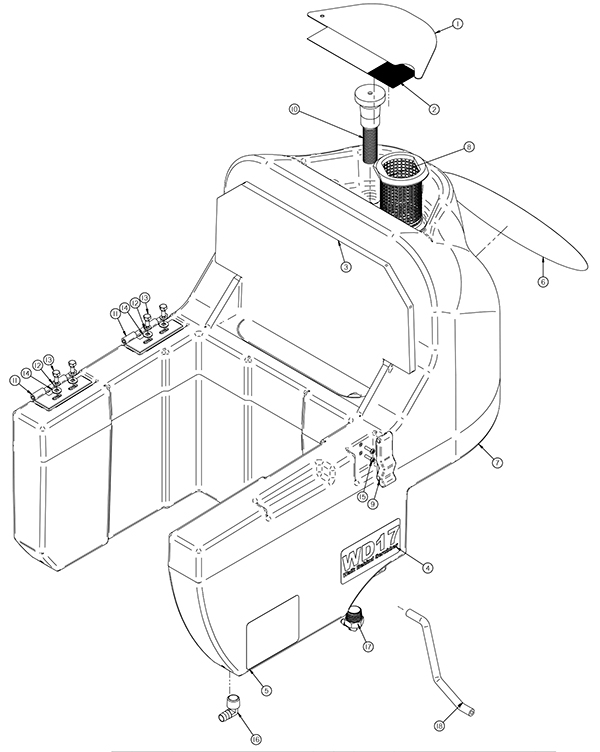

Solution Tank Assembly - 202-2520 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
N/A |
Not available |
1 |
(solution fill curtian) |
| 2 |
202-9869 |
Solution fill screen |
1 |
|
| 3 |
202-9871 |
Vacuum motor insulation |
1 |
|
| 4 |
N/A |
Not available |
2 |
(decal) |
| 5 |
N/A |
Not available |
2 |
(decal) |
| 6 |
N/A |
Not available |
1 |
(decal) |
| 7 |
N/A |
Not available |
1 |
(solution tank) |
| 8 |
202-9876 |
Strainer screen (blue) |
1 |
|
| 11 |
202-5648 |
4 inch hinge stainless steel |
2 |
|
| 12 |
999-1049 |
Washer 1/4 split lock zinc plated |
4 |
|
| 13 |
999-0019 |
Bolt 1/4-20 x 5/8 hex head grade 5 zinc plated |
4 |
|
| 14 |
999-0123 |
Washer 1/4 SAE flat zinc plated |
4 |
|
| 15 |
999-0358 |
Screw 8-32 x 5/8 pan head phillips stainless steel |
2 |
|
| 16 |
202-3440 |
Barbed elbow |
1 |
|
|
|

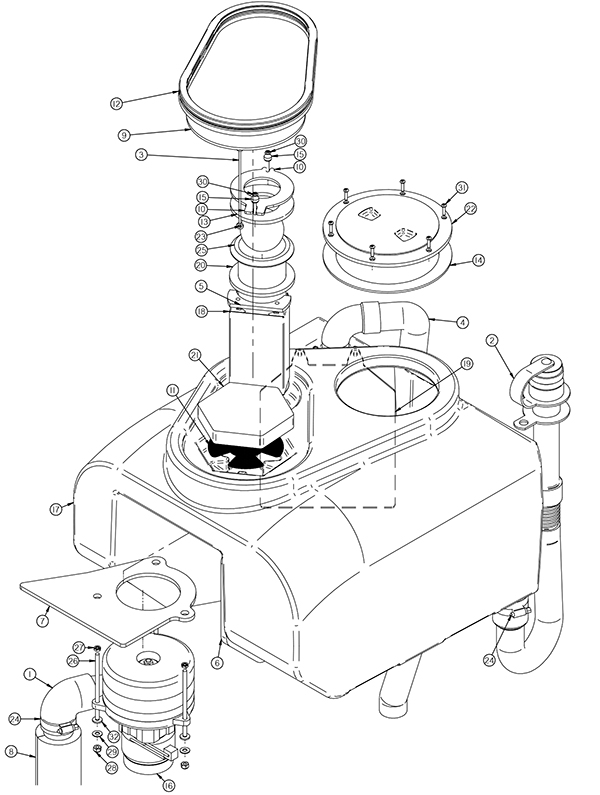

Recovery Tank Assembly - 202-2521 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
202-5376 |
1 1/2 inch elbow |
1 |
|
| 2 |
202-3582 |
Drain hose assembly |
1 |
|
| 6 |
202-9879 |
Vacuum motor insulation |
1 |
|
| 7 |
202-9880 |
Vacuum motor gasket |
1 |
|
| 9 |
202-3912 |
Tank vac cover |
1 |
|
| 10 |
202-9886 |
Ball float top |
1 |
|
| 11 |
N/A |
Not available |
1 |
(vacuum screen) |
| 12 |
202-9887 |
Push-on rubber gasket |
1 |
|
| 13 |
202-9888 |
Ball float gasket |
1 |
|
| 16 |
202-9891 |
36V 3 stage vacuum motor |
1 |
|
| 17 |
N/A |
Not available |
1 |
(recovery tank) |
| 19 |
202-9894 |
Tank curtain |
1 |
|
| 20 |
202-9895 |
Strainer gasket |
1 |
|
| 21 |
202-7033 |
Vac Box Filter |
1 |
|
| 22 |
202-7054 |
Lid,Screw-On,Tank |
1 |
|
| 23 |
202-0232 |
Float shut-off ball |
1 |
|
| 25 |
202-0612 |
Shutoff ball retainer screen |
1 |
|
| 26 |
202-0898 |
Stud 1/4-20 x 5 threaded stainless steel |
3 |
|
| 27 |
202-2067 |
Nut 10-32 keps |
3 |
|
| 28 |
999-0294 |
Nut 1/4-20 hex nylon lock type NE stainless steel |
2 |
|
| 29 |
999-0335 |
Washer 1/4 x 5/8 SAE flat stainless steel |
2 |
|
| 30 |
999-1918 |
Screw #8-32 x 1 1/4 phillips pan head SS |
2 |
|
| 31 |
999-0870 |
Screw 8 x 3/4 pan head phillips stainless steel |
6 |
|
| 32 |
202-1986 |
Washer 3/8 x 1-1/8 x 3/32 neoprene thread |
2 |
|
|
|

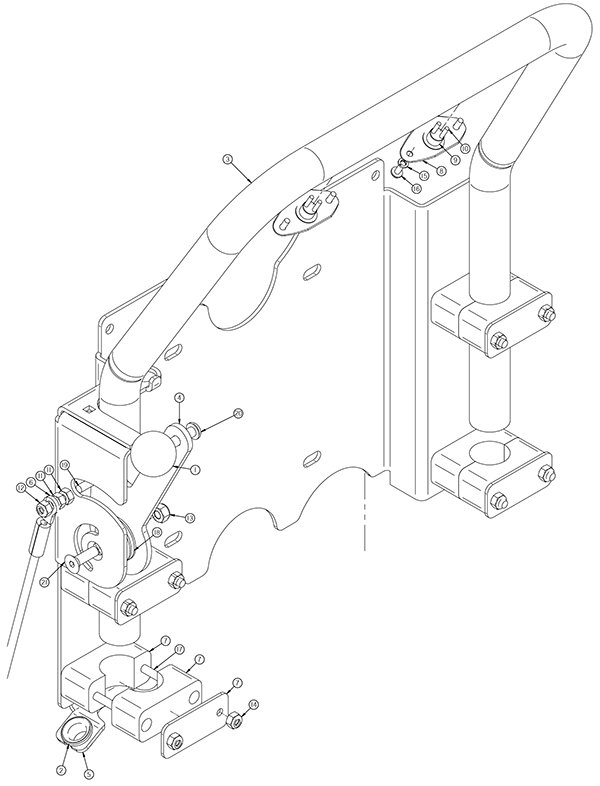

Handle Bar Assembly - 202-2522 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
202-0515 |
Solution flow control knob |
1 |
|
| 2 |
202-9899 |
PVC cable guide |
1 |
|
| 3 |
N/A |
Not available |
1 |
(handle bar) |
| 5 |
N/A |
Not available |
1 |
(lever bracket) |
| 6 |
202-9845 |
23-1/4 squeegee lift cable (black) |
1 |
|
| 7 |
202-5307 |
Handlebar mounting bracket |
4 |
|
| 8 |
202-0869 |
Switch cover |
2 |
|
| 9 |
202-0879 |
Push button switch |
2 |
|
| 10 |
202-2254 |
Heat shrink |
4 |
|
| 11 |
999-0190 |
Nut 1/4-20 hex plain finish |
2 |
|
| 12 |
999-0152 |
Nut 1/4-20 nylon insert lock zinc plated |
1 |
|
| 13 |
999-0211 |
Nut 5/16-18 hex nylon insert lock zinc plated |
1 |
|
| 14 |
999-0294 |
Nut 1/4-20 hex nylon lock type NE stainless steel |
8 |
|
| 15 |
999-0150 |
Washer #8 medium split lock |
4 |
|
| 16 |
999-0916 |
Screw 8-32 x 1/2 pan head phillips stainless steel |
4 |
|
| 17 |
999-9136 |
Screw 1/4-20 x 2 3/4 pan head phillips stainless steel |
8 |
|
| 18 |
999-9241 |
Washer 1 1/2 x 25/64 x 39/64 flat nylon |
2 |
|
| 19 |
999-9242 |
Screw 1/4-20 x 1 1/4 button head socket cap |
1 |
|
| 20 |
999-1507 |
Screw 5/16-18 x 1 button head socket stainless steel |
1 |
|
| 21 |
999-9243 |
Screw 5/16-18 x 1 flat head socket cap (3/16 hex drive) |
1 |
|
|
|

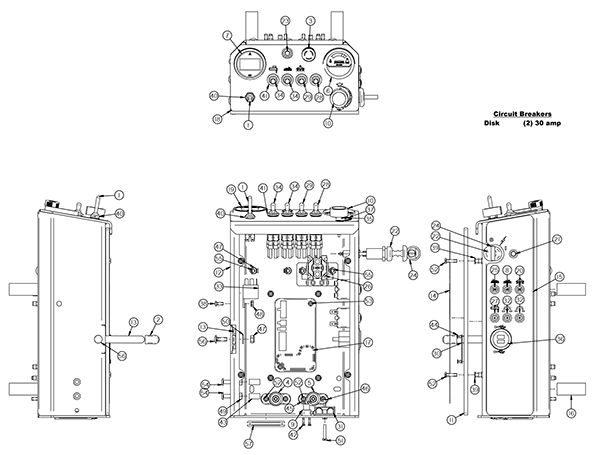

Central Command Assembly - 202-2523 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
202-5396 |
Toggle switch |
1 |
|
| 2 |
202-5386 |
Handle grip (blue) |
1 |
|
| 3 |
202-4191 |
Emergency stop button |
1 |
|
| 4 |
202-6396 |
Power Post, Black, 1/4 Terminal |
1 |
|
| 5 |
202-6397 |
Power Post, Red, 1/4 Terminal |
1 |
|
| 6 |
202-4159 |
40amp brush pressure gauge |
1 |
|
| 7 |
202-2855 |
Battery meter |
1 |
|
| 8 |
202-4160 |
40amp resettable fuse |
1 |
|
| 10 |
202-0989 |
Control knob with washer (red) |
1 |
|
| 11 |
N/A |
Not available |
1 |
(control panel cover) |
| 12 |
N/A |
Not available |
1 |
(bulldog central command) |
| 13 |
202-9903 |
Valve lever |
1 |
|
| 15 |
N/A |
Not available |
1 |
(decal) |
| 16 |
202-9906 |
Central command spacer |
4 |
|
| 17 |
202-3634 |
Drive controller |
1 |
|
| 18 |
N/A |
Not available |
1 |
(decal) |
| 19 |
N/A |
Not available |
1 |
(battery gauge) |
| 20 |
202-9907 |
20amp resettable fuse |
1 |
|
| 21 |
202-7201 |
Light,24V,Blue |
1 |
|
| 22 |
202-2300 |
Key switch with key entry (red) and ring (black) |
1 |
|
| 23 |
202-7203 |
Light,24V,Green,Bulb Style |
1 |
|
| 24 |
991-1634 |
Key (pkg of 2) |
1 |
|
| 28 |
202-3340 |
Toggle switch |
1 |
|
| 29 |
202-1992 |
Toggle switch |
1 |
|
| 30 |
202-0720 |
Serial number plate |
1 |
|
| 31 |
991-2103 |
50amp charger plug SB50 with pins (red) |
1 |
|
| 32 |
202-0341 |
6 Amp circuit breaker |
2 |
|
| 33 |
202-0348 |
15amp relay |
1 |
|
| 34 |
202-9604 |
Toggle switch |
2 |
|
| 35 |
202-0535 |
Speed control potentiometer |
1 |
|
| 36 |
202-3625 |
Dual USB ports |
1 |
|
| 37 |
202-9136 |
Nut,Hex,3/8-32 inch,Zinc |
1 |
|
| 38 |
202-3302 |
Bolt 10-32 x 1/2 carriage head stainless steel |
1 |
|
| 39 |
202-3601 |
Nut #10-32 hex crimp |
10 |
|
| 40 |
202-1864 |
Toggle switch protective boot (red) |
1 |
|
| 41 |
N/A |
Not available |
4 |
(protective boot) |
| 42 |
202-2371 |
Screw 4-40 x 3/4 round pan head |
2 |
|
| 43 |
202-2964 |
Shaft collar |
2 |
|
| 44 |
202-3315 |
Blind rivet |
4 |
|
| 45 |
999-0295 |
Nut 4-40 nylon insert lock stainless steel |
2 |
|
| 46 |
999-0357 |
Nut 8-32 nylon insert lock stainless steel |
1 |
|
| 47 |
999-0294 |
Nut 1/4-20 hex nylon lock type NE stainless steel |
5 |
|
| 48 |
202-2067 |
Nut 10-32 keps |
1 |
|
| 49 |
999-1466 |
Nut 1/4-20 lock with external toothed lockwasher SS |
2 |
|
| 50 |
999-0335 |
Washer 1/4 x 5/8 SAE flat stainless steel |
1 |
|
| 51 |
999-1574 |
Screw 8-32 x 1 pan head phillips stainless steel |
2 |
|
| 52 |
999-1044 |
Screw 10-32 x 3/4 pan head phillips stainless steel |
12 |
|
| 53 |
999-0986 |
Screw 10-32 x 1 round pan head stainless steel |
2 |
|
| 54 |
202-3109 |
Screw 1/4 x 5/8 button head socket stainless steel |
2 |
|
| 55 |
202-2851 |
Bolt 1/4-20 x 5/8 inch carriage head stainless steel |
4 |
|
| 56 |
999-0963 |
Bolt 1/4-20 x 3/4 carriage head stainless steel |
1 |
|
|
|
Battery Pack and Charger Assembly - 202-2524 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
202-5543 |
Battery tray |
1 |
|
| 2 |
202-9930 |
24V onboard charger with power cord |
1 |
|
| 3 |
162-0042 |
12V 115Ah AGM battery (Group 31) |
2 |
|
| 4 |
162-0045 |
12V 140Ah AGM battery |
2 |
|
| 5 |
162-0011 |
12V 105Ah wet battery (SNSR) |
2 |
|
| 6 |
162-0057 |
12V 150Ah wet battery |
1 |
|
| 7 |
N/A |
Not available |
2 |
(lithium battery) |
|
|

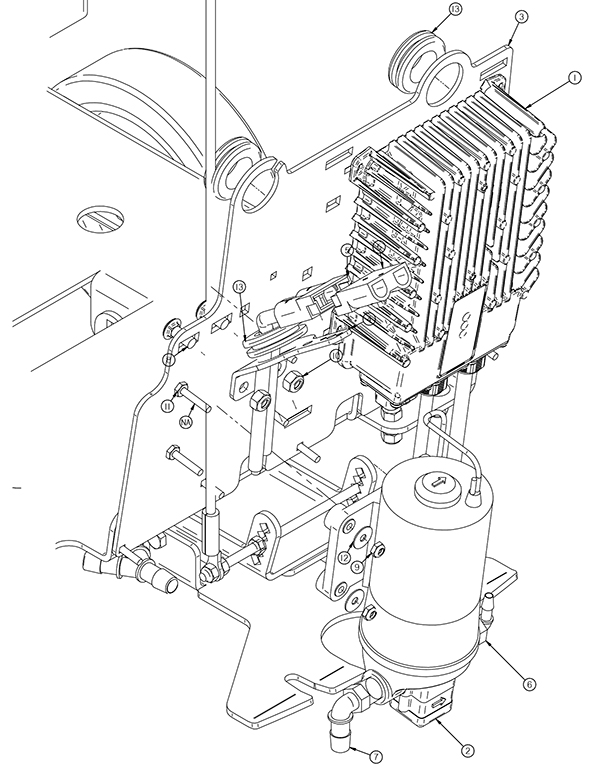

Pump and Charger Assembly - 202-2525 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
202-9930 |
24V onboard charger with power cord |
1 |
|
| 2 |
202-6852 |
Pump,24V,High PSI |
1 |
|
| 3 |
202-9912 |
Utilities plate |
1 |
|
| 4 |
202-7091 |
Bracket, Charger Connector |
1 |
|
| 5 |
991-2103 |
50amp charger plug SB50 with pins (red) |
2 |
|
| 6 |
202-5011 |
90 degree hose barb |
1 |
|
| 7 |
202-3236 |
Threaded barb |
1 |
|
| 8 |
999-9069 |
Bolt 5/16-18 x 3/4 carriage head |
2 |
|
| 9 |
999-0086 |
Nut 10-32 nylon insert lock zinc plated |
2 |
|
| 10 |
999-0211 |
Nut 5/16-18 hex nylon insert lock zinc plated |
1 |
|
| 11 |
202-2067 |
Nut 10-32 keps |
1 |
|
| 12 |
202-3316 |
Washer flat stainless steel |
2 |
|
|
|

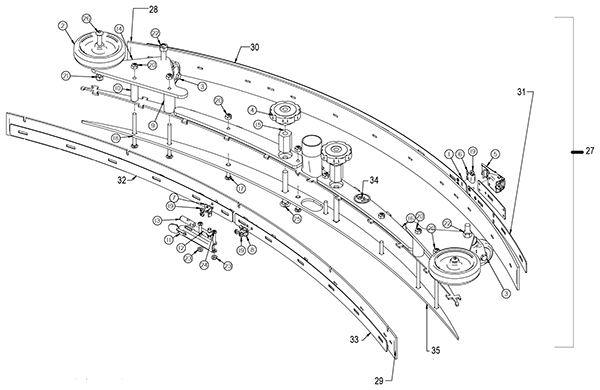

Squeegee Assembly - 202-2526 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
N/A |
Not available |
9 |
(screw) |
| 2 |
202-5079 |
4 inch wheel |
2 |
|
| 3 |
202-3590 |
2 inch caster (gray) |
2 |
|
| 4 |
202-9853 |
3/8-16 star knob |
2 |
|
| 5 |
202-9913 |
Squeegee latch |
1 |
|
| 7 |
202-3649 |
Front band clip |
1 |
|
| 8 |
202-9914 |
Front band clip |
1 |
|
| 12 |
202-9917 |
Eye bolt 1/4-20 x 3 |
1 |
|
| 14 |
202-9919 |
Squeegee caster bracket |
2 |
|
| 16 |
202-3670 |
45 inch squeegee weight |
2 |
|
| 17 |
999-1443 |
Bolt 1/4-20 x 1 1/4 carriage stainless steel |
4 |
|
| 18 |
999-9246 |
Bolt 1/4-20 x 3 carriage zinc |
4 |
|
| 19 |
999-6688 |
Nut 6-32 hex nylon insert lock stainless steel |
9 |
|
| 20 |
999-0152 |
Nut 1/4-20 nylon insert lock zinc plated |
8 |
|
| 21 |
999-0211 |
Nut 5/16-18 hex nylon insert lock zinc plated |
2 |
|
| 22 |
999-0188 |
Nut 3/8-16 nylon insert lock zinc plated |
2 |
|
| 23 |
999-0086 |
Nut 10-32 nylon insert lock zinc plated |
2 |
|
| 24 |
999-0986 |
Screw 10-32 x 1 round pan head stainless steel |
2 |
|
| 25 |
999-0626 |
Screw 3/8-16 x 3 carriage head stainless steel |
2 |
|
| 26 |
999-1913 |
Screw 5/16-18 x 1 3/4 button head socket cap stainless steel |
2 |
|
| 27a |
N/A |
Not available |
1 |
(31 inch squeegee assembly with nanorade blades) |
| 27b |
202-9925 |
33 inch squeegee assembly with nanorade blades |
1 |
|
| 28a |
202-3662 |
Squeegee blade 31 inch linatex rear |
1 |
|
| 28b |
202-9689 |
31 inch squeegee blade urethane rear |
1 |
|
| 28c |
202-3915 |
31 inch squeegee blade rear nanorade |
1 |
|
| 28d |
302-0244 |
Squeegee blade 33 inch linatex rear |
1 |
|
| 28e |
302-0165 |
33 inch rear squeegee blade urethane |
1 |
|
| 28f |
202-9921 |
Rear squeegee blade (nanorade) |
1 |
|
| 29a |
202-3690 |
Squeegee blade 31 inch linatex front |
1 |
|
| 29b |
202-9691 |
Squeegee blade 31 inch urethane front |
1 |
|
| 29c |
202-3916 |
31 inch squeegee blade front nanorade |
1 |
|
| 29d |
202-3691 |
Squeegee blade 33 inch linatex front |
1 |
|
| 29e |
302-0243 |
Squeegee blade 33 inch urethane front |
1 |
|
| 29f |
202-9924 |
33 inch front squeegee blade (nanorade) |
1 |
|
| 30a |
202-3671 |
Squeegee band 31 inch rear with latch |
1 |
|
| 30b |
202-3672 |
Squeegee band 33 inch rear with latch |
1 |
|
| 31a |
202-3671 |
Squeegee band 31 inch rear with latch |
1 |
|
| 31b |
202-3672 |
Squeegee band 33 inch rear with latch |
1 |
|
| 32a |
202-3675 |
Squeegee band 31 inch front with latch |
1 |
|
| 32b |
202-3676 |
Squeegee band 33 inch front with latch |
1 |
|
| 33a |
202-3675 |
Squeegee band 31 inch front with latch |
1 |
|
| 33b |
202-3676 |
Squeegee band 33 inch front with latch |
1 |
|
| 34a |
202-3917 |
31 inch squeegee decal |
1 |
|
| 34b |
202-9922 |
33 inch squeegee decal |
1 |
|
| 35a |
202-3918 |
31 inch squeegee body bottom |
1 |
|
| 35b |
202-9923 |
33 inch squeegee body bottom |
1 |
|
| N/S |
202-3919 |
31 inch squeegee kit linatex |
1 |
|
| N/S |
202-3920 |
33 inch squeegee kit linatex |
1 |
|
|
|
- Frequently Replaced Parts - 202-2527 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
|
162-0042 |
12V 115Ah AGM battery (Group 31) |
2 |
|
|
162-0045 |
12V 140Ah AGM battery |
2 |
|
|
162-0011 |
12V 105Ah wet battery (SNSR) |
2 |
|
|
162-0057 |
12V 150Ah wet battery |
2 |
|
|
202-9930 |
24V onboard charger with power cord |
1 |
|
|
202-6245 |
Valve, Ball, Two-Way, Brass w/hole for Edge Tank |
1 |
|
|
202-5363 |
3/8 inch ball valve |
1 |
|
|
202-3690 |
Squeegee blade 31 inch linatex front |
1 |
|
|
202-9691 |
Squeegee blade 31 inch urethane front |
1 |
|
|
202-3691 |
Squeegee blade 33 inch linatex front |
1 |
|
|
302-0243 |
Squeegee blade 33 inch urethane front |
1 |
|
|
202-7054 |
Lid,Screw-On,Tank |
1 |
|
|
202-3582 |
Drain hose assembly |
1 |
|
|
202-9891 |
36V 3 stage vacuum motor |
1 |
|
|
202-3908 |
17 inch brush midi-grit 7-lobe |
1 |
|
|
202-3909 |
17 inch brush light-grit 7-lobe |
1 |
|
|
202-3910 |
17 inch brush nylon 7-lobe |
1 |
|
|
202-3911 |
17 inch pad driver 7-lobe |
1 |
|
|
|
- Pads - 255-1700 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 01 |
255-1740 |
17 inch aqua plus burnishing pad (pkg of 5) |
|
|
| 02 |
255-1735 |
17 inch Armadillo concrete scrubbing pad (pkg of 5) |
|
|
| 03 |
255-1764 |
17 inch Blue ace pad (pkg of 5) |
|
|
| 04 |
255-1742 |
17 inch Blue Jay burnishing pad (pkg of 5) |
|
|
| 05 |
255-1712 |
17 inch Cure white pad (pkg of 5) (OBSOLETE) |
|
|
| 06 |
255-1777 |
17 inch Diamondback extreme stripping pad (pkg of 5) |
|
|
| 07 |
255-1738 |
17 inch EHD Extra Heavy Duty Concrete Leveling Pad (pkg of 2 |
|
|
| 08 |
255-1721 |
17 inch gorilla lite burnishing pad (pkg of 5) |
|
|
| 09 |
255-1750 |
17 inch gorilla spray buff/polish/burnish pad (pkg of 5) |
|
|
| 10 |
255-1765 |
17 inch Heat concrete bonding pad (pkg of 5) |
|
|
| 11 |
255-1730 |
17 inch jaguar burnishing pad (pkg of 5) |
|
|
| 12 |
255-1767 |
17 inch Laminated 2001 Gorilla polish pad (pkg of 5) |
|
|
| 13 |
255-1768 |
17 inch Microclean daily cleaning pad (pkg of 2) |
|
|
| 14 |
255-1769 |
17 inch Micropolish polishing and burnishing pad (pkg of 2) |
|
|
| 15 |
255-1790 |
17 inch premium black stripping pad (pkg of 5) |
|
|
| 16 |
255-1770 |
17 inch premium blue cleaning pad (pkg of 5) |
|
|
| 17 |
255-1792 |
17 inch premium brown stripping pad (pkg of 5) |
|
|
| 18 |
255-1780 |
17 inch premium green scrubbing pad (pkg of 5) |
|
|
| 19 |
255-1760 |
17 inch premium red scrubbing pad (pkg of 5) |
|
|
| 20 |
255-1752 |
17 inch premium tan polishing pad (pkg of 5) |
|
|
| 21 |
255-1720 |
17 inch premium white polishing pad (pkg of 5) |
|
|
| 22 |
255-1711 |
17 inch superspeed rubberized pad (pkg of 5) |
|
|
| 23 |
255-1795 |
17 inch razorback stripping pad (pkg of 5) |
|
|
| 24 |
255-1747 |
17 inch Redwood maroon floor prep pad (pkg of 10) |
|
|
| 25 |
255-1755 |
17 inch Ruff non-abrasive brush pad (pkg of 2) |
|
|
| 26 |
255-1723 |
17 inch sand screen driver pad (pkg of 2) |
|
|
| 27 |
255-0139 |
17 inch Professional sand screen 100 grit (pkg of 10) |
|
|
| 28 |
255-0019 |
17 inch Professional sand screen 120 grit (pkg of 10) |
|
|
| 29 |
255-0140 |
17 inch Professional sand screen 150 grit (pkg of 10) |
|
|
| 30 |
255-0141 |
17 inch Professional sand screen 180 grit (pkg of 10) |
|
|
| 31 |
255-0142 |
17 inch Professional sand screen 220 grit (pkg of 10) |
|
|
| 32 |
255-0143 |
17 inch Professional sand screen 400 grit (pkg of 10) |
|
|
| 33 |
255-0138 |
17 inch Professional sand screen 60 grit (pkg of 10) |
|
|
| 34 |
255-0018 |
17 inch Professional sand screen 80 grit (pkg of 10) |
|
|
| 35 |
255-0225 |
17 inch Superscreen sand screen 100 grit (pkg of 10) |
|
|
| 36 |
255-0226 |
17 inch Superscreen sand screen 120 grit (pkg of 10) |
|
|
| 37 |
255-0227 |
17 inch Superscreen sand screen 150 grit (pkg of 10) |
|
|
| 38 |
255-0228 |
17 inch Superscreen sand screen 180 grit (pkg of 10) |
|
|
| 39 |
255-0229 |
17 inch Superscreen sand screen 220 grit (pkg of 10) |
|
|
| 40 |
255-0230 |
17 inch Superscreen sand screen 400 grit (pkg of 10) |
|
|
| 41 |
255-0223 |
17 inch Superscreen sand screen 60 grit (pkg of 10) |
|
|
| 42 |
255-0224 |
17 inch Superscreen sand screen 80 grit (pkg of 10) |
|
|
| 43 |
255-1724 |
17 inch Tiger carpet bonnet (pkg of 2) |
|
|
| 44 |
255-9570 |
17 inch Diamond by Gorilla 11000 Grit (pkg of 2) |
|
|
| 45 |
255-9567 |
17 inch Diamond by Gorilla 1500 Grit (pkg of 2) |
|
|
| 46 |
255-9564 |
17 inch Diamond by Gorilla 200 Grit (pkg of 2) |
|
|
| 47 |
255-9568 |
17 inch Diamond by Gorilla 3000 Grit (pkg of 2) |
|
|
| 48 |
255-9565 |
17 inch Diamond by Gorilla 400 Grit (pkg of 2) |
|
|
| 49 |
255-9566 |
17 inch Diamond by Gorilla 800 Grit (pkg of 2) |
|
|
| 50 |
255-9569 |
17 inch Diamond by Gorilla 8000 Grit (pkg of 2) |
|
|
| 51 |
255-9642 |
17 inch Diamond starter pack (1 of each grit) |
|
|
| 52 |
255-1782 |
17 inch Turbostrip segmented rotary pad (pkg of 4) |
|
|
| 53 |
255-1715 |
17 inch Duala clean and shine pad - low speed (pkg of 5) |
|
|
| 54 |
255-1716 |
17 inch 2001 Duala clean and shine pad - high speed (pkg 5) |
|
|
|
|
- Pad Holders - 275-9029 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
991-2214 |
Center-Lok II pad holder - left hand thread (red) |
|
|
| 2a |
991-2201 |
Center-Lok II pad holder - right hand thread (black) |
|
(Pad driver side female, Floor side male) |
| 2b |
991-8577 |
Pad retainer |
|
(Pad driver side male, Floor side female) |
| 3a |
991-2202 |
Big mouth pad holder set (blue) |
|
(includes 3 screws) |
| 3b |
991-2205 |
Deep lock ring and pad grip ring |
|
|
| 4 |
991-2203 |
Big mouth pad holder male thread portion |
|
|
| 5 |
991-2206 |
Center-Lok 3 pad holder |
|
(includes 3 screws) |
| 6 |
996-0372 |
Big mouth pad holder (left hand thread) |
|
|
| 8 |
991-2209 |
Split retainer - pad holder ring (OBSOLETE) |
|
|
| 9 |
N/A |
Not available |
|
(replaced by #3 991-2202) |
| 10 |
991-2211 |
Center lock pad holding cup (male) (yellow) (OBSOLETE) |
|
|
|
|
