Parts List Complete for BULLDOG BD20


Main Assembly - 174-2258
RefNbr Part Number Description Req Notes
1 174-8186 Recovery vac hose with cuff (clear) 1
2 174-8187 Solution tank lid assembly 1 (includes 24-26)
3 174-8201 Brush deck assembly 20 inch 1
4a 174-9037 Nylon scrubbing brush 1
4b 174-8168 Pad driver 1
4c 174-9604 Heavy grit stripping brush - 80 grit 1
4d 174-9605 Medium grit scrubbing brush - 120 grit 1
5 174-8343 Squeegee lift mechanism assembly 1
6 174-8189 Fill port filter 1
7 274-9436 34 inch squeegee assembly curved 1
8 997-2001 Hose clamp 1
9 174-8192 Screw 10 x 3/4 stainless steel 1
10 999-0211 Nut 5/16-18 hex nylon insert lock zinc plated 1
11 999-0324 Nut 3/8-16 nylon insert lock jam zinc plated 3
12 999-0120 Washer 3/8 SAE flat 1
13 174-8193 Washer .390 x .880 x .062 flat 1
14 999-0566 Washer 1/2 flat nylon 6
15 174-8194 Bolt 5/16-18 X 2 3/8 shoulder 1
16 999-1363 Washer 7/8 flat stainless steel 2
17 174-7269 Decal 2
20a 162-0011 12V 105Ah wet battery (SNSR) 2
21 174-7270 Brush drive base assembly 1
22 174-5325 Bolt 1/2 x 1/2 shoulder 3
23 174-7143 Bulldog decal 1
24 174-8164 Solution tank lid 1
25 174-8199 Beaded chain with eyelets stainless steel 1
26 999-0336 Screw 6-32 x 3/8 pan head phillips stainless steel 1
27 174-7195 Brush motor 1
N/S 174-8196 Jumper cable assembly red 4G 12 inch 1
N/S 174-8197 Battery cable assembly 1
N/S 174-7142 Contact information decal 1

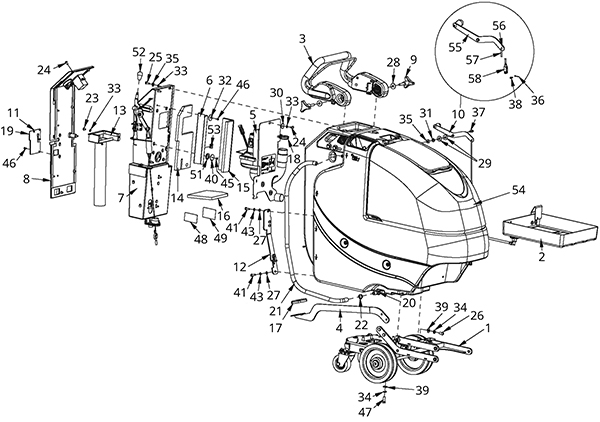

Brush Drive Base Assembly - 174-2259
RefNbr Part Number Description Req Notes
1 174-8206 Chassis assembly 1
2 174-8207 Battery tray assembly 1
3 174-8208 Handle assembly 1
4 174-8209 Lift pedal weldment 1
5 174-8210 Vac motor assembly 1
6 174-8211 Inside cover bracket 1
7 174-8212 120V electrical box assembly 1
8 174-7271 Electronic box cover assembly 1
9 174-8214 Knob 3/8-16 stud 2
10 174-8215 Solution control assembly 1 (includes 36, 38, 55-58)
11 174-8216 Power cord mount bracket 1
12 174-8217 Lift pedal stop assembly 1
13 174-8218 Charger inlet assembly 1
14 174-8219 Foam cover with adhesive 1
15 174-8220 1/2 inch foam cover 1
16 174-8222 1/2 inch foam cover 1
17 174-0102 Pedal pad 1
18 997-2000 Hose clamp 1
19 174-8223 Strain relief 1
20 174-8224 Fitting 1/2 barb 3/4 mpt 1
21 174-8225 Hose 1/2 ID x 42 inch clear 1
22 174-8226 3/4 inch hose clamp 2
23 999-0509 Screw 1/4-20 x 3/8 pan head phillips zinc plated 1
24 999-0113 Screw 1/4-20 x 1/2 truss head slotted 10
25 999-0415 Screw 1/4-20 x 3/4 pan head slotted zinc plated 5
26 999-0616 Screw 3/8-16 x 5/8 socket head alloy plain finish 2
27 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel 2
28 999-0617 Washer 3/8 x 1 flat stainless steel 2
29 999-0328 Washer 7/16 USS flat 2
30 174-0536 Washer 1/4 3
31 999-0120 Washer 3/8 SAE flat 1
32 174-5259 Washer #10 helical 1
33 999-0060 Washer 1/4 split lock plain finish 9
34 999-0034 Washer 3/8 split lock plain finish 6
35 999-0024 Washer 5/16 flat stainless steel 6
36 174-3219 Cotter pin .06 x .75 1
37 174-5160 Bolt 1/4-20 x .44 x 3/8 shoulder 1
38 174-2756 Clevis pin 3/16 x 19/32 1
39 999-1363 Washer 7/8 flat stainless steel 6
40 999-0464 Washer 3/16 flat plain finish 2
41 999-0334 Bolt 1/4-20 x 3/4 inch hex head stainless steel 2
43 999-0632 Washer 1/4 split lock stainless steel 2
45 999-0082 Screw 10-24 x 1/4 round head slotted zinc plated 1
46 999-0817 Screw 10-24 x 5/8 round head zinc plated 5
47 999-0038 Bolt 3/8-16 x 1 hex head grade 5 zinc plated 4
48 174-5775 Serial nameplate decal 1
49 174-8228 Clear laminate decal 1
51 999-1134 Washer 1 1/4 flat stainless steel 1
52 174-0387 Knob 1
53 174-1121 Cord clip 1
54 174-7150 Base assembly 1
55 174-8231 Solution control lever assembly 1
56 174-8232 Nut 3/16 inch push on washer cap 1
57 174-8233 Solution control rod 1
58 174-8234 Yoke 3/16 x 10-32 clevis 1
N/S 999-0211 Nut 5/16-18 hex nylon insert lock zinc plated 2
N/S 174-8251 Washer flat stainless steel 2
N/S 174-8229 Patent number label 1

Base Assembly - 174-2260
RefNbr Part Number Description Req Notes
1 174-7151 Solution tank assembly 1
2 174-7152 Recovery tank assembly 1
3 174-7153 Front panel 1
4 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel 3
5 174-5259 Washer #10 helical 4
6 174-5160 Bolt 1/4-20 x .44 x 3/8 shoulder 1
7 999-0464 Washer 3/16 flat plain finish 4
8 999-0567 Screw 1/4-20 x 5/8 pan head phillips stainless steel 2
9 999-0089 Washer #10 internal star lock zinc plated 1
10 999-0632 Washer 1/4 split lock stainless steel 2
11 999-0013 Screw 10 x 5/8 pan head phillips sheet metal 4
12 999-0586 Screw 10-24 x 1/2 truss head stainless steel 1
N/S 174-7154 Front panel plug 1
N/S 174-7155 Front panel plug 1

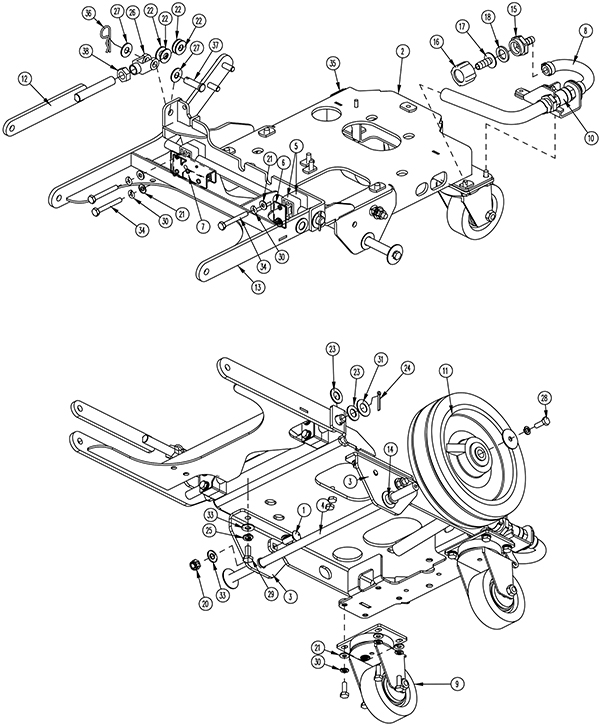

Chassis Assembly - 174-2261
RefNbr Part Number Description Req Notes
1 999-0252 Screw 5/16-18 x 1 carriage head grade 5 zinc 2
2 174-8238 Main frame weldment 1
3 174-8239 Wheel bracket 2
4 174-8242 Wheel rod 1
5 174-8243 Bearing block 4
6 174-8244 Bearing block plate 1
7 174-8246 Deck switch assembly 1
8 374-2299 Wiire reinforced hose 3/8 X 5.5 inch 1
9 174-1523 3 1/2 inch caster 2
10 174-8255 Solution valve assembly 1
11 174-8249 Wheel 8 x 2 x .5 2
12 174-7156 Upper lifting arm 1
13 274-7650 Deck lift weldment 1
14 174-0120 Bushing 2
15 374-2225 3/8 inch fitting 1
16 374-2226 Fitting 1
17 374-2227 Fitting 1
18 374-2228 Mesh screen filter 1
20 999-0211 Nut 5/16-18 hex nylon insert lock zinc plated 2
21 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel 12
22 174-8193 Washer .390 x .880 x .062 flat 4
23 999-0566 Washer 1/2 flat nylon 2
24 174-1039 Cotter pin 1/8 x 1 1
25 174-8250 Washer helical 5/16 stainless steel 4
26 174-7162 Yoke clevis with pin 1
27 999-1363 Washer 7/8 flat stainless steel 2
28 999-0334 Bolt 1/4-20 x 3/4 inch hex head stainless steel 12
29 999-0556 Bolt 5/16-18 x 3/4 hex head stainless steel 4
30 999-0632 Washer 1/4 split lock stainless steel 14
31 174-0588 Washer 9/16 x 1-1/16 x 3/64 flat pleated 3
33 174-8251 Washer flat stainless steel 6
34 999-0258 Bolt 1/4-20 x 2 hex head grade 5 zinc plated 4
35 174-2234 Cord clip 1
36 174-0200 Cotter pin 1
37 174-5862 Clevis pin 1
38 999-0714 Nut 1/2-20 hex jam stainless steel 1
N/S 997-2001 Hose clamp 2
N/S 174-1167 Washer 9/32 x 19/32 flat stainless steel 2
N/S 274-9788 Filter 1

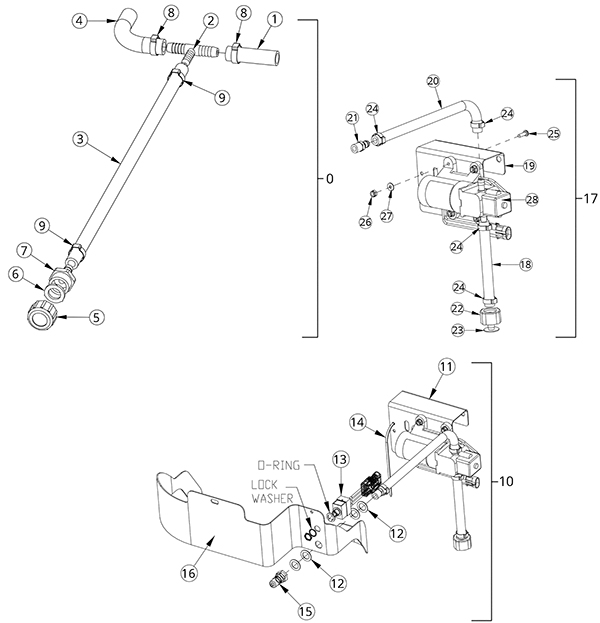

Solution Valve Assembly - 174-2262
RefNbr Part Number Description Req Notes
1 174-8253 Hose 1/2 ID x 7 1/2 inch nylon 1
2 274-2585 Solenoid mount bracket 1
3 174-0587 Double brass fitting 1
4 174-8254 Hose clamp 1
5 999-0588 Washer 7/8 flat stainless steel 2
6 174-0522 Washer .69 flat stainless steel 1
7 174-8255 Solution valve assembly 1
8 174-2671 Fitting brass 3/8 mpt x 1/2 1

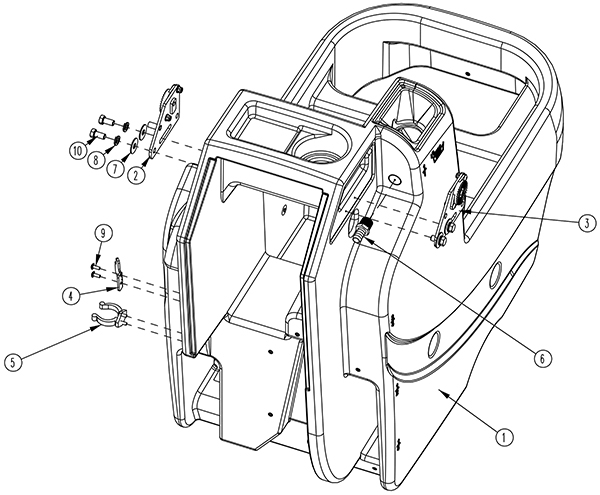

Solution Tank Assembly - 174-2263
RefNbr Part Number Description Req Notes
1 274-9653 Solution tank 1
2 174-8257 Left handle mount assembly 1
3 174-8258 Right handle mount assembly 1
4 274-1920 Drain hose hook 1
5 174-5968 1 1/2 inch hose clip 1
6 174-8259 Fitting 1/2 mpt 1/2 hb brass 1
7 999-0617 Washer 3/8 x 1 flat stainless steel 4
8 999-0034 Washer 3/8 split lock plain finish 4
9 999-0586 Screw 10-24 x 1/2 truss head stainless steel 4
10 999-0119 Bolt 3/8-16 x 3/4 hex head grade 5 zinc plated 4

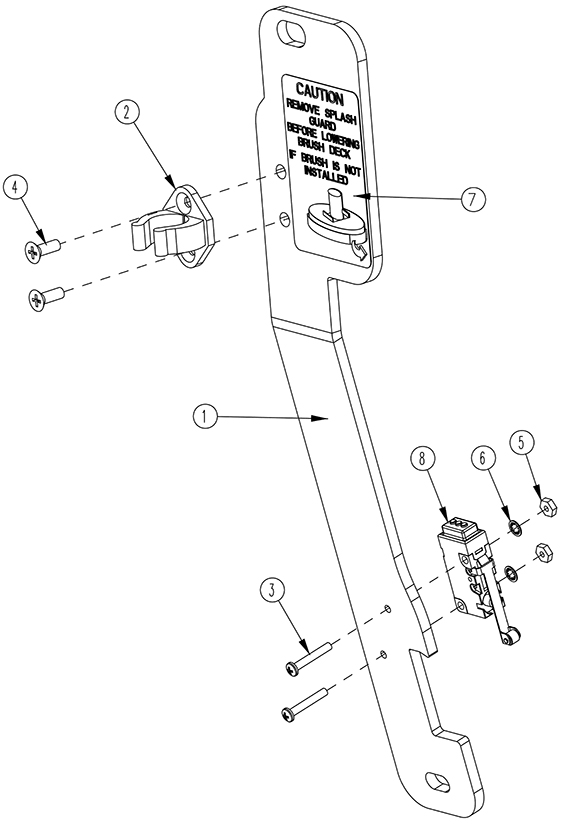

Lift Pedal Stop Assembly - 174-2264
RefNbr Part Number Description Req Notes
1 174-8262 Stop pedal bracket 1
2 174-8263 Clip 1
3 999-1059 Screw 4-40 x 3/4 pan head phillips zinc plated 2
4 174-2271 Screw 8-32 x 1/2 2
5 999-0408 Nut 4-40 plain machine screw 2
6 999-0479 Washer #4 internal star lock zinc plated 2
7 174-7165 Remove splash guard decal 1
8 174-8264 Switch assembly (with pack conduit) 1

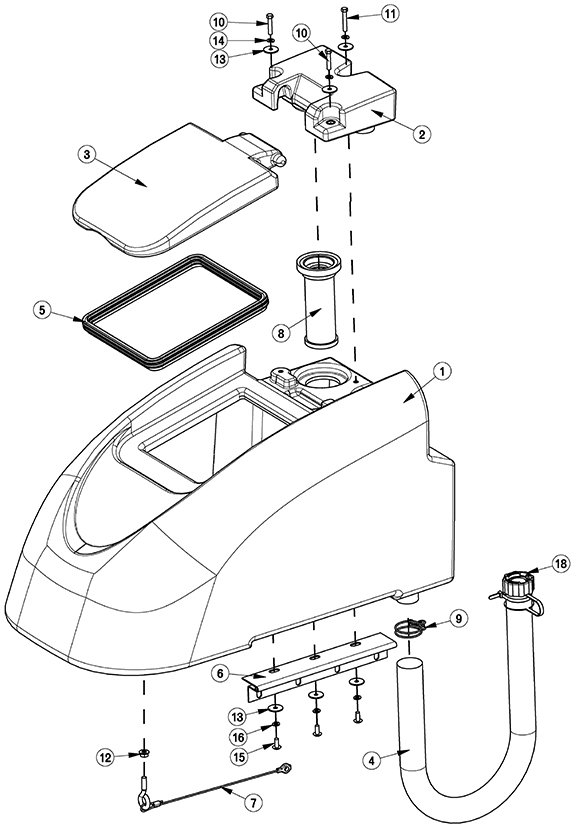

Recovery Tank Assembly - 174-2265
RefNbr Part Number Description Req Notes
1 174-7167 Recovery tank 1
2 174-7168 Vacuum manifold 1
3 174-7169 Lid 1
4 174-8455 Drain hose assembly 1
5 174-8268 Lid gasket 1
6 174-8269 Recovery tank hinge 1
7 174-7166 Recovery tank cable assembly 1
8 174-8271 Screened float 1
9 174-3354 Hose clamp 1
10 999-0136 Bolt 1/4-20 x 1 1/4 hex head grade 5 zinc plated 2
11 999-0344 Bolt 1/4-20 x 1 1/2 hex head plain finish 1
12 999-0525 Nut 5/16-18 flange lock serrated zinc plated 1
13 174-0536 Washer 1/4 6
14 999-0060 Washer 1/4 split lock plain finish 3
15 999-0567 Screw 1/4-20 x 5/8 pan head phillips stainless steel 3
16 999-0632 Washer 1/4 split lock stainless steel 3
18 174-8960 Drain hose cap 1
N/S 174-8959 O-ring 1

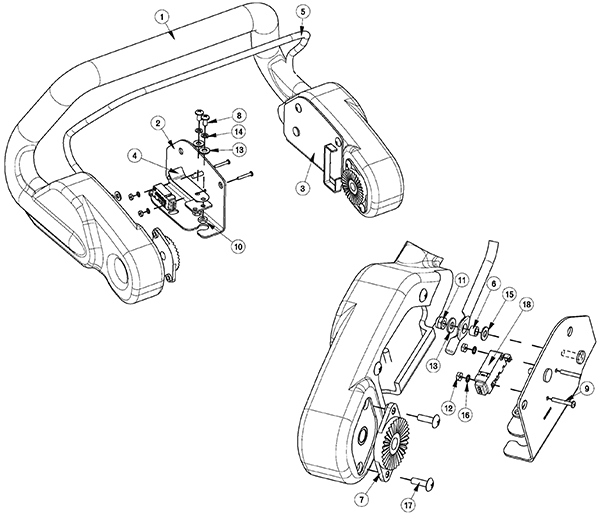

Handle Assembly - 174-2266
RefNbr Part Number Description Req Notes
1 174-8272 Handle 1
2 174-8273 Right hand bail plate weldment 1
3 174-8274 Left hand bail plate weldment 1
4 174-8275 Leaf spring 2
5 174-8276 Bail handle 1
6 174-8277 Spacer 2
7 174-8278 Handle pivot jaw 2
8 999-0321 Screw 10-32 x 3/8 pan head slotted zinc plated 4
9 999-1059 Screw 4-40 x 3/4 pan head phillips zinc plated 2
10 999-0460 Nut 10-32 hex 4
11 999-0086 Nut 10-32 nylon insert lock zinc plated 2
12 999-0408 Nut 4-40 plain machine screw 2
13 999-0006 Washer 3/16 flat zinc plated 6
14 174-5259 Washer #10 helical 4
15 174-0532 Washer 7/32 x 3/64 nylon 2
16 999-0479 Washer #4 internal star lock zinc plated 2
17 999-1029 Screw 10-24 x 5/8 truss head phillips stainless steel 10
18 174-9022 Brush deck switch 1
N/S 174-8280 Cable assembly 18G console 1

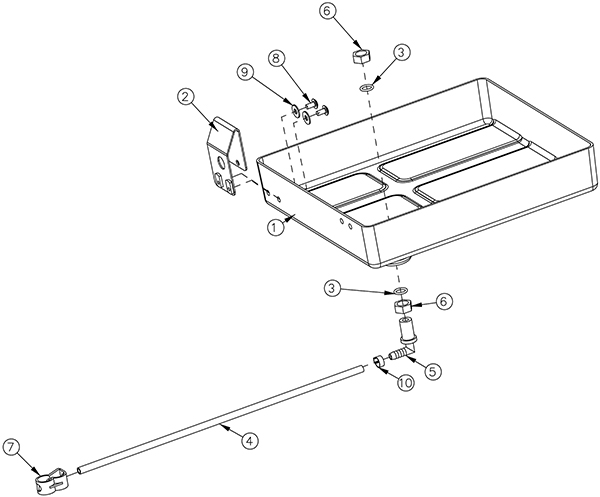

Battery Tray Assembly - 174-2267
RefNbr Part Number Description Req Notes
1 174-8281 Battery box 1
2 174-8282 Bracket spacer for batteries 1
3 174-0073 O-ring 2
4 174-0369 18 inch silicone hose 1
5 174-0364 90 degree nozzle body 1
6 174-0517 Nut 1/4 plastic 2
7 174-0370 Shut-off hose clamp 1
8 999-0113 Screw 1/4-20 x 1/2 truss head slotted 2
9 999-0024 Washer 5/16 flat stainless steel 2
10 997-2001 Hose clamp 1

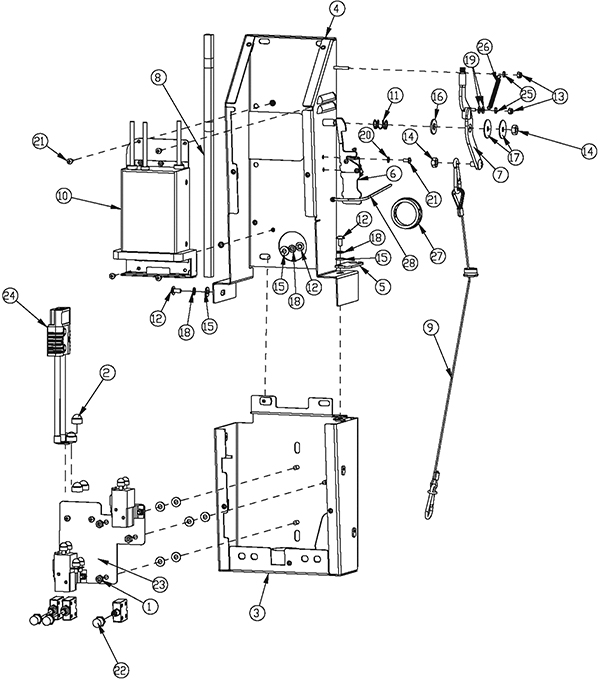

Electrical Box Assembly - 174-2268
RefNbr Part Number Description Req Notes
1 174-9057 Nut 1/4-20 serated nylock 3
2 174-3716 Safety nut cover cap 2
3 174-8283 Bottom electrical box weldment 1
4 174-8284 Upper electrical box weldment 1
5 174-8285 Upper bushing mount bracket 1
6 174-8287 Vac switch assembly 1
7 174-8128 Lever 1
8 174-8288 Foam tape 1/2 x 16 1/2 inch 1
9 274-4152 Squeegee cable assembly 1 (gromment is NLA)
10 174-7106 Onboard battery charger assembly DO NOT ORDER 1
11 174-5749 Compression spring 1
12 999-0113 Screw 1/4-20 x 1/2 truss head slotted 3
13 999-0151 Nut 8-32 nylon insert lock zinc plated 2
14 999-0211 Nut 5/16-18 hex nylon insert lock zinc plated 2
15 999-0016 Washer 1/4 flat plain finish 9
16 999-0328 Washer 7/16 USS flat 1
17 174-2255 Washer 5/16 x 7/8 x 3/64 flat 2
18 999-0060 Washer 1/4 split lock plain finish 3
19 174-0532 Washer 7/32 x 3/64 nylon 2
20 999-0089 Washer #10 internal star lock zinc plated 6
21 999-0817 Screw 10-24 x 5/8 round head zinc plated 6
22 174-5824 Circuit breaker boot 3
23 174-8289 Electrical panel assembly 1
24 174-8290 Wire assembly 1
25 374-2258 Mount ring 2
26 174-5235 Spring 1
27 174-0255 Bushing 1
28 997-2102 Cable tie 1

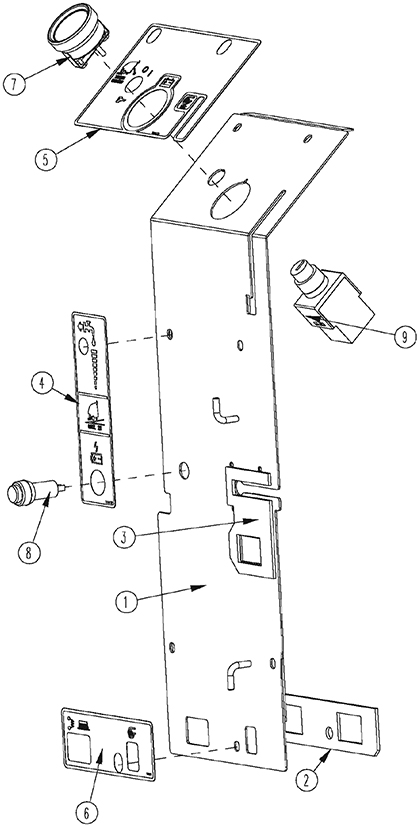

Electrical Box Cover Assembly - 174-2269
RefNbr Part Number Description Req Notes
1 174-8293 Electrical box cover weldment 1
2 174-8294 Circuit breaker gasket 1
3 174-8295 Charger cord plate gasket 1
4 174-8296 Electrical box decal 1
5 174-7272 Dashboard decal 1
6 174-8298 Circuit breaker decal 1
7 174-0180 Battery gauge 1
8 174-8299 Charge status indicator 1
9 174-8177 Key switch with key 1

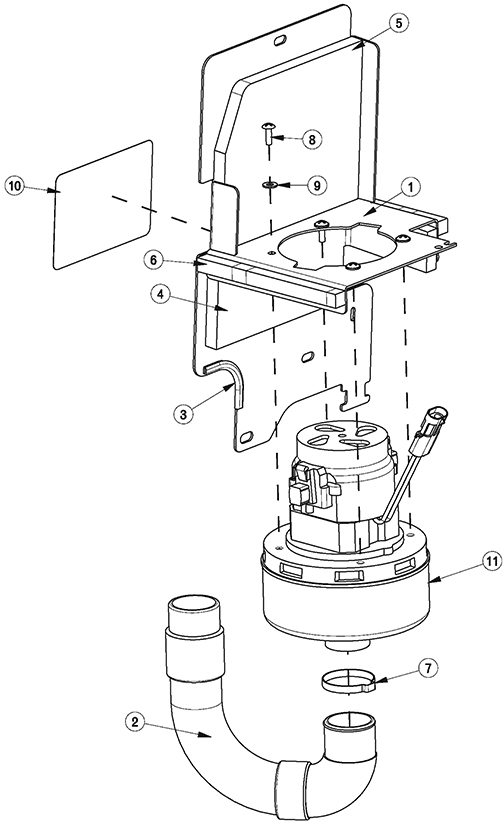

Vacuum Motor Assembly - 174-2270
RefNbr Part Number Description Req Notes
1 174-8300 Vac mount weldment 1
2 174-8301 13 inch stretch hose 1
3 174-8302 Edge trim .063 x 3.0 black 1
4 174-8303 Foam cover (front) 1
5 174-8222 1/2 inch foam cover 1
6 174-8288 Foam tape 1/2 x 16 1/2 inch 2
7 174-8304 1 3/4 inch crimp clamp 1
8 174-5991 Screw #10 x 5/8 plated hi/low 4
9 999-0006 Washer 3/16 flat zinc plated 4
10 174-8305 Battery cable route decal 1
11 174-9035 24V 2 stage vacuum motor assembly peripherial discharge byps 1

Brush Hub Assembly - 174-2272
RefNbr Part Number Description Req Notes
1 374-0744 Screw M6 x 30mm hex head socket stainless steel 3
2 374-1580 Washer 3
3 274-2649 Drive hub 1
4 174-8322 Drive hub base 1

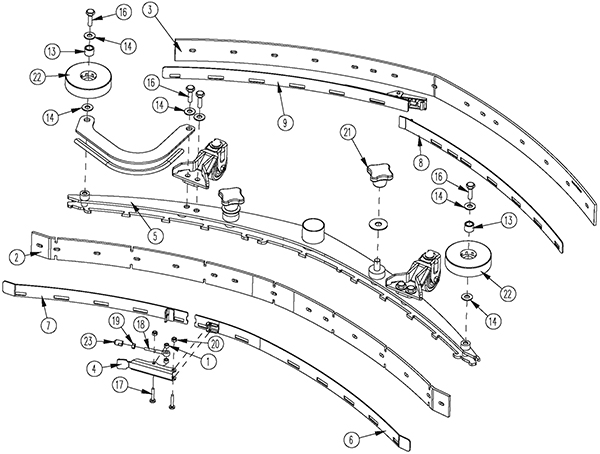

Rear Squeegee Assembly - 174-2273
RefNbr Part Number Description Req Notes
1 174-8277 Spacer 2
2 174-9615 Squeegee blade 34 inch urethane front 1
3 174-9616 Squeegee blade 34 inch urethane rear 1
4 174-8327 Lever 1
5 174-8329 34 inch squeegee weldment 1
6 174-8330 Front left strap weldment 1
7 174-8332 Front right strap weldment 1
8 174-8333 Rear left strap weldment 1
9 174-8334 Rear right strap weldment 1
13 174-8328 Bushing 2
14 174-8251 Washer flat stainless steel 8
16 999-0501 Bolt M8-1.25 x 25mm hex head full thread stainless steel 6
17 999-1425 Screw M5-.8 x 25mm pan head stainless steel 2
18 174-8338 Bolt M5 x 40mm eye stainless steel 1
19 999-0740 Nut M5-.8 hex stainless steel 1
20 999-0495 Nut M5-.8 nylon insert lock zinc plated 2
21 174-8339 Star knob 2
22 174-8340 Guide wheel 2
23 174-8341 Pressure pin 1
N/S 174-8933 Fixed caster 2
N/S 174-8336 34 inch squeegee bumper 1
N/S 174-8326 Edge trim black 5/16 x 10 inch 1
N/S 174-7186 Washer 10 1/2 x 30 x 2 1/2 flat stainless steel 2

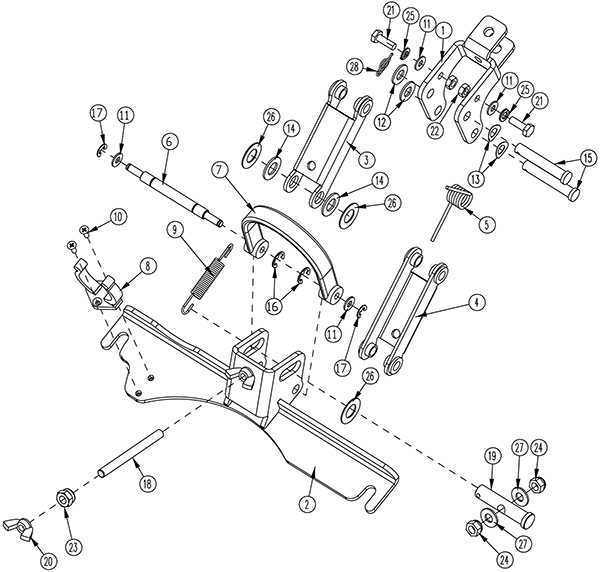

Squeegee Mechanism Assembly - 174-2274
RefNbr Part Number Description Req Notes
1 174-8346 Main squeegee bracket hinge 1
2 174-8347 Squeegee mount weldment 1
3 174-8348 Squeegee top link with bushing 1
4 174-8349 Squeegee bottom link with bushing 1
5 174-8350 Torsion spring 1
6 274-1265 Pin 1
7 274-1653 9 inch strap (black) 1
8 174-5968 1 1/2 inch hose clip 1
9 174-0008 Return spring 1
10 174-2271 Screw 8-32 x 1/2 2
11 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel 4
12 999-0120 Washer 3/8 SAE flat 2
13 999-0120 Washer 3/8 SAE flat 2
14 999-0566 Washer 1/2 flat nylon 2
15 174-8345 Clevis pin 3/8 x 2 1/4 2
16 174-0140 Retaining ring 2
17 174-0414 Retaining ring 2
18 174-8351 Rod 5/16-18 x 3 1/2 inch stainless steel 1
19 174-8352 Clevis pin 1/2 x 2 1/4 inch with hole 1
20 999-1012 Nut 5/16-18 wing stainless steel 2
21 999-0334 Bolt 1/4-20 x 3/4 inch hex head stainless steel 2
22 999-0609 Nut 1/4-20 hex stainless steel 2
23 999-0593 Nut 5/16-18 hex stainless steel 1
24 999-0211 Nut 5/16-18 hex nylon insert lock zinc plated 2
25 999-0632 Washer 1/4 split lock stainless steel 2
26 174-0588 Washer 9/16 x 1-1/16 x 3/64 flat pleated 3
27 174-8251 Washer flat stainless steel 2
28 174-1578 3/8 rue ring cotter pin 1

Pump Kit Assembly - 174-2275
RefNbr Part Number Description Req Notes
0 274-6726 PARTS FOR FC MODELS, BD/TD-E1720 1 (includes 1-9)
1 174-7187 Nylon reinforced hose 1/2 x 2 1/2 inch 1
2 174-7188 Tee fitting 1
3 174-7189 Wire reinforced hose 3/8 x 18 inch 1
4 991-1405 Vinyl tubing 1/2 x 3/4 (sold by the inch) 6 inch
5 174-5890 Garden hose cap 1
6 174-5898 Washer black vinyl 1
7 374-2225 3/8 inch fitting 1
8 174-8254 Hose clamp 2
9 997-2001 Hose clamp 2
10 274-8561 KIT, BULLDOG-20 PUMP, OFF AISLE WAND 1 (includes 11-16)
11 174-7191 OAW pump assembly 1
12 999-0855 Washer 9/16 SAE flat 4
13 174-7192 Toggle on/off switch assembly 1
14 997-2102 Cable tie 4
15 174-0218 Male quick coupler 1
16 174-7153 Front panel 1
17 174-7191 OAW pump assembly 1 (includes 18-28)
18 374-2299 Wiire reinforced hose 3/8 X 5.5 inch 1
19 174-7193 Pump bracket assembly 1
20 174-0361 Solution valve hose 1
21 174-0368 Double barb 3/8 x 1/4 MPF 1
22 374-2226 Fitting 1
23 374-2227 Fitting 1
24 997-2001 Hose clamp 4
25 999-0726 Screw 10-32 x 5/8 pan head phillips zinc plated 4
26 999-0086 Nut 10-32 nylon insert lock zinc plated 4
27 999-0998 Washer #10 flat stainless steel 4
28 274-7416 24v pump 1
N/S 374-2228 Mesh screen filter 1 (included with 10)
N/S 174-5804 Bolt 5/16 x 3/4 shoulder 1 (included with 10)

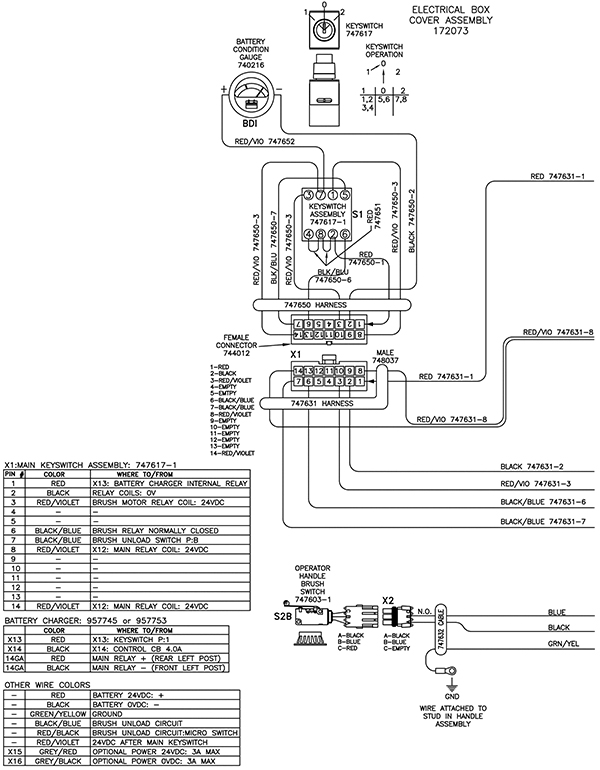

Wiring Diagram 1 - 174-2276
RefNbr Part Number Description Req Notes
M1 174-7194 Water pump 1 (optional)
M2 174-7195 Brush motor 1
M3b 174-3719 24V vacuum motor assembly 1 (H20 only)
K1 174-8373 24V main relay 2 pole 125 amp 1
K2 174-8375 24V brush motor relay 2 pole 80 amp 1
K3 174-8389 24V vacuum motor relay 1 pole 80 amp 1
CB1 174-8165 Circuit breaker 4.0 amp (push button) 1
CB2a 274-1163 30amp circuit breaker 1
CB2b 991-1629 35amp circuit breaker 1 (NON-OEM)
CB3 174-5059 Circuit breaker 20 amp (push button) 1
S1 274-7156 KEYSWITCH, START-OFF-ON (E1720) 1
S2a 174-8264 Switch assembly (with pack conduit) 1 (motor)
S2b 174-7198 Switch 1 (handle)
S3 174-7199 Switch 1
S6 174-7199 Switch 1
S7 174-8264 Switch assembly (with pack conduit) 1 (optional)
S8 174-7192 Toggle on/off switch assembly 1 (optional)
CSI 174-8299 Charge status indicator 1
HM 174-8383 Hour meter 24-277VDC/AC snap in 1 (optional)
BCa 174-7175 24V onboard battery charger (OBSOLETE) 1
BCb 174-3717 230V charger assembly 1
G1a 162-0011 12V 105Ah wet battery (SNSR) 2
N1 174-3720 Brush motor ferrite 1
N2 174-8400 Snap it ferrite bead 1
D1 N/A Not available 1 (main relay diode) (included with K1)
D2 174-0230 Diode assembly 1
D3 174-0230 Diode assembly 1
D4 174-0230 Diode assembly 1 (optional)
X13b 374-2443 QC-MALE 18-22G .250 FULL INS (STRIP) (male)
X16a 374-1699 QC-FEMALE 18-22G .250 FULL INSULATED (female)
X17a 374-1699 QC-FEMALE 18-22G .250 FULL INSULATED (female)
X17b 374-1714 QC-MALE 10-12G .250 FULL INSULATED (male)

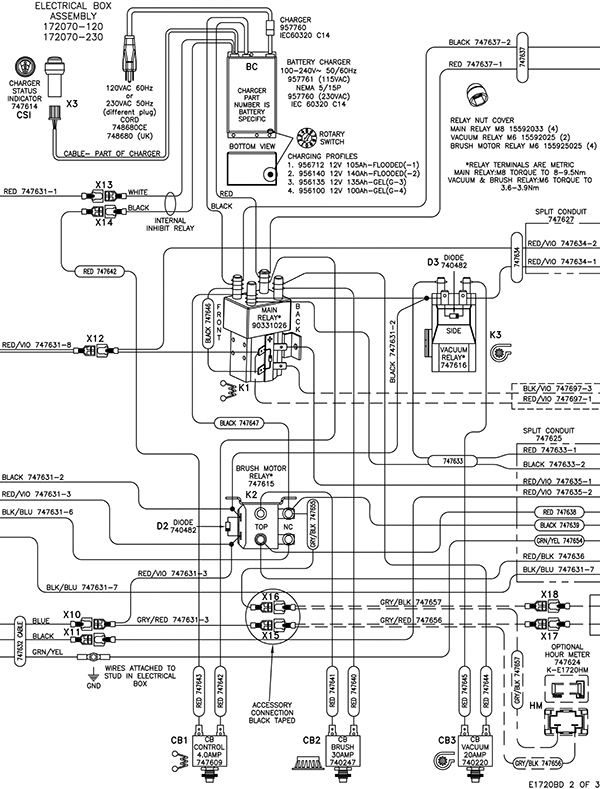

Wiring Diagram 2 -

RefNbr Part Number Description Req Notes

Wiring Diagram 3 -

RefNbr Part Number Description Req Notes

- Batteries, Brushes and Chargers - 174-2279
RefNbr Part Number Description Req Notes
162-0011 12V 105Ah wet battery (SNSR) 2
174-7106 Onboard battery charger assembly DO NOT ORDER 1
174-9037 Nylon scrubbing brush 1
174-9604 Heavy grit stripping brush - 80 grit 1
174-9605 Medium grit scrubbing brush - 120 grit 1
255-2055 20 inch Ruff non-abrasive brush pad (pkg of 2) 1

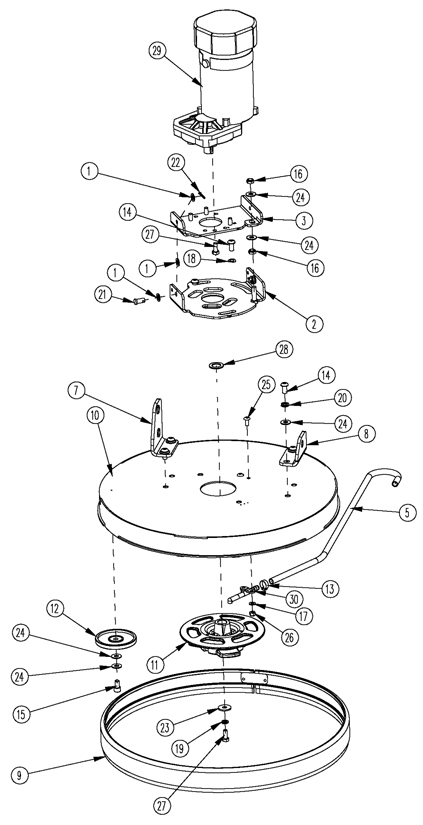

Brush Deck Assembly - 174-6463
RefNbr Part Number Description Req Notes
1 999-1363 Washer 7/8 flat stainless steel 6
2 174-8306 Deck angle weldment 1
3 174-8307 Motor mount plate 1
5 274-3007 Hose 3/8 X 22 1/2 inch reinforced nylon 1
7 174-7180 Right hand scrub deck mounting bracket 1
8 174-7181 Left hand scrub deck mounting bracket 1
9 274-6772 Brush deck skirt 1
10 274-8325 20 inch deck cover weldment 1
11 274-5508 HUB ASSEMBLY, DISC DECK 1
12 174-5216 Roller wheel 1
13 997-2001 Hose clamp 1
14 174-7182 Screw 3/8-24 x 3/4 steel plated 6
15 174-8868 Screw 3/8-24 x 5/8 steel plated 1
16 999-0324 Nut 3/8-16 nylon insert lock jam zinc plated 2
17 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel 2
18 999-0120 Washer 3/8 SAE flat 2
19 999-0028 Washer 5/16 split lock plain finish 1
20 999-0034 Washer 3/8 split lock plain finish 4
21 174-8312 Clevis pin 3/8 x 3/4 2
22 174-1039 Cotter pin 1/8 x 1 2
23 174-8169 Washer flat .37 x 1.12 x .10 1
24 999-1363 Washer 7/8 flat stainless steel 8
25 999-0567 Screw 1/4-20 x 5/8 pan head phillips stainless steel 2
26 999-0294 Nut 1/4-20 hex nylon lock type NE stainless steel 2
27 999-1133 Bolt M8-1.25 x 20mm hex head full thread plain 5
28 999-1134 Washer 1 1/4 flat stainless steel 1
29 174-8313 24v brush motor 1
30 174-8314 Solution feed nozzle 1
N/S 999-0617 Washer 3/8 x 1 flat stainless steel 1

- Pads - 255-2000
RefNbr Part Number Description Req Notes
01 255-2040 20 inch aqua plus burnishing pad (pkg of 5)
02 255-2035 20 inch Armadillo concrete scrubbing pad (pkg of 5)
03 255-2064 20 inch Blue ace pad (pkg of 5)
04 255-2042 20 inch Blue Jay burnishing pad (pkg of 5)
05 255-2012 20 inch Cure white pad (pkg of 5)
06 255-2077 20 inch Diamondback extreme stripping pad (pkg of 5)
07 255-2038 20 inch EHD Extra Heavy Duty Concrete Leveling Pad (pkg of 2
08 255-2021 20 inch gorilla lite burnishing pad (pkg of 5)
09 255-2050 20 inch gorilla spray buff/polish/burnish pad (pkg of 5)
10 255-2065 20 inch Heat concrete bonding pad (pkg of 5)
11 255-2030 20 inch jaguar burnishing pad (pkg of 5)
12 255-2067 20 inch Laminated 2001 Gorilla polish pad (pkg of 5)
13 255-2087 20 inch Melamine Mela-Kleen pad (pkg of 2)
14 255-2068 20 inch Microclean daily cleaning pad (pkg of 2)
15 255-2069 20 inch Micropolish polishing and burnishing pad (pkg of 2)
16 255-2090 20 inch premium black stripping pad (pkg of 5)
17 255-2070 20 inch premium blue cleaning pad (pkg of 5)
18 255-2092 20 inch premium brown stripping pad (pkg of 5)
19 255-2080 20 inch premium green scrubbing pad (pkg of 5)
20 255-2060 20 inch premium red scrubbing pad (pkg of 5)
21 255-2052 20 inch premium tan polishing pad (pkg of 5)
22 255-2020 20 inch premium white polishing pad (pkg of 5)
23 255-2011 20 inch superspeed rubberized pad (pkg of 5)
24 255-2095 20 inch razorback stripping pad (pkg of 5)
25 255-2047 20 inch Redwood maroon floor prep pad (pkg of 10)
26 255-2055 20 inch Ruff non-abrasive brush pad (pkg of 2)
27 255-2023 20 inch sand screen driver pad (pkg of 2)
28 255-0157 20 inch Professional sand screen 100 grit (pkg of 10)
29 255-0021 20 inch Professional sand screen 120 grit (pkg of 10)
30 255-0158 20 inch Professional sand screen 150 grit (pkg of 10)
31 255-0159 20 inch Professional sand screen 180 grit (pkg of 10)
32 255-0160 20 inch Professional sand screen 220 grit (pkg of 10)
33 255-0161 20 inch Professional sand screen 400 grit (pkg of 10)
34 255-0030 20 inch Professional sand screen 60 grit (pkg of 10)
35 255-0020 20 inch Professional sand screen 80 grit (pkg of 10)
36 255-0249 20 inch Superscreen sand screen 100 grit (pkg of 10)
37 255-0250 20 inch Superscreen sand screen 120 grit (pkg of 10)
38 255-0251 20 inch Superscreen sand screen 150 grit (pkg of 10)
39 255-0252 20 inch Superscreen sand screen 180 grit (pkg of 10)
40 255-0253 20 inch Superscreen sand screen 220 grit (pkg10) (OBSOLETE)
41 255-0254 20 inch Superscreen sand screen 400 grit (pkg of 10)
42 255-0247 20 inch Superscreen sand screen 60 grit (pkg of 10)
43 255-0248 20 inch Superscreen sand screen 80 grit (pkg of 10)
45 255-9591 20 inch Diamond by Gorilla 11000 Grit (pkg of 2)
46 255-9588 20 inch Diamond by Gorilla 1500 Grit (pkg of 2)
47 255-9585 20 inch Diamond by Gorilla 200 Grit (pkg of 2)
48 255-9589 20 inch Diamond by Gorilla 3000 Grit (pkg of 2)
49 255-9586 20 inch Diamond by Gorilla 400 Grit (pkg of 2)
50 255-9587 20 inch Diamond by Gorilla 800 Grit (pkg of 2)
51 255-9590 20 inch Diamond by Gorilla 8000 Grit (pkg of 2)
52 255-9645 20 inch Diamond starter pack (1 of each grit)
53 255-2082 20 inch Turbostrip segmented rotary pad (pkg of 4)
54 255-2015 20 inch Duala clean and shine pad - low speed (pkg of 5)
55 255-2016 20in 2001 Duala clean& shine pad-high speed(pkg 5) (OBSOLETE

- Pad Holders - 275-9029
RefNbr Part Number Description Req Notes
1 991-2214 Center-Lok II pad holder - left hand thread (red)
2a 991-2201 Center-Lok II pad holder - right hand thread (black) (Pad driver side female, Floor side male)
2b 991-8577 Pad retainer (Pad driver side male, Floor side female)
3a 991-2202 Big mouth pad holder set (blue) (includes 3 screws)
3b 991-2205 Deep lock ring and pad grip ring
4 991-2203 Big mouth pad holder male thread portion
5 991-2206 Center-Lok 3 pad holder (includes 3 screws)
6 996-0372 Big mouth pad holder (left hand thread)
7 N/A Not available
8 991-2209 Split retainer - pad holder ring (OBSOLETE)
9 N/A Not available (replaced by #3 991-2202)
10 991-2211 Center lock pad holding cup (male) (yellow) (OBSOLETE)
Webpage Problem Reporting
